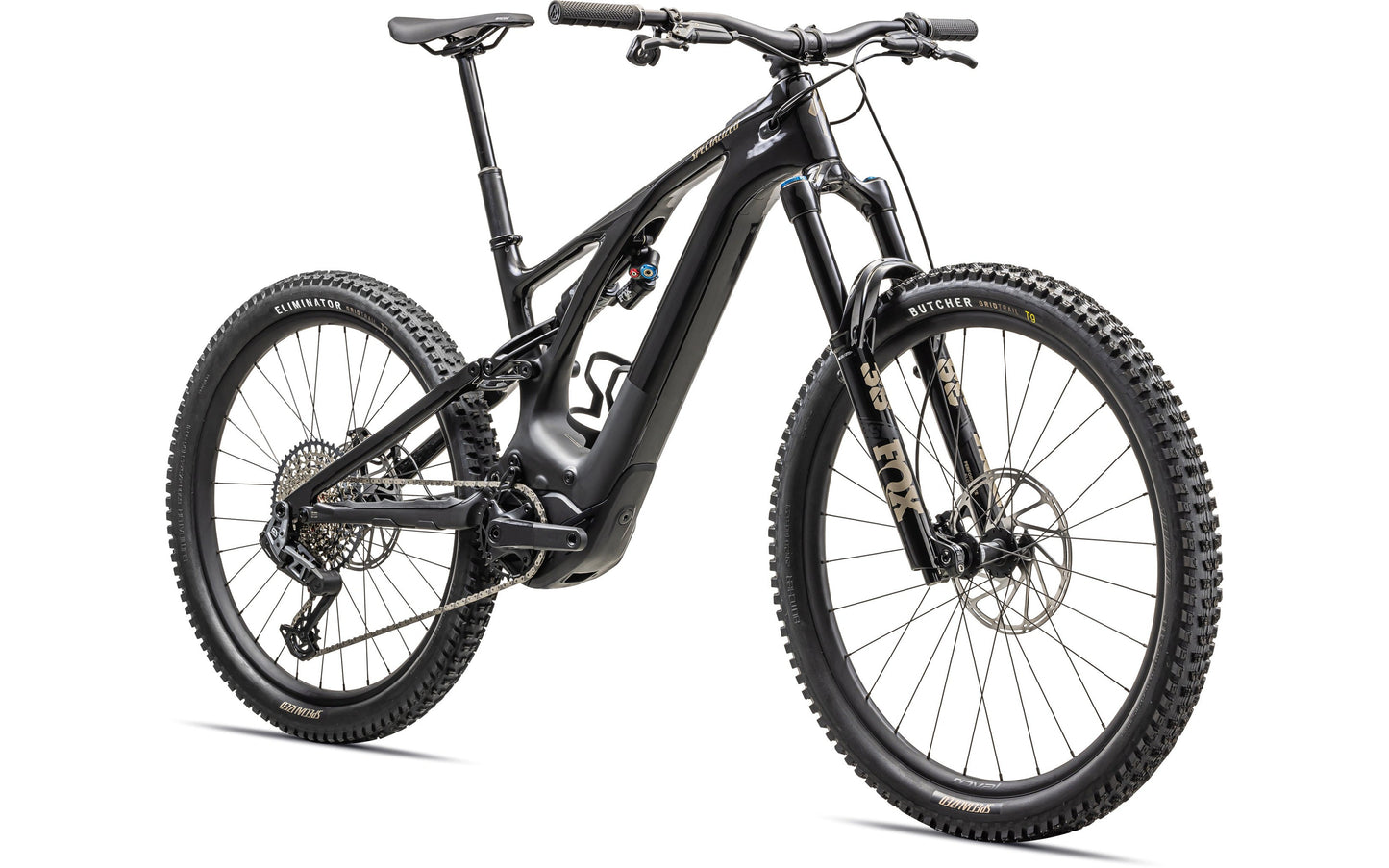

Turbo Levo Expert T-Type

Turbo Levo Expert T-Type

SKU: 95223-3804

MSRP 180,000.00
MSRP 180,000.00 MSRP 180,000.00
Sale Sold out
VAT included.
Color
Size

1 - Available

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Read More

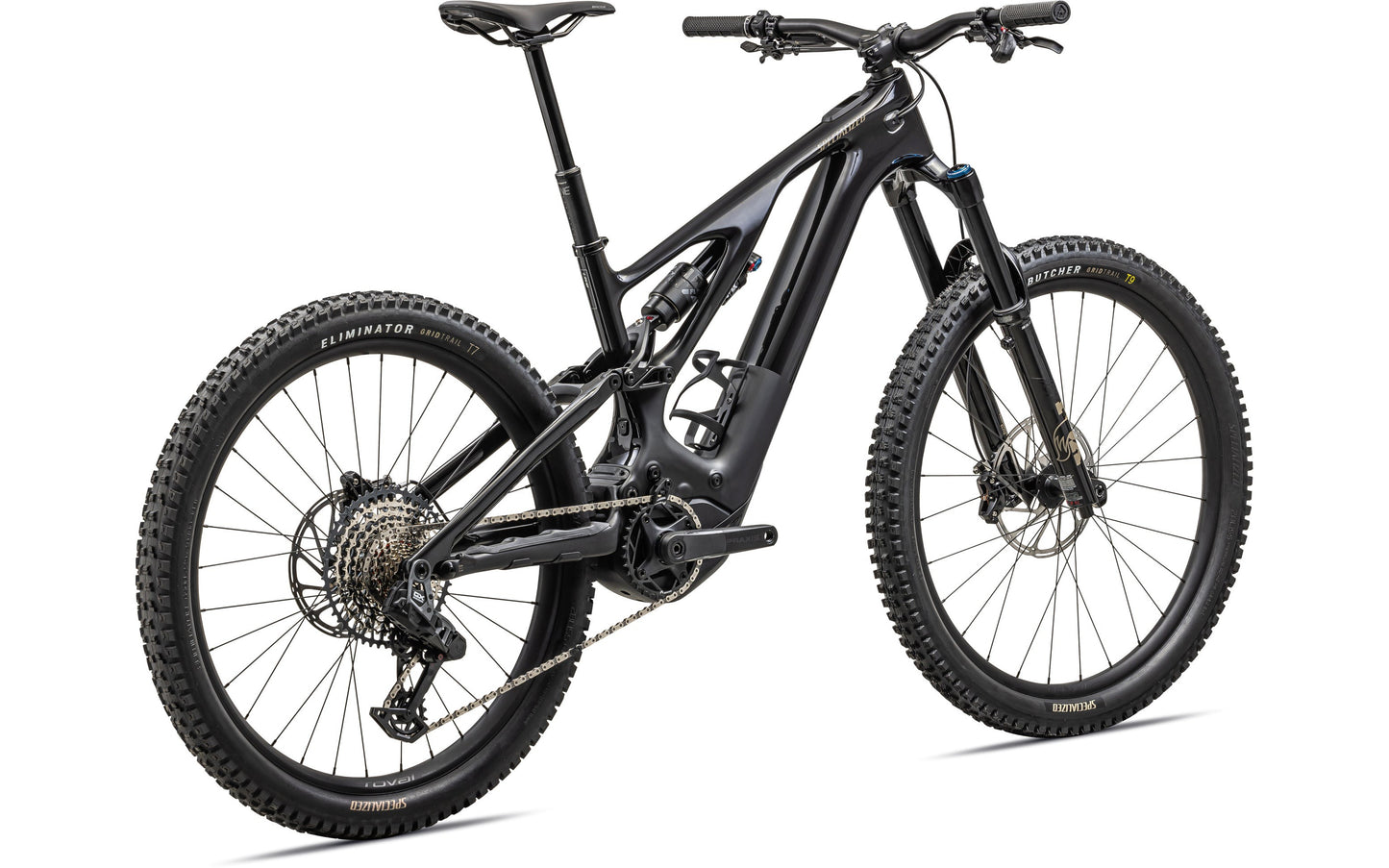

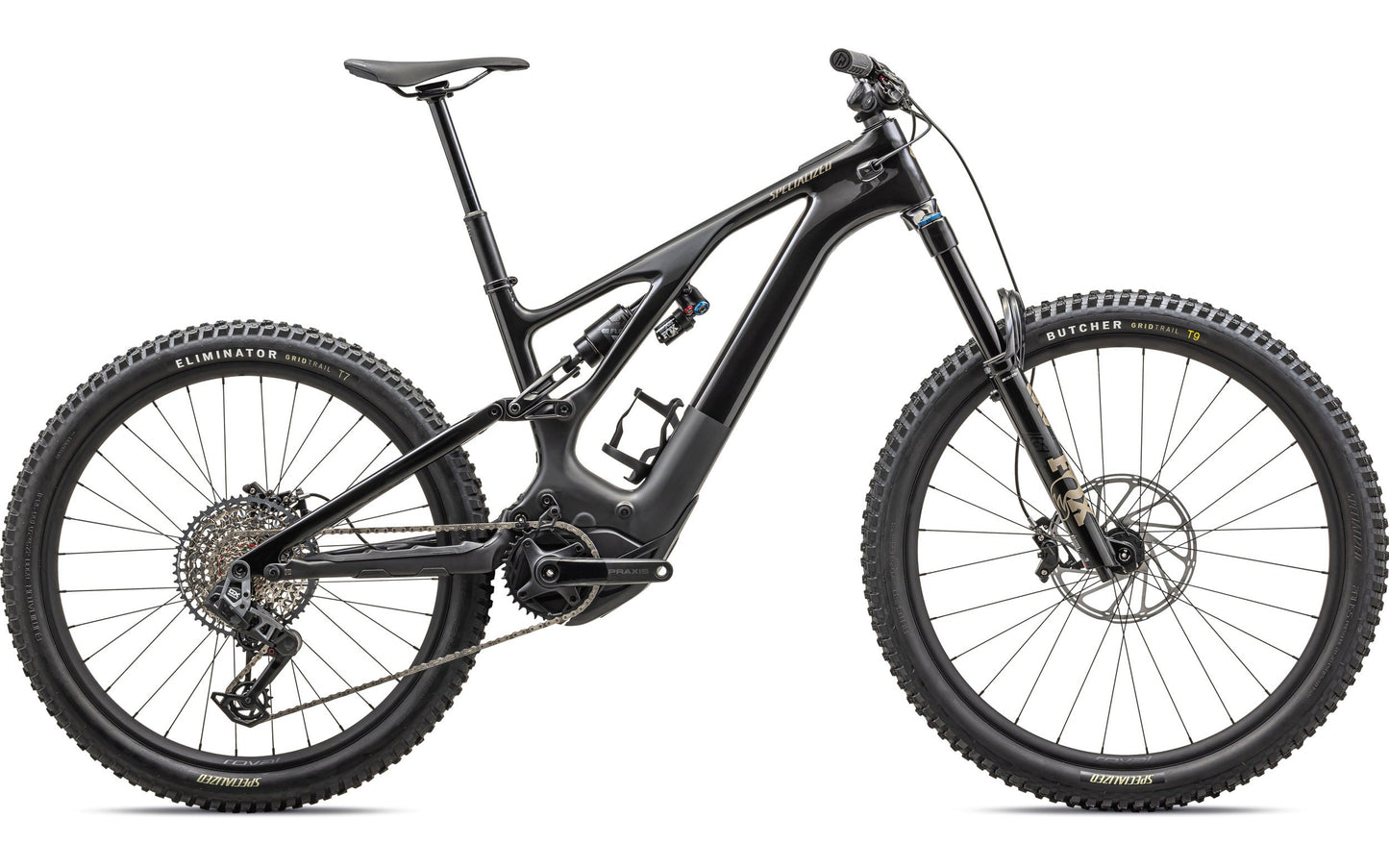

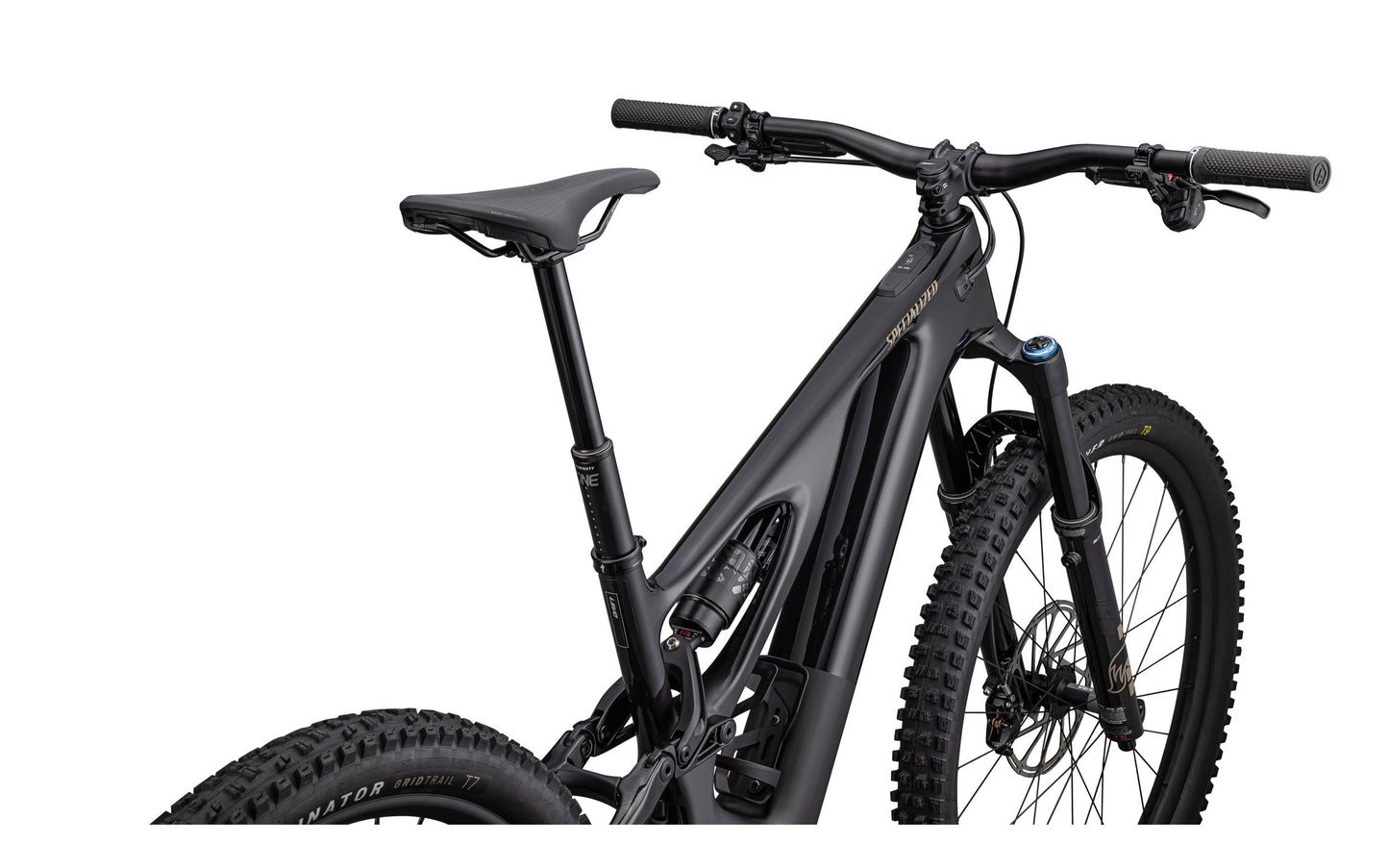

Turbo Levo Expert T-Type

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

Here’re where the gloves come off—the Levo Expert brings it with SRAM’s new AXS GX Eagle Transmission 12-speed drivetrain, dialed-in FOX Performance Elite suspension, and a high-performing Roval Traverse wheelset.

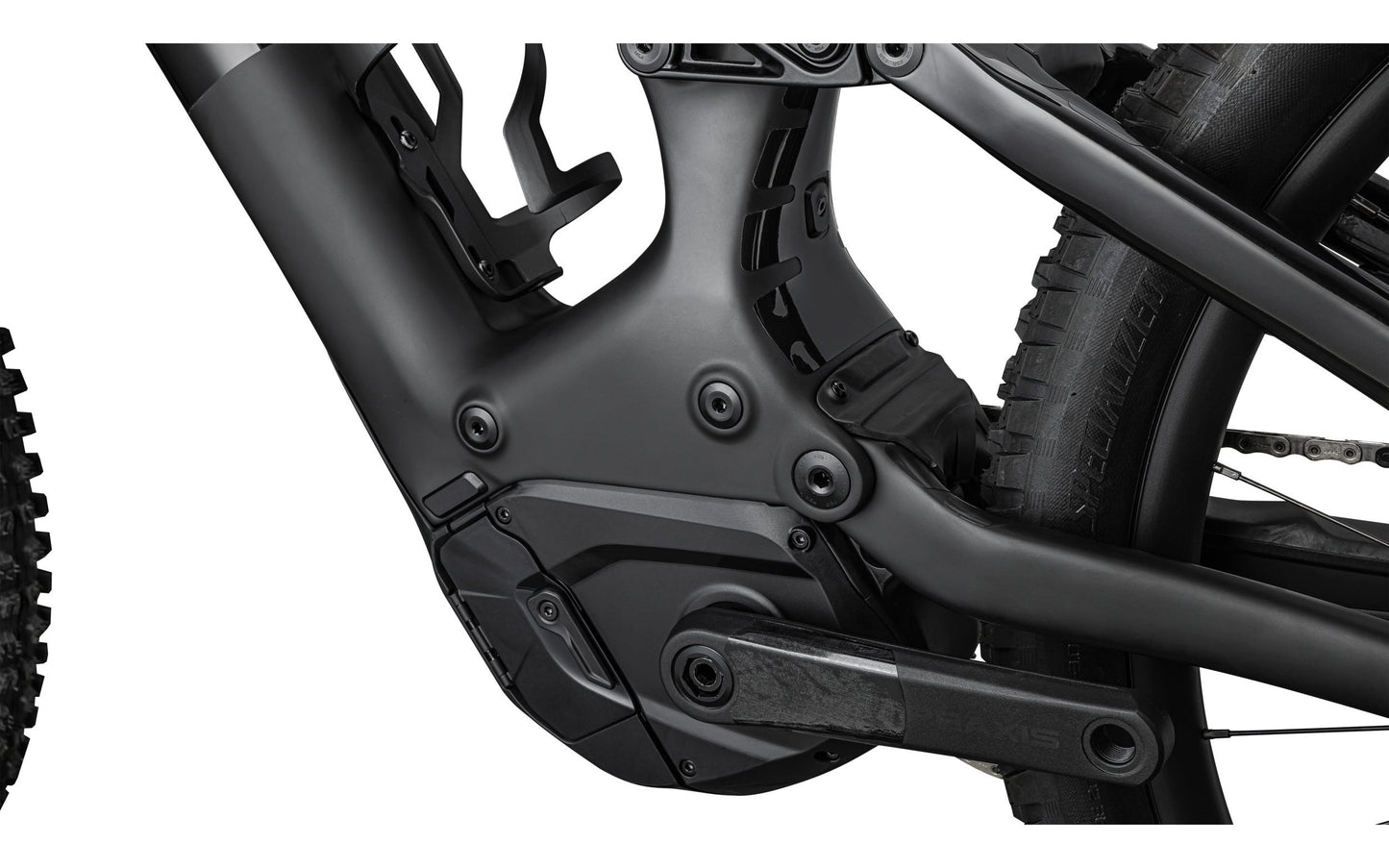

  • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

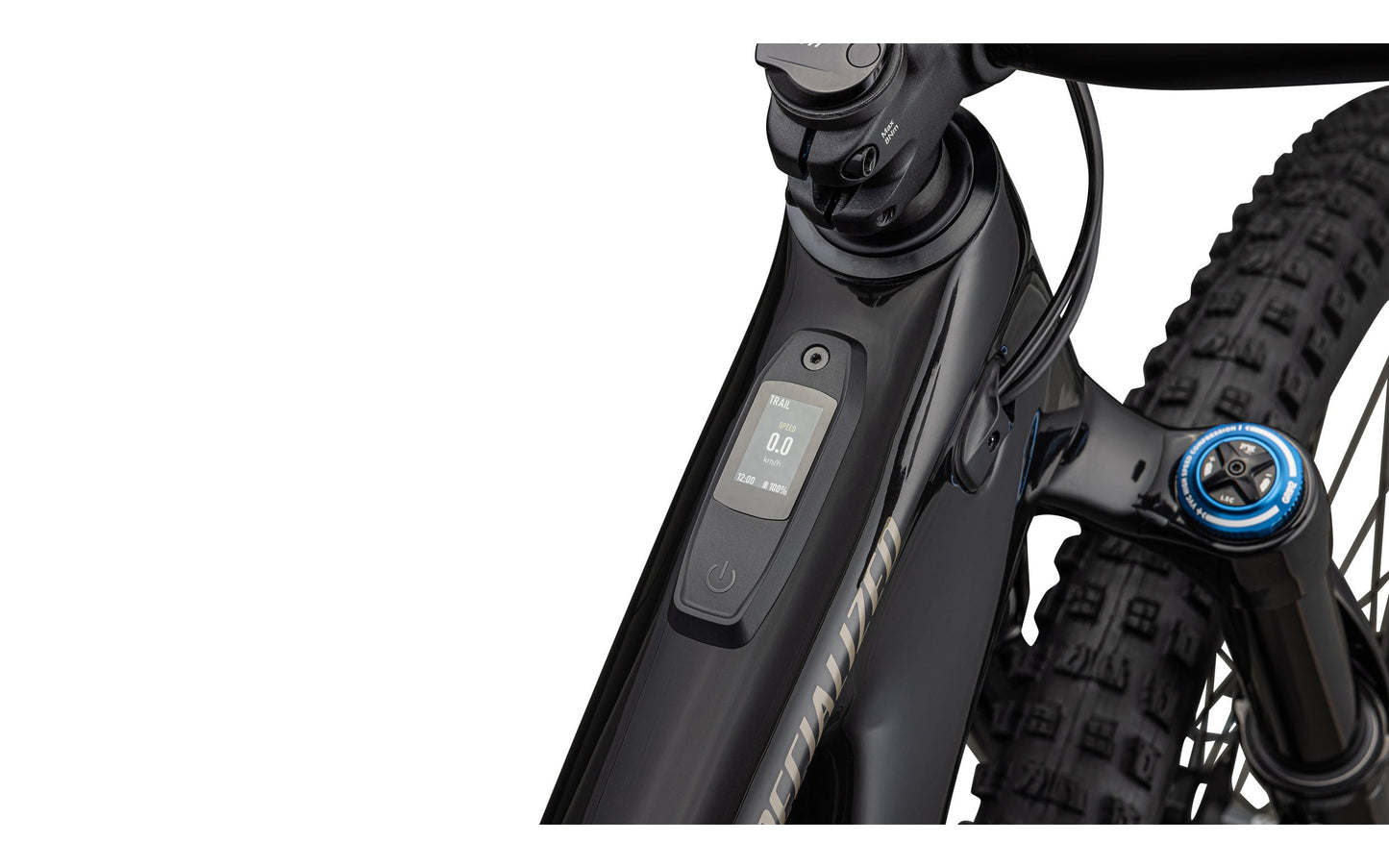

  • The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

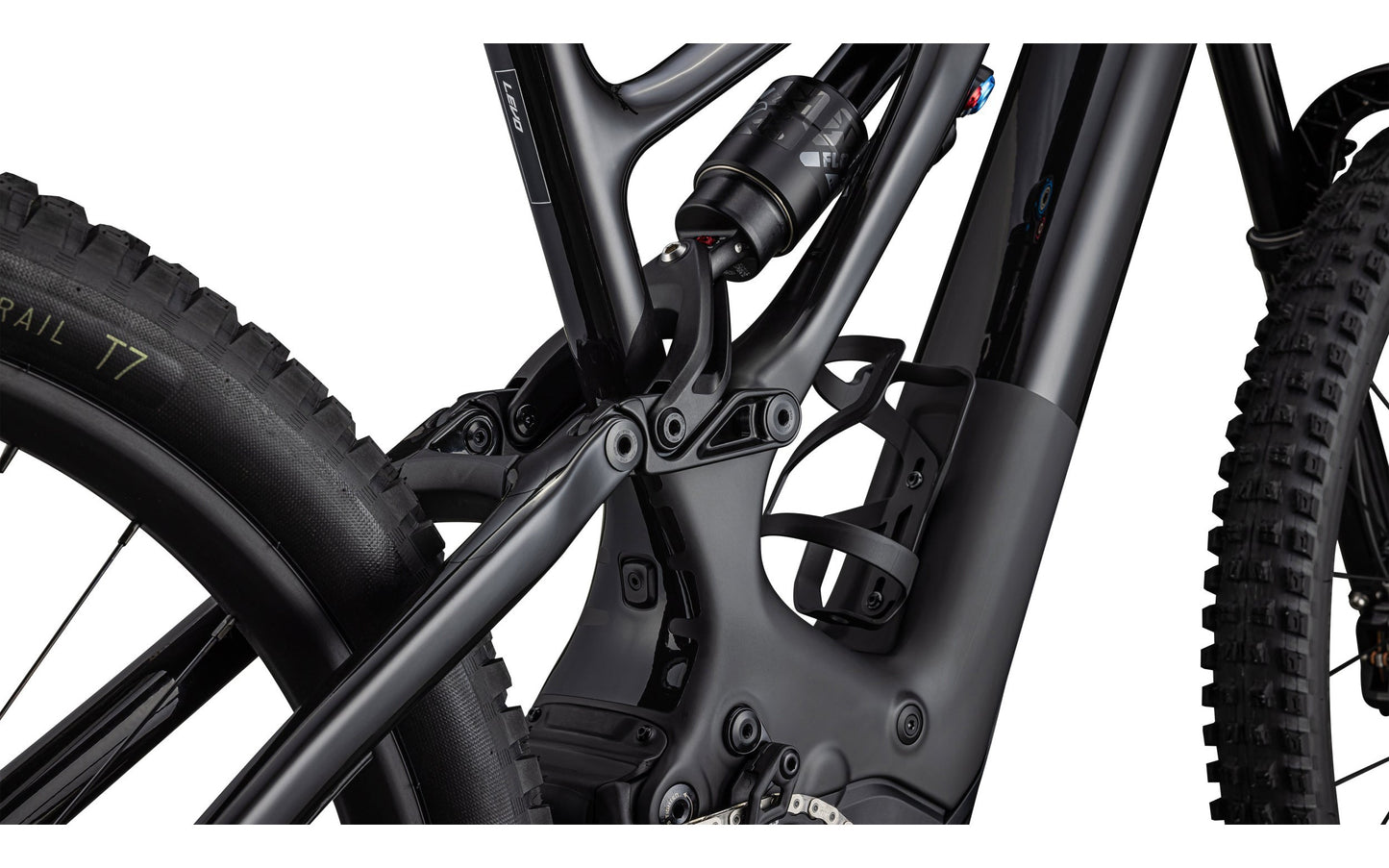

  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
View full details

Technical Specifications

Frameset



Frame

FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

Seat Binder

Alloy, 38.6mm



Suspension

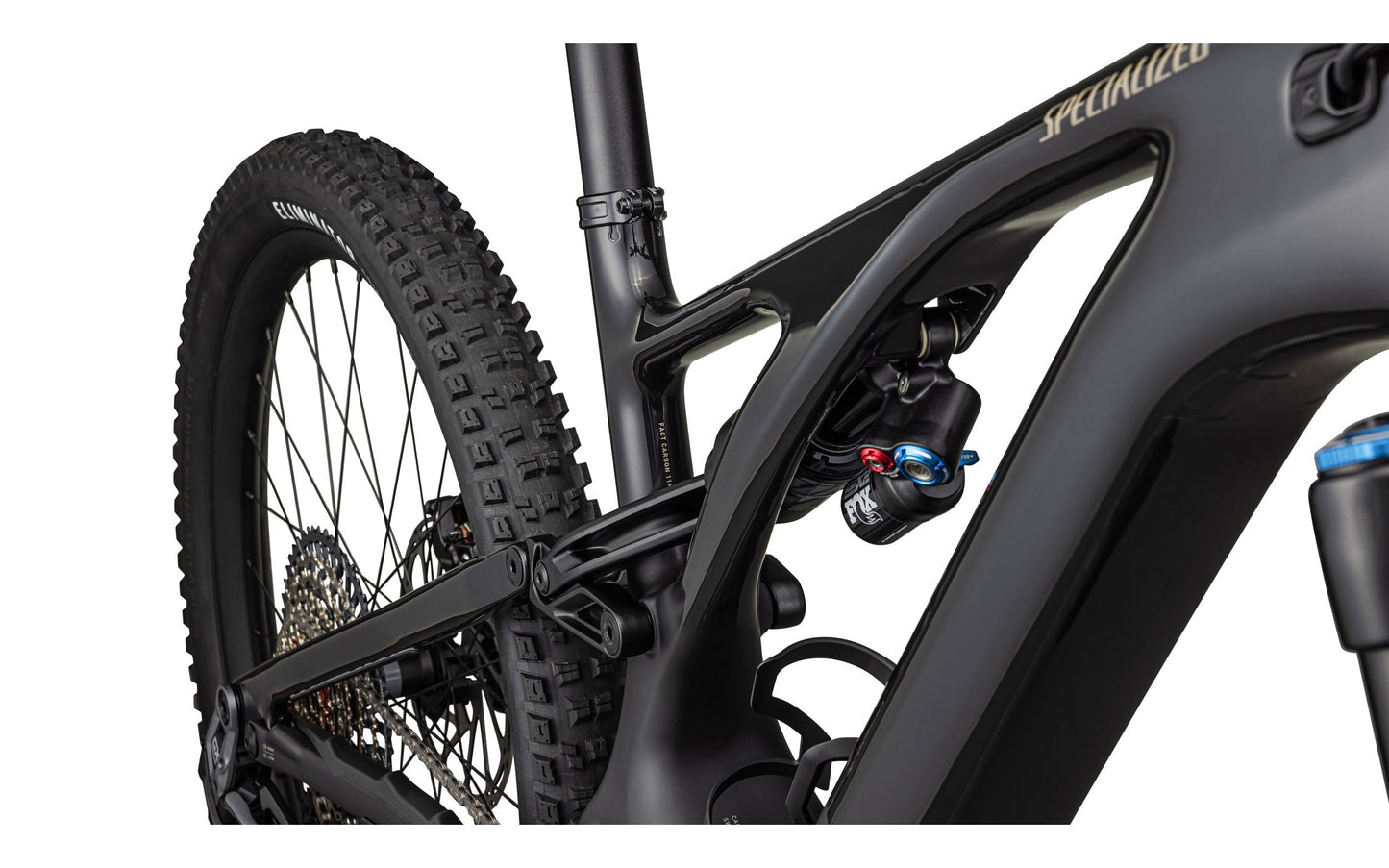

Rear Shock

S2-S6: Fox Float X2 Performance Elite series, 210x55mm, S1: Fox Float DPS Performance Elite series, 210x52.5mm

Fork

Fox 38 Performance Elite, Grip 2 damper, 29", 160mm travel, 44mm offset



E-Bike



Motor

Specialized 2.2 Custom Rx Trail Tuned Motor

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote

Battery

Specialized M3-700, Integrated battery, 700Wh

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Wiring Harness

Custom Specialized wiring harness



Cockpit



SeatPost

OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)

Stem

Alloy Trail Stem, 35mm bar bore

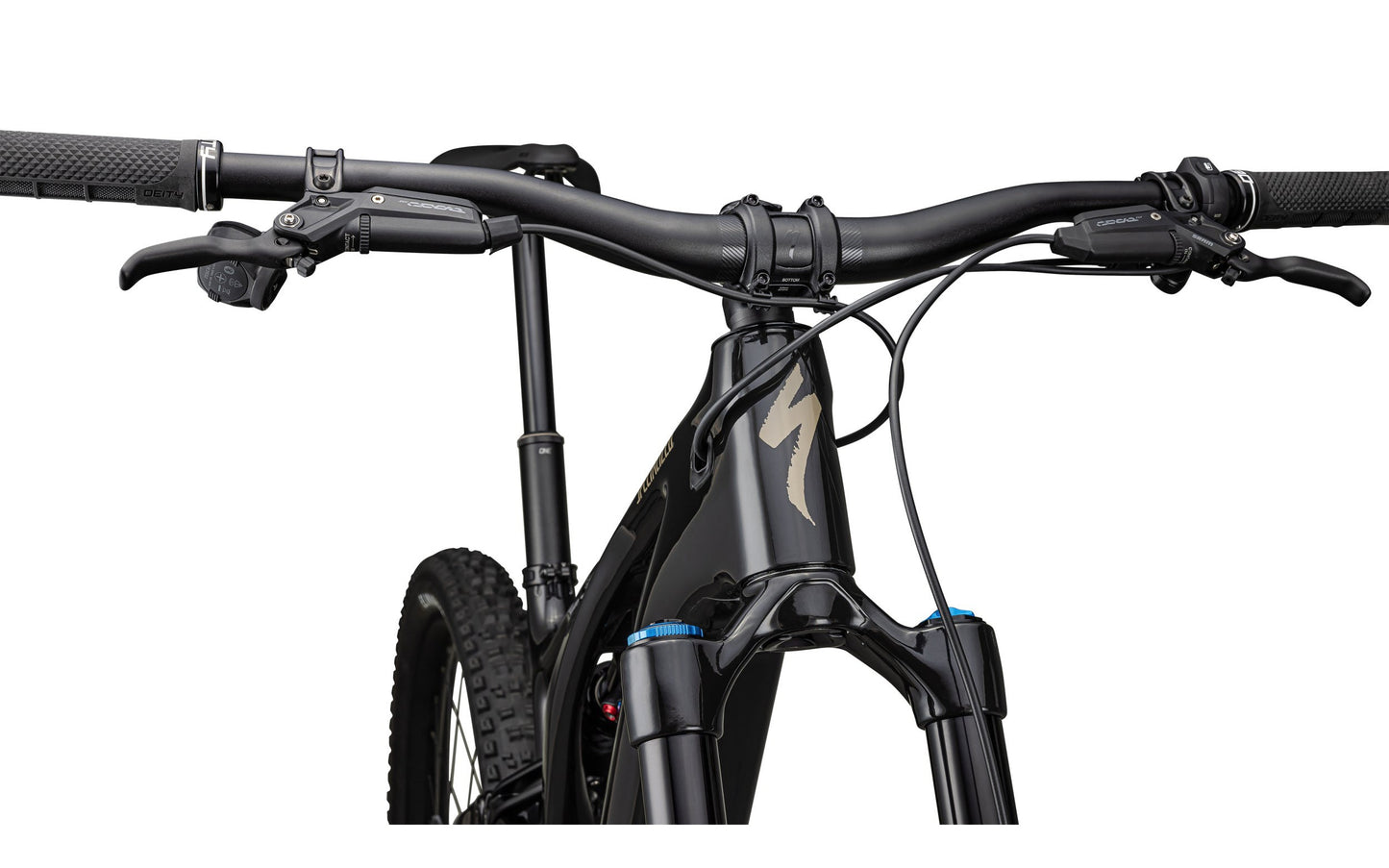

Handlebars

Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 780mm, 35mm clamp

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

Grips

Deity Grips



Brakes



Front Brake

SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm rotor

Rear Brake

SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm rotor



Drivetrain



Rear Derailleur

SRAM GX Eagle Transmission Derailleur

Shift Levers

SRAM AXS POD Controller

Cassette

SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

Chain

SRAM GX Eagle Transmission Flattop Chain

Crankset

Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

Chainrings

New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring



Wheels & Tires



Front Wheel

Traverse 29

Rear Wheel

Traverse 27.5

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

Inner Tubes

Standard, Presta Valve



Accessories



Pedals

PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED

SWAT

SWAT CC steerer tube integrated tool with chain tool and link



Weight



Weight

23.04kg (50 lb, 12.7 oz)

Weight Size

S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Geometry






 S1S2S3S4S5S6
Crank Length160mm160mm160mm160mm160mm160mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length40mm40mm40mm40mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length120mm150mm150mm180mm210mm210mm
Stack605mm617mm626mm635mm644mm653mm
Reach412mm432mm452mm477mm502mm532mm
Headtube Length105mm105mm115mm125mm135mm145mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
BB Height352mm350mm350mm350mm350mm350mm
BB Drop25mm27mm27mm27mm27mm27mm
Trail130mm130mm130mm130mm130mm130mm
Fork Length (full)557mm567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center738mm760mm784mm814mm843mm878mm
Chainstay Length442mm442mm442mm442mm442mm442mm
Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
Bike Standover Height752mm776mm783mm787mm788mm790mm
Seat Tube Length380mm390mm405mm425mm445mm465mm
Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
Min Seatpost Insertion80mm80mm80mm80mm80mm
