Technical Specifications
WEIGHT
Weight
1.37 kg (3 lb, 0.3 oz)
Weight Size
56cm, as pictured
SUSPENSION
Fork
S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
FRAMESET
Frame

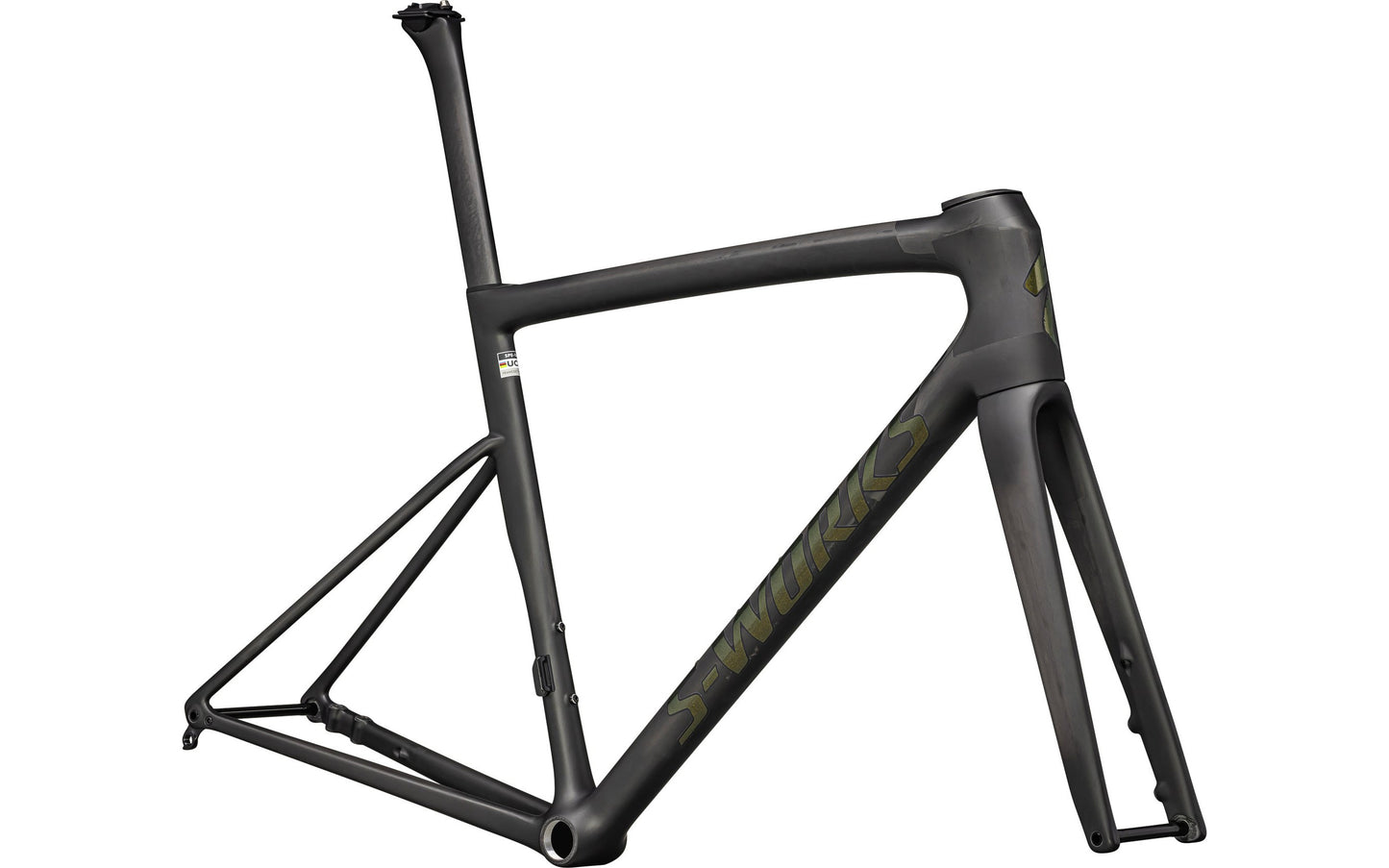

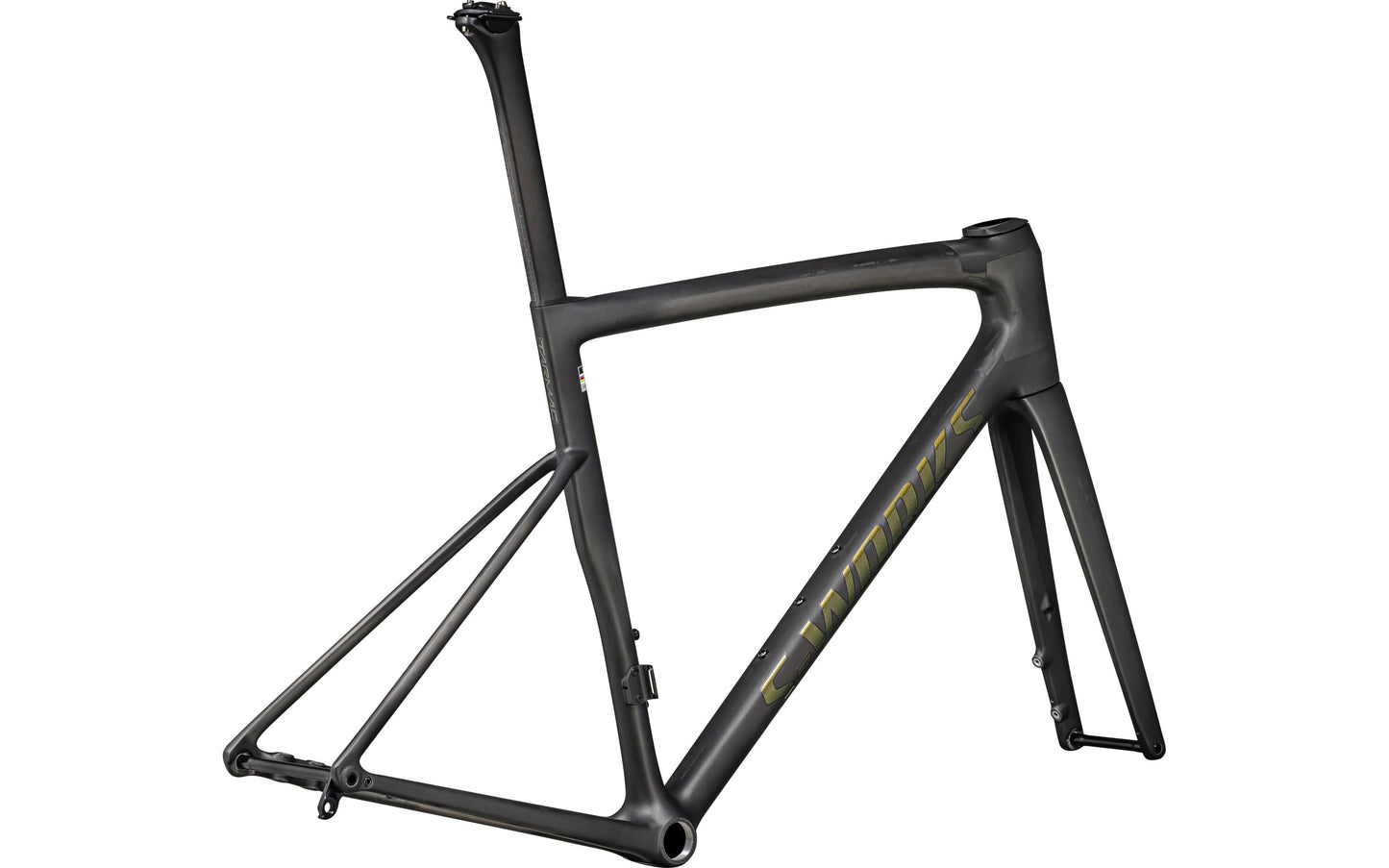

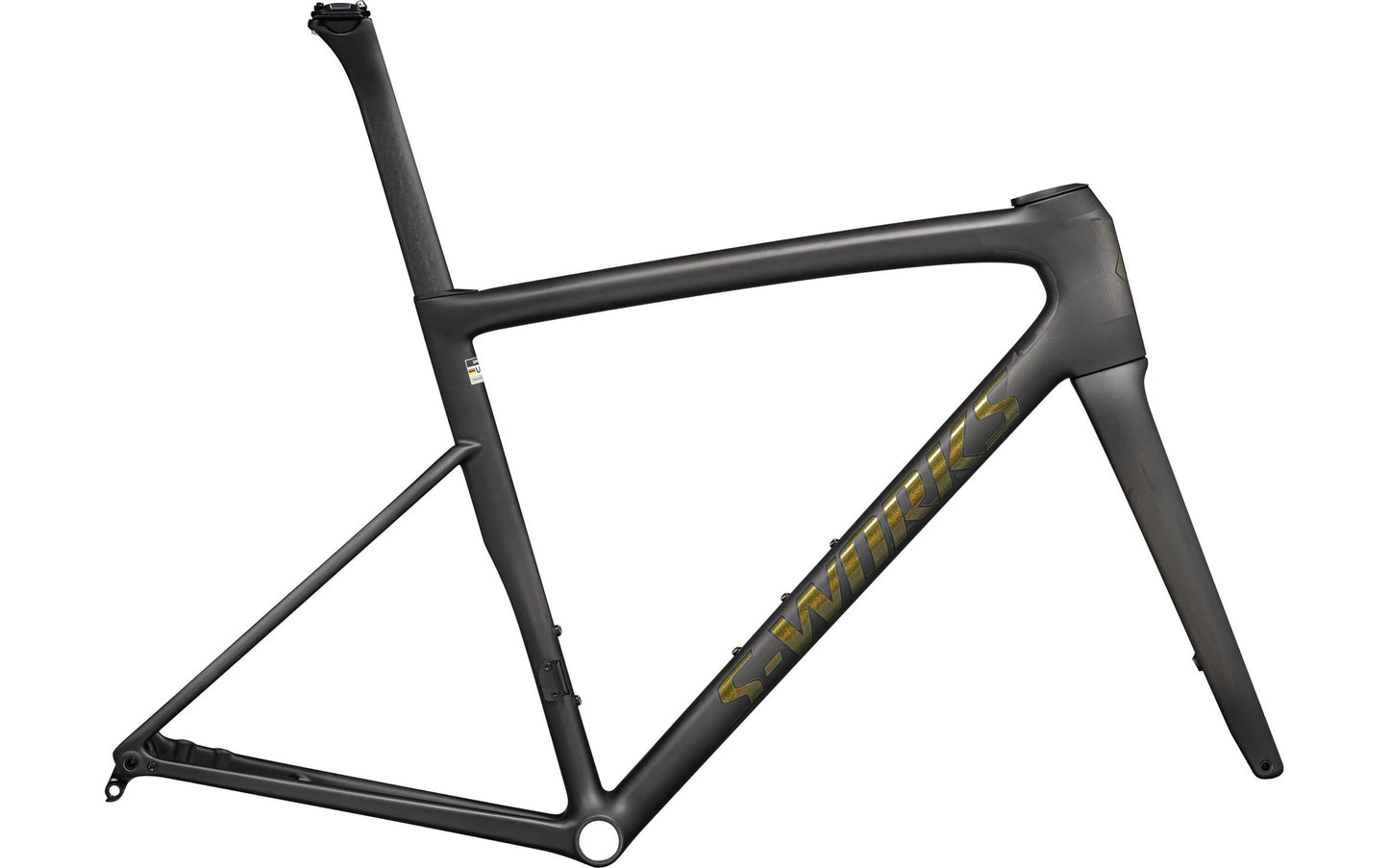

S-Works Tarmac SL8 FACT 12r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc. Satin Carbon/Snake Eye colorway. Decals over a clear coat for easy removal if custom painting is desired. Extra decals are provided with the frame set. The limited warranty provided by Specialized will no longer apply to your paint and graphics upon custom painting. Paint and graphics warranty with Specialized is voided upon custom painting. 685g frame.
COCKPIT
SeatPost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Seat Binder
Tarmac integrated wedge
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
44 | 49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|---|
Seatpost Length | 300mm | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm |
Frame Stack | 501mm | 514mm | 527mm | 544mm | 565mm | 591mm | 612mm |
Frame Reach | 366mm | 375mm | 380mm | 384mm | 395mm | 402mm | 408mm |
Stack to Stem | 509mm | 522mm | 535mm | 552mm | 573mm | 599mm | 620mm |
Reach to Stem | 363mm | 372mm | 377mm | 381mm | 393mm | 400mm | 406mm |
Head Tube Length | 99mm | 109mm | 120mm | 137mm | 157mm | 184mm | 204mm |
Head Tube Angle | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
BB Height | 266mm | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
BB Drop | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
Trail | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
Fork Length, Full | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm |
Fork Rake/Offset | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 572mm | 574mm | 577mm | 579mm | 592mm | 606mm | 613mm |
Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
Wheelbase | 970mm | 973mm | 975mm | 978mm | 991mm | 1006mm | 1013mm |
Top Tube Length, Horizontal | 496mm | 509mm | 531mm | 541mm | 563mm | 577mm | 595mm |
Bike Standover Height | 723mm | 735mm | 746mm | 768mm | 786mm | 808mm | 834mm |
Seat Tube Length | 433mm | 445mm | 456mm | 473mm | 494mm | 515mm | 545mm |
Seat Tube Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
