Technical Specifications
Frameset
Frame
FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
SWAT
SWAT 4.0 internal downtube storage
Seat Binder
Alloy, 38.6mm
Suspension

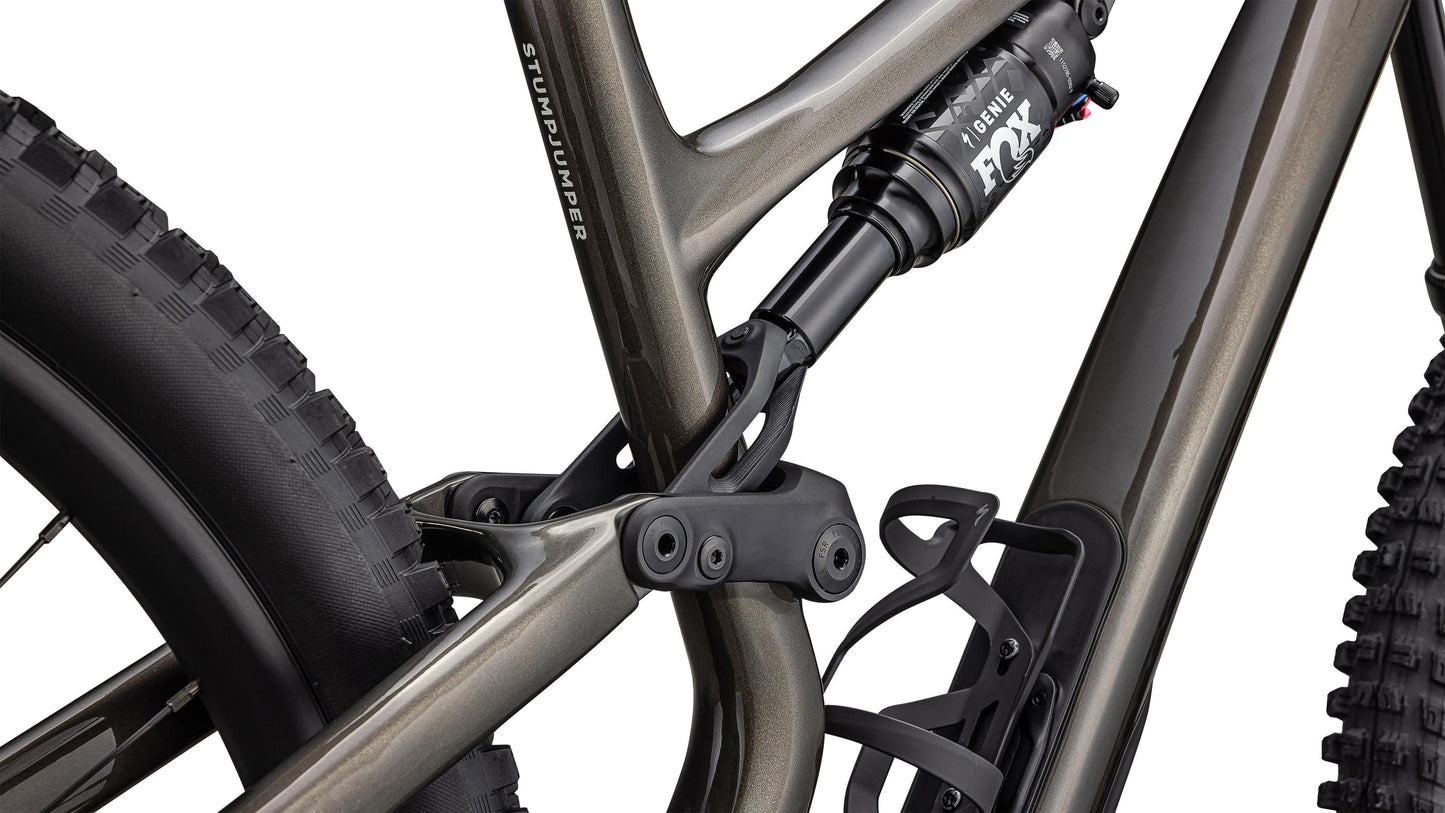

Rear Shock
FOX FLOAT Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S1:210x52.5mm, S2-S6:210x55mm
Fork
FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, S1:140mm of travel, S2-S6:150mm of travel
Cockpit
SeatPost
PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 200mm
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm

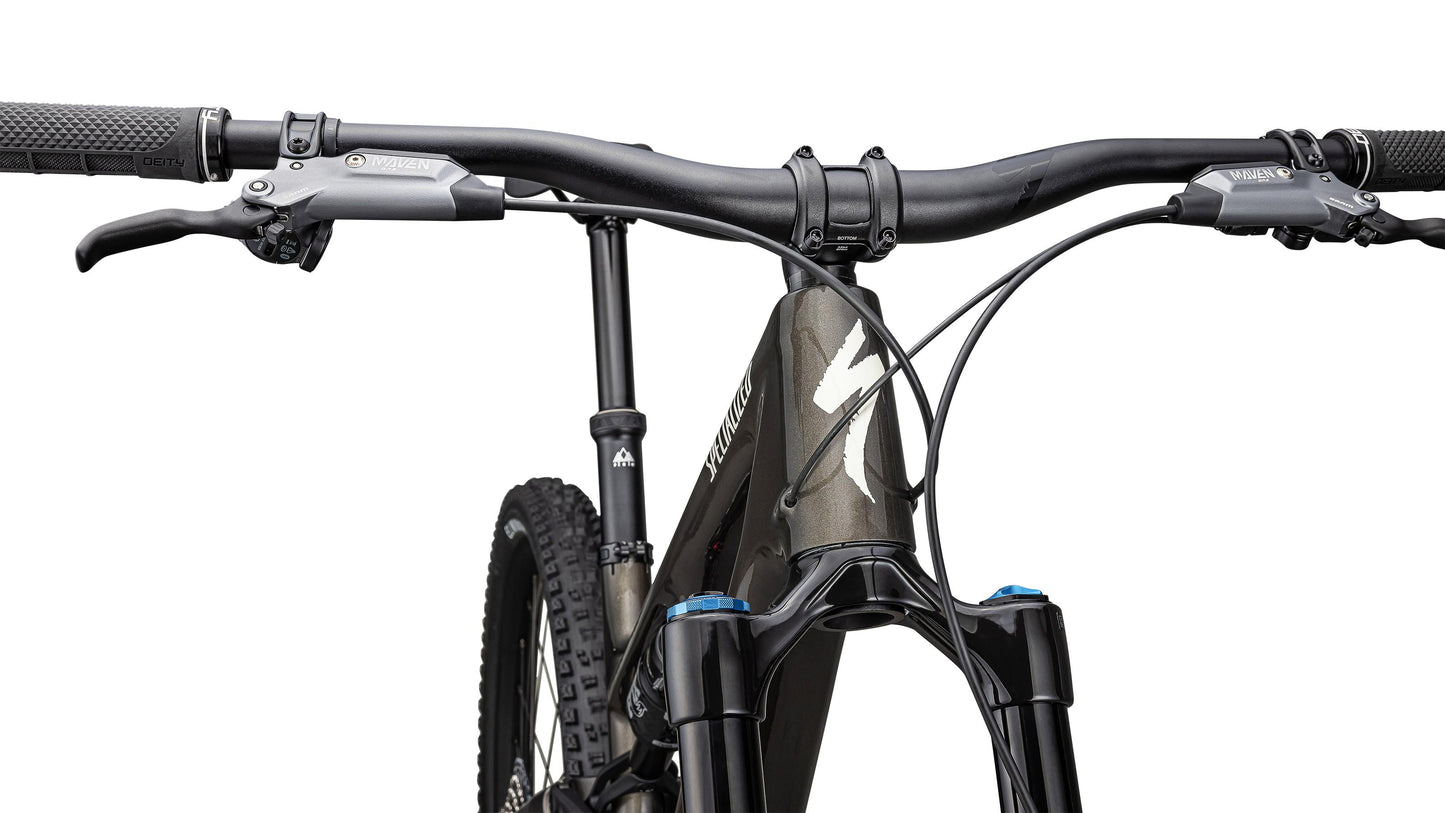

Handlebars
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S4: 800 width, 30mm rise: S5-S6: 800 width, 40mm rise
Grips
Deity Lockjaw
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 200mm HS2 Rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Chain
SRAM GX Eagle Transmission Flattop Chain
Crankset
SRAM GX Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm
Bottom Bracket
SRAM DUB, BSA 73mm Wide, Threaded
Wheels & Tires
Rims
Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: S1-S2: 27.5, S3- S6: 29
Front Hub
DT Swiss 370, 15x110mm, 28h
Rear Hub
DT Swiss 370, 12x148mm, 28h
Spokes
Sapim Force
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, S1-S2: 27.5x2.3, S3- S6: 29x2.3"
Inner Tubes
Standard, Presta valve
Weight
Weight
14.47kg (31 lb, 14.4 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S1 | S2 | S3 | S4 | S5 | |
|---|---|---|---|---|---|
| Crank Length | 165mm | 165mm | 165mm | 170mm | 170mm |
| Handlebar Width | 780mm | 780mm | 800mm | 800mm | 800mm |
| Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 150mm | 170mm | 200mm | 200mm |
| Stack | 608mm | 618mm | 627mm | 640mm | 654mm |
| Reach | 400mm | 425mm | 450mm | 475mm | 500mm |
| Headtube Length | 95mm | 100mm | 110mm | 125mm | 140mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 334mm | 337mm | 337mm | 337mm | 337mm |
| BB Drop | 41mm | 38mm | 38mm | 38mm | 38mm |
| Trail | 129mm | 130mm | 130mm | 130mm | 130mm |
| Fork Length (full) | 551mm | 561mm | 561mm | 561mm | 561mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 720mm | 751mm | 780mm | 812mm | 843mm |
| Chainstay Length | 430mm | 432mm | 435mm | 435mm | 445mm |
| Wheelbase | 1149mm | 1181mm | 1213mm | 1244mm | 1285mm |
| Top-tube Length (horizontal) | 541mm | 573mm | 595mm | 624mm | 647mm |
| Bike Standover Height | 738mm | 751mm | 745mm | 745mm | 745mm |
| Seat Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm |
| Seat Tube Angle | 78° | 77° | 77° | 76.5° | 76.5° |
| Saddle Height for Effective ST Angle | 645mm | 690mm | 735mm | 780mm | 825mm |
| Max Seatpost Insertion | 245mm | 245mm | 255mm | 255mm | 285mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm |
