SPECIALIZED

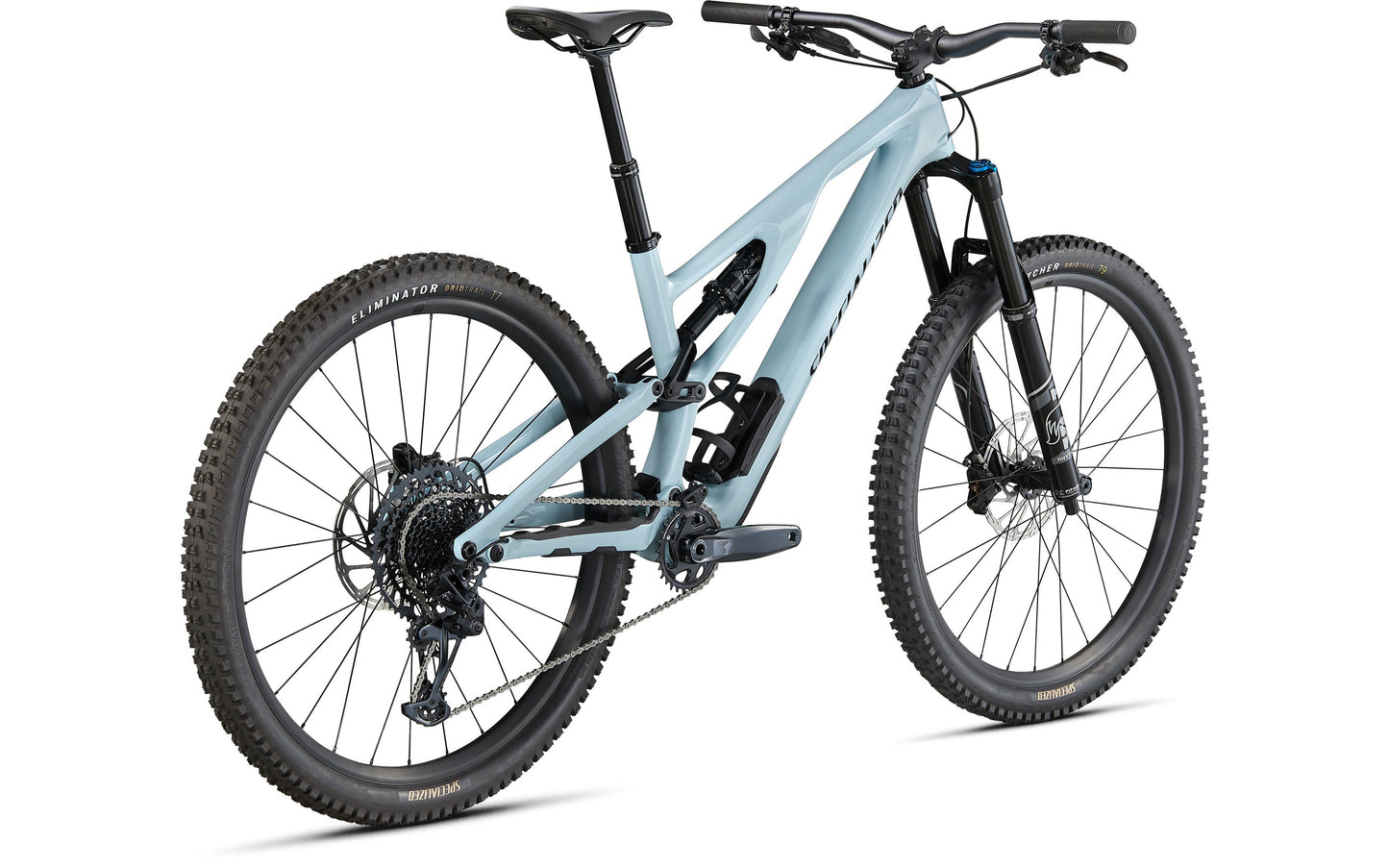

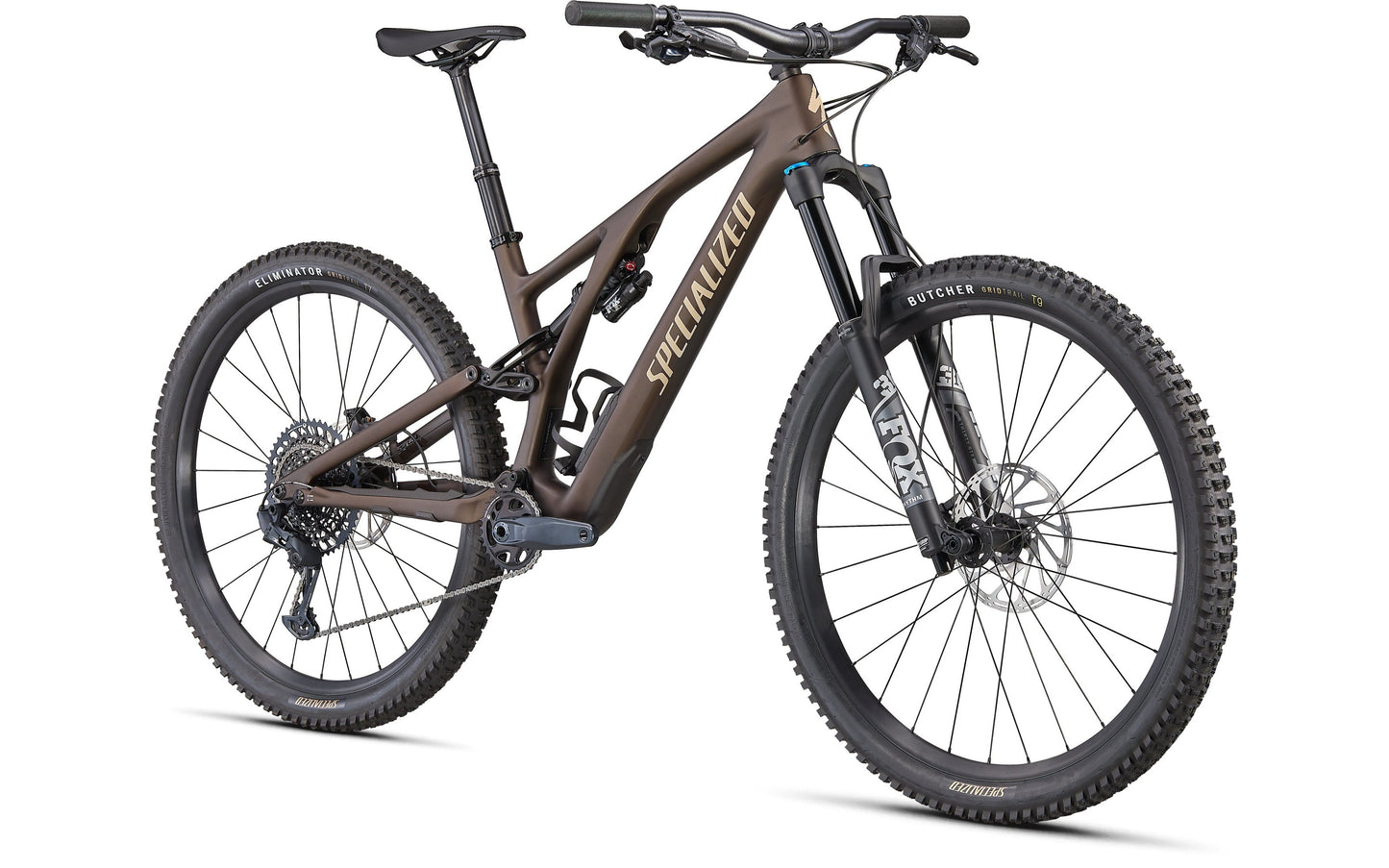

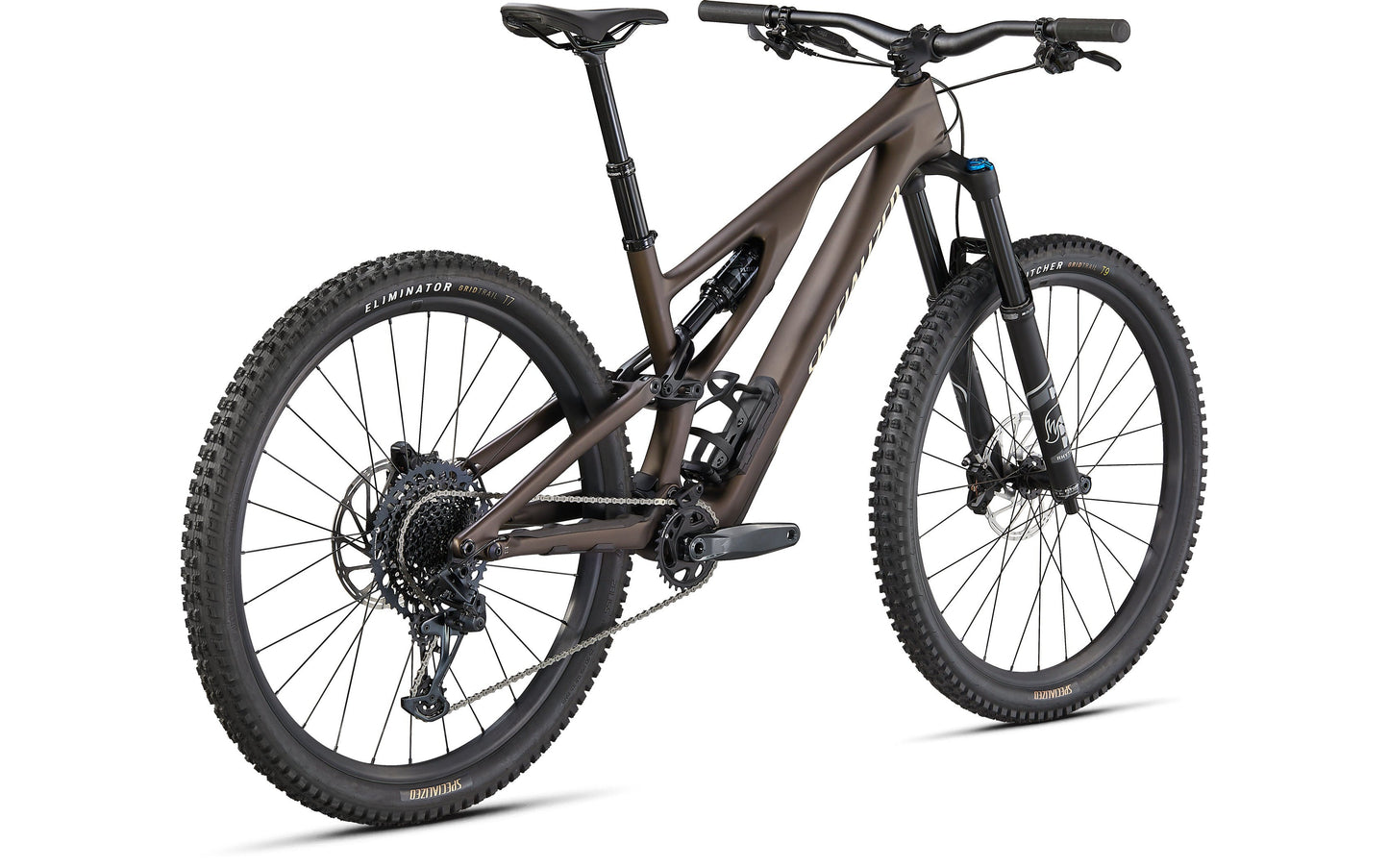

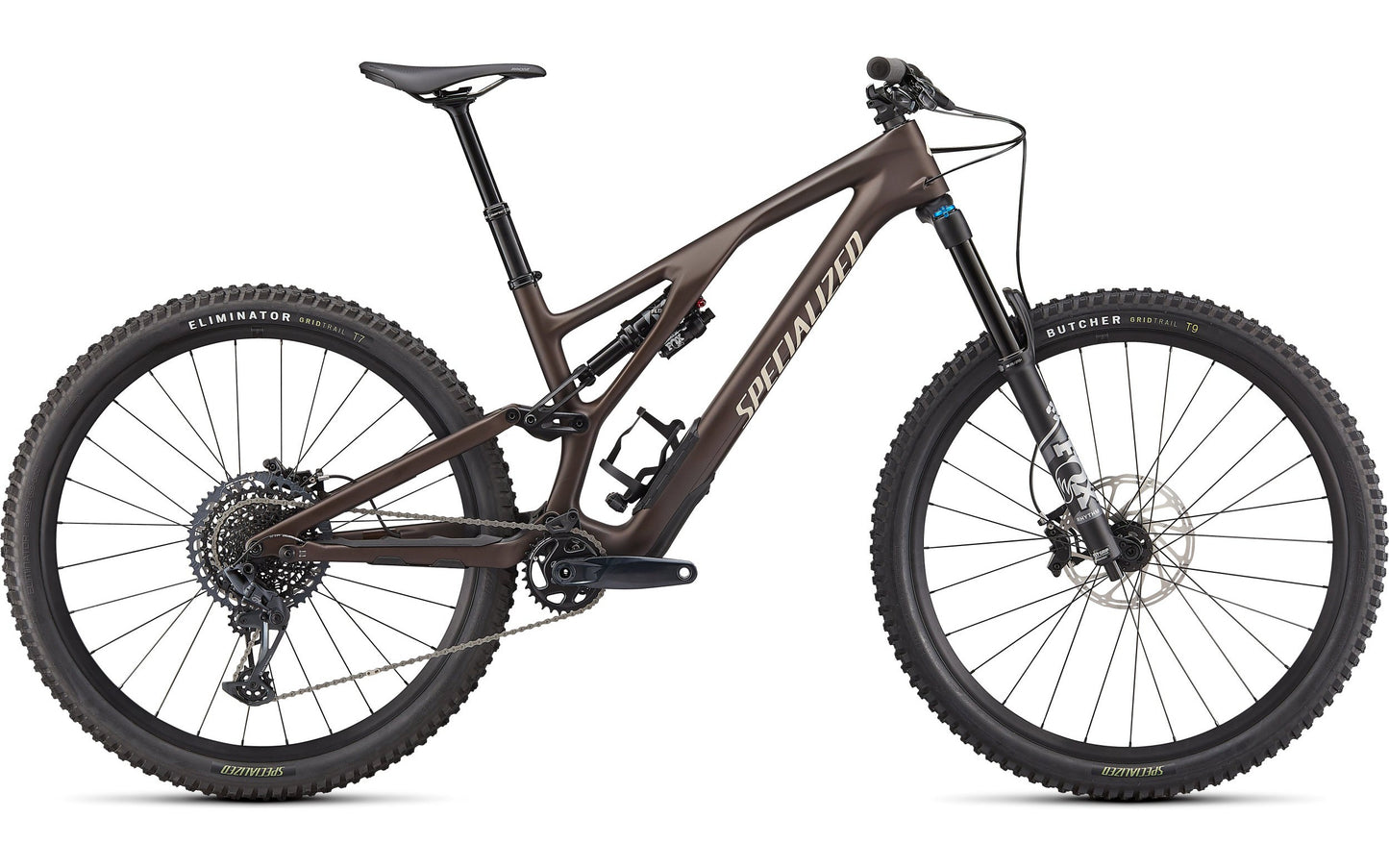

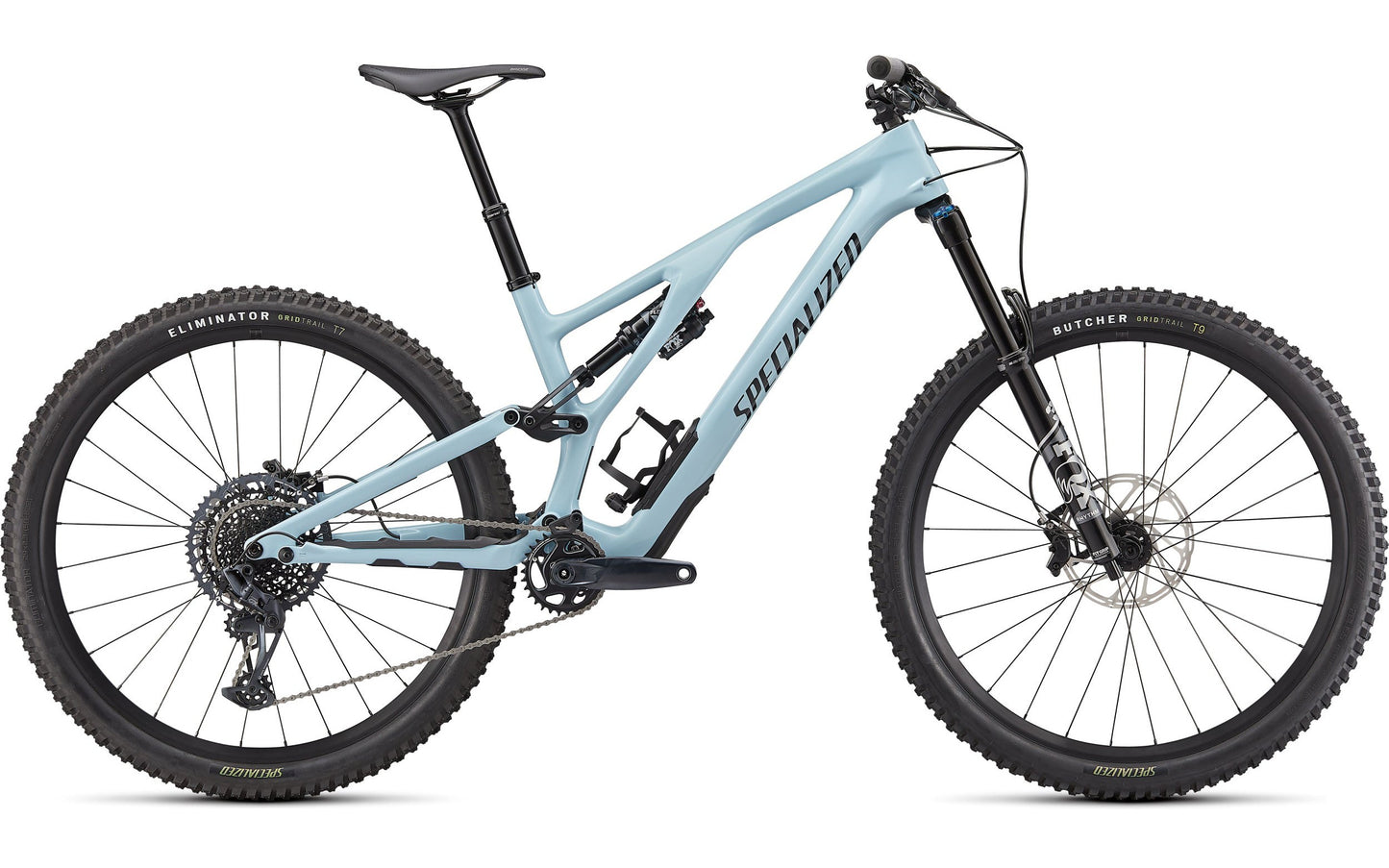

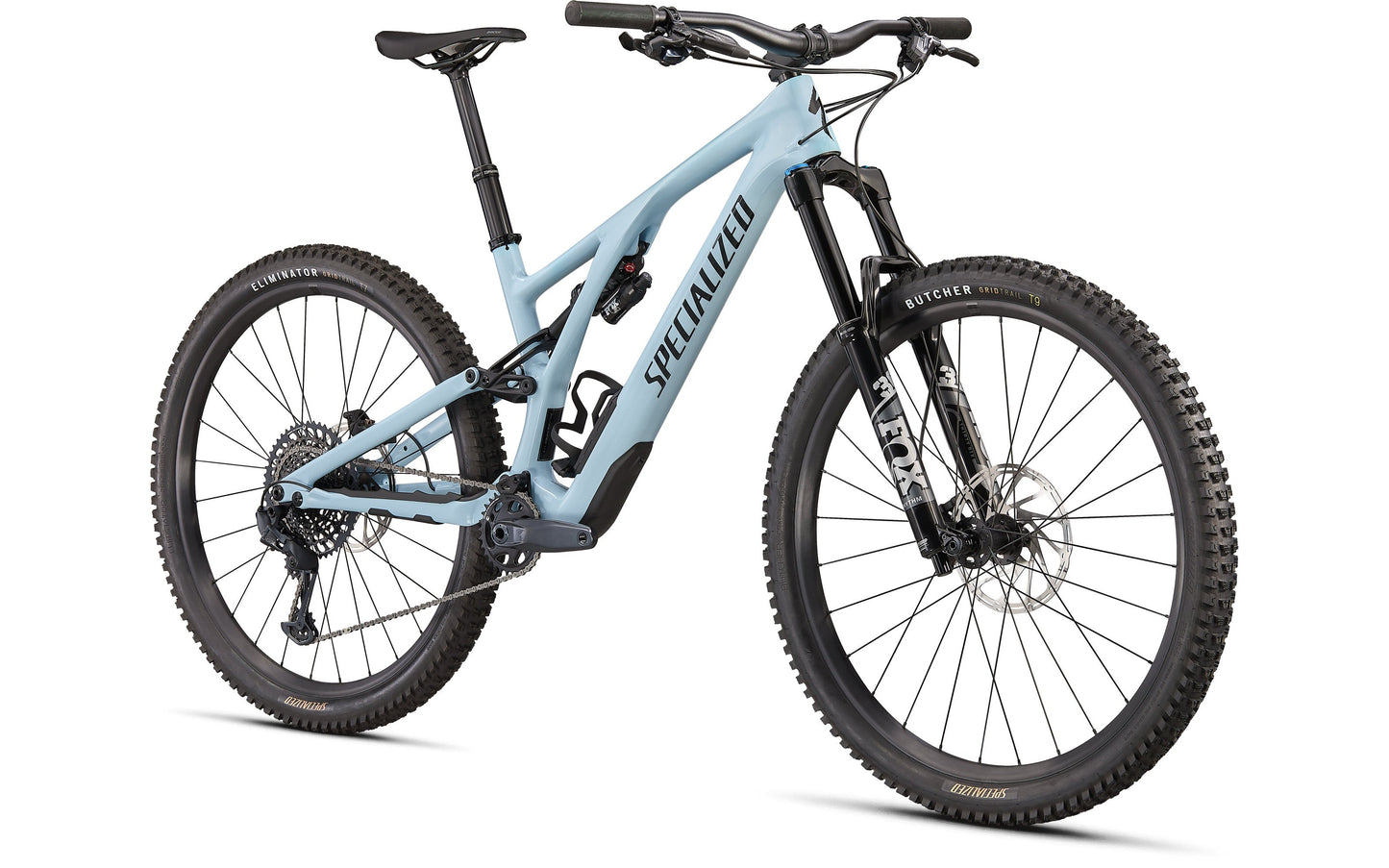

Stumpjumper EVO Comp

Stumpjumper EVO Comp

SKU:96322-5102

Regular price MSRP 89,000.00
Regular price MSRP 89,000.00 Sale price MSRP 89,000.00
Sold out
Vat Included
Size
Color

1 in stock

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Read More

Stumpjumper EVO Comp


In order to bring EVO fun to the masses, we took our FACT 11m carbon frame (yes, the same one as the S-Works), dressed it with a bullet-proof SRAM GX Eagle 12-speed drivetrain and a tough as nails set of alloy wheels, and set it loose to shred unsuspecting trails everywhere.

  • All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, we’ve not only improved the pedaling performance of the Stumpjumper, but we’ve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.
  • The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle – these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.
  • Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight.

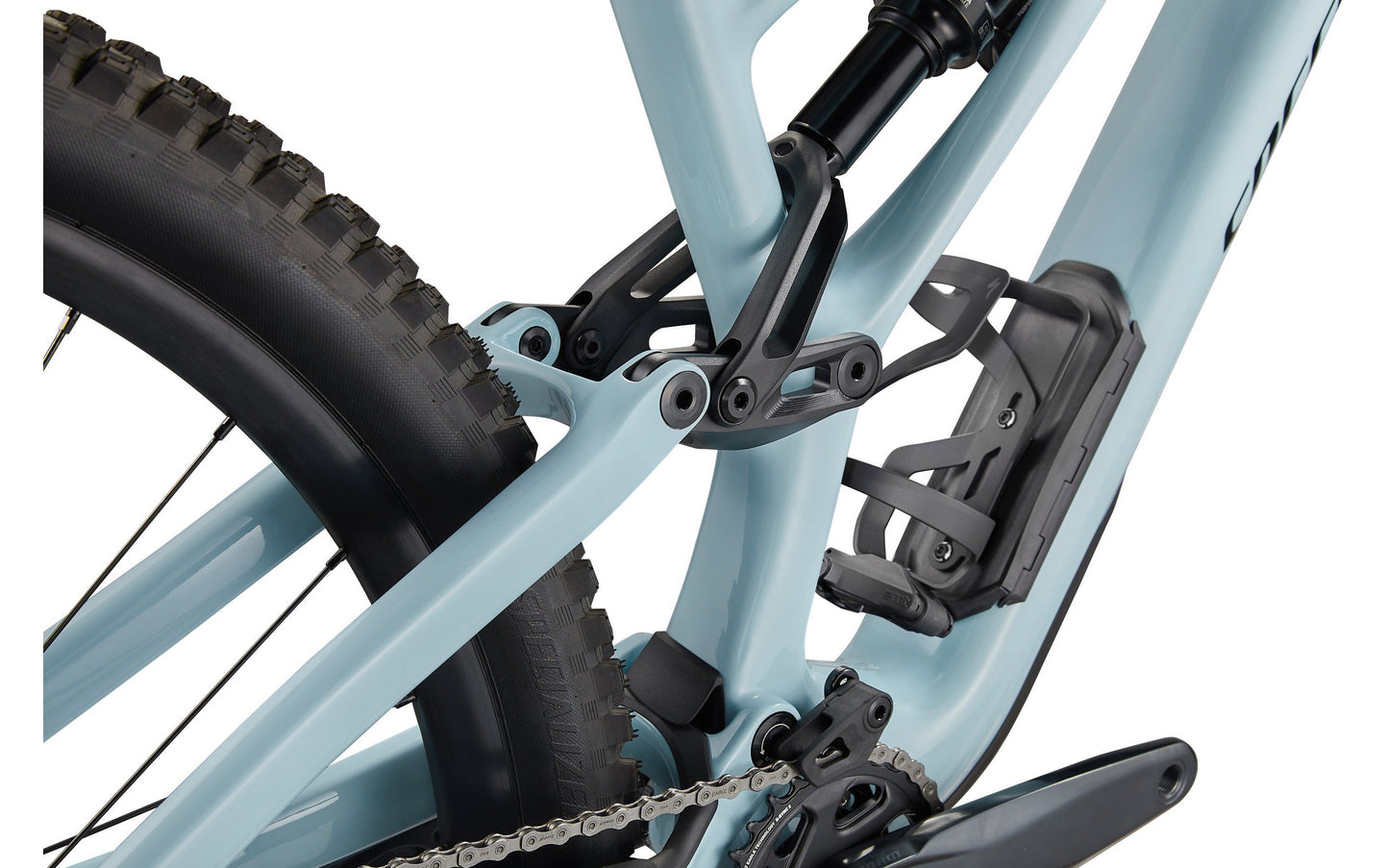

  • We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant. With the new Stumpjumper, we have increased the volume and added a SWAT™ Bladder, giving you an extra 22oz of water storage – the same size as a small water bottle – hidden in your downtube.
View full details

Technical Specifications

FRAMESET

Frame

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel

SWAT

Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder

Seat Binder

Alloy, 38.6mm

SUSPENSION

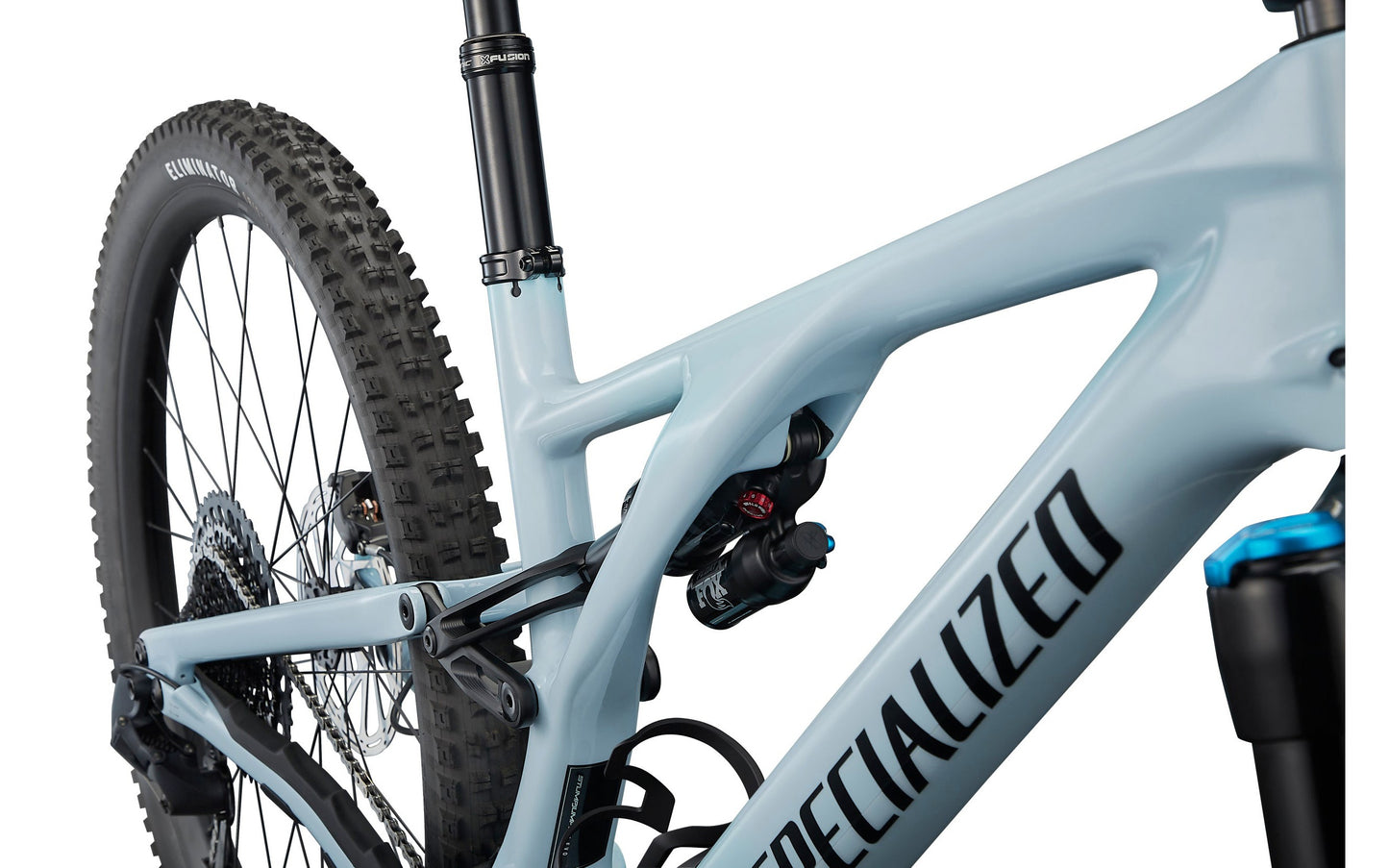

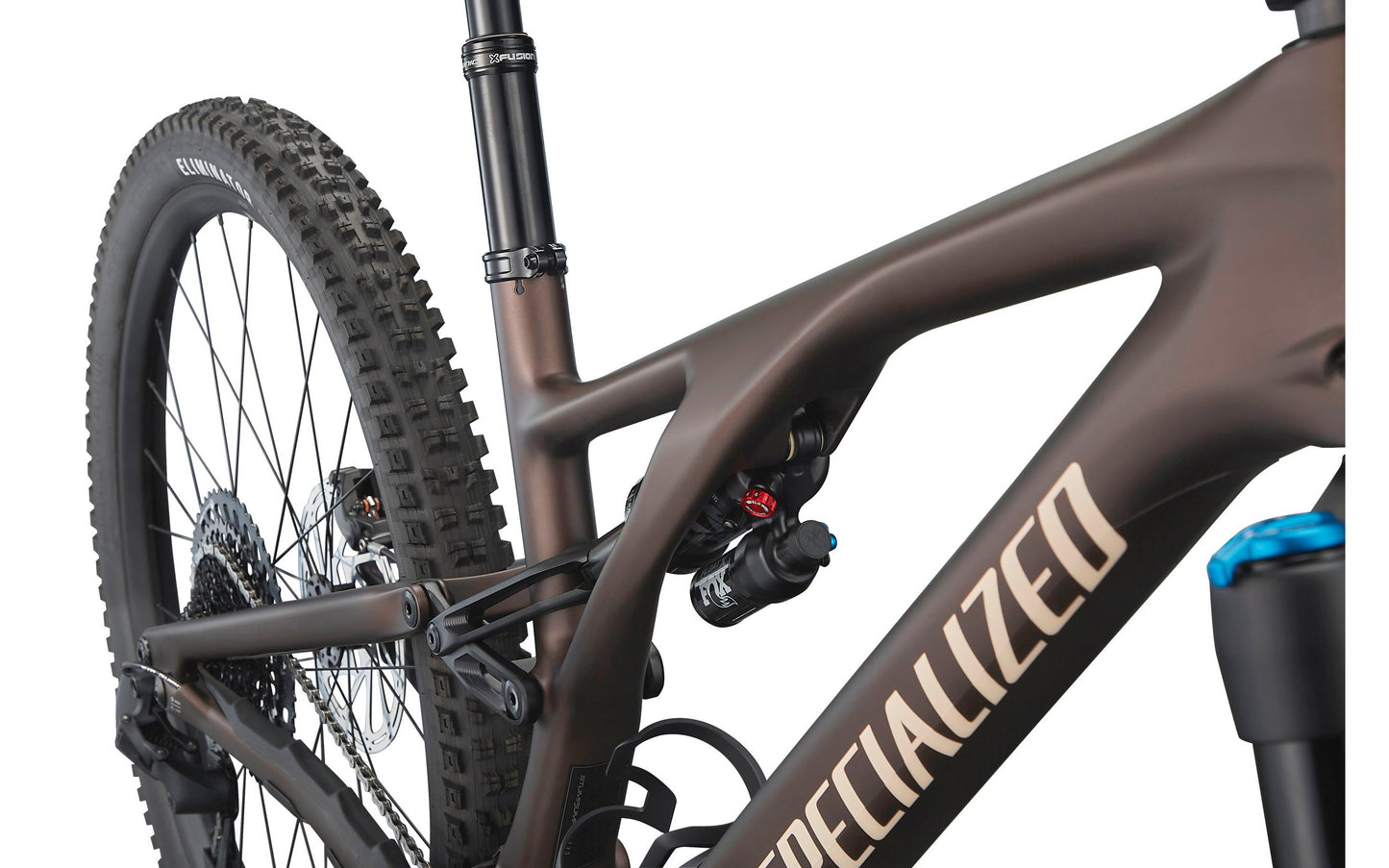

Rear Shock

FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1:210x50mm, S2-S6:210x55mm

Suspension

Fork

FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel

COCKPIT

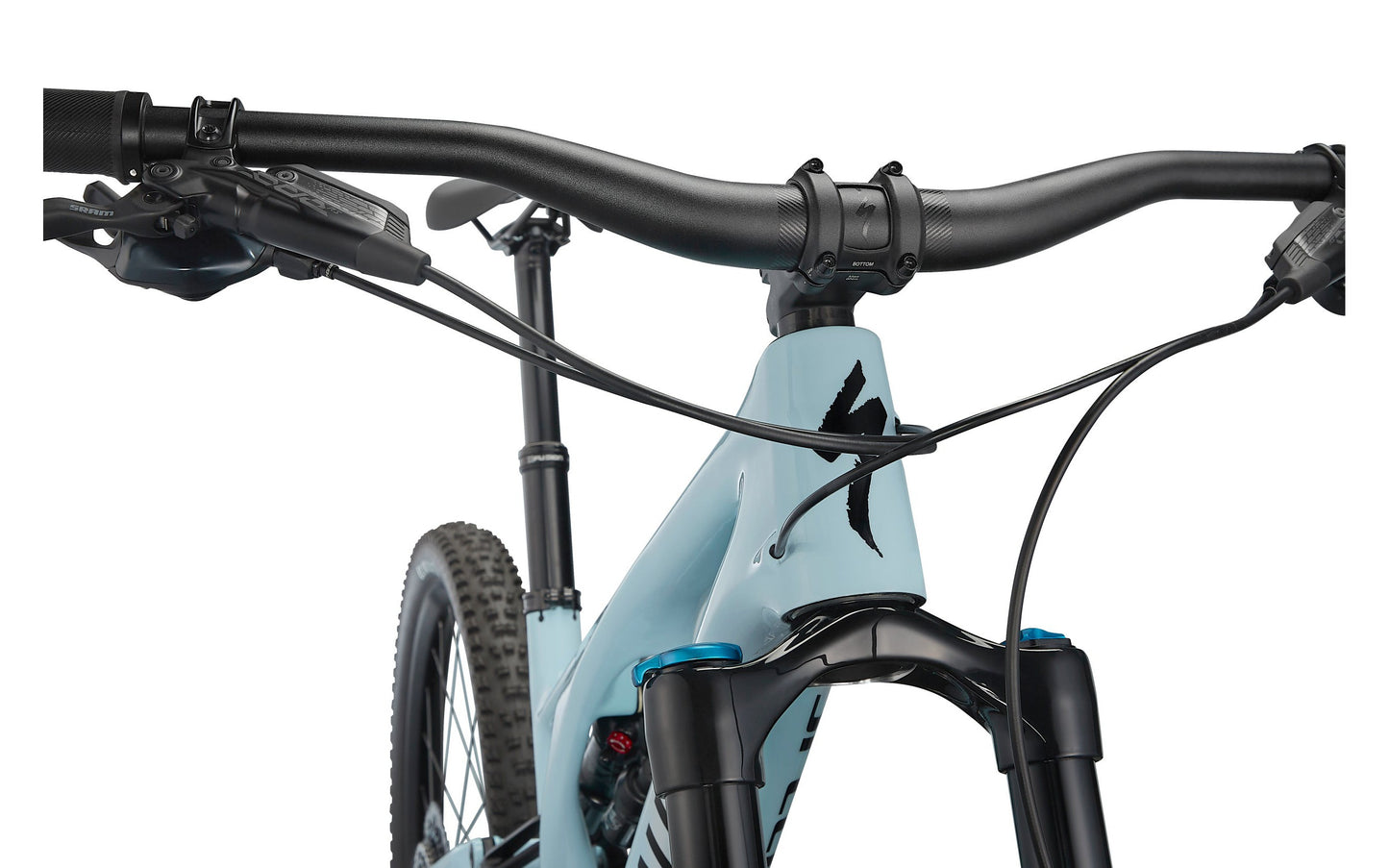

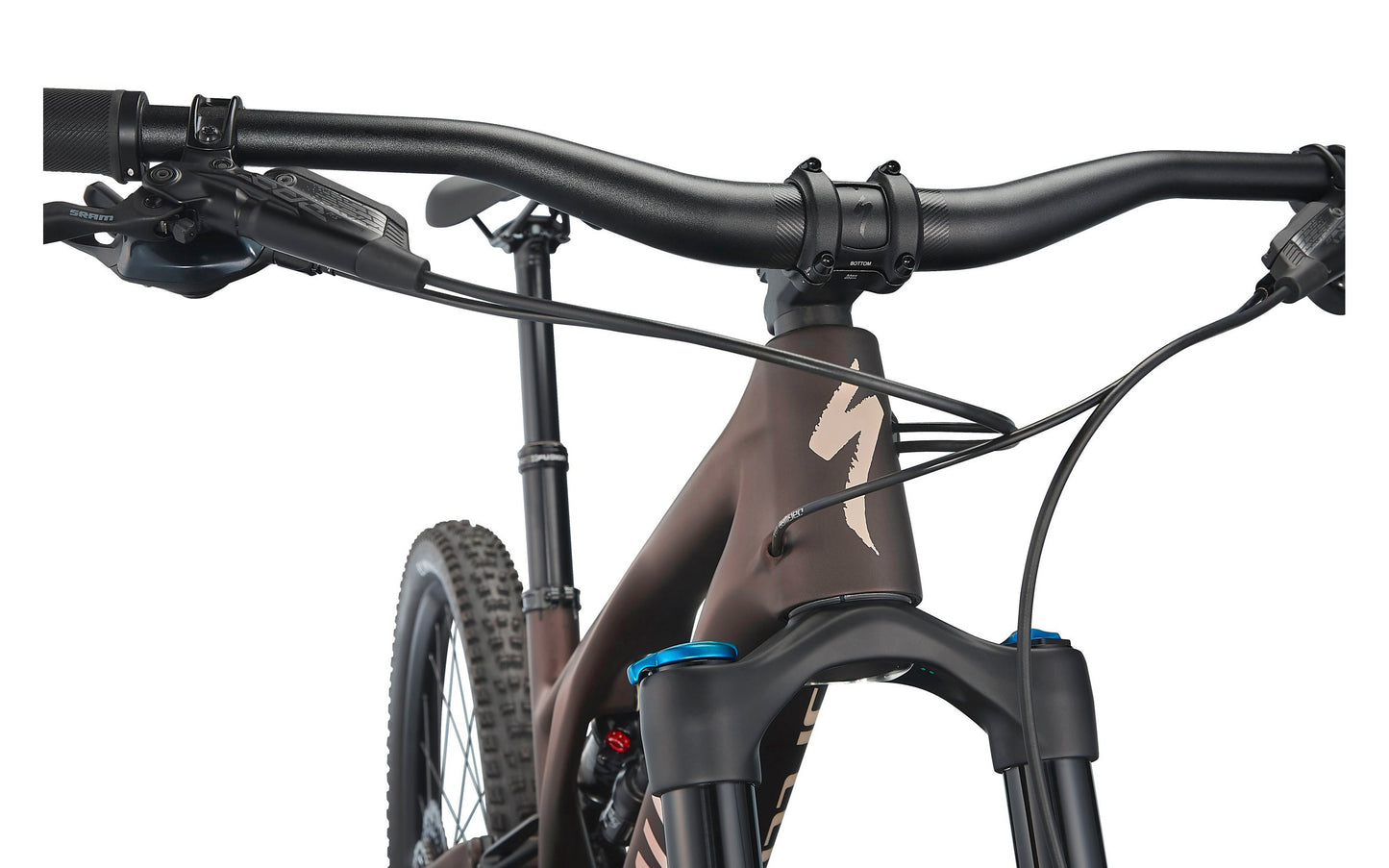

Stem

Alloy Trail Stem, 35mm bar bore

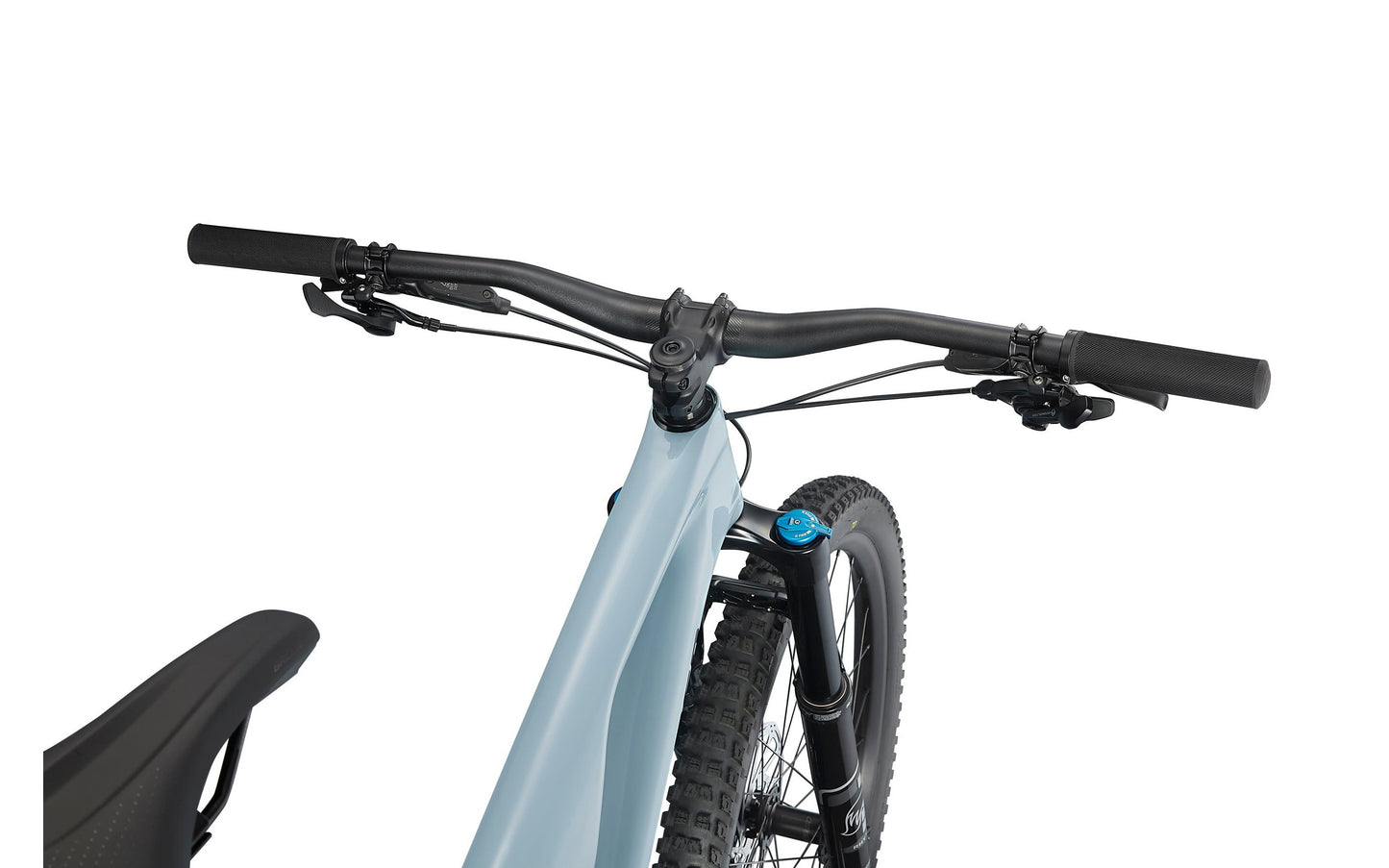

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

Tape

Specialized Trail Grips

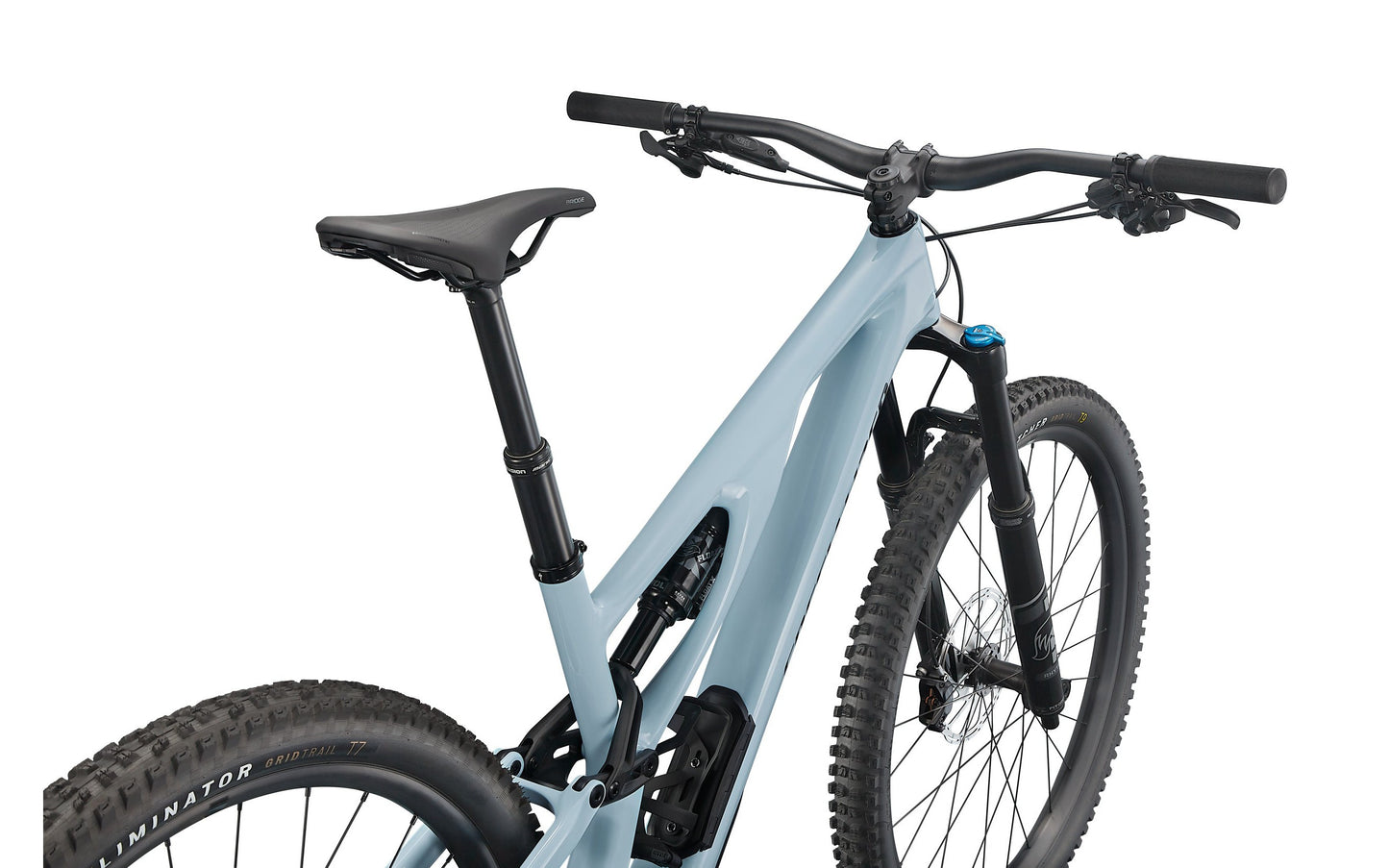

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm

BRAKES

Front Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

Rear Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

DRIVETRAIN

Rear Derailleur

SRAM GX Eagle, 12-speed

Shift Levers

SRAM GX, trigger, 12-speed

Cassette

Sram XG-1275, 12-speed, 10-52t

Chain

SRAM NX Eagle, 12-speed

Crankset

SRAM X1 6K, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm

Chainrings

Alloy, 30T

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

WHEELS

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

REAR HUB,BEAR PAWL BMB-00412O1C,SRAM XD STEEL FHB ,6 BOLT DISC,SEALED CARTRIDGE BEARING,28H,12MM AXLE,148MM SPACING

Spokes

DT Swiss Industry

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3"

Inner Tubes

TUBES,STANDARD 48MM PV LOW LEAD 29x1.75/2.4, MAXXIS BRAND

ACCESSORIES

Pedals

PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED

* Specifications are subject to change without notice

Geometry

 S1S2S3S4S5S6
Crank Length165mm170mm170mm170mm170mm175mm
Seatpost Length100mm125mm150mm170mm170mm190mm
Handlebar Width800mm800mm800mm800mm800mm800mm
Stem Length40mm40mm50mm50mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Stack613mm617mm626mm635mm644mm654mm
Reach408mm428mm448mm475mm498mm528mm
Headtube Length95mm95mm105mm115mm125mm135mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
BB Height335mm340mm340mm340mm340mm340mm
BB Drop40mm35mm35mm35mm35mm35mm
Trail131mm131mm131mm131mm131mm131mm
Fork Length (full)561mm571mm571mm571mm571mm571mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center732mm756mm780mm809mm838mm873mm
Chainstay Length438mm438mm438mm438mm448mm448mm
Wheelbase1167mm1191mm1216mm1247mm1285mm1319mm
Top-tube Length (horizontal)538mm564mm590mm623mm647mm679mm
Bike Standover Height733mm764mm763mm762mm767mm770mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle78°77.6°77.2°76.9°77°77°
Max Seatpost Insertion180mm180mm200mm220mm240mm260mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm

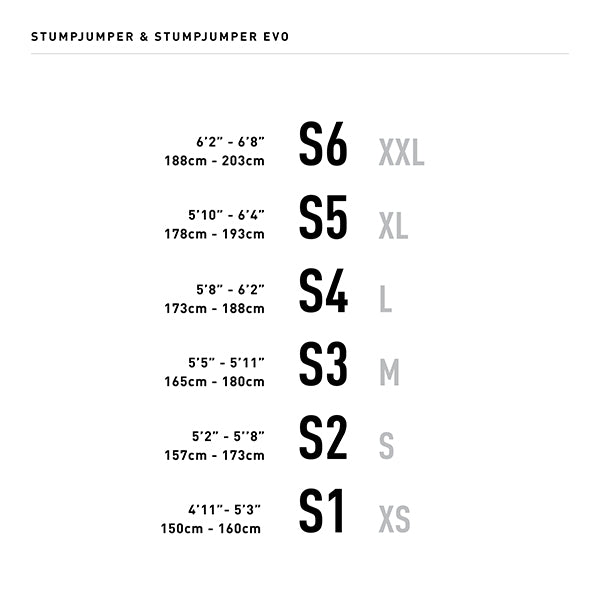

Size Guide

Stumpjumper & Stumpjumper Evo
