Technical Specifications
Frameset
Frame

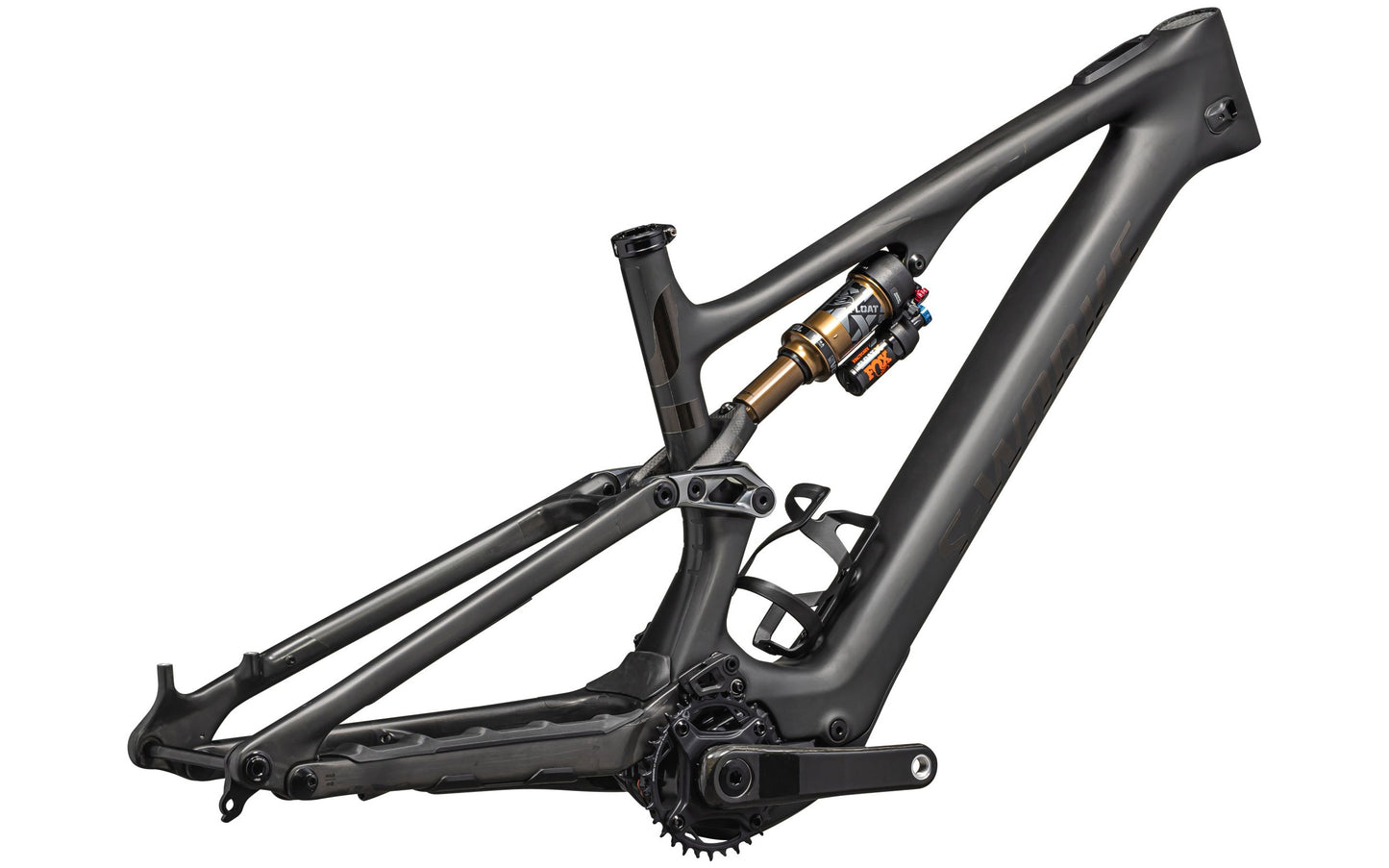

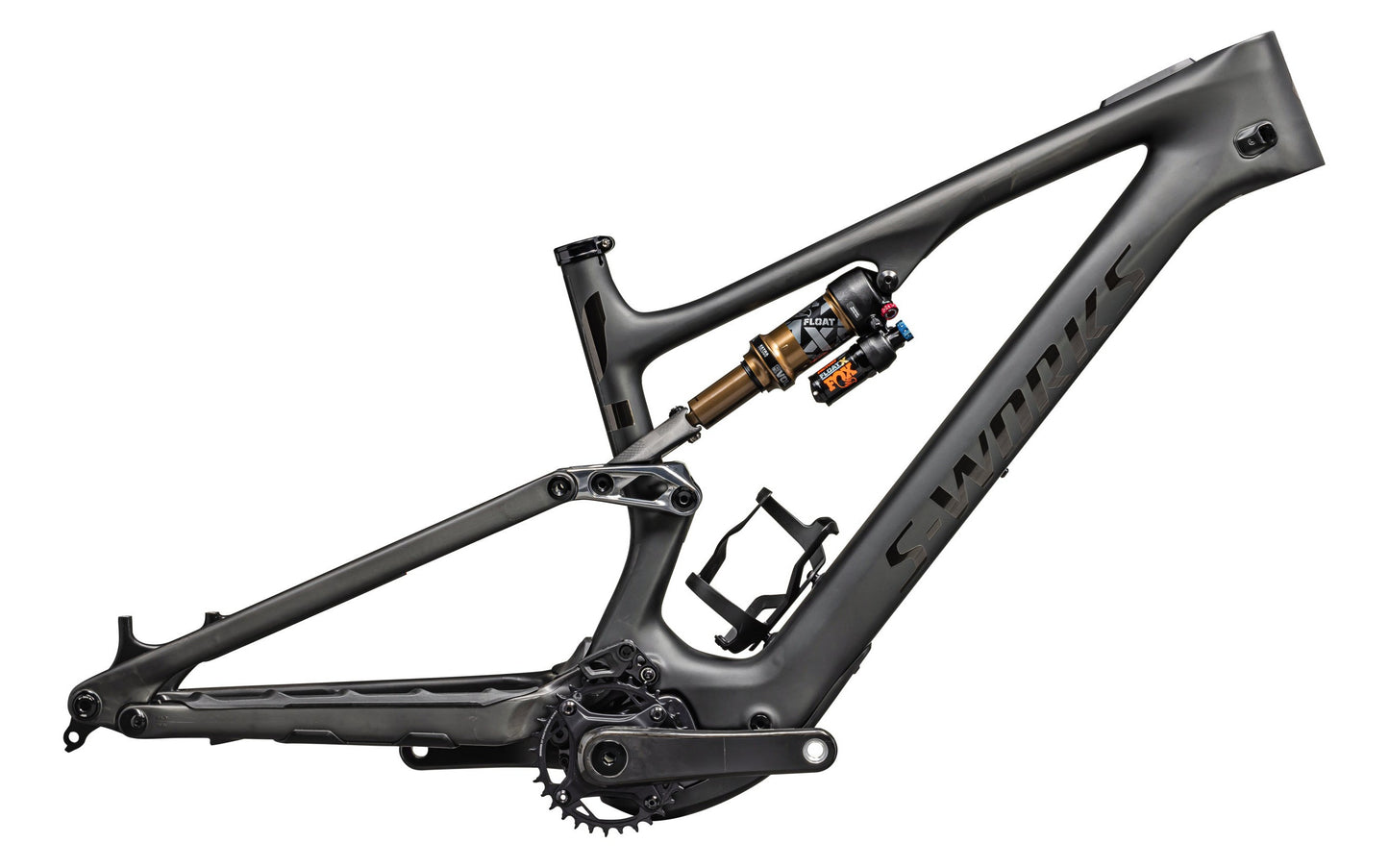

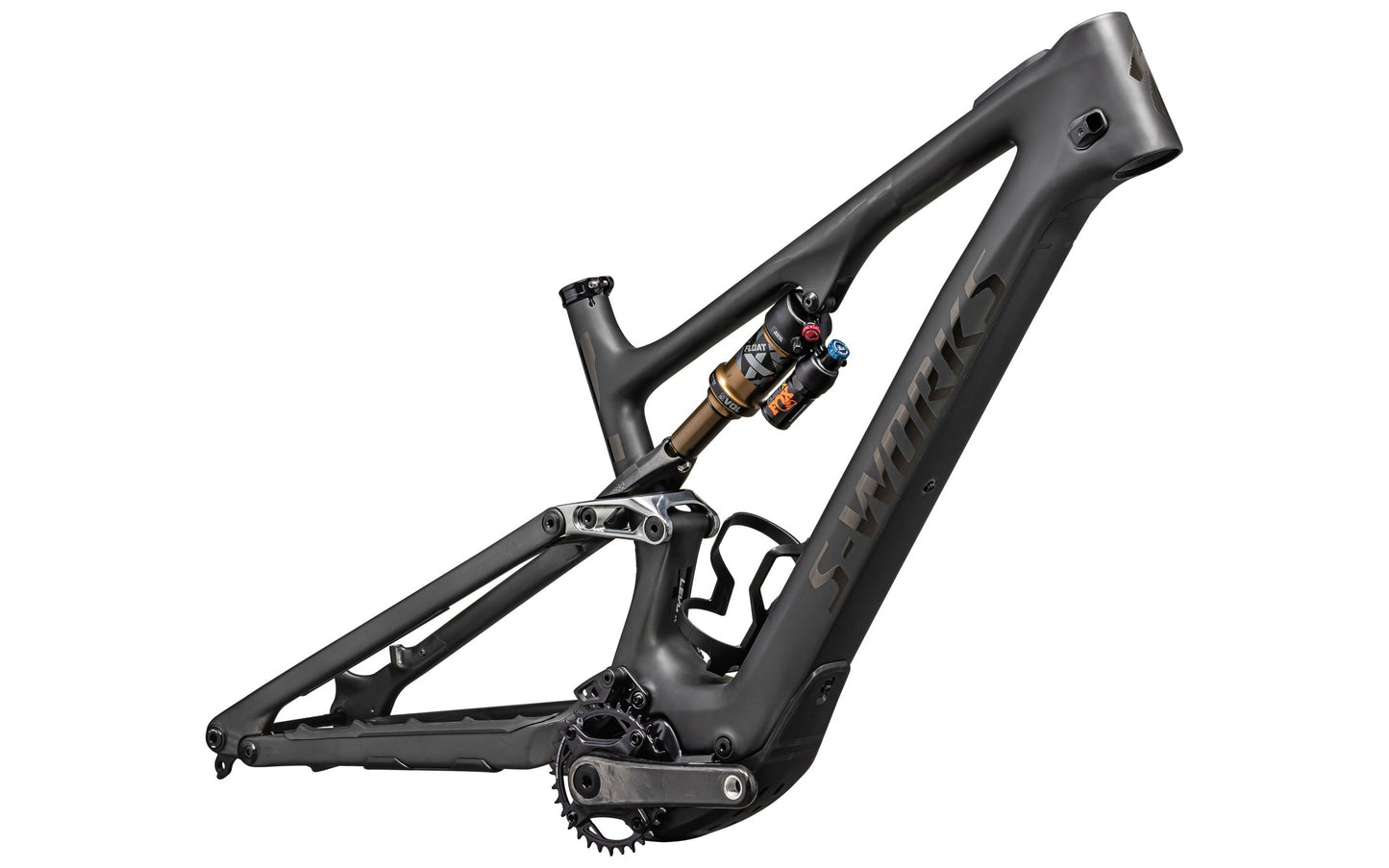

All new Levo SL SW Frame, Fact 11m carbon, carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Seat Binder
Alloy, 38.6mm
E-Bike
Motor
New Specialized 1.2 SL Custom Rx Trail Tuned Motor
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Wiring Harness
Custom Specialized wiring harness
Suspension
Rear Shock
S2-S6: Fox Float X Factory series, Kashima, 21x55mm, S1: Fox Float DPS Factory, Kashima, 210x50mm
Drivetrain
Crankset
SRAM Carbon Crankset, Dub interface
Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t alloy ring
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 165mm | 170mm | 170mm | 170mm | 175mm |
Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
Head-Tube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Head-Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
B-B Height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
B-B Drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
Trail | 132mm | 132mm | 132mm | 132mm | 132mm | 132mm |
Fork Length, Full | 560mm | 570mm | 570mm | 570mm | 570mm | 570mm |
Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
Front-Center | 726mm | 752mm | 776mm | 806mm | 835mm | 869mm |
Chain-Stay Length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
Top Tube Length, Horizontal | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
Bike Stand-Over Height | 727mm | 763mm | 766mm | 767mm | 773mm | 778mm |
Seat-Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat-Tube Angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
