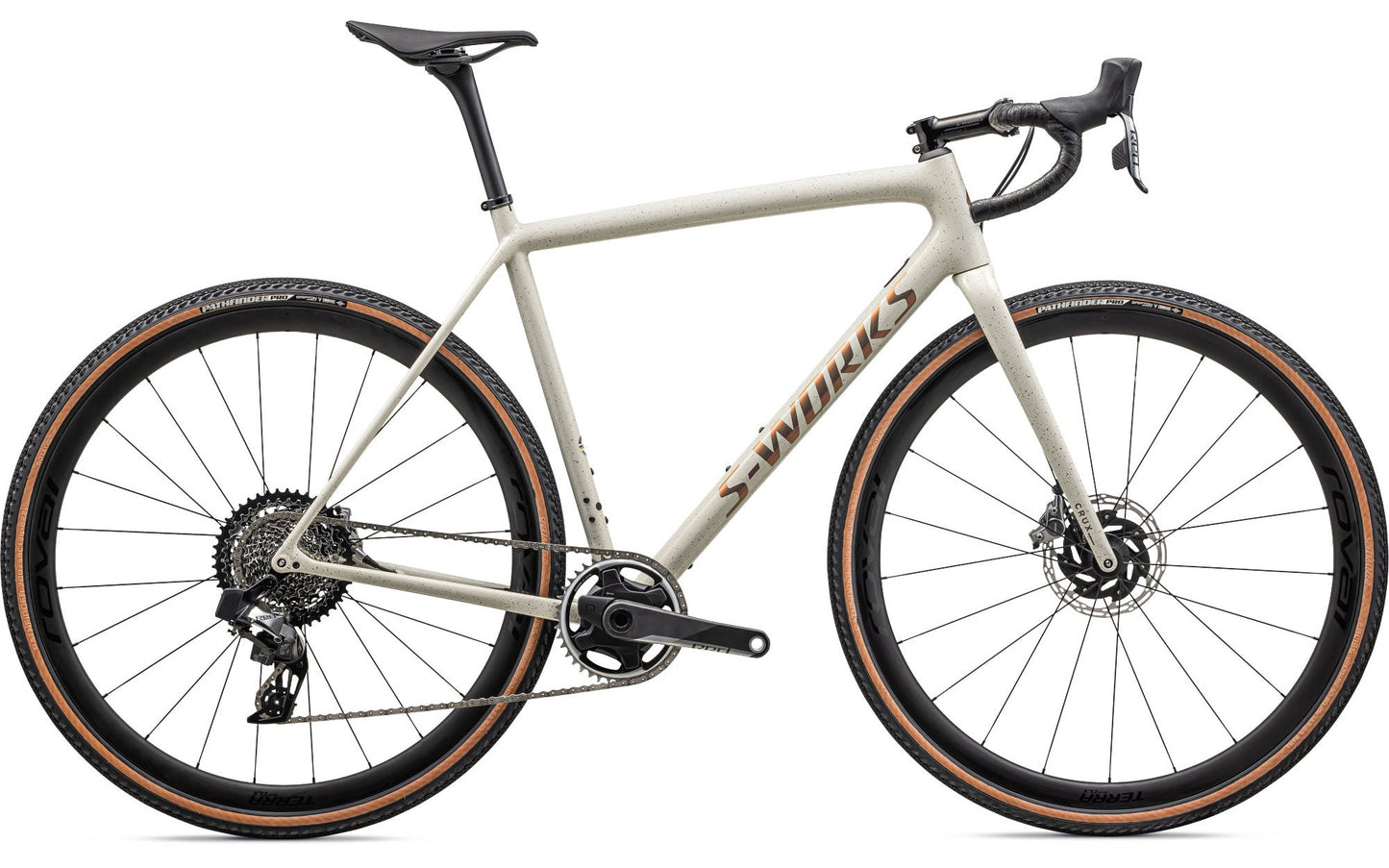

S-Works Crux

S-Works Crux

91423-0049

MSRP 210,000.00
MSRP 210,000.00
Sold out
Vat Included
Size
Color

Out of stock

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Read More

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

This S-Works Crux comes spec'd with SRAM's pinnacle RED eTap AXS hydraulic disc groupset, lightweight and durable Roval Terra CLX Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.

  • Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
View full details

Technical Specifications

Wheels & Tires

Inner Tubes

700x28/38mm, 48mm Presta valve

Rear Tire

Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

Front Tire

Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

Front Wheel

Roval Terra CLX I, 25mm internal width, Tubeless ready, 32mm depth, 21h, Roval AFD1, Centerlock, DT Swiss Aerolite spokes

Rear Wheel

Roval Terra CLX I, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval AFD2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes



Cockpit

Saddle

Body Geometry S-Works Power, carbon fiber rails, carbon fiber base

SeatPost

Roval Alpinist Carbon Seatpost

Handlebars

Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Stem

S-Works SL, alloy, titanium bolts, 6-degree rise

Seat Binder

Specialized Alloy, 30.0mm, titanium bolt

Tape

Supacaz Super Sticky Kush



Frameset

Frame

S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc



Suspension

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc



Drivetrain

Chain

SRAM RED 12-speed

Bottom Bracket

SRAM DUB BSA

Crankset

SRAM Red AXS Power Meter

Rear Derailleur

SRAM Red XPLR eTap AXS

Shift Levers

SRAM Red eTap AXS

Cassette

SRAM XPLR, XG-1271, 12-speed, 10-44t

Chainrings

40T



Brakes

Rear Brake

SRAM Red eTAP AXS, hydraulic disc

Front Brake

SRAM Red eTAP AXS, hydraulic disc



Weight

Weight Size

56

Weight

7.28kg (16 lb, .8 oz)



* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

 495254565861
Crank Length165mm170mm172.5mm172.5mm175mm175mm
Handlebar Width380mm400mm420mm420mm440mm440mm
Stem Length70mm80mm90mm100mm110mm110mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length300mm300mm300mm360mm360mm360mm
Stack530mm547mm560mm578mm598mm621mm
Reach375mm382mm388mm397mm405mm415mm
Head Tube Length100mm115mm130mm147mm167mm190mm
Head Tube Angle70.5°71.25°71.5°72°72.25°72.5°
BB Height284mm284mm286mm286mm286mm286mm
BB Drop74mm74mm72mm72mm72mm72mm
Trail74mm69mm67mm64mm62mm60mm
Fork Length, Full401mm401mm401mm401mm401mm401mm
Fork Rake/Offset50mm50mm50mm50mm50mm50mm
Front Center594mm600mm608mm618mm630mm644mm
Chainstay Length425mm425mm425mm425mm425mm425mm
Wheelbase1008mm1014mm1023mm1033mm1045mm1059mm
Top Tube Length, Horizontal512mm539mm549mm568mm582mm599mm
Bike Standover Height749mm772mm794mm816mm841mm866mm
Seat Tube Length466mm496mm521mm546mm576mm606mm
Seat Tube Angle75.5°74°74°73.5°73.5°73.5°

Size Guide
