SPECIALIZED
Diverge STR Pro
Diverge STR Pro
SKU: 96224-1052
1 - Available
Couldn't load pickup availability
Read More
Read More
Diverge STR Pro
With Future Shock suspension front and rear, the new Diverge STR delivers compliance without compromise. By suspending the rider—instead of the bike—Future Shock technology increases control and efficiency while decreasing fatigue, so you’ll be riding farther and faster over chunkier terrain than you believed possible. And the Diverge STR does this without the weight, sluggish pedal response, and inefficiency of other suspension systems. The Diverge STR Pro starts with our FACT 11r carbon frameset with front and rear Future Shock suspension. It’s built with SRAM’s Force eTap AXS Eagle groupset for fast, efficient shifting with a 10-50 cassette to ensure you have the gearing to tackle any ride. The bike rolls on the Roval Terra CL wheels with 42mm Tracer Pro tires. Terra carbon bars, an S-Works carbon seatpost, and Power Pro saddle complete the package making the Diverge STR the most capable Diverge ever.
- By suspending the rider with damped, tunable travel—20mm front/30mm rear—Future Shock Technology absorbs bump forces to boost your control and capability while retaining the efficiency and responsiveness of a rigid frame. Because as far as power transfer goes, it is a rigid frame. Power to the pedals makes the bike jump like a scared cat. You’re efficient, you’re comfortable, you’re in control. Your bike is light, nimble, and responsive.

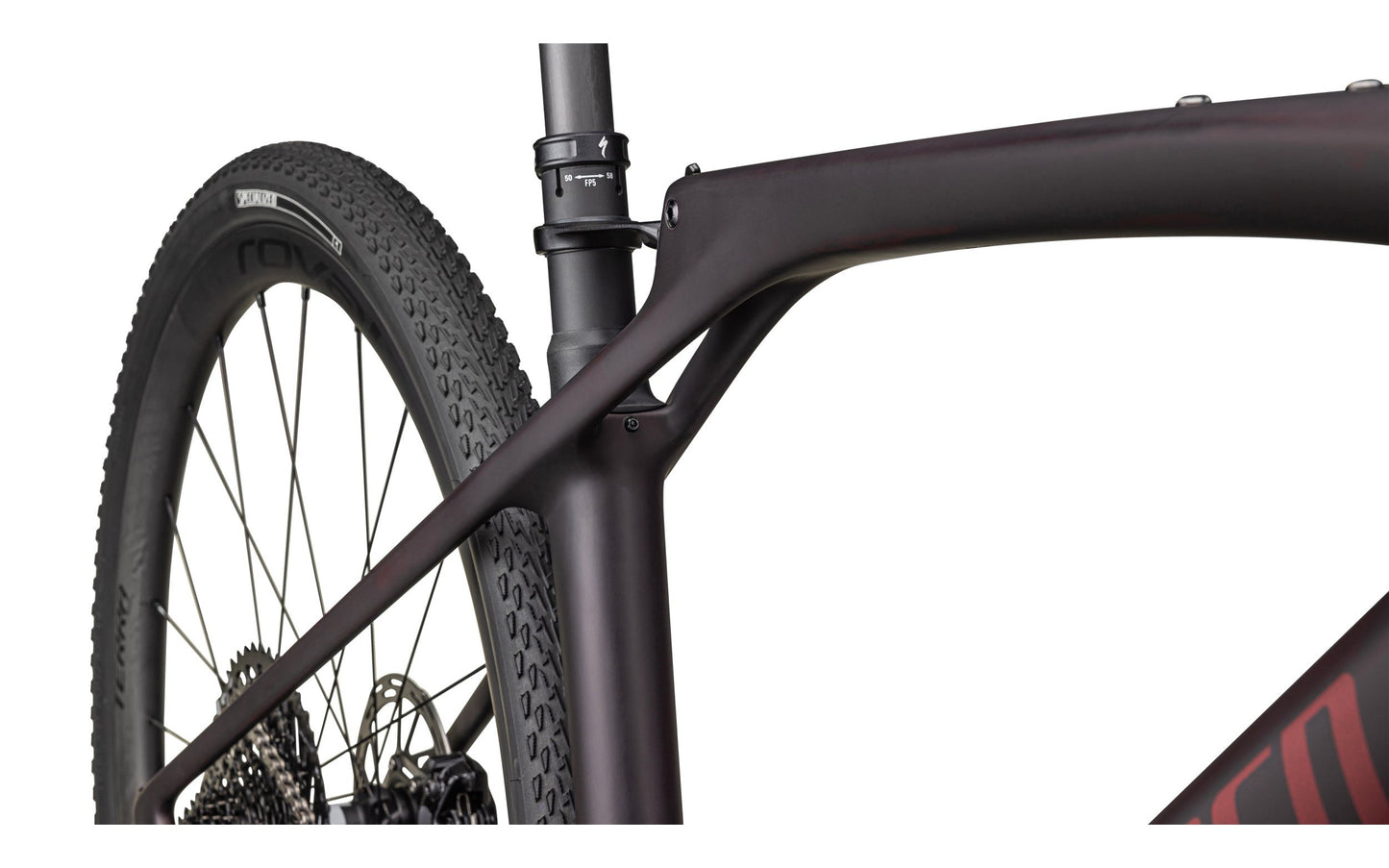

- The new Diverge doesn’t just have gorgeous lines, it has perfect curves too. Future Shock Rear puts 30mm of rear travel in the ideal path to smooth out rough road. Its hydraulic damping controls travel to eliminate “bobbing” under power and ensure big hits never catapult you from the saddle, all without compromising fit or pedaling efficiency.
- Born from decades of innovation and our Smoother is Faster philosophy, Future Shock was created to develop bikes that win on cobblestones, but it’s found its purest expression on gravel. It’s 20mm of adjustable, damped front travel that keeps you in control and on target, all while protecting your hands, arms, and shoulders from the battering.
- More capability means more confidence, more confidence means more rides, more rides mean more fun, and it all starts at the contact patch. Nothing unlocks capability like tire clearance, and we’re feeling generous. 47mm on a 700c wheel and 2.1” on 650B. Diverge STR is the most capable gravel bike we’ve ever made, so it’s the most fun. We did the math.
Technical Specifications
Weight
Weight Size
56
Weight
9.18kg (20 lb, 3.8 oz)
Cockpit
Saddle
Body Geometry Power Pro, hollow titanium rails
Stem
Future Stem, Pro
Handlebars
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
SeatPost
S-Works Carbon Seat Post, 20mm Offset
Seat Binder
Specialized Alloy, 33.3mm
Tape
Supacaz Super Sticky Kush
Suspension
Fork
Future Shock 3.3 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Frameset
Frame
Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT™ Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Wheels & Tires
Inner Tubes
700x28/38mm, 48mm Presta valve
Front Wheel
Roval Terra CL, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
Rear Wheel
Roval Terra CL, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
Front Tire
Tracer Pro 2BR, 700x42
Rear Tire
Tracer Pro 2BR, 700x42
Accessories
SWAT
Integrated SWAT door, internal storage system
Drivetrain
Bottom Bracket
SRAM DUB BSA 68
Shift Levers
SRAM Force eTap AXS
Crankset
SRAM Force 1x
Rear Derailleur
SRAM X01 Eagle AXS
Chain
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG-1275 Eagle, 12-speed, 10-50t
Chainrings
40T
Brakes
Front Brake
SRAM Force, hydraulic disc, 160mm Paceline rotor
Rear Brake
SRAM Force, hydraulic disc, 160mm Paceline rotor
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm | 100mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 350mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Stack | 569mm | 576mm | 593mm | 609mm | 633mm | 659mm |
| Reach | 365mm | 374mm | 383mm | 392mm | 401mm | 410mm |
Size Chart
