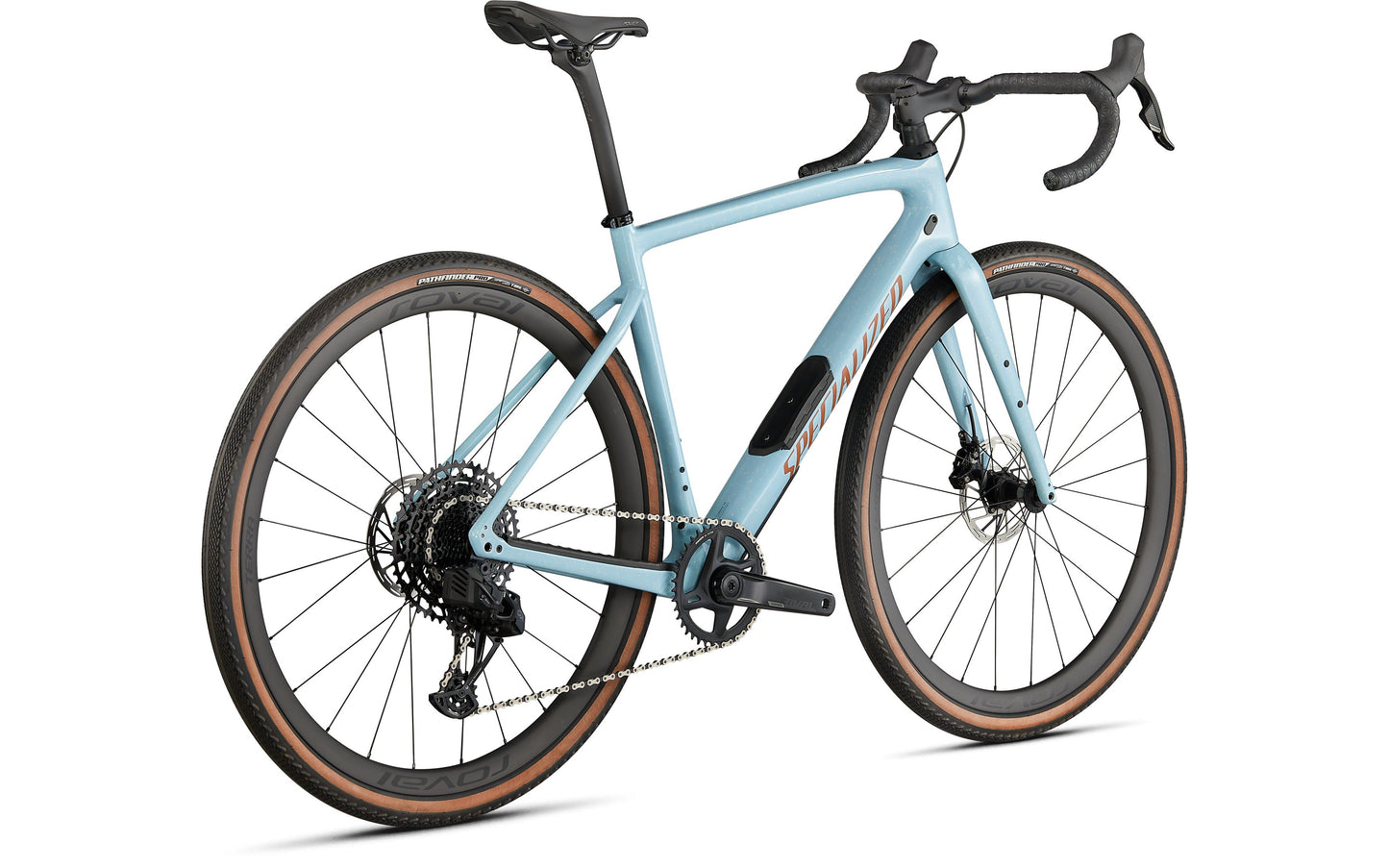

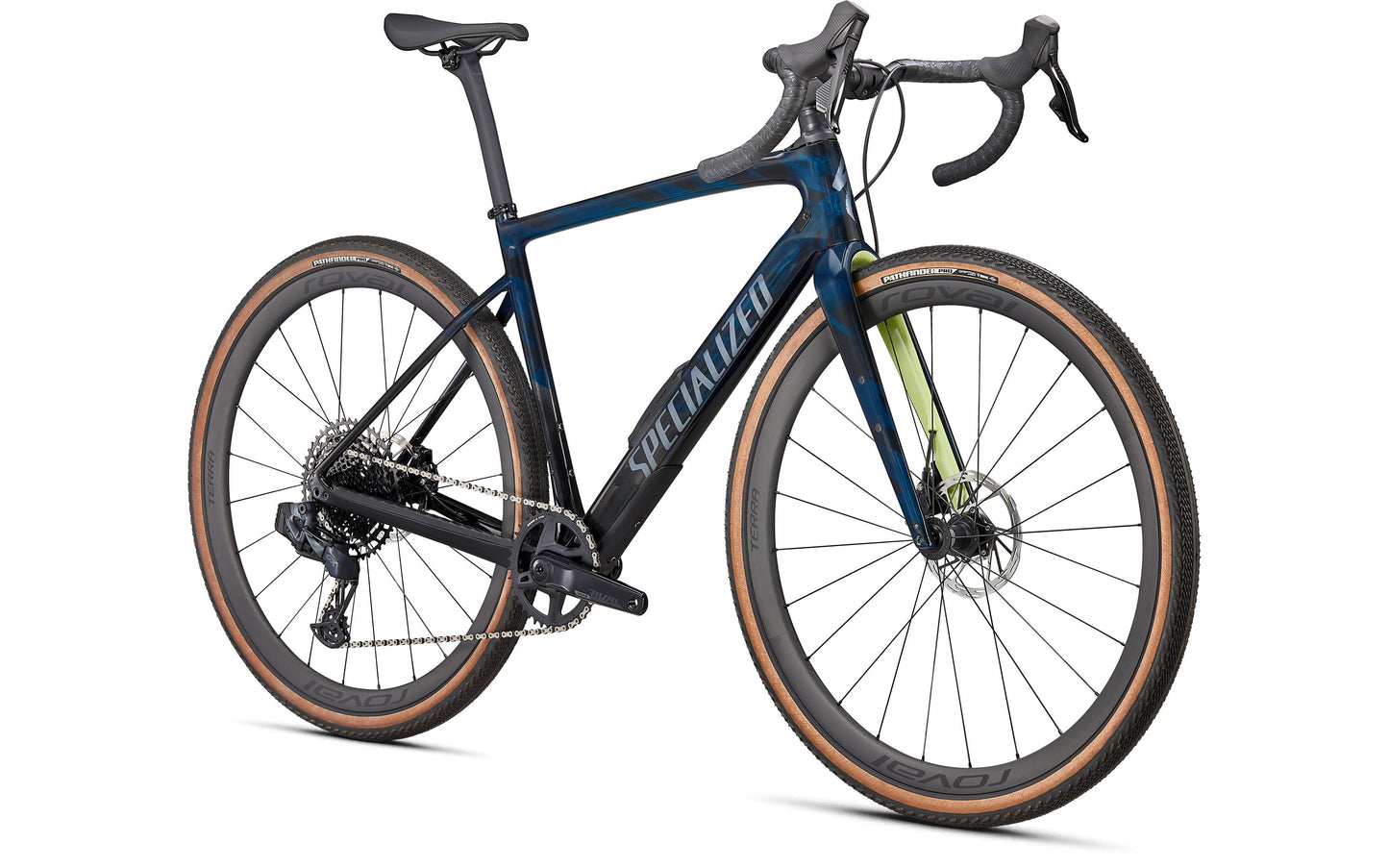

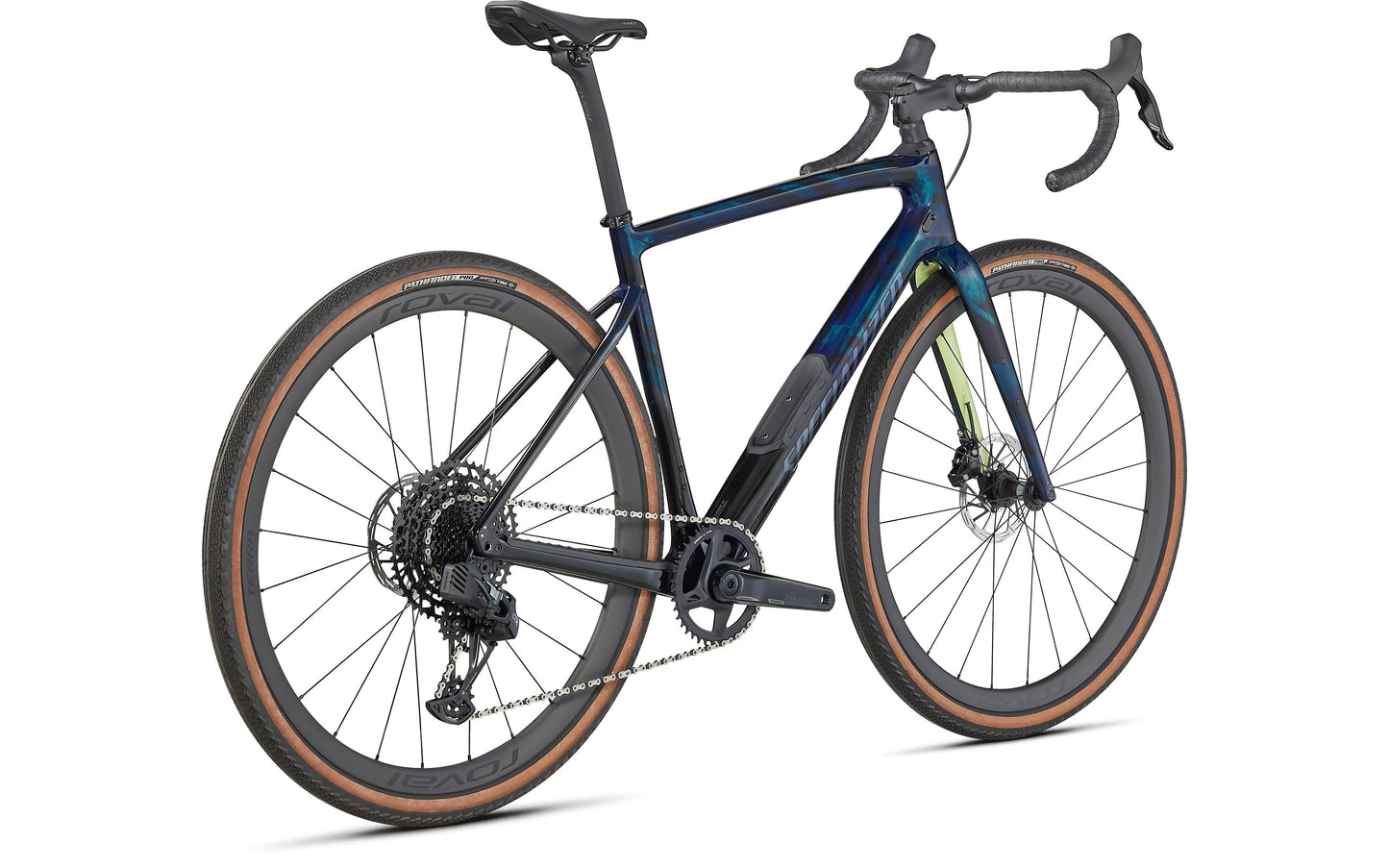

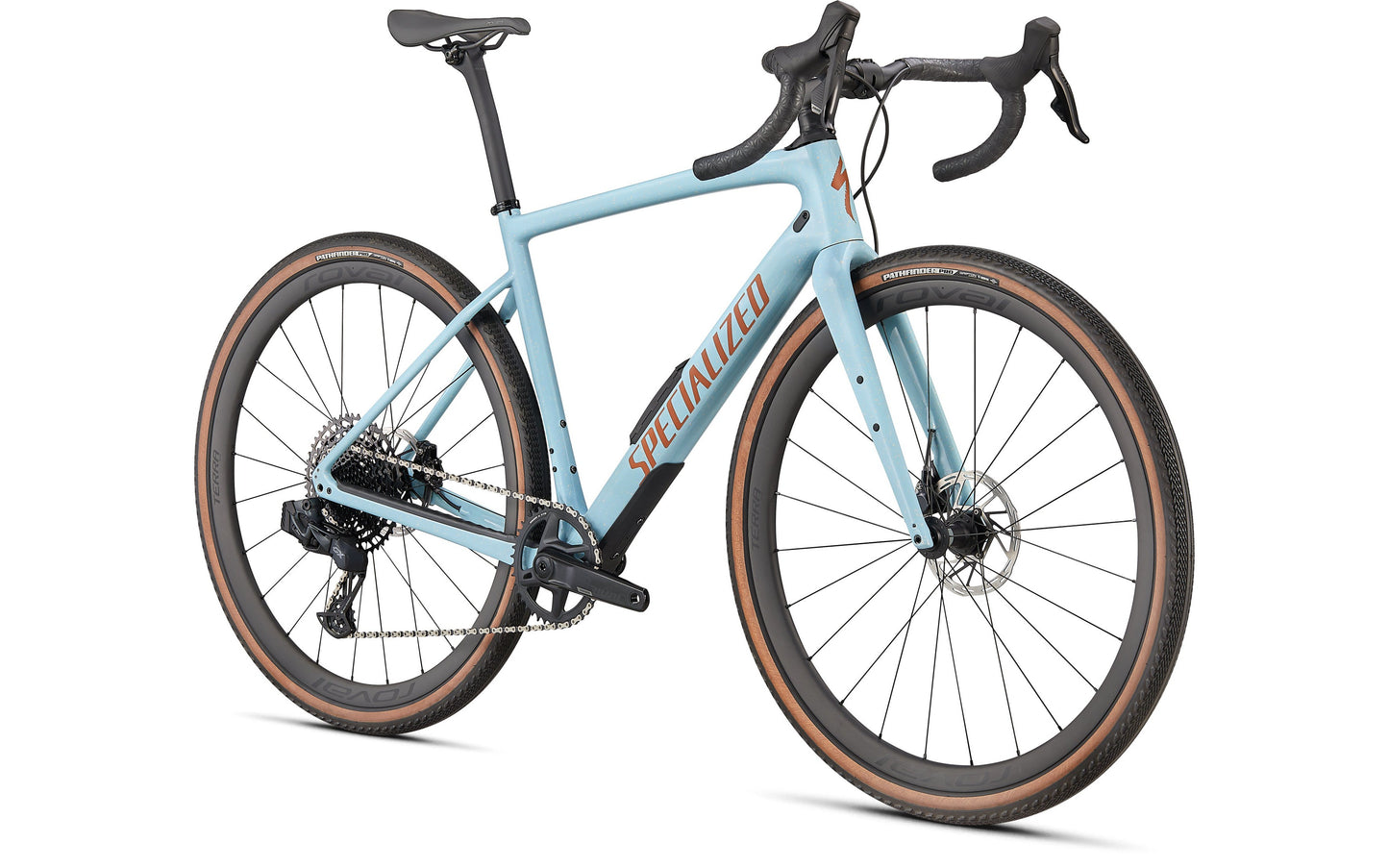

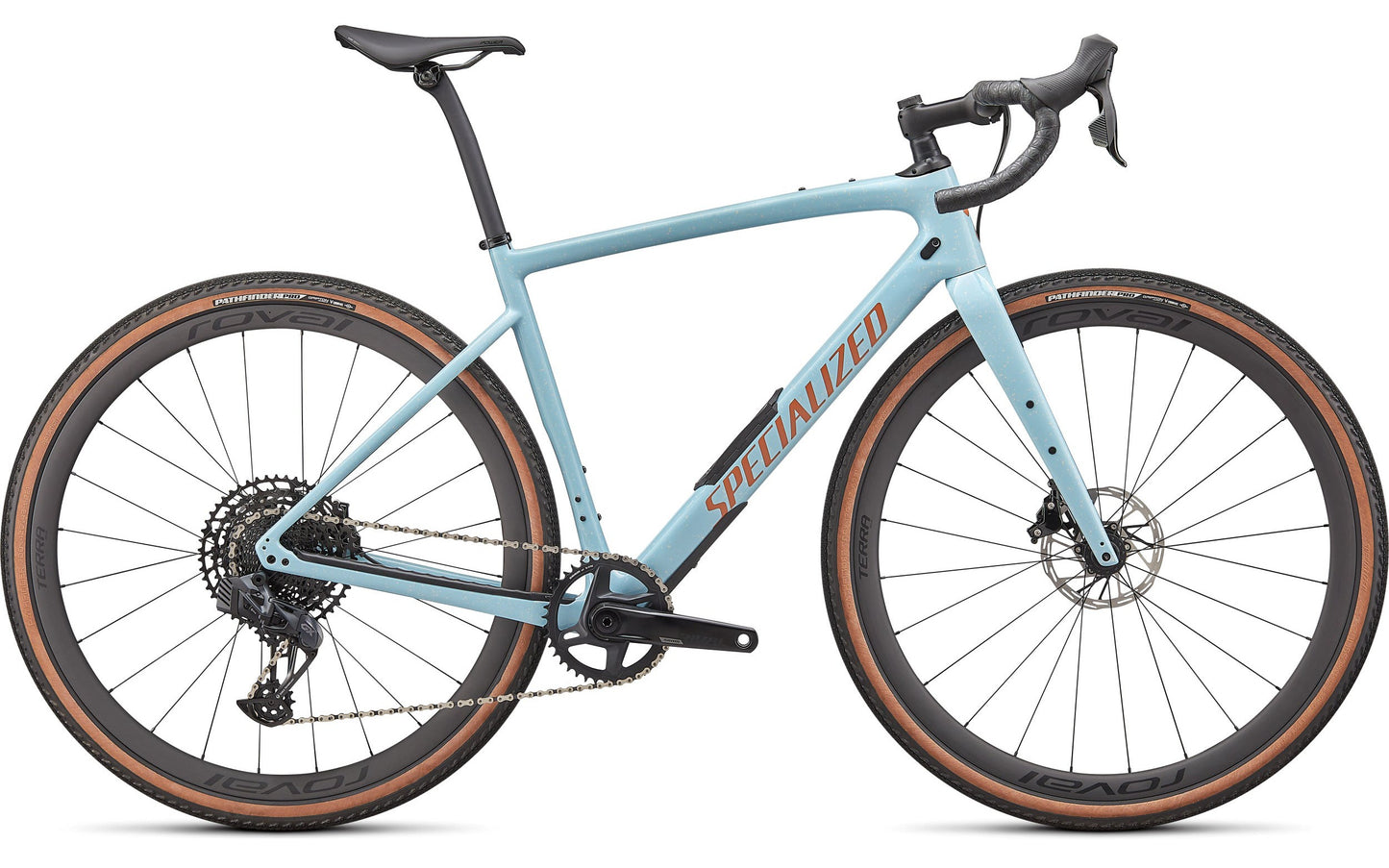

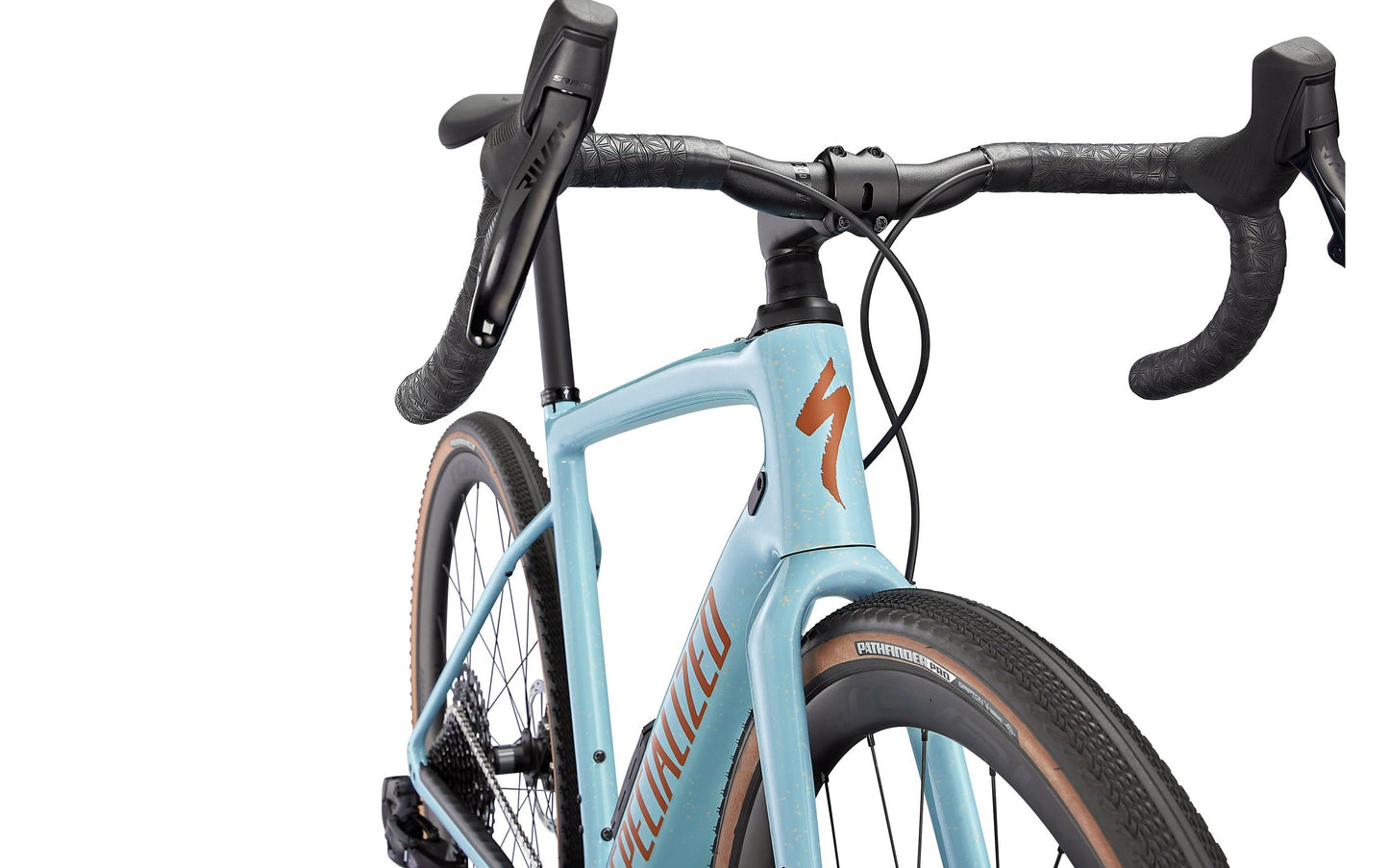

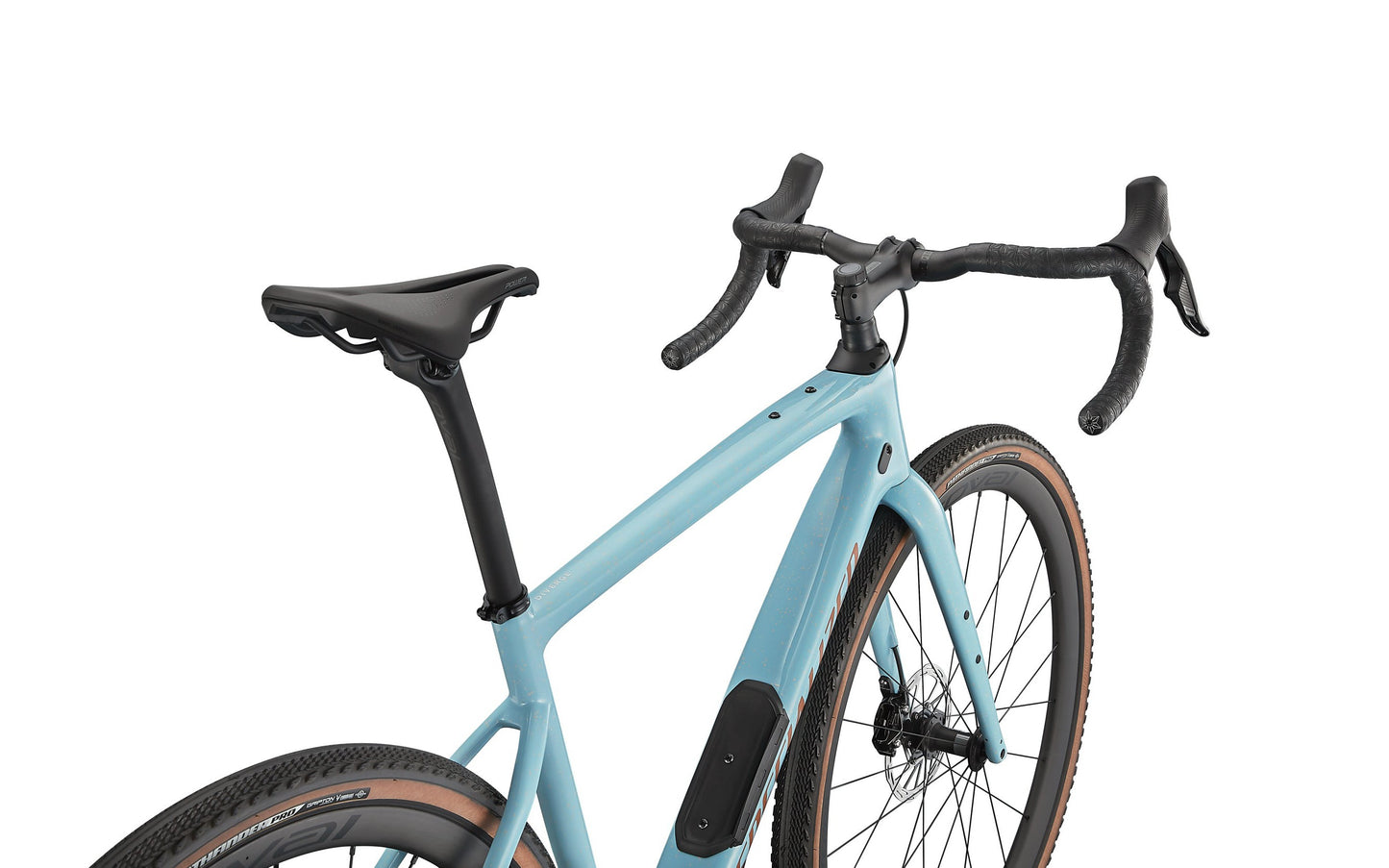

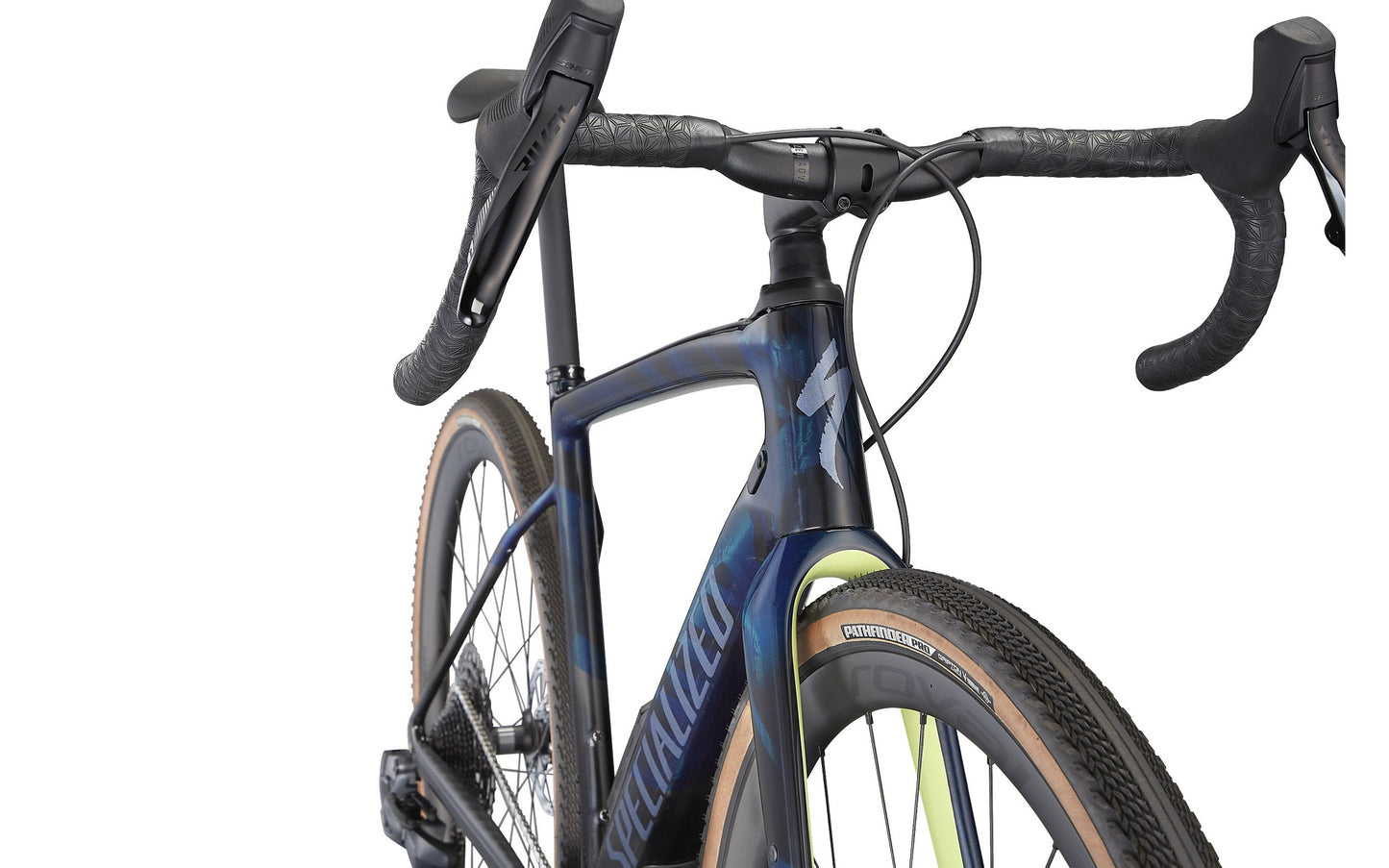

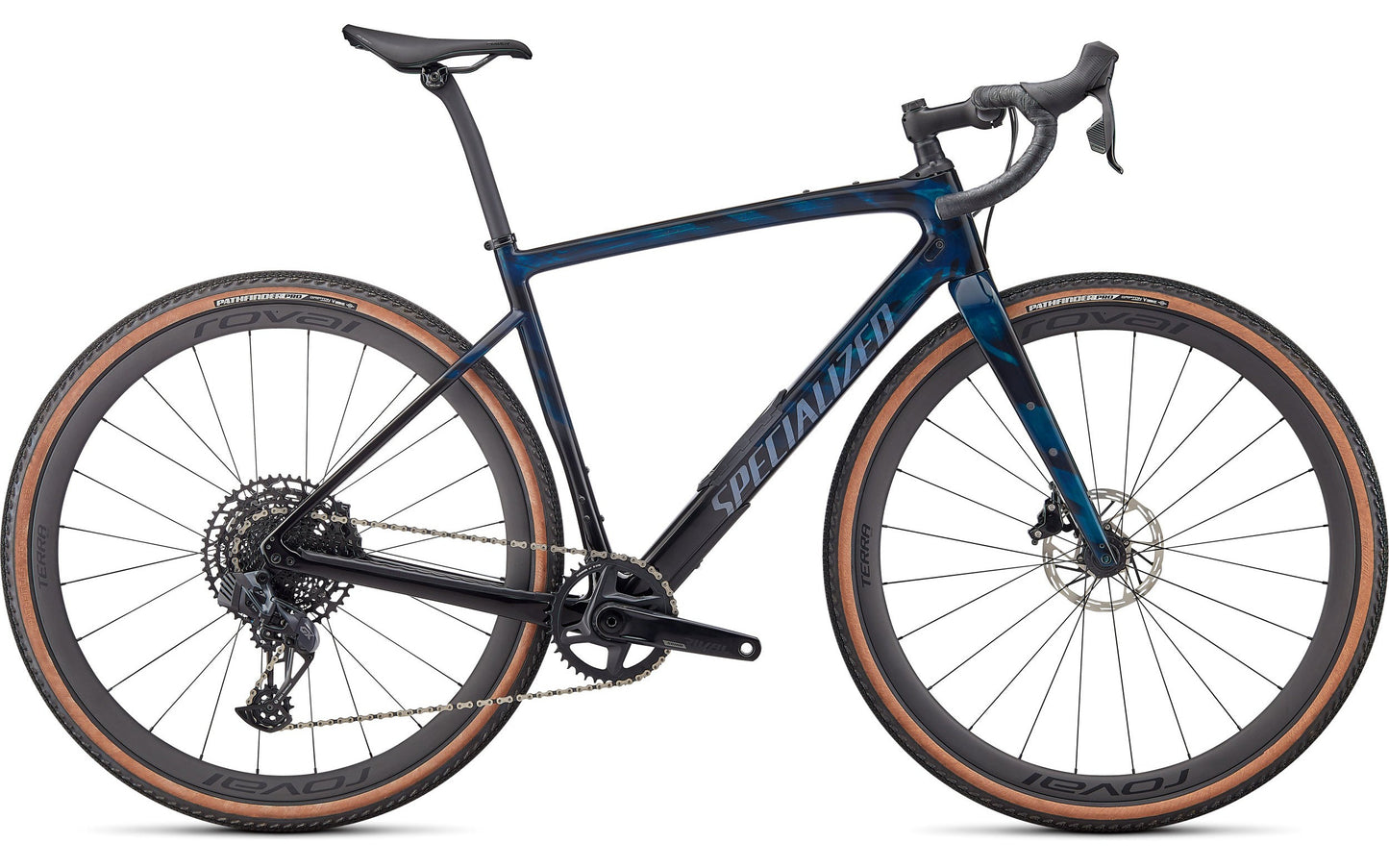

Diverge Expert Carbon
Diverge Expert Carbon
SKU:95422-3149
Out of stock
Product Sold Out? Contact us and we will try to find it for you.
Read More
Read More
Whether your goal is to escape on gravel back roads, far from cars and crowds, or drop the hammer at the front of your favorite gravel race, no bike does it better than the new Diverge. ItÕs quite simply the fastest, most capable - and just maybe the most fun - bike weÕve ever made, delivering a ride thatÕs quick and lively under power, but stable and confidence inspiring when the terrain gets rough. From Future Shock 2.0 and all-new gravel geometry, to internal storage and category leading tire clearance, the new Diverge represents everything weÕve learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. ItÕs the ultimate getaway vehicle.
With a FACT 9r carbon frame and Future Shock 2.0 the Diverge Expert will have you riding faster and more confidently over more terrain than you ever imagined possible. SRAM's wireless Rival eTap AXS 12-speed groupset delivers quick, crisp shifting and Roval Terra Carbon wheels mated to Pathfinder Pro 42mm tires ensure performance across smooth pavement, dirt roads and gravel tracks. A Roval Terra seat post post keeps the Diverge Expert perfectly balanced for the ultimate ride.
Share
Technical Specifications
FRAMESET
Frame

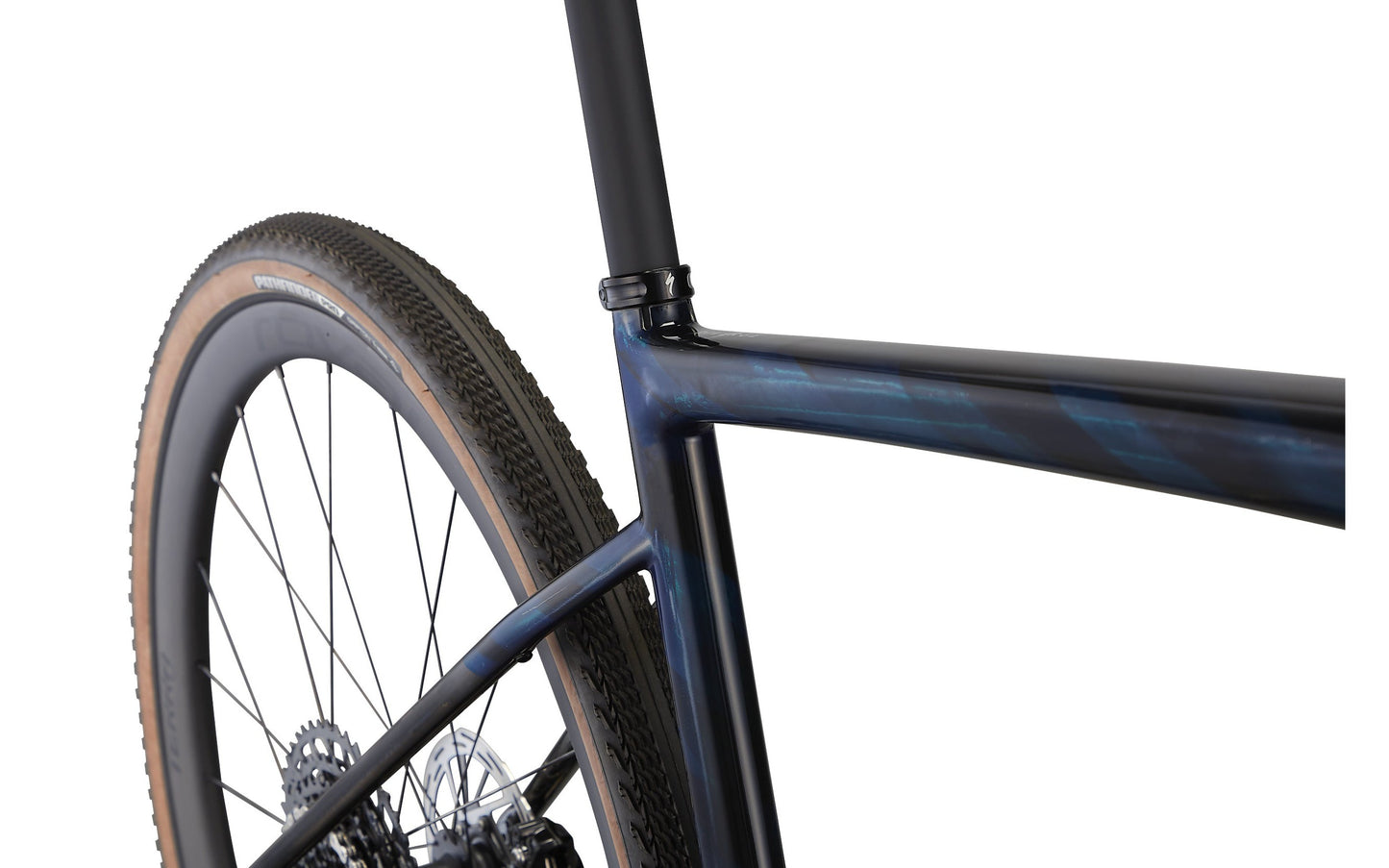

Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Seat Binder
Specialized Alloy, 30.8mm
Suspension
Fork
Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
COCKPIT
Handlebars

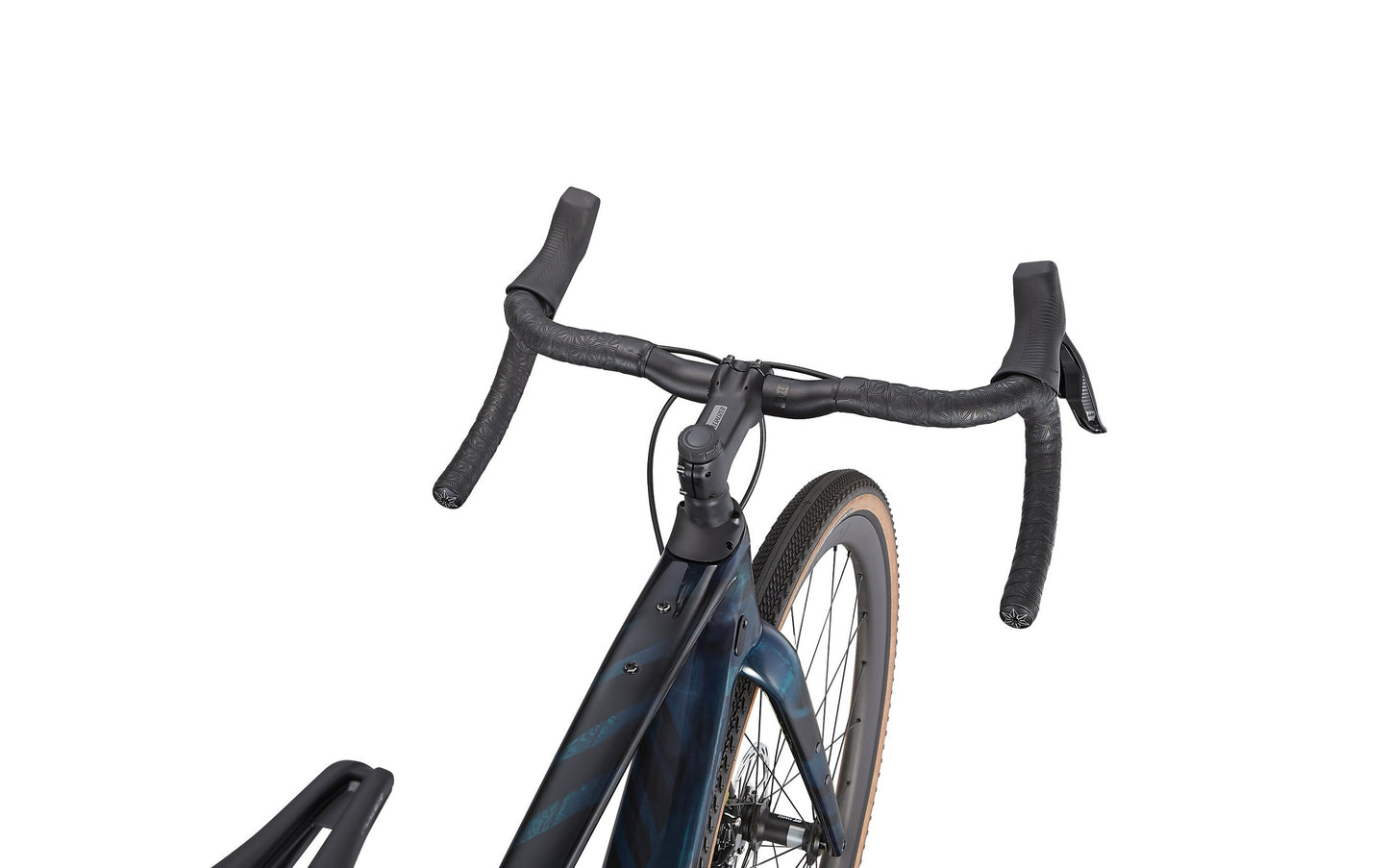

Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Stem
Future Stem, Pro
Tape
Supacaz Super Sticky Kush
Saddle

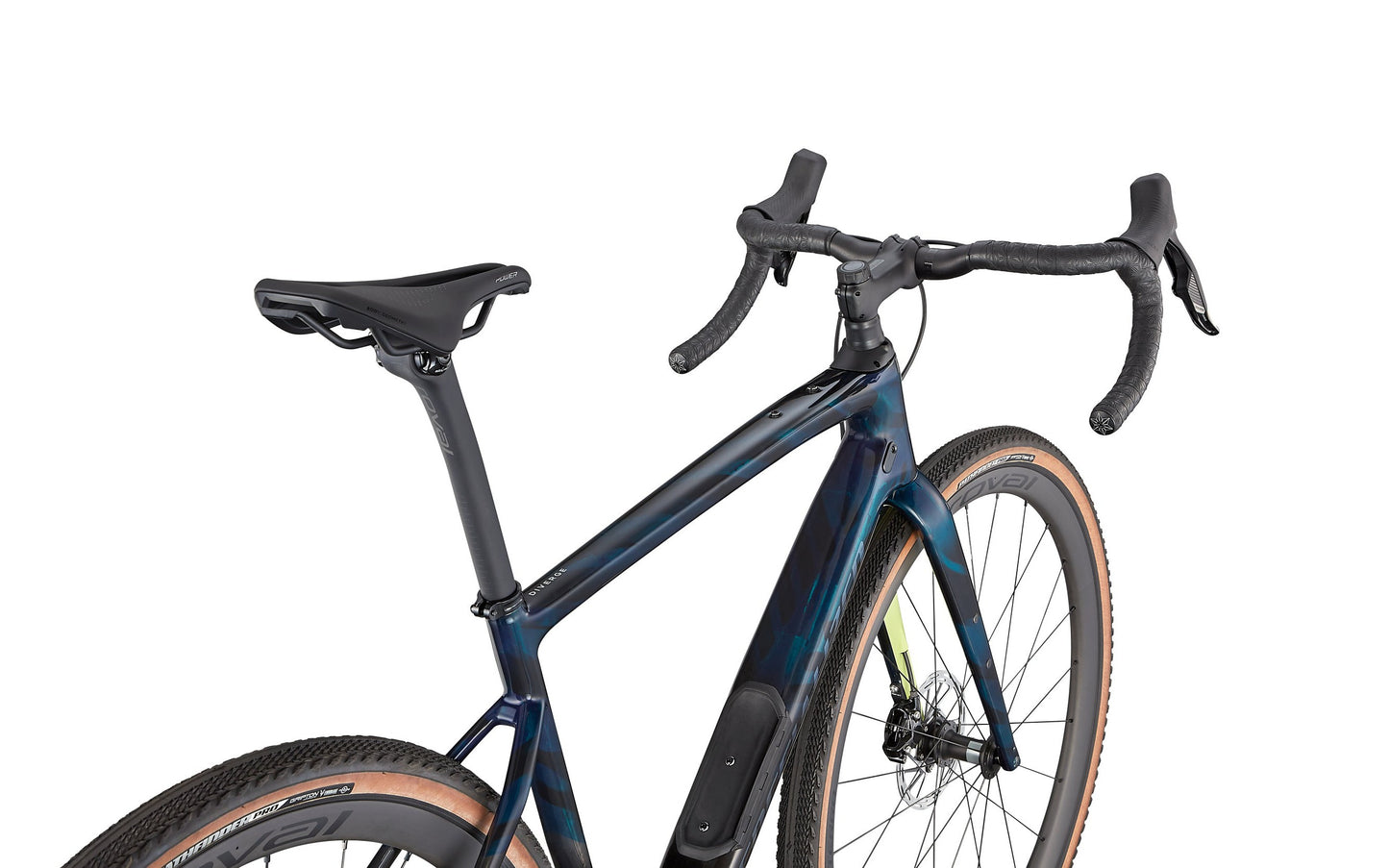

Body Geometry Power Expert, titanium rails
SeatPost
Roval Terra Carbon Seat Post, 20mm Offset
BRAKES
Front Brake
SRAM Rival eTAP AXS, hydraulic disc
Rear Brake
SRAM Rival eTAP AXS, hydraulic disc
DRIVETRAIN
Shift Levers
SRAM Rival eTap AXS
Rear Derailleur
SRAM GX Eagle AXS, w/ battery cover
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Crankset
SRAM Rival 1 Wide
Chainrings
40T
Bottom Bracket
SRAM DUB BSA 68
Chain
SRAM GX Eagle, 12-speed
WHEELS & TIRES
Front Wheel
Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 hub, 24h, DT Swiss Comp Race spokes
Rear Wheel
Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 Star Ratchet hub, 24h, DT Swiss Comp Race spokes
Front Tire
PATHFINDER PRO 2BR, TAN SIDEWALL, 700x42
Rear Tire
PATHFINDER PRO 2BR, TAN SIDEWALL, 700x42
Inner Tubes
Presta valve, 48mm
ACCESSORIES
SWAT
Integrated SWAT door, internal storage system
* Specifications are subject to change without notice
Geometry
49 | 52 | 54 | 56 | 58 | 61 | 64 | |
---|---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm | 175mm |
Seatpost Length | 330mm | 330mm | 380mm | 380mm | 380mm | 380mm | 380mm |
Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm | 440mm |
Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm | 100mm | 110mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm | 143mm |
Stack | 571mm | 577mm | 592mm | 610mm | 634mm | 659mm | 684mm |
Reach | 365mm | 374mm | 383mm | 392mm | 401mm | 410mm | 419mm |
Head Tube Length | 99mm | 104mm | 116mm | 133mm | 159mm | 185mm | 209mm |
Head Tube Angle | 70° | 70.5° | 71.25° | 71.75° | 71.75° | 71.75° | 72.25° |
BB Height | 270mm | 270mm | 270mm | 270mm | 270mm | 270mm | 270mm |
BB Drop | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
Trail | 69mm | 66mm | 61mm | 57mm | 57mm | 57mm | 54mm |
Fork Length, Full | 389mm | 389mm | 389mm | 389mm | 389mm | 389mm | 389mm |
Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
Front Center | 607mm | 614mm | 620mm | 630mm | 647mm | 664mm | 675mm |
Chainstay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
Wheelbase | 1019mm | 1026mm | 1032mm | 1042mm | 1059mm | 1076mm | 1088mm |
Top Tube Length, Horizontal | 529mm | 542mm | 558mm | 573mm | 589mm | 605mm | 628mm |
Bike Standover Height | 700mm | 725mm | 754mm | 779mm | 805mm | 832mm | 859mm |
Seat Tube Length | 390mm | 430mm | 470mm | 500mm | 530mm | 560mm | 590mm |
Seat Tube Angle | 74° | 73.75° | 73.5° | 73.5° | 73.5° | 73.5° | 73° |
