Technical Specifications
FRAMESET
Frame
Specialized E5 Premium Aluminum frame, Open Road Geometry, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, Boost™ 12x148mm
Fork
Future Shock 1.5 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc
Seat Binder
Alloy, 30.8mm
COCKPIT
Stem
Future Stem, Comp

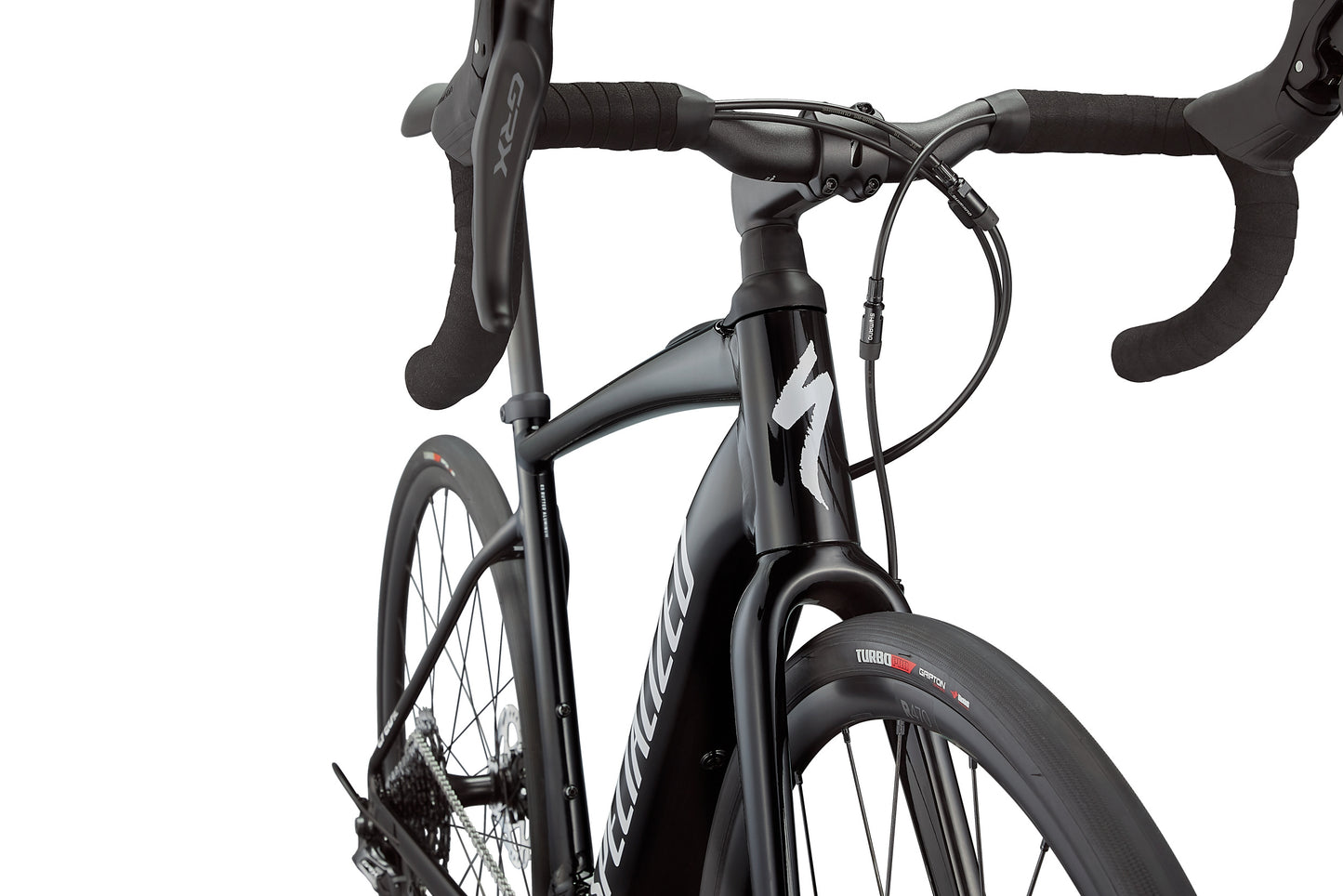

Handlebars
Specialized Hover Comp, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole
Tape
Roubaix S-Wrap
Saddle
Body Geometry Power Sport, steel rails
SeatPost
Carbon, single-bolt, 27.2mm
BRAKES
Front Brake
Shimano 105, Hydraulic disc
Rear Brake
Shimano 105, Hydraulic disc
DRIVETRAIN
Rear Derailleur
Shimano GRX810 , Shadow Plus, 11-speed
Shift Levers
Shimano GRX 810 hydraulic brake levers, mechanical shifting
Cassette
Sunrace, 11-speed, alloy spider, 11-42t
Chain
KMC X11 Extra Lightweight, 11-speed
Crankset
Praxis, Forged alloy M30, custom offset
Chainrings
46T
WHEELS & TIRES
Front Wheel
DT R470 Boost, 12x110mm
Rear Wheel
DT R470 Boost, 12x148mm
Front Tire
Specialized Turbo Pro, 700x28mm
Rear Tire
Specialized Turbo Pro, 700x28mm
Inner Tubes
Presta valve, 48mm
E-BIKE

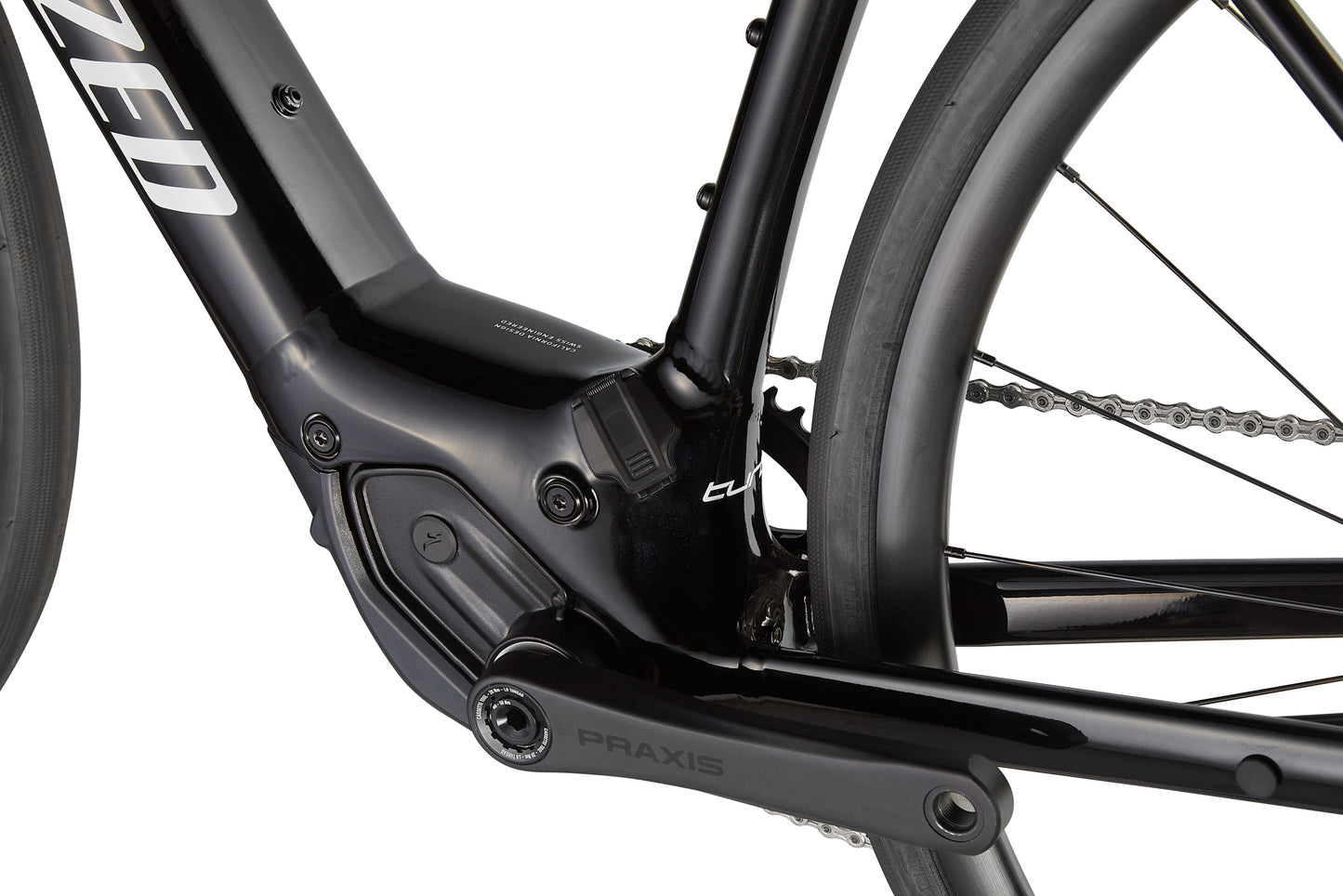

Motor
Specialized SL 1.1, custom lightweight motor

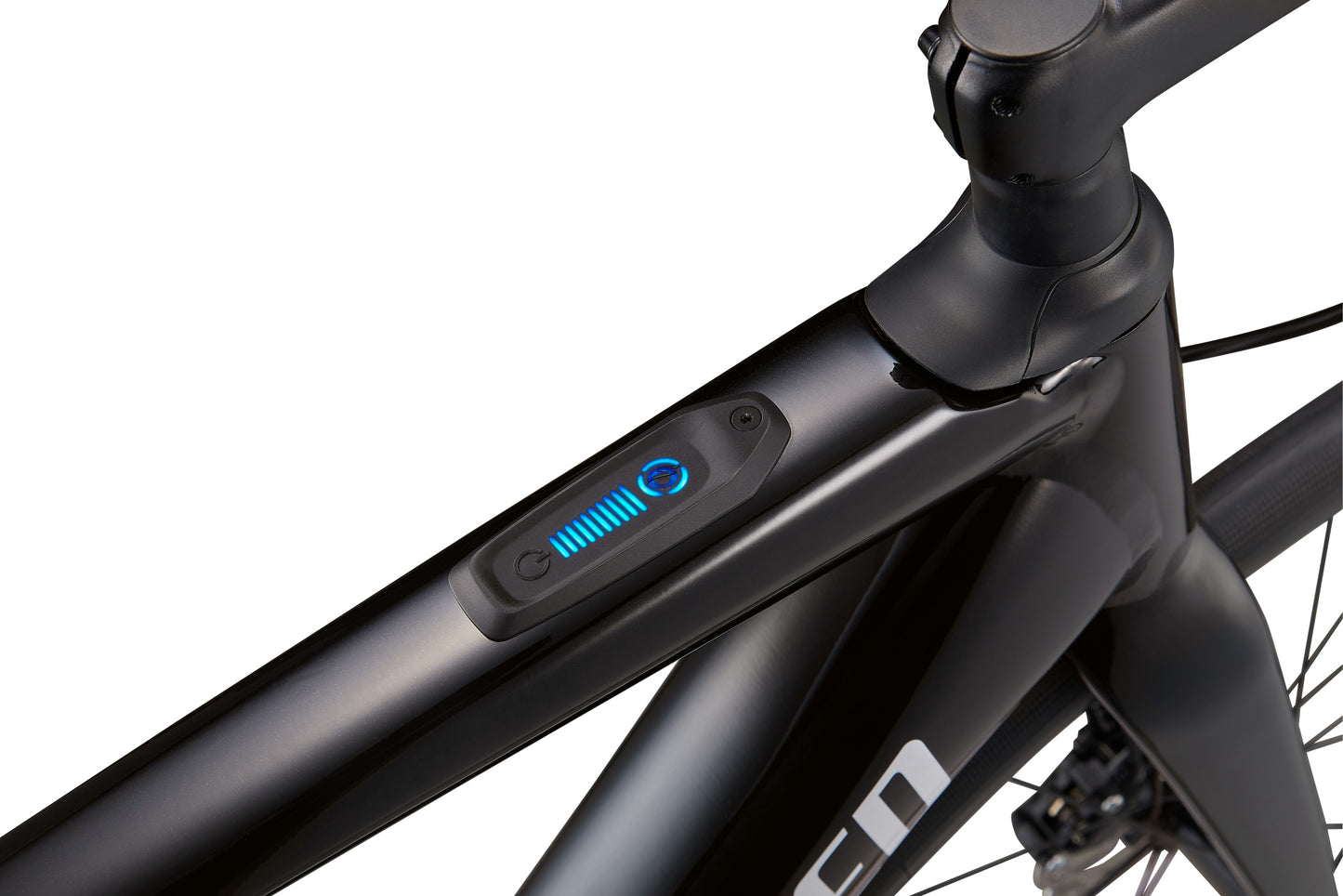

UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Wiring Harness
Custom Specialized wiring harness w/ chargeport
* Specifications are subject to change without notice
Geometry
S | M | L | XL | XXL | |
---|---|---|---|---|---|
Crank Length | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 400mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 90mm | 100mm | 100mm | 110mm | 110mm |
Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
Stack | 575mm | 592mm | 615mm | 643mm | 675mm |
Reach | 373mm | 379mm | 384mm | 391mm | 399mm |
Head-Tube Length | 145.5mm | 163.5mm | 185.5mm | 217mm | 250mm |
Head-Tube Angle | 72° | 72.5° | 73° | 73° | 73° |
B-B Height | 264.5mm | 267mm | 267mm | 269.5mm | 269.5mm |
B-B Drop | 80.5mm | 78mm | 78mm | 75.5mm | 75.5mm |
Trail | 60mm | 56mm | 53mm | 53mm | 52mm |
Fork Length (full) | 390mm | 390mm | 390mm | 390mm | 390mm |
Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm |
Front-Center | 592mm | 598mm | 605mm | 621mm | 636mm |
Chain-Stay Length | 426mm | 426mm | 427mm | 427mm | 428mm |
Wheelbase | 1005mm | 1012mm | 1020mm | 1036mm | 1052mm |
Top-Tube Length (horizontal) | 539mm | 548mm | 566mm | 581mm | 605mm |
Bike Stand-Over Height | 731mm | 759mm | 782mm | 810mm | 840mm |
Seat-Tube Length | 447.5mm | 477.5mm | 502.5mm | 527.5mm | 557.5mm |
Seat-Tube Angle | 74° | 74° | 73.5° | 73.5° | 73° |
