SPECIALIZED

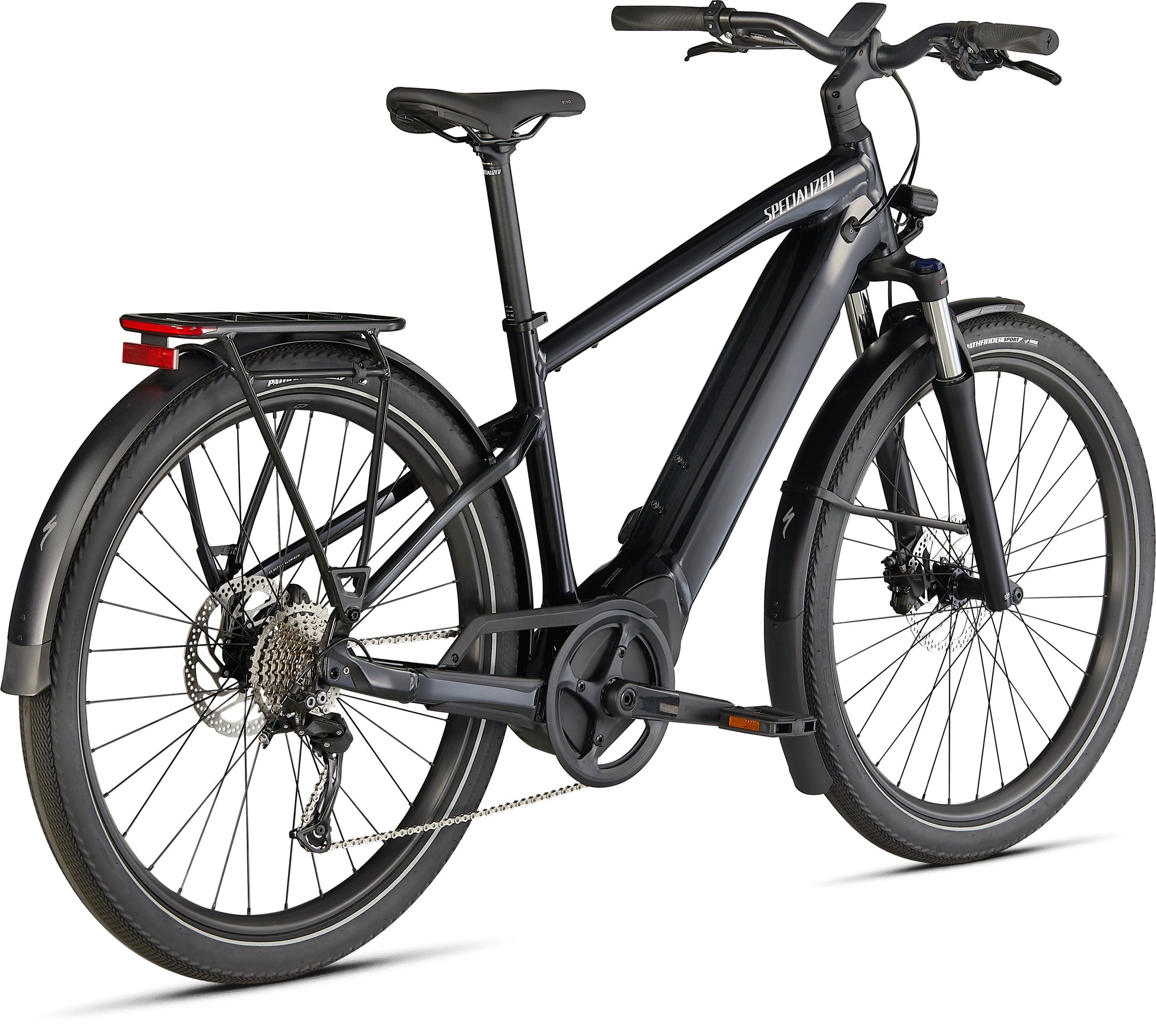

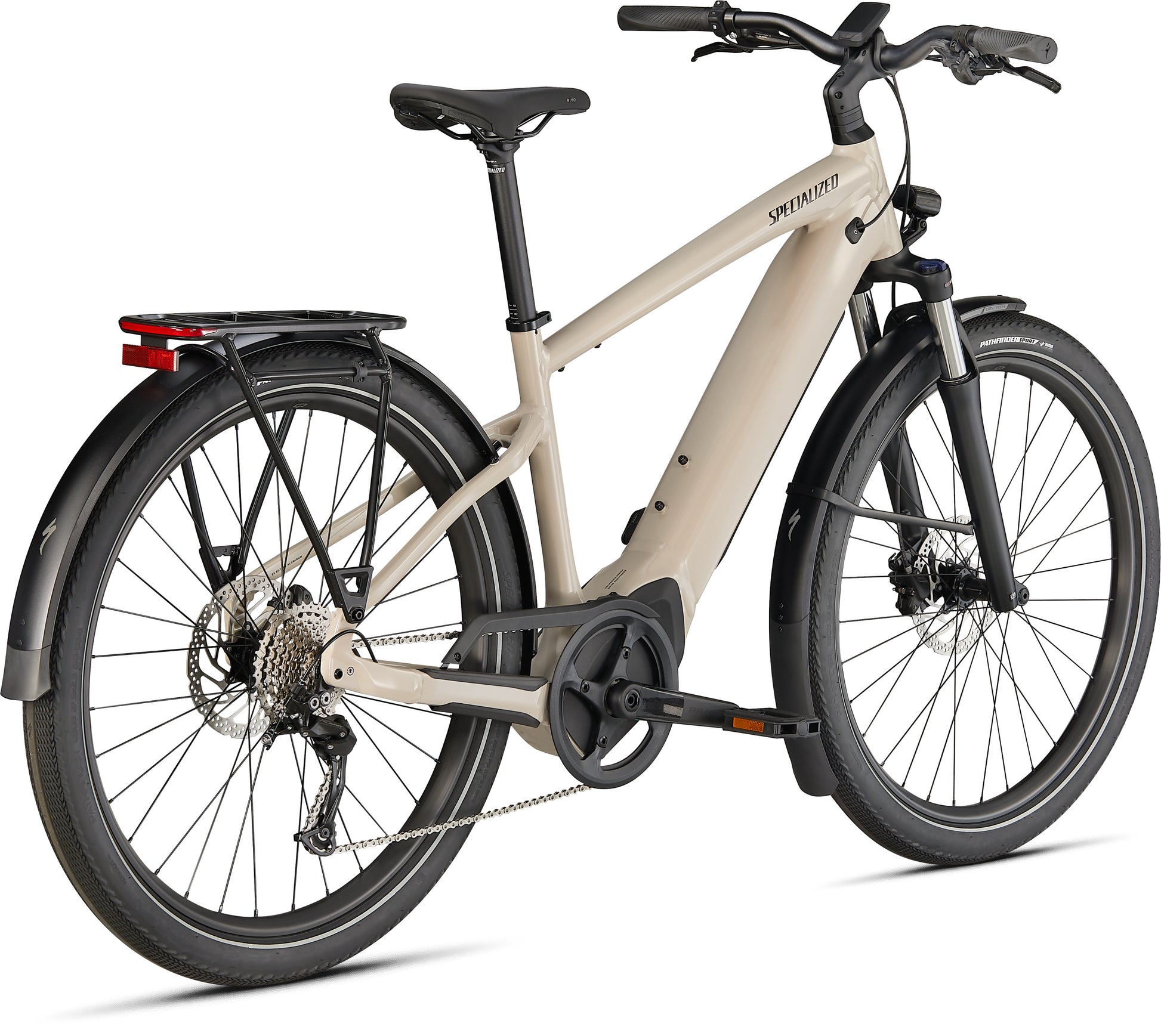

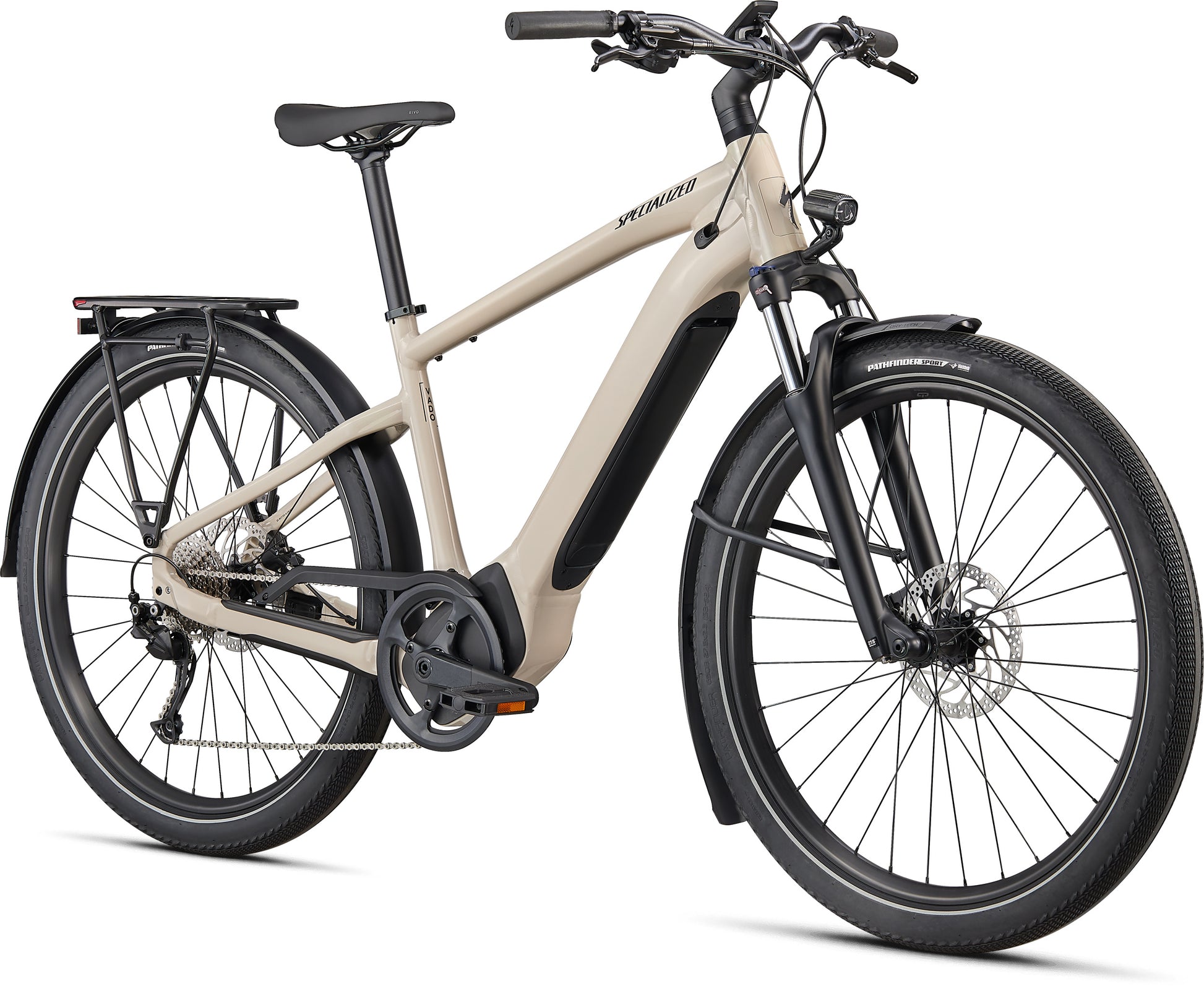

Turbo Vado 3.0
Turbo Vado 3.0
SKU:95022-7102
Out of stock
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Read More
Read More
Vado is the vehicle for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.
Redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. We took learnings from the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently power from A to B.
- Turbo Full Power 2.0E motor and 530Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.
- MasterMind and Mission Control - The MasterMind display reveals all relevant info about your ride, allows real-time tuning of support levels, and enables over-the-air updates so that your bike gets better over time. MasterMind seamlessly integrates with the Mission Control app for range optimization tools, advanced tuning, on-ride diagnostics, and more.
- Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.
- Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
- Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.
- Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
Technical Specifications
FRAMESET
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount
Fork
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Seat Binder
Alloy, bolt-type, 34.9mm
COCKPIT
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp

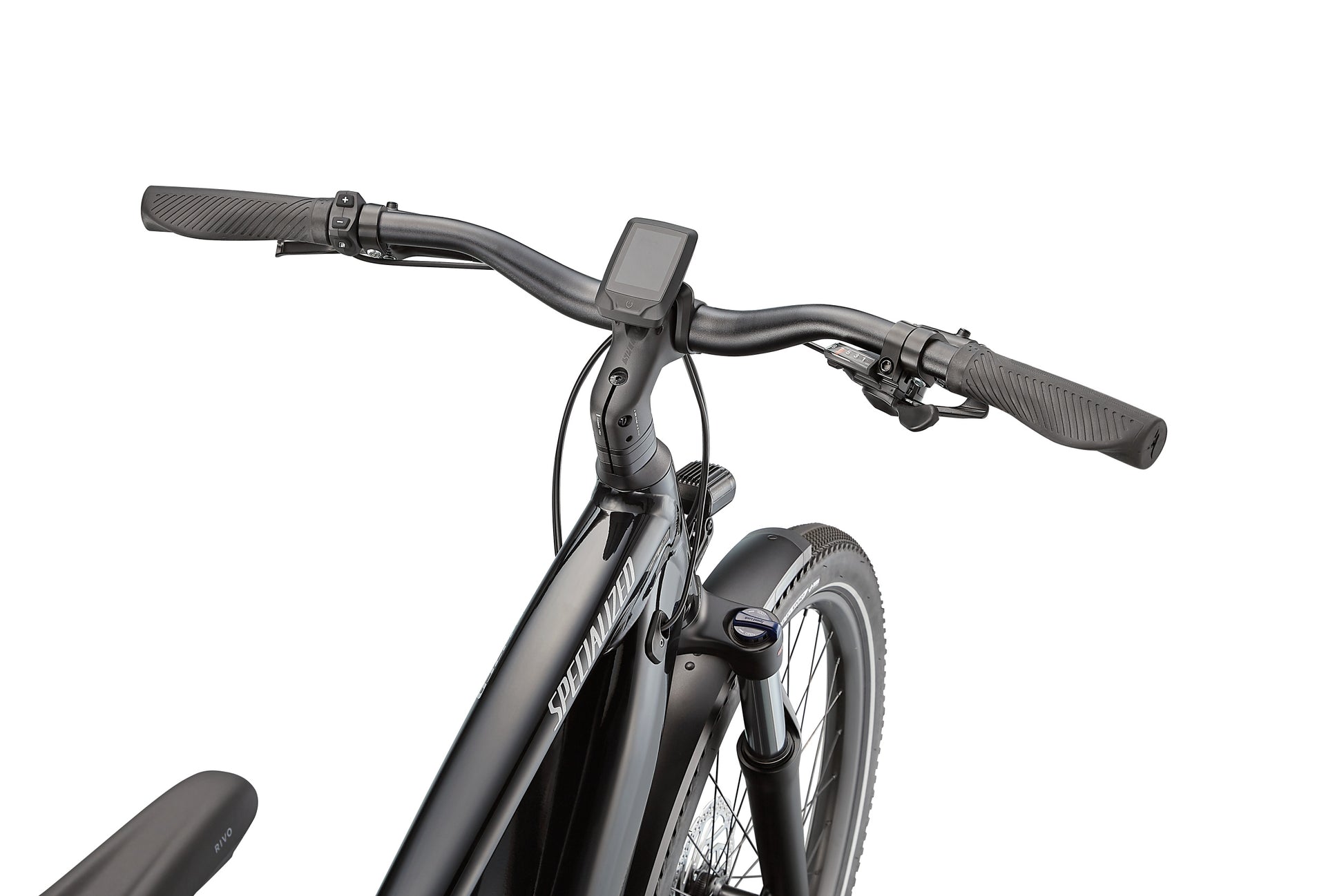

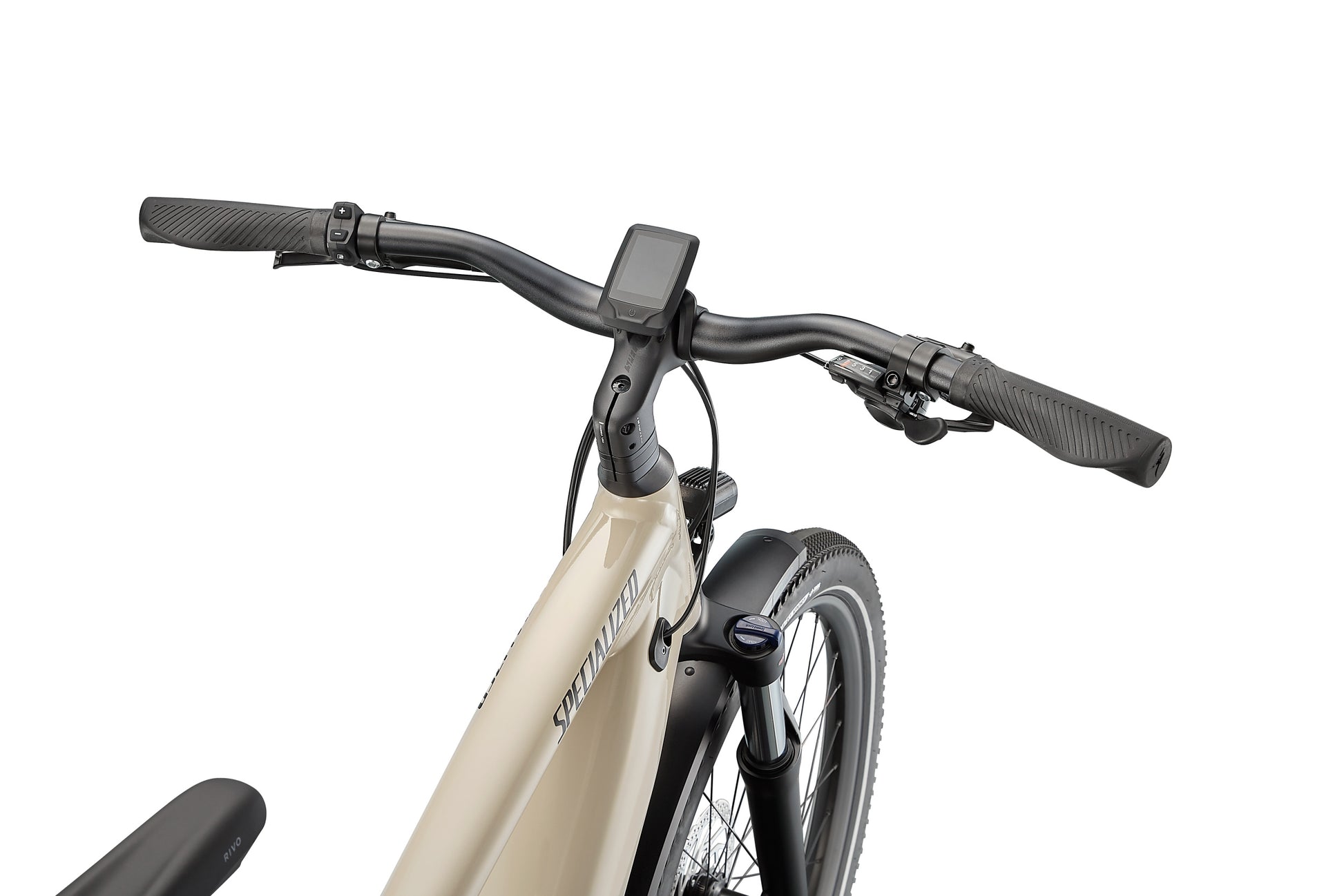

Handlebars
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Saddle
Rivo Sport, steel rails, 155mm
SeatPost
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Grips
Specialized Body Geometry Contour, lock-on
BRAKES
Front Brake
Shimano BR-MT200, hydraulic disc, 180mm Centerlock
Rear Brake
Shimano BR-MT200, hydraulic disc, 180mm Centerlock
DRIVETRAIN
Rear Derailleur
Shimano Alivio, SGS, 9-speed
Shift Levers
Shimano Alivio, 9-speed w/ Optical Gear Display
Cassette
Shimano CS-HG400, 9-speed, 11-36t
Chain
KMC e9T, 9-speed w/ Missing Link™
Crankset
Custom alloy forged crankarms
Chainrings
Praxis, 48T, 104BCD
Chaincase
Custom chaincover
ACCESSORIES
Pedals
Specialized Commuter w/ grip tape & reflectors

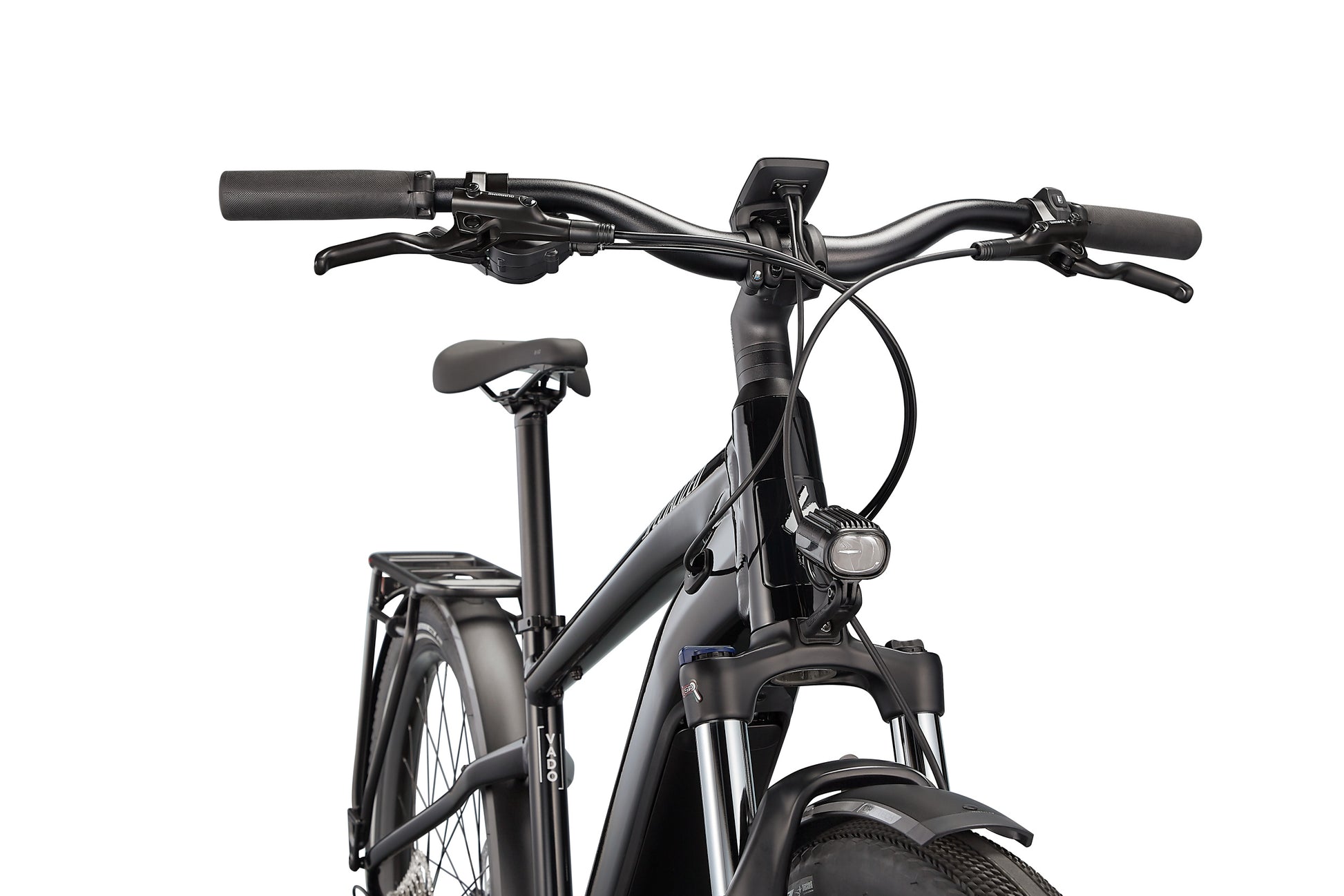

Headlight

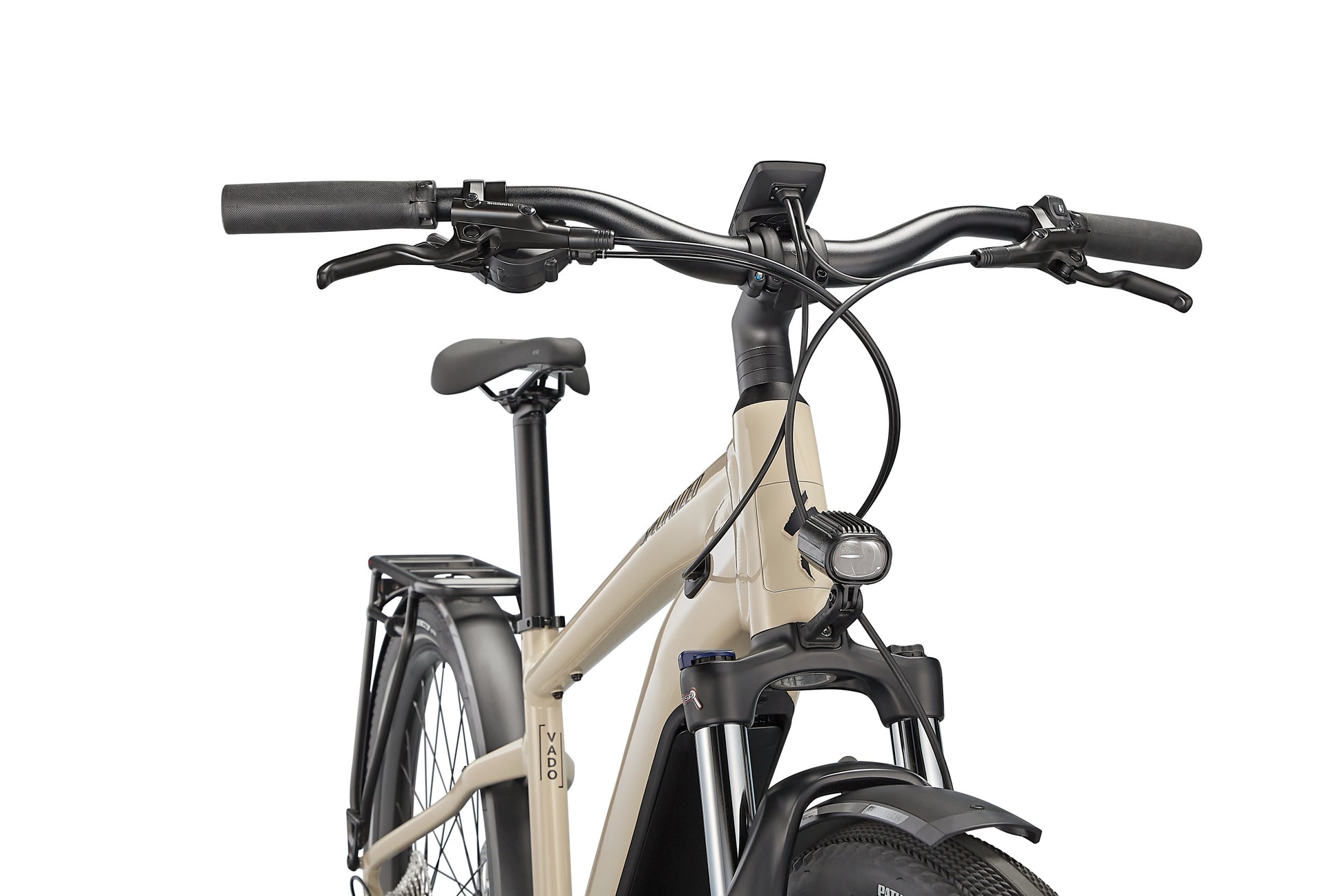

Lezyne EBIKE MINI STVZO E65, 210 Lumen, 12V
Taillight
Spanninga Commuter Glow XE, 12V
Kickstand
Specialized kickstand, 40mm mount

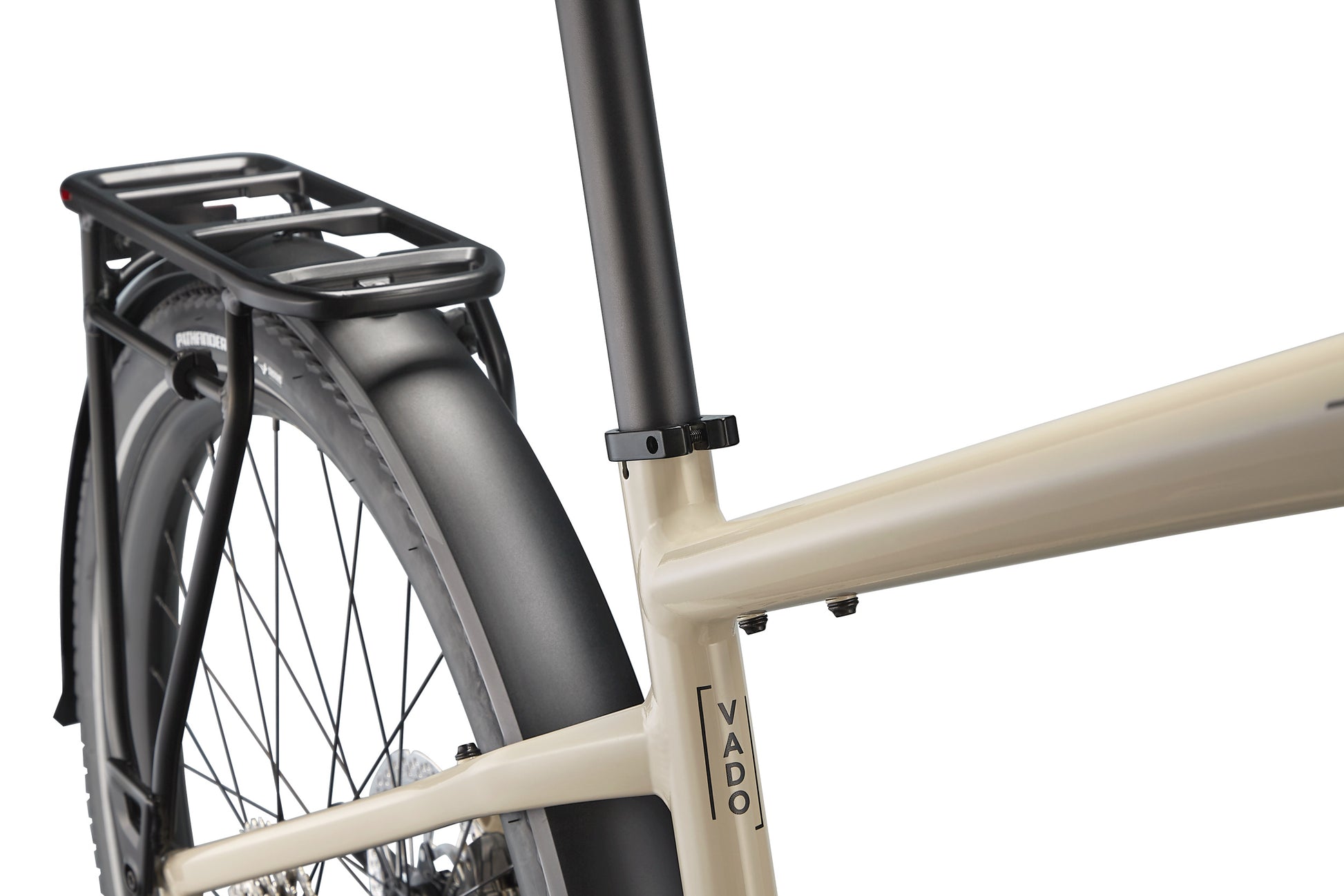

Rack

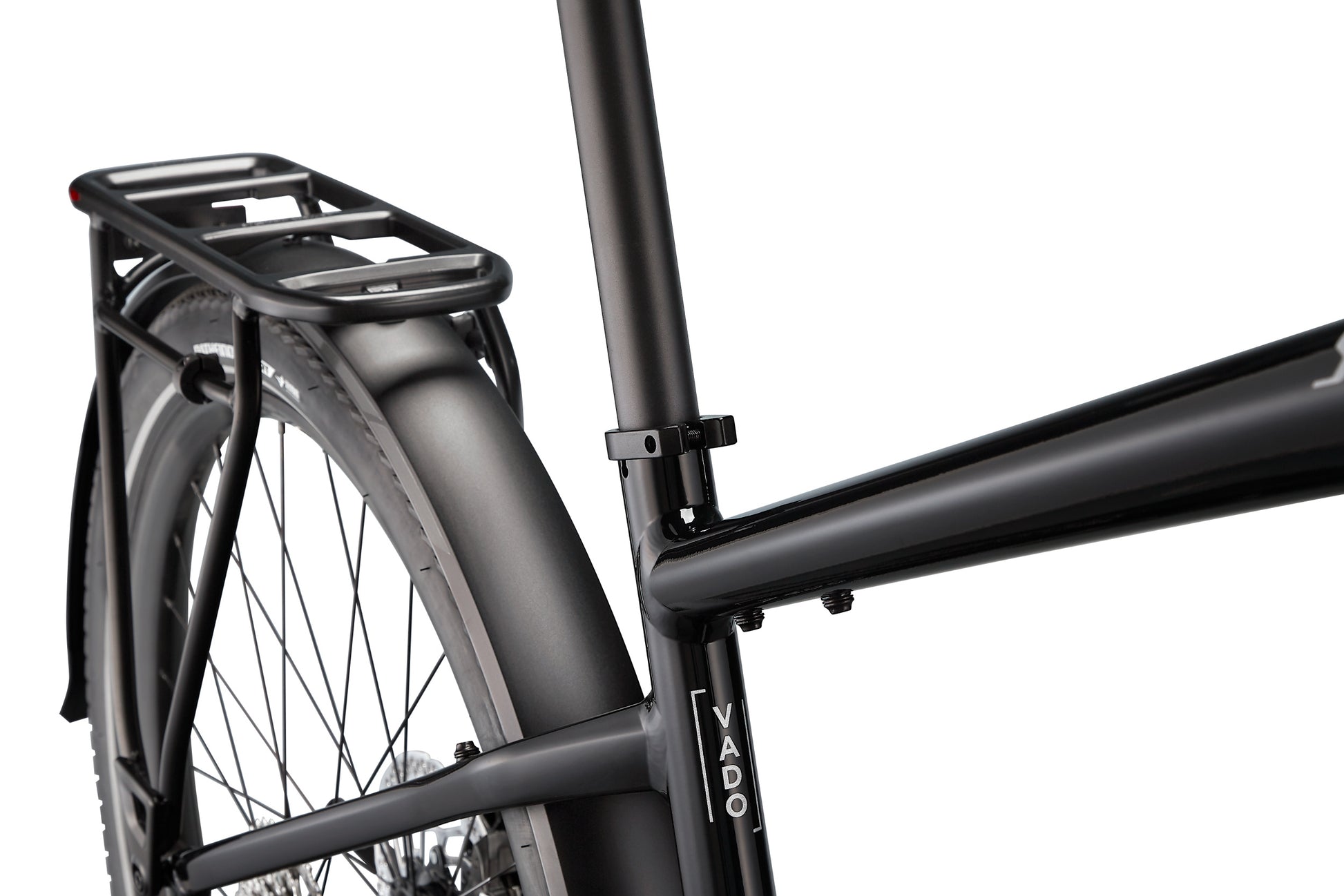

Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load
Fenders
Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
Bell
Simple bell
WHEELS
Rims
650b disc, double-wall alloy, pinned, 32h
Front Hub
Shimano MT400, Centerlock, 15x100mm, 32h
Rear Hub
Shimano MT400-B, Centerlock, 12x148 Boost, 32h
Spokes
DT Swiss Industry
FRONT TYRE
Pathfinder Sport Reflect, 650Bx2.3
REAR TYRE
Pathfinder Sport Reflect, 650Bx2.3
Inner Tubes
Schrader, 40mm valve
E-BIKE
Motor
Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal
UI/Remote
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
Battery
Specialized U2-530, alloy casing, state of charge display, 530Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom wire harness
* Specifications are subject to change without notice
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm |
| Stem Length | 60mm | 60mm | 75mm | 75mm |
| Saddle Width | 155mm | 155mm | 155mm | 155mm |
| Seatpost Length | 300mm | 400mm | 400mm | 400mm |
| Stack | 625mm | 639mm | 652mm | 676mm |
| Reach | 423mm | 444mm | 464mm | 481mm |
| Headtube Length | 135mm | 150mm | 165mm | 190mm |
| Headtube Angle | 68° | 68° | 68° | 68° |
| BB Height | 285mm | 285mm | 285mm | 285mm |
| BB Drop | 70mm | 70mm | 70mm | 70mm |
| Trail | 96mm | 96mm | 96mm | 96mm |
| Fork Length (full) | 480mm | 480mm | 480mm | 480mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Front Center | 699mm | 724mm | 750mm | 777mm |
| Chainstay Length | 470mm | 470mm | 470mm | 470mm |
| Wheelbase | 1160mm | 1186mm | 1212mm | 1239mm |
| 585mm | 615mm | 645mm | 675mm | |
| Bike Standover Height | 735mm | 771mm | 771mm | 805mm |
| Seat Tube Length | 400mm | 450mm | 460mm | 500mm |
| 75.5° | 75° | 74.5° | 74° |
