SPECIALIZED

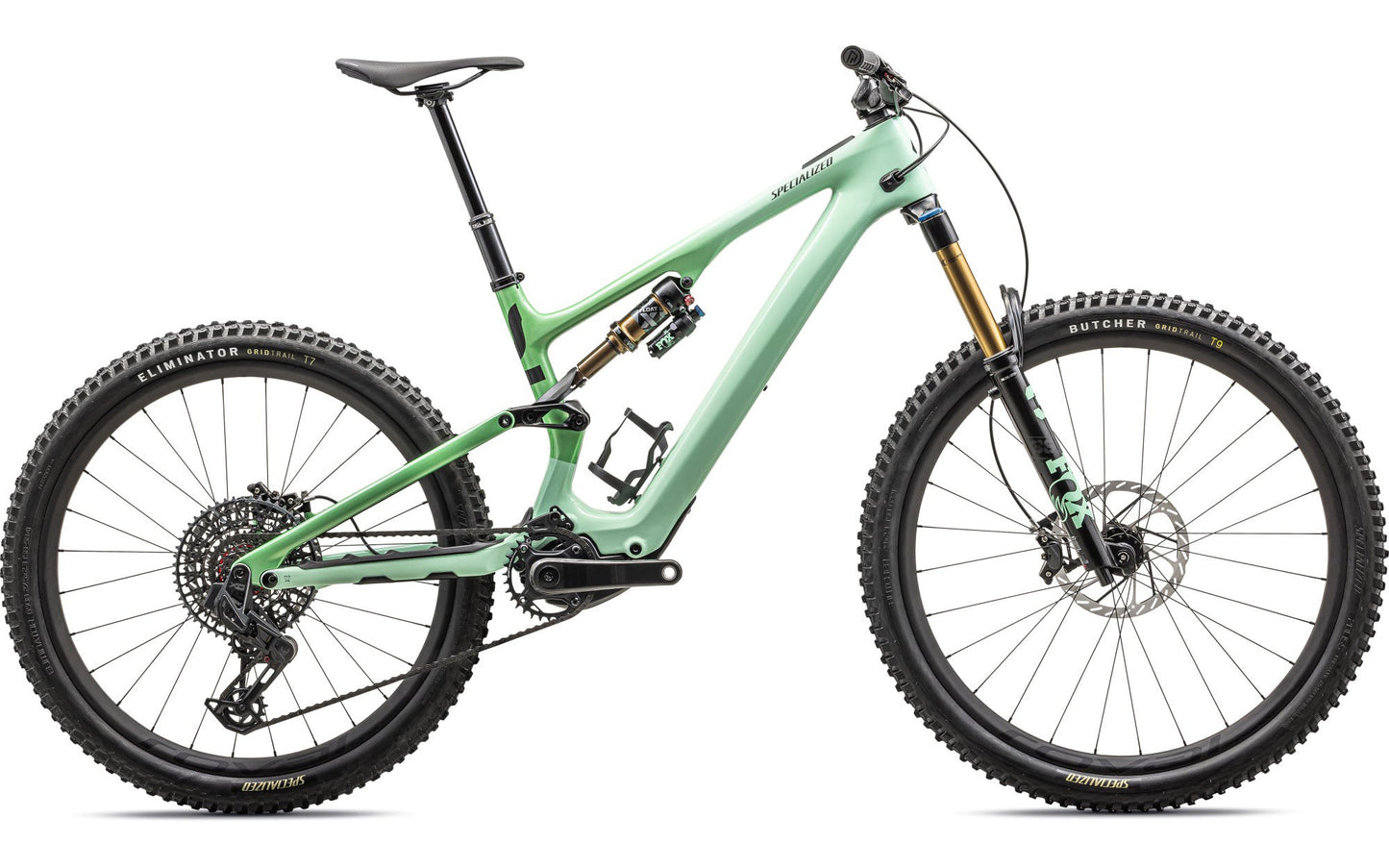

Turbo Levo SL Pro Carbon

Turbo Levo SL Pro Carbon

SKU: 96822-1005

Regular price MSRP 210,000.00
Regular price MSRP 210,000.00 Sale price MSRP 210,000.00
Sale Sold out
VAT included.
Size
Color

1 - Available

  • Visa
  • Mastercard

Read More

Turbo Levo SL Pro Carbon

The Levo SL delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and “2 X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree — Levo SL is THE ULTIMATE TRAIL BIKE.

IT’S ALL ABOUT THE RIDE — When everything works just right a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

THE FRAME OF REFERENCE — Everything starts here. Lively, precise ride feel. Strategic carbon fiber layup provides super-responsive chassis stiffness. We tuned the entire chassis—front end, rear end, and the link that unifies them—as a single unit to minimize lateral flex under pedaling to harness every bit of pedal force.

GEOMETRY OF CONTROL —  The cockpit centers you in the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle, and reduced fork offset keep things stable in the rough while giving you the freedom to destroy the turns. The head angle can be personalized to, 63, 64.25, and 65.5 degrees.

LESS IS MORE – The Levo SL is greyhound lean and telepathically responsive. Its curated component selection is light, yet capable—for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.

MIXED WHEEL —  A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a compact chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.

TURBO OPERATING SYSTEM — Our seamlessly-integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

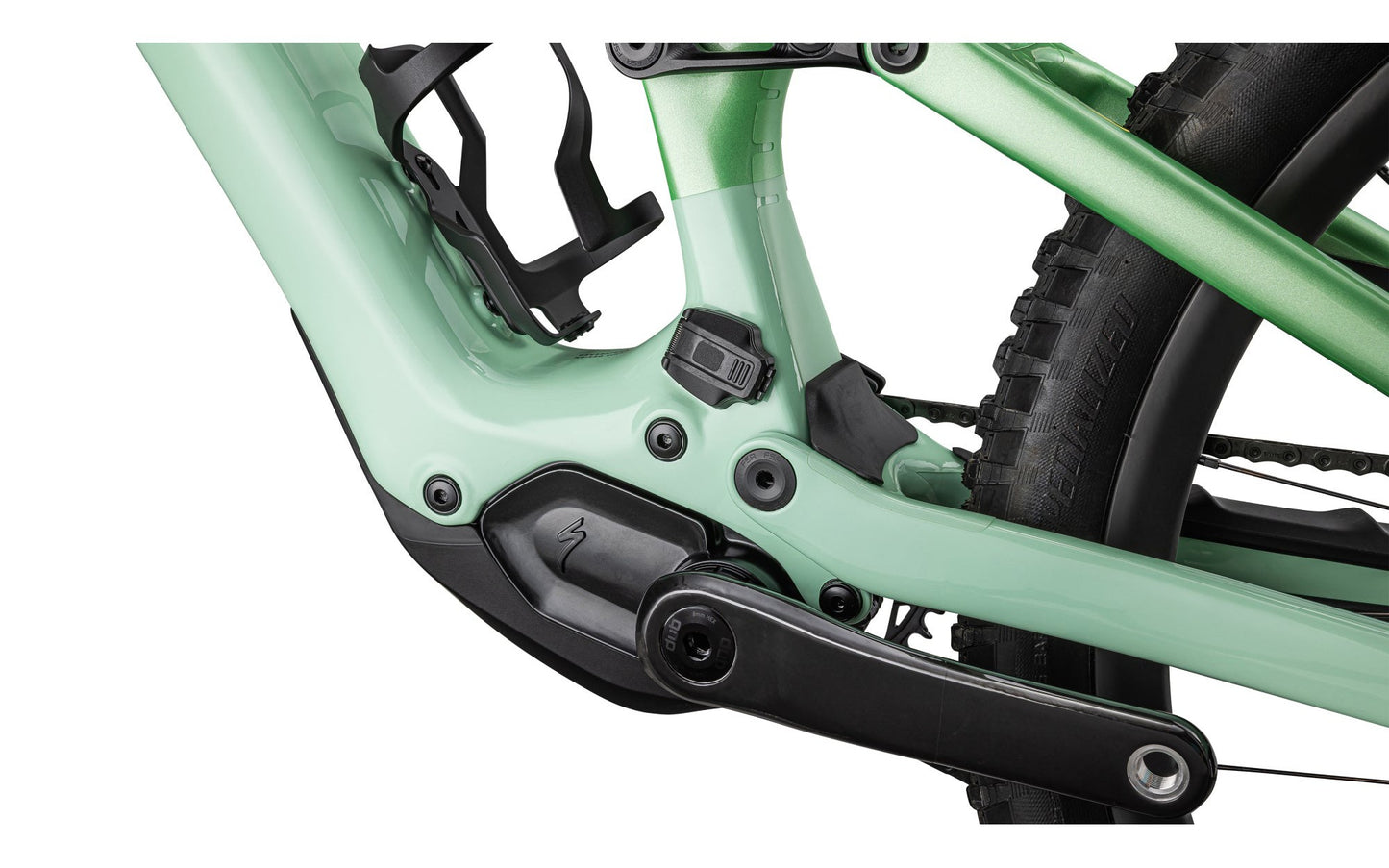

SPECIALIZED SL 1.2 MOTOR — The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor. Resulting in “2x You” performance; it’s you pedaling, but a side of you only a Levo can bring out.

GO DEEP RANGE — Levo SL features a premium, high quality, and seamlessly integrated 320Wh battery pack. Combined with the efficient motor, you’re set up for long, epic rides of up to 5 hours (in Eco Mode). For longer rides, just slide our 160 Wh Range Extender (sold separately) into your bottle cage—for 50% more range.

MASTERMIND TCU — Our most advanced and intuitive e-bike control unit. Connecting the bike, the Turbo OS, the Mission Control App as well as the rider, all in a protected and easily visible display. MasterMind TCU enables over-the-air updates so your bike will get even better over time. With MicroTune fine-tuning power output levels in real time is at your fingertips, optimizing range management and performance.

MISSION CONTROL APP — The Levo SL integrates fully with our Mission Control App and lets you personalize your motor characteristics with MicroTune, Support, and Peak Power.  You can say goodbye to range anxiety with Smart Control, and even thwart would-be thieves with Turbo System Lock.

  • All new carbon frame, comes in mixed wheel configuration (compatible to 29 rear with no extra parts needed.) New kinematic with flatter leverage curve which provides more support and playfulness off the top, but plenty of control in rougher conditions. The headtube angle and bottom bracket height are both adjustable.
  • New SRAM XO1 Transmission
  • New SRAM Code Silver Stealth Stealth brakes
View full details

Technical Specifications

FRAMESET

Seat Binder

Alloy, 38.6mm

Frame

All new Levo SL SW Frame, Fact 11m carbon, carbon shock extension, 150mm travel, adjustable head angle, BB height, 12x148mm UDH compatible rear spacing, and compatible with 27.5 or 29" wheels.



COCKPIT

Saddle

Bridge, 155/143mm, Hollow Ti-rails

Grips

Deity Grips

Stem

Deity, 35.0mm

Handlebars

Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm

SeatPost

Bike Yoke, Revive Max, 34.9 (S1:120mm, S2-S3:150mm, S4-S5: 185mm, S6: 213mm)



WHEELS

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"

Inner Tubes

Standard, Presta Valve

Spokes

DT Competition Race

Rear Hub

DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

Rims

Roval Traverse Carbon, 29 Front, 27.5 Rear, 30mm inner width, hand-built, 2Bliss Ready

Front Hub

DT Swiss 350, sealed cartridge bearings, 15x110mm spacing, 28h



E-BIKE

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 48V System w/ SL system charger plug

Motor

New Specialized 1.2 SL Custom Rx Trail Tuned Motor

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote

Battery

Specialized SL1-320, fully integrated, 320Wh



SUSPENSION

Fork

Fox 36 Factory, 29", 44mm offset, Grip 2 damper, Kashima, S1: 150mm, S2-S6:160mm

Rear Shock

S2-S6: Fox Float X Factory series, Kashima, 210x55mm, S1: Fox Float DPS Factory, Kashima, 210x50mm



DRIVETRAIN

Chainrings

New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring

Shift Levers

SRAM AXS POD Controller

Crankset

SRAM Carbon Crankset, Dub interface

Rear Derailleur

SRAM X0 Eagle Transmission Derailleur

Cassette

SRAM X0 Eagle Transmission Cassette, 12spd, 10-52t

Chain

SRAM X0 Eagle Transmission Flattop Chain



ACCESSORIES

SWAT

SWAT CC steerer tube integrated tool with chain tool and link



BRAKES

Front Brake

SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm

Rear Brake

SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm



* Specifications are subject to change without notice

Geometry

 S1S2S3S4S5S6
Crank Length165mm165mm170mm170mm170mm175mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length35mm35mm35mm35mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length125 mm160 mm160 mm185 mm185 mm213mm
Stack609mm617mm626mm635mm645mm654mm
Reach405mm425mm445mm470mm495mm525mm
Head-Tube Length95mm100mm110mm120mm130mm140mm
Head-Tube Angle64.6°64.6°64.6°64.6°64.6°64.6°
B-B Height343mm348mm348mm348mm348mm348mm
B-B Drop-34mm-29mm-29mm-29mm-29mm-29mm
Trail132mm132mm132mm132mm132mm132mm
Fork Length, Full560mm570mm570mm570mm570mm570mm
Fork Rake/Offset42mm42mm42mm42mm42mm42mm
Front-Centre726mm752mm776mm806mm835mm869mm
Chain-Stay Length433mm432mm432mm432mm432mm432mm
Wheelbase1158mm1184mm1208mm1238mm1267mm1301mm
Top Tube Length, Horizontal560mm582mm604mm631mm659mm691mm
Bike Stand-Over Height727mm763mm766mm767mm773mm778mm
Seat-Tube Length385mm385mm405mm425mm445mm465mm
Seat-Tube Angle75.8°75.8°75.8°75.8°75.8°75.8°

Size Guide
