Technical Specifications
E-bike
Wiring Harness
Custom Specialized wiring harness w/ chargeport
Charger
Custom charger, 48V System w/ SL system charger plug

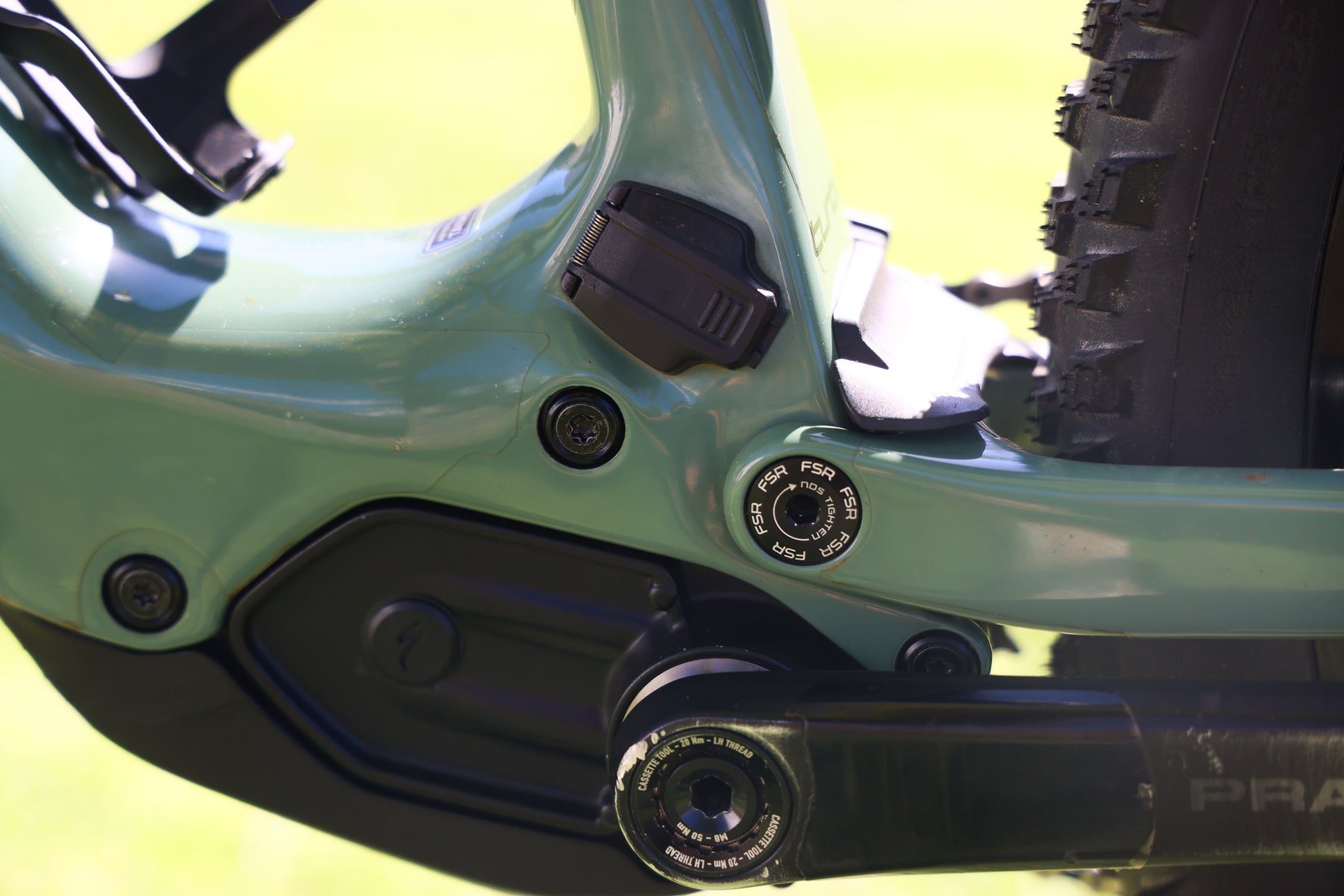

Motor
Specialized SL 1.1, custom lightweight motor
Battery
Specialized SL1-320, fully integrated, 320Wh

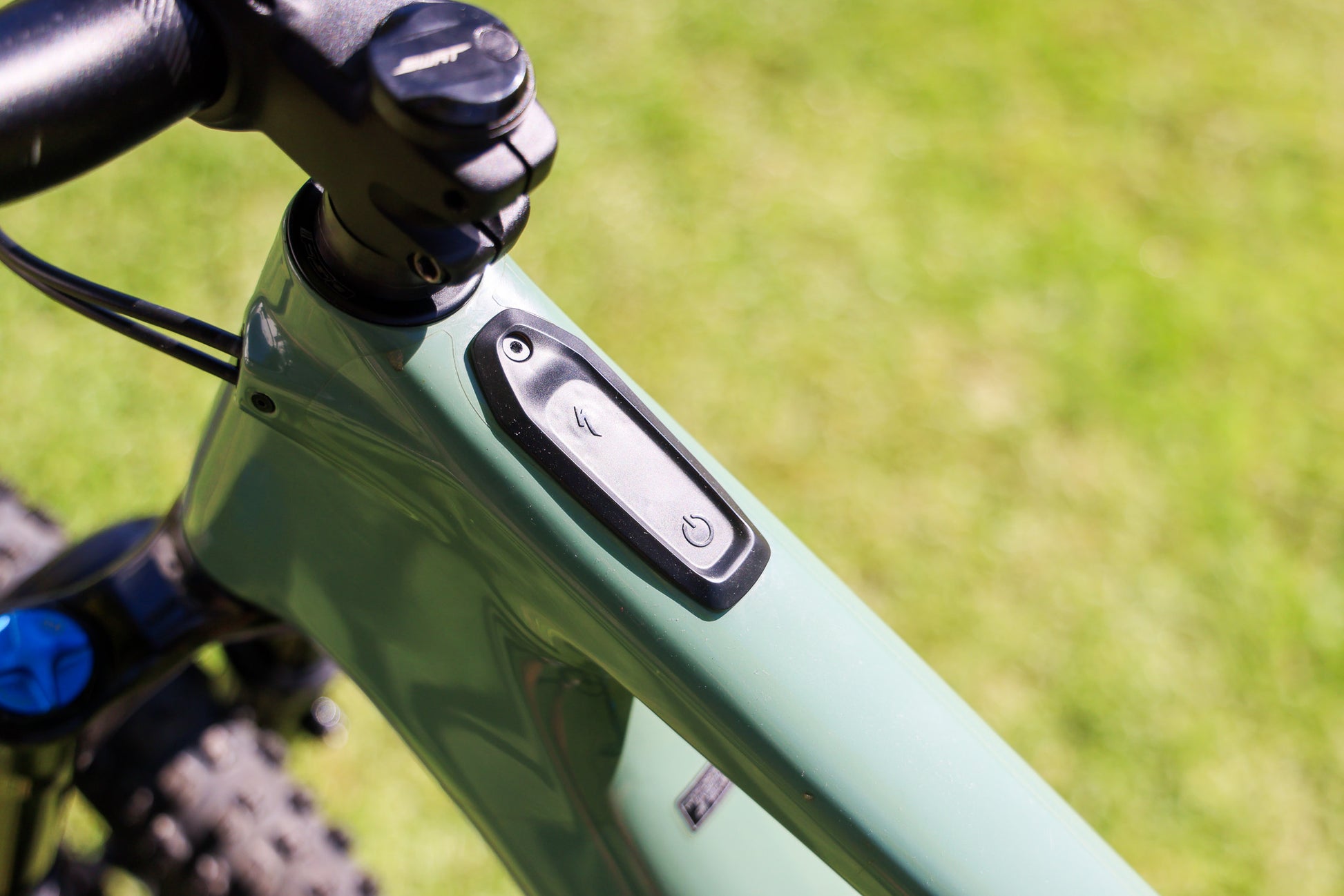

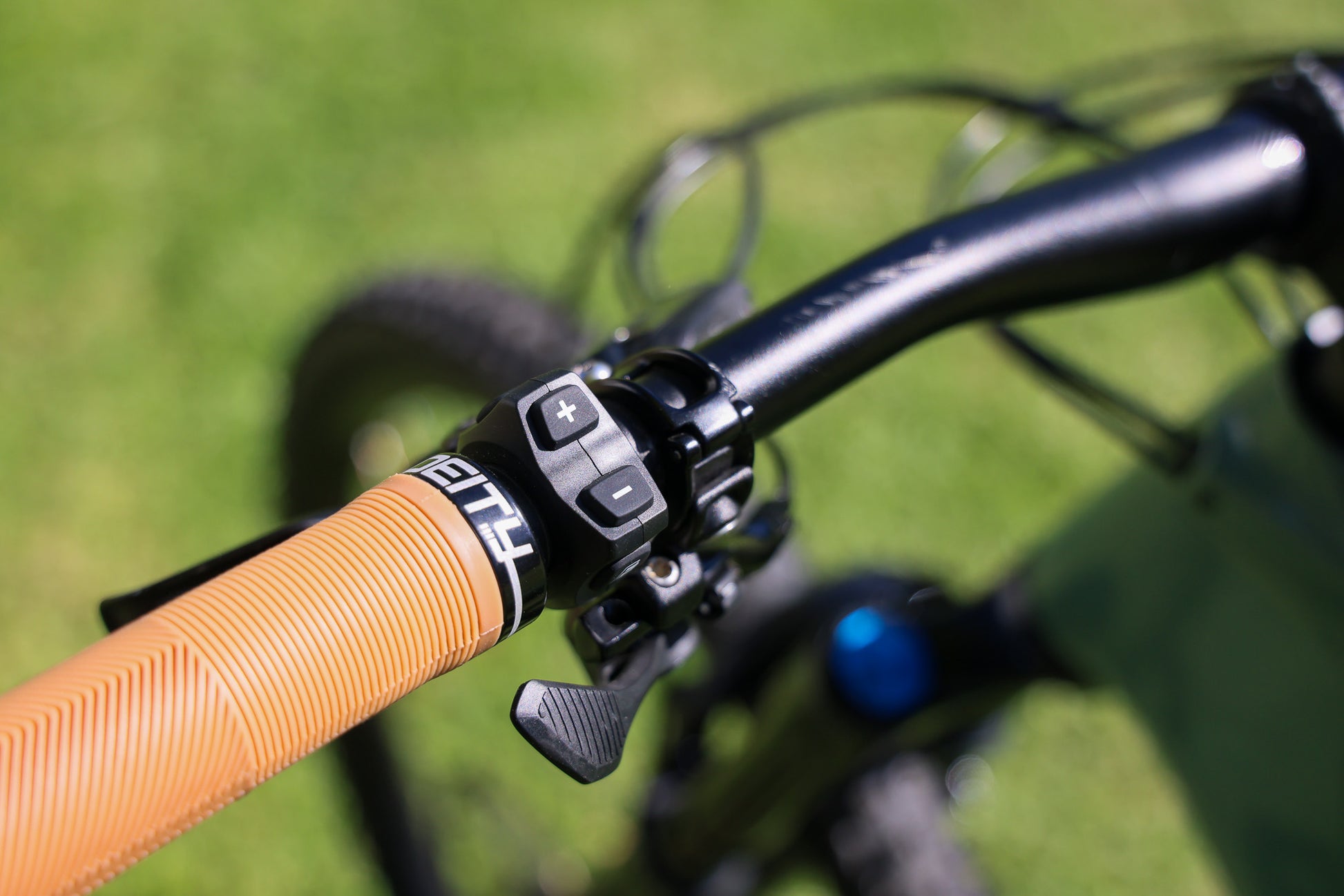

UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Frameset
Frame
FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Seat Binder
Specialized bolt-type, alloy, 38.6mm
Suspension

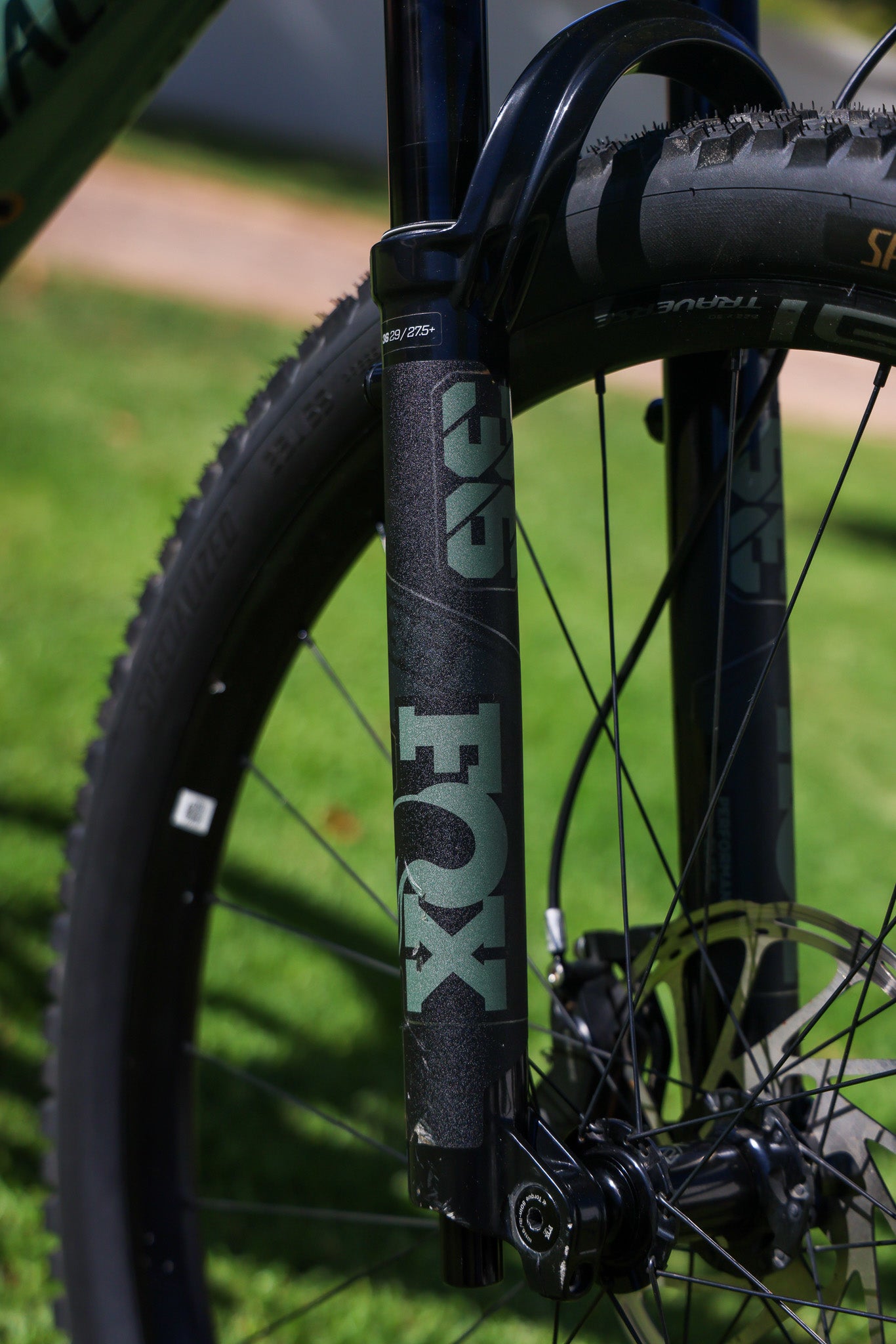

Fork
Fox Float 36, Performance Elite, Grip2 damper, 150mm, 51mm rake, HSC, LSC, HSR, LSR, Kabolt axle

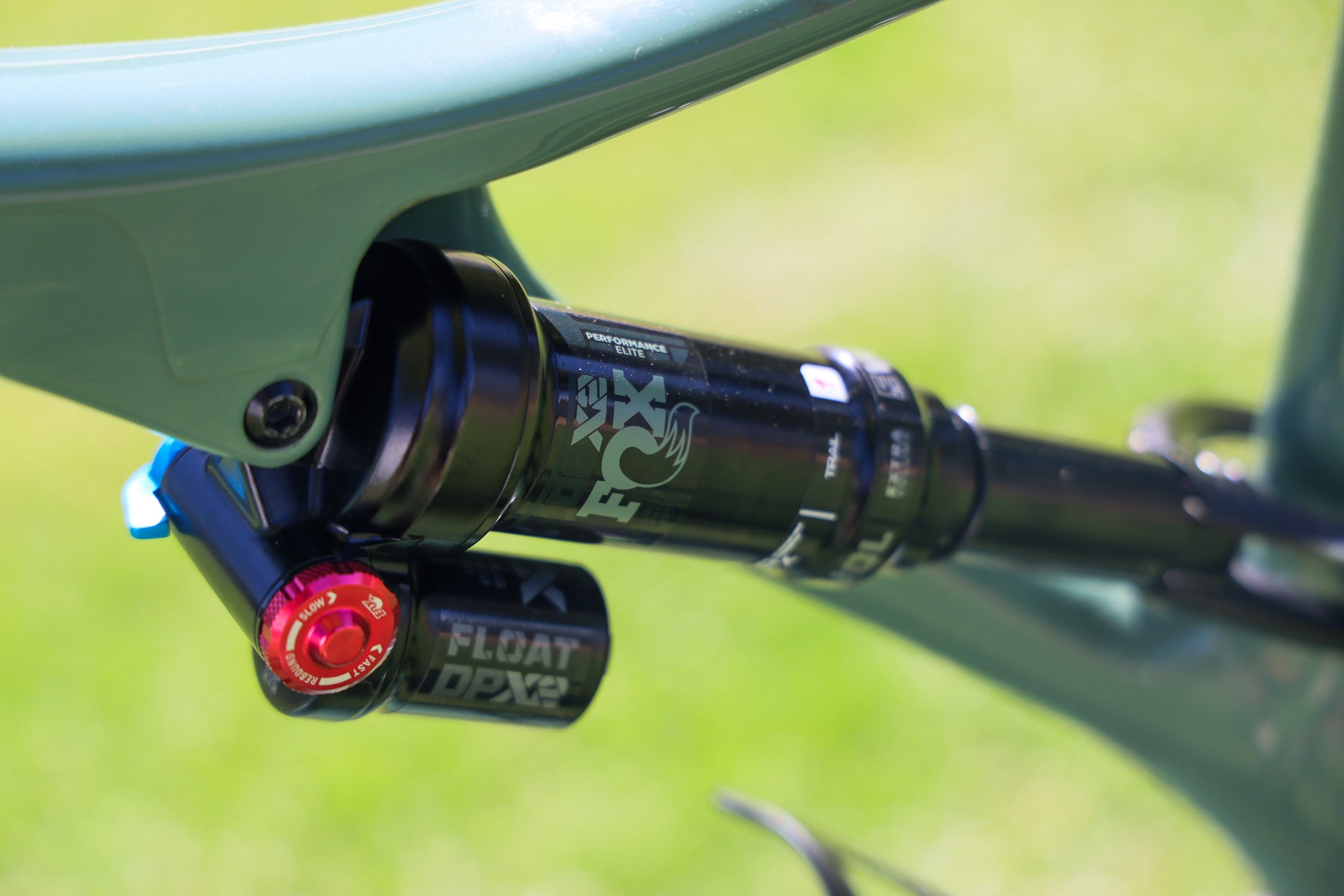

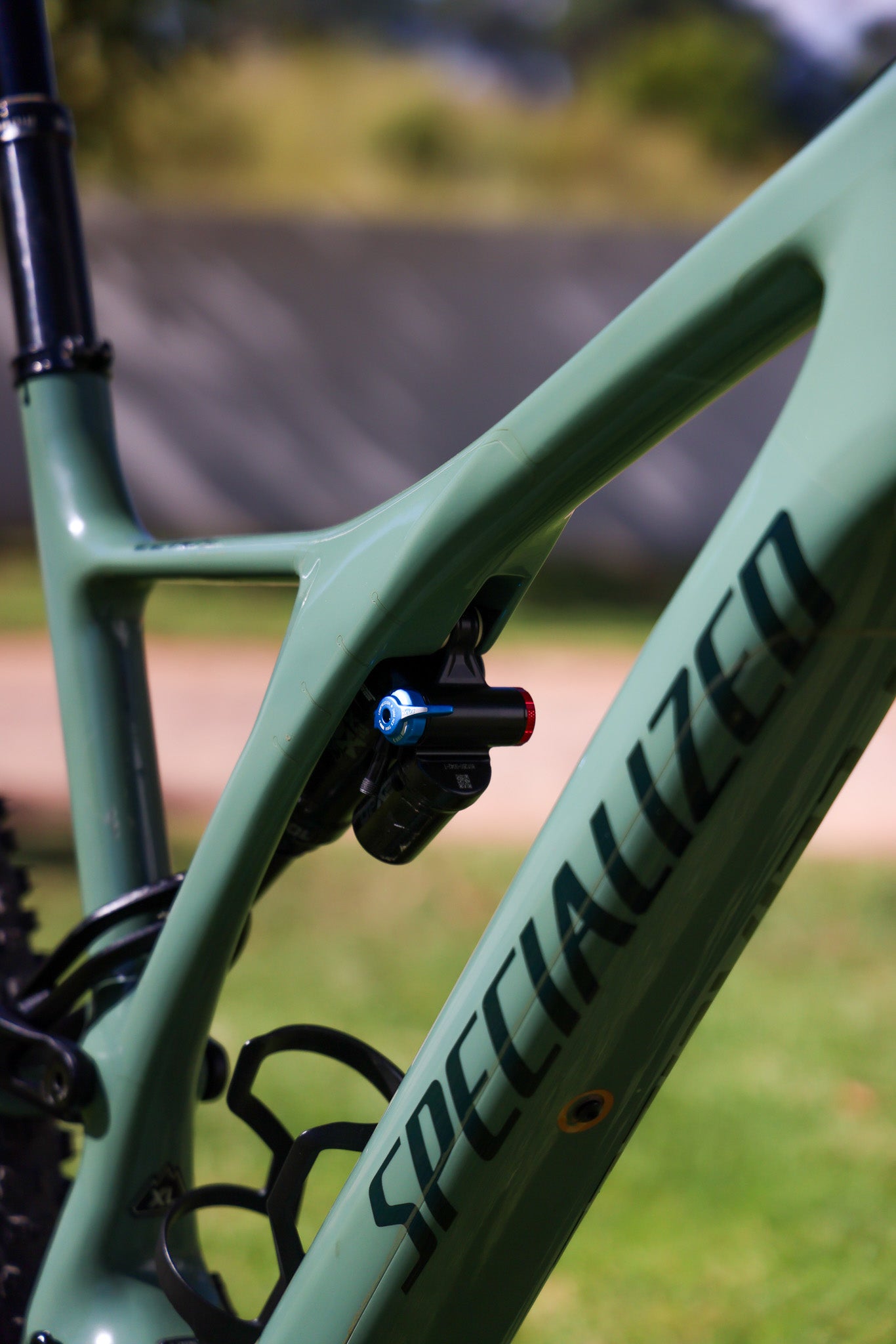

Rear Shock
Fox Float DPX2 Performance Elite, 3- position adjustment, 52.5x210mm, Rx Trail Tune
Brakes
Rear Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

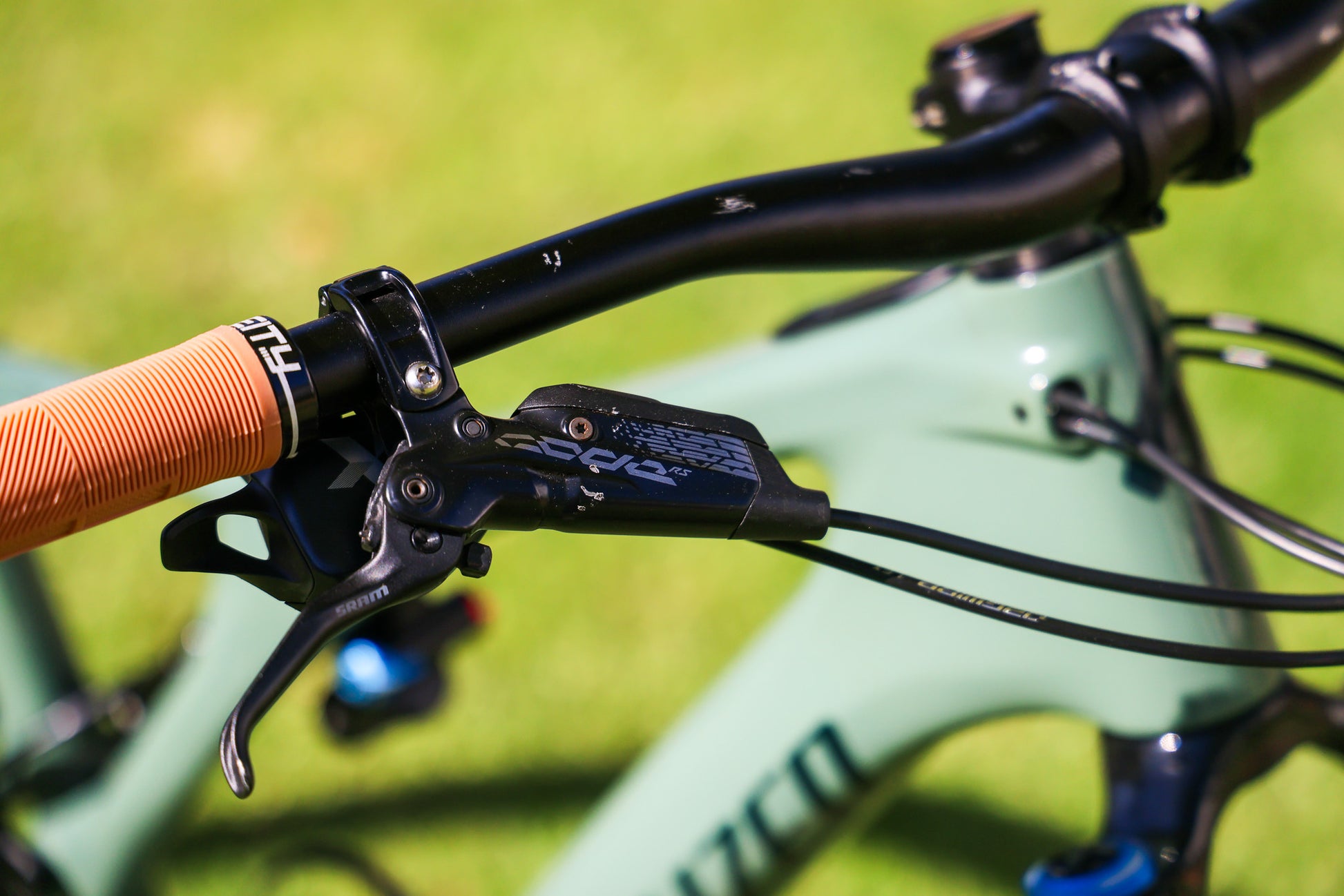

Front Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Drivetrain
Crankset
Praxis Forged/M30 Spindle Interface
Chain
SRAM GX Eagle, 12-speed
Chainrings
SRAM X-Sync Eagle, 94 BCD, 30T
Shift Levers
SRAM X01 Eagle, trigger, 12-speed

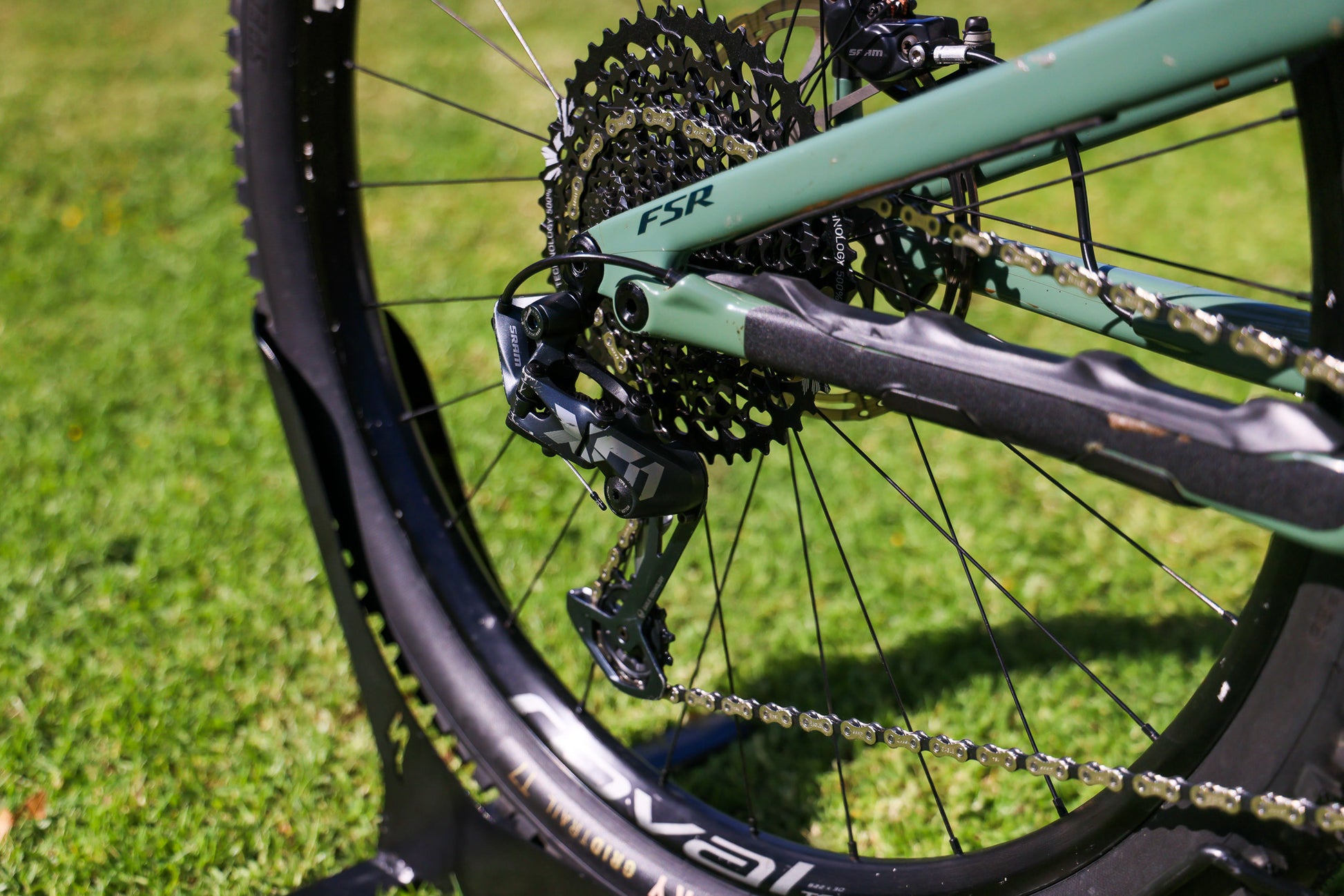

Rear Derailleur
Sram X01 Eagle, 12-speed

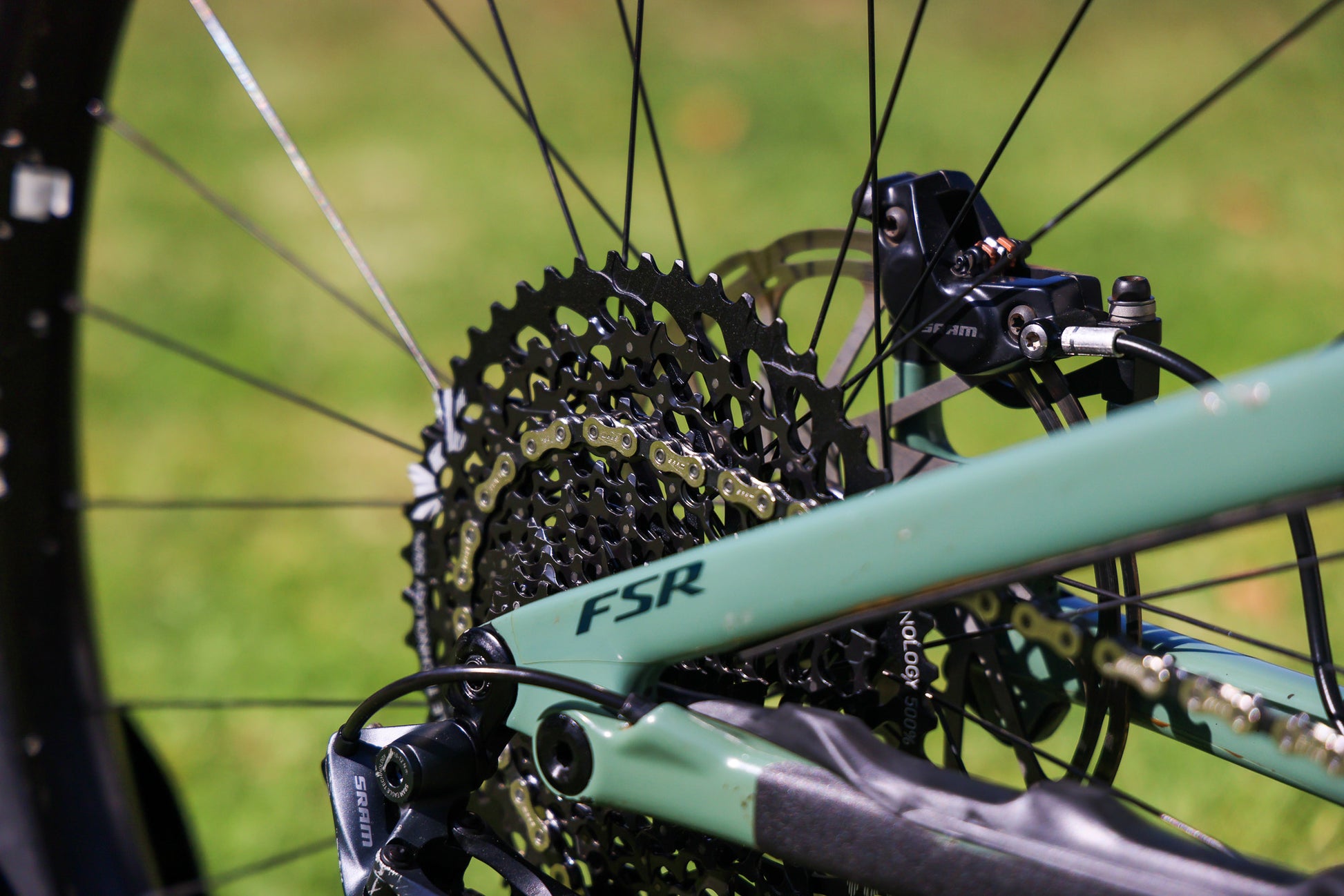

Cassette
Sram XG-1275, 12-speed, 10-52t
Wheels & tires
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Spokes
DT Swiss Competition Race
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Rear Hub
Roval DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims
Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready
Front Hub
Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Inner Tubes
Standard, Presta valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails 155/143
Grips
Deity, Knuckleduster, Black
Handlebars
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L: 150mm, XL: 170mm
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 165 | 165 | 170 | 170 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 40 | 40 | 50 | 50 |
| Saddle Width | 155 | 143 | 143 | 143 |
| Seatpost Length | 125 | 150 | 150 | 170 |
| Stack | 606 | 606 | 633 | 647 |
| Reach | 415 | 435 | 455 | 480 |
| Head-Tube Length | 95 | 95 | 125 | 140 |
| Head-Tube Angle | 66 | 66 | 66 | 66 |
| B-B Height | 348 | 348 | 348 | 348 |
| B-B Drop | 27 | 27 | 27 | 27 |
| Trail | 111 | 111 | 111 | 111 |
| Fork Length (full) | 560 | 560 | 560 | 560 |
| Fork Rake/Offset | 51 | 51 | 51 | 51 |
| Front-Center | 729 | 749 | 781 | 812 |
| Chain-Stay Length | 437 | 437 | 437 | 437 |
| Wheelbase | 1165 | 1185 | 1217 | 1248 |
| Top-Tube Length (horizontal) | 574 | 597 | 629 | 663 |
| Bike Stand-Over Height | 787 | 790 | 807 | 814 |
| Seat-Tube Length | 390 | 410 | 455 | 505 |
| Seat-Tube Angle | 75.3 | 75 | 74.6 | 74.2 |
