Turbo Levo SL Comp Alloy
Turbo Levo SL Comp Alloy
SKU:96825-5103
1 in stock
Product Sold Out? Contact us and we will try to find it for you.
Read More
Read More
For the rider who dreams of endless singletrack, boosting jumps, and getting fitter and faster, meet your new bike, the Levo SL. The Levo SL delivers an unmatched lightweight ride quality and amplified capability. You’ll be blown away by its combination of flawless handling, capability, and “2X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree—Levo SL is The Ultimate Trail Bike.
IT’S ALL ABOUT THE RIDE: When everything works just right, a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse but light enough to flick around and pick apart a rock garden. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

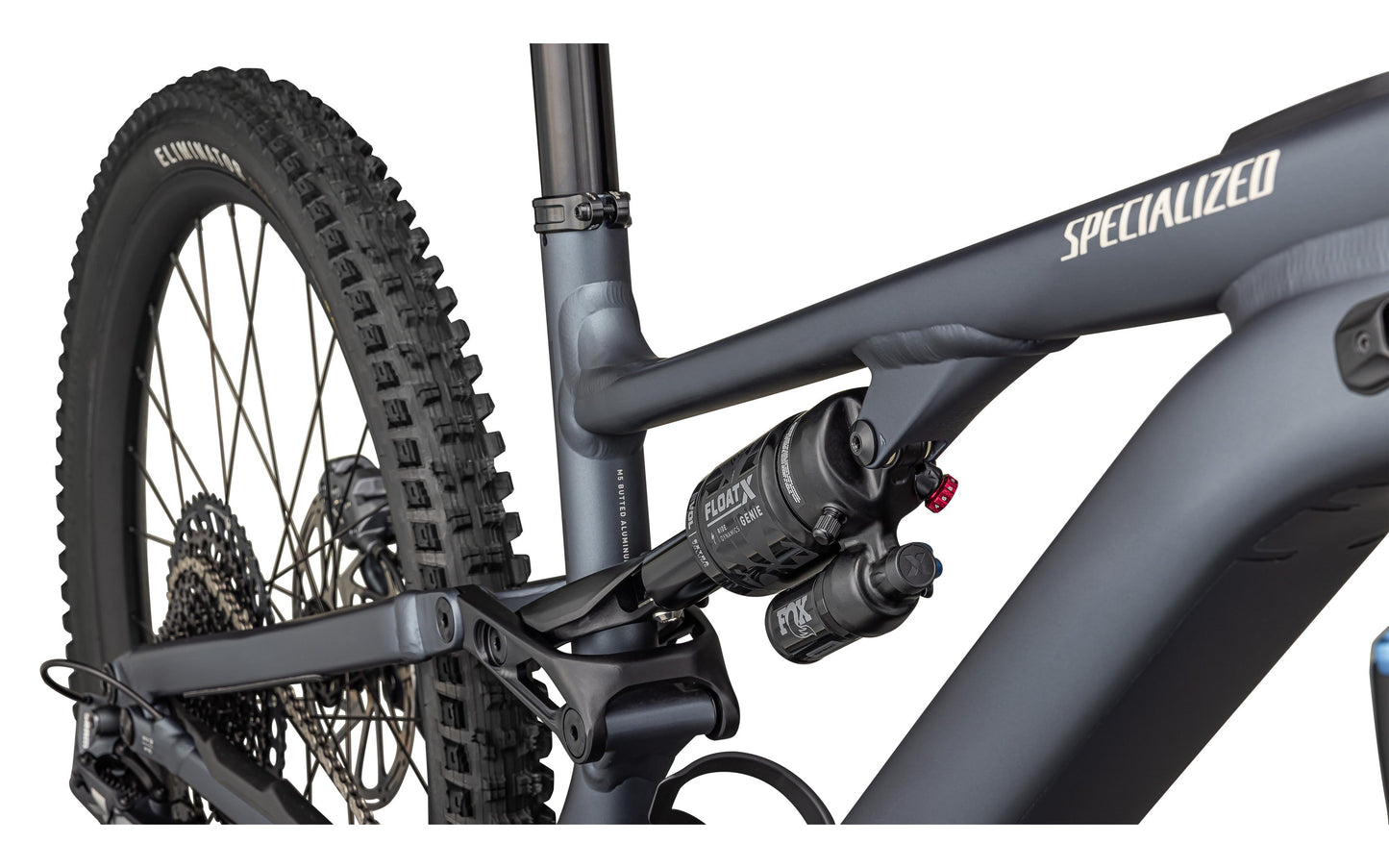

THE MAGIC CARPET RIDE: GENIE is our patent-pending air spring technology that we invented that grants every trail rider’s three wishes: maximum grip and traction of a coil spring, better bottom-out prevention than a standard air spring, and the ability to tune mid-stroke and end-stroke support independently. GENIE combines the control-enhancing linear spring rate feel of a coil spring through the “bump zone” with the progressive spring rate of an air spring at the end of the stroke to avoid bottom-outs. Truly, it's the best of both worlds.
GEOMETRY OF CONTROL: Our design focuses on performance and control from start to finish. A strategic carbon fiber layup ensures a responsive, stiff chassis, minimizing lateral flex for efficient power transfer. The cockpit enhances traction and cornering precision with a low bottom bracket, slack headtube angle, and customizable head angle options (63°, 64.25°, 65.5°) for stability and agility through any terrain.

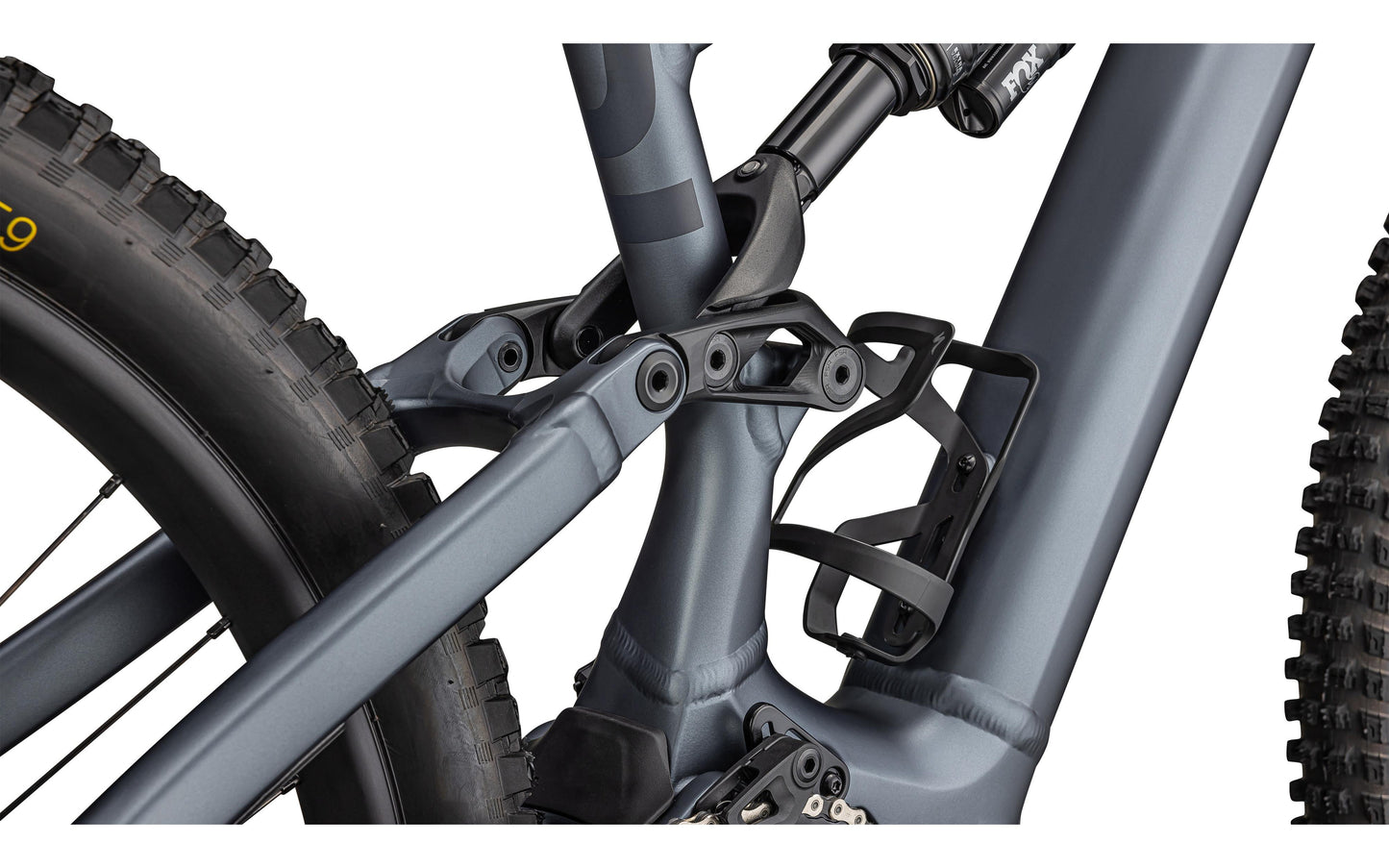

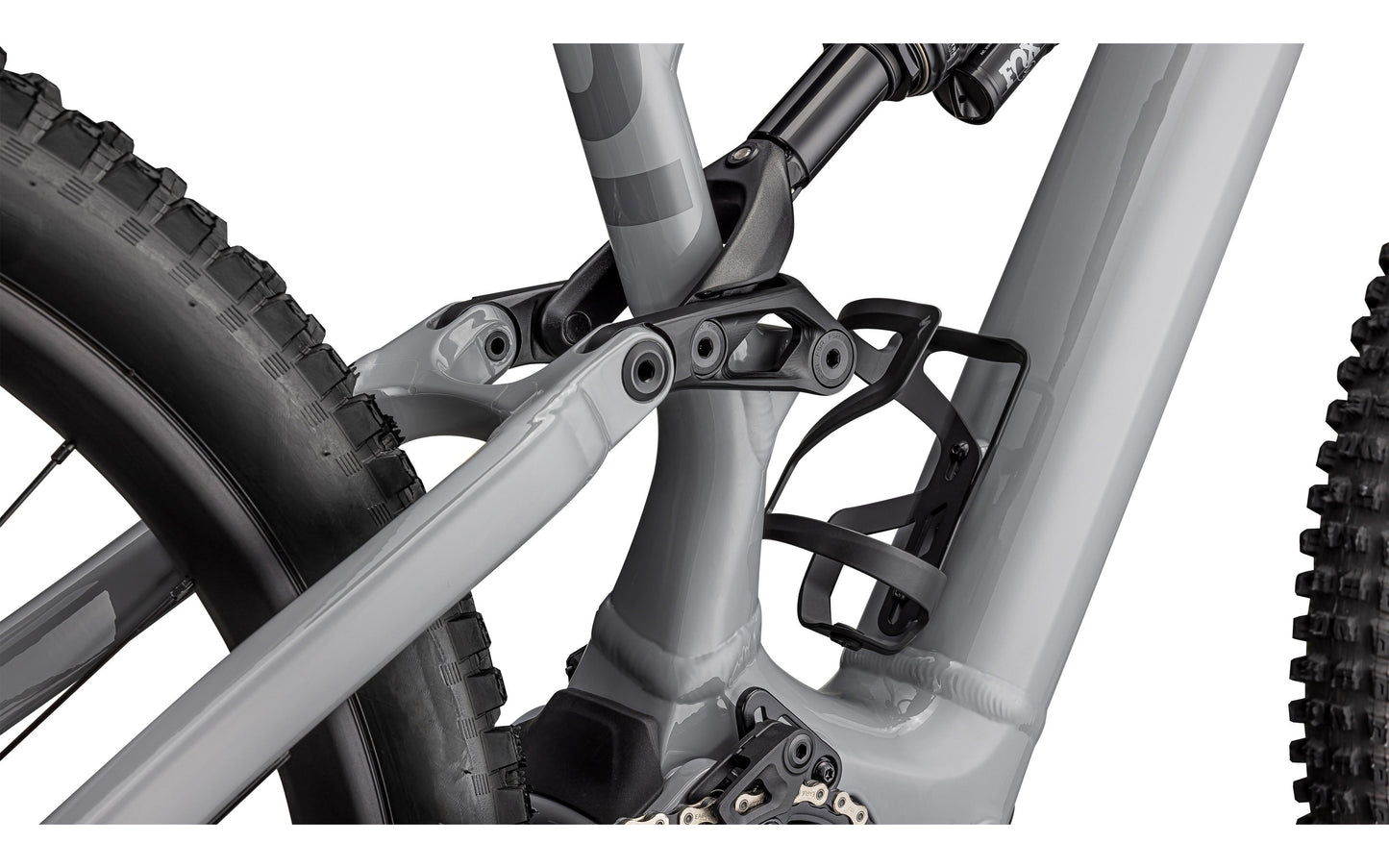

MIXED WHEEL: A 29” front wheel helps ensure stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a short chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.
TURBO OPERATING SYSTEM: Our seamlessly integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

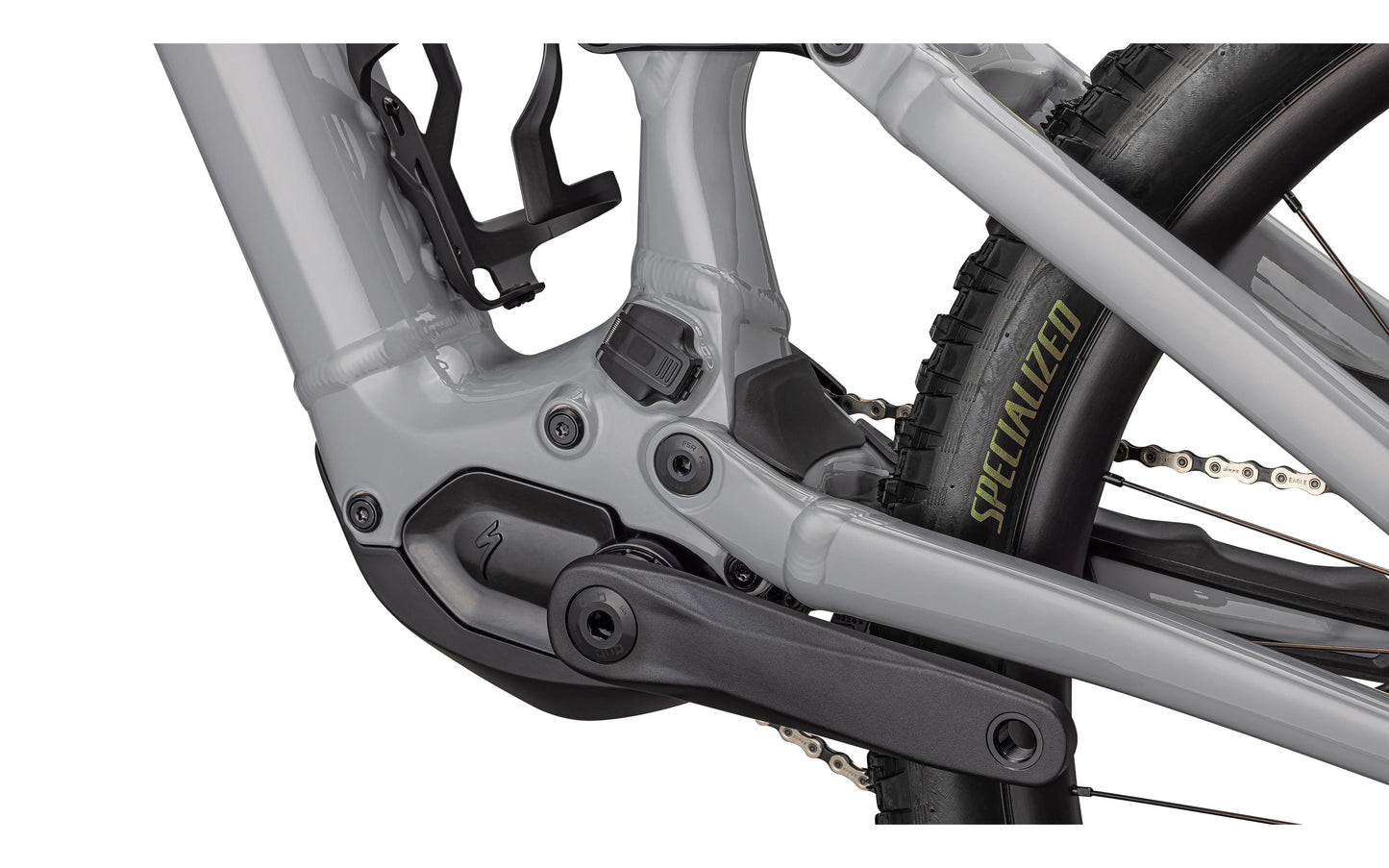

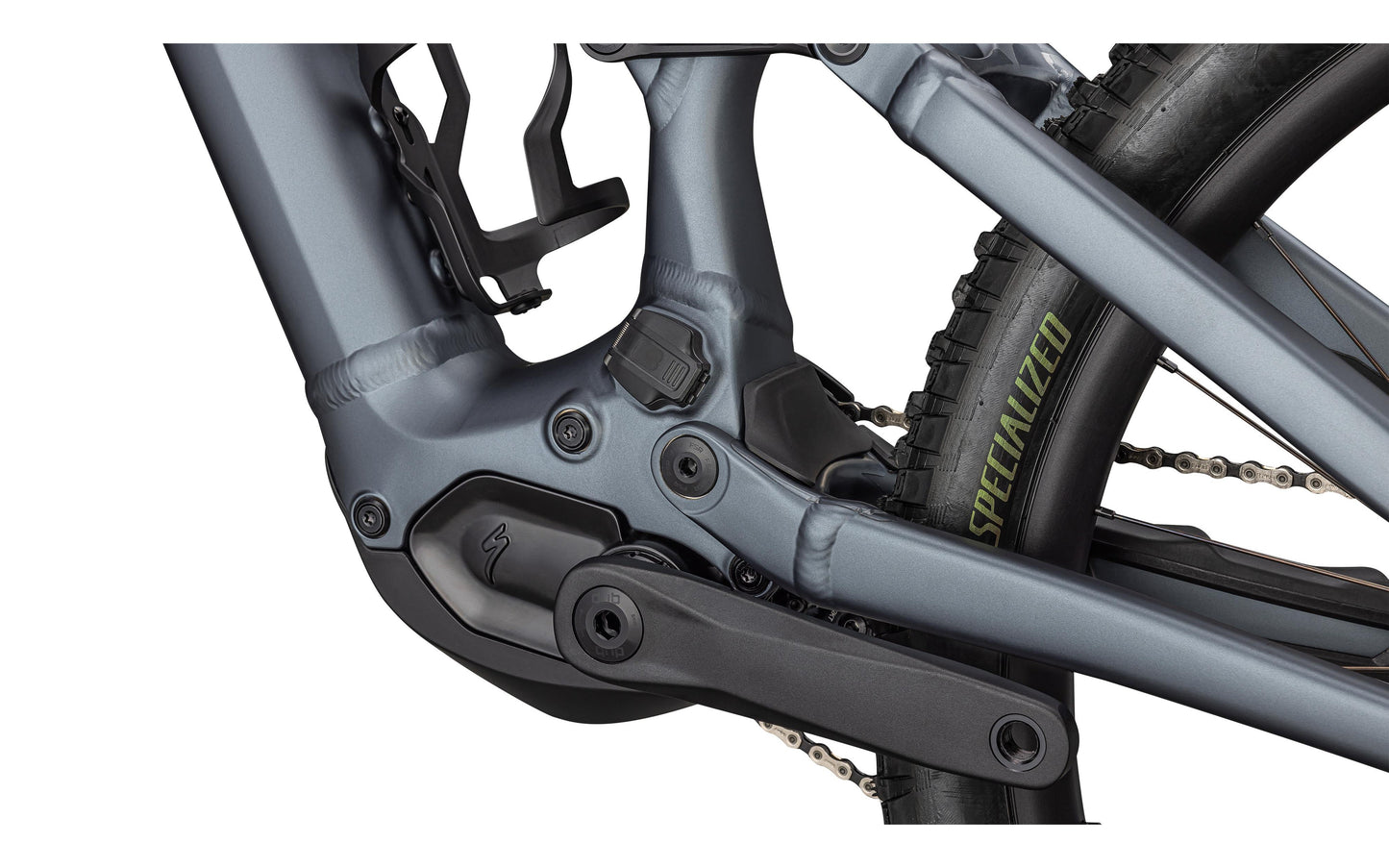

SPECIALIZED SL 1.2 MOTOR: Meet the Specialized SL 1.2 motor: whisper-quiet with unmatched smoothness, it delivers 43% more torque (50Nm) and 33% more power (320 Watts) than its predecessor, unleashing "2x You" performance. Paired with a seamless 320Wh battery pack, the Levo SL ensures premium quality and supports rides for up to 5 hours in Eco Mode. Extend your journey with our 160Wh Range Extender (sold separately), fitting snugly into your bottle cage for an extra 50% range.

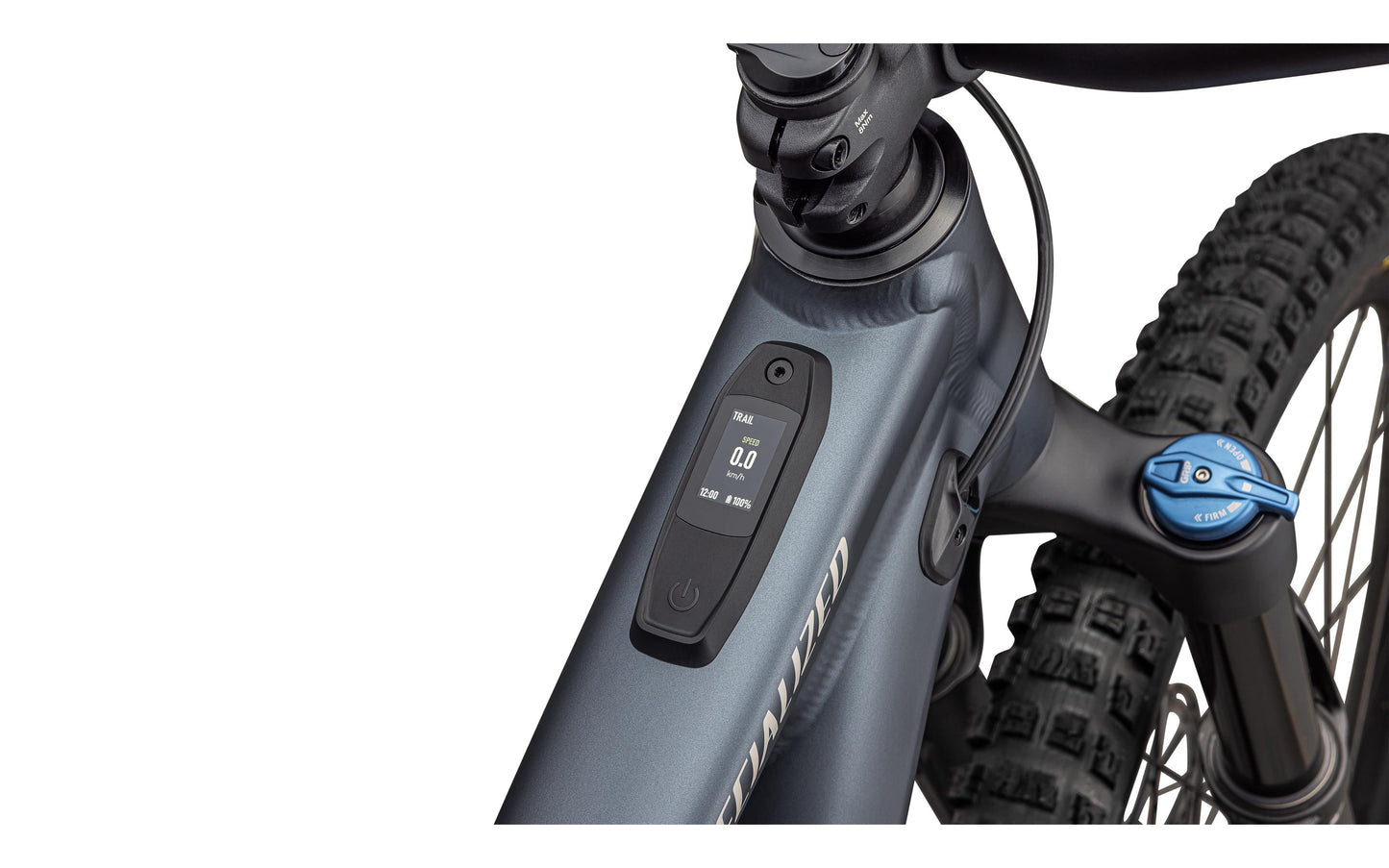

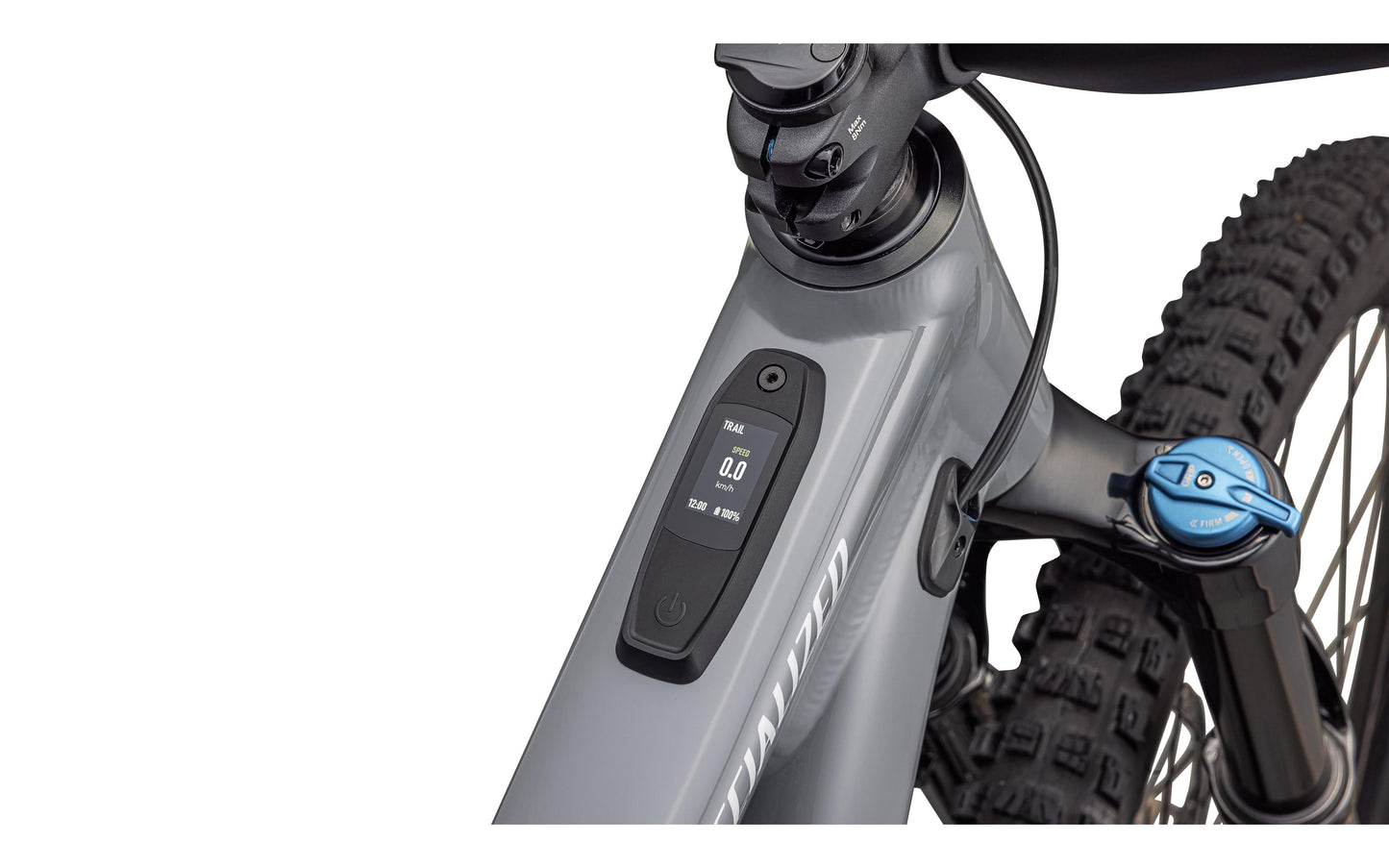

IT’S ALL CONNECTED: MasterMind TCU, our advanced e-bike control unit, seamlessly connects with Turbo OS and the Specialized App. Adjust power levels with MicroTune, live over-the-air updates for optimized performance, and more. The Levo SL integrates fully with the Specialized App, offering personalized motor settings and advanced security features like Smart Control and Turbo System Lock.
- FOX FLOAT 36 Rhythm - A value forward fork with simple adjustability
- SRAM Maven Bronze - High-powered brakes with Centerline rotors featuring excellent heat dissipation
- SRAM AXS Drivetrain - SRAM Eagle wide range cassette and wireless derailleur
- X-Fusion Maniac - A simple and internally routed dropper post
Share
Technical Specifications
E-Bike
Motor
Specialized 1.2 SL Custom Rx Trail Tuned Motor
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 48V System w/ SL system charger plug
Frameset
Frame
Levo SL Alloy Frame, M5 alloy, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels
Seat Binder
Alloy, 38.6mm
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore

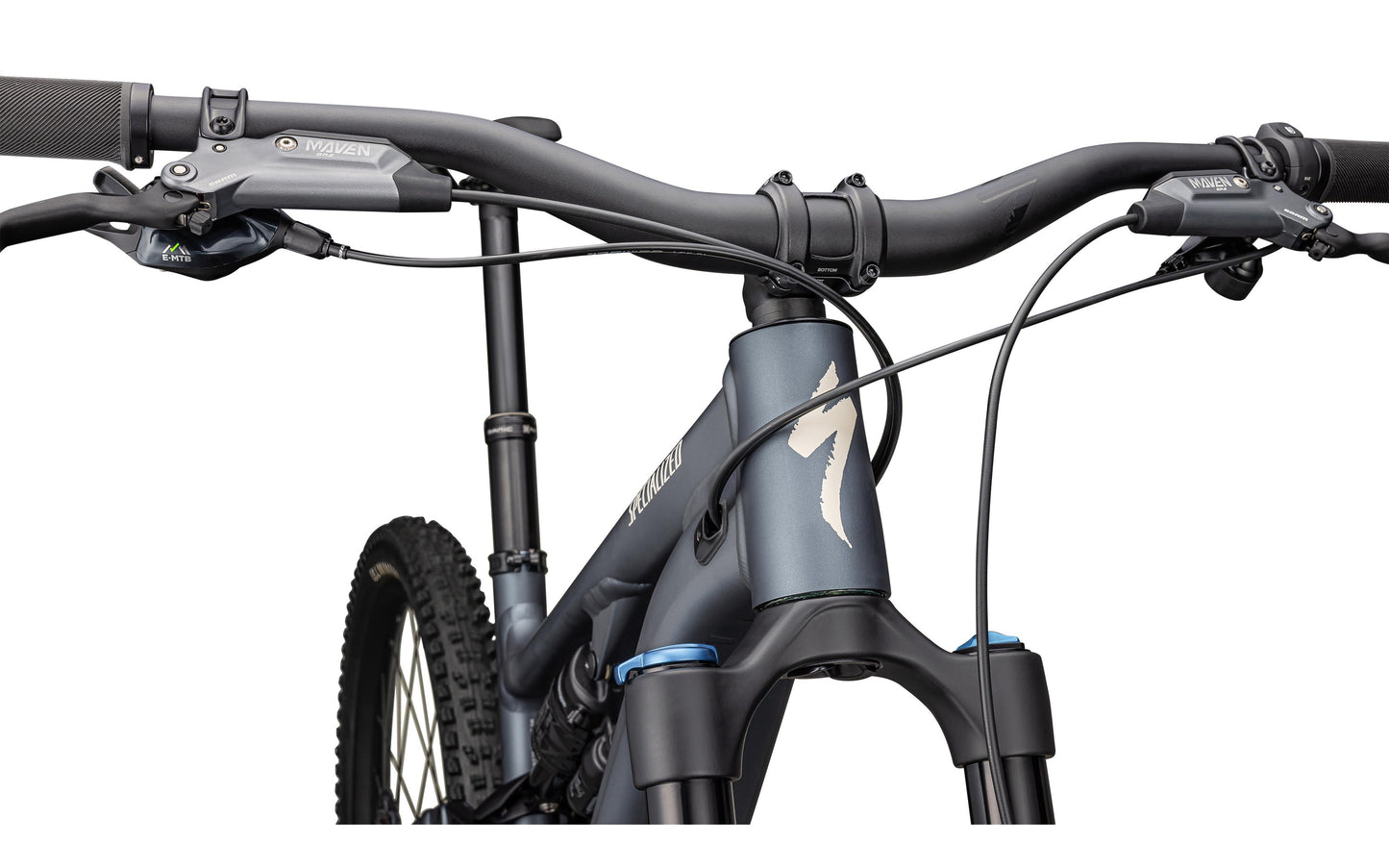

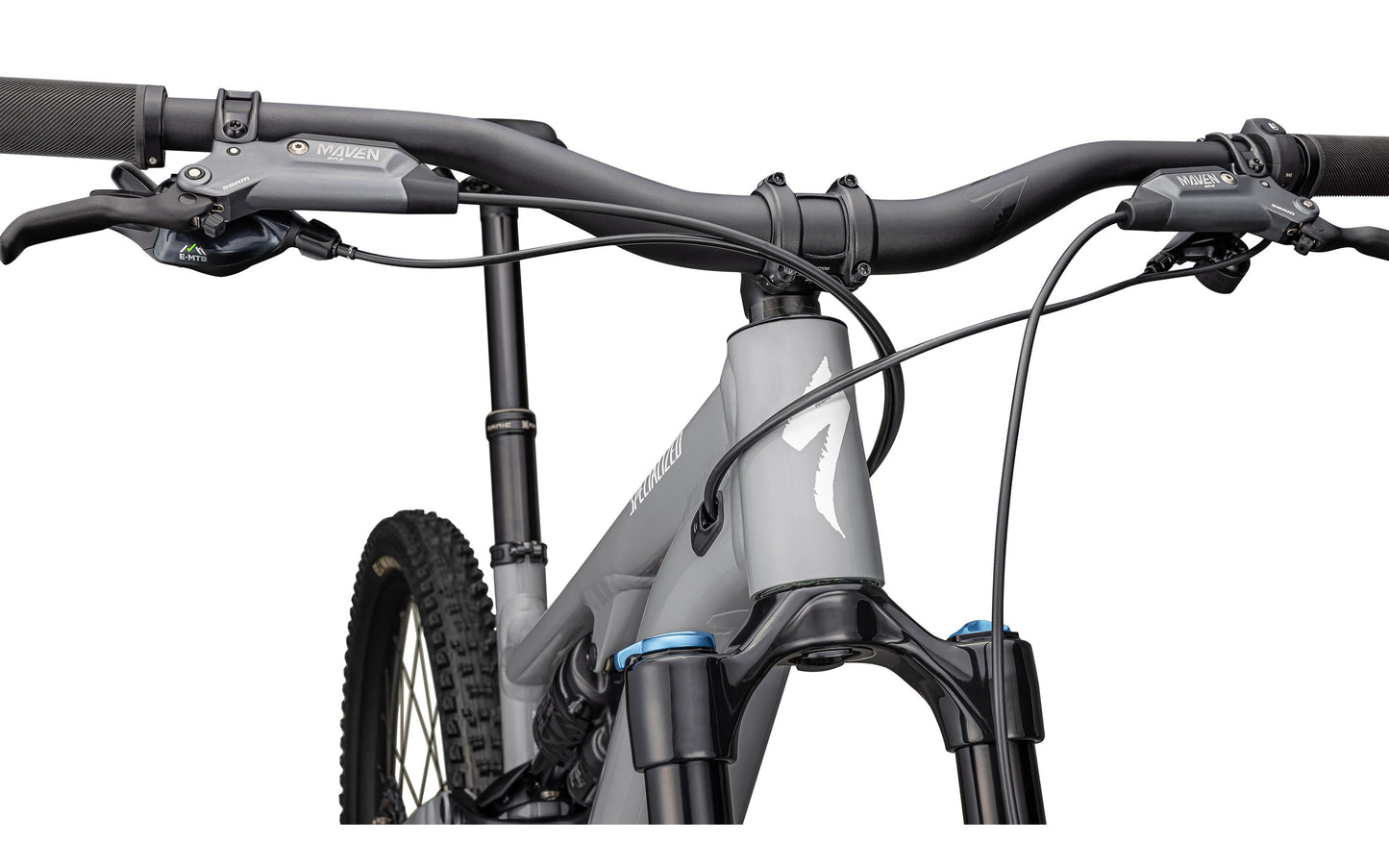

Handlebars
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S4: 800 width, 30mm rise: S5-S6: 800 width, 40mm rise
Grips
Specialized Trail Grips
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm
Suspension
Rear Shock
FOX FLOAT Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment, S1:210x52.5mm, S2-S6:210x55mm
Fork
FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, S1:140mm of travel, S2-S6:150mm of travel
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Shift Levers
SRAM GX Eagle, trigger, 12-speed, single click
Rear Derailleur
Sram X01 Eagle, 12-speed
Cassette
Sram XG-1275, 12-speed, 10-52t
Chain
SRAM GX Eagle, 12-speed
Crankset
SRAM S1000 Crankset, 32T ring, Integrated Guard, 55mm Chainline, 165mm
Chainrings
SRAM T-type ring, 32t
Wheels & Tires
Rims
Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3"
Inner Tubes
Standard, Presta Valve
Accessories
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Product Details
Product ID
221303
Weight
Weight
20.26 kg (44 lb, 10.7 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 165mm | 165mm | 165mm | 165mm | 165mm |
Handlebar Width | 780mm | 780mm | 800mm | 800mm | 800mm | 800mm |
Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 100mm | 125mm | 150mm | 170mm | 170mm | 190mm |
Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
Head-Tube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Head-Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
B-B Height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
B-B Drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
Trail | 132mm | 132mm | 132mm | 132mm | 132mm | 132mm |
Fork Length, Full | 560mm | 570mm | 570mm | 570mm | 570mm | 570mm |
Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
Front-Center | 726mm | 752mm | 776mm | 806mm | 835mm | 869mm |
Chain-Stay Length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
Top Tube Length, Horizontal | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
Bike Stand-Over Height | 727mm | 763mm | 766mm | 767mm | 773mm | 778mm |
Seat-Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat-Tube Angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
