SPECIALIZED

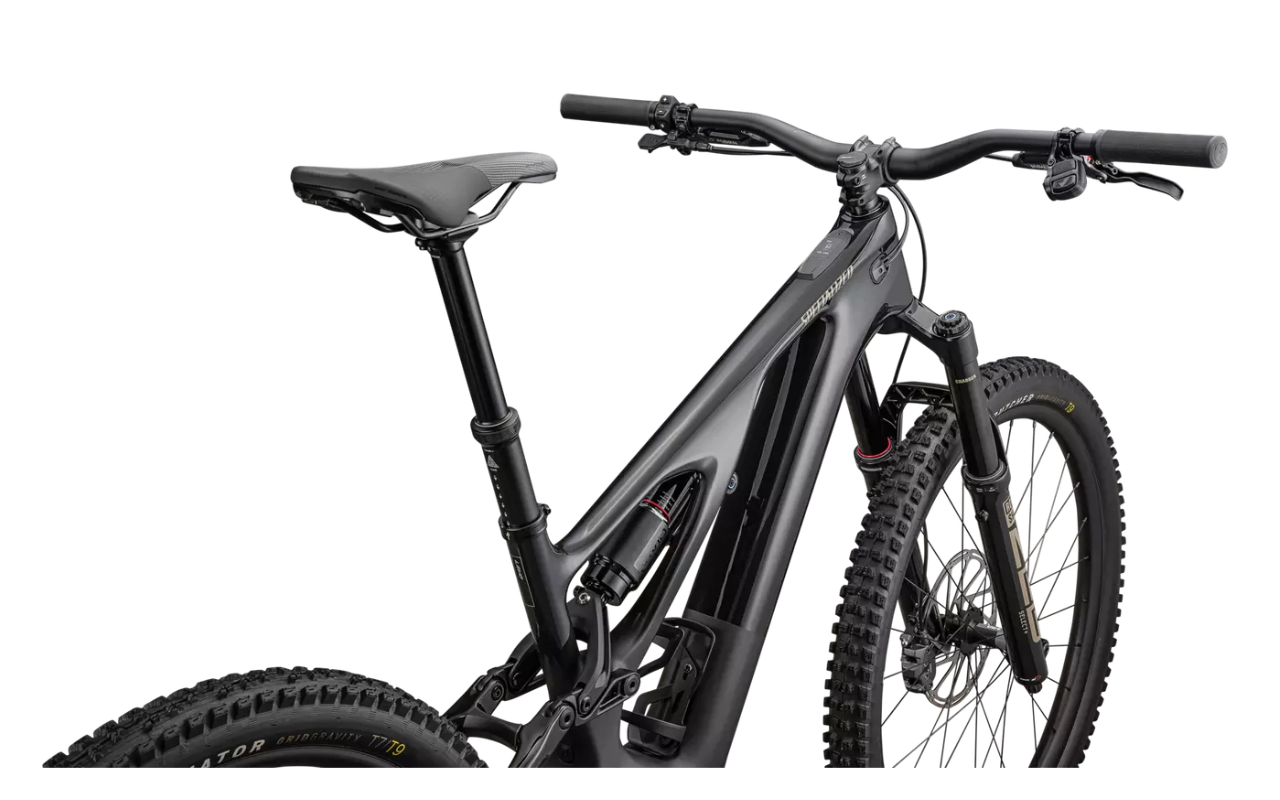

Turbo Levo Expert T-Type

SKU:95225-3004

MSRP 180,000.00

~~MSRP 180,000.00~~ MSRP 180,000.00

Sold out

Vat Included

Color Obsidian / Taupe

Size S2 S3 S4 S5 S6

2 in stock

Quantity

Product Sold Out? Contact us and we will try to find it for you.

The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

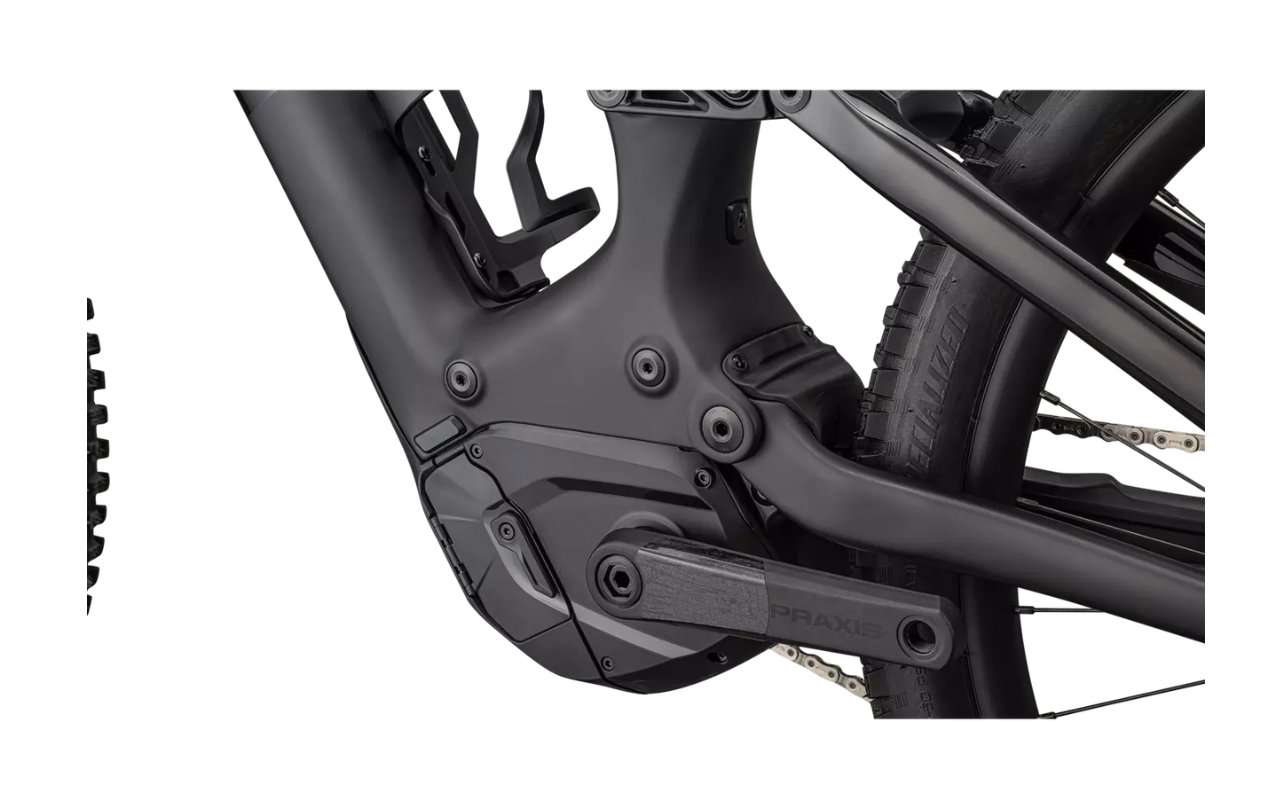

It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

Here’re where the gloves come off—the Levo Expert brings it with SRAM’s new AXS GX Eagle Transmission 12-speed drivetrain, dialed-in Rockshox Select Plus suspension, and a high-performing Roval HD Traverse wheelset.

The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

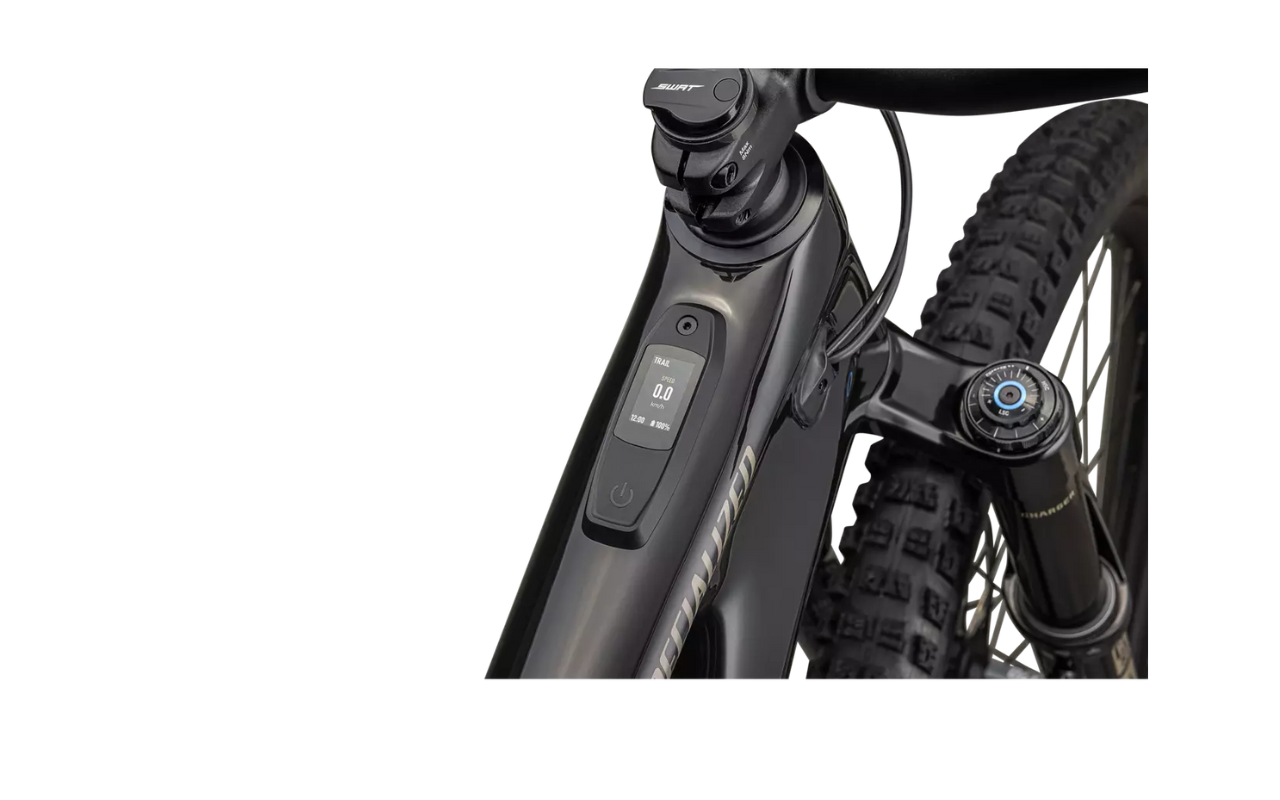

The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

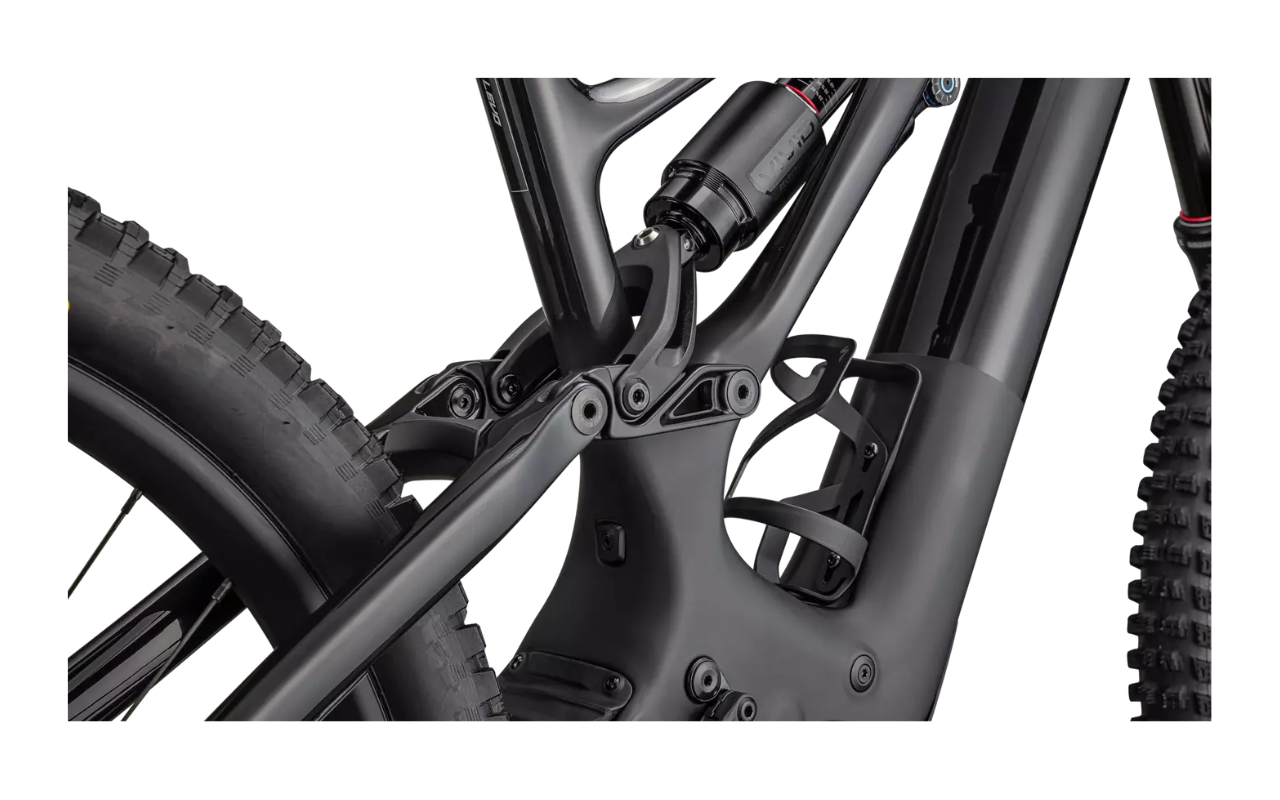

Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.

View full details

Technical Specificatinos

E-bike

Wiring Harness

CA,PA TRAIL FSR F1,BTRY,MOTOR, UL

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Motor

Specialized 2.2 Custom RX Trail Tuned Motor

Battery

Specialized M3-700, Integrated battery, 700Wh

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote

Frameset

Seat Binder

Alloy, 38.6mm

Frame

FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

Suspension

Fork

Rockshox Zeb Select Plus, 29", S2-S6: 160mm, S1: 150mm

Rear Shock

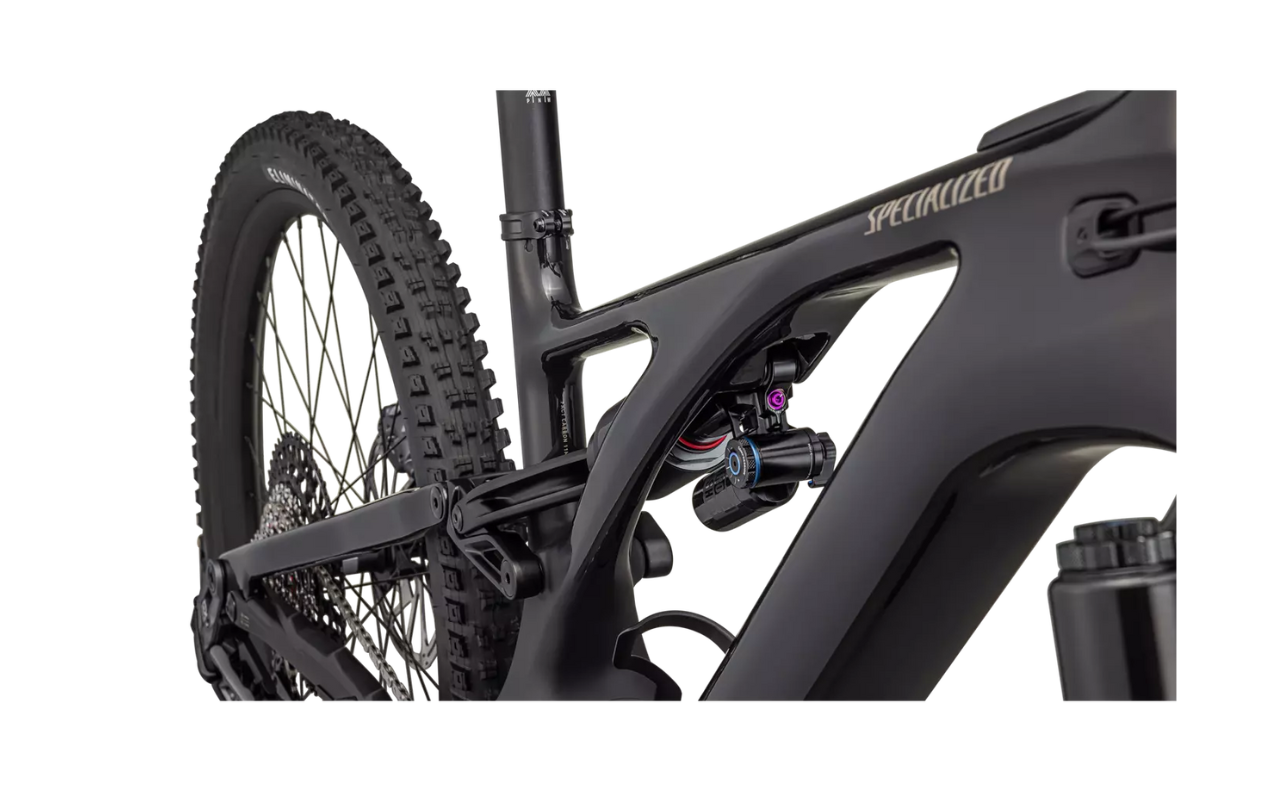

S2-S6: Rockshox Vivid Select Plus, 210x55mm, S1: Rockshox Deluxe Select Plus, 210x52.5mm

Brakes

Front Brake

SRAM Maven Bronze, 220mm rotor, metallic pads

Rear Brake

SRAM Maven Bronze, 200mm rotor, metallic pads

Drivetrain

Crankset

Praxis forged M30, custom offset, 160mm

Chain

SRAM GX Eagle Transmission Flattop Chain

Chainrings

SRAM Eagle Transmission 34t Steel, 104BCD

Cassette

SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

Shift Levers

SRAM AXS POD Controller

Rear Derailleur

SRAM GX Eagle Transmission Derailleur

Wheels & tires

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3"

Inner Tubes

Standard 40mm PV 29/27.5x1.75-2.4

Front Wheel

WH-TRAVERSE HD ALLOY 370 29 27.5 28H 32H;FS

Rear Wheel

WH-TRAVERSE HD ALLOY 370 29 27.5 28H 32H;FS

Cockpit

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

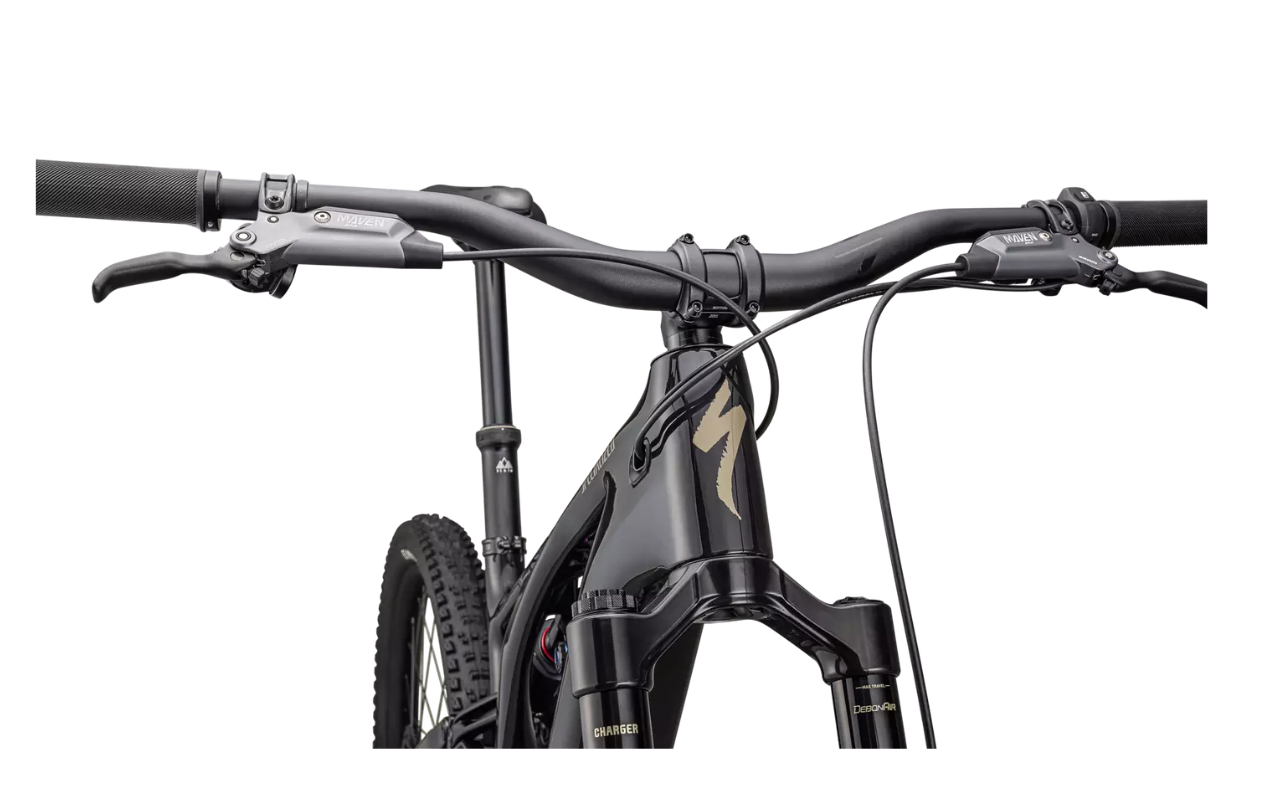

6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise

Saddle

Specialized Bridge Comp with Mimic

SeatPost

PNW Loam Dropper, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 200mm

Grips

Specialized Trail Grips

Accessories

SWAT

SWAT CC steerer tube integrated tool with chain tool and link

Geometry

	S1	S2	S3	S4	S5	S6
Crank Length	160	160	160	160	160	160
Handlebar Width	800	800	800	800	800	800
Stem Length	40	40	40	40	40	40
Saddle Width	155	155	143	143	143	143
Seatpost Length	125	150	170	200	200	200
Stack	605	617	626	635	644	653
Reach	412	432	452	477	502	532
Headtube Length	105	105	115	125	135	145
Headtube Angle	64.5	64.5	64.5	64.5	64.5	64.5
BB Height	352	350	350	350	350	350
BB Drop	25	27	27	27	27	27
Trail	130	130	130	130	130	130
Fork Length (full)	557	567	567	567	567	567
Fork Rake/Offset	44	44	44	44	44	44
Front Center	738	760	784	814	843	878
Chainstay Length	442	442	442	442	442	442
Wheelbase	1179	1200	1225	1255	1284	1318
Bike Standover Height	752	776	783	787	788	790
Seat Tube Length	380	390	405	425	445	465
Seat Tube Angle	78	77.2	76.7	76.2	76.2	76.2
Max Seatpost Insertion	210	220	240	255	275	295
Min Seatpost Insertion	80	80	80	80	80	80
