Technical Specifications
Frameset
Frame
Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Seat Binder
Alloy, 38.6mm
E-Bike

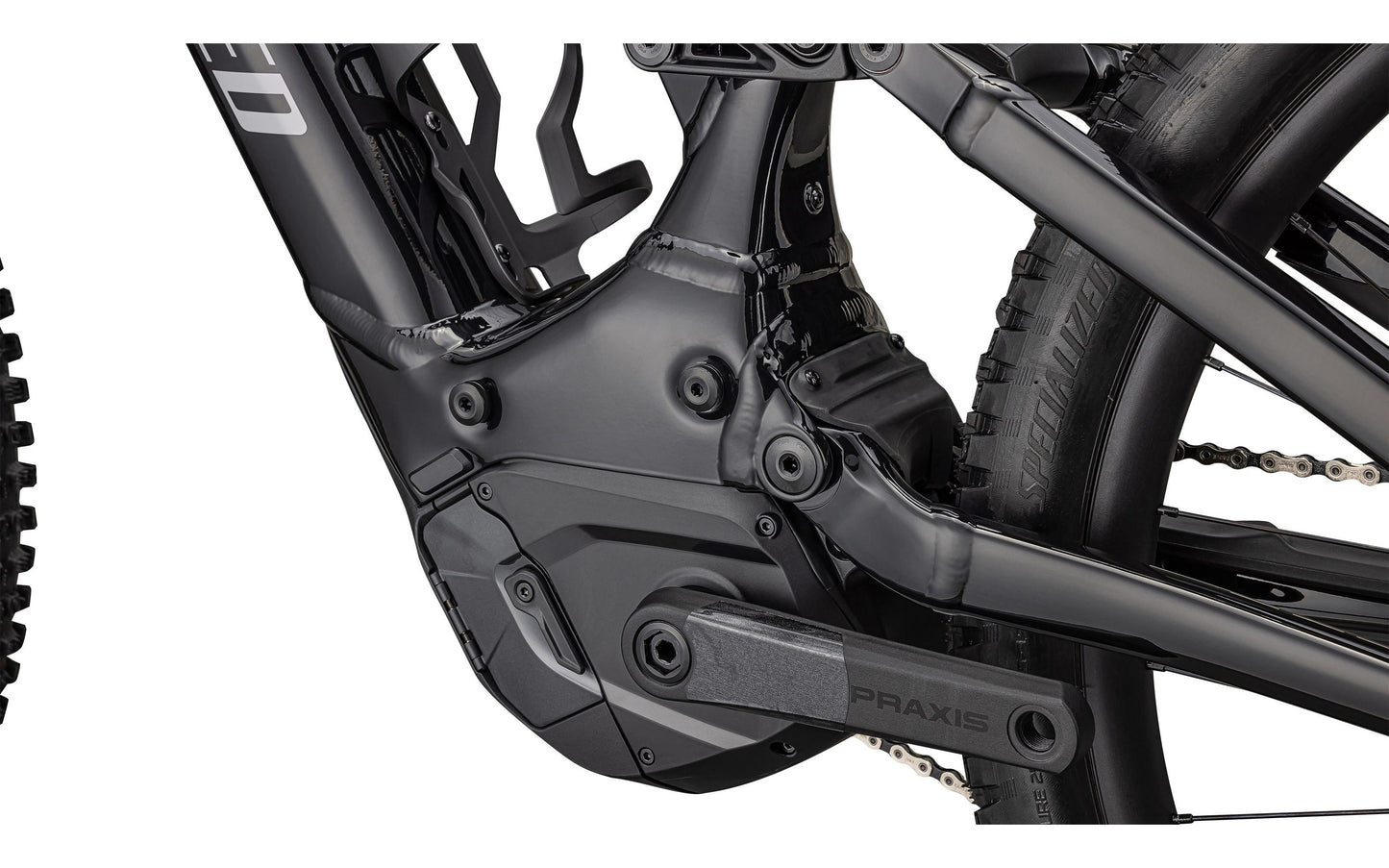

Motor

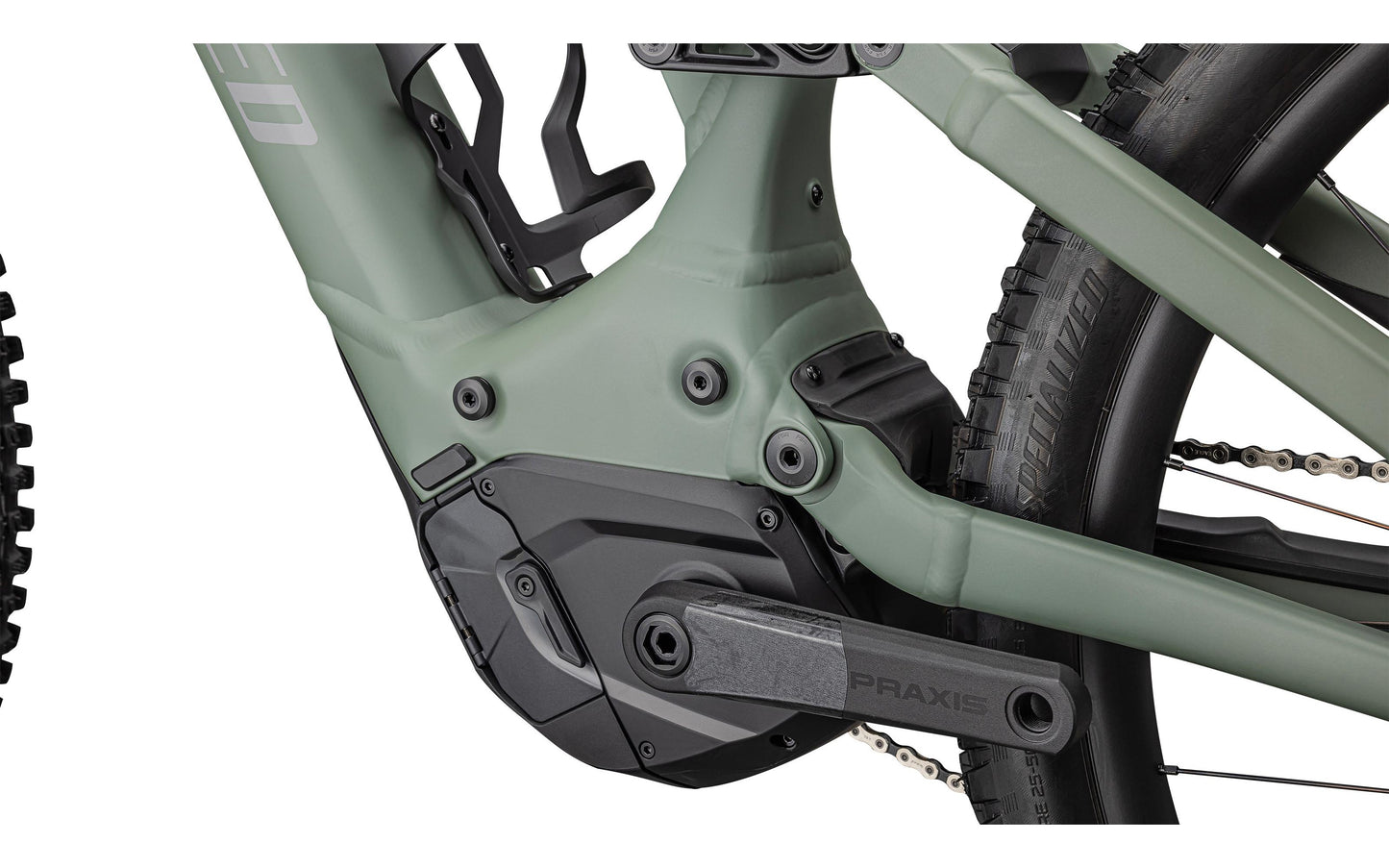

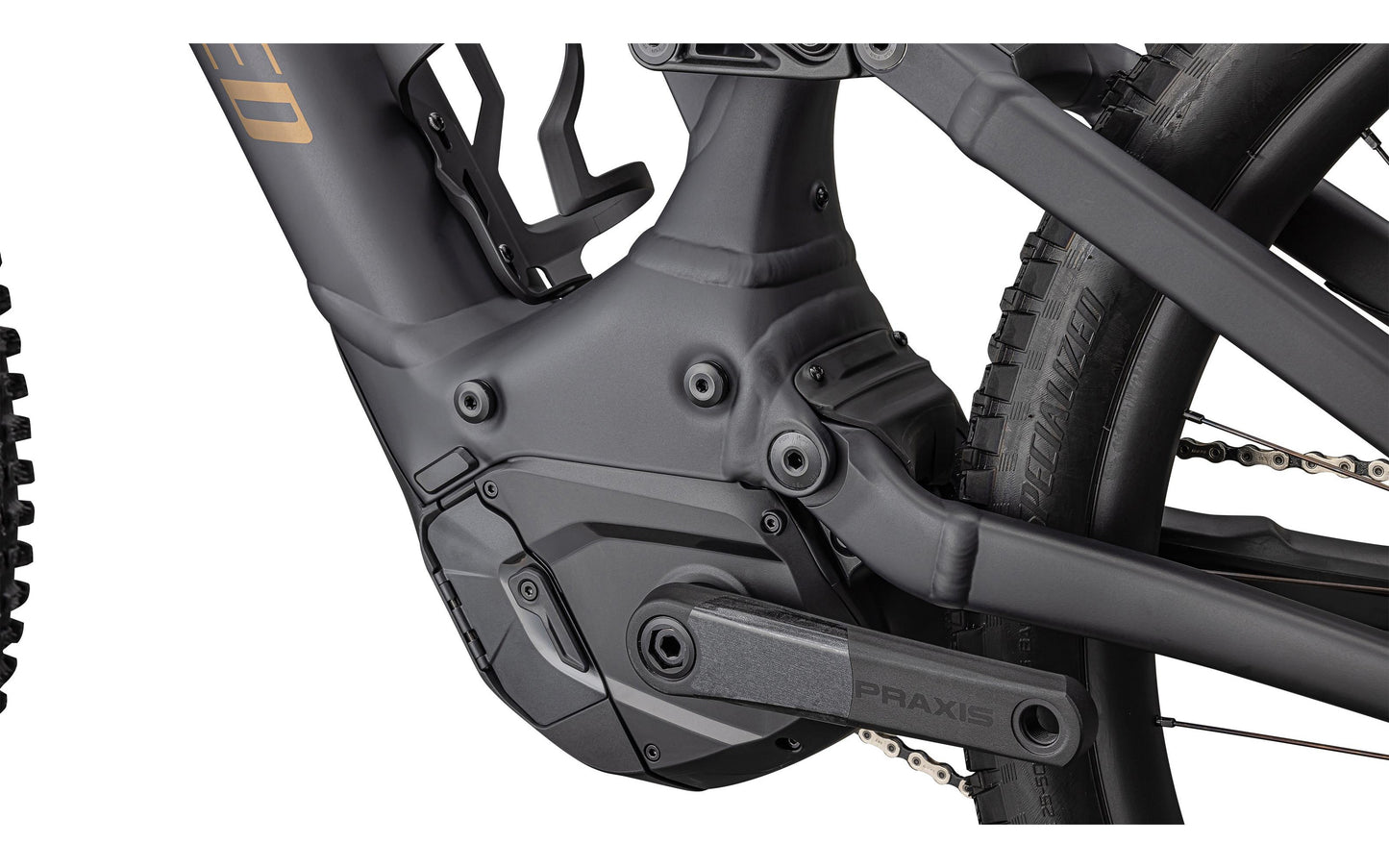

Specialized 2.2 Custom Rx Trail Tuned Motor

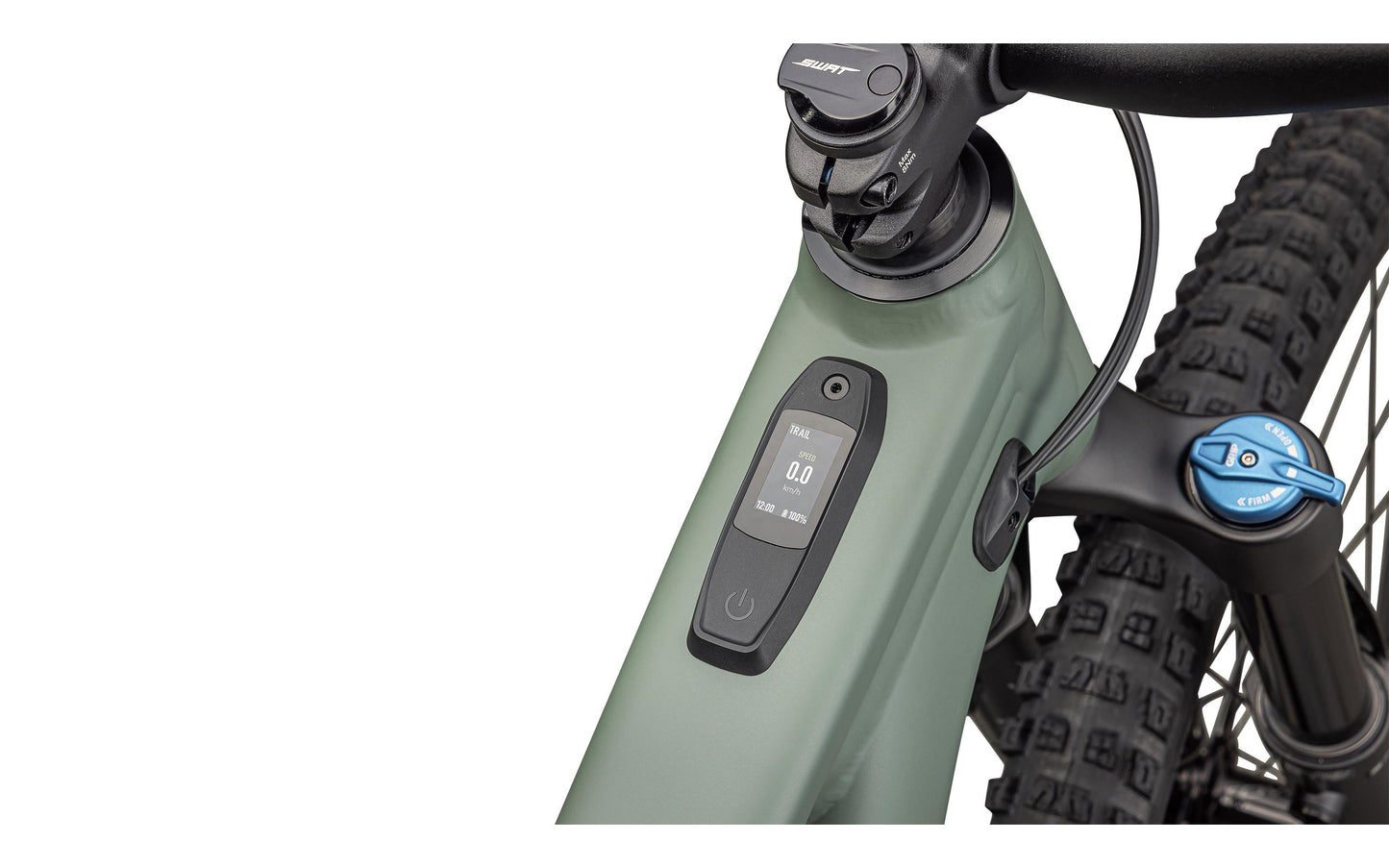

UI/Remote

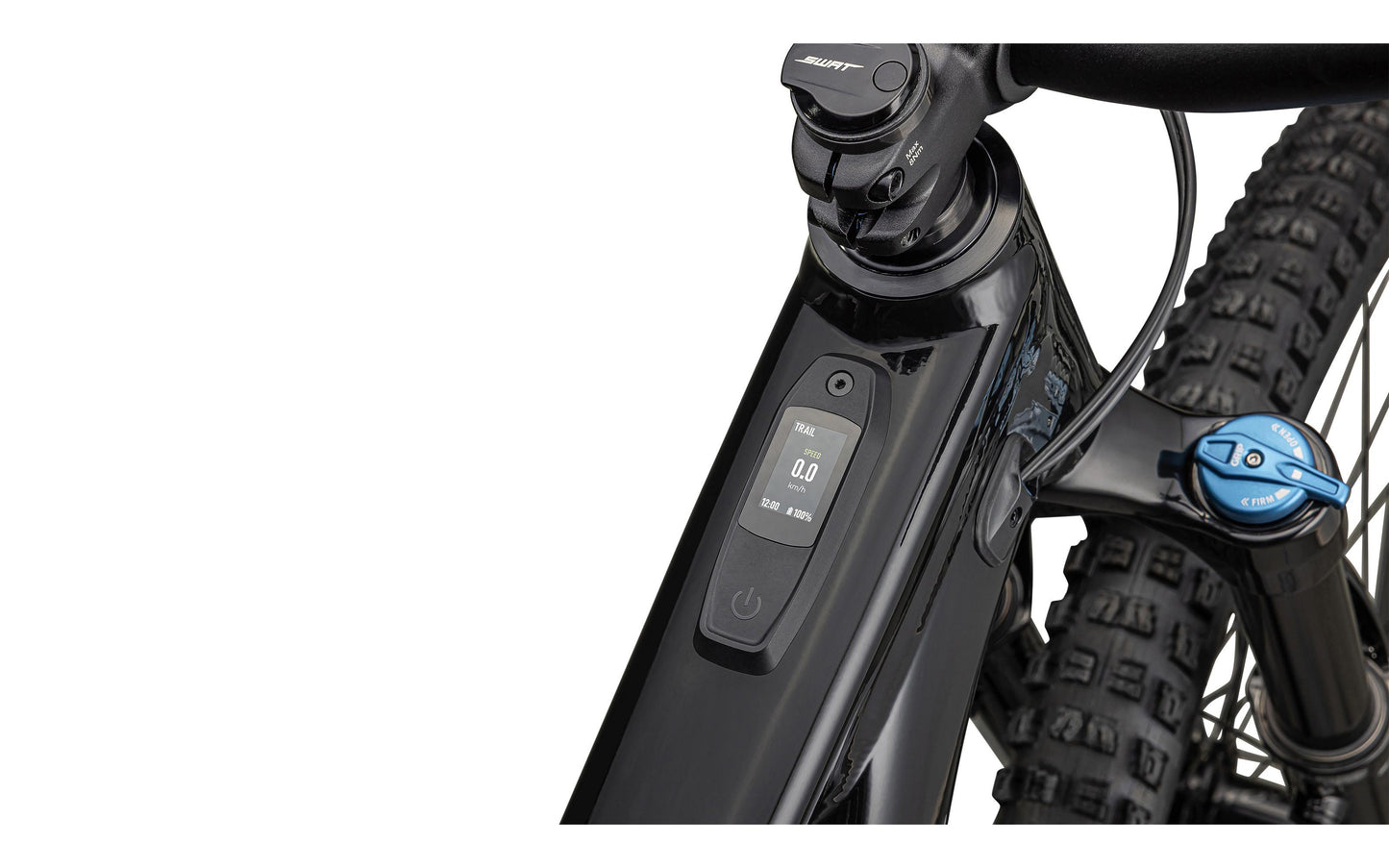

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom Specialized wiring harness
Suspension
Rear Shock

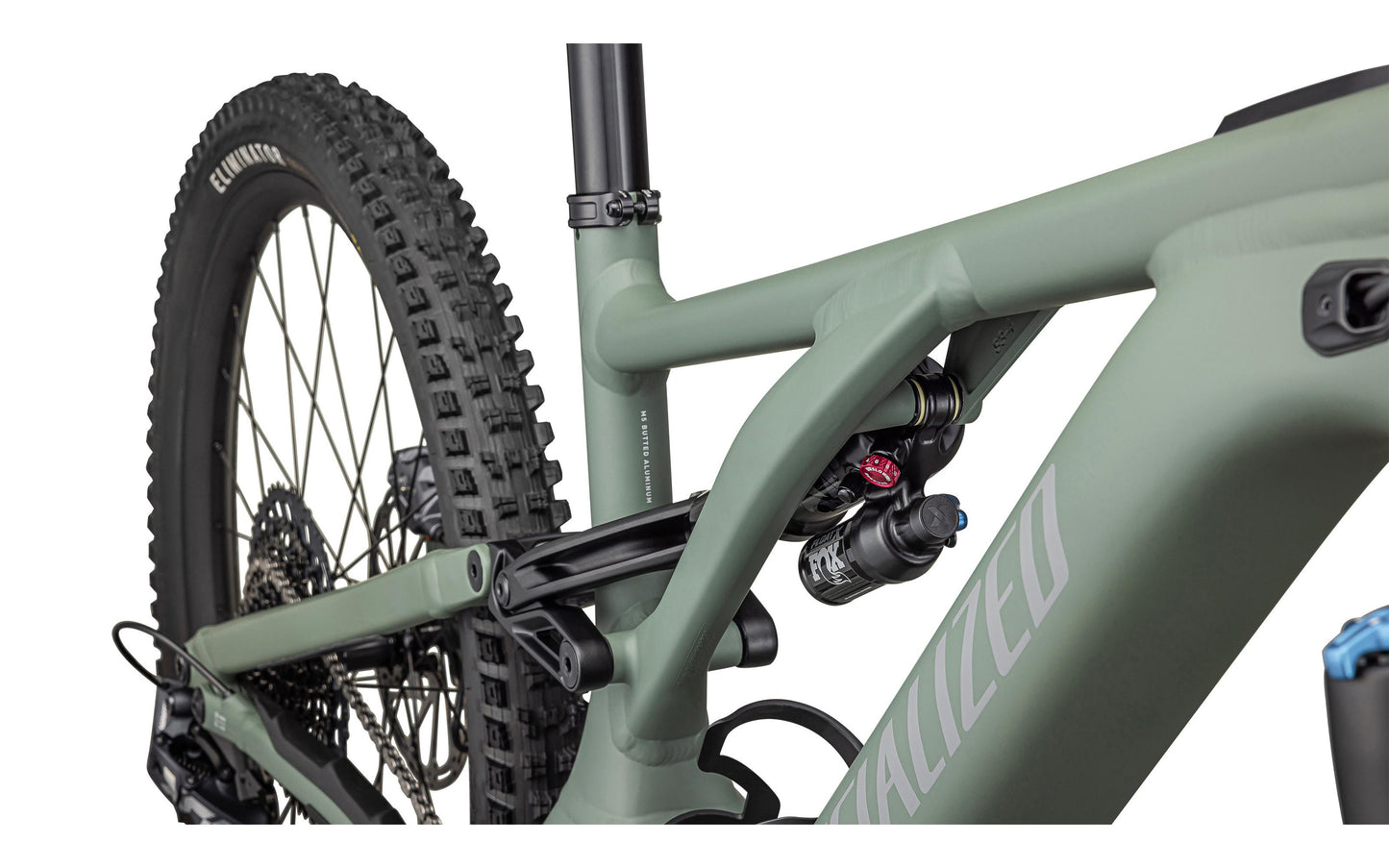

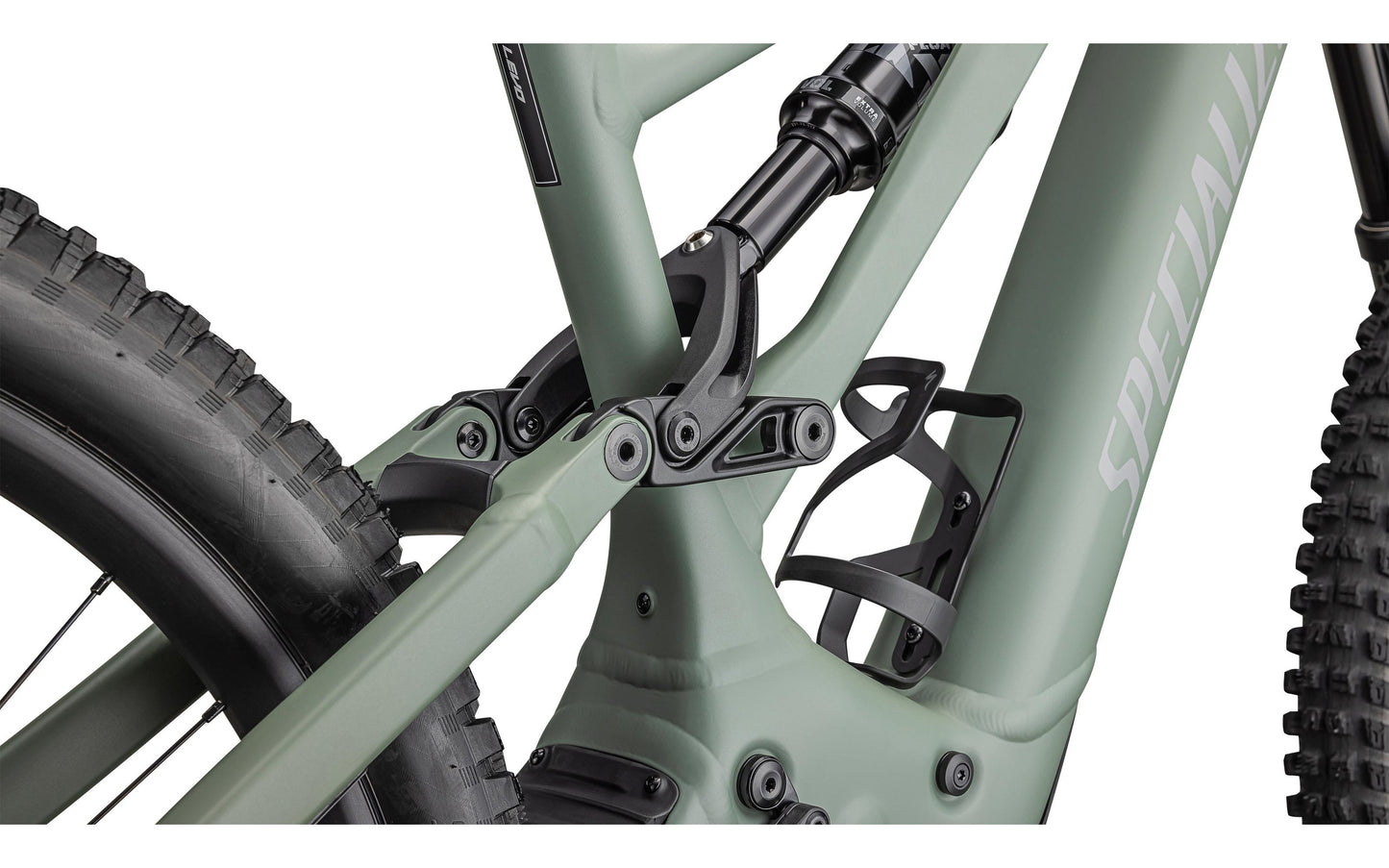

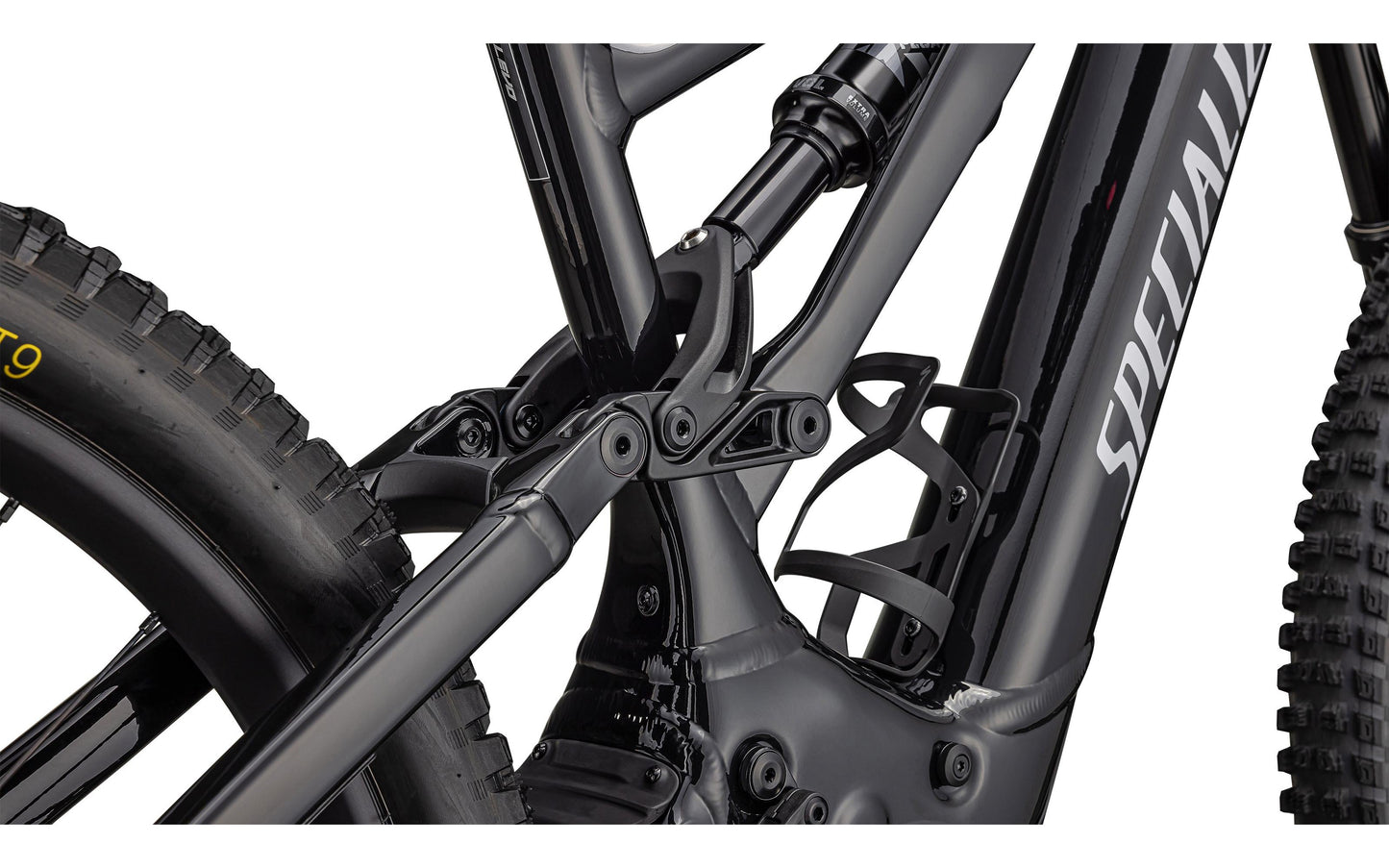

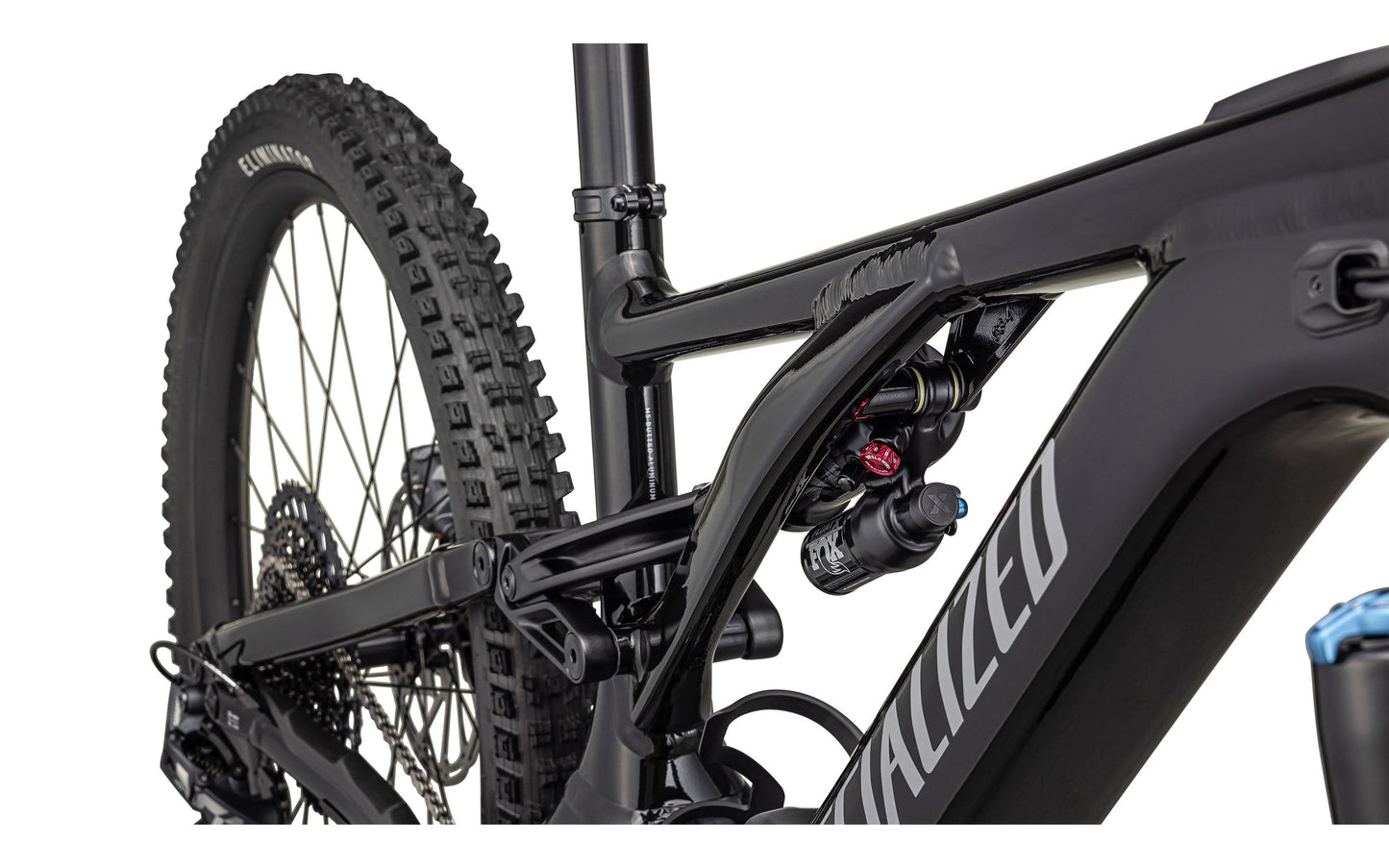

FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
Fork
Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel
Cockpit
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Specialized Trail Grips
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm

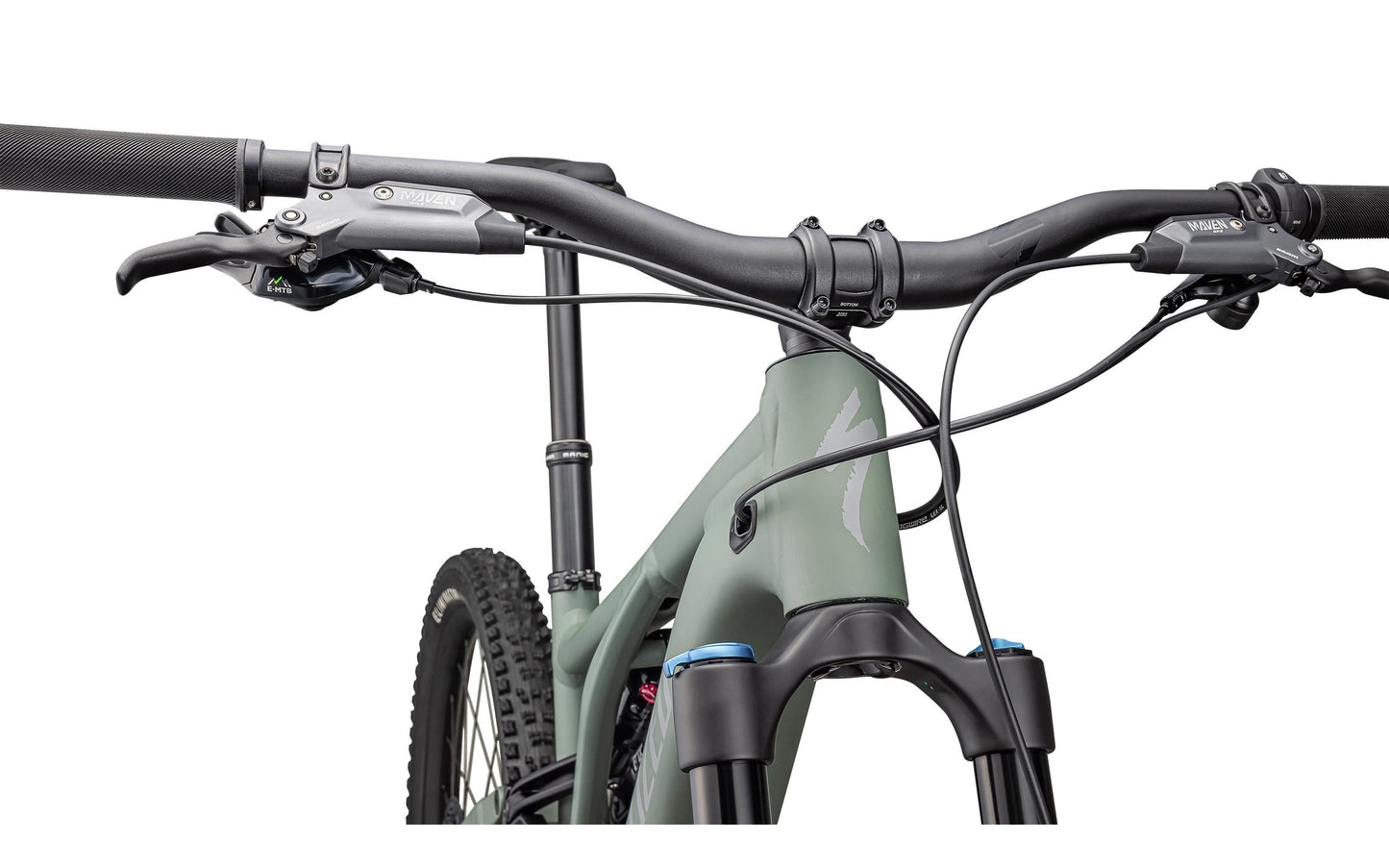

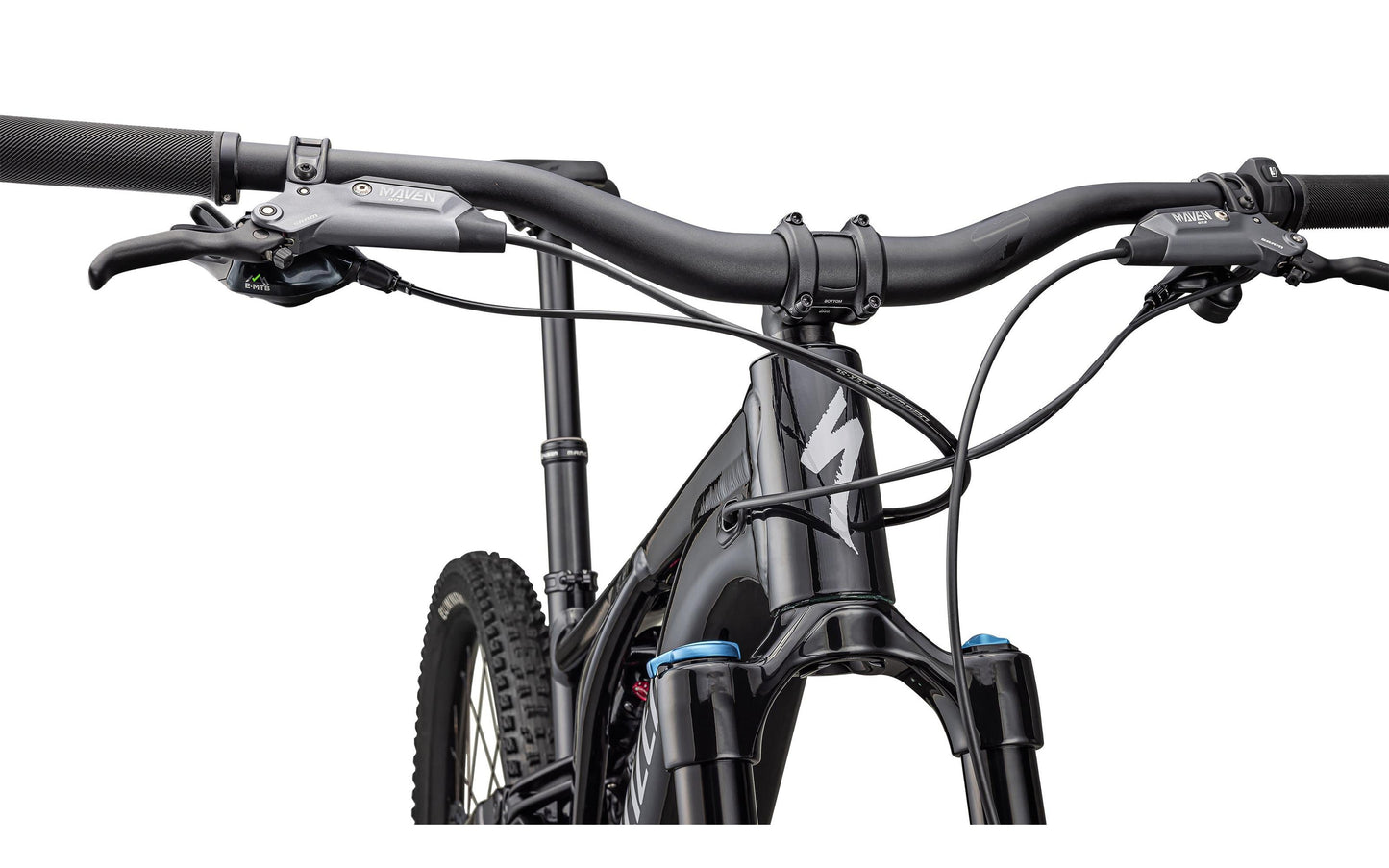

Handlebars

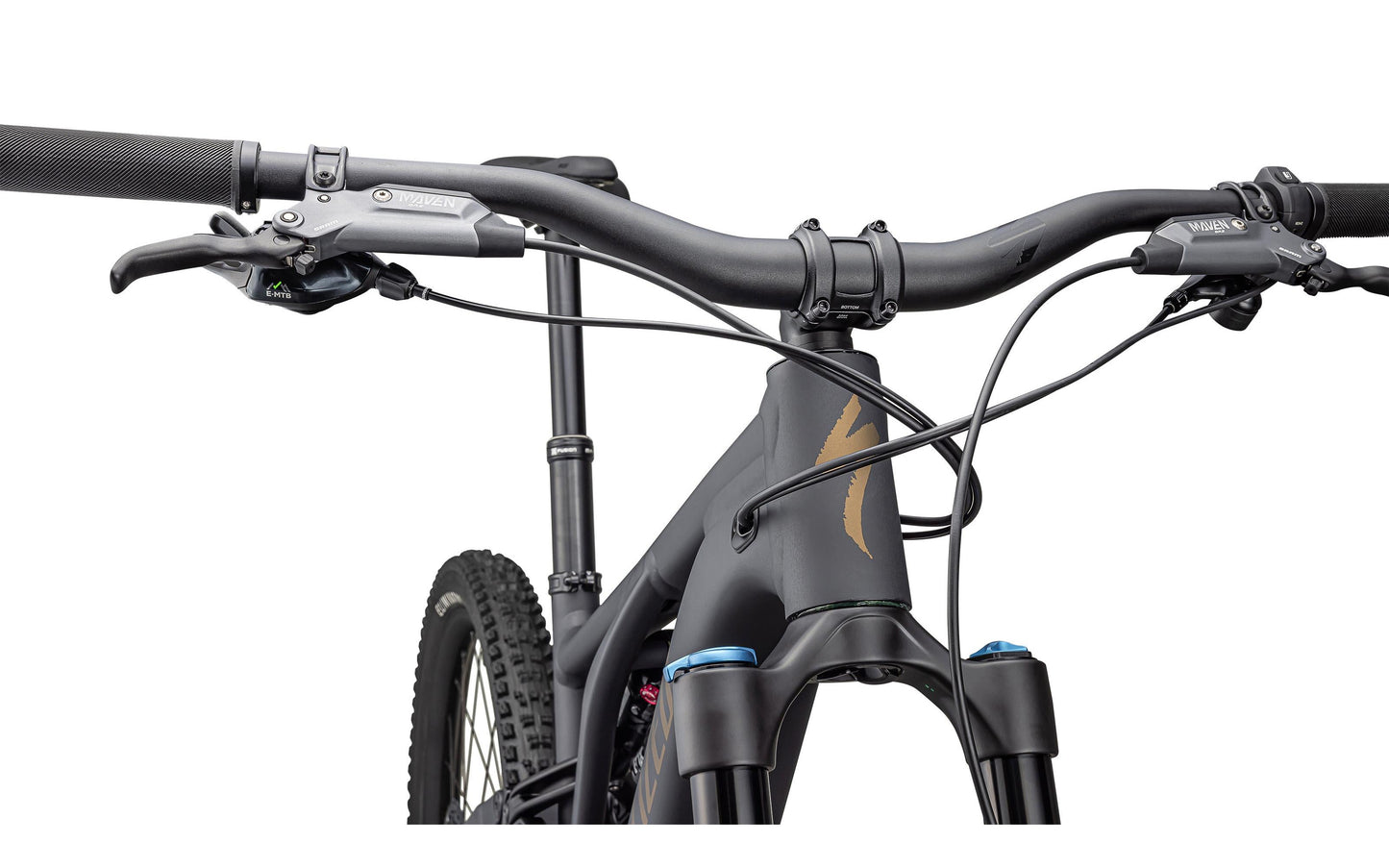

6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise
Brakes
Front Brake
SRAM Maven Bronze, 200mm rotor, metallic pads
Rear Brake
SRAM Maven Bronze, 200mm rotor, metallic pads
Drivetrain
Rear Derailleur
Sram X01 Eagle, 12-speed
Shift Levers
SRAM GX Eagle, trigger, 12-speed, single click
Cassette
Sram XG-1275, 12-speed, 10-52t
Crankset
Praxis forged M30, custom offset, 160mm
Chain
SRAM GX Eagle, 12-speed
Chainrings
SRAM X-Sync Eagle, 104 BCD, 32T, steel
Wheels & Tires
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Rear Hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Spokes
DT Swiss Industry
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Inner Tubes
Standard, Presta Valve
Weight
Weight
23.79kg (52 lb, 7.2 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 160 | 160 | 160 | 160 | 160 | 160 |
Handlebar Width | 800 | 800 | 800 | 800 | 800 | 800 |
Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
Seatpost Length | 100 | 125 | 150 | 170 | 170 | 190 |
Stack | 617 | 626 | 635 | 644 | 653 | |
Reach | 432 | 452 | 477 | 502 | 532 | |
Headtube Length | 105 | 115 | 125 | 135 | 145 | |
Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | |
BB Height | 350 | 350 | 350 | 350 | 350 | |
BB Drop | 27 | 27 | 27 | 27 | 27 | |
Trail | 130 | 130 | 130 | 130 | 130 | |
Fork Length (full) | 567 | 567 | 567 | 567 | 567 | |
Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | |
Front Center | 760 | 784 | 814 | 843 | 878 | |
Chainstay Length | 442 | 442 | 442 | 442 | 442 | |
Wheelbase | 1200 | 1225 | 1255 | 1284 | 1318 | |
Bike Standover Height | 776 | 783 | 787 | 788 | 790 | |
Seat Tube Length | 390 | 405 | 425 | 445 | 465 | |
Seat Tube Angle | 77.2 | 76.7 | 76.2 | 76.2 | 76.2 | |
Max Seatpost Insertion | 220 | 240 | 255 | 275 | 295 | |
Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
