SPECIALIZED

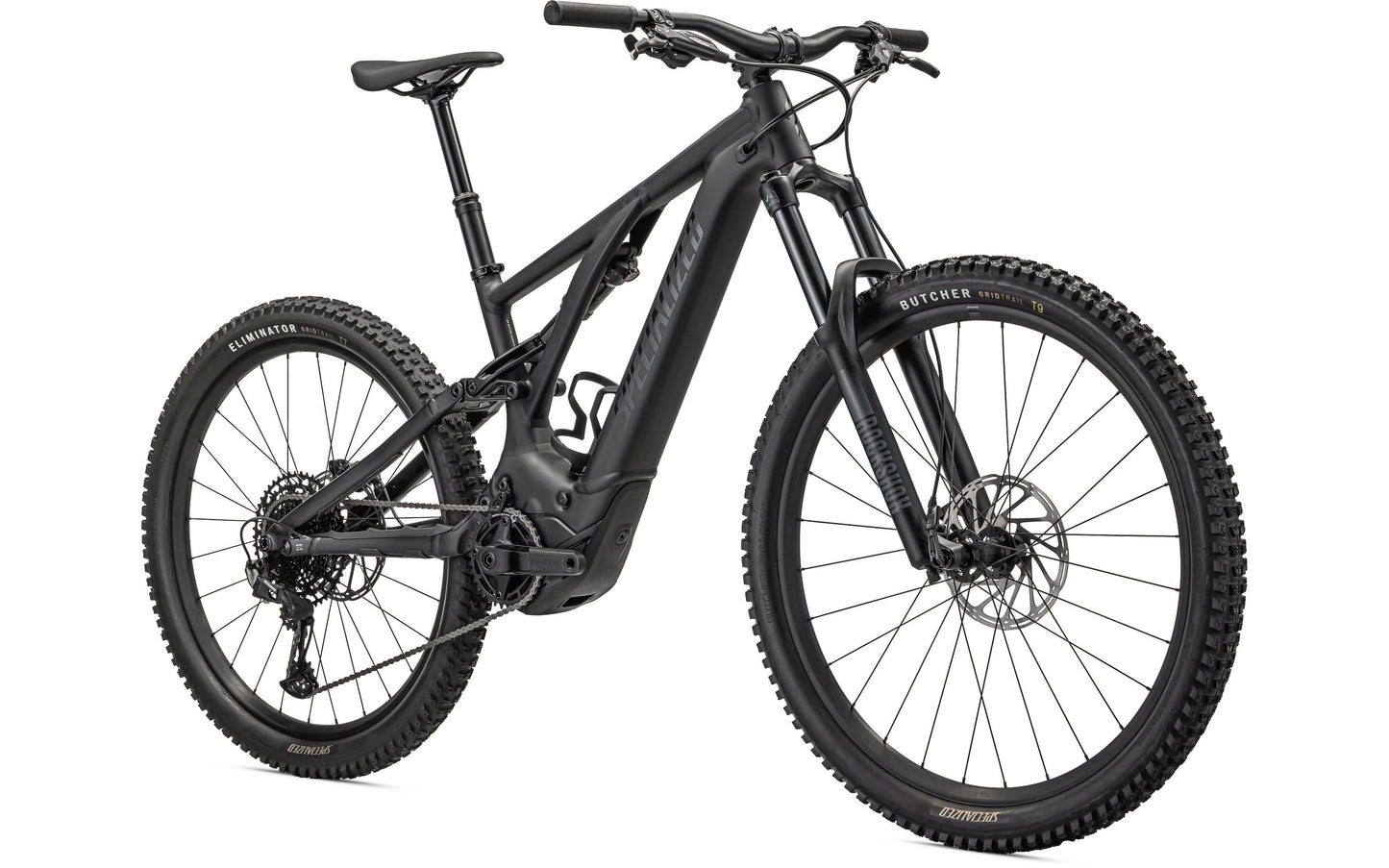

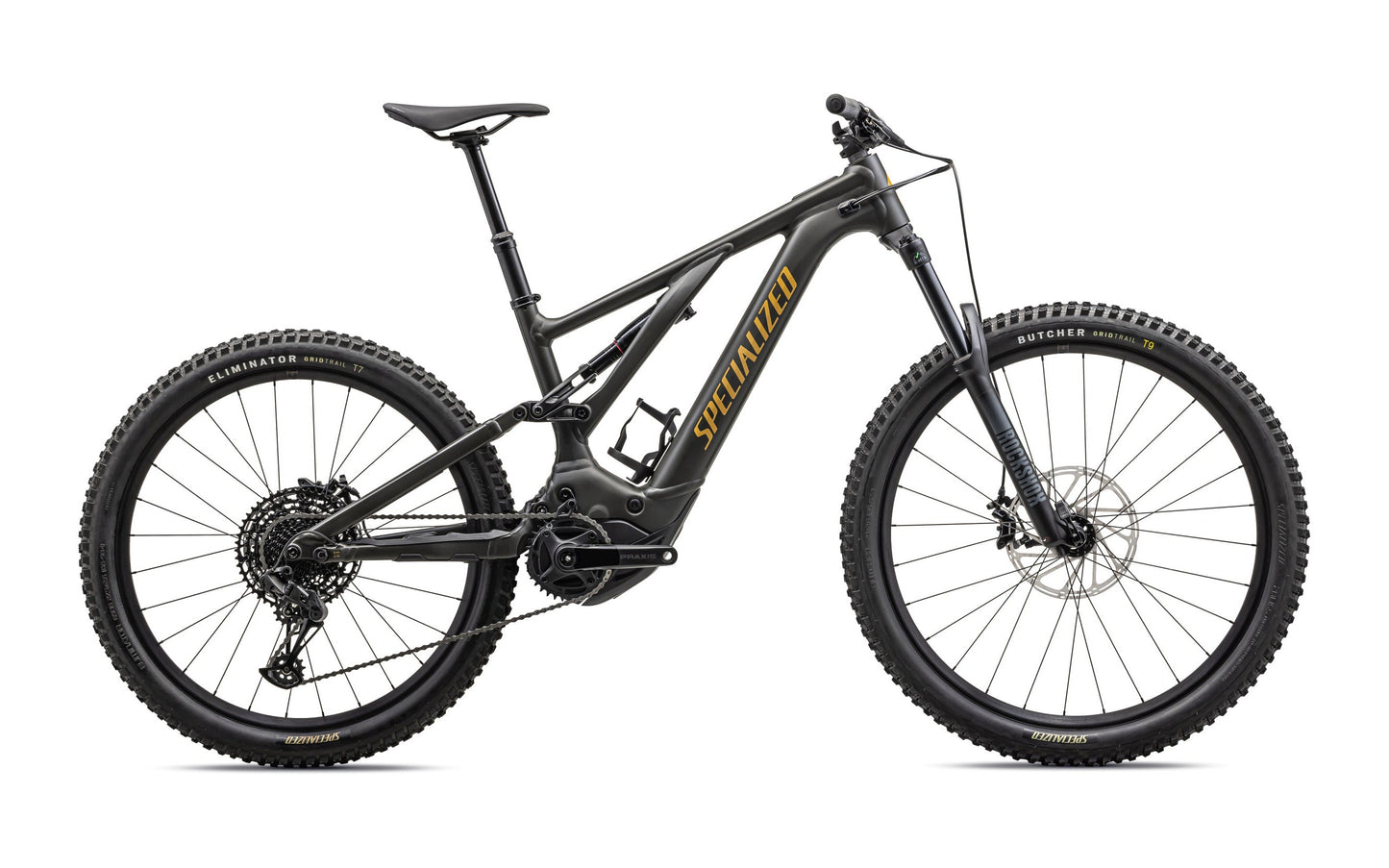

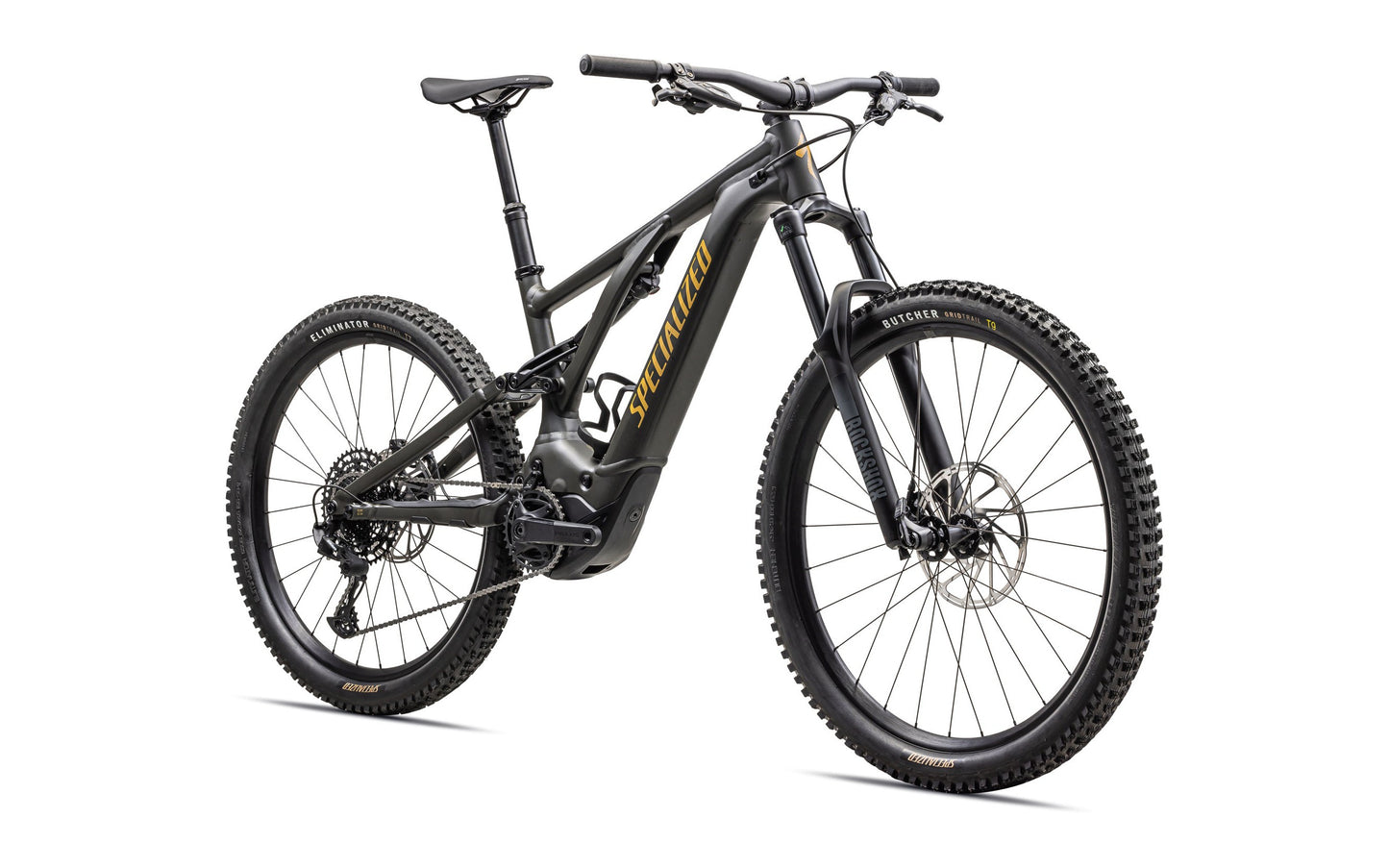

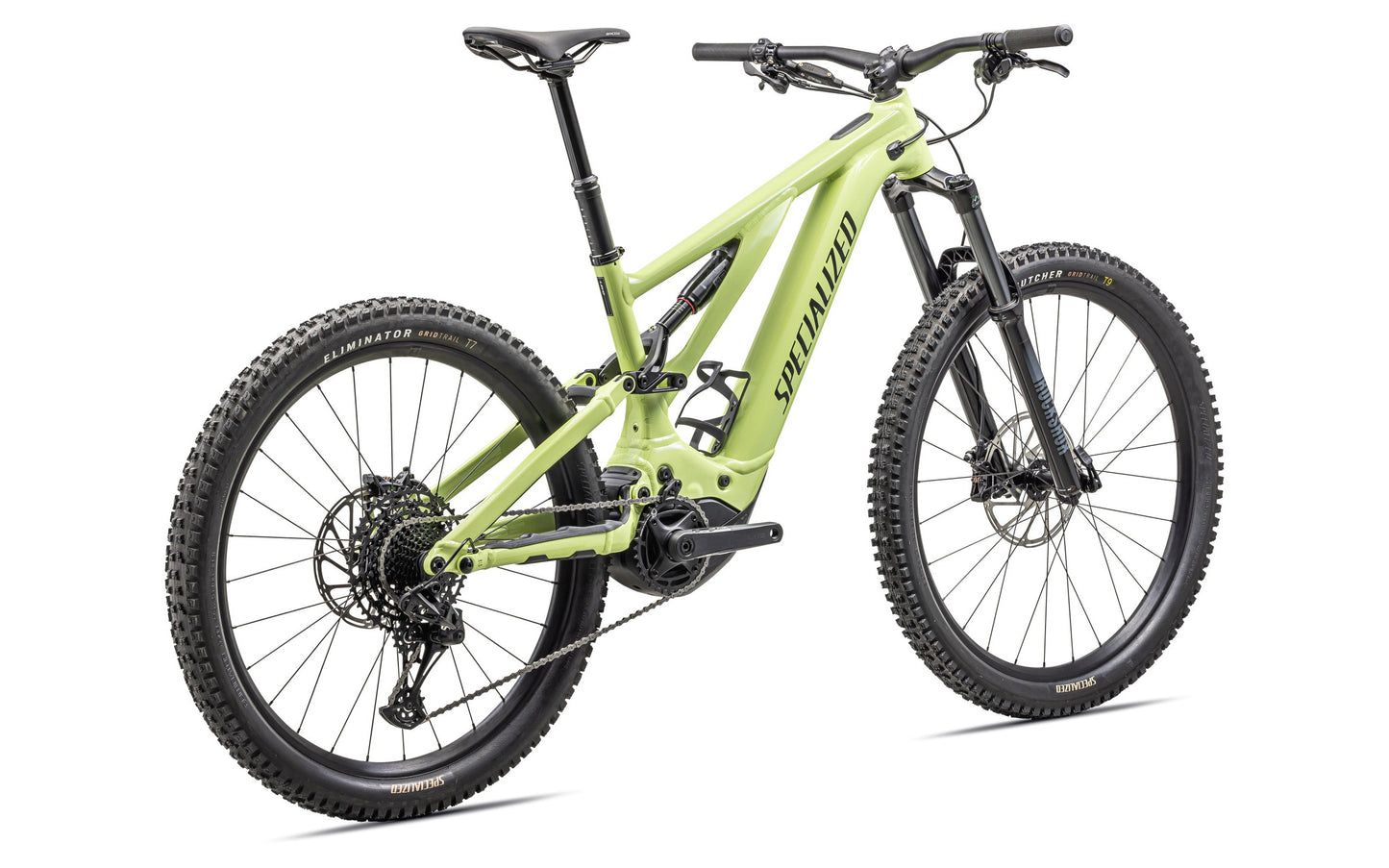

Turbo Levo Alloy

Turbo Levo Alloy

SKU: 95223-7002

MSRP 99,000.00
MSRP 99,000.00
Sale Sold out
VAT included.
Size
Color

1 - Available

  • Visa
  • Mastercard

Read More

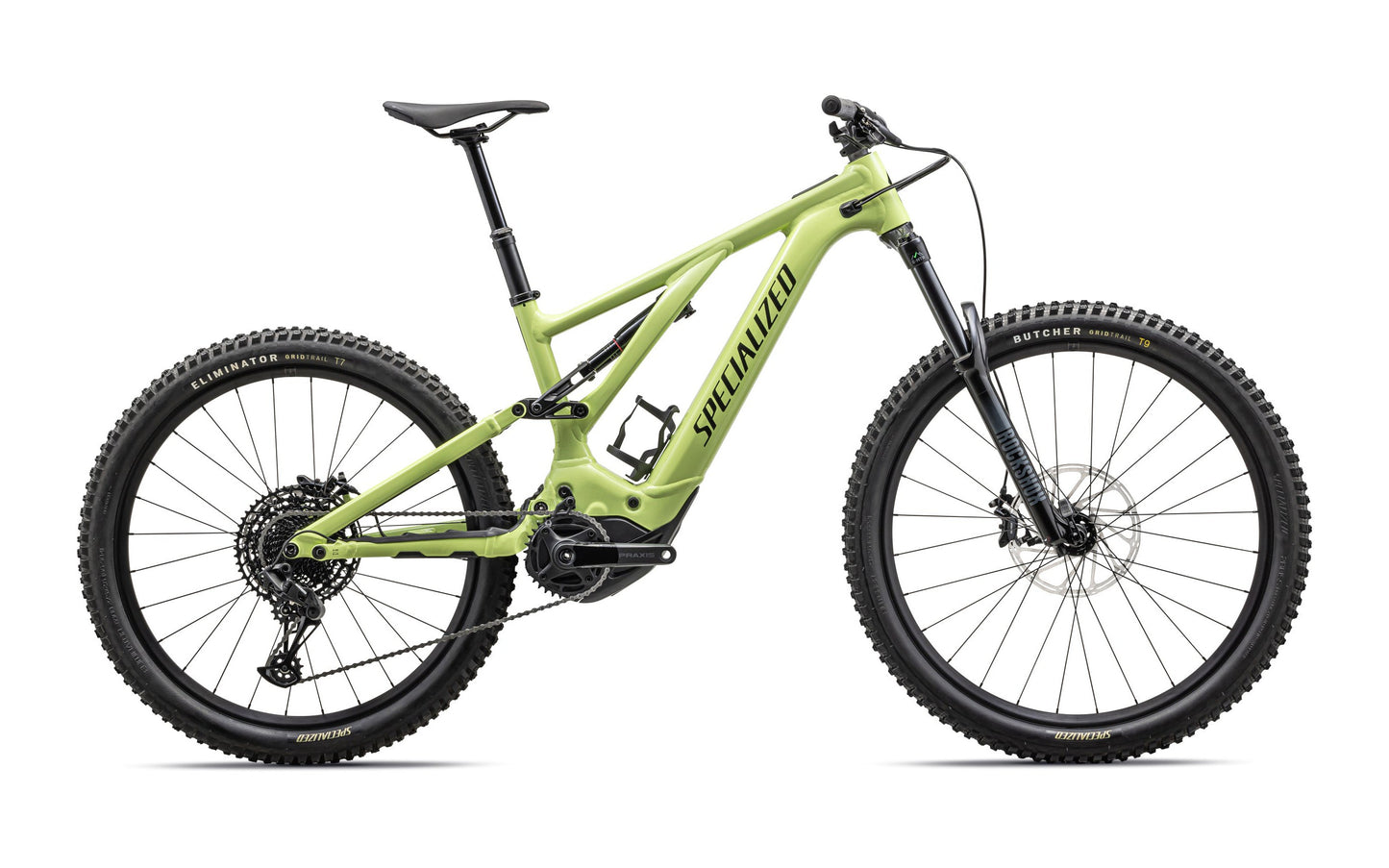

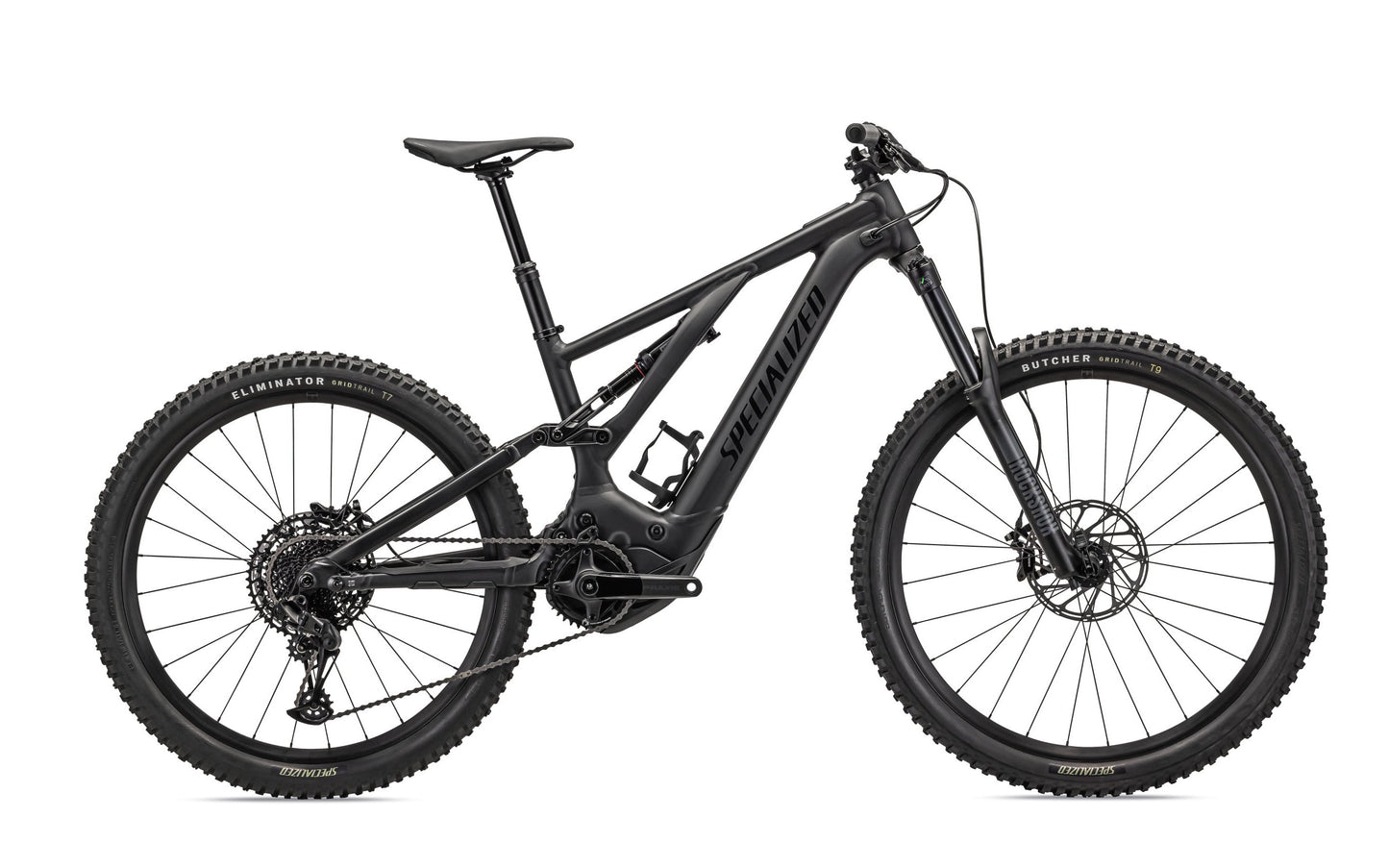

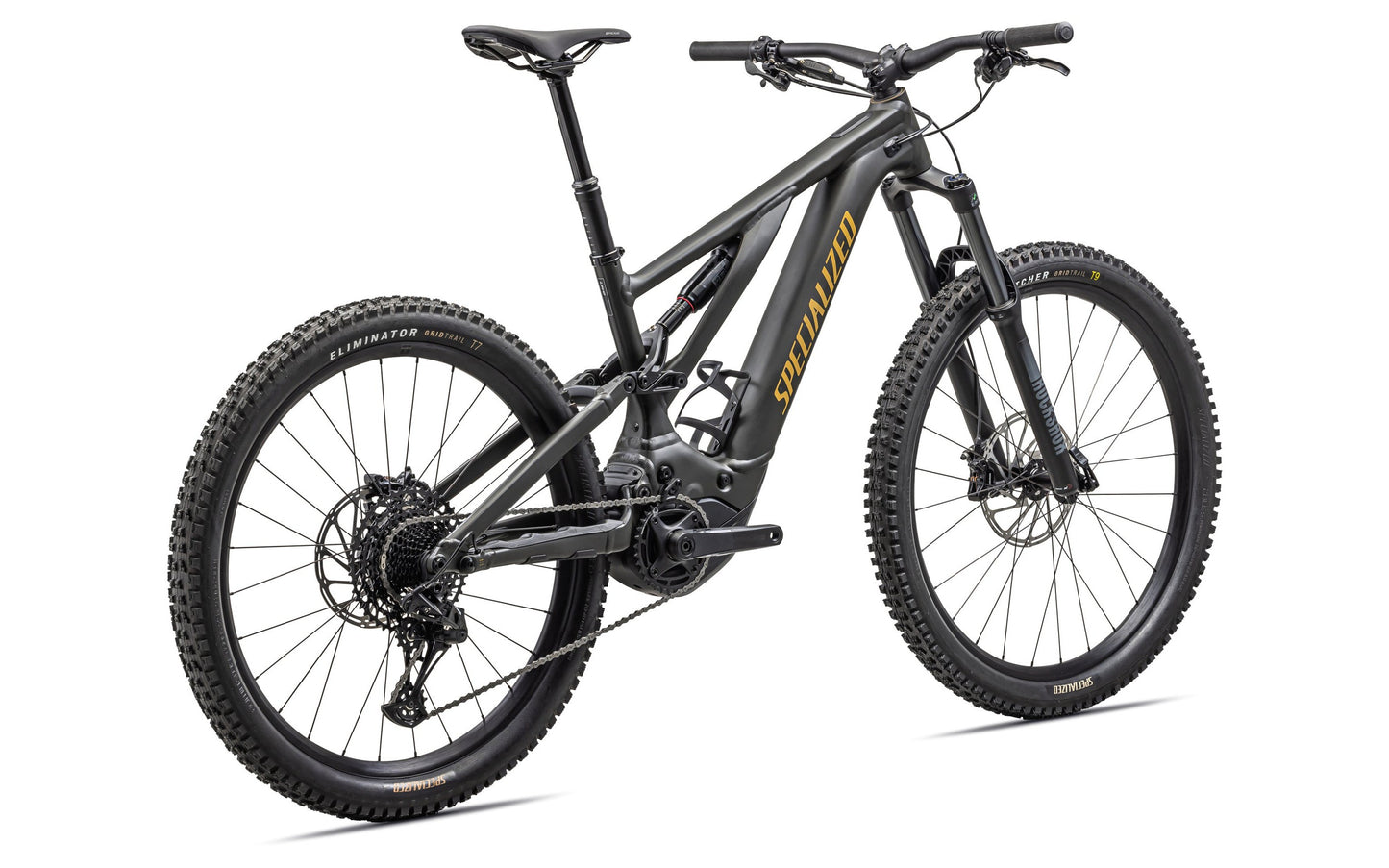

Turbo Levo Alloy

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo delivers more of everything that you love about trail riding.

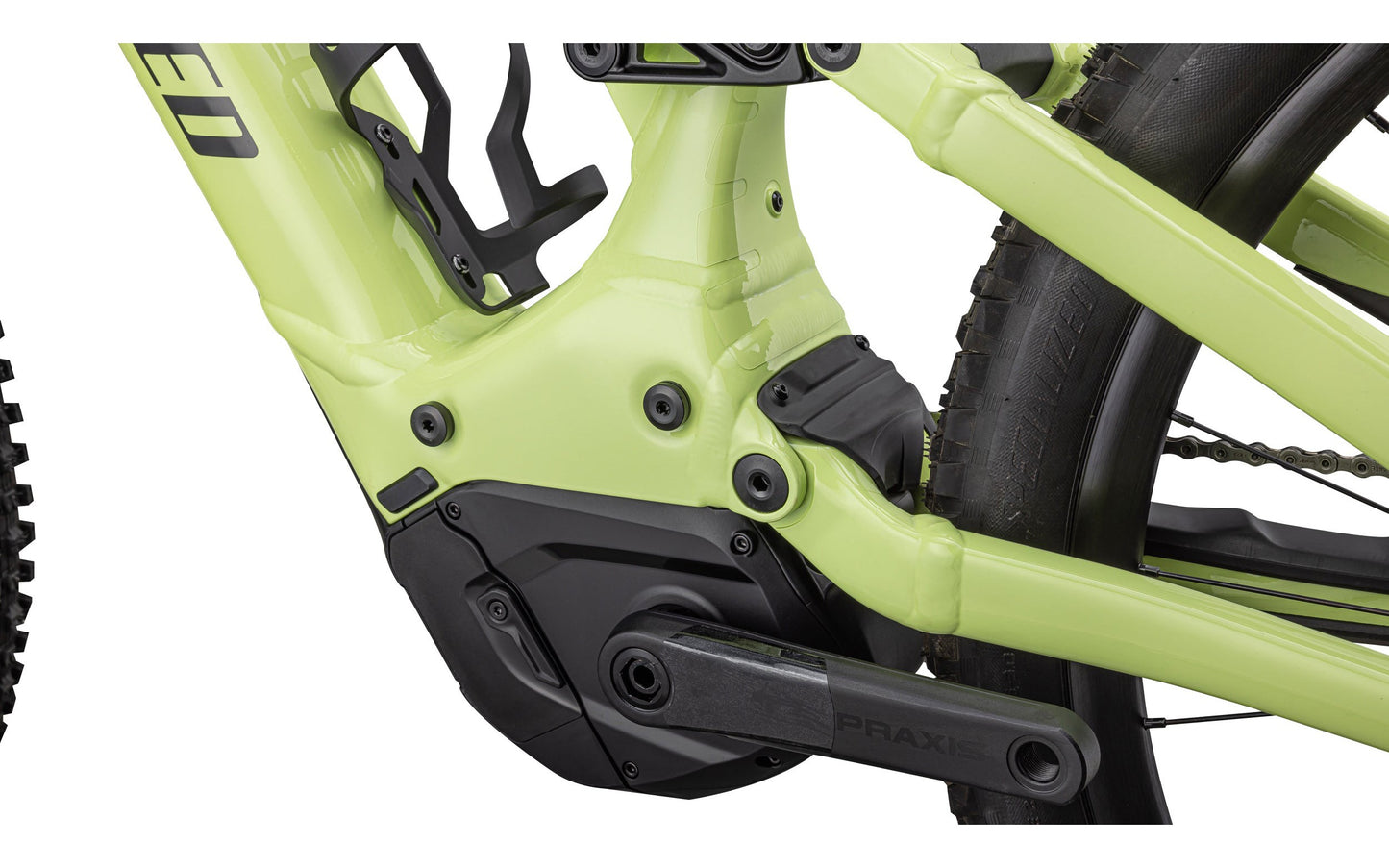

  • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

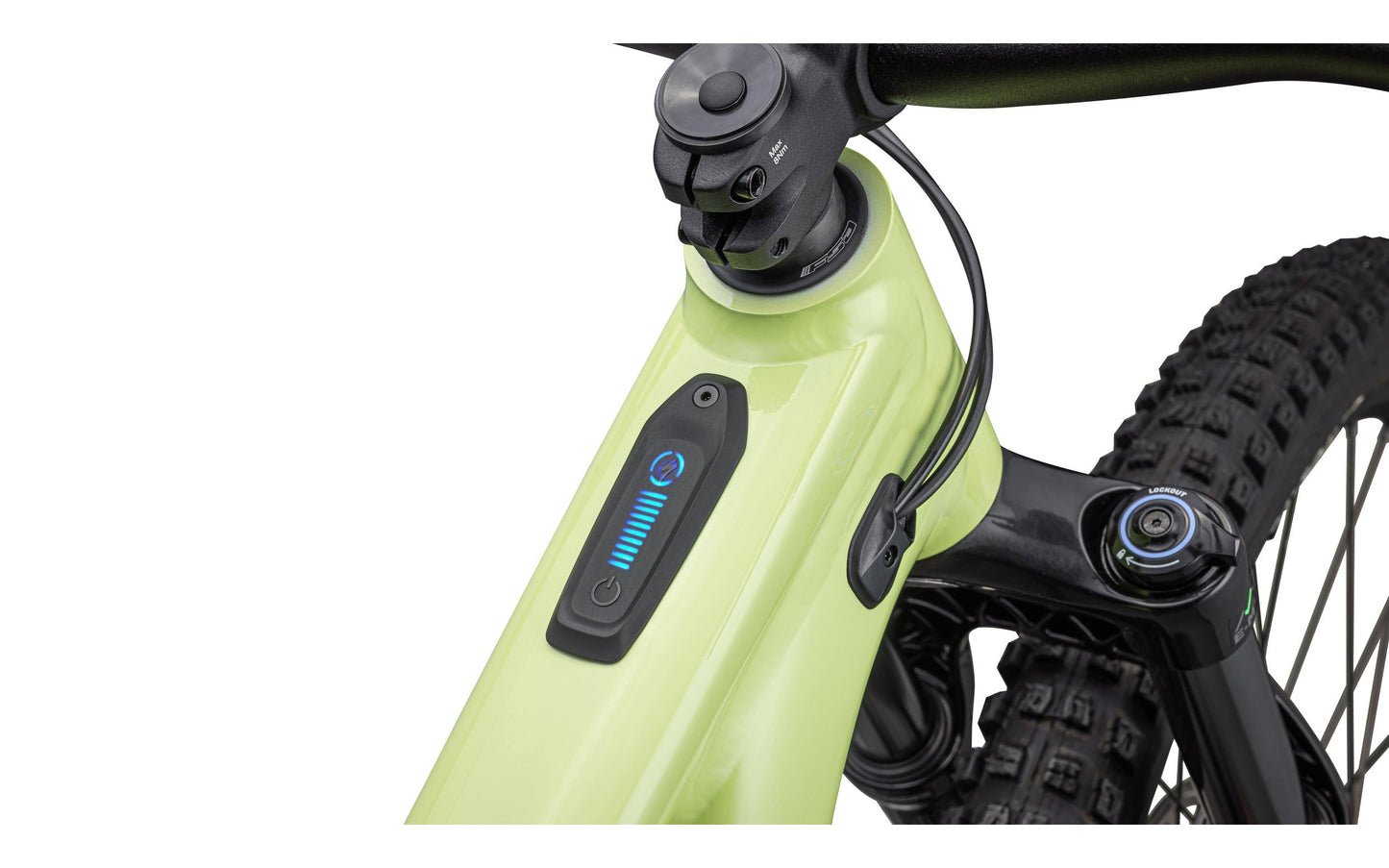

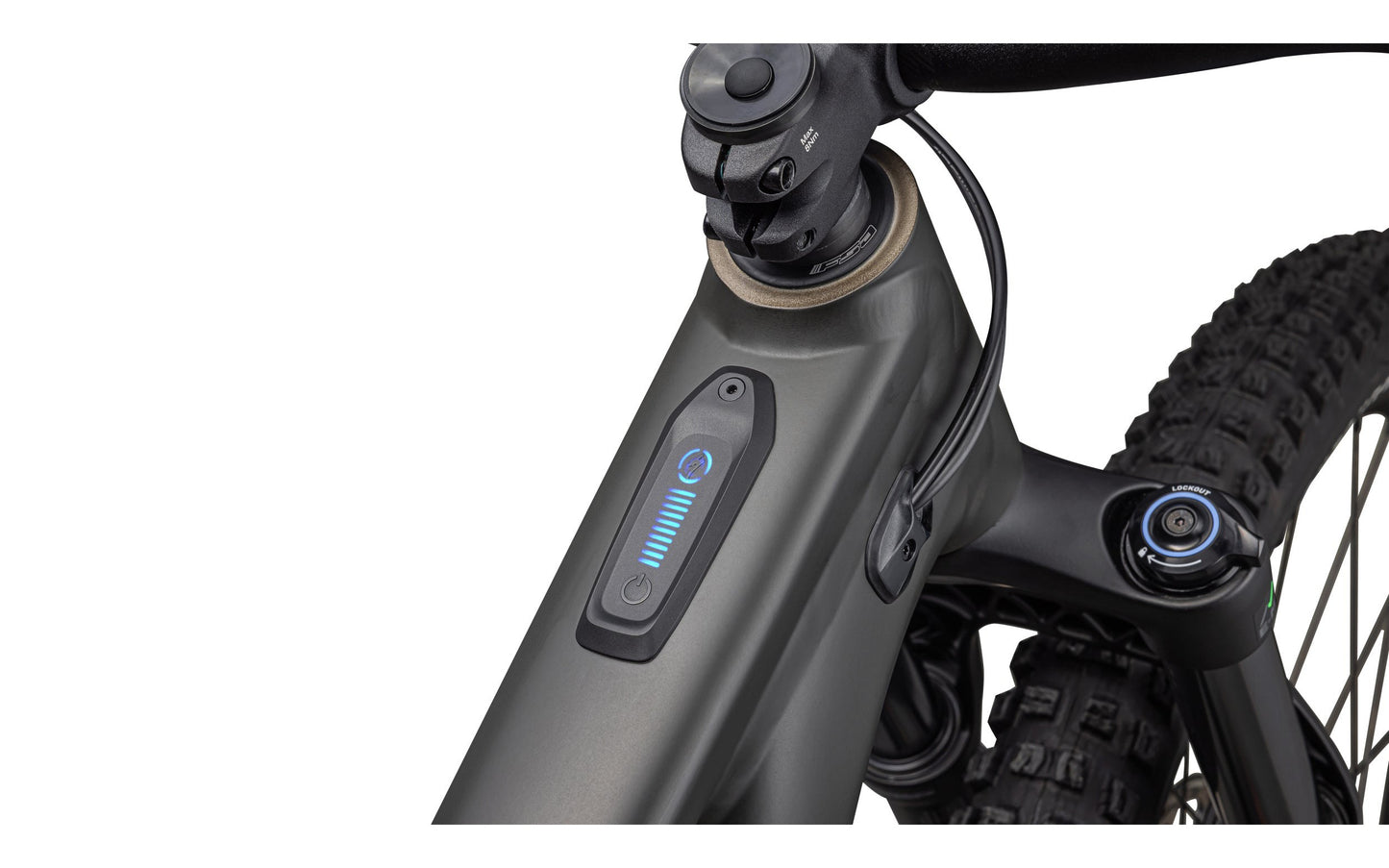

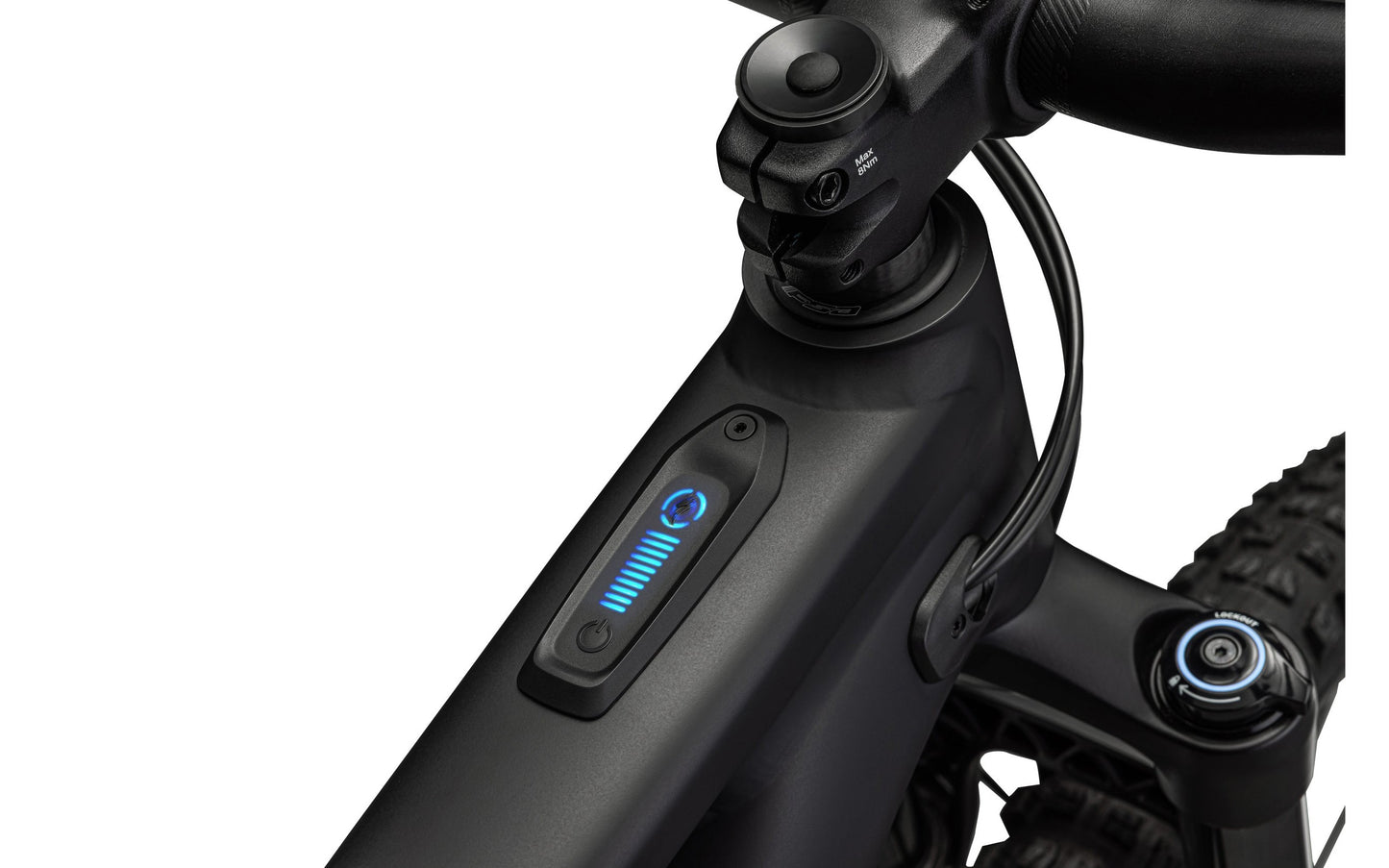

  • The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.
  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers two distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Bottom bracket height can be fine-tuned up or down by 7mm.

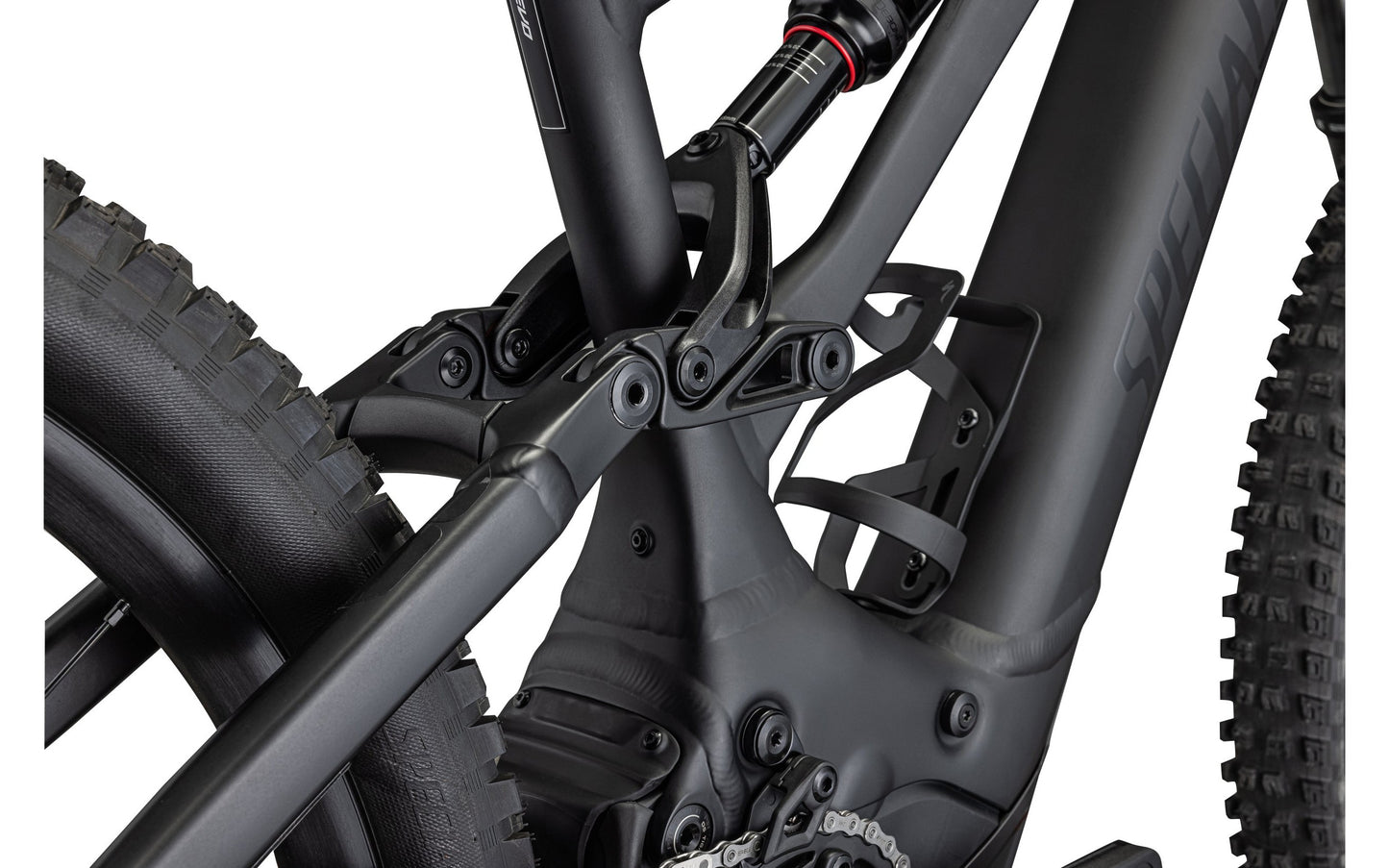

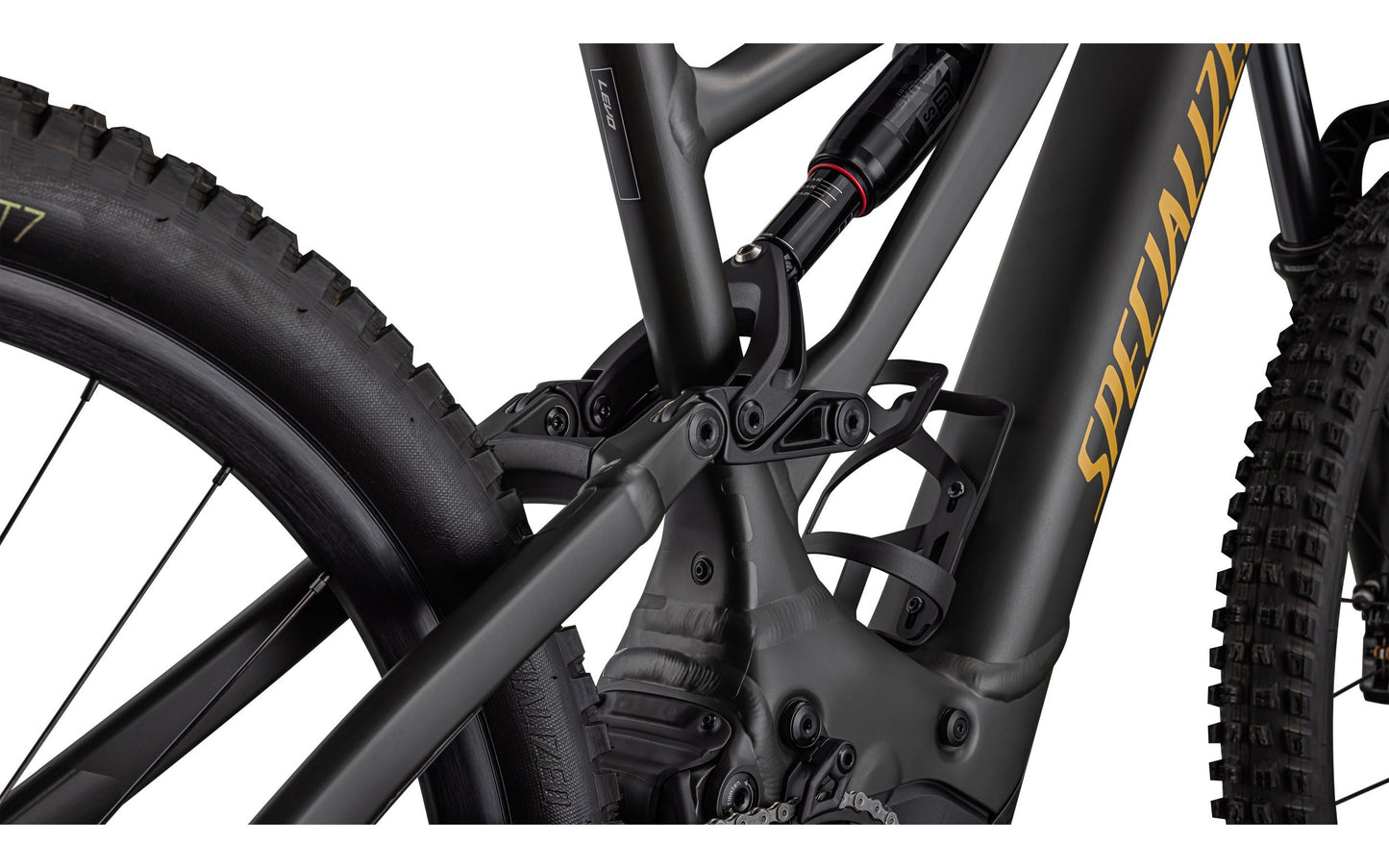

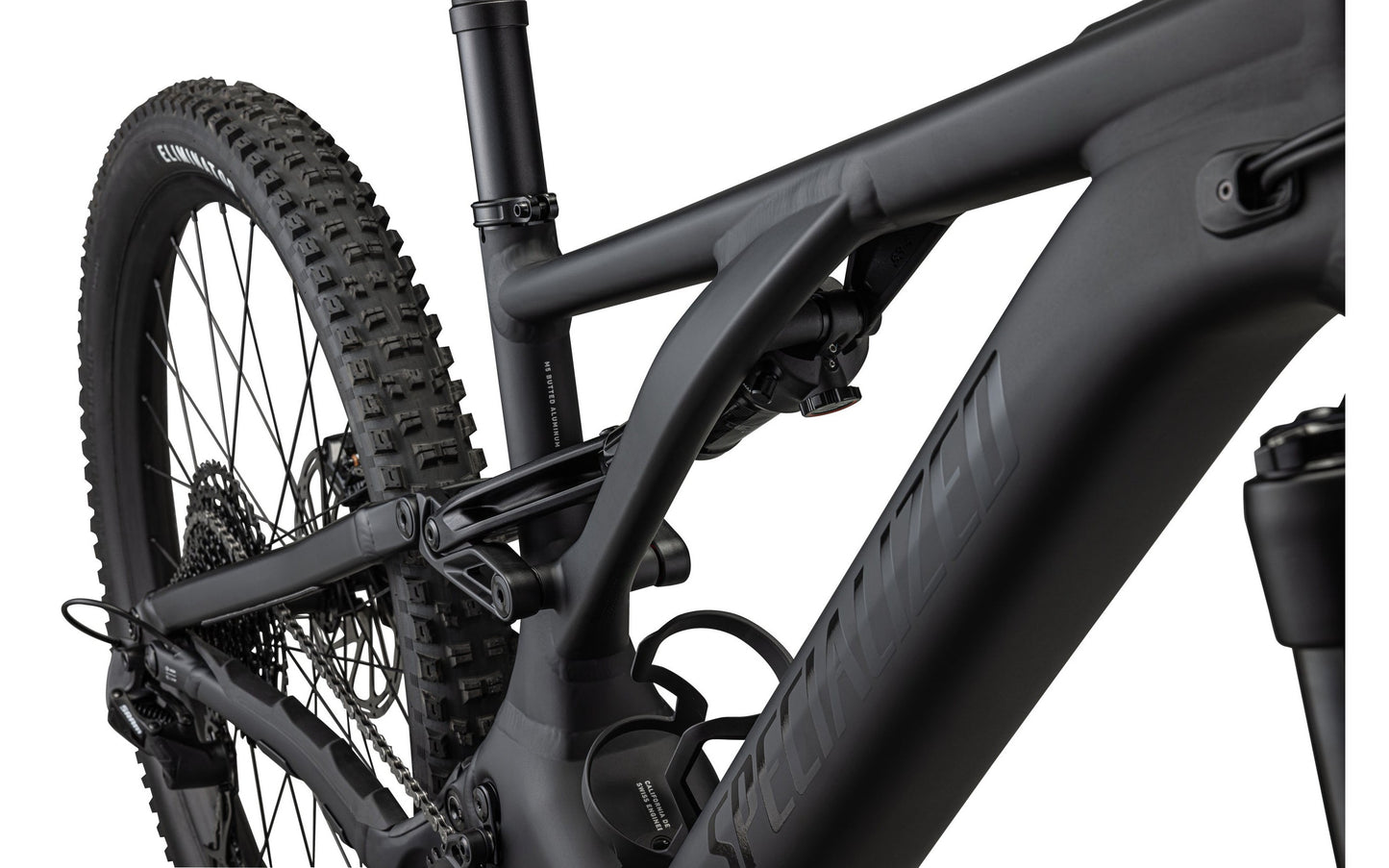

  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
View full details

Technical Specifications

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Body Geometry Bridge Saddle, steel rails

Tape

Specialized Trail Grips

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm



FRAMESET

Seat Binder

Alloy, 38.6mm

Frame

Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing



WHEELS

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

Spokes

DT Swiss Industry

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h

Inner Tubes

Standard, Presta Valve



E-BIKE

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Motor

Specialized 2.2 Custom Rx Trail Tuned Motor

Battery

Specialized M3-700, Integrated battery, 700Wh

UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote



DRIVETRAIN

Crankset

Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Chain

SRAM NX Eagle, 12-speed

Shift Levers

SRAM SX Eagle, 12-speed

Rear Derailleur

SRAM SX Eagle, 12-speed

Chainrings

SRAM X-Sync Eagle, 104 BCD, 34t, steel



SUSPENSION

Fork

RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel

Rear Shock

RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm



BRAKES

Rear Brake

SRAM Guide RE, 200mm

Front Brake

SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm



* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.




Geometry

 S1S2S3S4S5S6
Crank Length160mm160mm160mm160mm160mm160mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length40mm40mm40mm40mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length100mm125mm150mm170mm170mm200mm
Stack605mm617mm626mm635mm644mm653mm
Reach412mm432mm452mm477mm502mm532mm
Headtube Length105mm105mm115mm125mm135mm145mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
BB Height352mm350mm350mm350mm350mm350mm
BB Drop25mm27mm27mm27mm27mm27mm
Trail130mm130mm130mm130mm130mm130mm
Fork Length (full)557mm567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center738mm760mm784mm814mm843mm878mm
Chainstay Length442mm442mm442mm442mm442mm442mm
Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
Bike Standover Height752mm776mm783mm787mm788mm790mm
Seat Tube Length380mm390mm405mm425mm445mm465mm
Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
