E-Bike

Motor

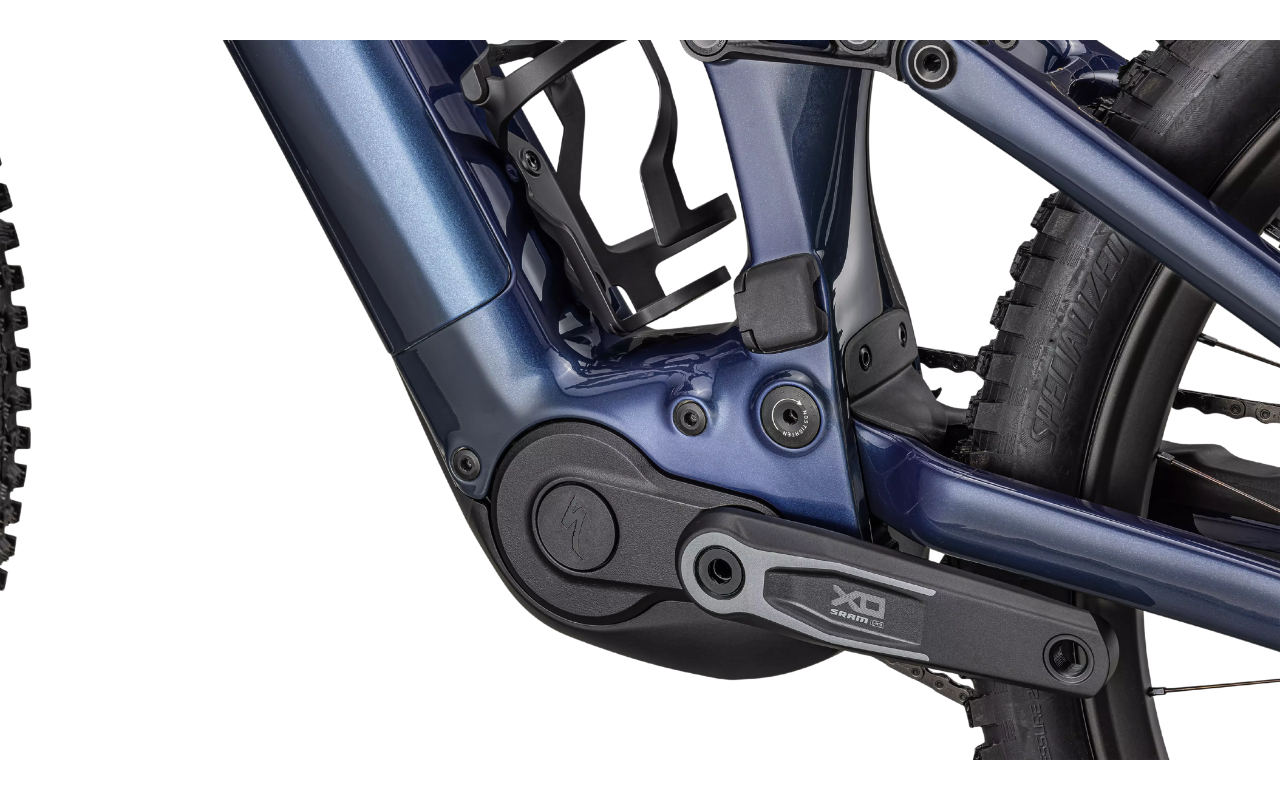

All New Specialized 3.1 Motor, 101Nm torque, 666W power

Battery

840wh battery

UI/Remote

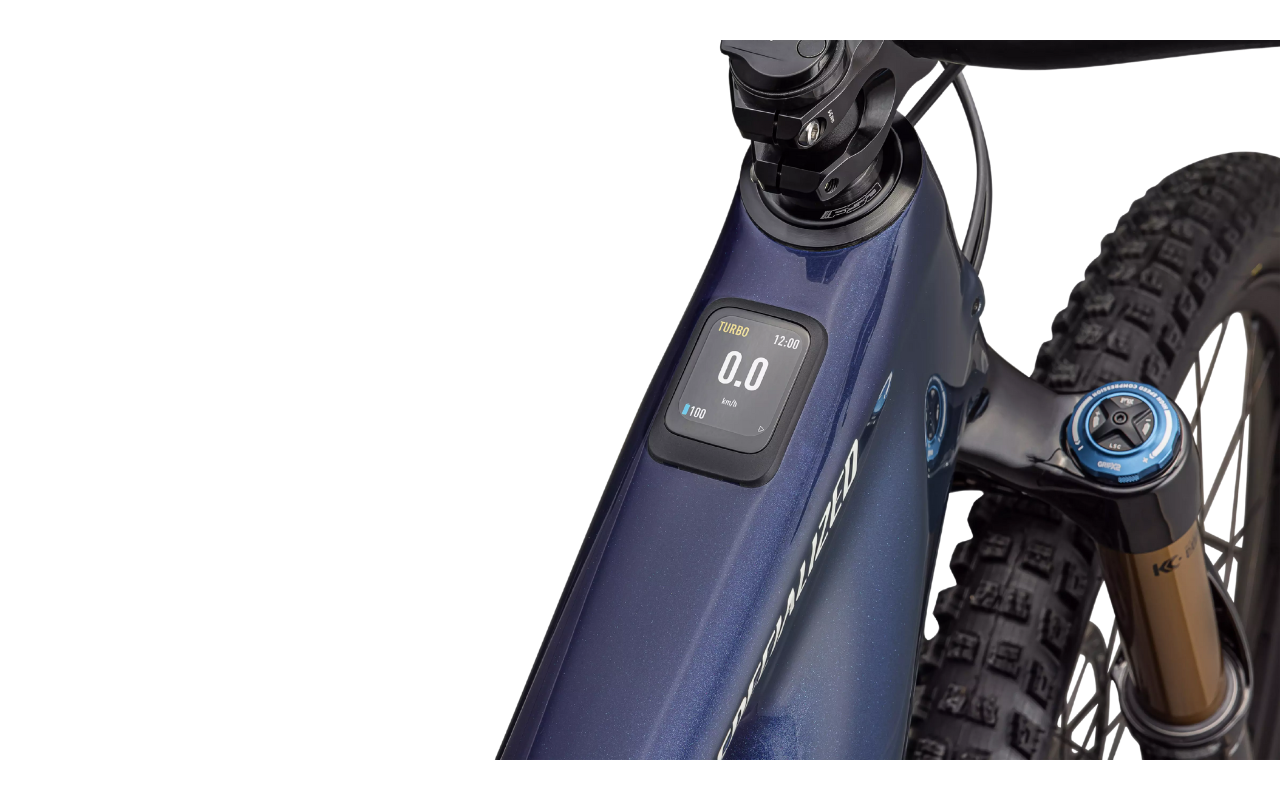

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Charger

Specialized 4amp charger

Frameset

Frame

All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

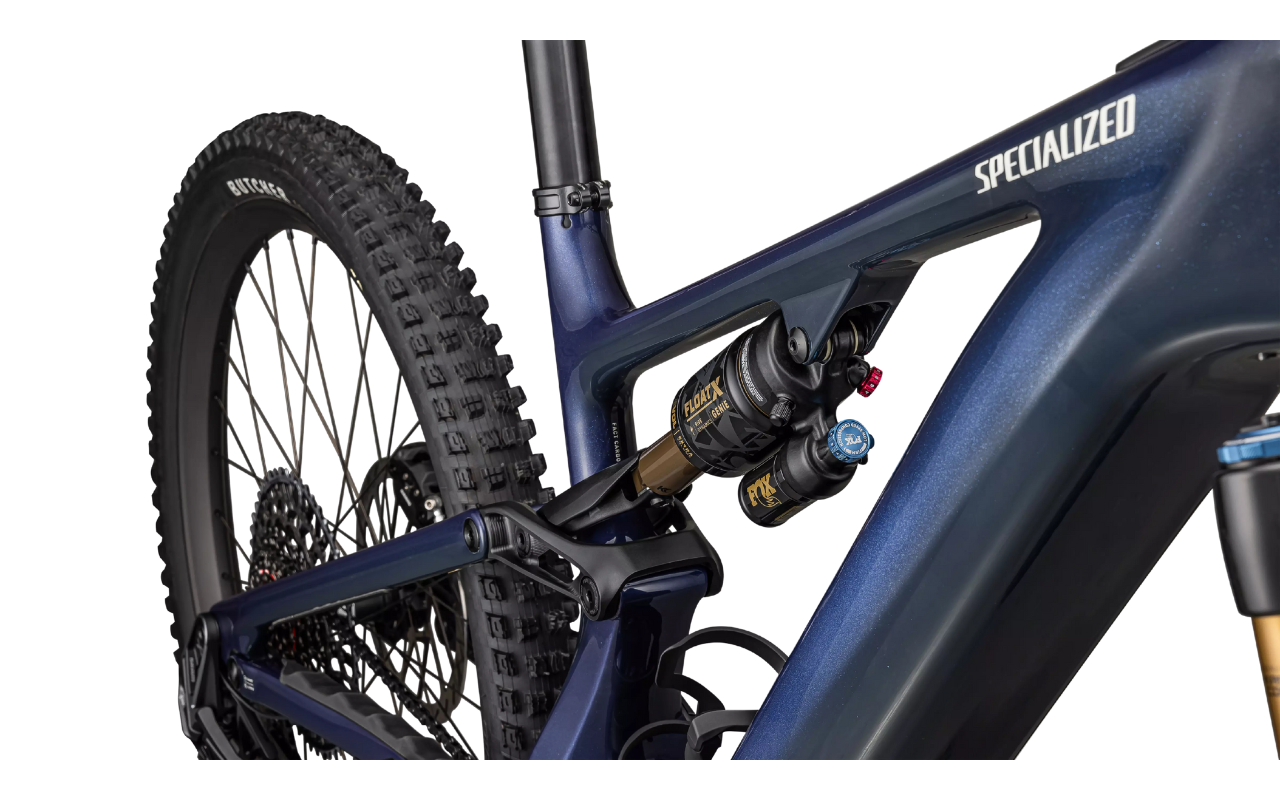

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

Fork

FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

Brakes

Front Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Rear Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain

Shift Levers

SRAM AXS POD Controller

Rear Derailleur

SRAM X0 Eagle Transmission

Cassette

SRAM XO 1295, 12 speed, 10-52

Chain

SRAM X0

Crankset

SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm

Chainrings

SRAM 34T T-Type chainring, 104 BCD, steel

Wheels & Tires

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Front Wheel

Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Rear Wheel

Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h

Inner Tubes

Standard, Presta valve

Cockpit

Stem

Industry 9 Mountain stem, 35mm clamp, 40mm length

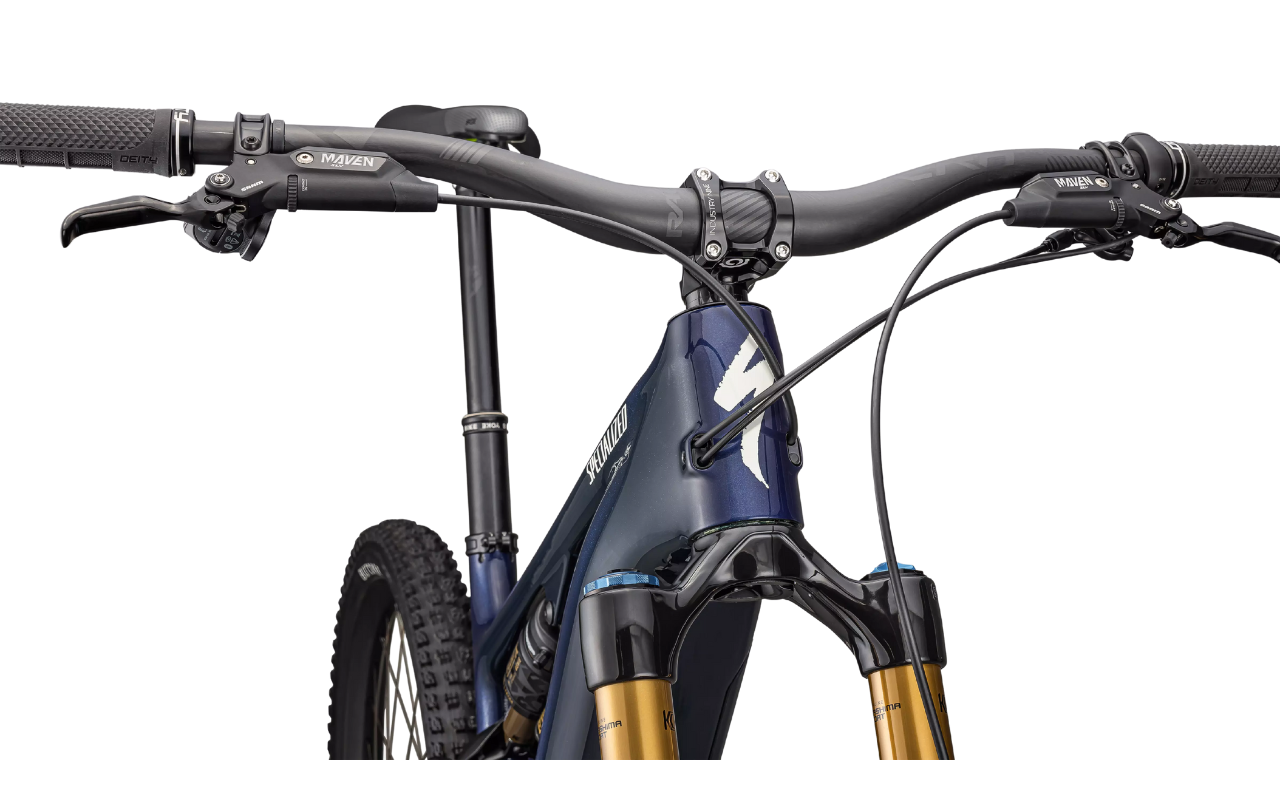

Handlebars

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

Grips

Deity Lockjaw grips

Saddle

Bridge Mimic Expert, Hollow Ti rails

SeatPost

Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm

Accessories

SWAT

SWAT internal downtube storage

Product Details

Product ID

218702

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Weight

Weight

23.94kg (52 lb, 12.5 oz)

Weight Size

S4
