E-Bike

Motor

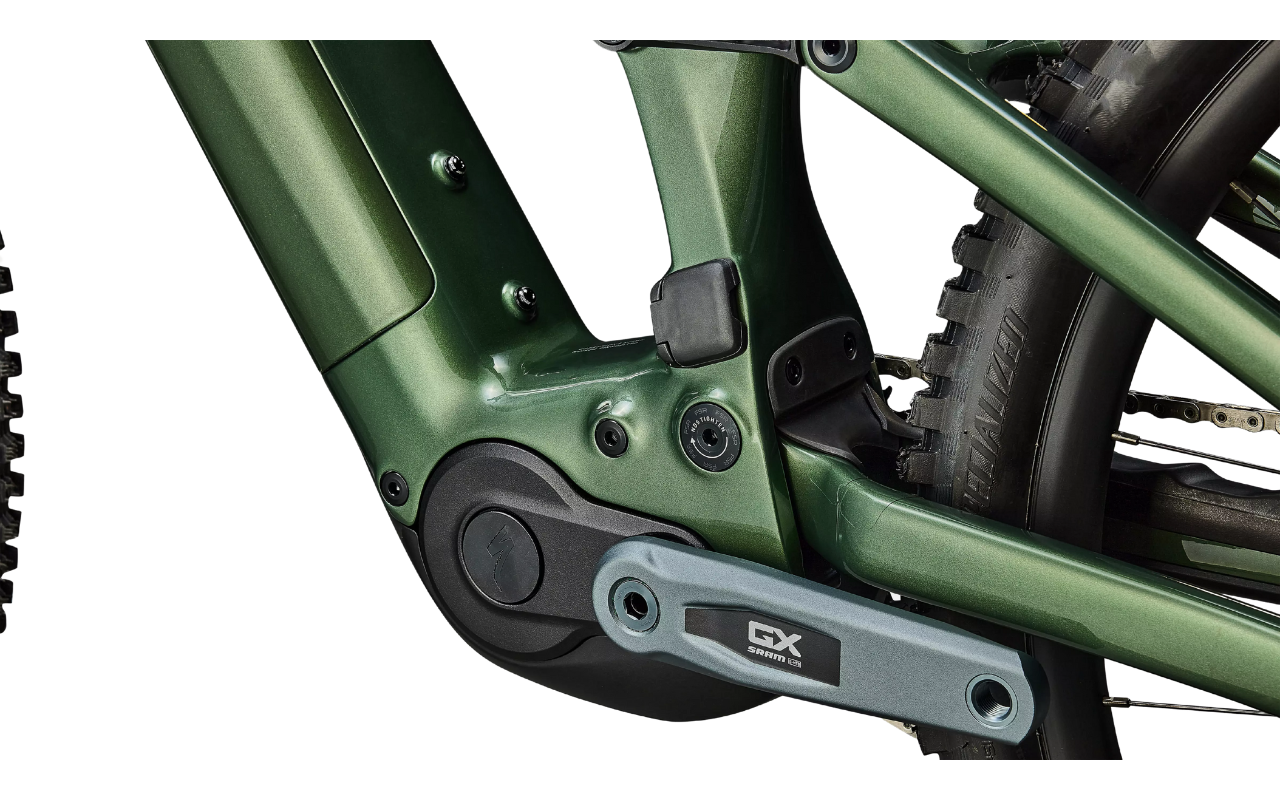

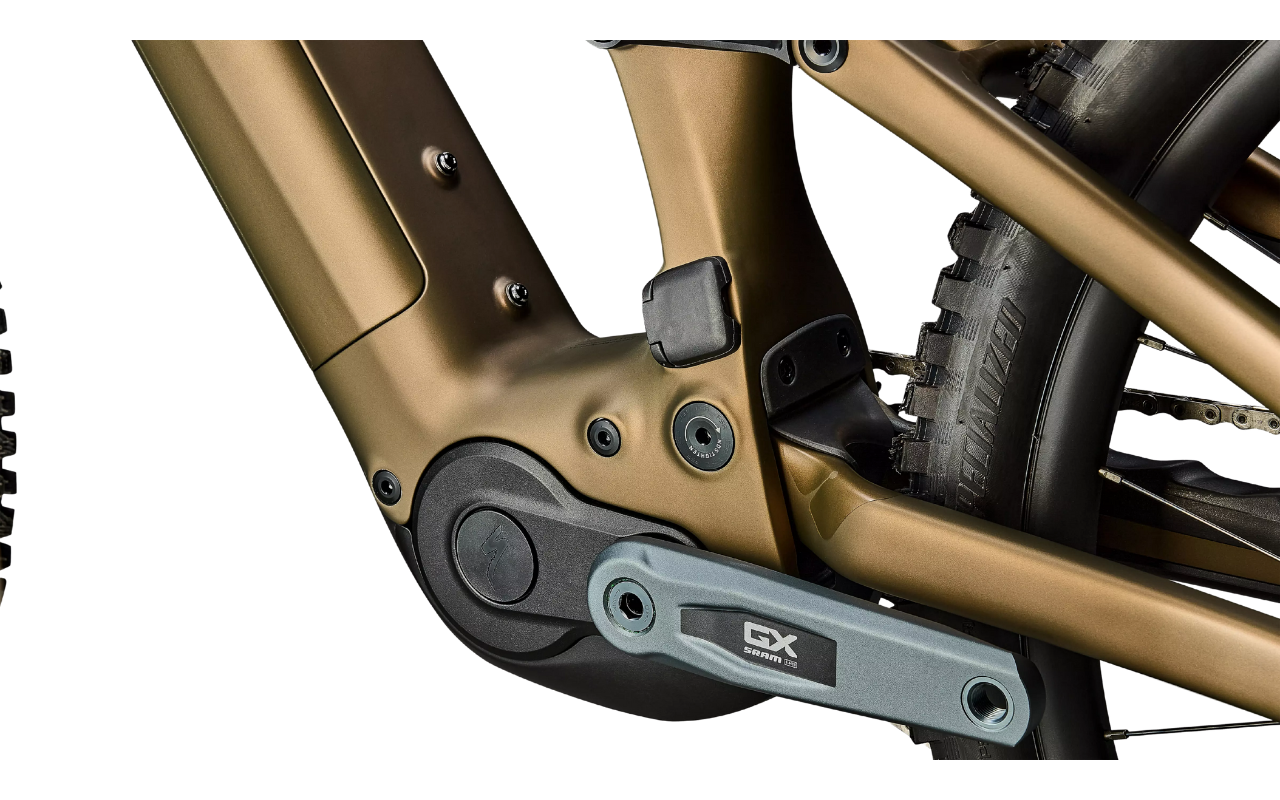

All New Specialized 3.1 Motor, 101Nm torque, 666W power

Battery

840wh battery

UI/Remote

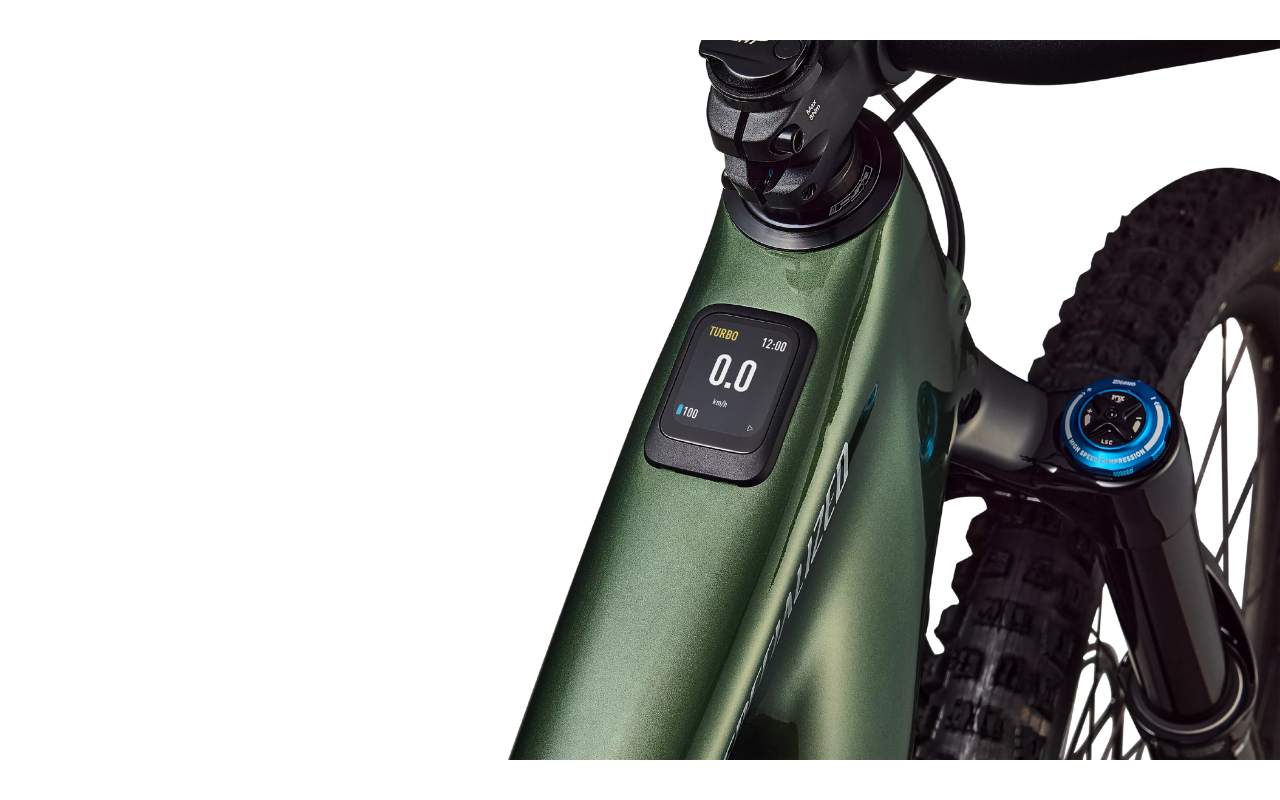

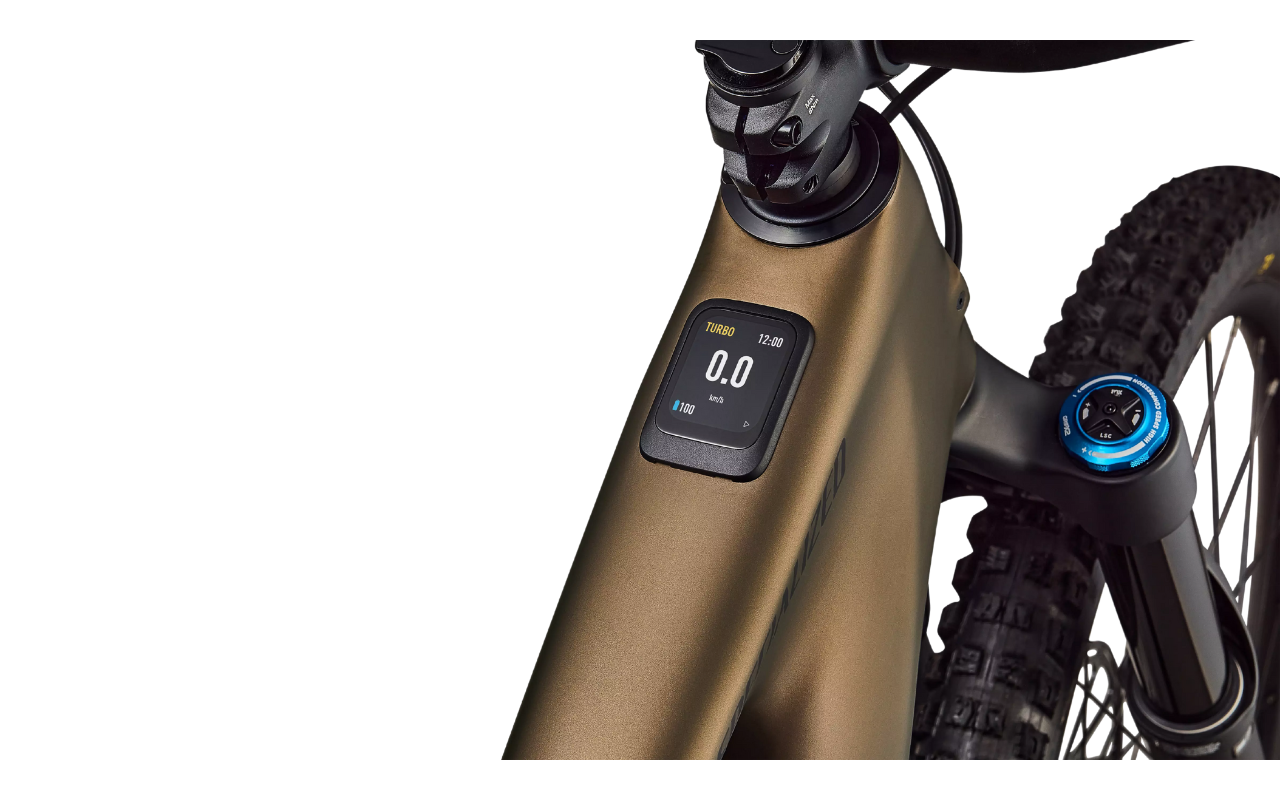

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Charger

Specialized 4amp charger

Frameset

Frame

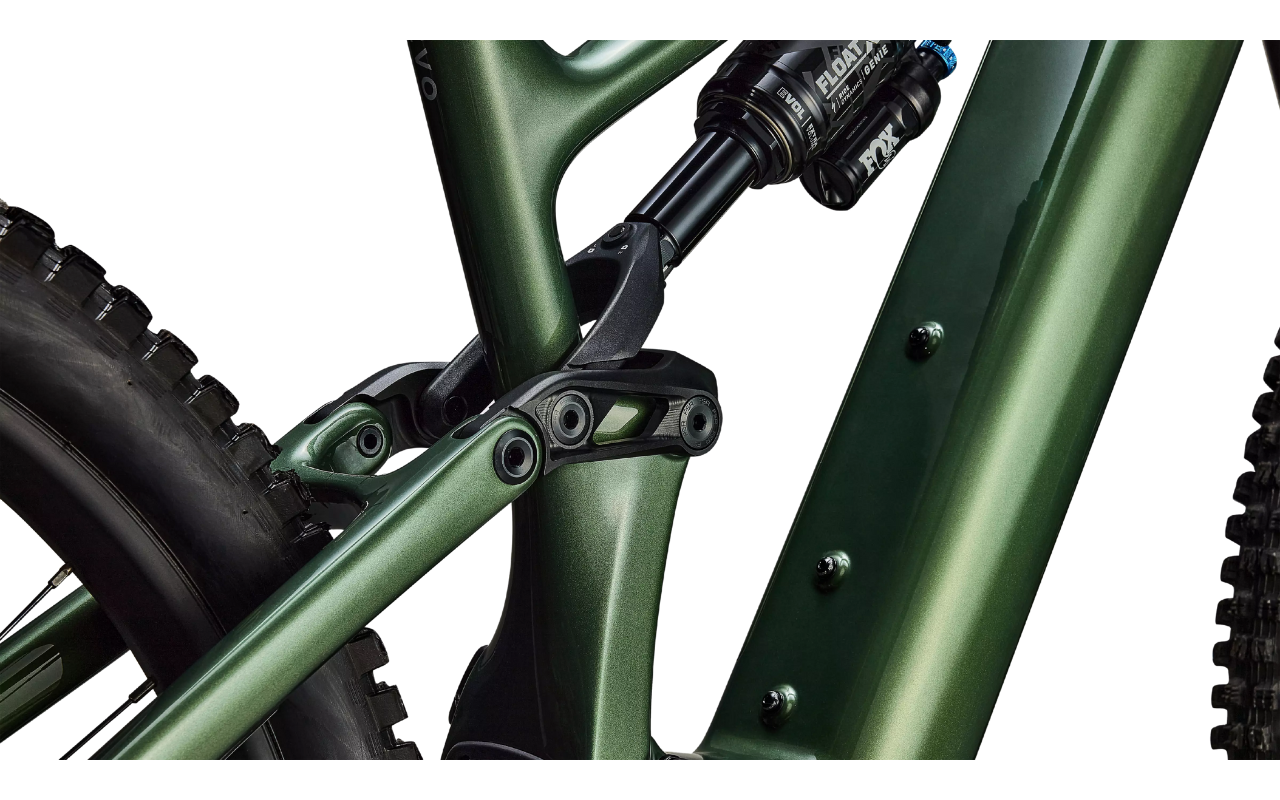

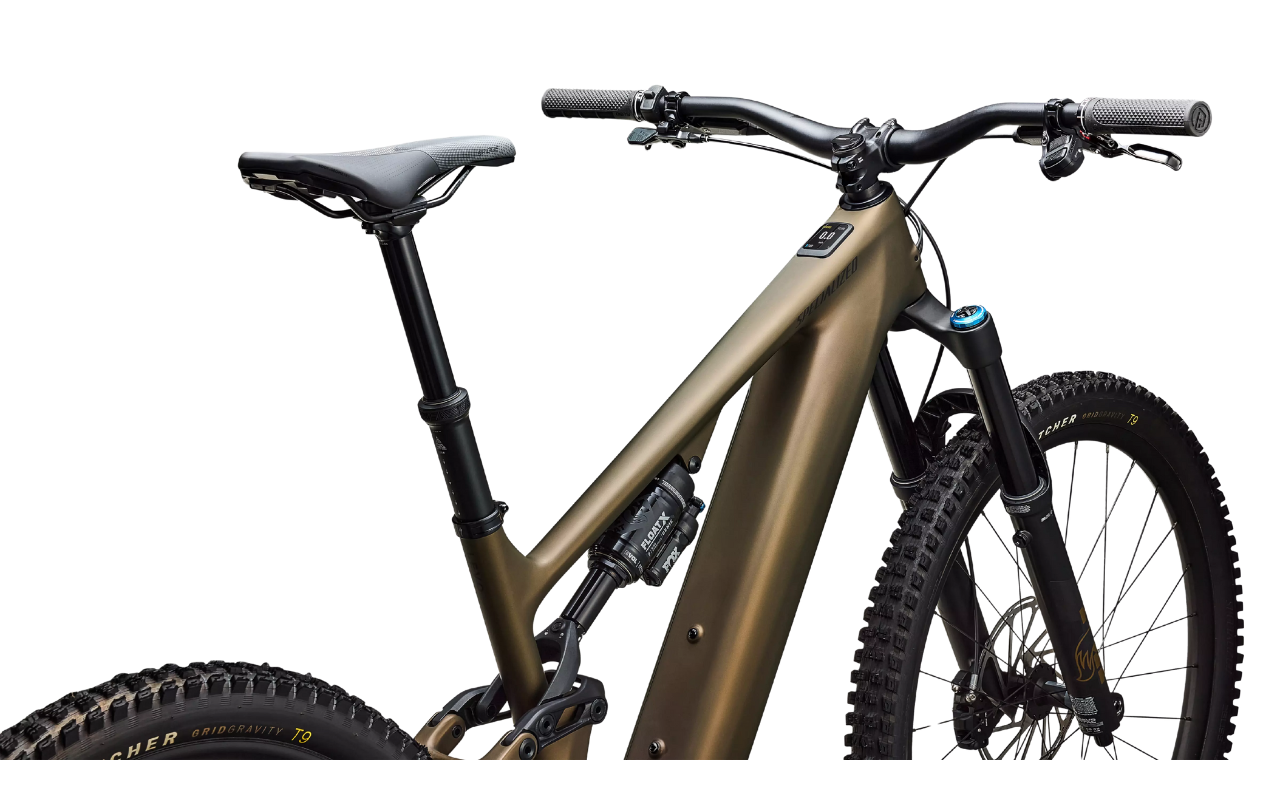

All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

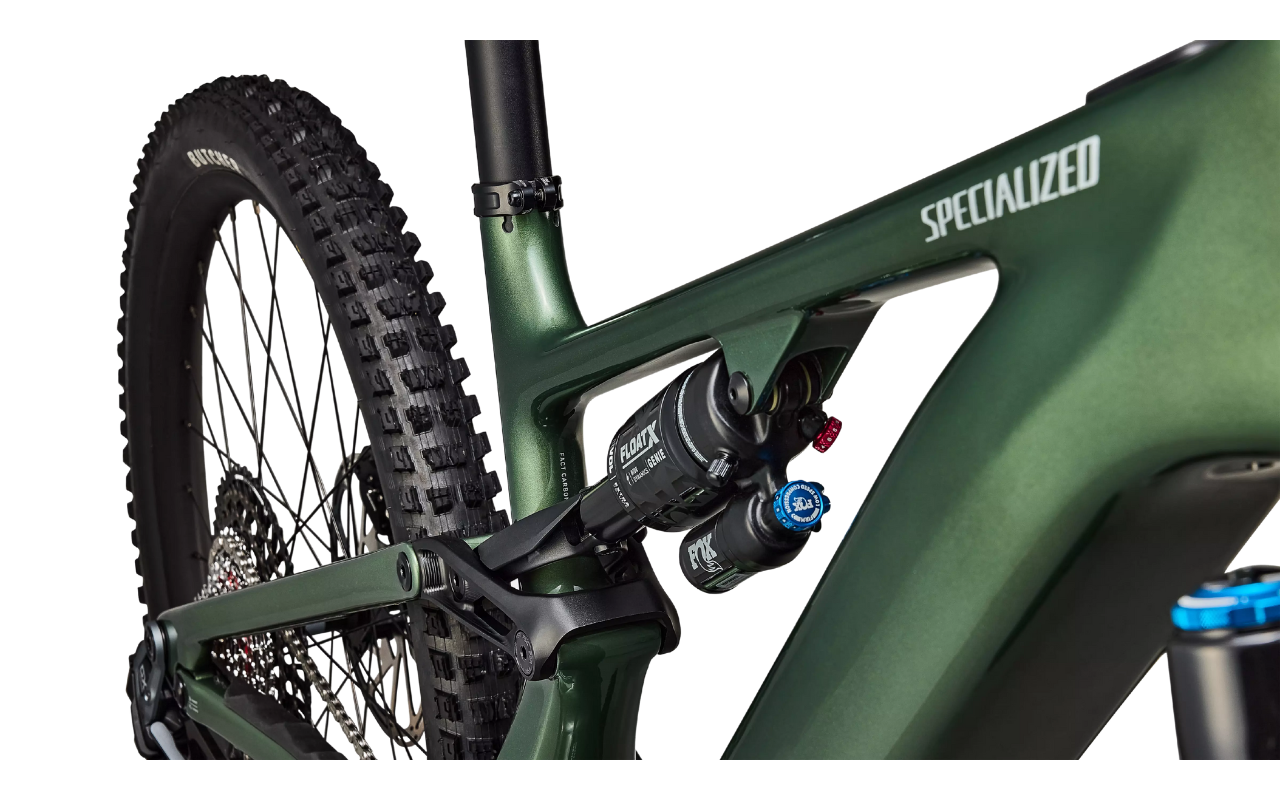

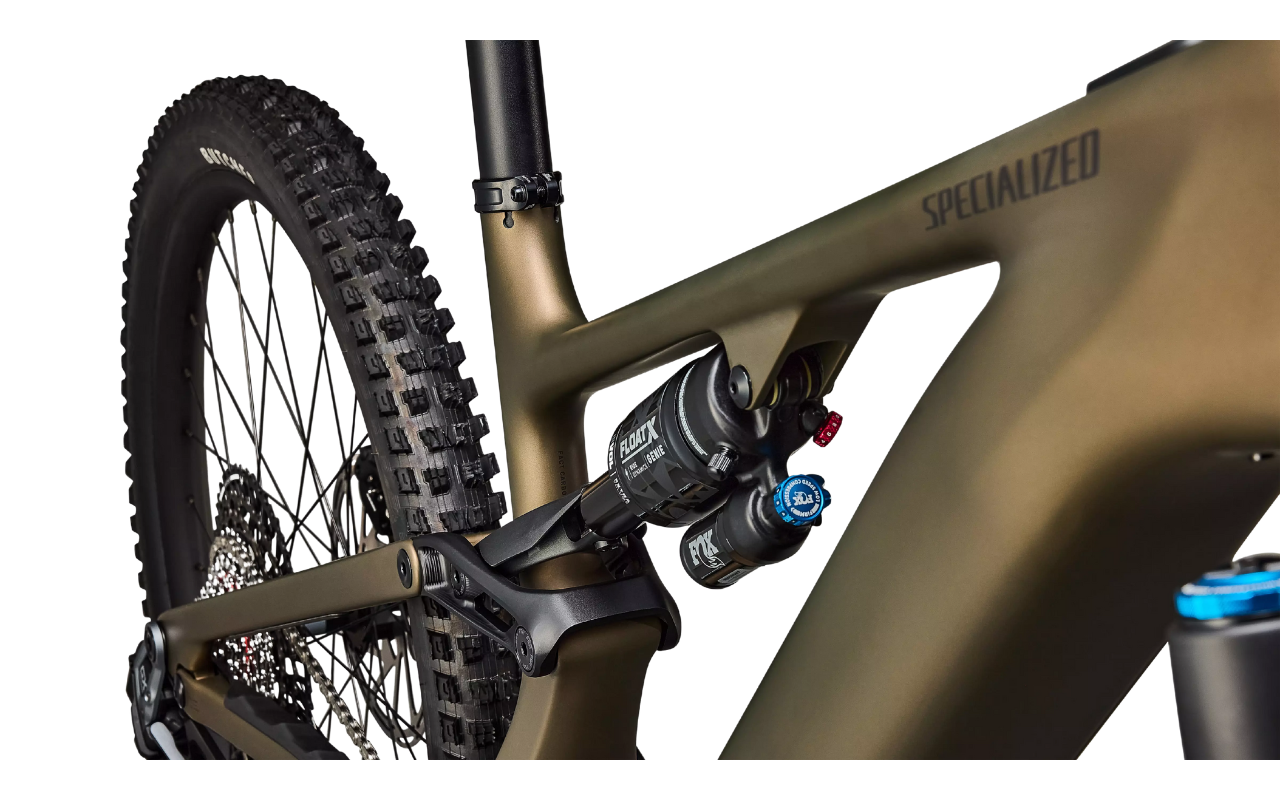

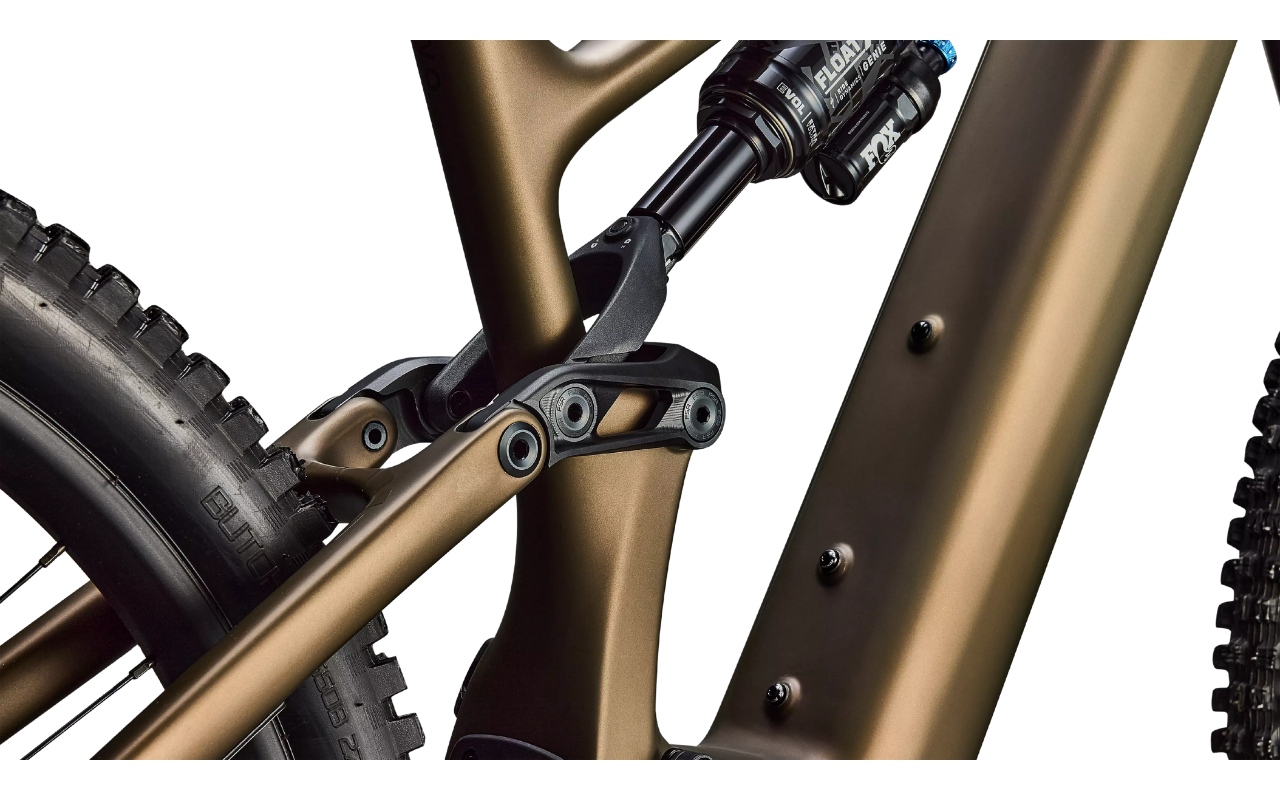

FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment

Fork

FOX 38 Performance Elite series, 29", GRIP X2 damper,15x110mm axle, 44mm offset, 160mm of travel

Brakes

Front Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor

Rear Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor

Drivetrain

Shift Levers

SRAM AXS POD Controller

Rear Derailleur

SRAM GX Eagle Transmission Derailleur

Cassette

SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

Chain

SRAM GX Eagle Transmission Flattop Chain

Crankset

SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Front Wheel

Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Rear Wheel

Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h

Inner Tubes

Standard, Presta valve

Cockpit

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

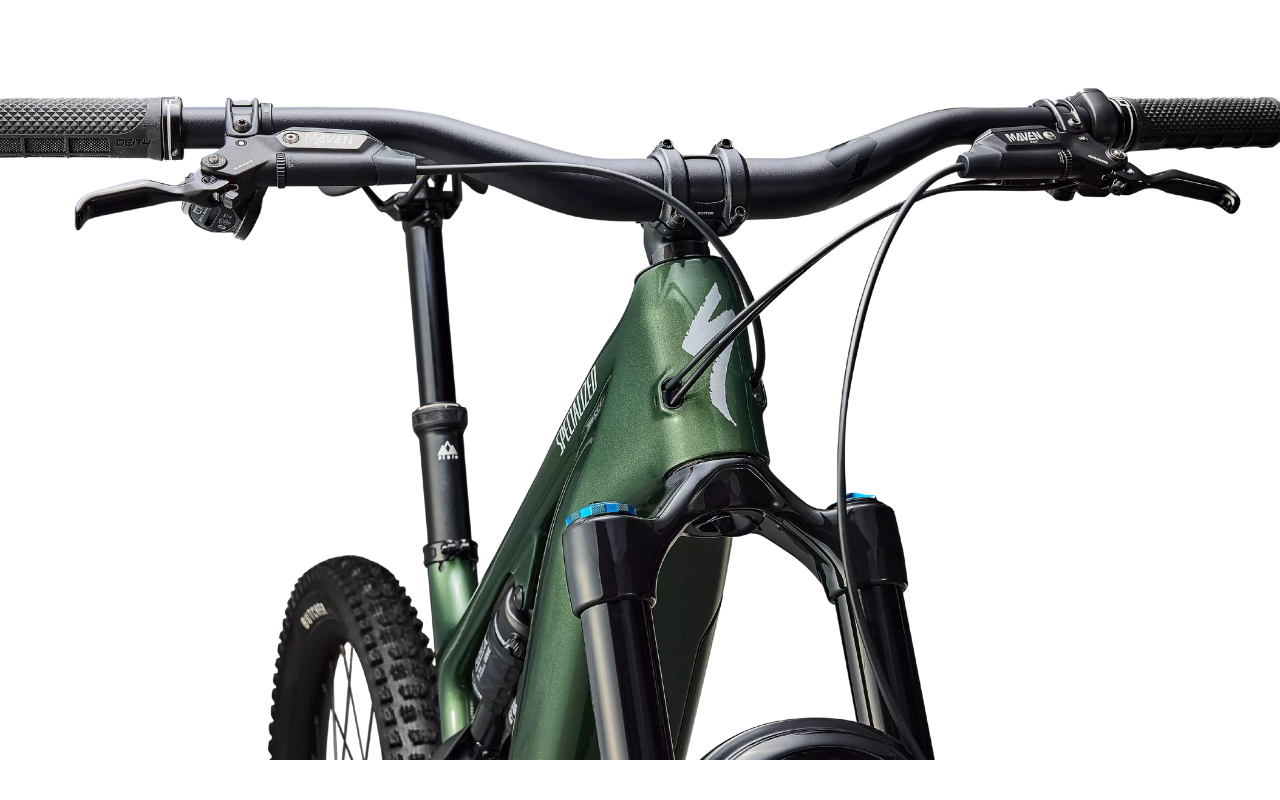

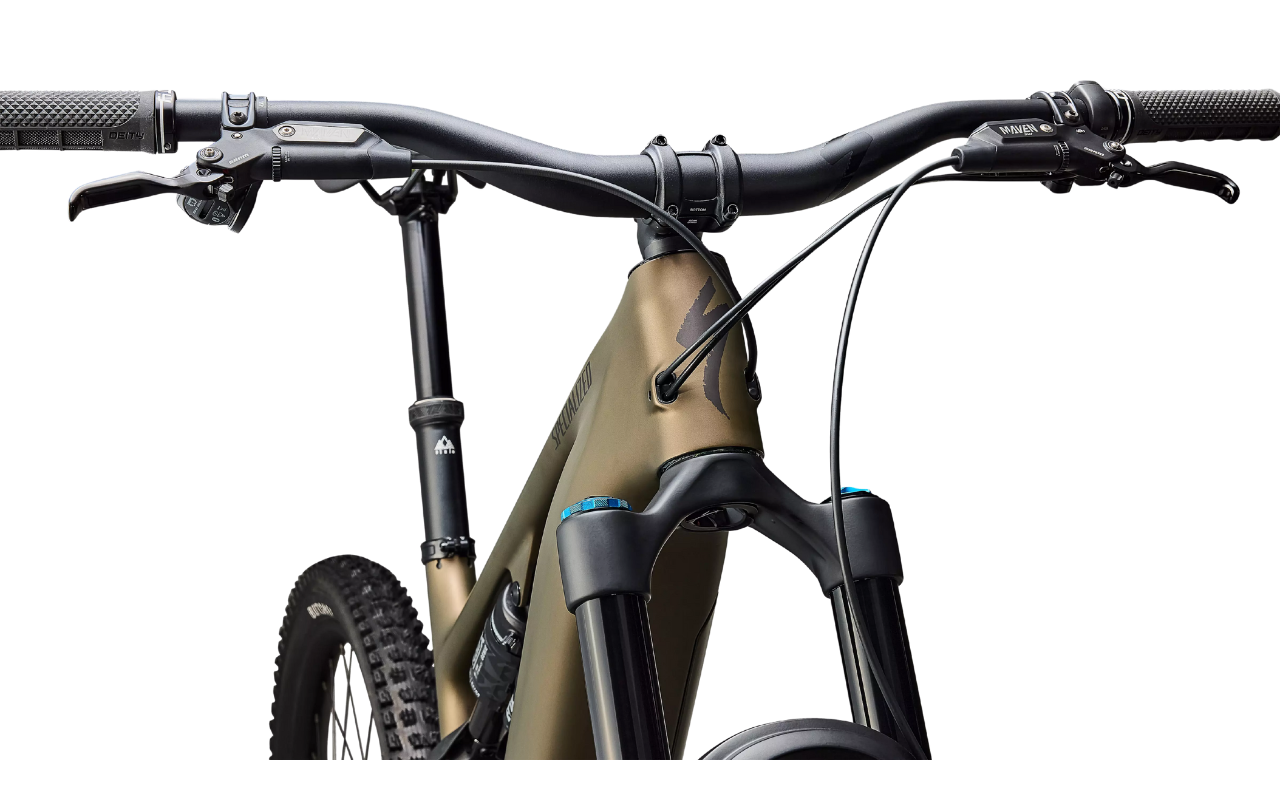

Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 780mm, S3-S5: 800mm

Grips

Deity Lockjaw grips

Saddle

Bridge Comp, Hollow Cr-mo rails

SeatPost

PNW Loam post w/travel adjust S2: 150mm, S3: 170mm, S4/S5/S6: 200mm

Accessories

SWAT

SWAT internal downtube storage

Product Details

Product ID

218704

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Weight

Weight

24.41 kg (53 lb, 13.0 oz)

Weight Size

S4
