E-bike

UI/Remote

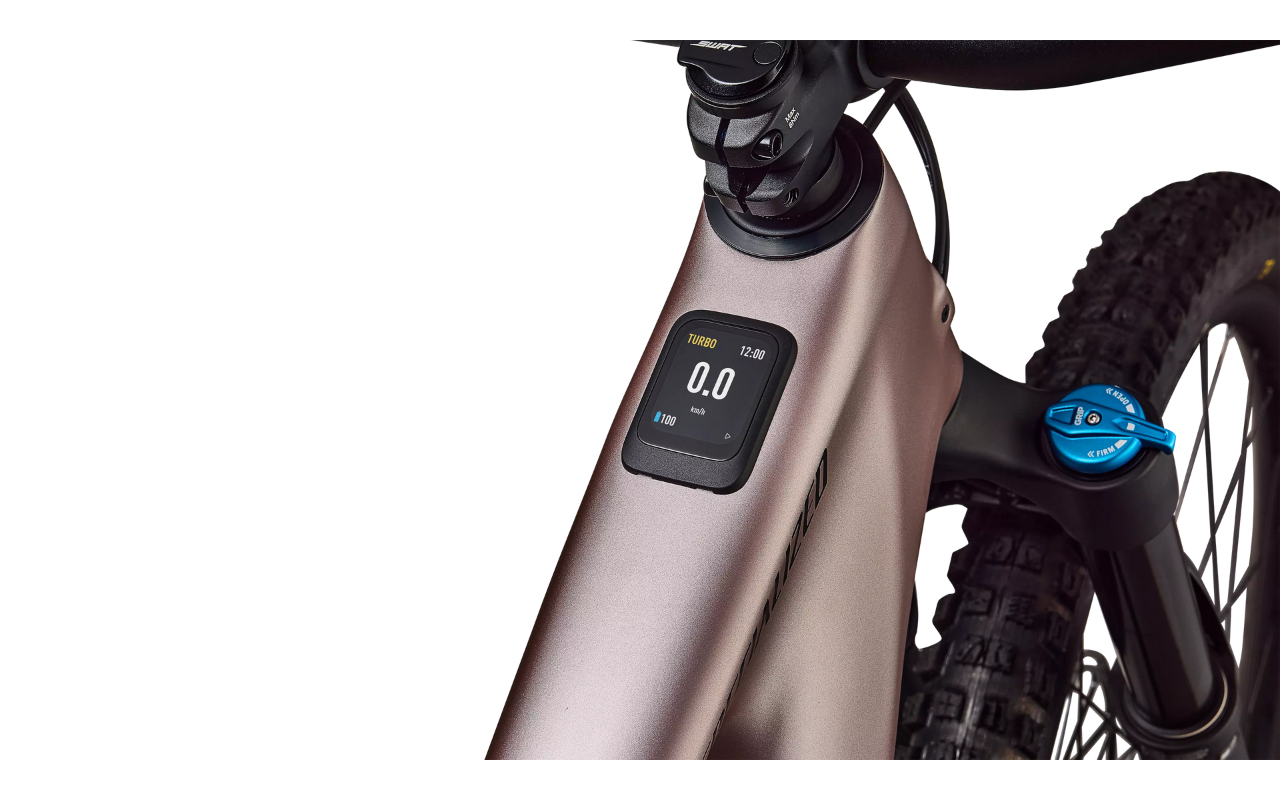

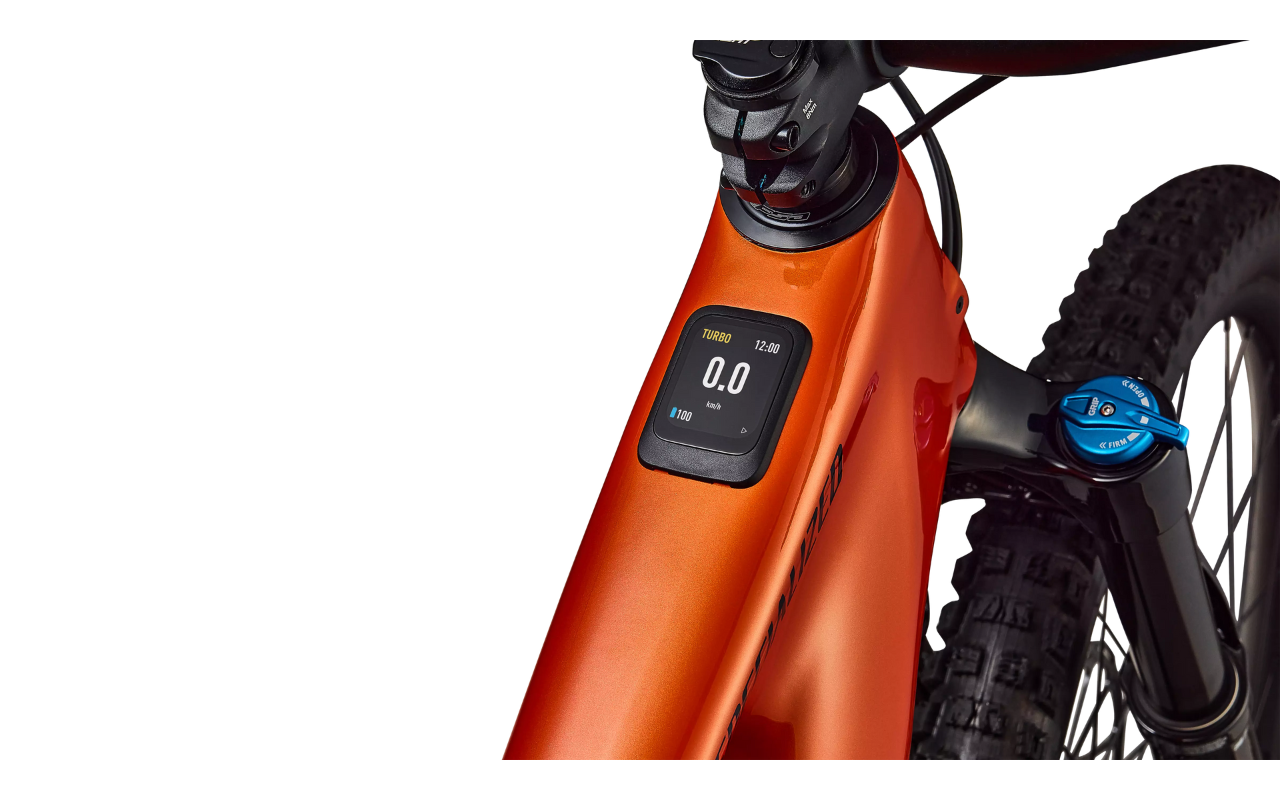

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Motor

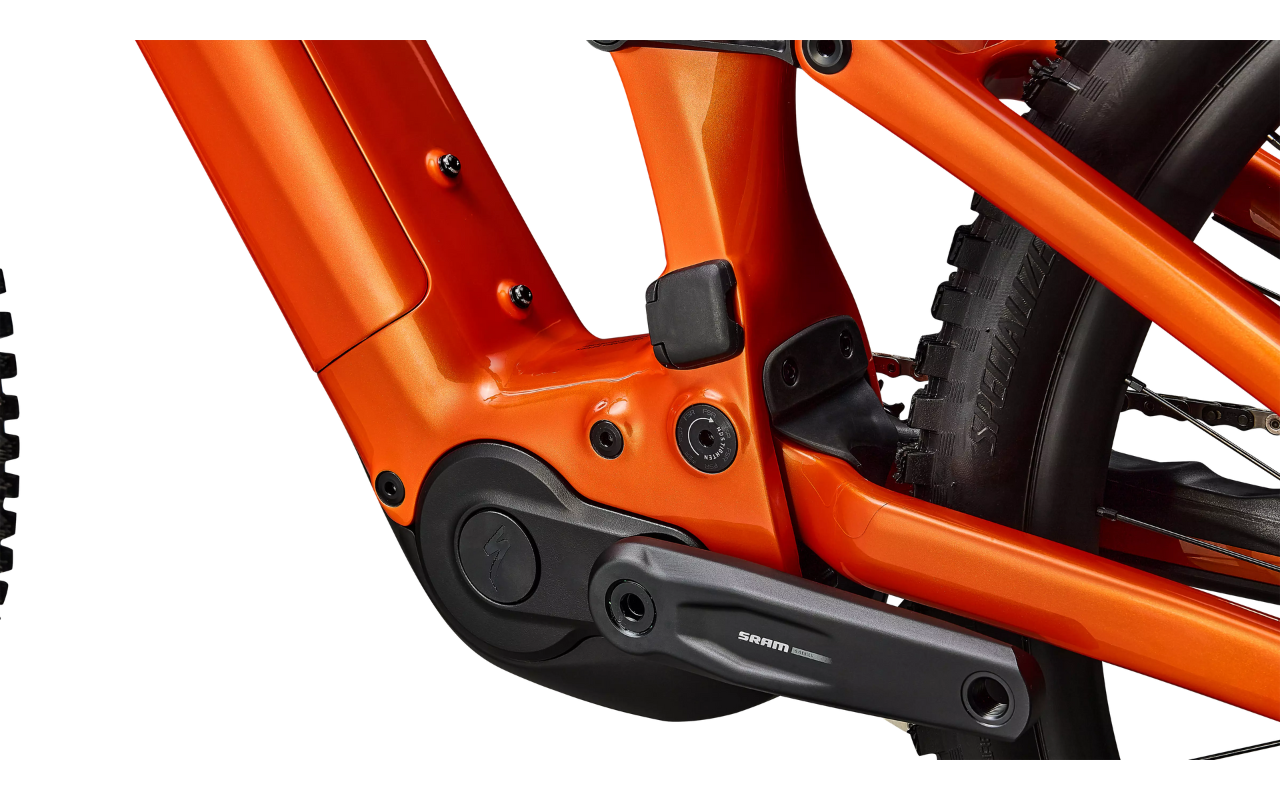

All New Specialized 3.1 Motor, 101Nm torque, 666W power

Charger

Specialized 4amp charger

Battery

840Wh battery

Frameset

Seat Binder

Alloy, 38.6mm

Frame

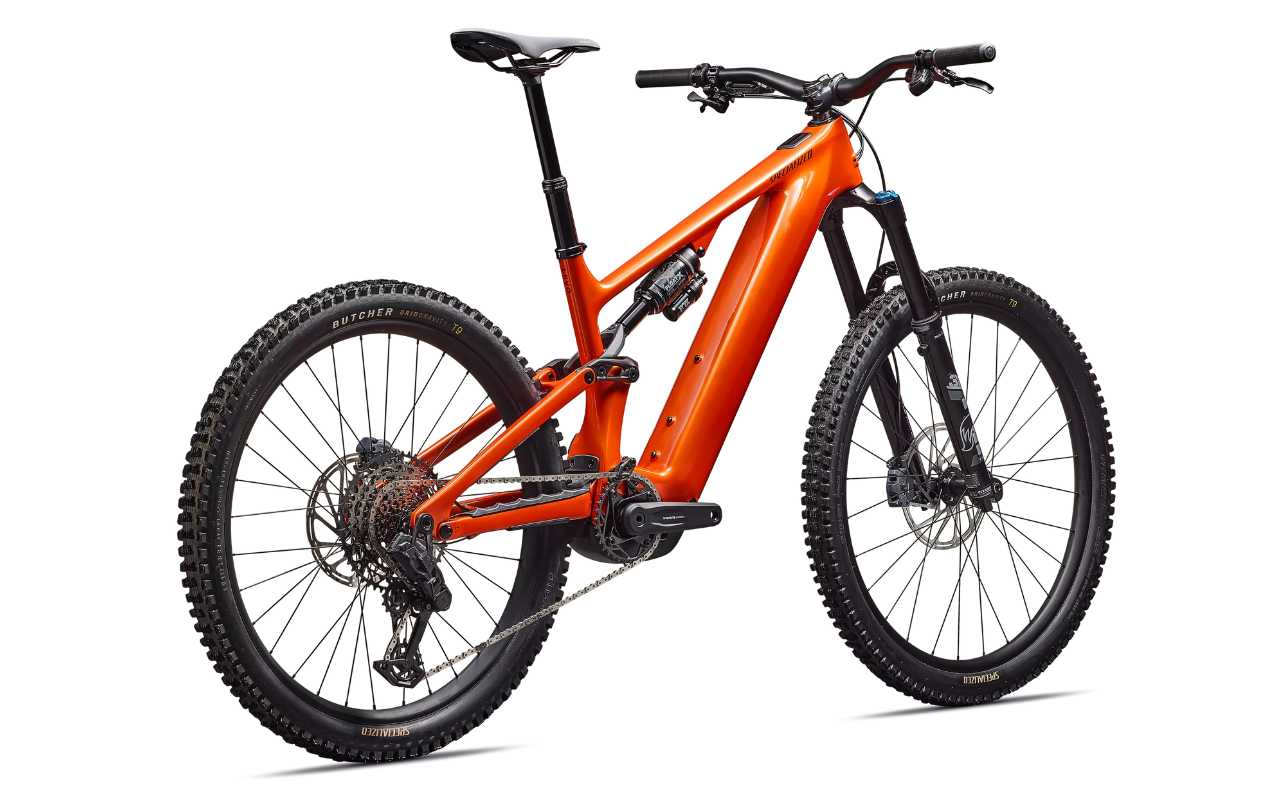

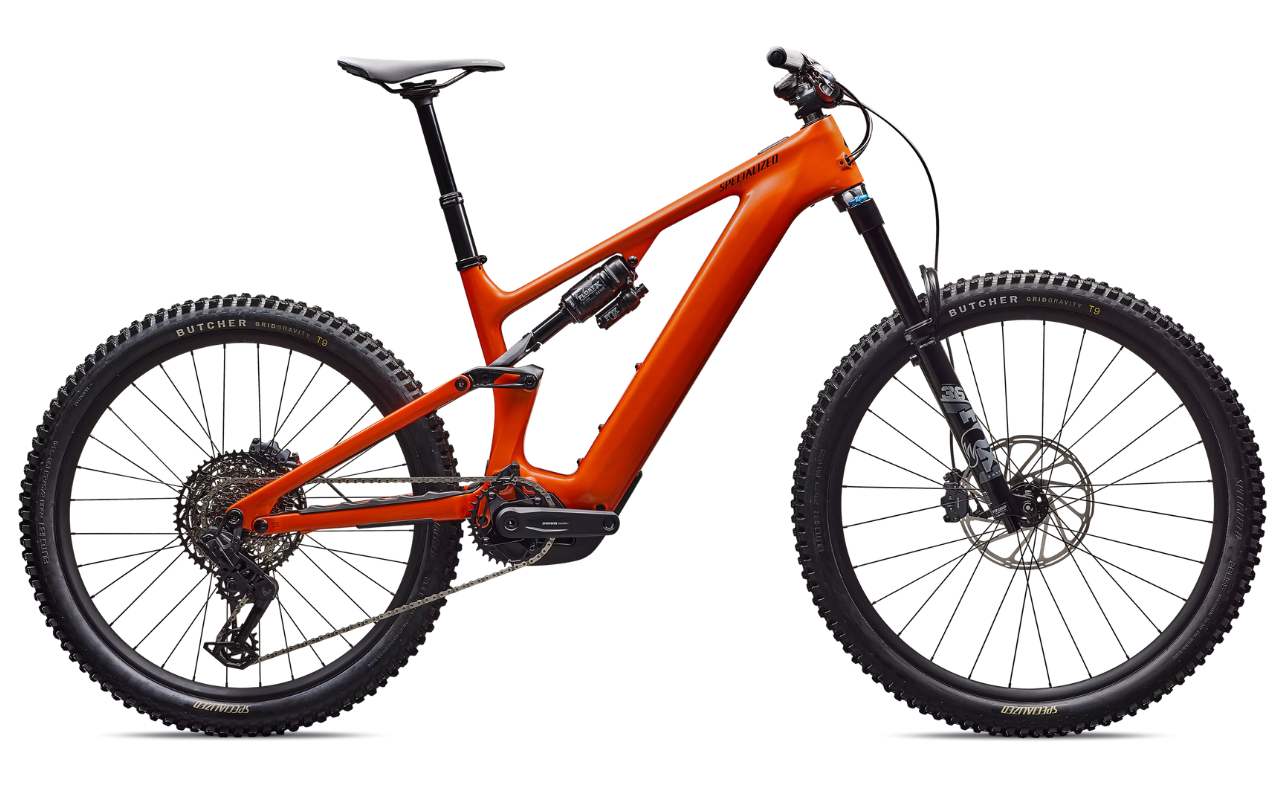

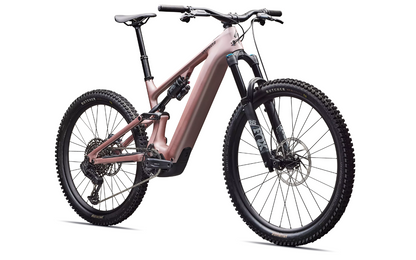

All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Suspension

Fork

FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel

Rear Shock

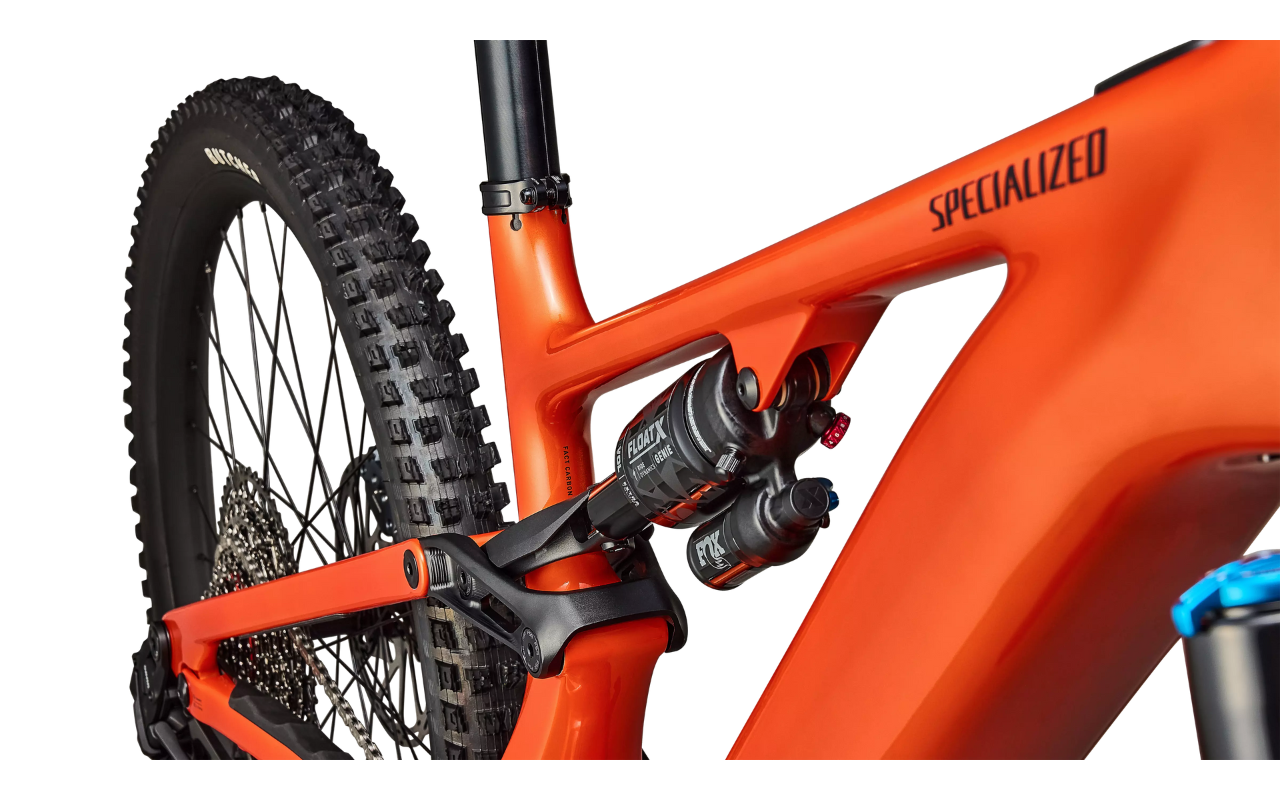

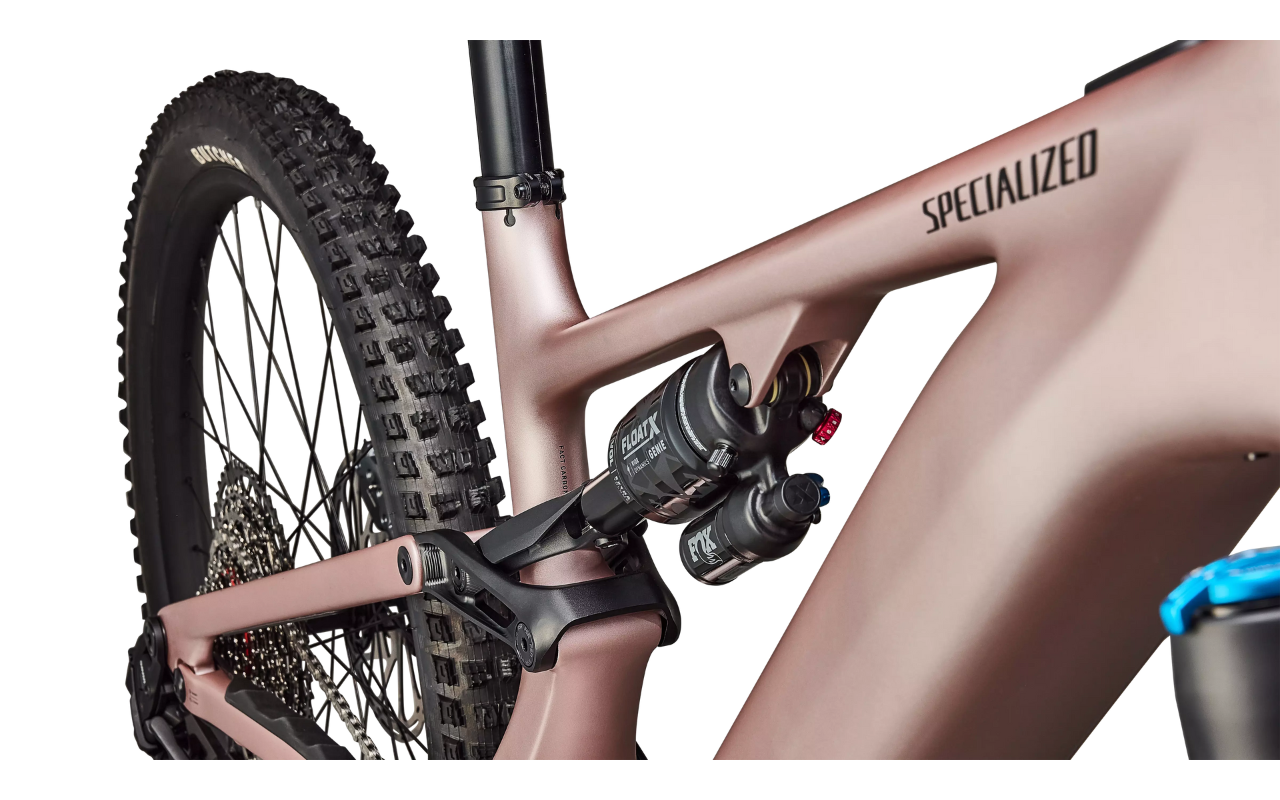

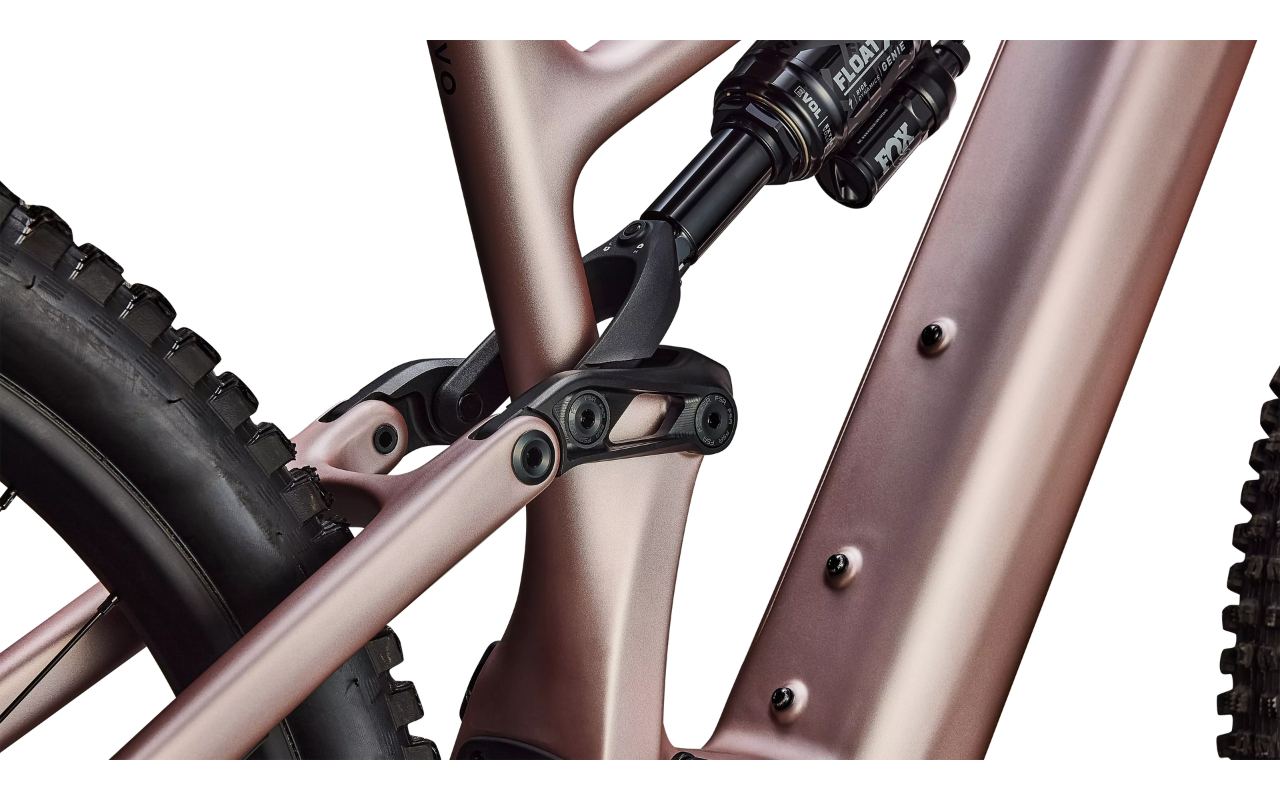

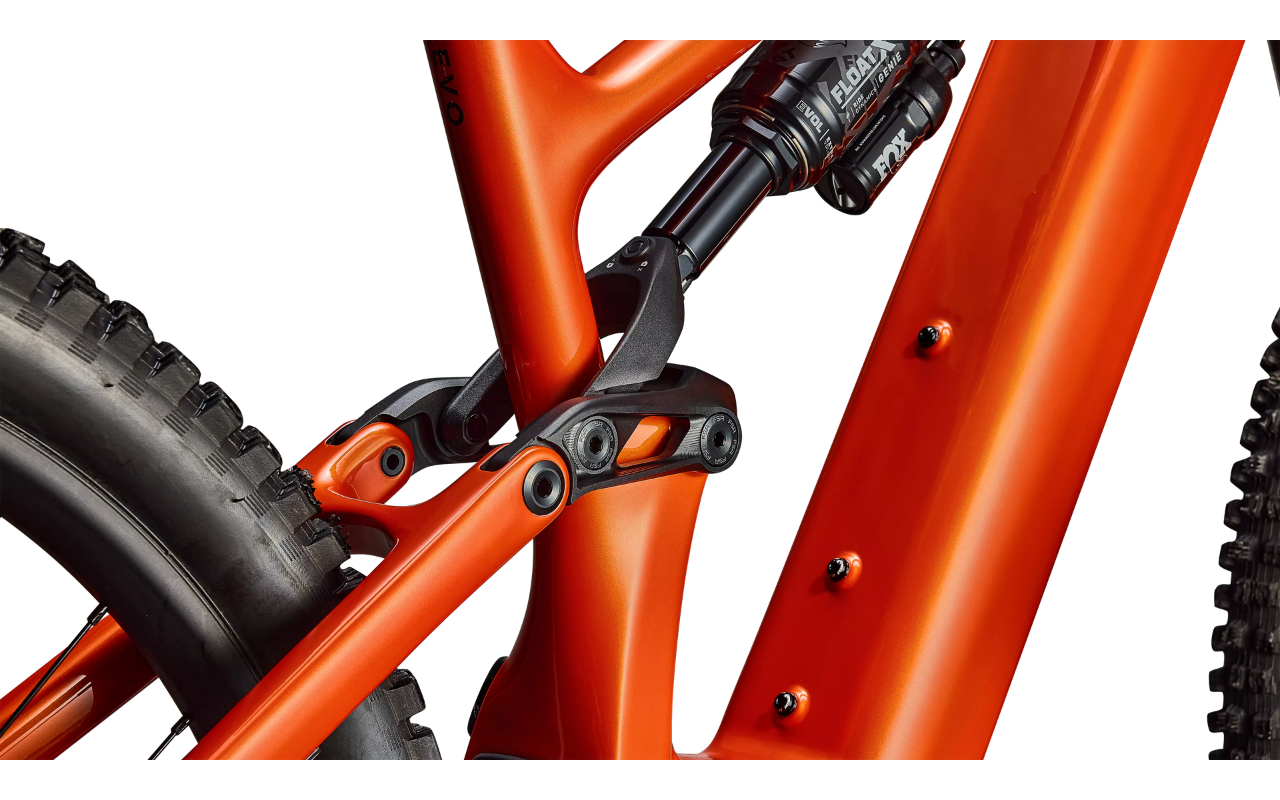

FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment

Brakes

Front Brake

SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Rotor

Rear Brake

SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Rotor

Drivetrain

Cassette

SRAM 1270 Transmission Cassette, 12 Spd,10-52t

Chainrings

SRAM T-type ring, 34T, 104 BCD, steel

Shift Levers

SRAM AXS POD Controller

Chain

SRAM GX Eagle Transmission Flattop Chain

Rear Derailleur

SRAM S1000 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).

Crankset

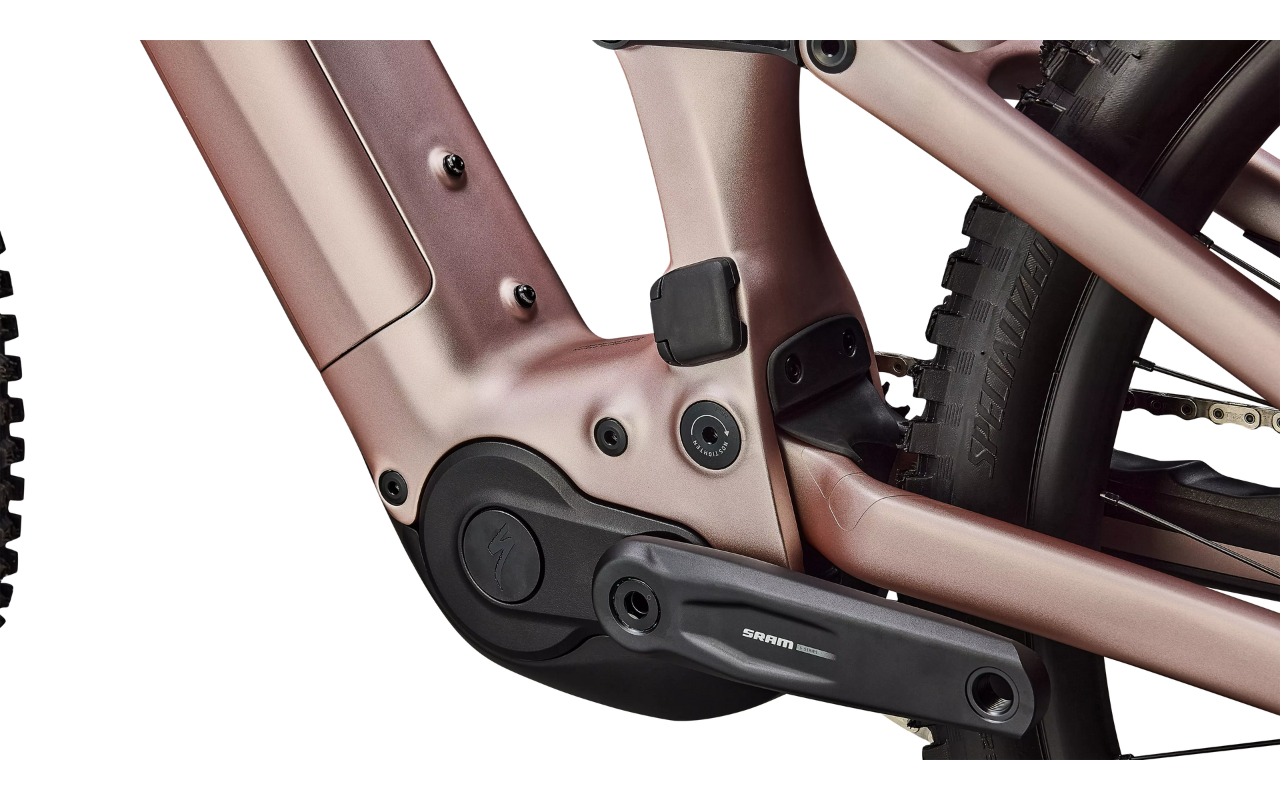

SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm

Wheels & tires

Front Hub

Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Spokes

DT Swiss Industry

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Rims

Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes

Standard, Presta valve

Cockpit

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

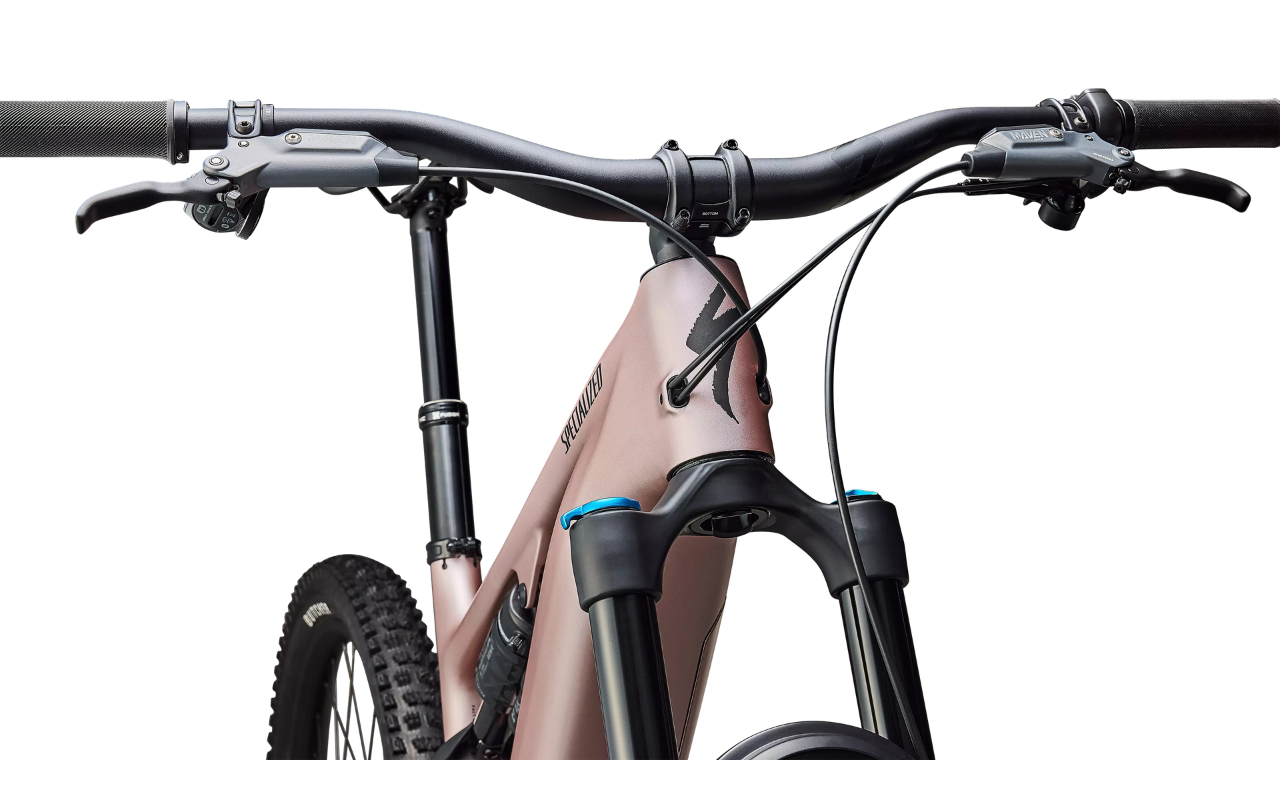

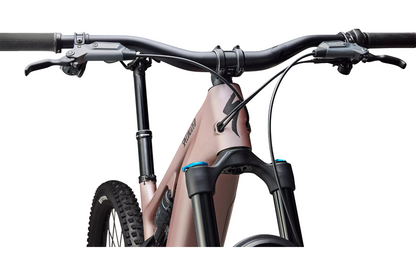

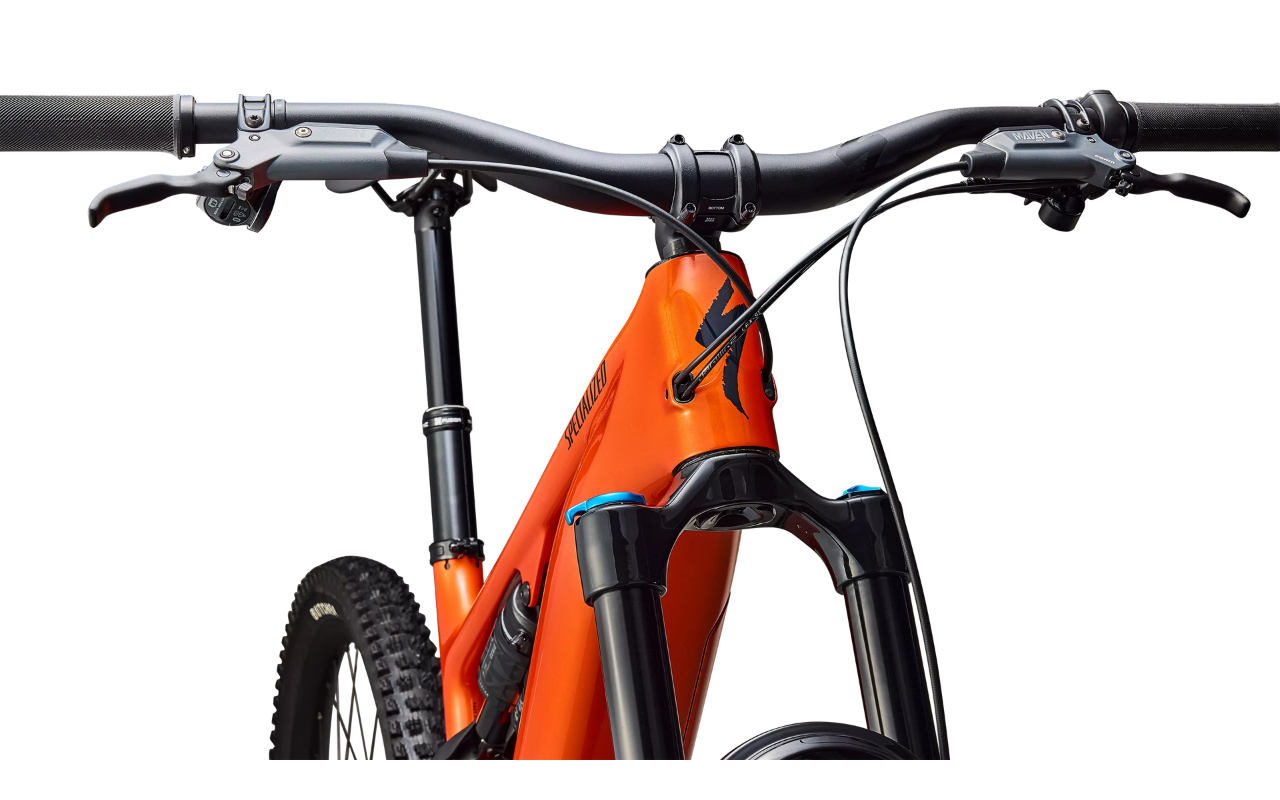

Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width

Saddle

Bridge Comp, Hollow Cr-mo rails

Grips

Specialized Trail Grips

SeatPost

Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm

Accessories

SWAT

SWAT internal downtube storage

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight

24.41 kg (53 lb, 13.0 oz)

Weight Size

S4
