SPECIALIZED

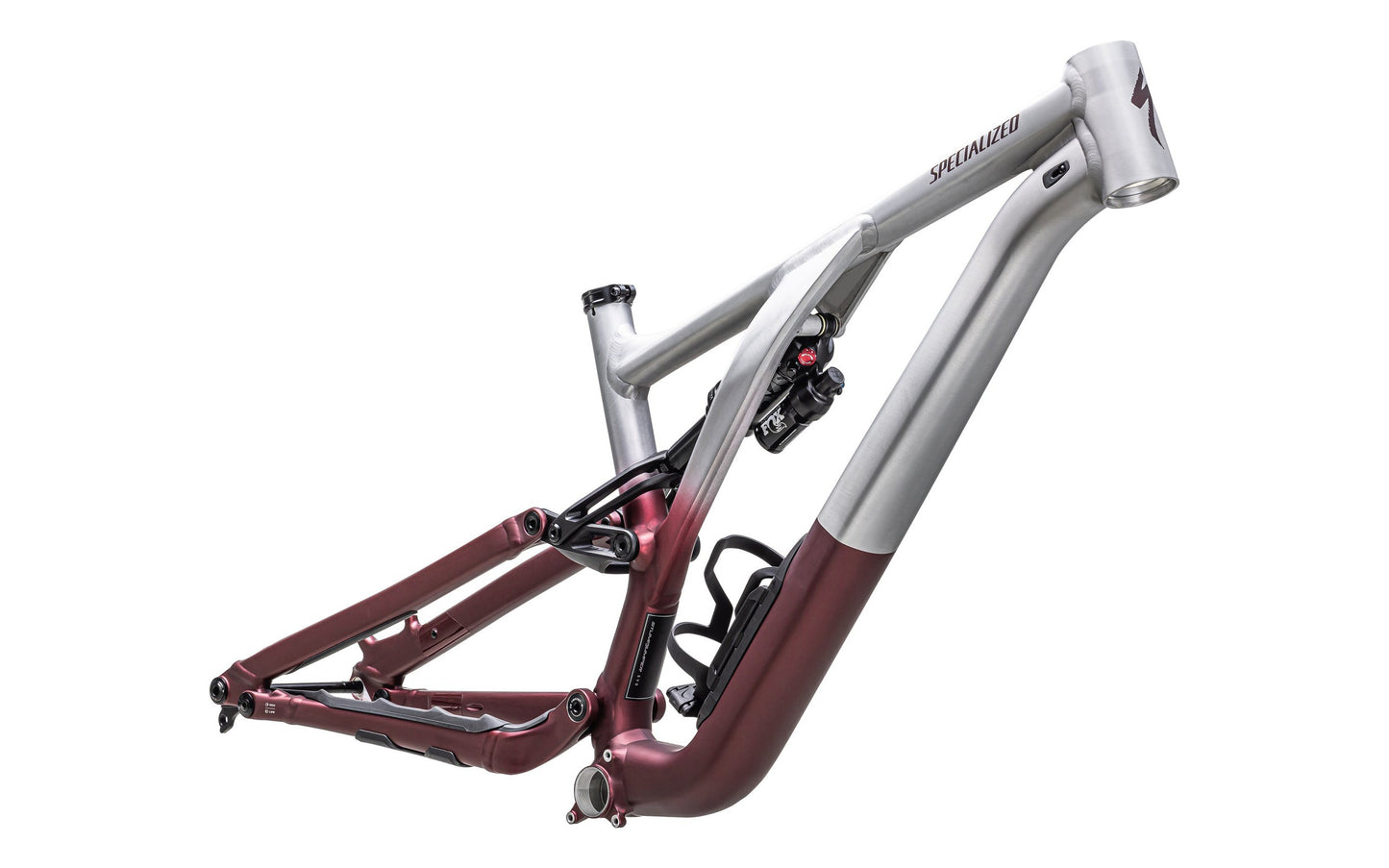

Stumpjumper EVO Alloy Frameset

Stumpjumper EVO Alloy Frameset

SKU: 76323-7003

Regular price MSRP 25,000.00
Regular price MSRP 25,000.00 Sale price MSRP 25,000.00
Sale Sold out
VAT included.
Size
Color

1 - Available

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Read More

Let's get something clear, the Stumpjumper EVO Alloy isn't a "normal" trail bike. It's built to get gnarly, plain and simple. Featuring the same all-new design as its carbon brethren—including an adjustable head tube angle, 150mm of performance tuned travel, the adaptability of S-Sizing, and SWAT™ Door integration—in a lightweight yet tough M5 Alloy chassis, you're going to be able to bomb down trails that you thought you couldn't touch without a full-blown DH rig.

  • All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, we’ve not only improved the pedaling performance of the Stumpjumper, but we’ve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.
  • The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle – these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.
  • Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight.
  • We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant. With the new Stumpjumper, we have increased the volume and added a SWAT™ Bladder, giving you an extra 22oz of water storage – the same size as a small water bottle – hidden in your downtube.
View full details

Technical Specifications

FRAMESET

Seat Binder

Alloy, 38.6mm

Frame

M5 Alloy chassis and rear-end, asymmetrical design, 29" Trail Geometry with S-Sizing, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel



SUSPENSION

Rear Shock

FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1:210x50mm, S2-S6:210x55mm



WEIGHT

Weight

2.11kg (4 lb, 10.4 oz)

Weight Size

S4



* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

 S1S2S3S4S5S6
Crank Length165mm170mm170mm170mm170mm175mm
Stack614mm617mm626mm635mm644mm654mm
Reach410mm428mm448mm475mm498mm528mm
Headtube Length95mm95mm105mm115mm125mm135mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
BB Height335mm340mm340mm340mm340mm340mm
BB Drop40mm35mm35mm35mm35mm35mm
Trail131mm131mm131mm131mm131mm131mm
Fork Length (full)561mm571mm571mm571mm571mm571mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center734mm756mm780mm809mm838mm873mm
Chainstay Length441mm441mm441mm441mm451mm451mm
Wheelbase1172mm1195mm1219mm1249mm1288mm1322mm
Top-tube Length (horizontal)541mm564mm590mm623mm647mm679mm
Bike Standover Height746mm749mm757mm760mm784mm792mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle78°77.6°77.2°76.9°77°77°
Max Seatpost Insertion190mm190mm210mm230mm250mm270mm
Min Seatpost Insertion100mm100mm100mm100mm100mm100mm
