Specialized - Pre-Owned
Status 2 170 S3
Status 2 170 S3
SKU:
1 in stock
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Read More
Read More
Pre-Owned 2024 Status 2 170 S3 STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.
Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.
BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.
RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.
LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
100% Redesigned durable alloy chassis
New, more durable alloy rims
Horst Link geometry adjust flip chip
Updated geometry for more usability
Curated parts spec for your desired ride experience
Untitled section
Frameset
Seat Binder
Alloy, 38.6mm
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Suspension
Fork
FOX FLOAT 38 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 170mm of travel
Rear Shock

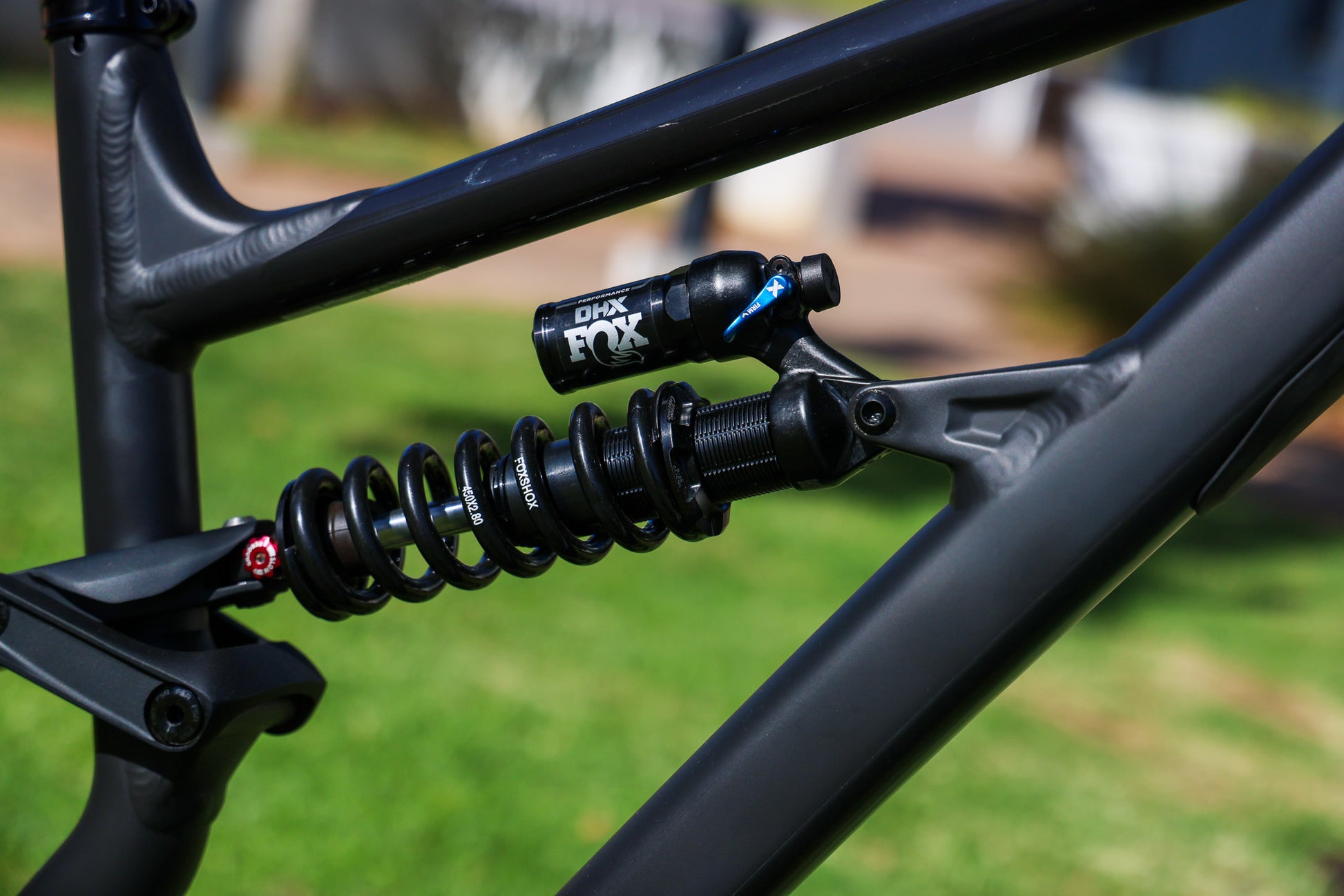

FOX DHX Performance, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230x62.5mm, S1: 350lbs,S2: 400lbs, S3: 450lbs, S4: 500lbs, S5: 550lbs, S6: 600lbs
Brakes
Front Brake
TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Rear Brake
TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Drivetrain
Crankset
Shimano Deore, M6120, 32T ring, 55mm chainline, S1-4:165mm, S5: 170mm
Cassette
Shimano Deore M6100, 12-speed w/ Hyperglide+, 10-51t
Chain
Shimano Deore M6100, 12spd
Rear Derailleur
Shimano Deore, M6100, 12pd, Shadow Plus
Shift Levers
Shimano Deore, M6100, I-Spec EV, 12 speed
Wheels & tires
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Spokes
DT Swiss Industry
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails, 143mm
Grips
Deity Knuckleduster
SeatPost

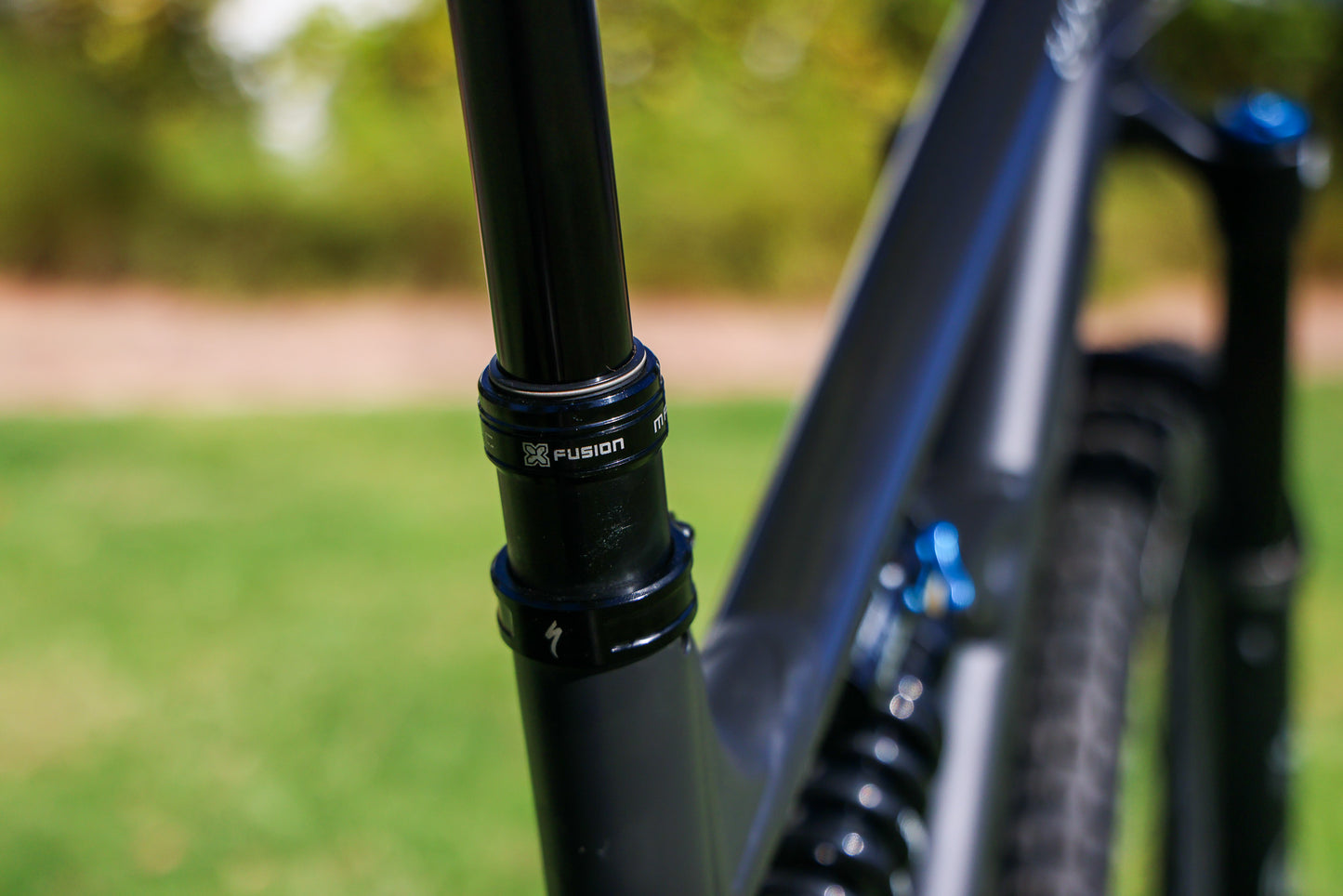

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width
Product details
Weight
17.28 kg (38 lb, 1.5 oz)
Weight Size
S3
Geometry
| S1 | S2 | S3 | S4 | S5 | |
|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 165 | 165 | 170 |
| Handlebar Width | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 143 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 150 | 170 | 170 | 190 |
| Stack (low) | 620 | 625 | 634 | 643 | 652 |
| Stack (high) | 616 | 620 | 629 | 638 | 647 |
| Reach (low) | 420 | 445 | 470 | 495 | 520 |
| Reach (high) | 426 | 451 | 476 | 501 | 526 |
| Headtube Length | 95 | 100 | 110 | 120 | 130 |
| Headtube Angle (low) | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
| Headtube Angle (high) | 64 | 64 | 64 | 64 | 64 |
| BB Height (low) | 342 | 342 | 342 | 342 | 342 |
| BB Height (high) | 350 | 350 | 350 | 350 | 350 |
| BB Drop (low) | 34 | 34 | 34 | 34 | 34 |
| BB Drop (high) | 26 | 26 | 26 | 26 | 26 |
| Trail (low) | 138 | 138 | 138 | 138 | 138 |
| Trail (high) | 133 | 133 | 133 | 133 | 133 |
| Fork Length (full) | 581 | 581 | 581 | 581 | 581 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 762 | 789 | 819 | 848 | 878 |
| Chainstay Length (low) | 432 | 432 | 432 | 437 | 437 |
| Chainstay Length (high) | 428 | 428 | 428 | 433 | 433 |
| Wheelbase | 1193 | 1221 | 1250 | 1285 | 1314 |
| Top-tube Length (horizontal) | 554 | 595 | 635 | 676 | 716 |
| Bike Standover Height | 735 | 735 | 742 | 748 | 752 |
| Seat Tube Length | 390 | 400 | 420 | 440 | 465 |
| Seat Tube Angle (low) | 77 | 77 | 77 | 77 | 77 |
| Seat Tube Angle (high) | 77.6 | 77.6 | 77.6 | 77.6 | 77.6 |
