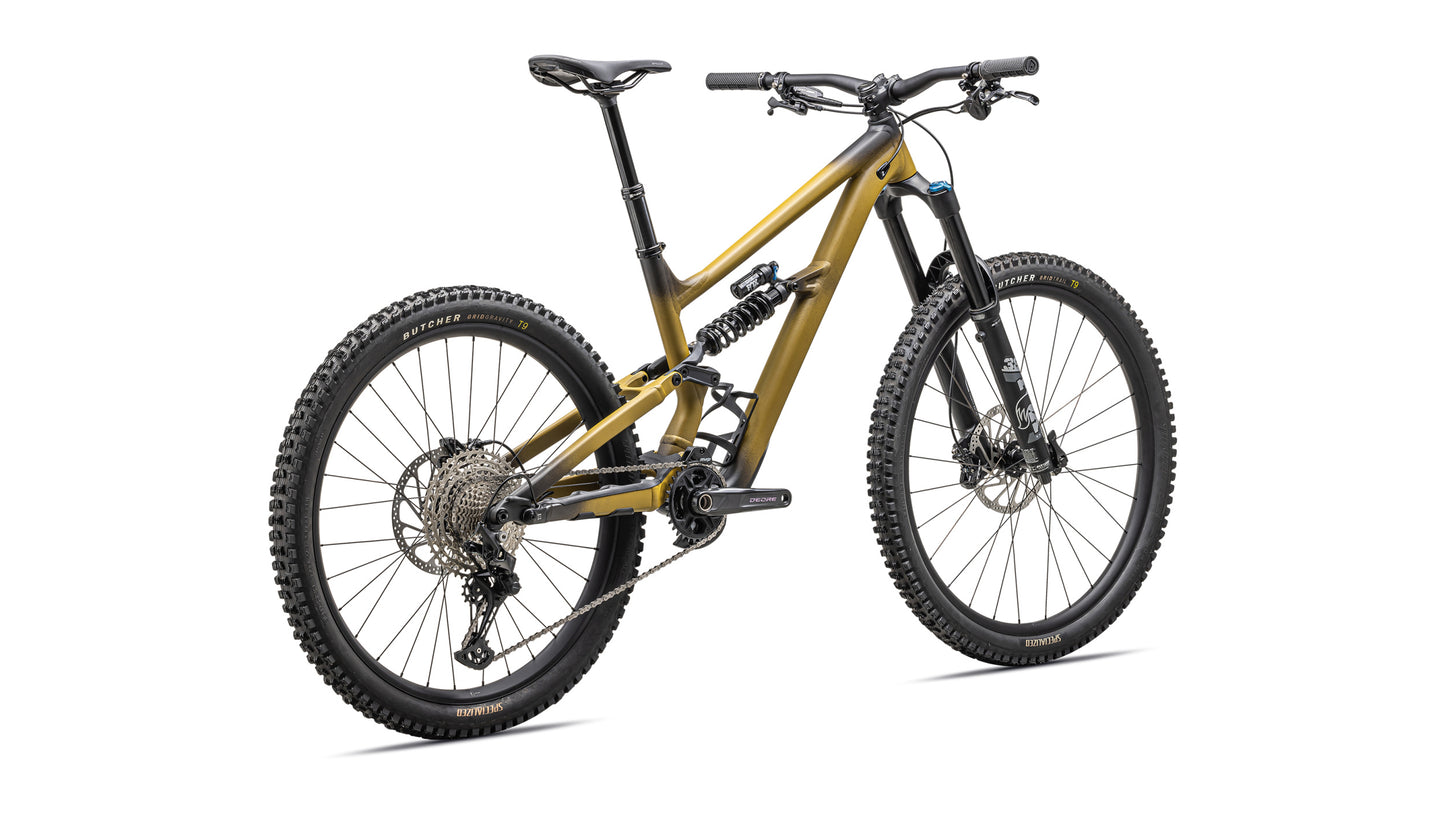

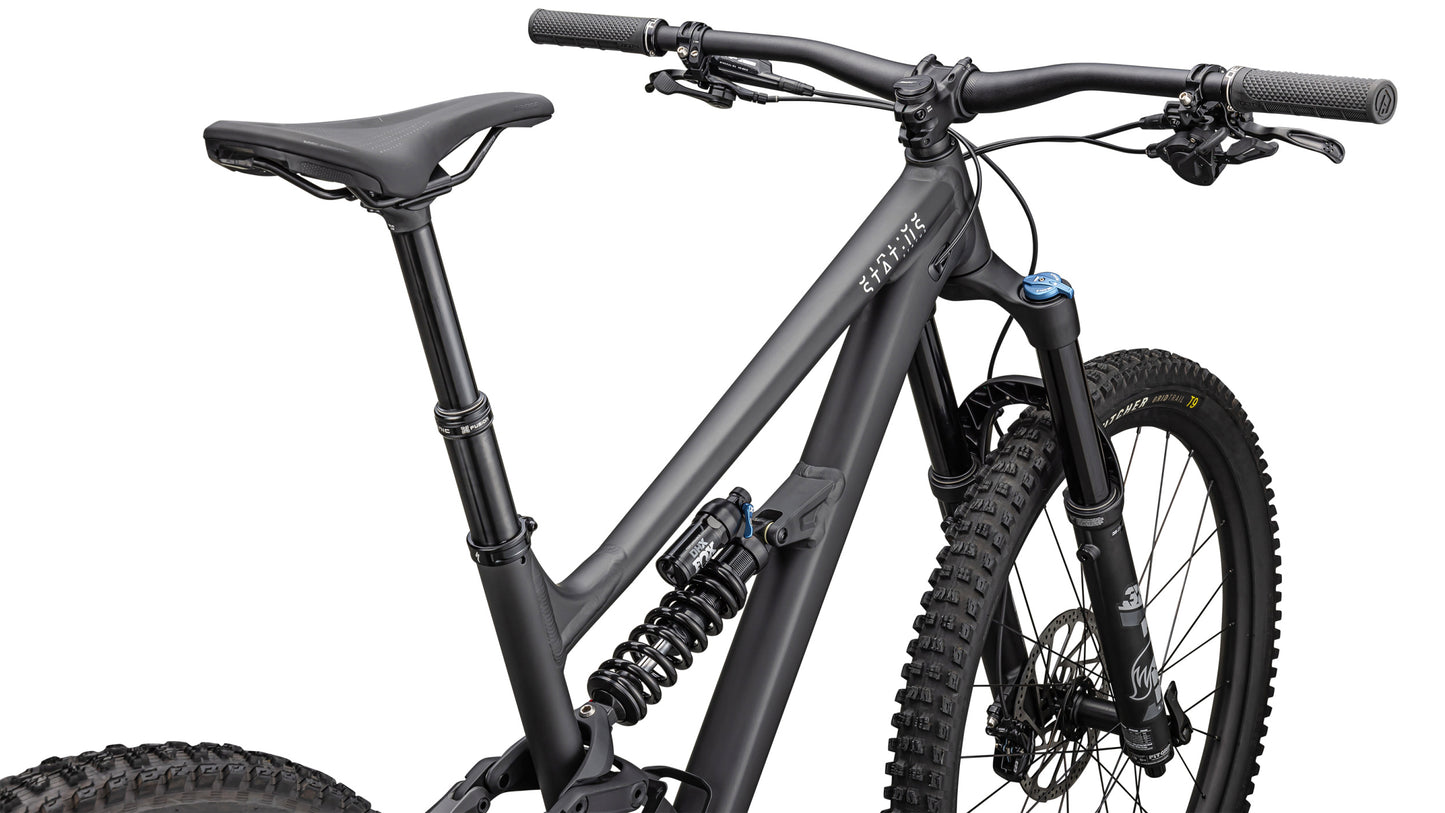

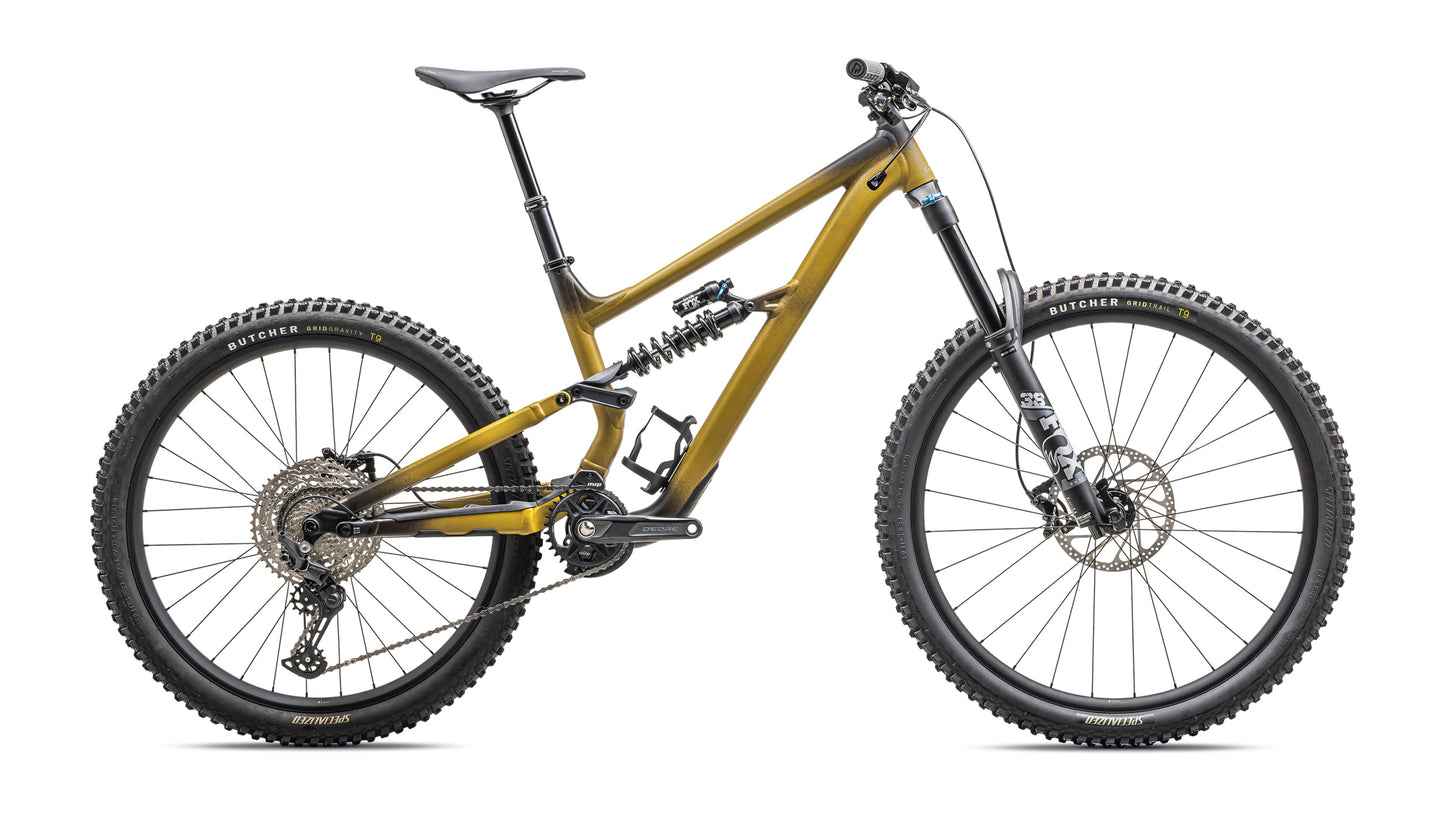

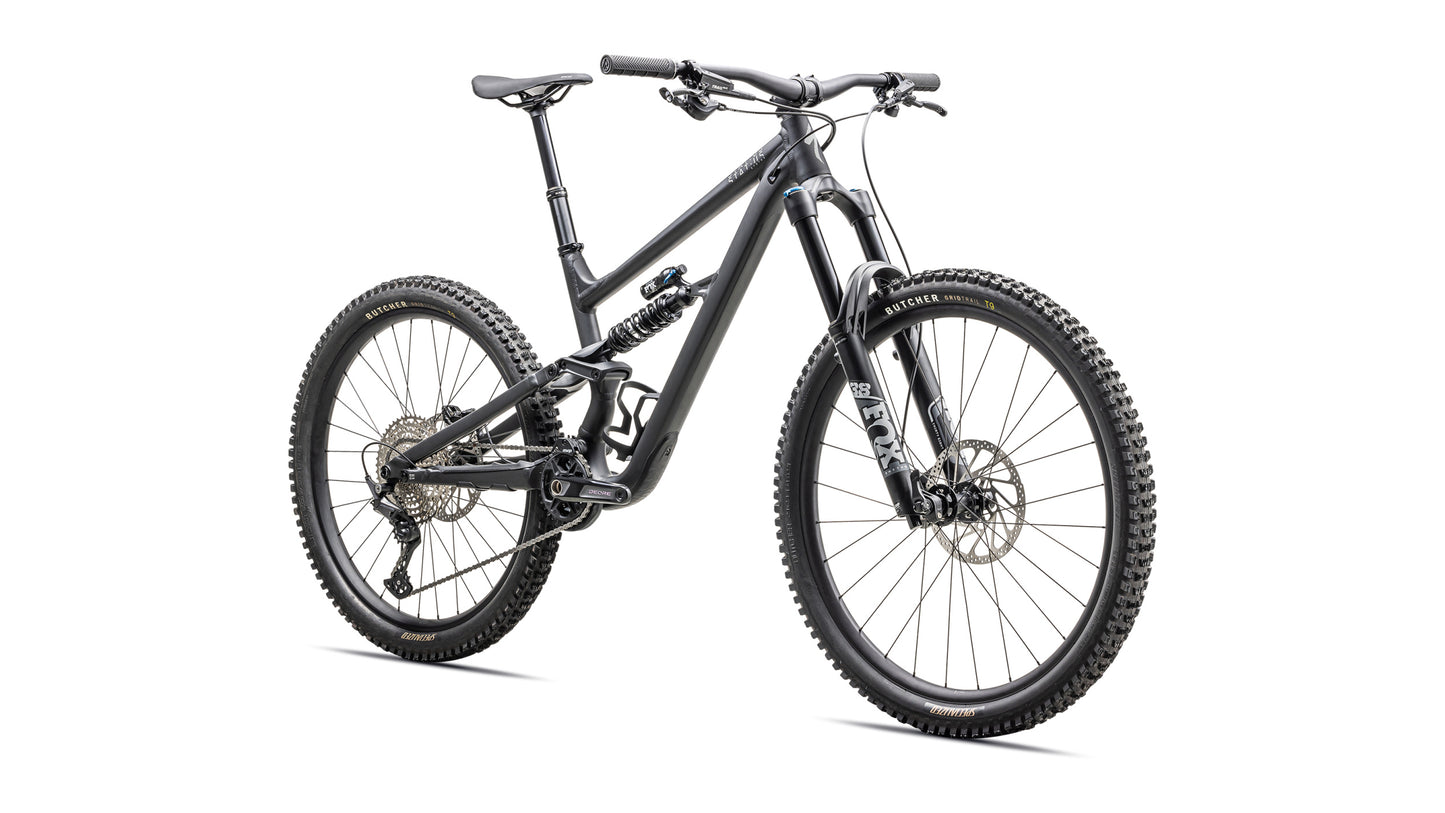

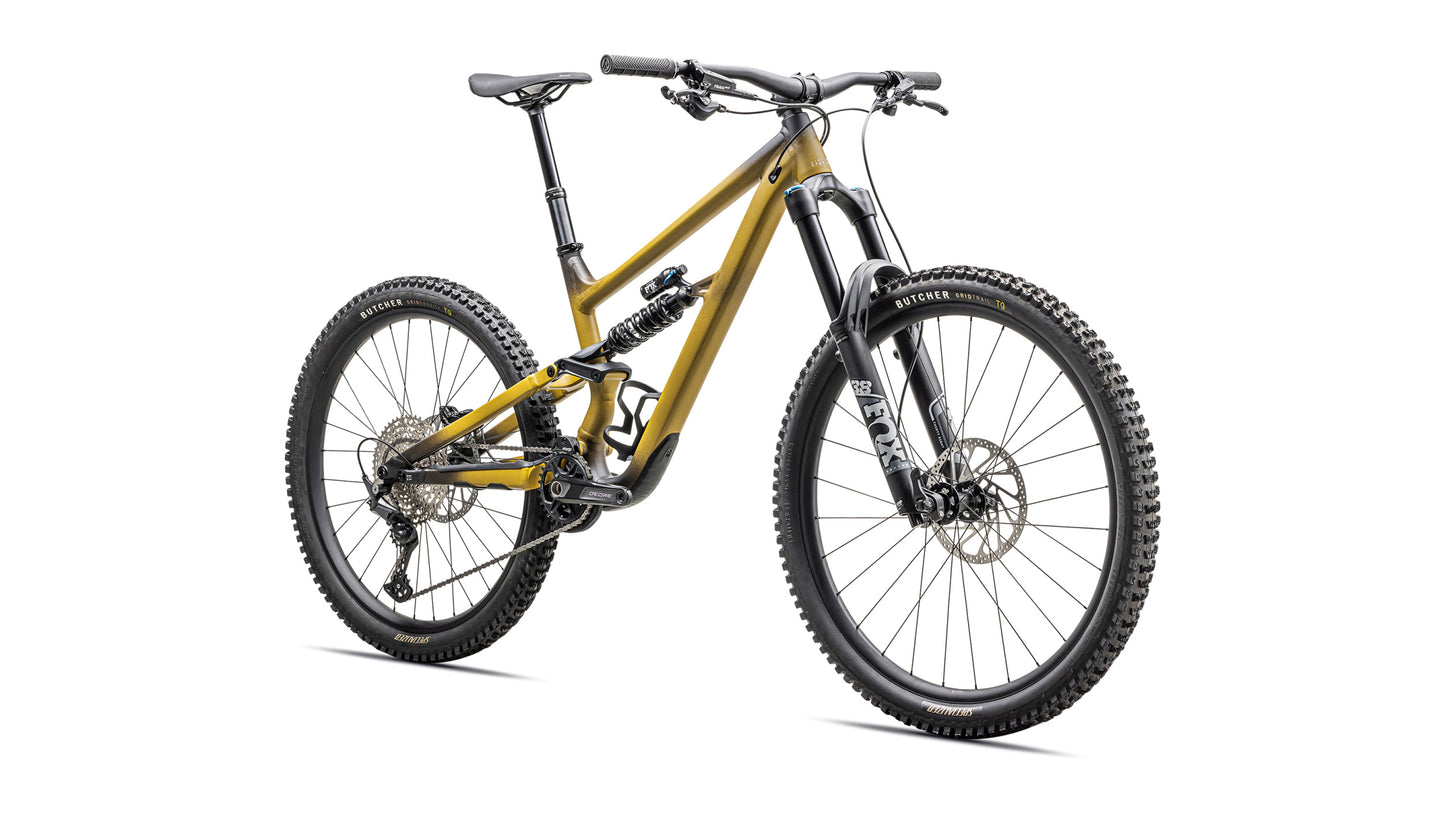

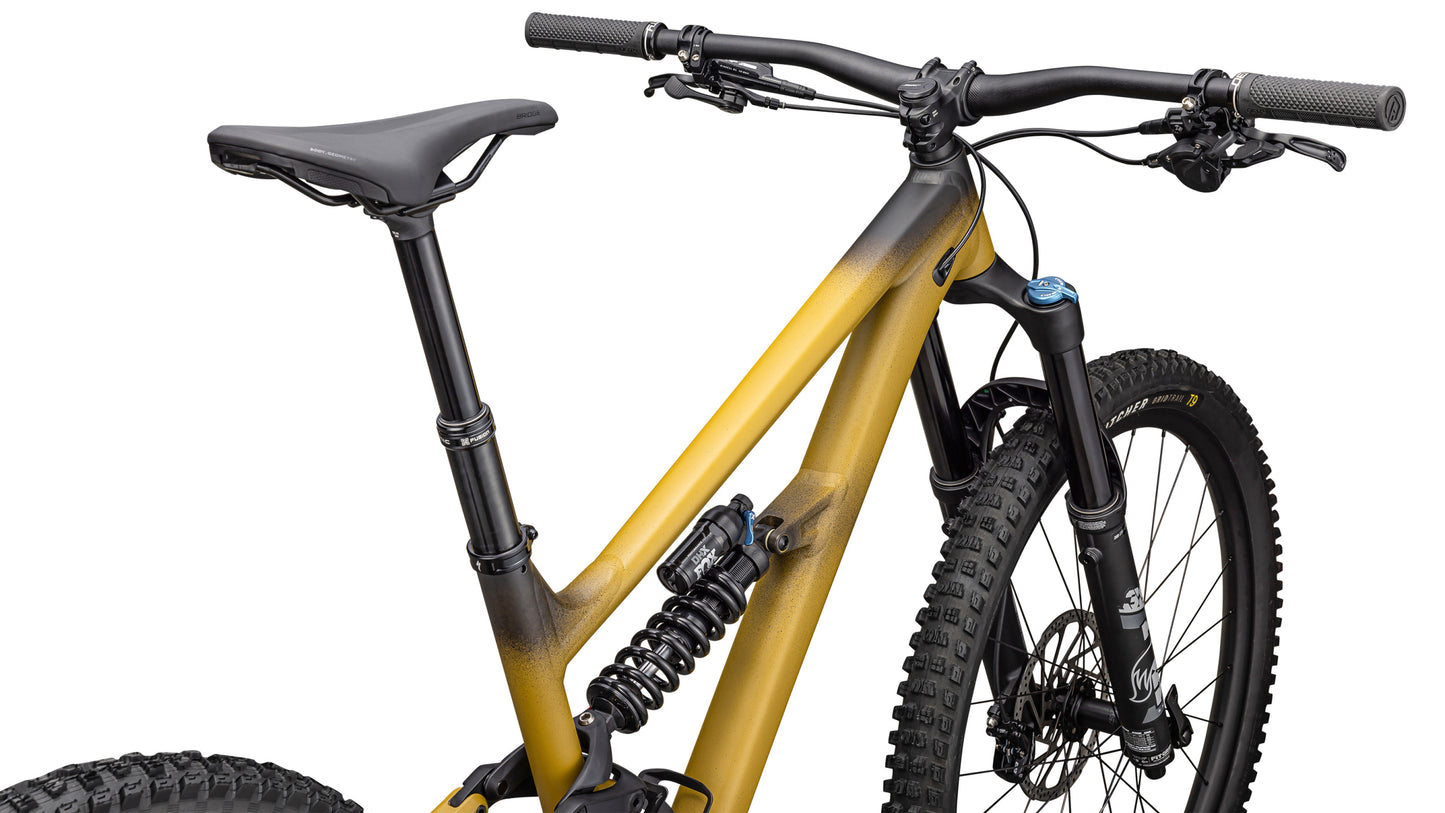

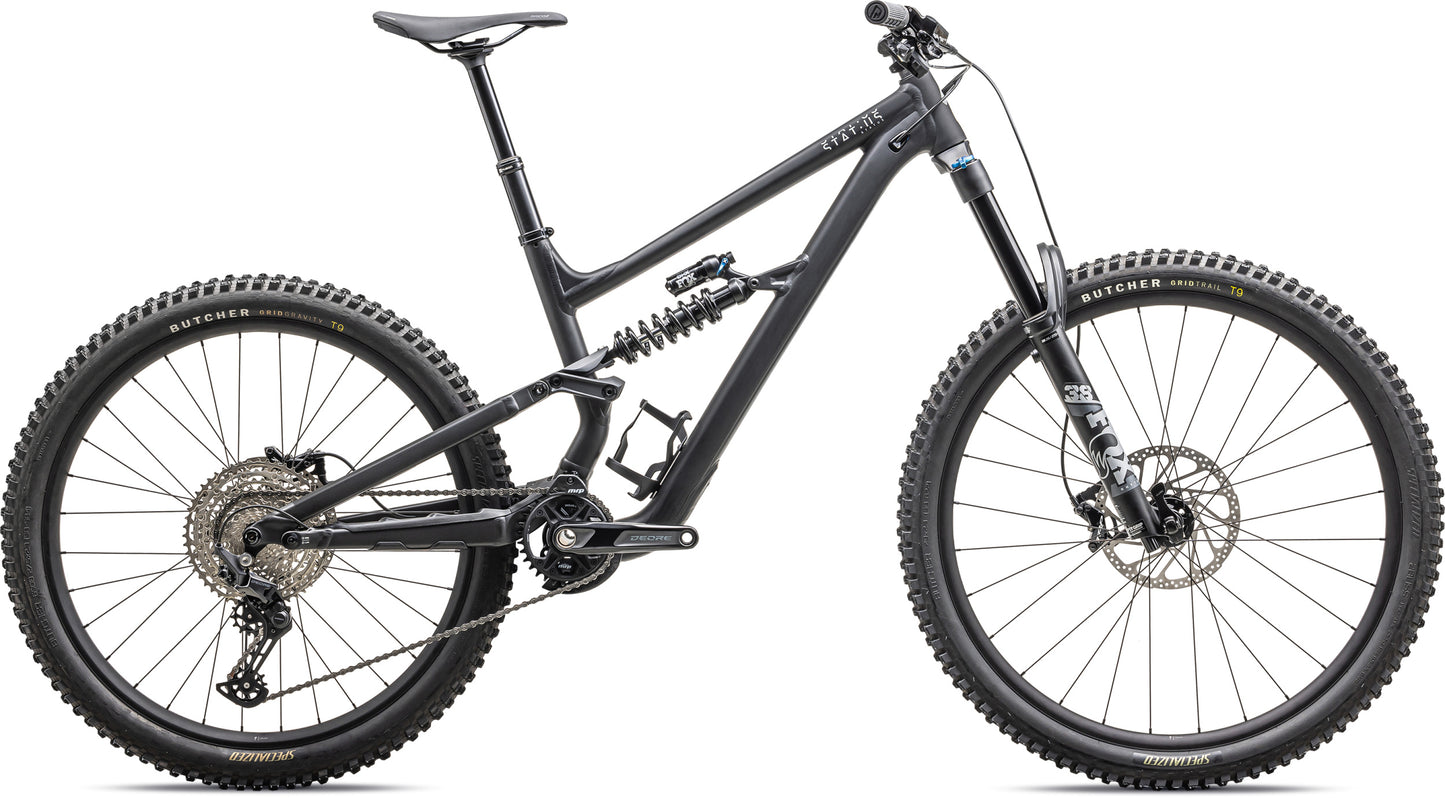

STATUS 2 170

 STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.

Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

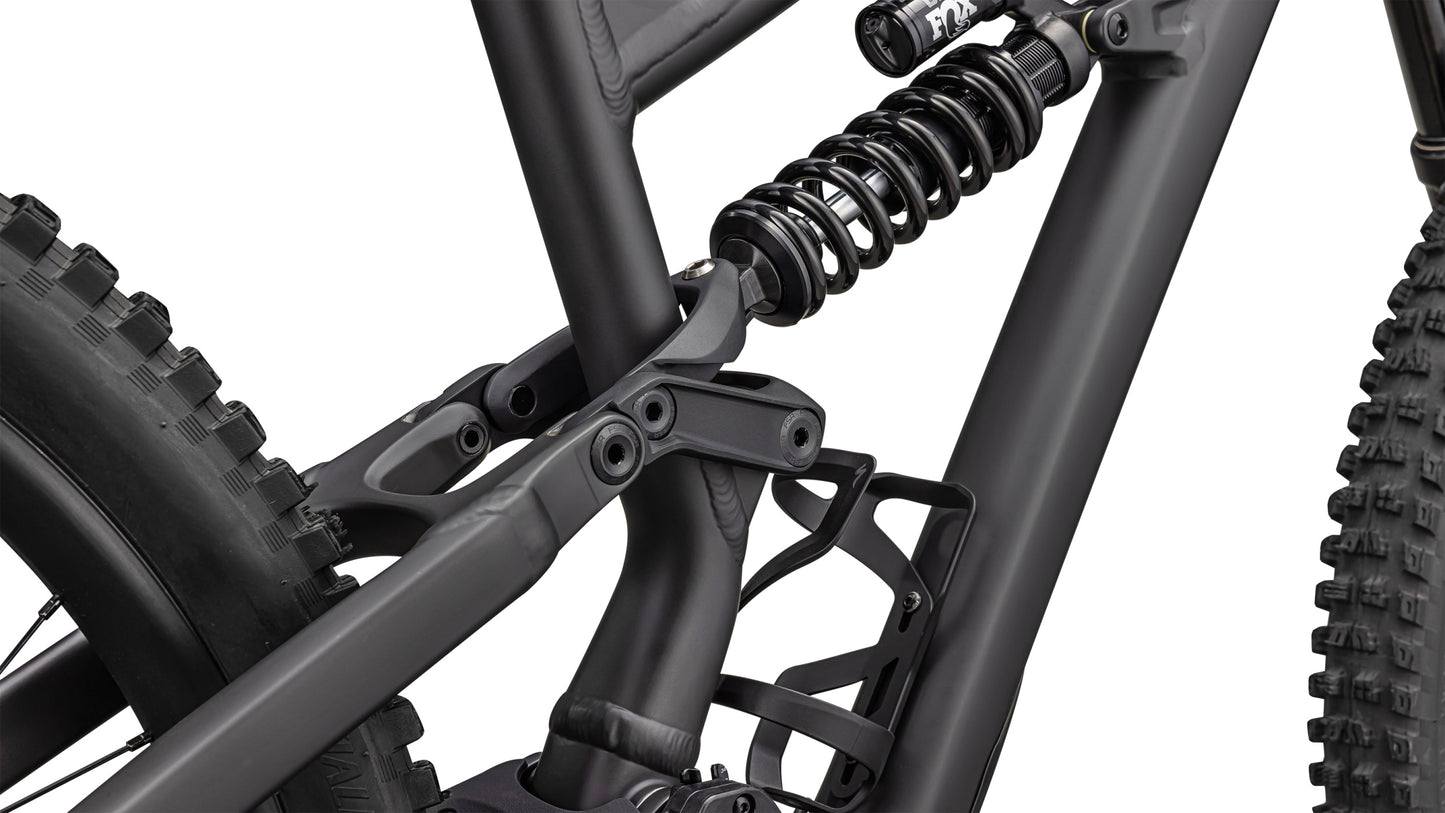

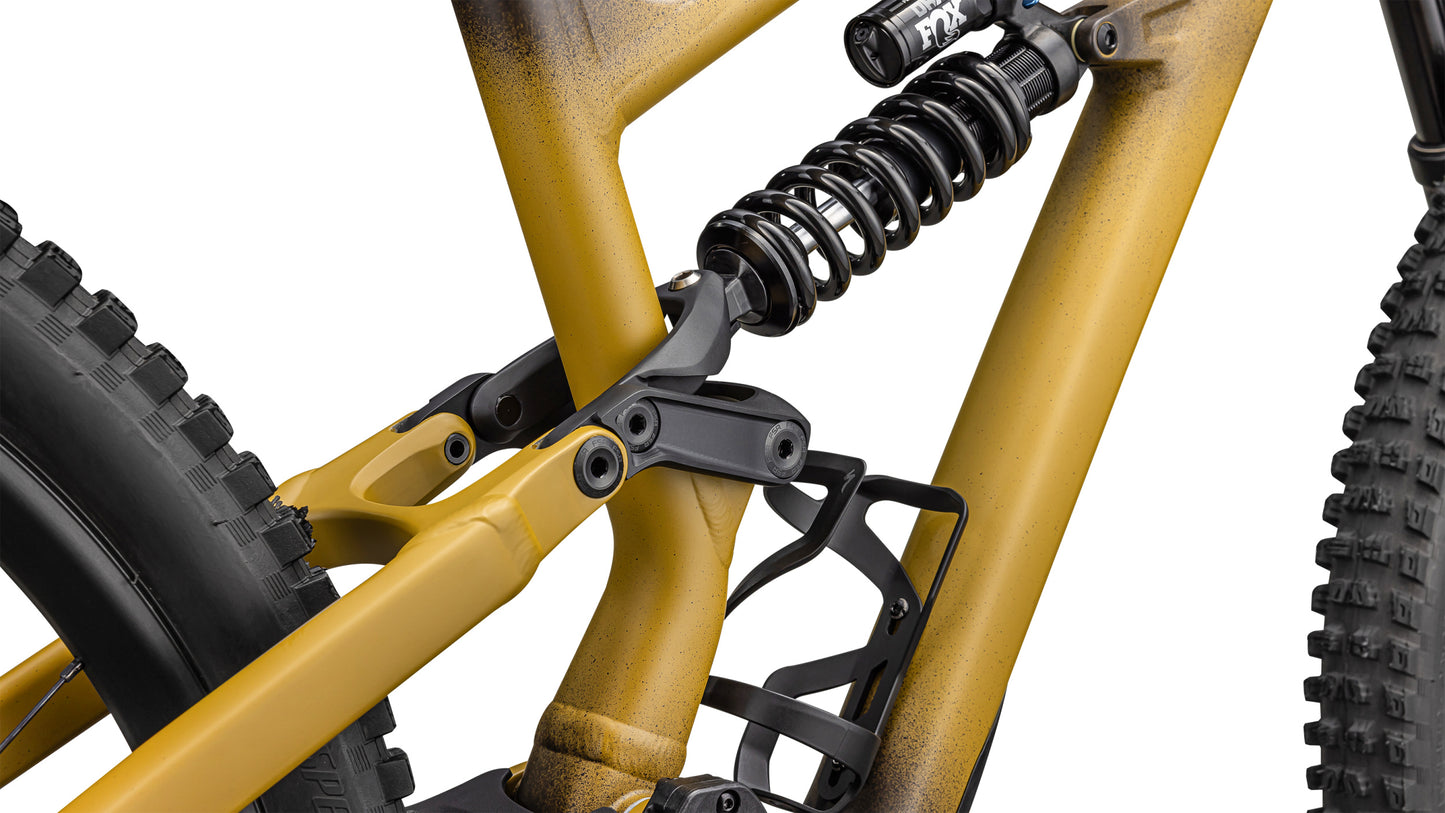

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.

  • 100% Redesigned durable alloy chassis
  • New, more durable alloy rims
  • Horst Link geometry adjust flip chip
  • Updated geometry for more usability
  • Curated parts spec for your desired ride experience
View full details

Technical Specifications

Frameset



Frame

M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel

Seat Binder

Alloy, 38.6mm



Suspension

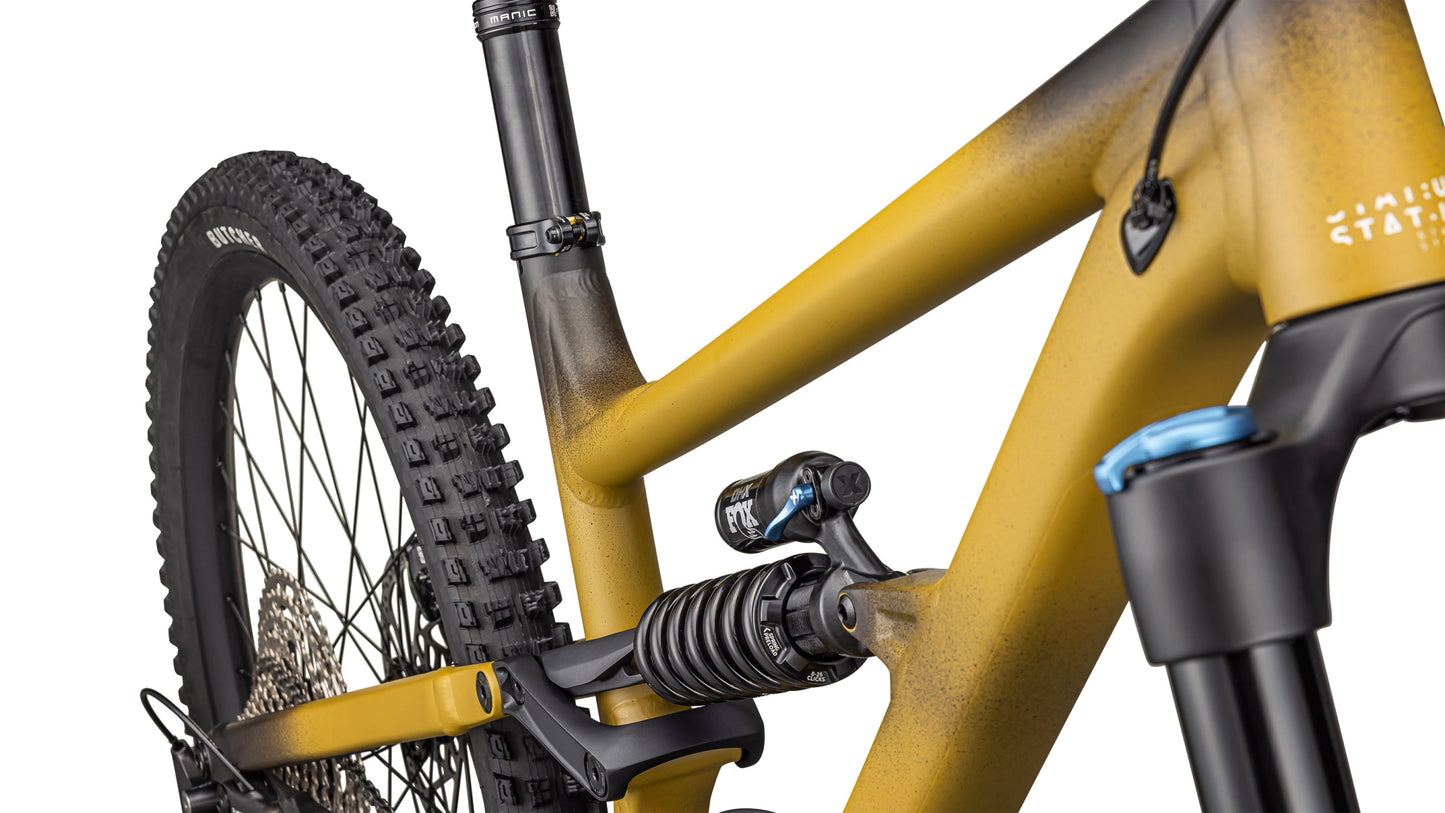

Rear Shock

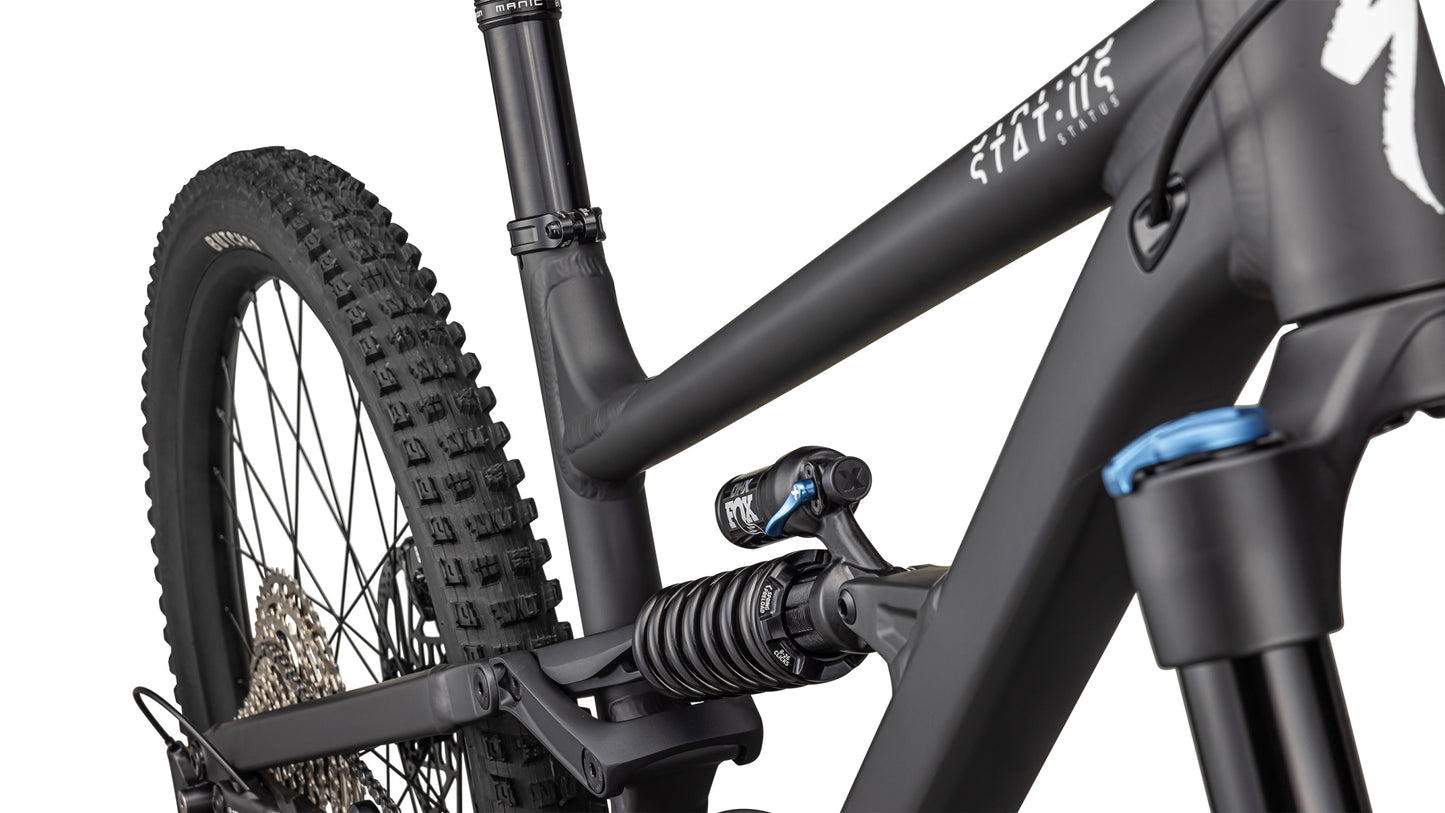

FOX DHX Performance, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230x62.5mm

Fork

FOX FLOAT 38 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 170mm of travel



Cockpit



Saddle

Bridge Comp, Hollow Cr-mo rails, 143mm

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm

Stem

Alloy Trail Stem, 35mm bar bore

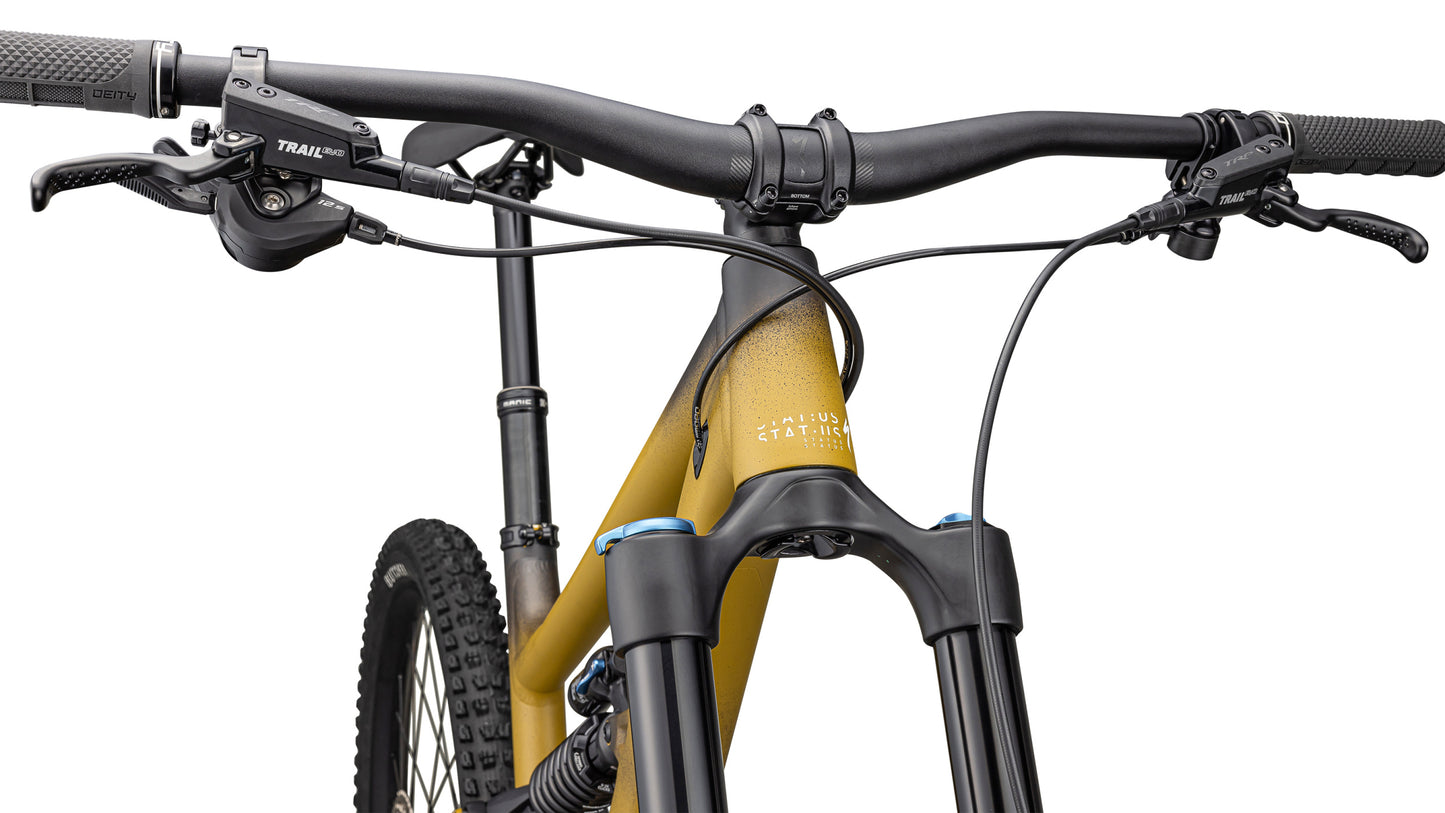

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width

Grips

Deity Knuckleduster



Brakes



Front Brake

TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm

Rear Brake

TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm



Drivetrain



Rear Derailleur

Shimano Deore, M6100, 12pd, Shadow Plus

Shift Levers

Shimano Deore, M6100, I-Spec EV, 12 speed

Cassette

Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t

Chain

Shimano Deore M6100, 12spd

Crankset

Shimano Deore, M6120, 32T ring, 55mm chainline, S1-4:165mm, S5: 170mm



Wheels & Tires



Rims

Specialized, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Spokes

DT Swiss Industry

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Inner Tubes

Standard, Presta valve



Product Details



Product ID

221254



Weight



Weight

15.56 kg (34 lb, 4.9 oz)

Weight Size

S3

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry





 S1S2S3S4S5
Crank Length165mm165mm165mm165mm170mm
Handlebar Width780mm800mm800mm800mm800mm
Stem Length40mm40mm40mm40mm40mm
Saddle Width143mm143mm143mm143mm143mm
Seatpost Length125mm150mm170mm170mm190mm
Stack (low)620mm625mm634mm643mm652mm
Stack (high)616mm620mm629mm638mm647mm
Reach (low)420mm445mm470mm495mm520mm
Reach (high)426mm451mm476mm501mm526mm
Headtube Length95mm100mm110mm120mm130mm
Headtube Angle (low)63.5°63.5°63.5°63.5°63.5°
Headtube Angle (high)64°64°64°64°64°
BB Height (low)342mm342mm342mm342mm342mm
BB Height (high)350mm350mm350mm350mm350mm
BB Drop (low)34mm34mm34mm34mm34mm
BB Drop (high)26mm26mm26mm26mm26mm
Trail (low)138mm138mm138mm138mm138mm
Trail (high)133mm133mm133mm133mm133mm
Fork Length (full)581mm581mm581mm581mm581mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center762mm789mm819mm848mm878mm
Chainstay Length (low)432mm432mm432mm437mm437mm
Chainstay Length (high)436mm436mm436mm441mm441mm
Wheelbase1193mm1221mm1250mm1285mm1314mm
Top-tube Length (horizontal)554mm595mm635mm676mm716mm
Bike Standover Height735mm735mm742mm748mm752mm
Seat Tube Length390mm400mm420mm440mm465mm
Seat Tube Angle (low)77°77°77°77°77°
Seat Tube Angle (high)77.6°77.6°77.6°77.6°77.6°
