SPECIALIZED
Status 160 Frameset
Status 160 Frameset
SKU: 73722-7302
Regular price
MSRP 25,000.00
Regular price
MSRP 25,000.00
Sale price
MSRP 25,000.00
Unit price
per
VAT included.
0 - Available
Couldn't load pickup availability
Read More
Read More

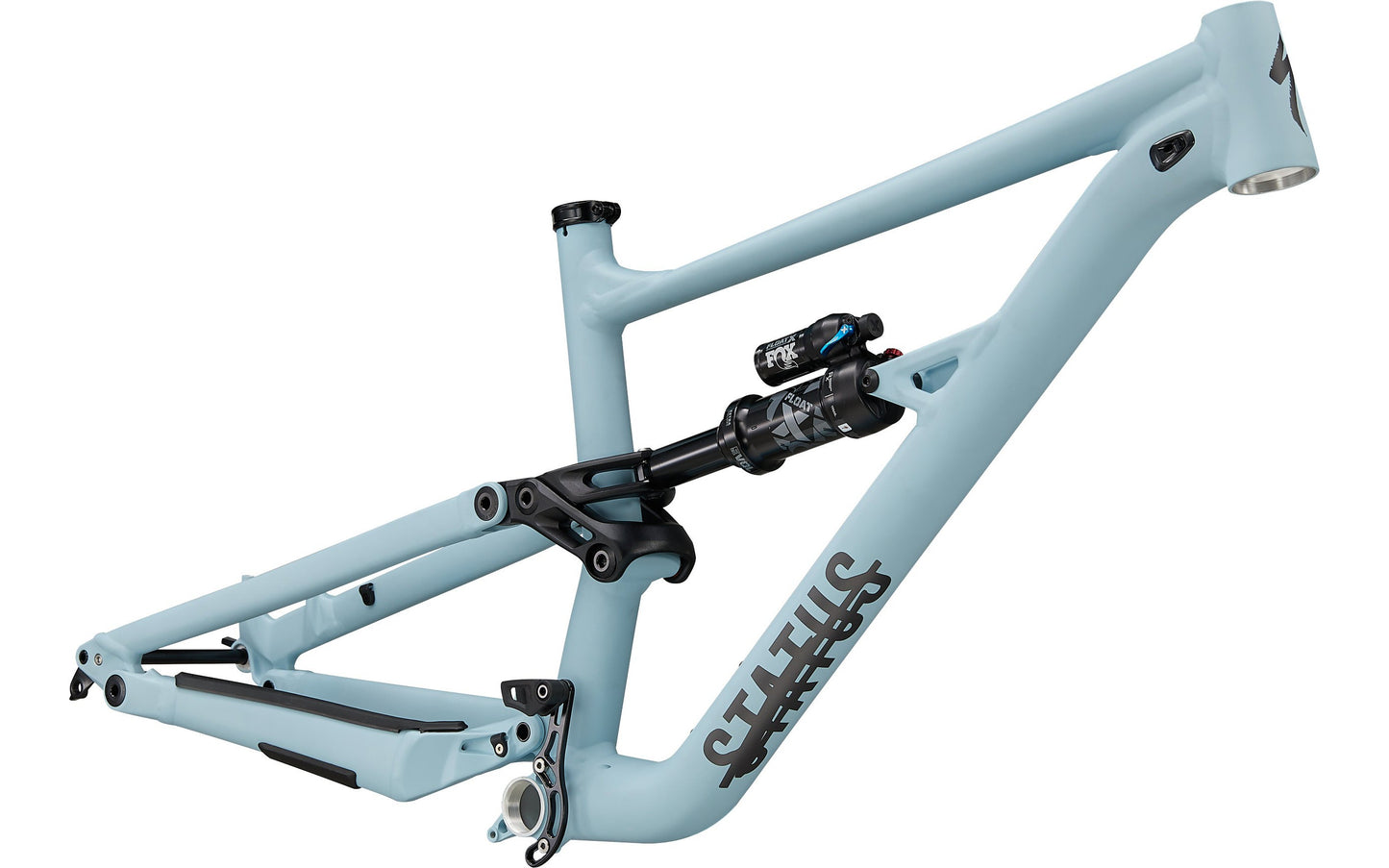

Status 160 Frameset
It’s dealer’s choice with the Status 160 frameset, but whatever the build, a good time is more than a safe bet. But that said, the odds of you being able to keep your poker face after getting a taste of the Status 160’s playful Mixed Wheel-Size Trail Geometry are awfully tall.
- With an eye on keeping maintenance to a minimum, oversized pivot bearings increase durability while a common size across all pivots makes service and replacement a breeze when that day does come around. A threaded SRAM DUB bottom bracket continues on the theme with worry-free performance.
- The active, planted feel of the Status’s FSR suspension design and Fox’s FLOAT X Performance rear shock equipped with our Rx Trail Tune make for perfect friends—and plenty of benefits. Calling on a twin-tube design that allows for two separate oil pathways during compression and rebound, the FLOAT X Performance rear shock provides plenty of support for big hits while still offering enough buttery small-bump sensitivity to keep you fresh for when the style points really count.
Technical Specifications
FRAMESET
Frame
M5 alloy chassis and rear-end, Mixed wheel Trail Geometry, threaded BB,12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm of travel
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm
* Specifications are subject to change without notice
Geometry
| S1 | S2 | S3 | S4 | S5 | |
|---|---|---|---|---|---|
| Stack (low BB) | 610mm | 614mm | 623mm | 632mm | 641mm |
| Reach (low BB) | 417mm | 437mm | 462mm | 487mm | 512mm |
| Head-Tube Length | 95mm | 100mm | 110mm | 120mm | 130mm |
| Head-Tube Angle (low BB) | 63.2° | 63.2° | 63.2° | 63.2° | 63.2° |
| Head-Tube Angle | 63.7° | 63.7° | 63.7° | 63.7° | 63.7° |
| B-B Height (low BB) | 338mm | 338mm | 338mm | 338mm | 338mm |
| B-B Height | 347mm | 347mm | 347mm | 347mm | 347mm |
| B-B Drop (low BB) | 17.5mm | 17.5mm | 17.5mm | 17.5mm | 17.5mm |
| B-B Drop | 8.5mm | 8.5mm | 8.5mm | 8.5mm | 8.5mm |
| Trail (low BB) | 141mm | 141mm | 141mm | 141mm | 141mm |
| Fork Length (full) | 567mm | 567mm | 567mm | 567mm | 567mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front-Center (low BB) | 756mm | 778mm | 808mm | 837mm | 867mm |
| Chain-Stay Length | 426mm | 426mm | 426mm | 426mm | 426mm |
| Wheelbase | 1181mm | 1203mm | 1233mm | 1264mm | 1292mm |
| Seat-Tube Length | 400mm | 400mm | 420mm | 440mm | 465mm |
| Seat-Tube Angle | 76° | 76° | 76° | 76° | 76° |
Size Guide
