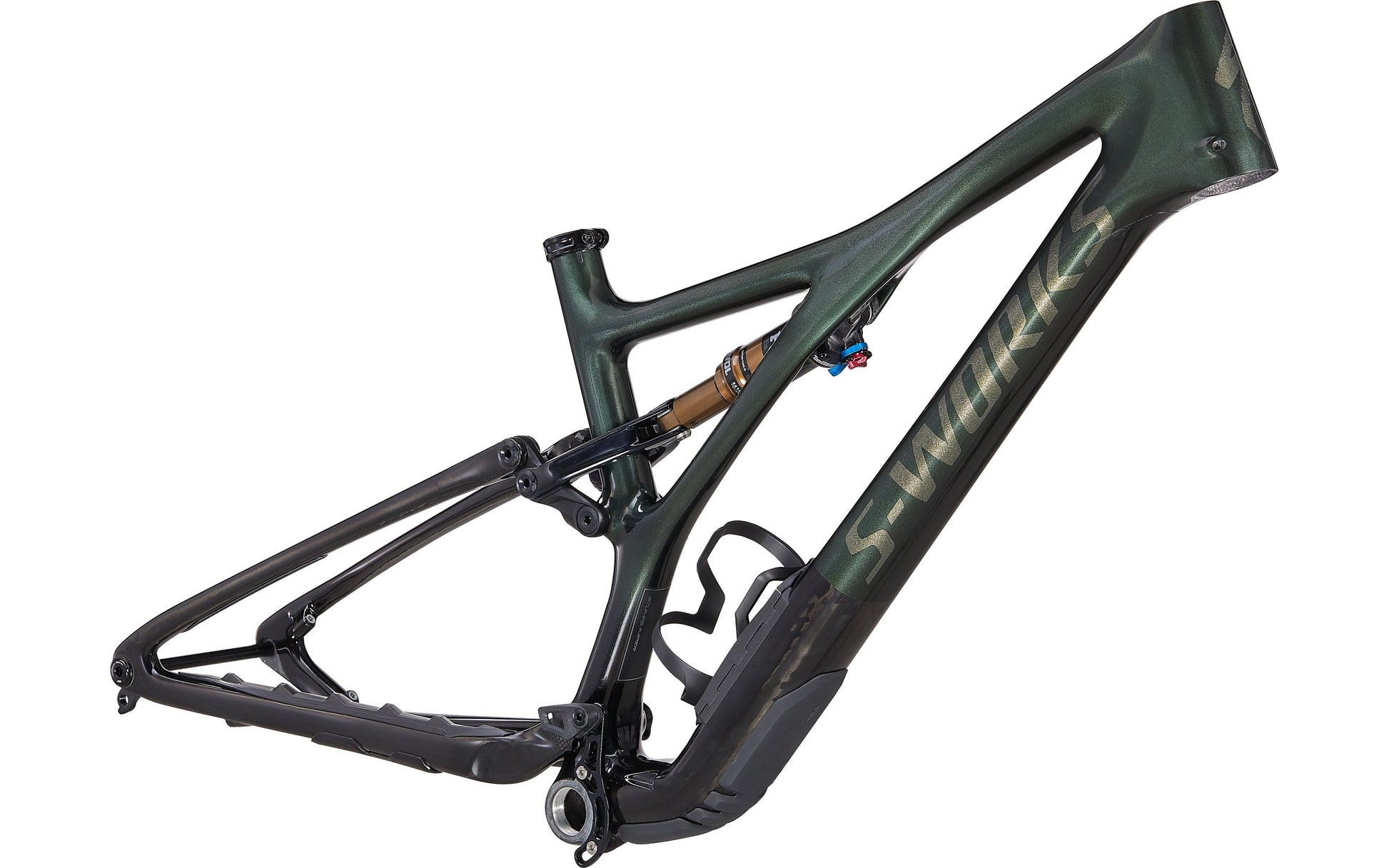

S-Works Stumpjumper Frame
S-Works Stumpjumper Frame
SKU:73321-0103
Out of stock
Product Sold Out? Contact us and we will try to find it for you.
Read More
Read More
When we say "The Ultimate Trail Bike," we mean itÑthe all-new Stumpjumper is everything you could ever ask for in a trail-ripping steed. Want a bike that climbs with ease? The Stumpjumper delivers, thanks to a ground-up suspension redesign and lightest-in-class frame weight. How about something that's ready to shred when the trail turns downhill? That suspension re-design - paired with new Trail Geometry and the Rider-First Engineeredª frameÕs perfect blend of stiffness and light weight - turns the Stumpjumper into an absolute monster descending. Point it where you want to go and let the party begin.
The S-Works Stumpjumper frame is the perfect starting point for you to envision your own interpretation of the Ultimate Trail Bike. Start with our supremely light, incredibly strong, FACT 11m carbon frame. Then dress it to suit your needs, whether those needs be singletrack soul surfing or death-grip mayhem.
Share
Technical Specifications
FRAMESET
SWAT
SWAT™ Door integration
Frame
FACT 11m carbon chassis and rear-end, carbon shock extension, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Seat Binder
Alloy, 38.6
Suspension
Rear Shock
FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm
* Specifications are subject to change without notice
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Stack (Low BB) | 614mm | 613mm | 622mm | 632mm | 641mm | 650mm |
Stack (High BB) | 610mm | 609mm | 618mm | 627mm | 636mm | 646mm |
Reach (Low BB) | 410mm | 430mm | 450mm | 475mm | 500mm | 530mm |
Reach (High BB) | 415mm | 435mm | 455mm | 480mm | 505mm | 535mm |
Headtube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Headtube Angle (Low BB) | 65° | 65° | 65° | 65° | 65° | 65° |
Headtube Angle (High BB) | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° |
BB Height (Low BB) | 328mm | 333mm | 333mm | 333mm | 333mm | 333mm |
BB Height (High BB) | 335mm | 340mm | 340mm | 340mm | 340mm | 340mm |
BB Drop (Low BB) | 47mm | 42mm | 42mm | 42mm | 42mm | 42mm |
BB Drop (High BB) | 40mm | 35mm | 35mm | 35mm | 35mm | 35mm |
Trail (Low BB) | 126mm | 126mm | 126mm | 126mm | 126mm | 126mm |
Trail (High BB) | 123mm | 123mm | 123mm | 123mm | 123mm | 123mm |
Fork Length (full) | 550mm | 550mm | 550mm | 550mm | 550mm | 550mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 724mm | 746mm | 770mm | 800mm | 829mm | 863mm |
Chainstay Length | 432mm | 432mm | 432mm | 432mm | 442mm | 442mm |
Wheelbase | 1152mm | 1175mm | 1200mm | 1228mm | 1268mm | 1302mm |
Top-tube Length (horizontal) | 563mm | 583mm | 605mm | 632mm | 660mm | 692mm |
Bike Standover Height | 730mm | 734mm | 744mm | 749mm | 757mm | 757mm |
Seat Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat Tube Angle (Low BB) | 76° | 76° | 76° | 76° | 76° | 76° |
Seat Tube Angle (High BB) | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
Max Seatpost Insertion | 220mm | 220mm | 240mm | 260mm | 280mm | 300mm |
Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
