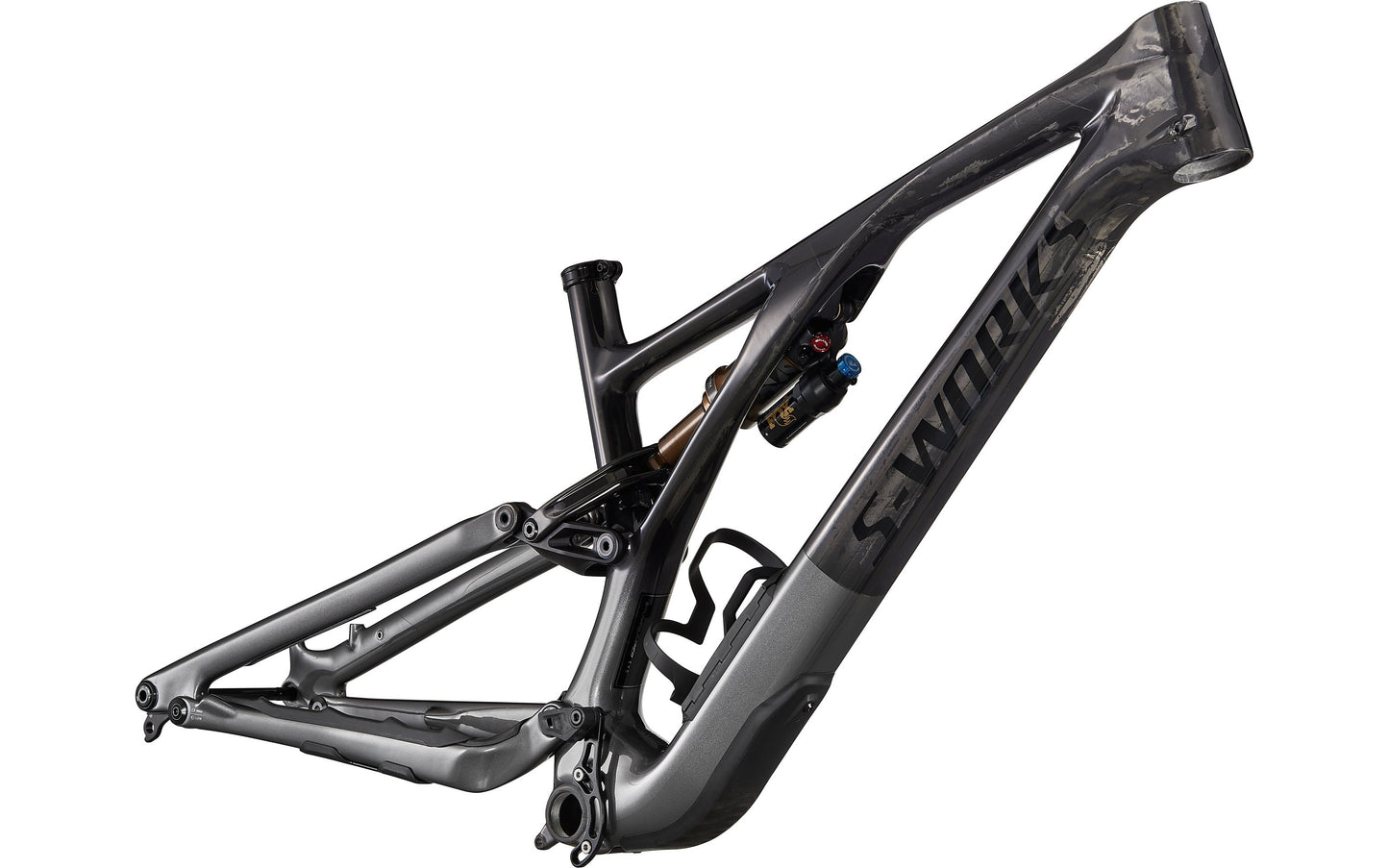

S-Works Stumpjumper EVO Frameset
S-Works Stumpjumper EVO Frameset
SKU: 76322-0003
1 - Available
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Read More
Read More
The S-Works Stumpjumper EVO is much more than just a trail bike; itÕs a shred-sled built to full-send down the gnarliest trails. Featuring an all-new design, with an adjustable head tube angle, 150mm of performance tuned travel, and the adaptability of S-Sizing, this thing is an absolute ripper. The S-Works Stumpjumper EVOÑget rowdy.
This S-Works Stumpjumper EVO Frame is the perfect canvas to imagine your ultimate ride. Build your totally custom dream bike, make it a reality, and shred happily.
Technical Specifications
FRAMESET
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
SWAT
Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder
Seat Binder
Alloy, 38.6mm
SUSPENSION
Rear Shock
FOX FLOAT X Factory, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, S1:210x50mm, S2-S6:210x55mm
* Specifications are subject to change without notice
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Seatpost Length | 0mm | |||||
| Stack | 613mm | 617mm | 626mm | 635mm | 644mm | 654mm |
| Reach | 408mm | 428mm | 448mm | 475mm | 498mm | 528mm |
| Headtube Length | 95mm | 95mm | 105mm | 115mm | 125mm | 135mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 335mm | 340mm | 340mm | 340mm | 340mm | 340mm |
| BB Drop | 40mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Trail | 131mm | 131mm | 131mm | 131mm | 131mm | 131mm |
| Fork Length (full) | 561mm | 571mm | 571mm | 571mm | 571mm | 571mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 732mm | 756mm | 780mm | 809mm | 838mm | 873mm |
| Chainstay Length | 438mm | 438mm | 438mm | 438mm | 448mm | 448mm |
| Wheelbase | 1167mm | 1191mm | 1216mm | 1247mm | 1285mm | 1319mm |
| Top-tube Length (horizontal) | 538mm | 564mm | 590mm | 623mm | 647mm | 679mm |
| Bike Standover Height | 733mm | 764mm | 763mm | 762mm | 767mm | 770mm |
| Seat Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle | 78° | 77.6° | 77.2° | 76.9° | 77° | 77° |
| Max Seatpost Insertion | 180mm | 180mm | 200mm | 220mm | 240mm | 260mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |

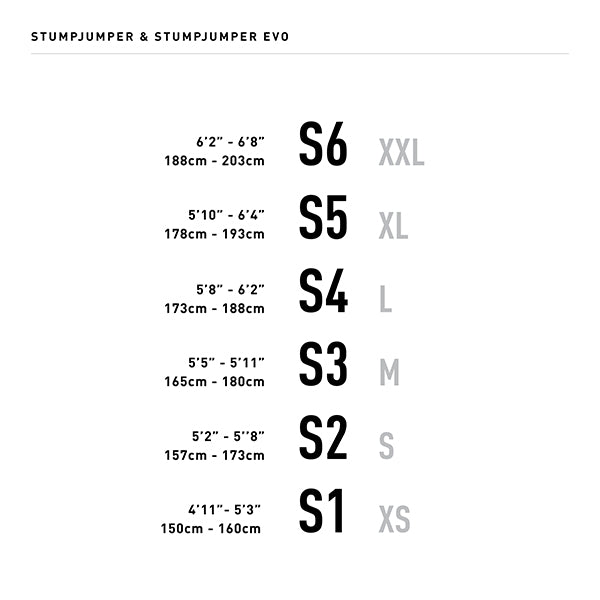

Size Guide
