SPECIALIZED

Stumpjumper Comp

Stumpjumper Comp

SKU: 93322-5002

MSRP 69,000.00
MSRP 90,000.00 MSRP 69,000.00
Sale Sold out
VAT included.
Size
Color

0 - Available

  • Visa
  • Mastercard

Read More

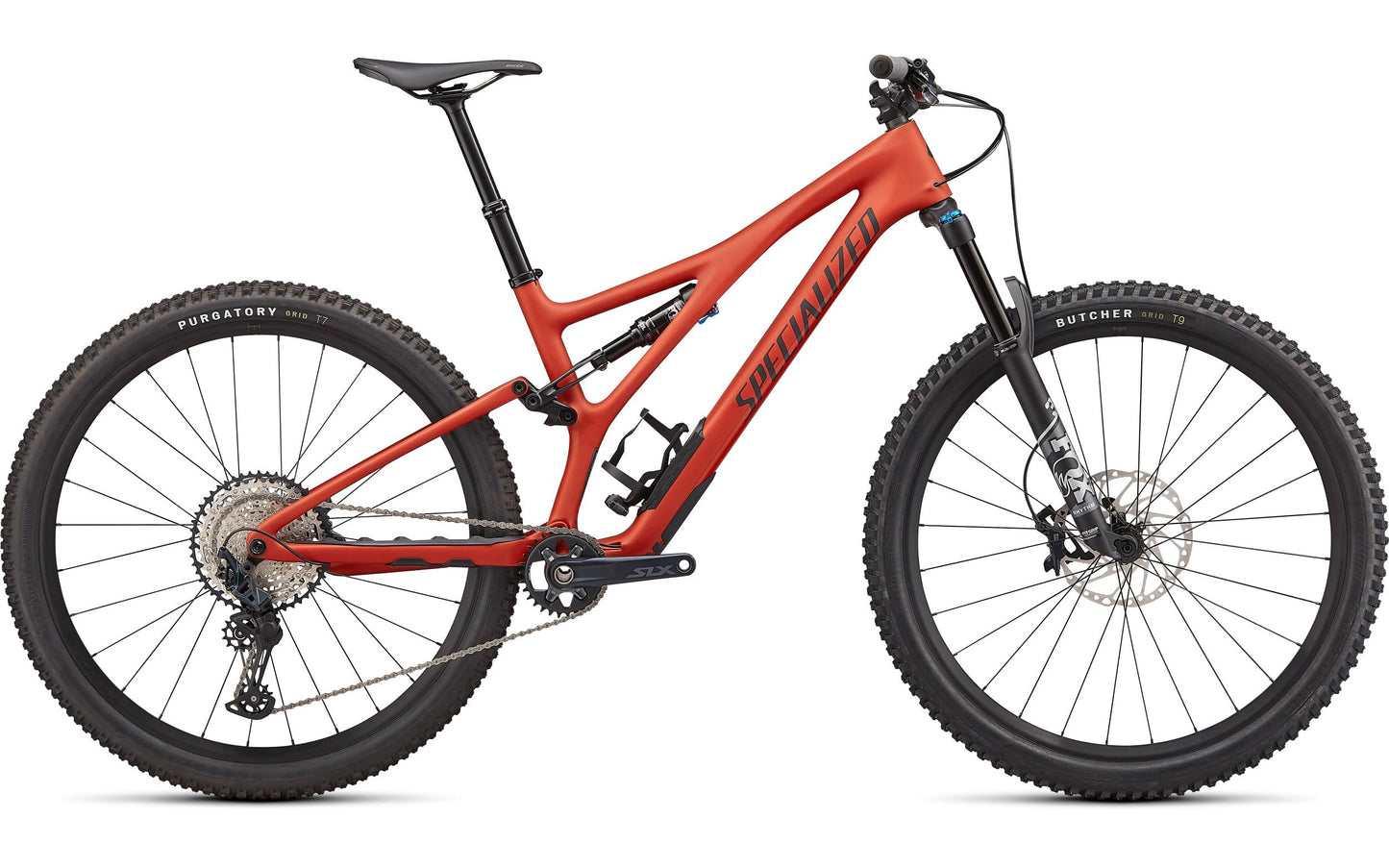

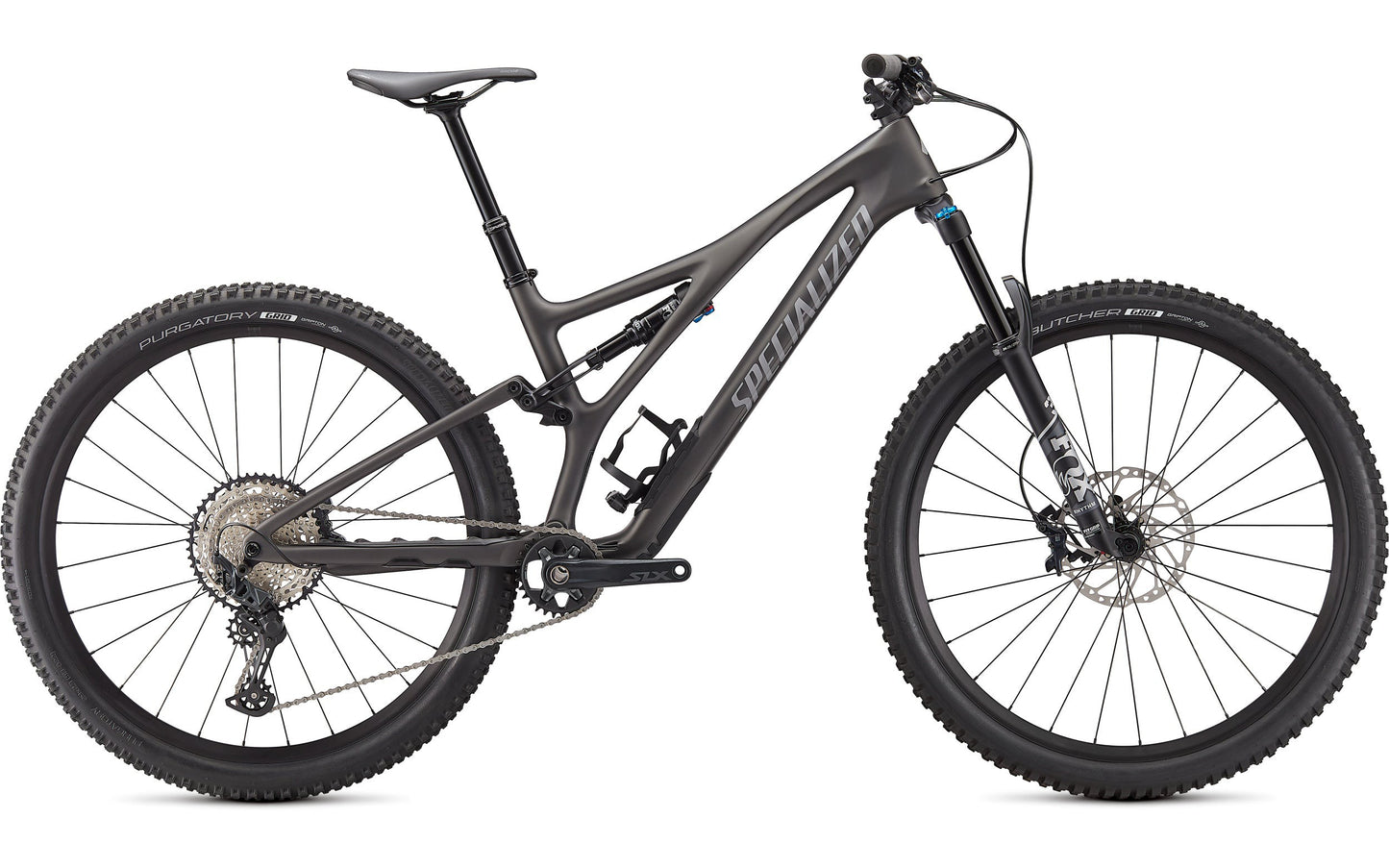

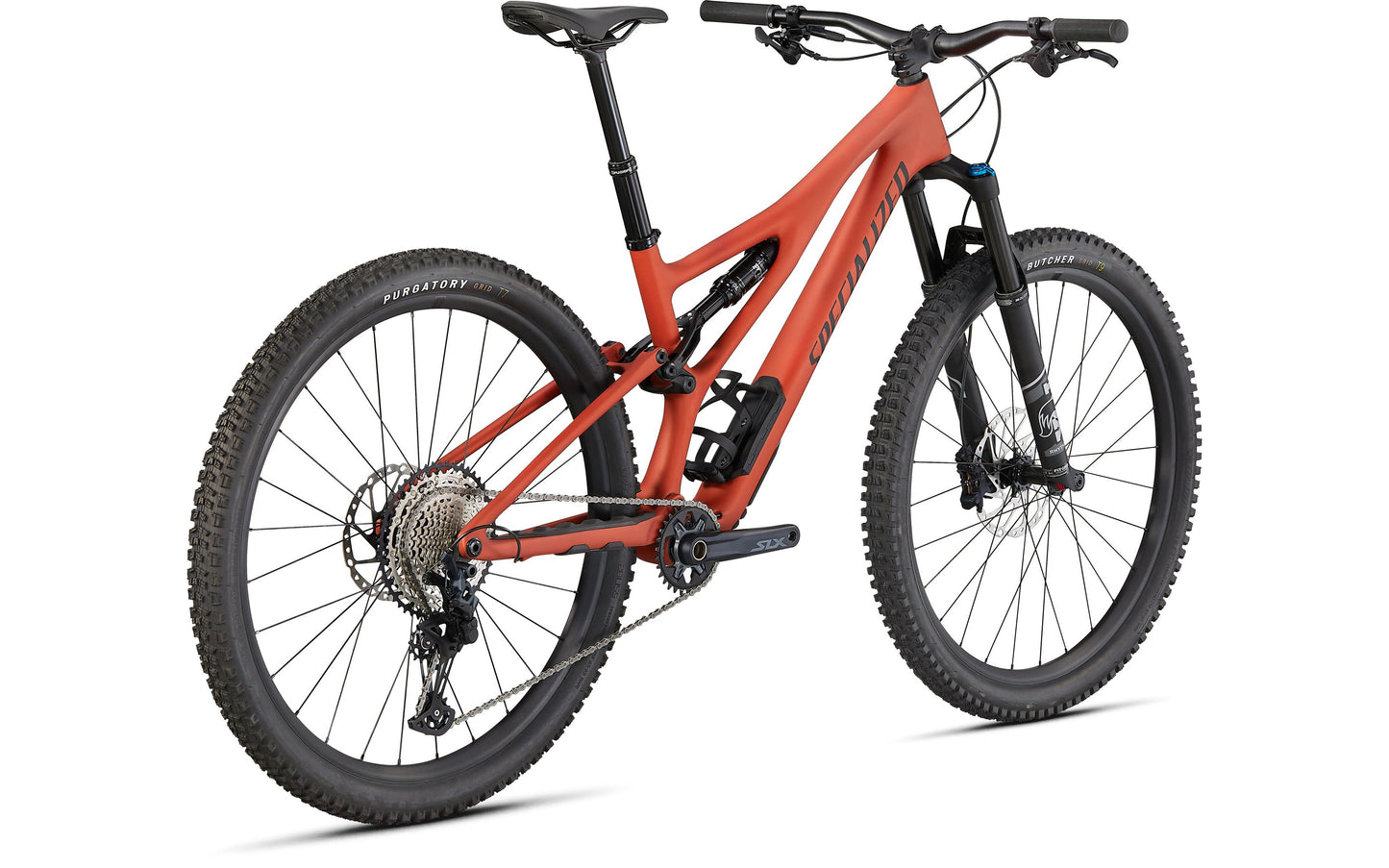

Stumpjumper Comp



Unrivaled suspension kinematics, sublime handling, perfectly-tuned frame stiffness—the Stumpjumper Comp is our fully featured, fully affordable, full-carbon, definitive trail bike. All-new geometry, all-new suspension, thoughtfully spec’d—it’s ready to take you wherever the trail may lead.

  • THE TRAIL BENCHMARK — When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.

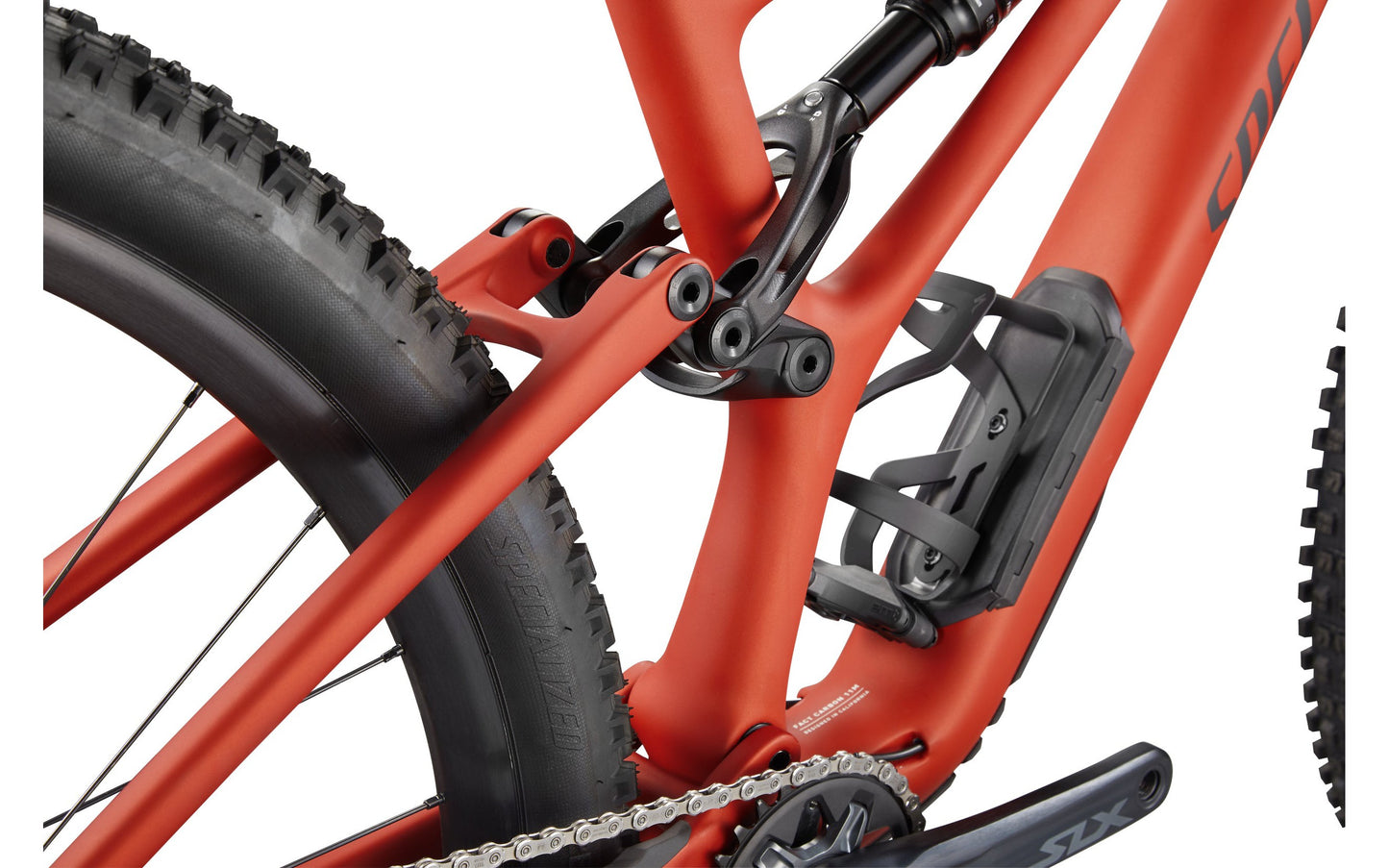

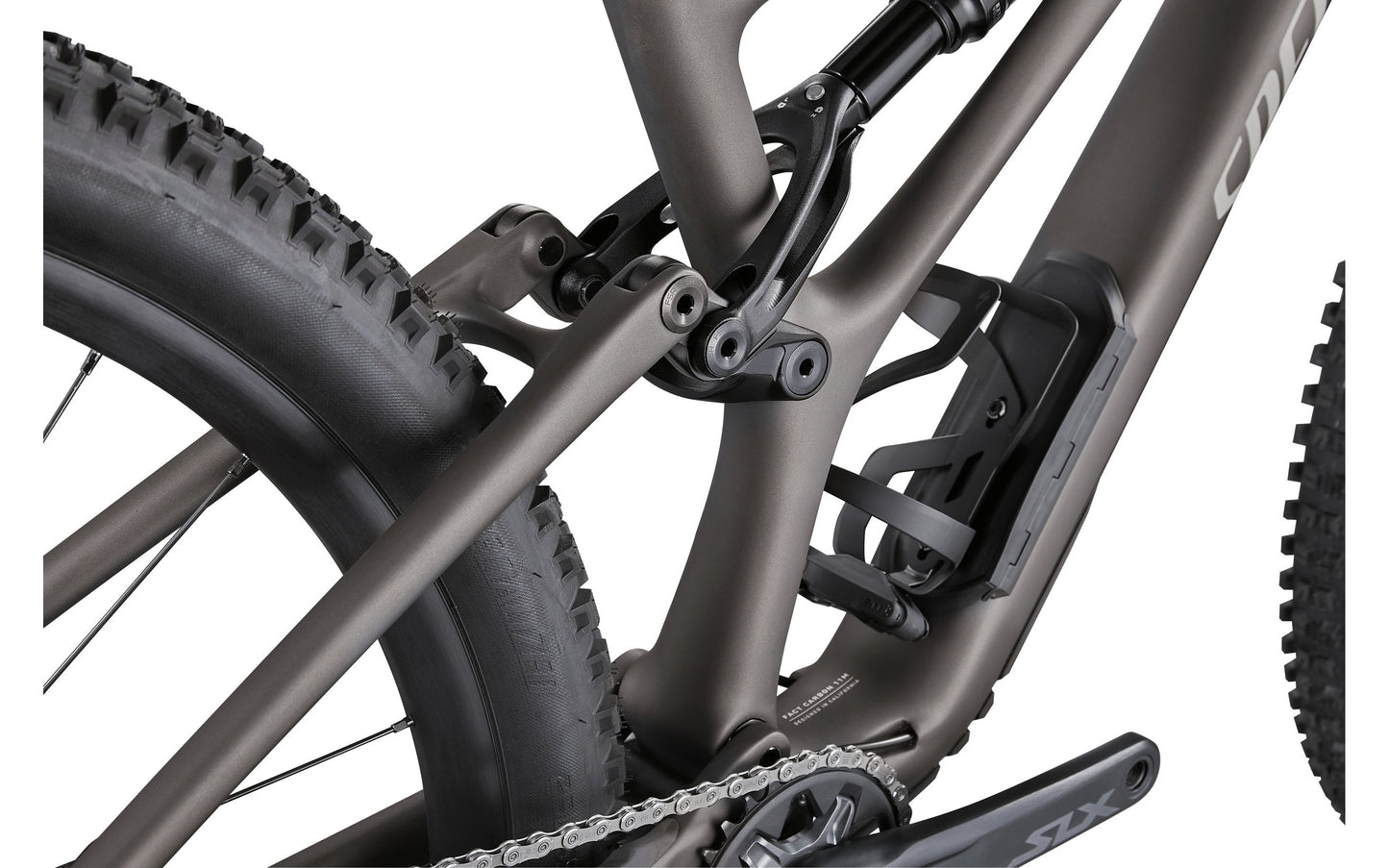

  • THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE — We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
  • PROGRESSIVE GEOMETRY — The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
  • RIDER-FIRST ENGINEERED™ — Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
  • SWAT™ — When we introduced the SWAT™ door on the Stumpjumper in 2016, we increased pocket space, and added room for those “oh s**t” pumps and flat accessories. With the new Stumpjumper, we’ve kept those same design hallmarks that you know and love.
View full details

Technical Specifications

FRAMESET

Frame

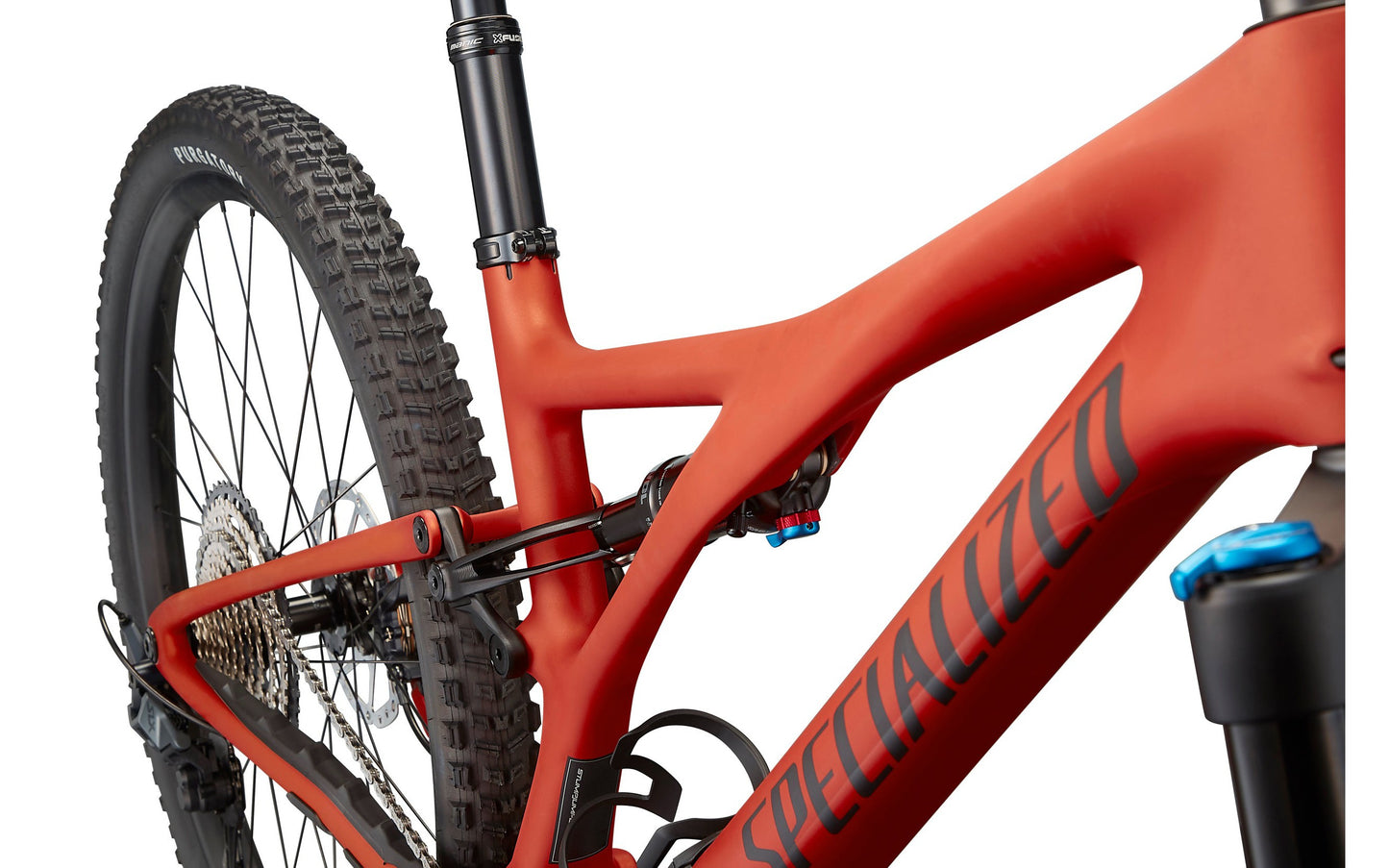

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, 190x45mm

Fork

FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 140mm of travel

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

Tape

Specialized Trail Grips

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm

BRAKES

Front Brake

Shimano SLX M7120, 4-piston caliper, hydraulic disc, 200mm

Rear Brake

Shimano SLX M7120, 4-piston caliper, hydraulic disc, 180mm

DRIVETRAIN

Rear Derailleur

Shimano SLX M7100, SGS, 12-speed

Shift Levers

Shimano SLX, M7100, 12spd

Cassette

Shimano SLX, CS-M7100, 12-speed, 10-51t

Chain

Shimano SLX, M7100, 12-speed

Crankset

Shimano SLX, S1:165mm, S2-S5: 170mm, S6: 175mm

Chainrings

30T

Bottom Bracket

Shimano, BB-MT800, Threaded

WHEELS

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Shimano MT400-B, Centerlock 28h, 15x110 Boost

Rear Hub

Shimano MT510-B, Centerlock 28h, 12x148 Boost, Microspline

Spokes

DT Swiss Industry

Front Tire

Butcher, GRID casing, GRIPTON® T7 compound, 29x2.3"

Rear Tire

Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"

Inner Tubes

TUBES,STANDARD 48MM PV LOW LEAD 29x1.75/2.4, MAXXIS BRAND

* Specifications are subject to change without notice

Geometry

 S1S2S3S4S5S6
Stack (Low BB)614mm613mm622mm632mm641mm650mm
Stack (High BB)610mm609mm618mm627mm636mm646mm
Reach (Low BB)410mm430mm450mm475mm500mm530mm
Reach (High BB)415mm435mm455mm480mm505mm535mm
Headtube Length95mm100mm110mm120mm130mm140mm
Headtube Angle (Low BB)65°65°65°65°65°65°
Headtube Angle (High BB)65.5°65.5°65.5°65.5°65.5°65.5°
BB Height (Low BB)328mm333mm333mm333mm333mm333mm
BB Height (High BB)335mm340mm340mm340mm340mm340mm
BB Drop (Low BB)47mm42mm42mm42mm42mm42mm
BB Drop (High BB)40mm35mm35mm35mm35mm35mm
Trail (Low BB)126mm126mm126mm126mm126mm126mm
Trail (High BB)123mm123mm123mm123mm123mm123mm
Fork Length (full)550mm550mm550mm550mm550mm550mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center724mm746mm770mm800mm829mm863mm
Chainstay Length432mm432mm432mm432mm442mm442mm
Wheelbase1152mm1175mm1200mm1228mm1268mm1302mm
Top-tube Length (horizontal)563mm583mm605mm632mm660mm692mm
Bike Standover Height730mm734mm744mm749mm757mm757mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle (Low BB)76°76°76°76°76°76°
Seat Tube Angle (High BB)76.5°76.5°76.5°76.5°76.5°76.5°
Max Seatpost Insertion220mm220mm240mm260mm280mm300mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
