Technical Specifications

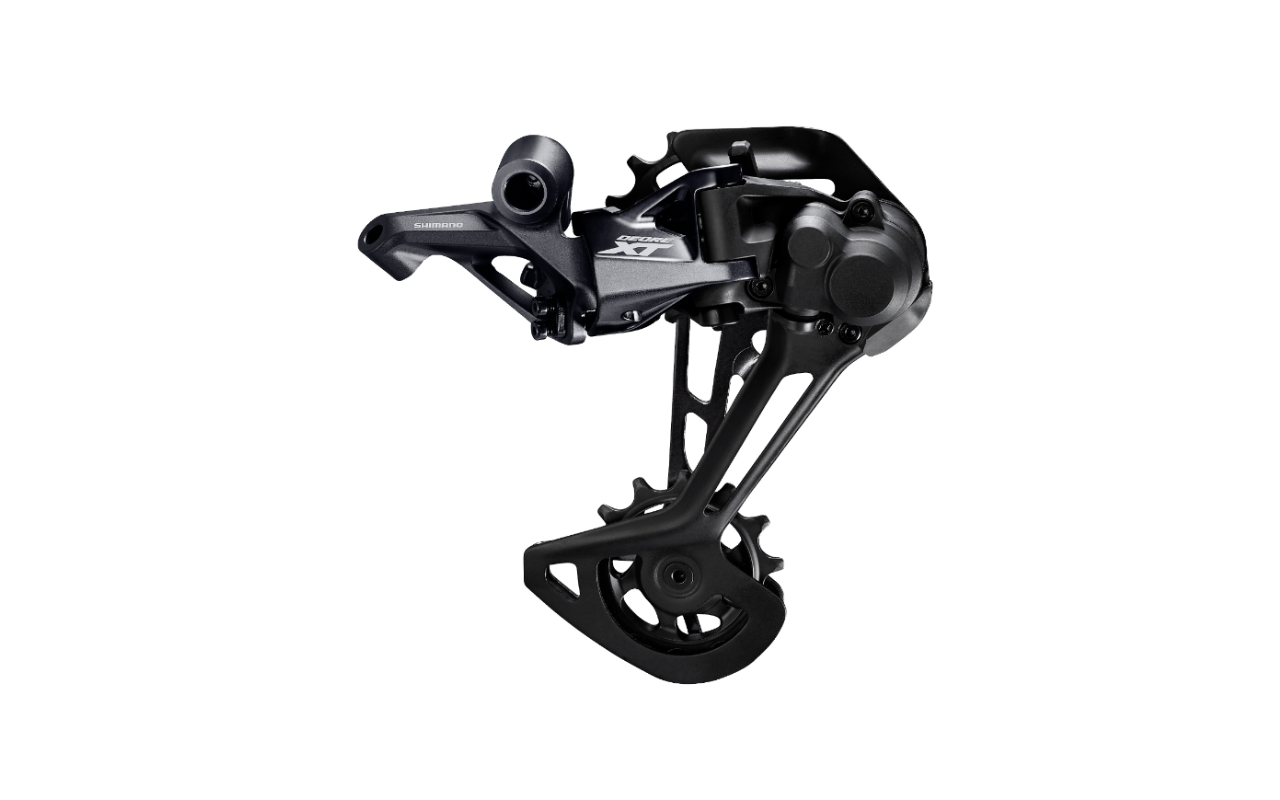

MODEL NO | RD-M8100-SGS |
---|---|
SERIES | DEORE XT M8100 Series |
Color | Series color |
Average weight | 284 |
Remarks | w/Bumper on pully cage |
---|---|
Rear speeds | 12 |
Compatible chain | HG 12-speed |
Top-normal spring type|SHIMANO SHADOW RD+ | ✔ |
Mount|Direct attachment (conventional) | ✔ |
Max. front difference | 0T |
Total capacity | 41T |
Low sprocket|Max. | 51T |
Low sprocket|Min. | 51T |
Top sprocket|Max. | 10T |
Top sprocket|Min. | 10T |
Fluoric coated link bushings | 7 |
Pulley|Guide pulley bearing | Sealed Bearing |
Pulley|Tension pulley bearing | Sealed bearing |
Pulley|Teeth | 13T |
Pulley|Sunken type pulley screw | ✔ |
B-axle|Hollow axle | ✔ |
