Technical Specifications
SUSPENSION

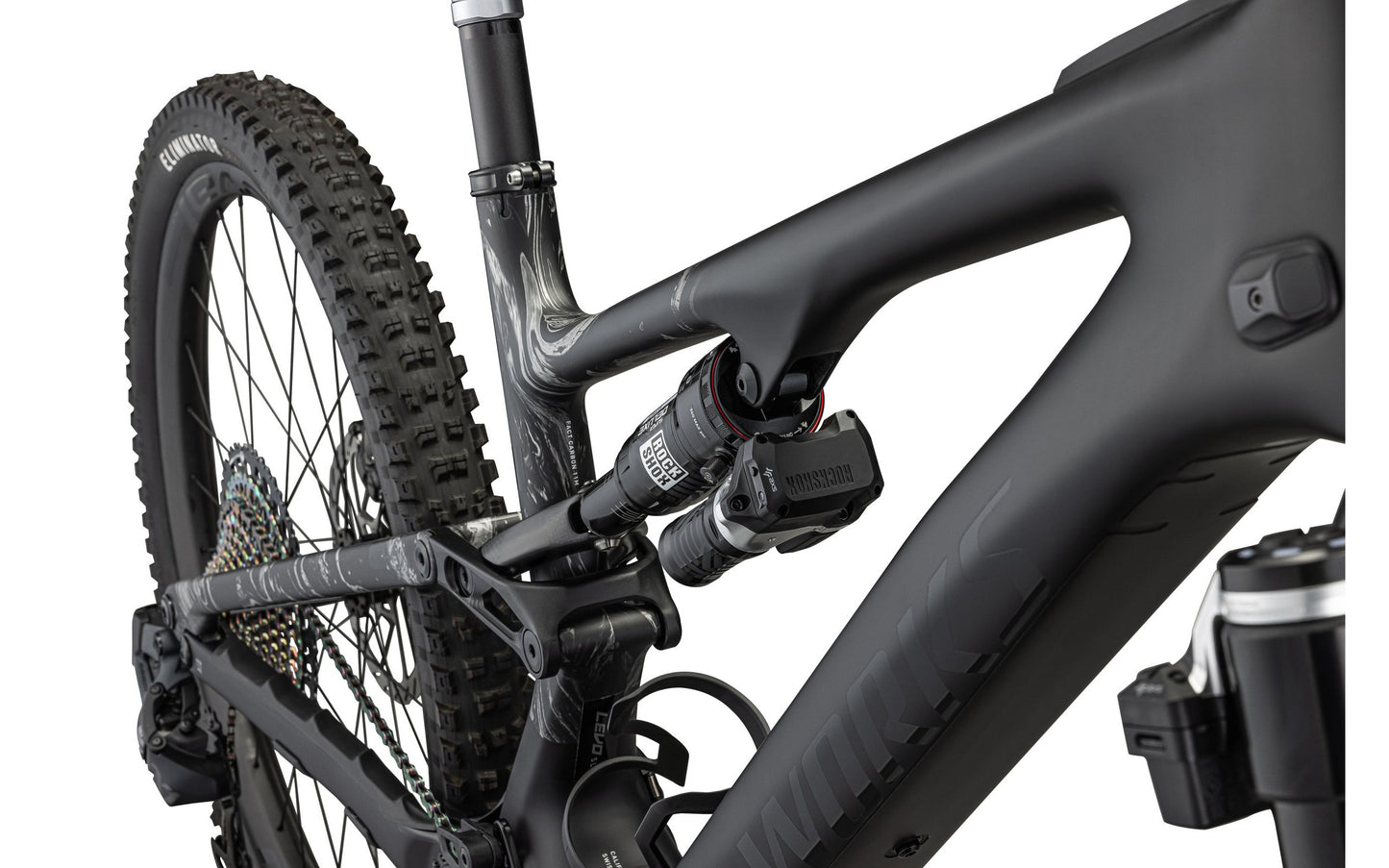

Rear Shock
Rockshox Flight Attendant SuperDeluxe Ultimate, 210x55
Fork
All New Lyrik Ultimate Flight Attendant, 29", 160mm of travel, wirelessly controlled damping, 44mm offset
FRAMESET
Frame
All new Levo SL SW Frame, Fact 11m carbon, carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Seat Binder
Alloy, 38.6mm
COCKPIT
Saddle
Bridge, 155/143mm, Hollow Ti-rails
SeatPost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Stem
Deity, 35.0mm

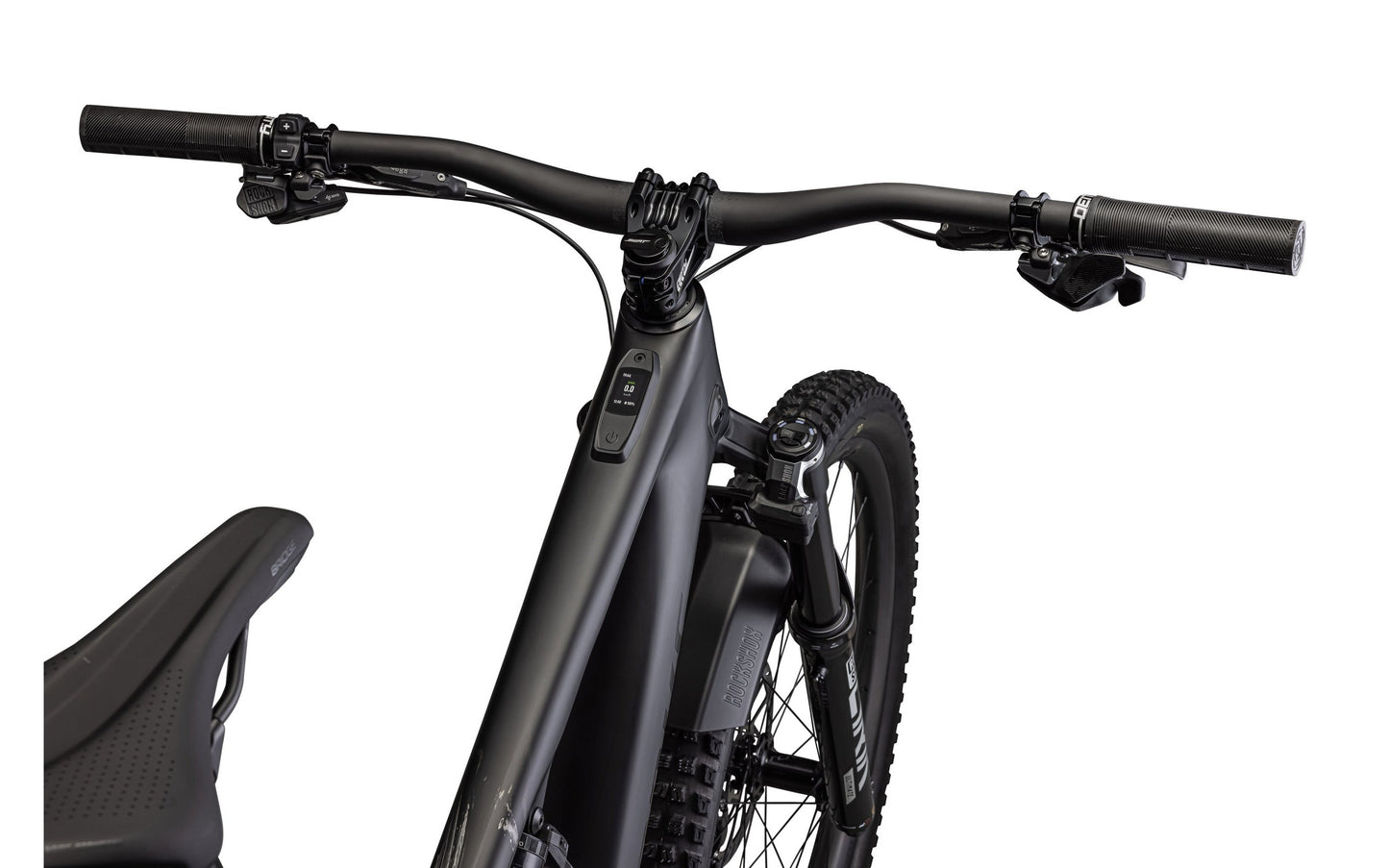

Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips
Deity, Knuckleduster, Black
WHEELS
Front Wheel
Roval Traverse SL 29
Rear Wheel
Roval Traverse SL 27.5, 148mm spacing, XD freehub body
Front Hub
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h
Rear Hub
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Inner Tubes
Standard, Presta Valve
E-BIKE

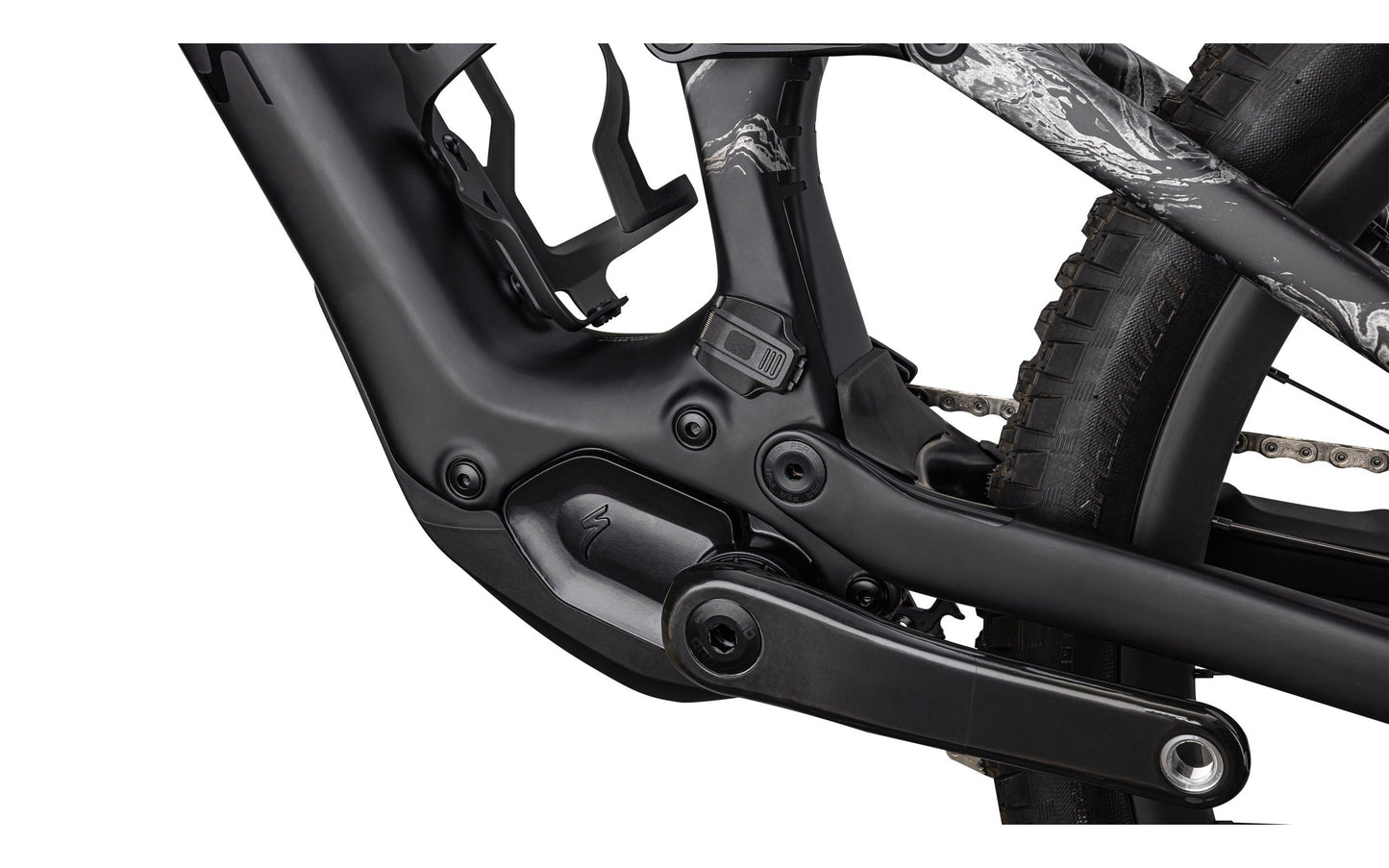

Motor
New Specialized 1.2 SL Custom Rx Trail Tuned Motor

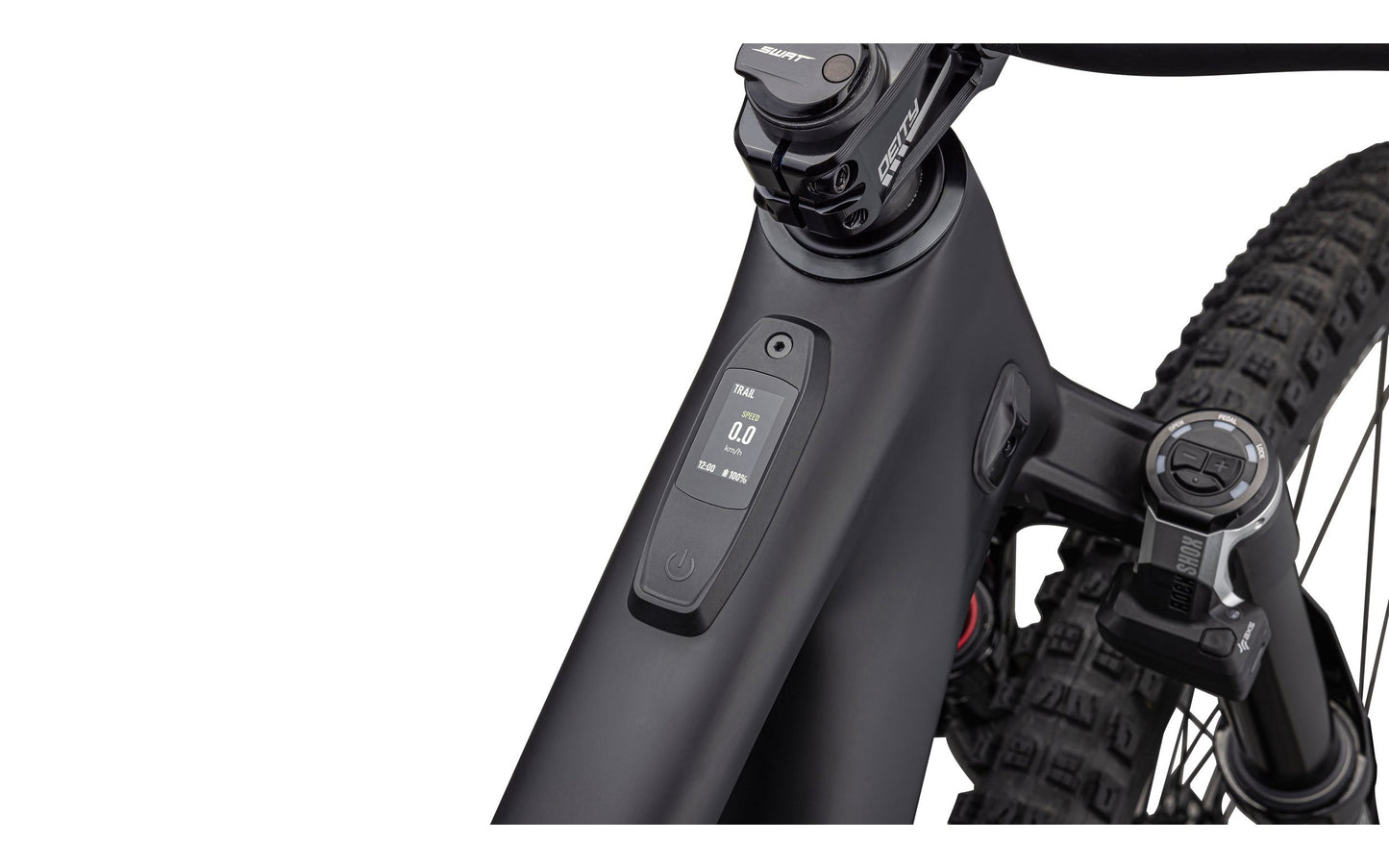

UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Wiring Harness
Custom Specialized wiring harness
DRIVETRAIN
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Cassette
SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
Crankset
SRAM Carbon Crankset, Dub interface
Chain
SRAM XX Eagle Transmission Flattop Chain
Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
ACCESSORIES
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
BRAKES
Rear Brake
SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 200mm
Front Brake
SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 200mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 170mm | 170mm | 175mm | |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | |
Stem Length | 35mm | 50mm | 50mm | 50mm | 50mm | |
Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm | |
Seatpost Length | 125mm | 150mm | 170mm | 170mm | 170mm | |
Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
Head-Tube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Head-Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
B-B Height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
B-B Drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
Trail | 132mm | 132mm | 132mm | 132mm | 132mm | 132mm |
Fork Length, Full | 560mm | 570mm | 570mm | 570mm | 570mm | 570mm |
Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
Front-Center | 726mm | 752mm | 776mm | 806mm | 835mm | 869mm |
Chain-Stay Length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
Top Tube Length, Horizontal | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
Bike Stand-Over Height | 727mm | 763mm | 766mm | 767mm | 773mm | 778mm |
Seat-Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat-Tube Angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
