Technical Specifications
-Bike

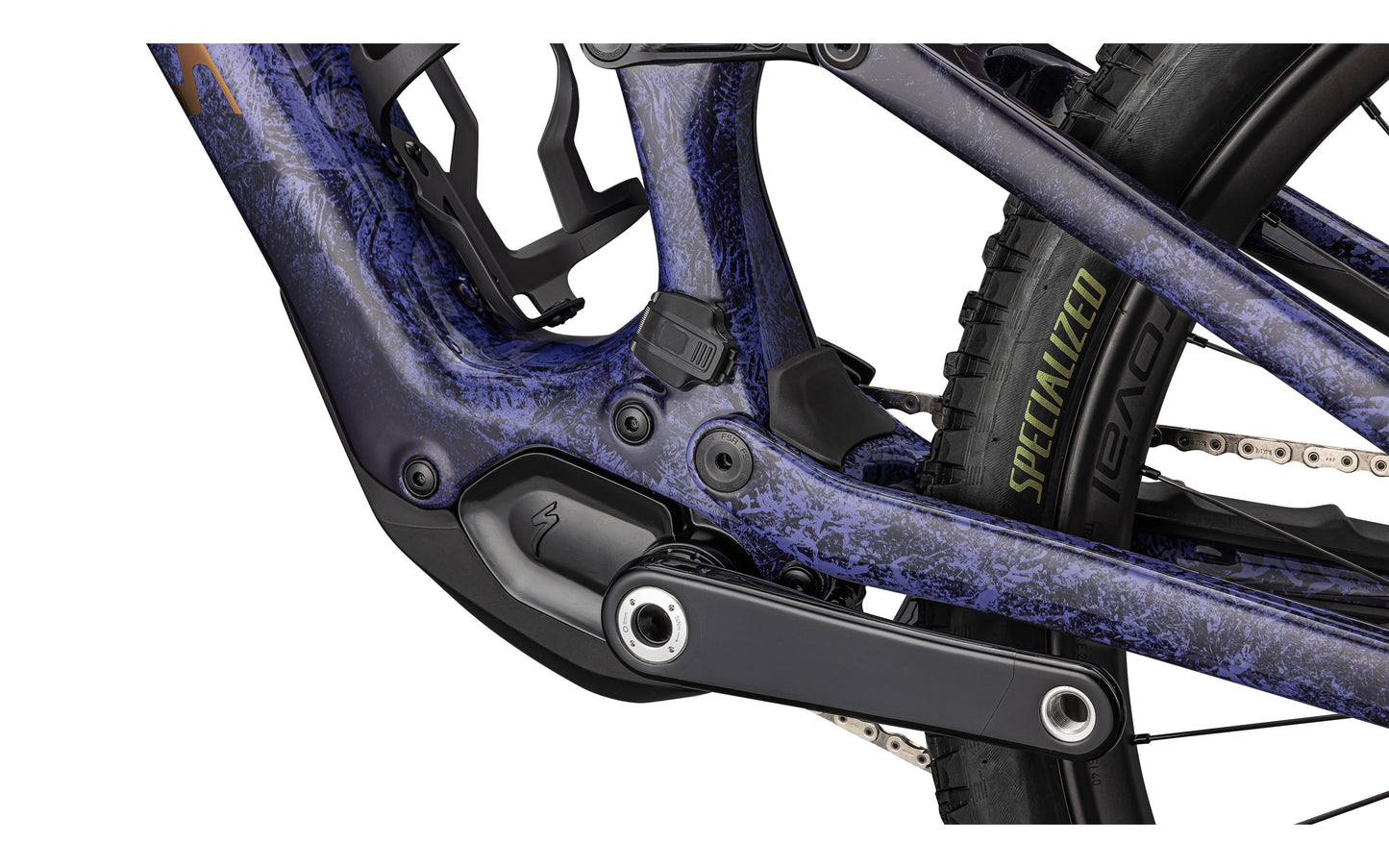

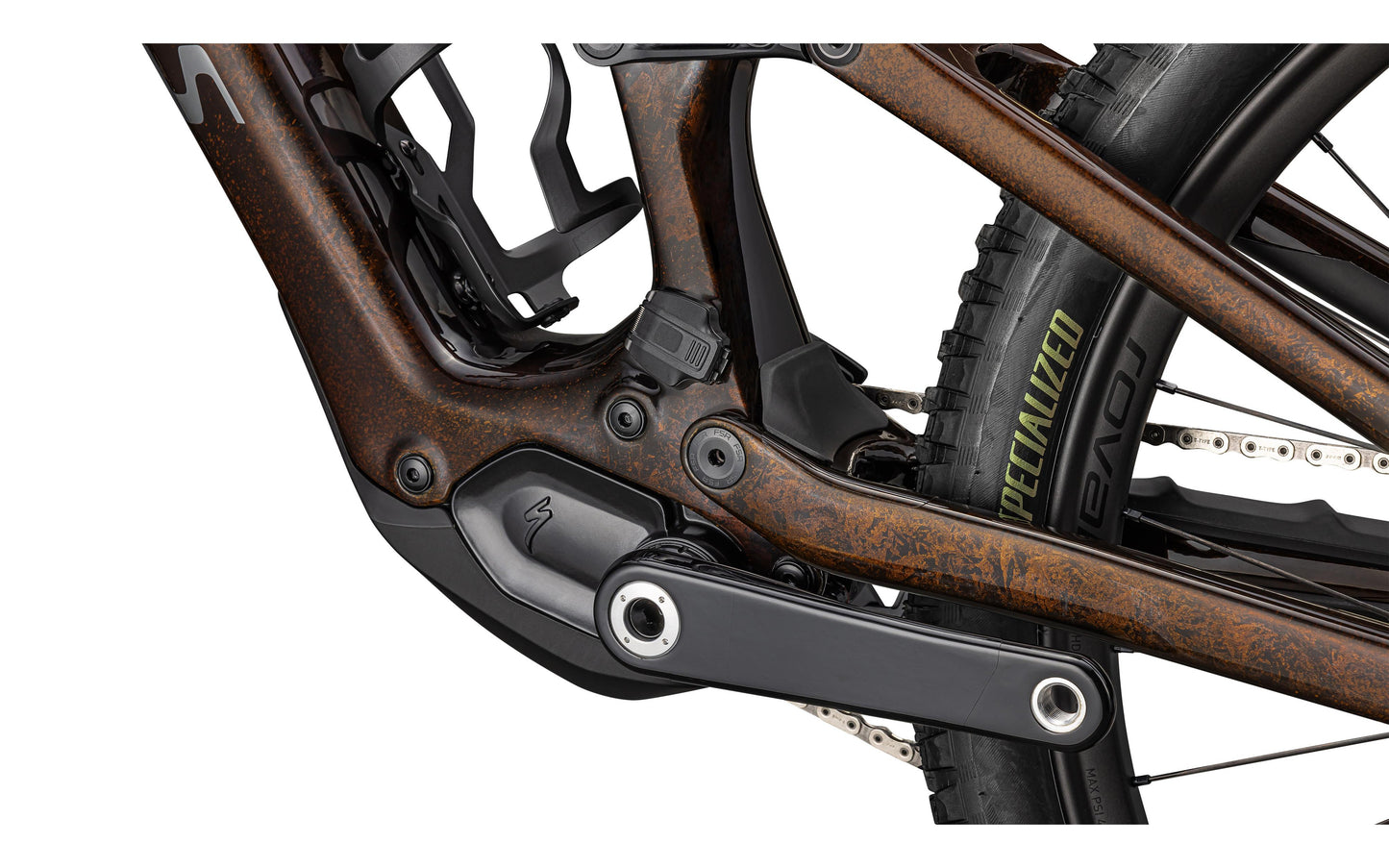

Motor
Specialized 1.2 SL Custom Rx Trail Tuned Motor
UI/Remote

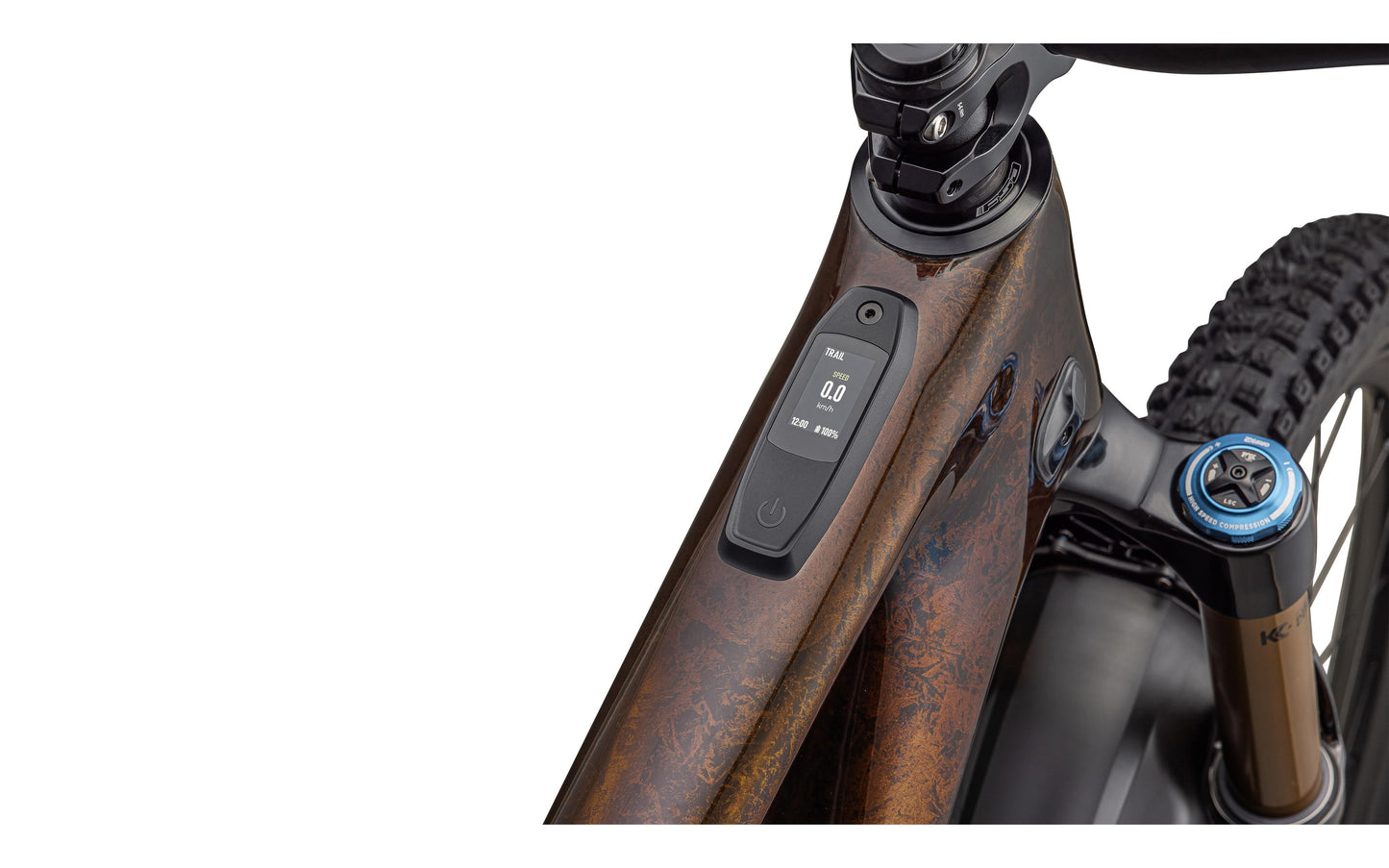

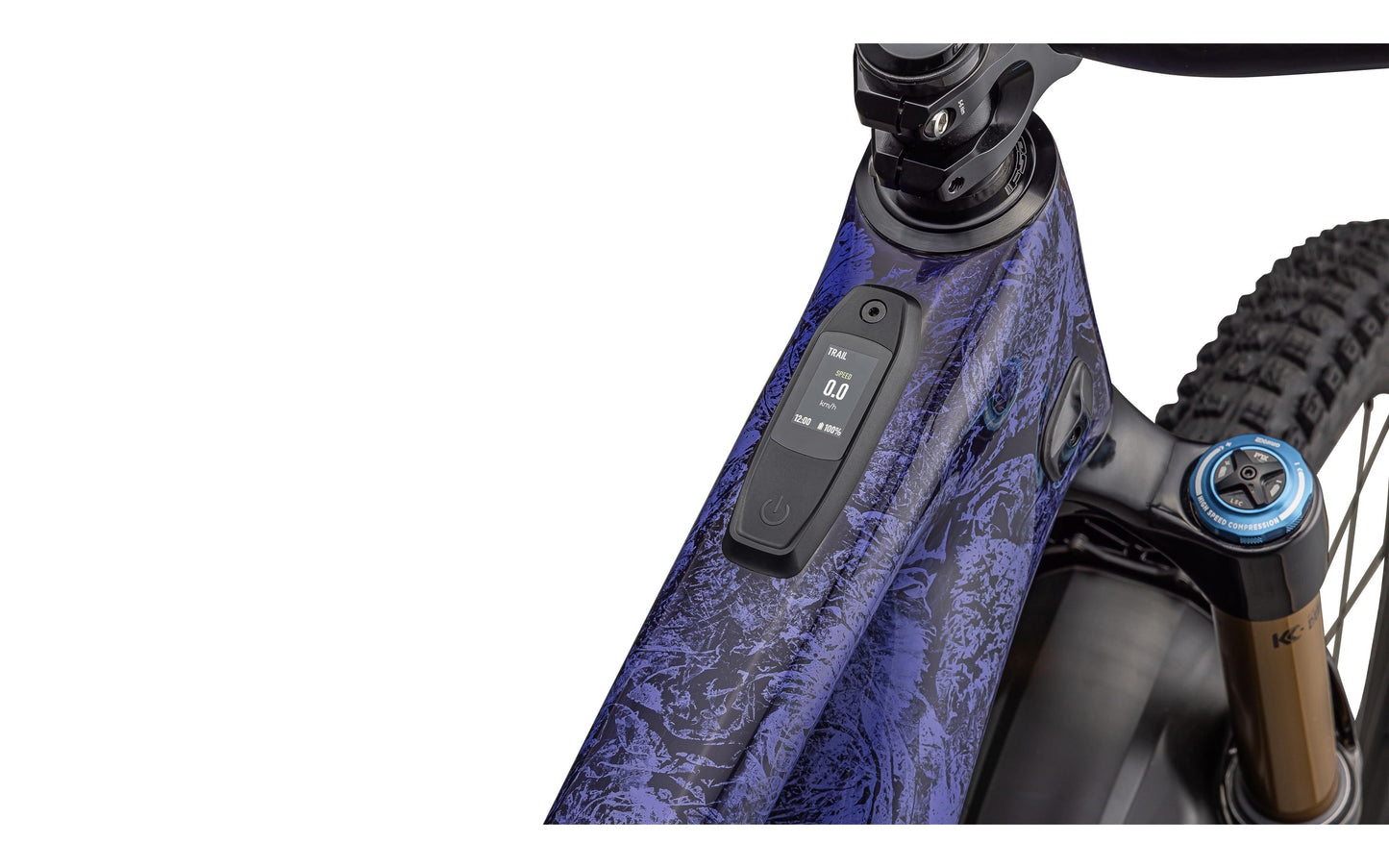

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 48V System w/ SL system charger plug
Frameset
Frame
Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Seat Binder
Alloy, 38.6mm
Cockpit

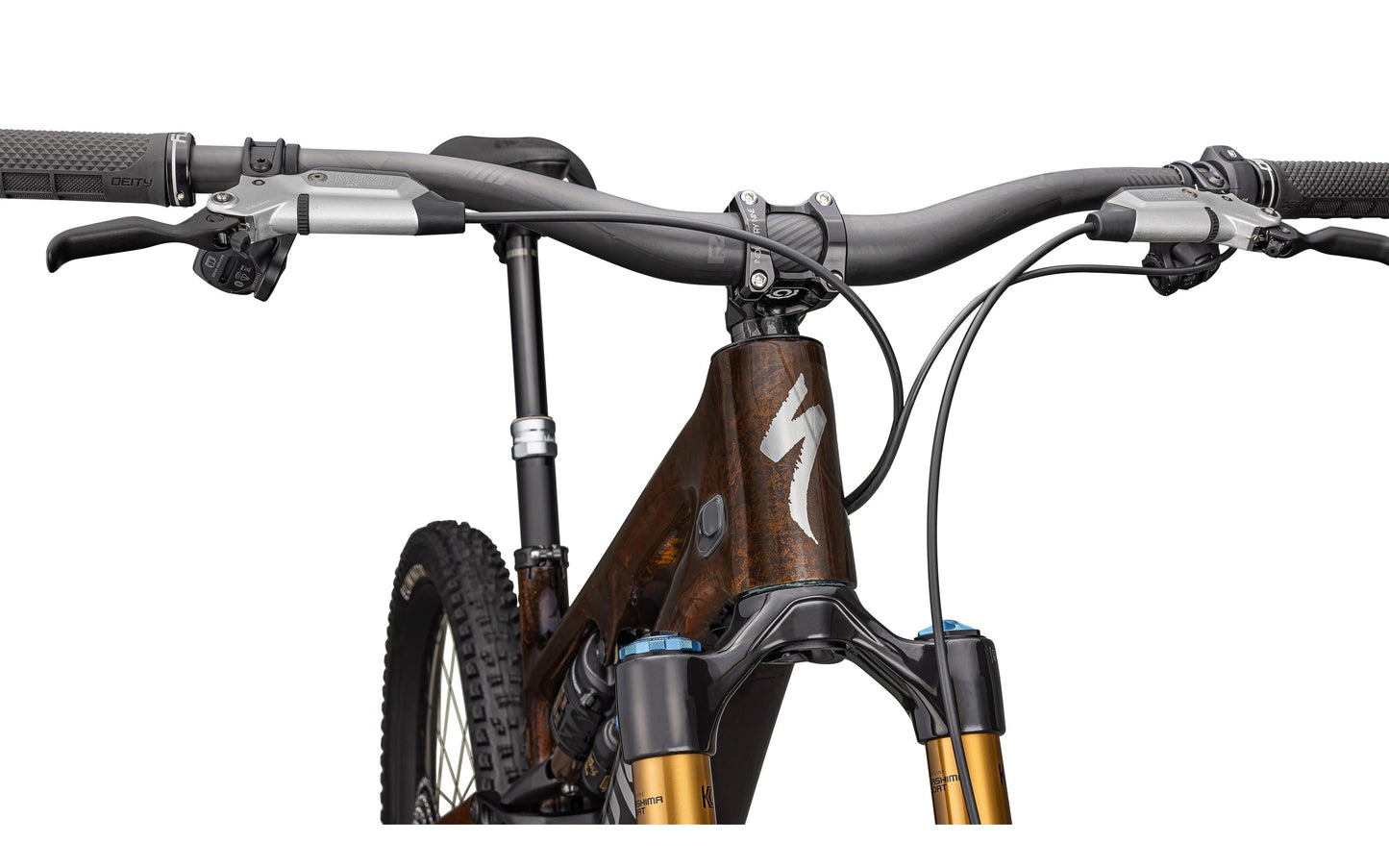

Stem
Industry 9 A35 stem, 40mm length, 35mm clamp diameter

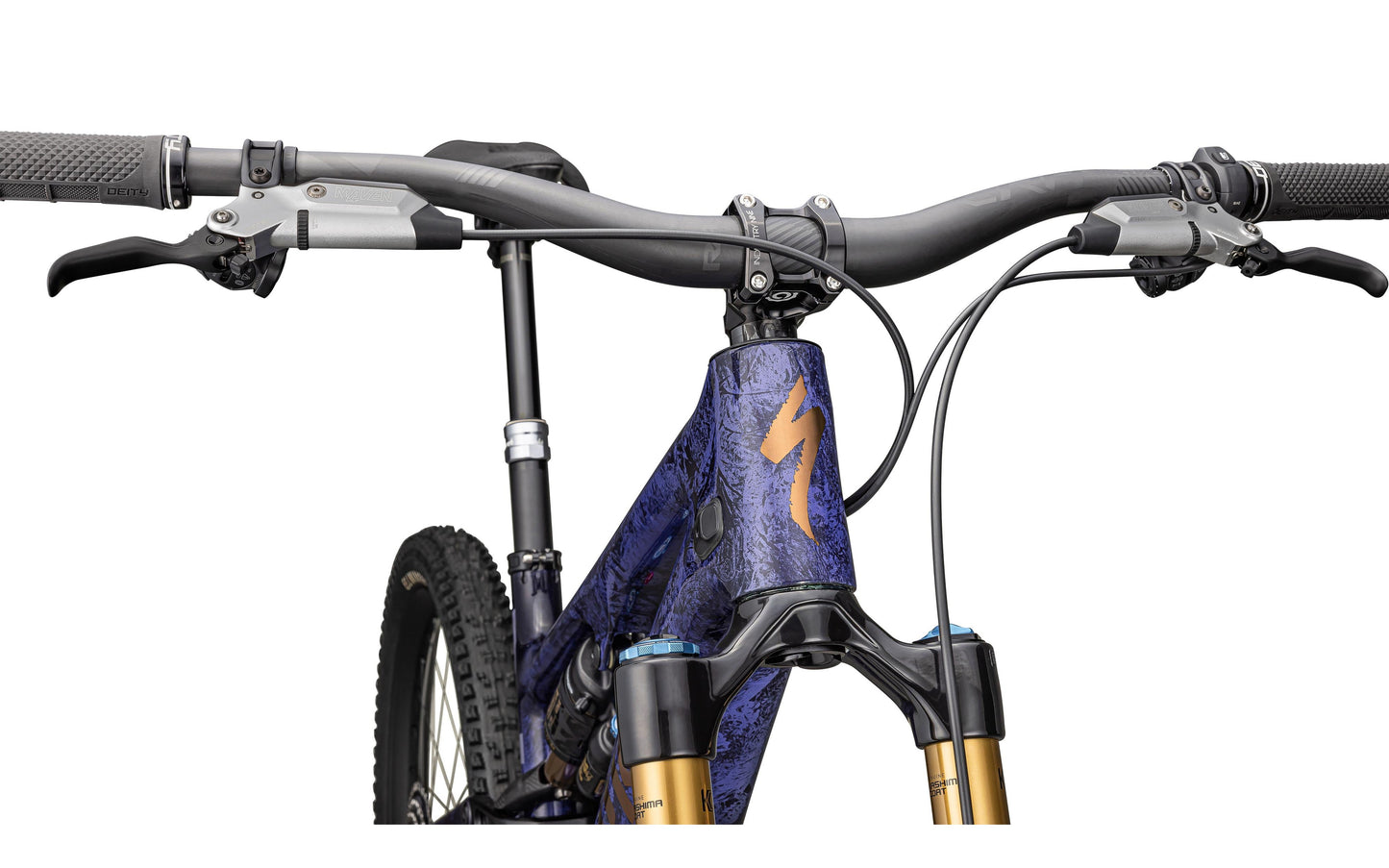

Handlebars
Raceface Era Carbon, S3-S6: 40mm rise, S1/S2: 20mm rise
Grips
Diety Lockjaw grips
Saddle
Specialized Power Pro Mirror, hollow Ti rail
SeatPost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Suspension

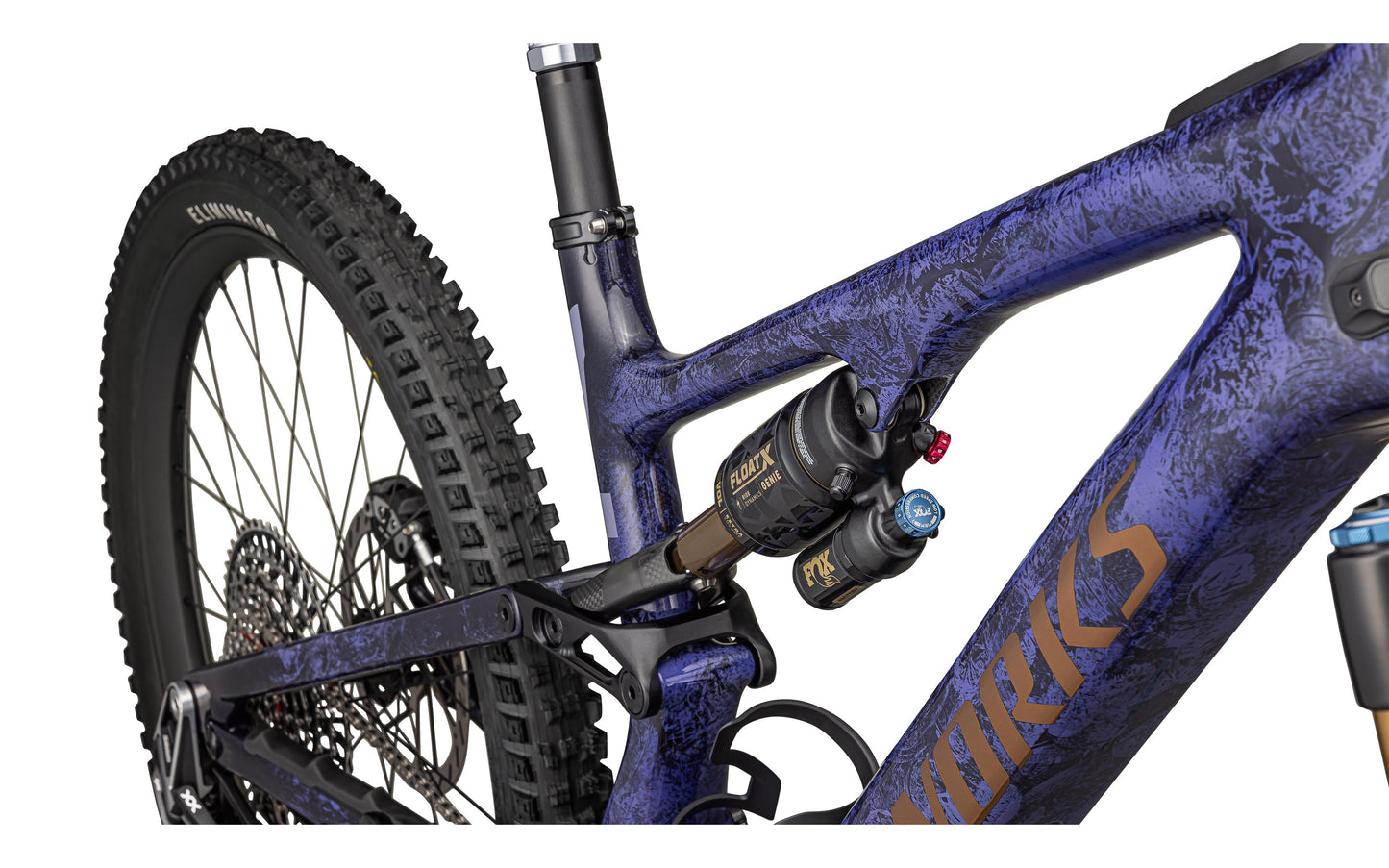

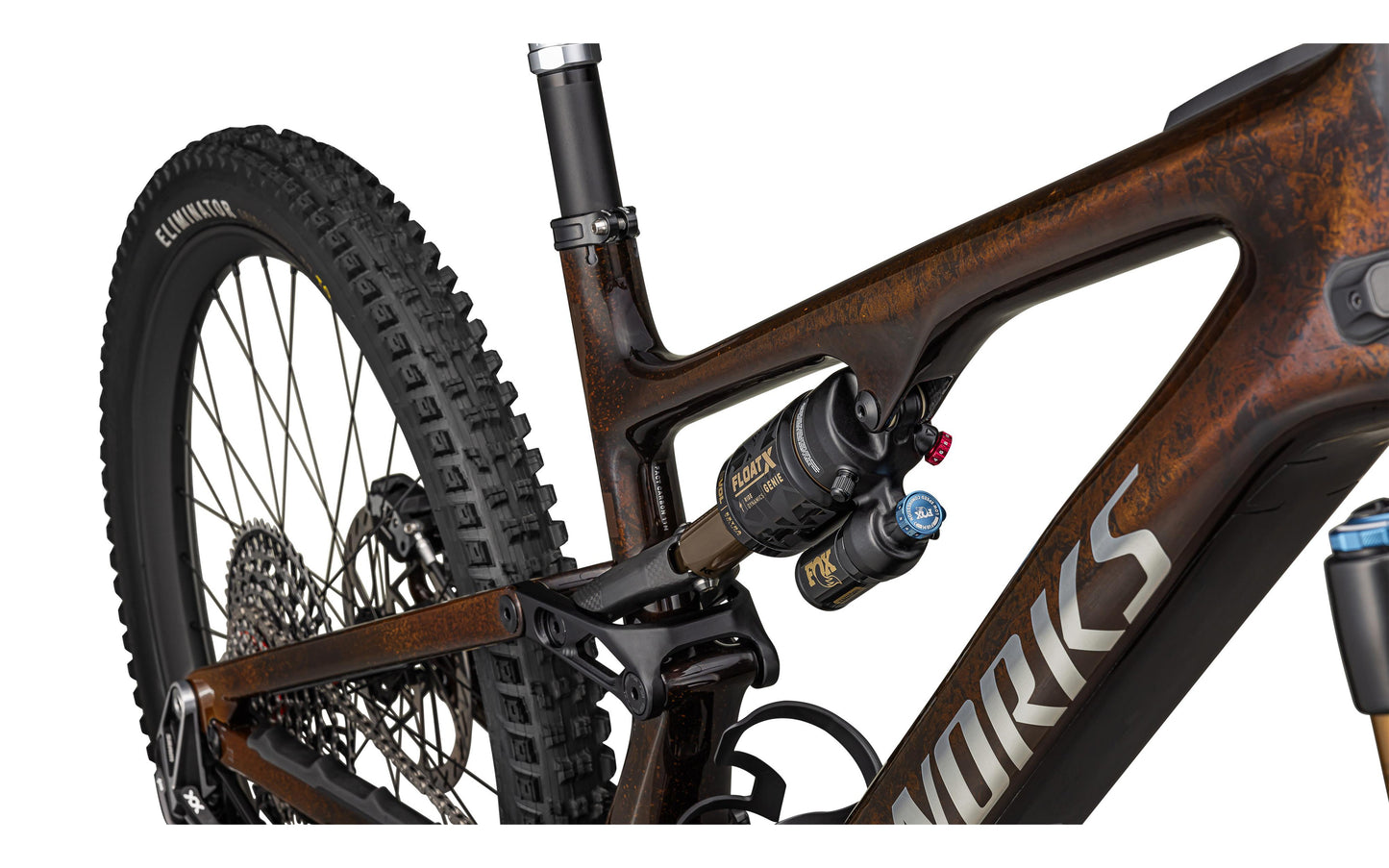

Rear Shock
FOX FLOAT Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S1:210x52.5mm, S2-S6:210x55mm
Fork
Fox 36 Factory series, 29", Grip X2 damper, Kashima, S1: 150mm, S2-S6: 160mm
Brakes
Front Brake
SRAM Maven Ultimate w/Hs2 rotor, 200mm
Rear Brake
SRAM Maven Ultimate w/Hs2 rotor, 200mm
Drivetrain
Shift Levers
SRAM AXS POD Ultimate Controller
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Cassette
SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
Chain
SRAM Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, 165mm
Crankset
SRAM Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline,165mm
Chainrings
SRAM T-type ring, 32t
Wheels & Tires
Front Wheel
Traverse HD 350, 29"
Rear Wheel
Traverse HD 350, 27.5", XD freehub body
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3"
Inner Tubes
Standard 40mm PV 29/27.5x1.75-2.4
Accessories
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Product Details
Product ID
221298
Weight
Weight
18.15 kg (40 lb, 0.2 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 165mm | 165mm | 165mm | 165mm | 165mm |
Handlebar Width | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm |
Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 100mm | 125mm | 150mm | 170mm | 170mm | 170mm |
Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
Head-Tube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Head-Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
B-B Height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
B-B Drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
Trail | 132mm | 132mm | 132mm | 132mm | 132mm | 132mm |
Fork Length, Full | 560mm | 570mm | 570mm | 570mm | 570mm | 570mm |
Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
Front-Center | 726mm | 752mm | 776mm | 806mm | 835mm | 869mm |
Chain-Stay Length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
Top Tube Length, Horizontal | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
Bike Stand-Over Height | 727mm | 763mm | 766mm | 767mm | 773mm | 778mm |
Seat-Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat-Tube Angle | 75.8° | 75.8° | 75.8° |
