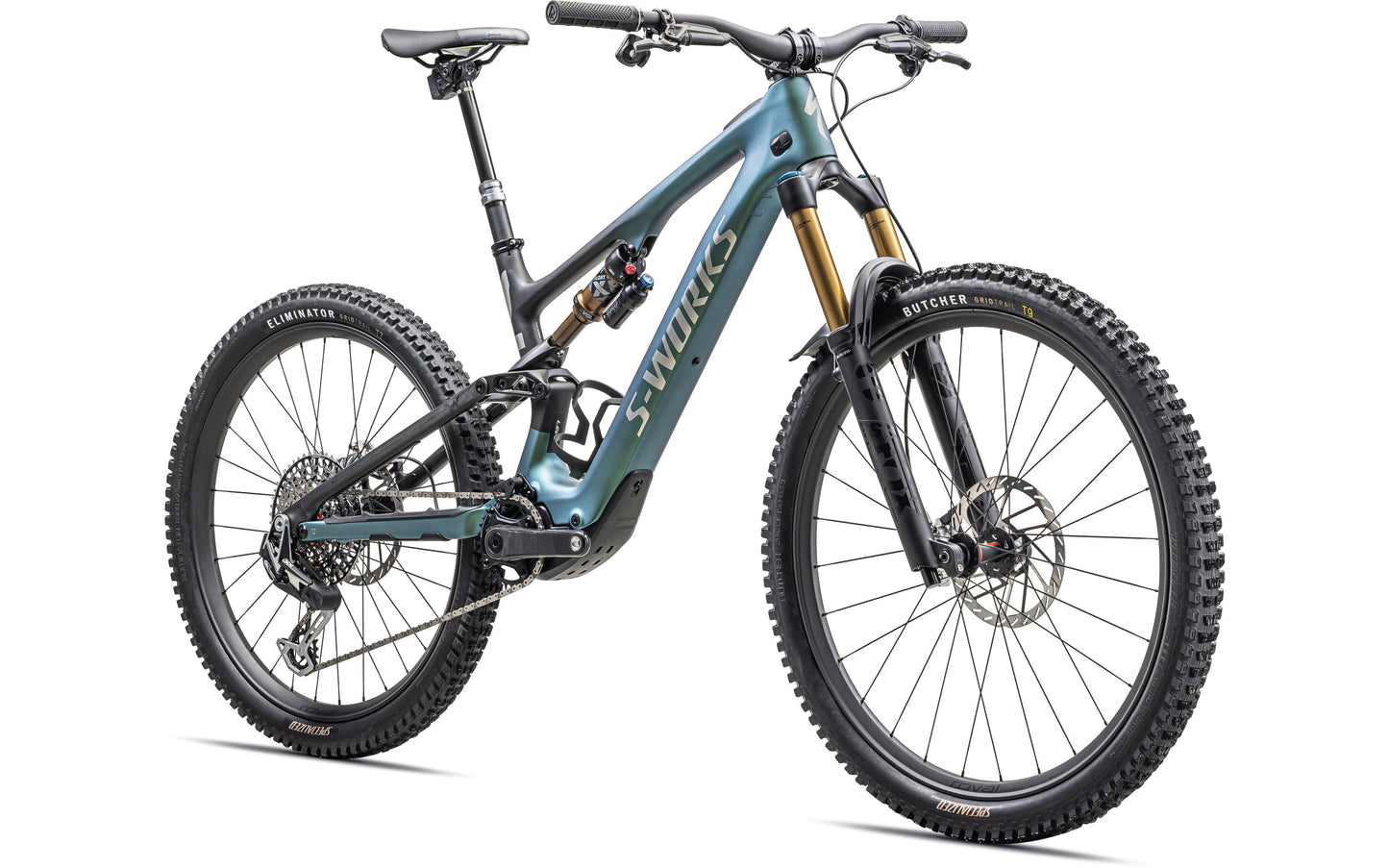

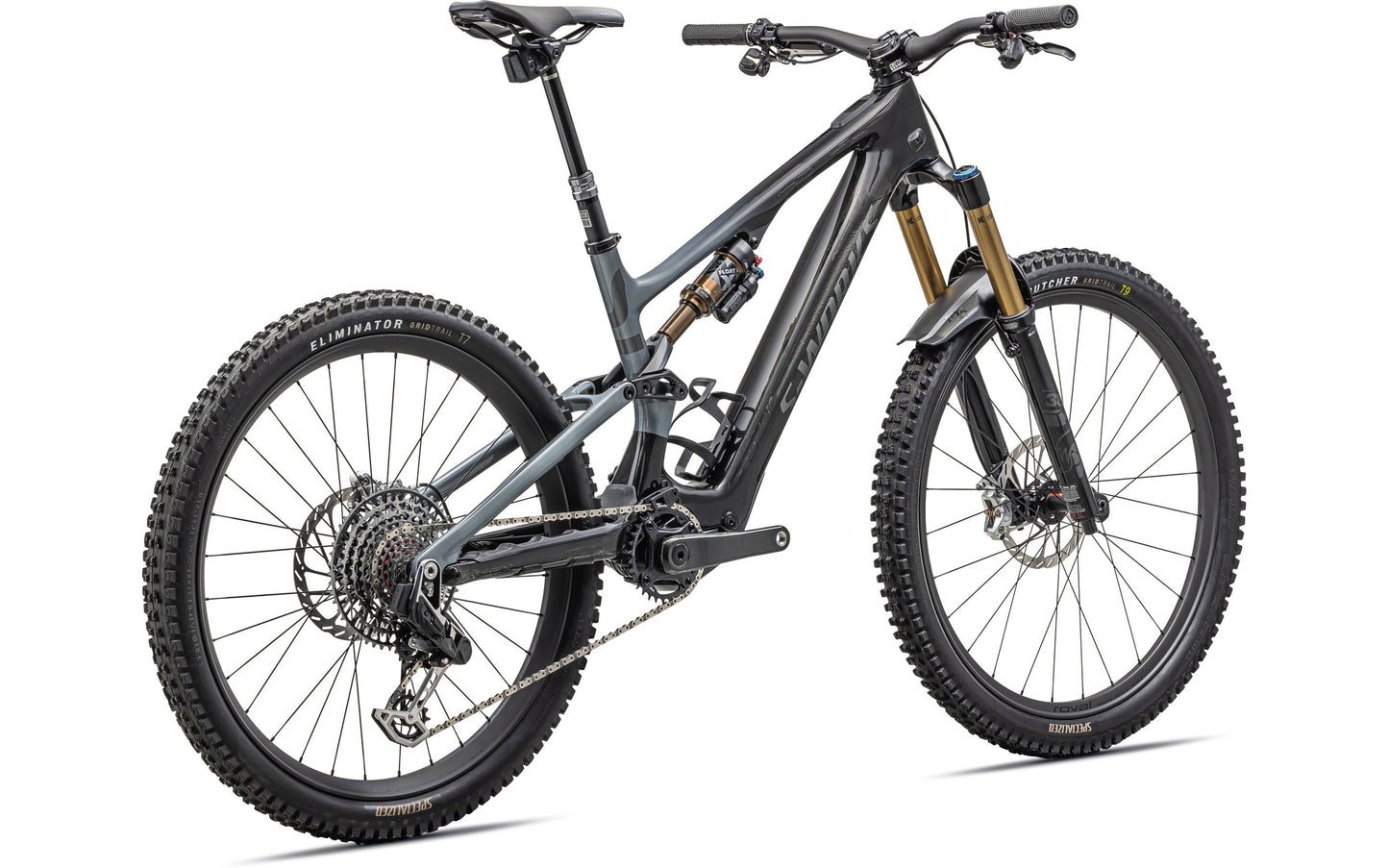

S-Works Turbo Levo SL Carbon
The Levo SL delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and “2 X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree — Levo SL is THE ULTIMATE TRAIL BIKE.
IT’S ALL ABOUT THE RIDE — When everything works just right a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.
THE FRAME OF REFERENCE — Everything starts here. Lively, precise ride feel. Strategic carbon fiber layup provides super-responsive chassis stiffness. We tuned the entire chassis—front end, rear end, and the link that unifies them—as a single unit to minimize lateral flex under pedaling to harness every bit of pedal force.

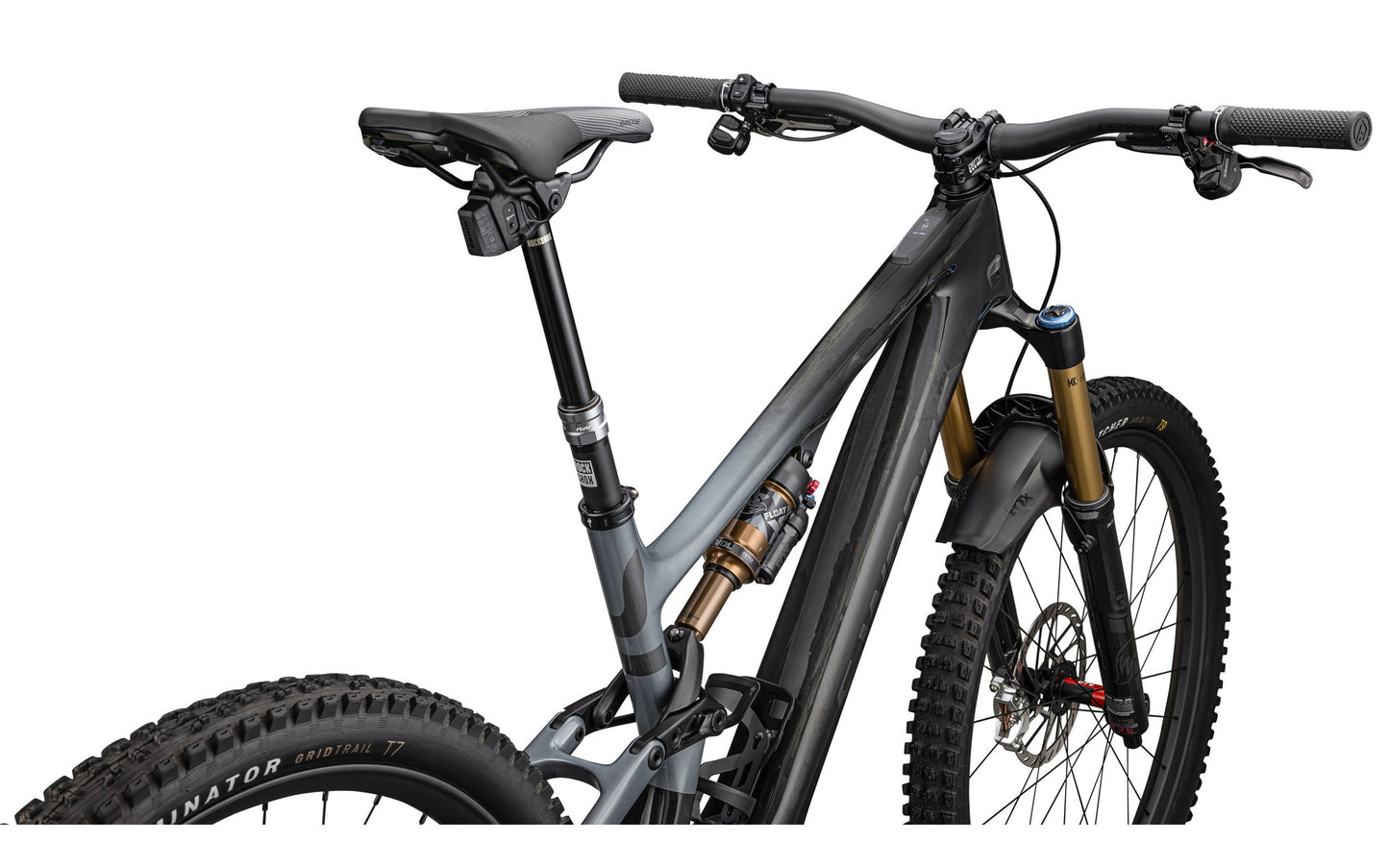

GEOMETRY OF CONTROL — The cockpit centers you in the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle, and reduced fork offset keep things stable in the rough while giving you the freedom to destroy the turns. The head angle can be personalized to, 63, 64.25, and 65.5 degrees.
LESS IS MORE – The Levo SL is greyhound lean and telepathically responsive. Its curated component selection is light, yet capable—for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.

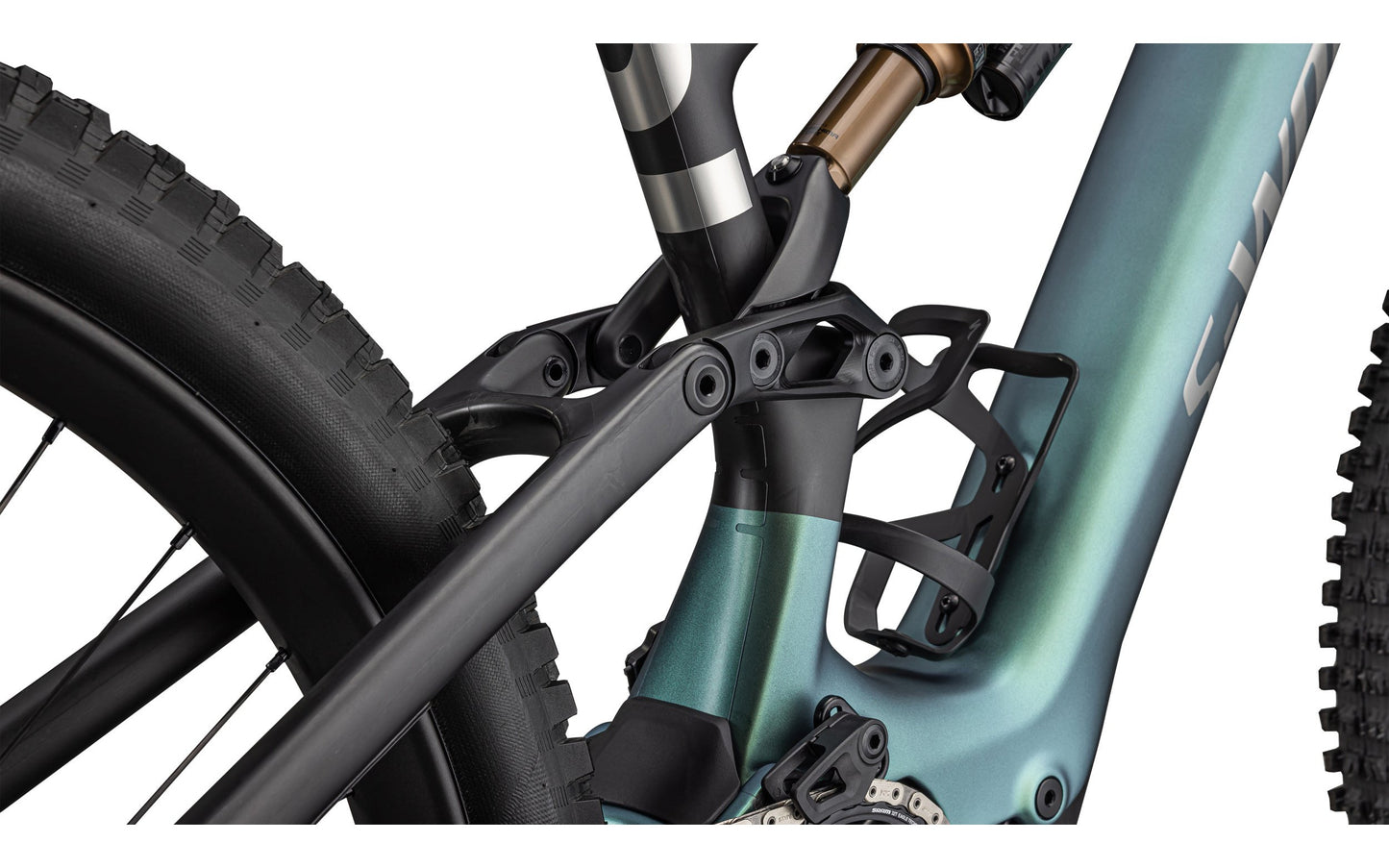

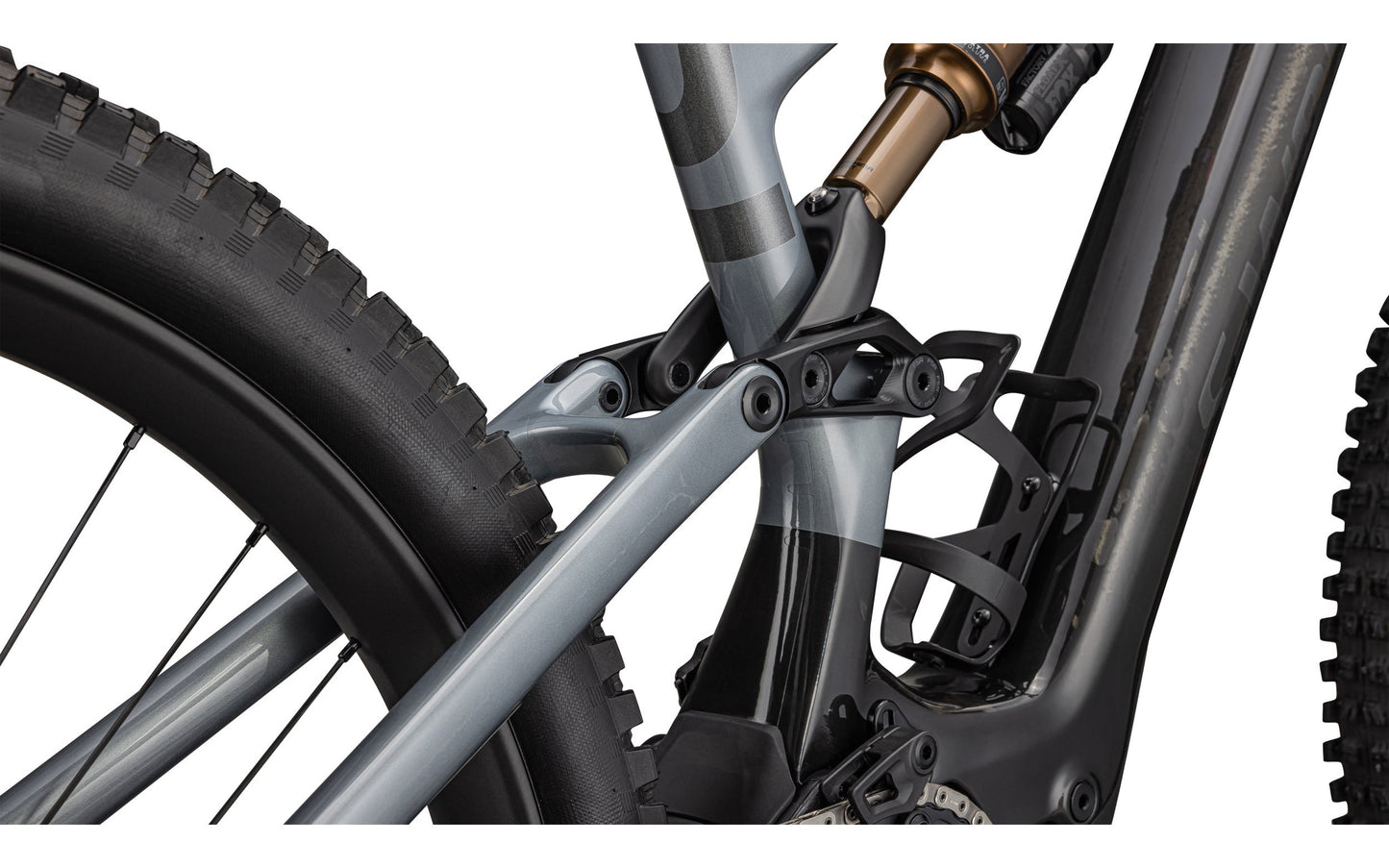

MIXED WHEEL — A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a compact chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.
TURBO OPERATING SYSTEM — Our seamlessly-integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

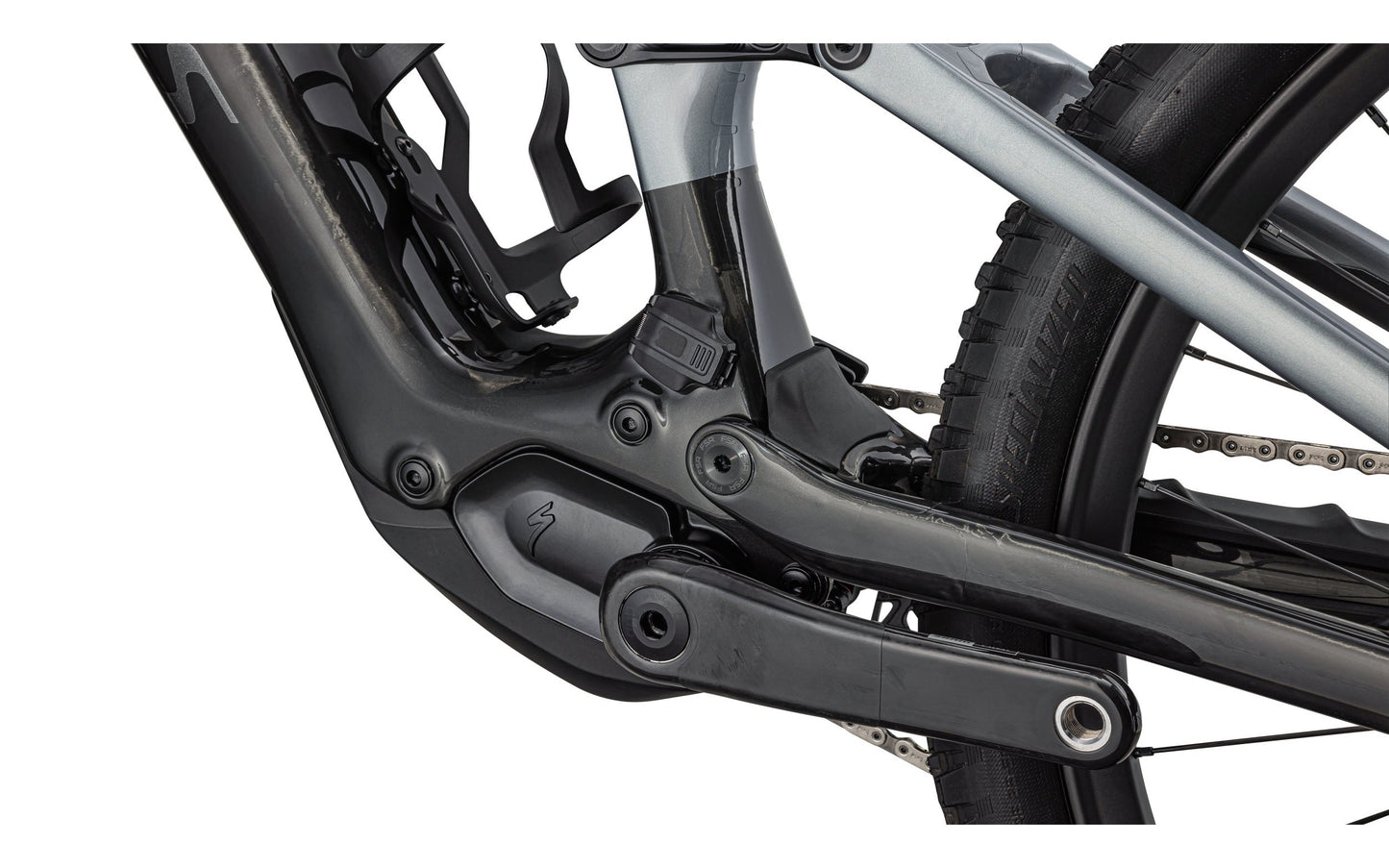

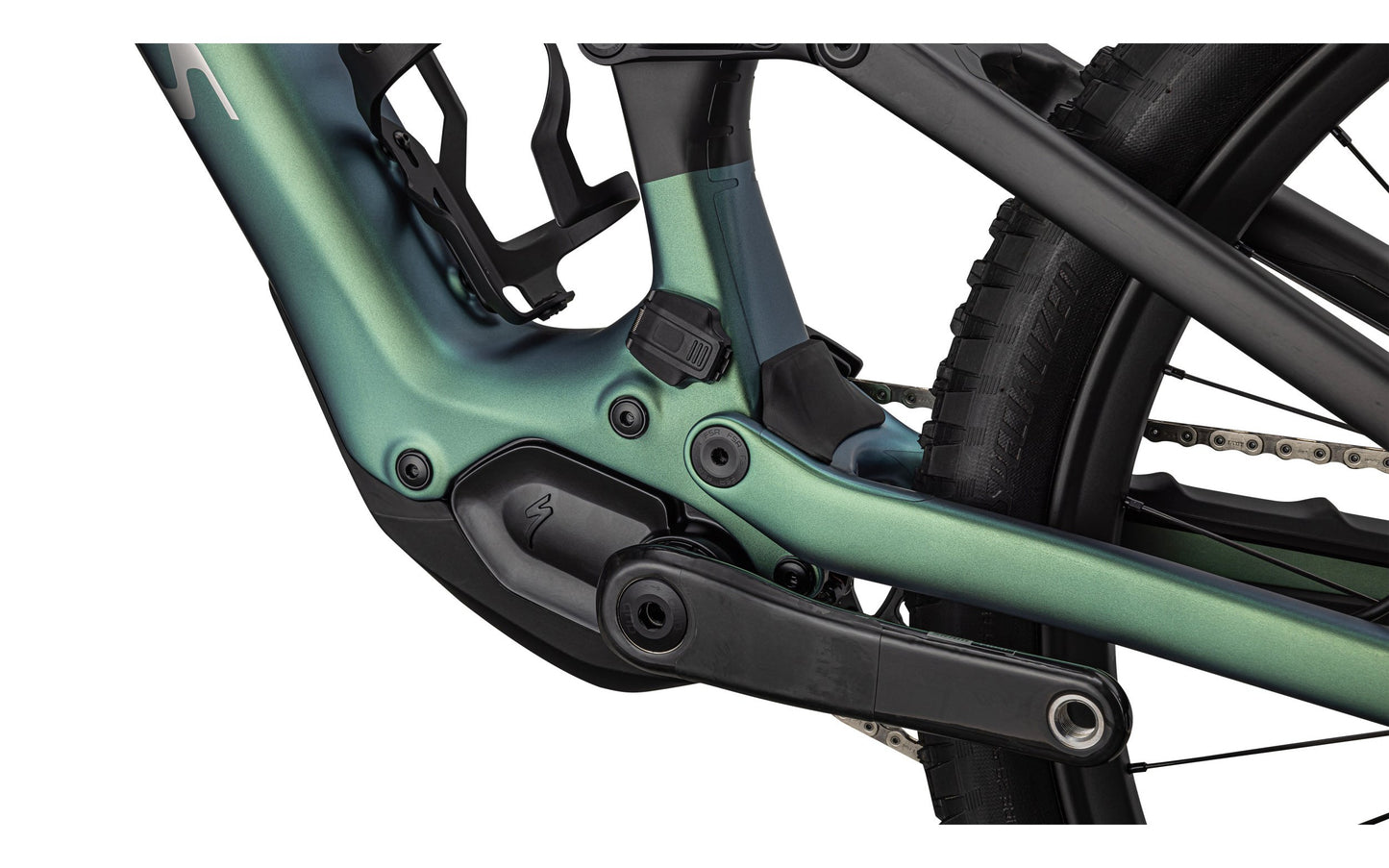

SPECIALIZED SL 1.2 MOTOR — The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor. Resulting in “2x You” performance
- All new carbon frame, comes in mixed wheel configuration (compatible to 29 rear with no extra parts needed.) New kinematic with flatter leverage curve which provides more support and playfulness off the top, but plenty of control in rougher conditions. The headtube angle and bottom bracket height are both adjustable.
- Worried about running out of power? No problem. Turbo Levo SL eats up big miles and long days. And if you’re looking for even more miles, our included range extender boosts your range by another 50 percent. On top of all that, our Specialized app can handle battery management automatically, ensuring your battery will last as long as you need it to.
- New SRAM XX Eagle transmission
- New SRAM Code Stealth Ultimate brakes
Share
Technical Specifications
Frameset
Frame
All new Levo SL SW Frame, Fact 11m carbon, carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Seat Binder
Alloy, 38.6mm
E-Bike
Motor
New Specialized 1.2 SL Custom Rx Trail Tuned Motor
UI/Remote

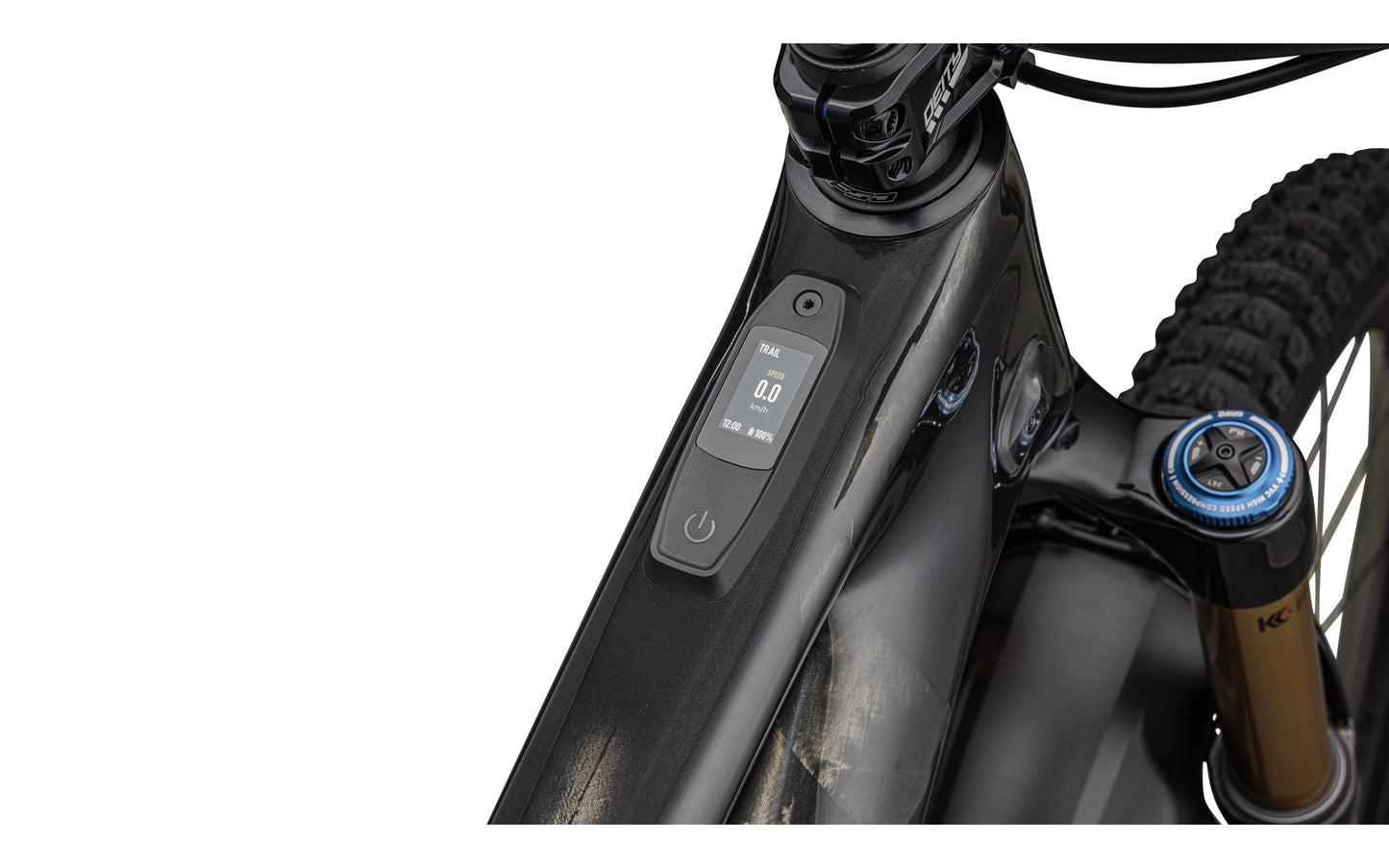

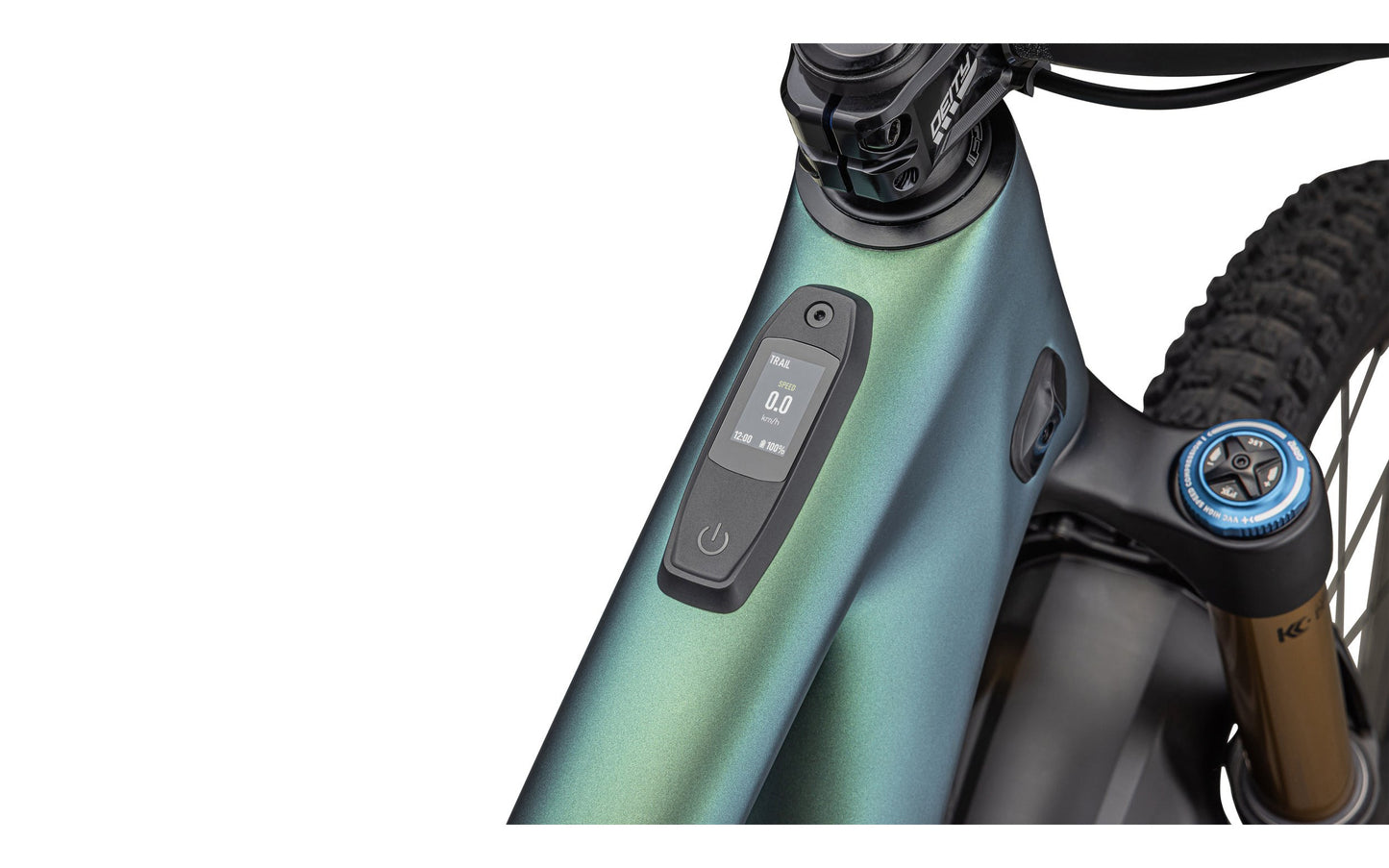

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Wiring Harness
Custom Specialized wiring harness
Accessories
SWAT
SWAT CC tool inside steerer
Suspension

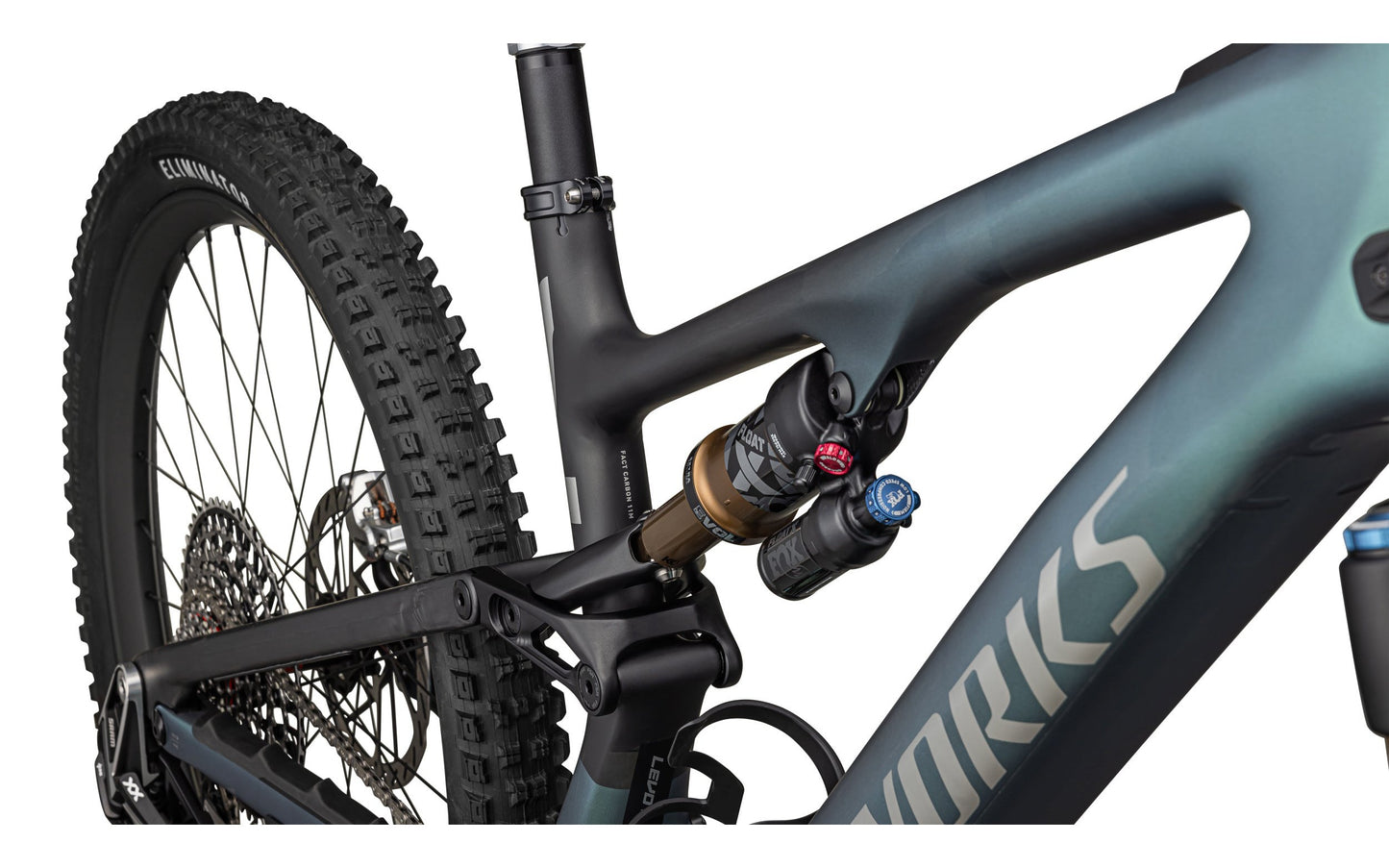

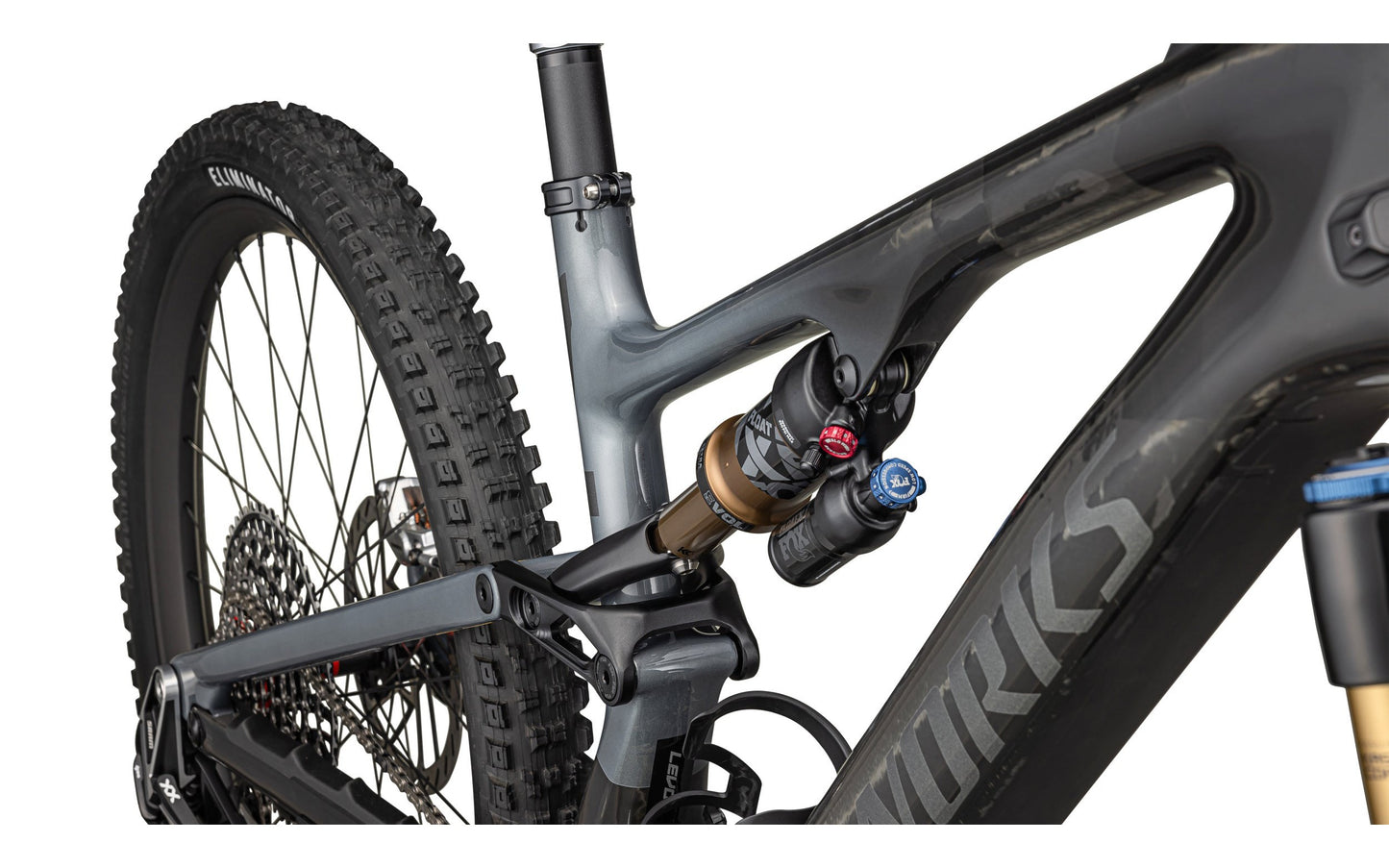

Rear Shock
S1: Fox Float Factory, 210x50mm, S2-S6: Fox Float X Factory, 210.55mm
Fork
Fox 36 Factory series, 29", S1: 150mm, S2-6:160mm
Cockpit
SeatPost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Saddle
Specialized Bridge Expert Mimic saddle
Stem
Deity, 35.0mm

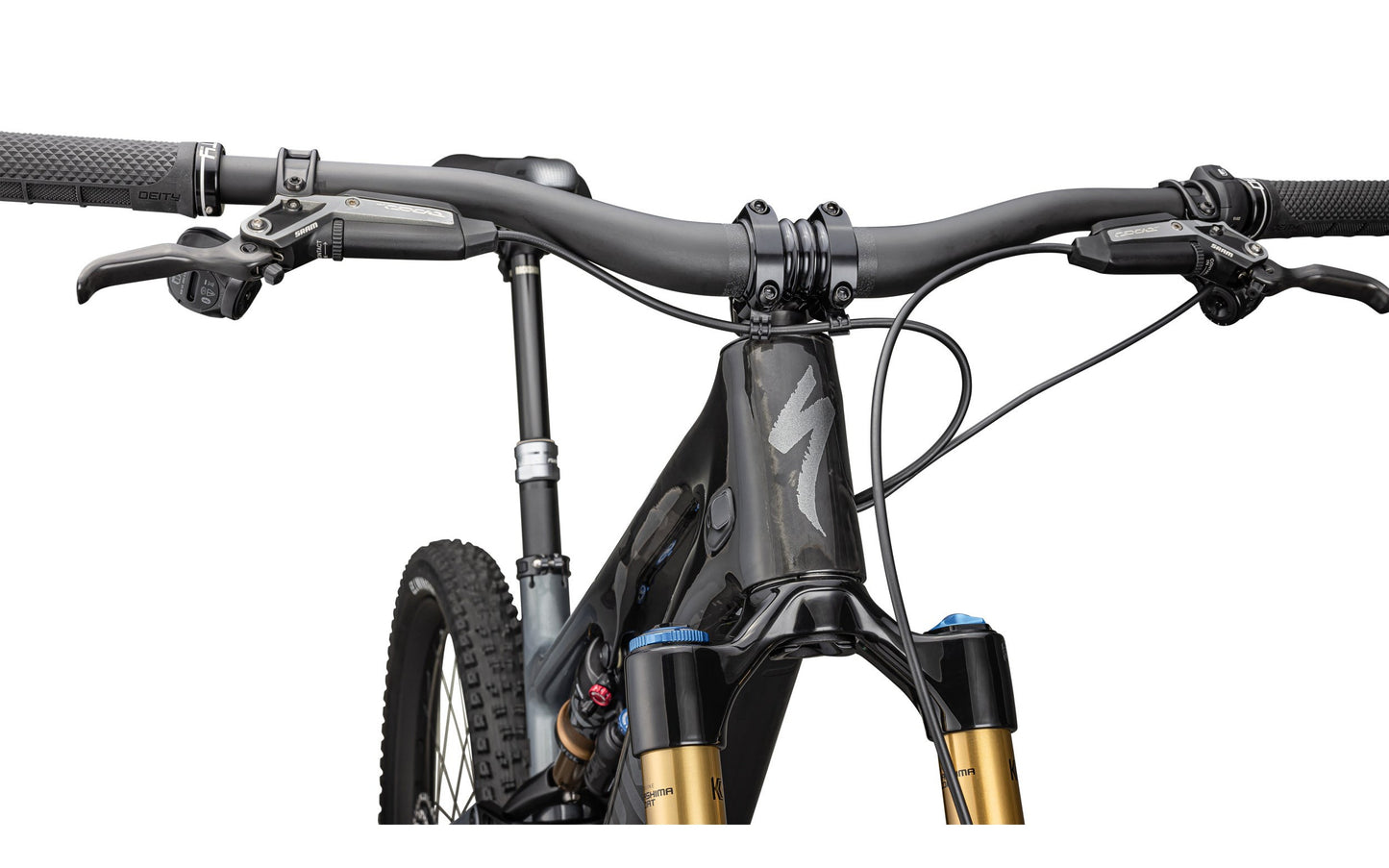

Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips
Diety Lockjaw grips
Wheels & Tires
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Inner Tubes
Presta, Standard Valve
Front Wheel
TRAVERSE HD 240 29 27.5 28H 32H
Rear Wheel
WH-TRAVERSE HD 240 29 27.5 28H 32H
Brakes
Rear Brake
SRAM Code Ultimate, 200mm rotor
Front Brake
SRAM Code Ultimate, 200mm rotor
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Shift Levers
SRAM AXS POD Ultimate Controller
Cassette
SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
Chain
SRAM XX Eagle Transmission Flattop Chain
Crankset
SRAM Dub carbon cranks, 165/170/175mm
Chainrings
SRAM T-type ring, 32t
Weight
Weight
17.58kg (38 lb, 12.1 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 165mm | 170mm | 170mm | 170mm | 175mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
Stem Length | 35mm | 35mm | 35mm | 35mm | 50mm | 50mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 100mm | 125mm | 150mm | 170mm | 170mm | 170mm |
Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
Head-Tube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Head-Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
B-B Height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
B-B Drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
Trail | 132mm | 132mm | 132mm | 132mm | 132mm | 132mm |
Fork Length, Full | 560mm | 570mm | 570mm | 570mm | 570mm | 570mm |
Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
Front-Center | 726mm | 752mm | 776mm | 806mm | 835mm | 869mm |
Chain-Stay Length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
Top Tube Length, Horizontal | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
Bike Stand-Over Height | 727mm | 763mm | 766mm | 767mm | 773mm | 778mm |
Seat-Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat-Tube Angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
