SPECIALIZED

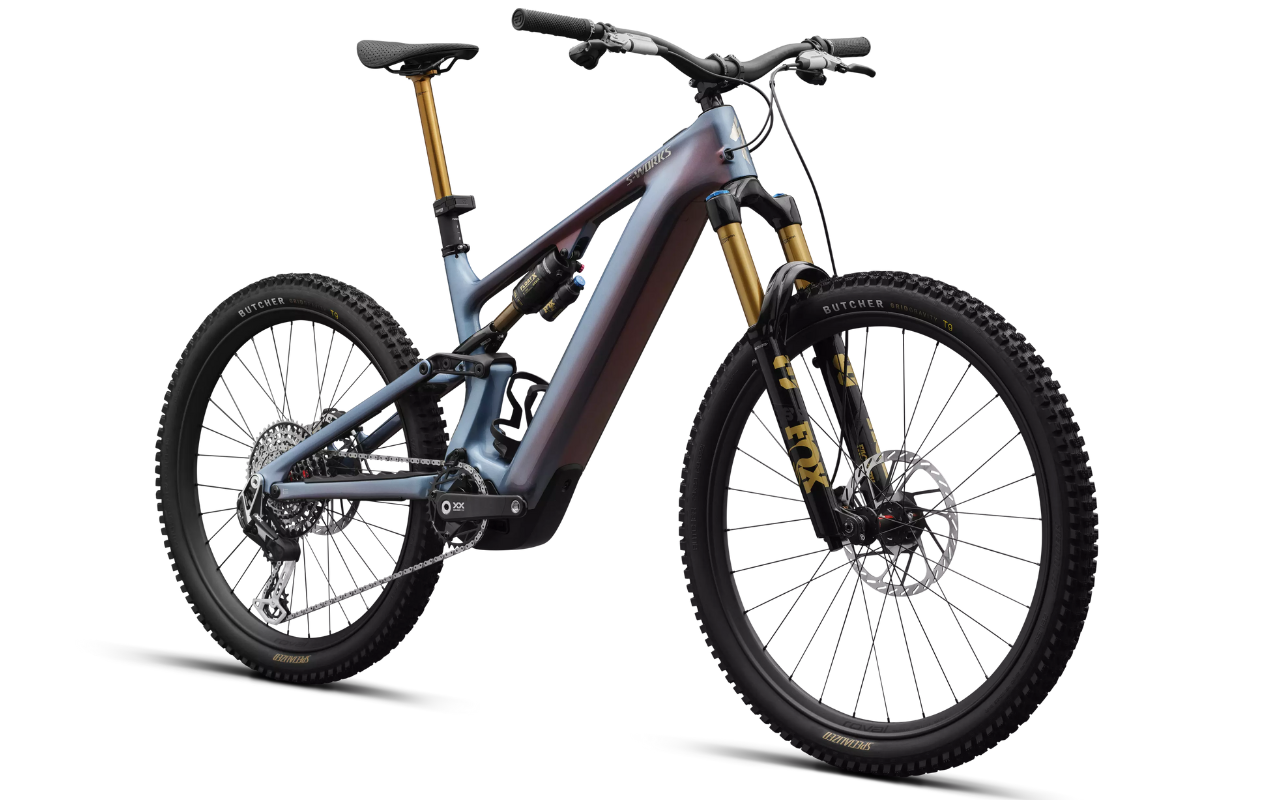

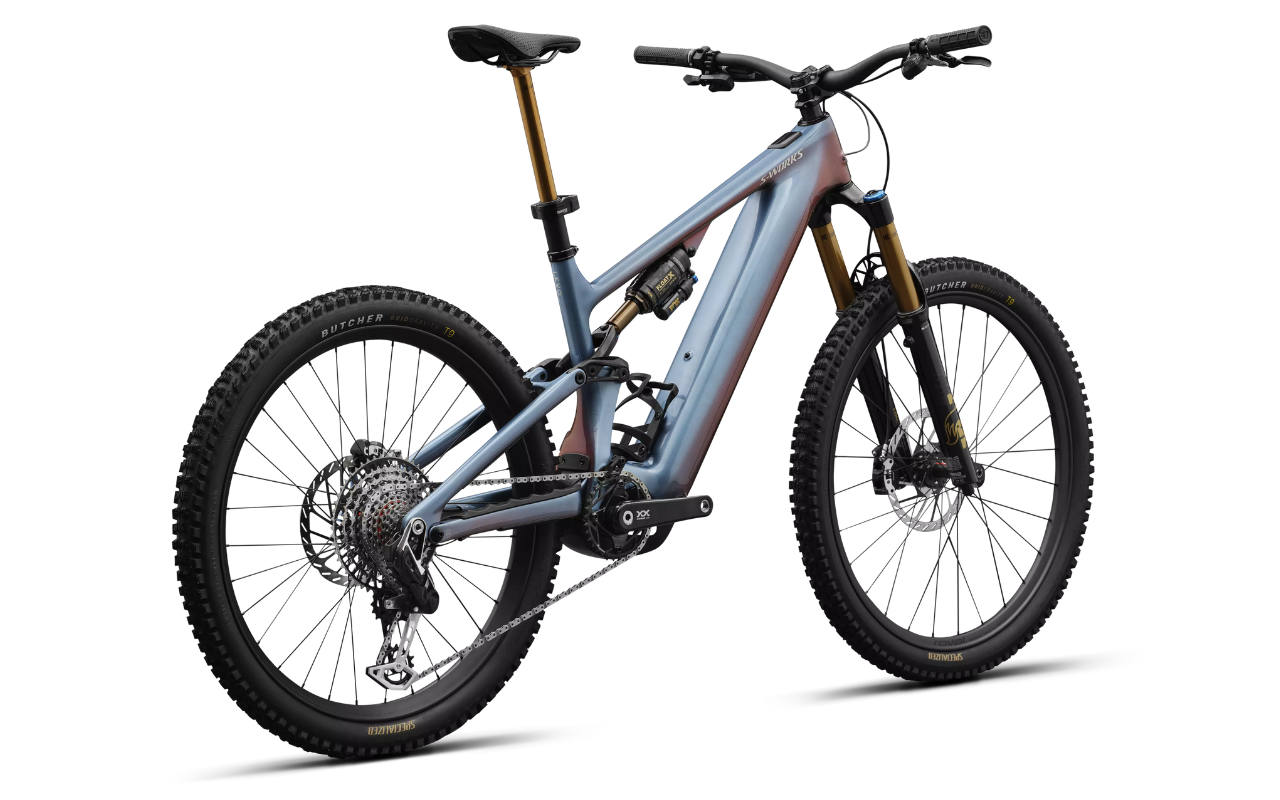

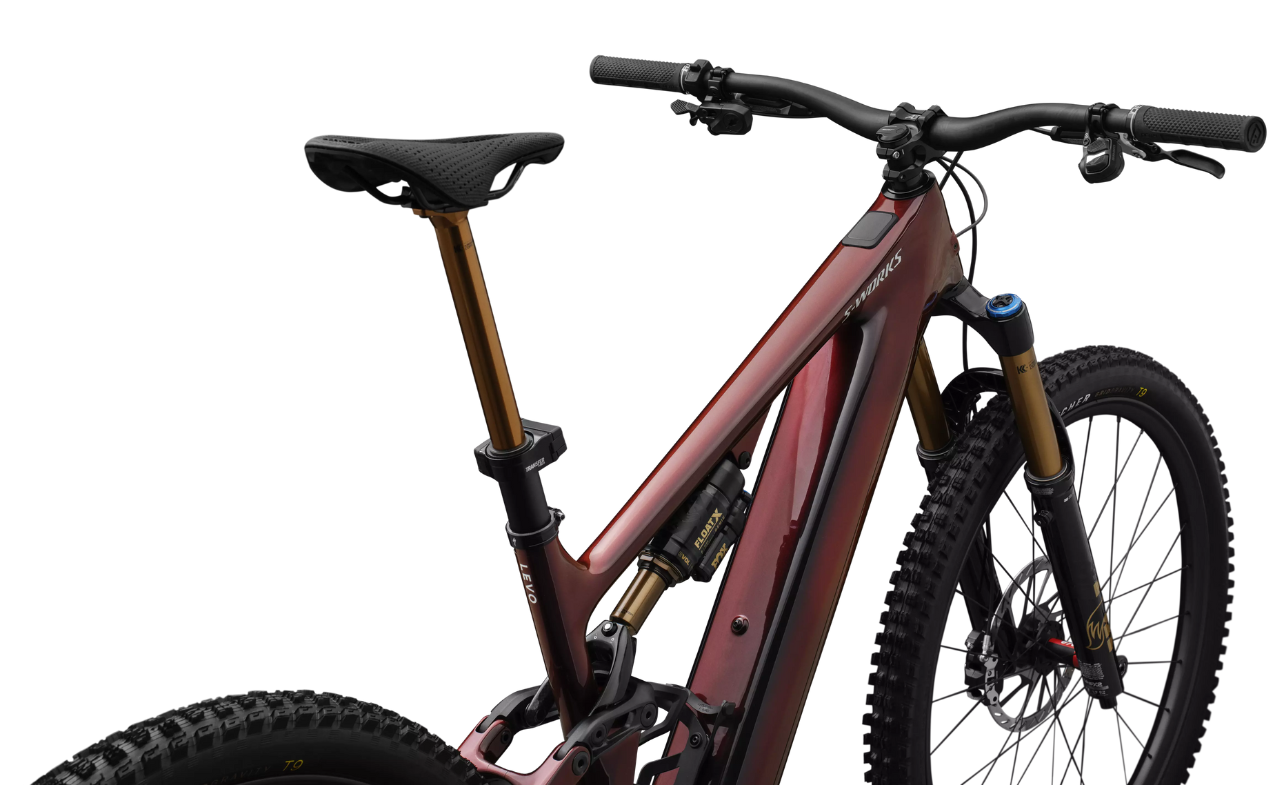

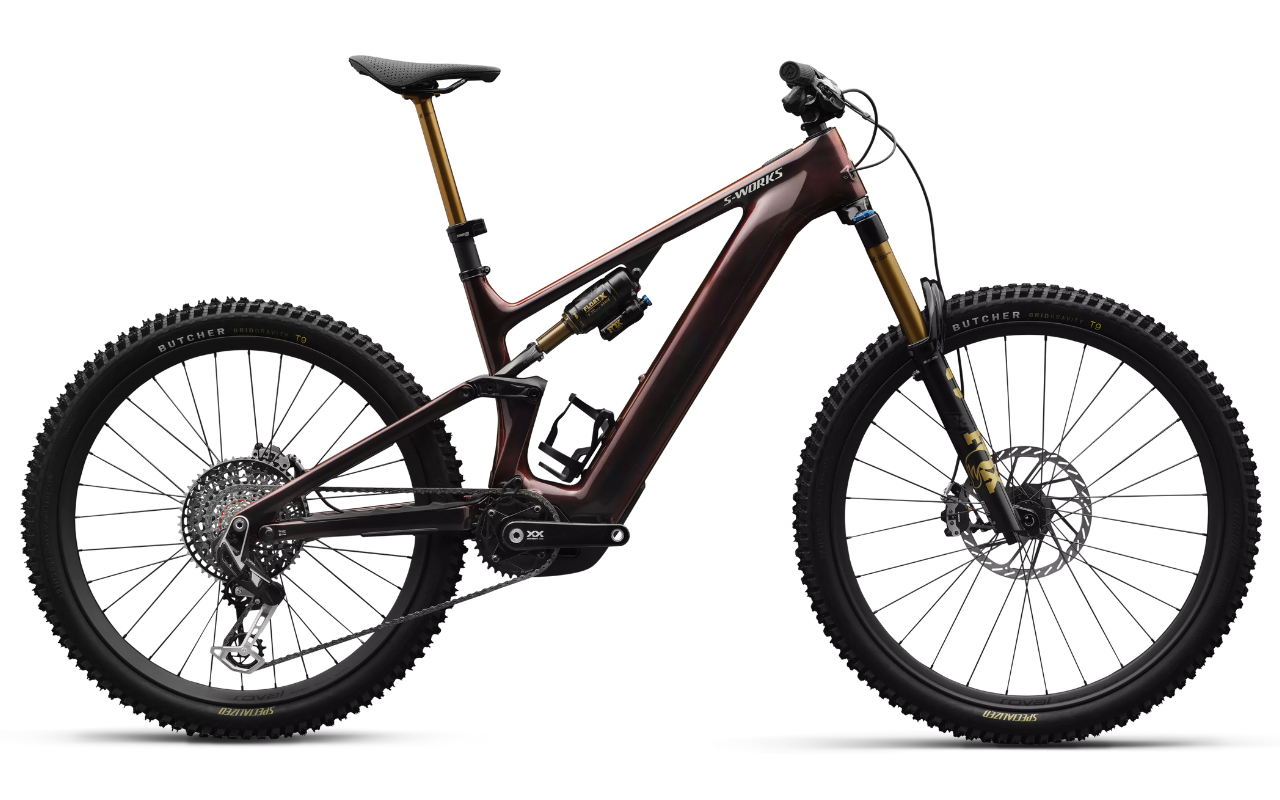

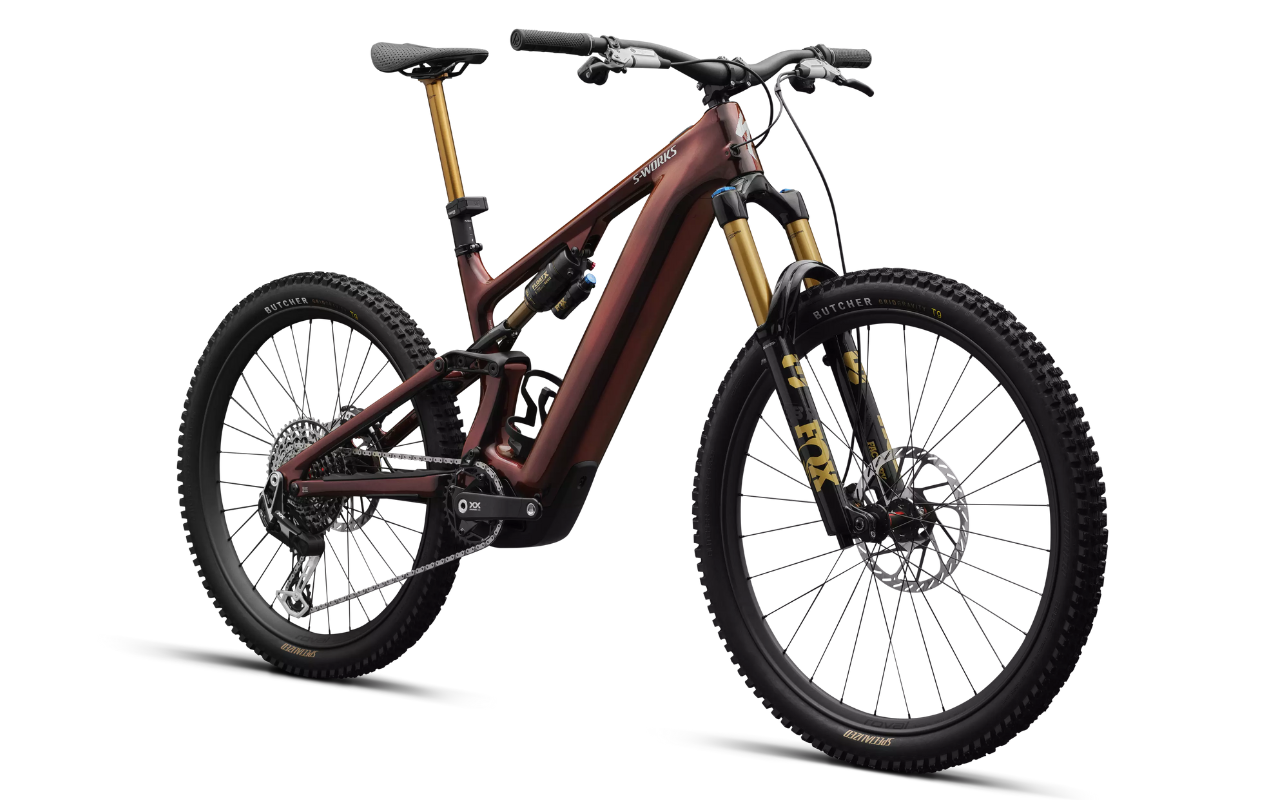

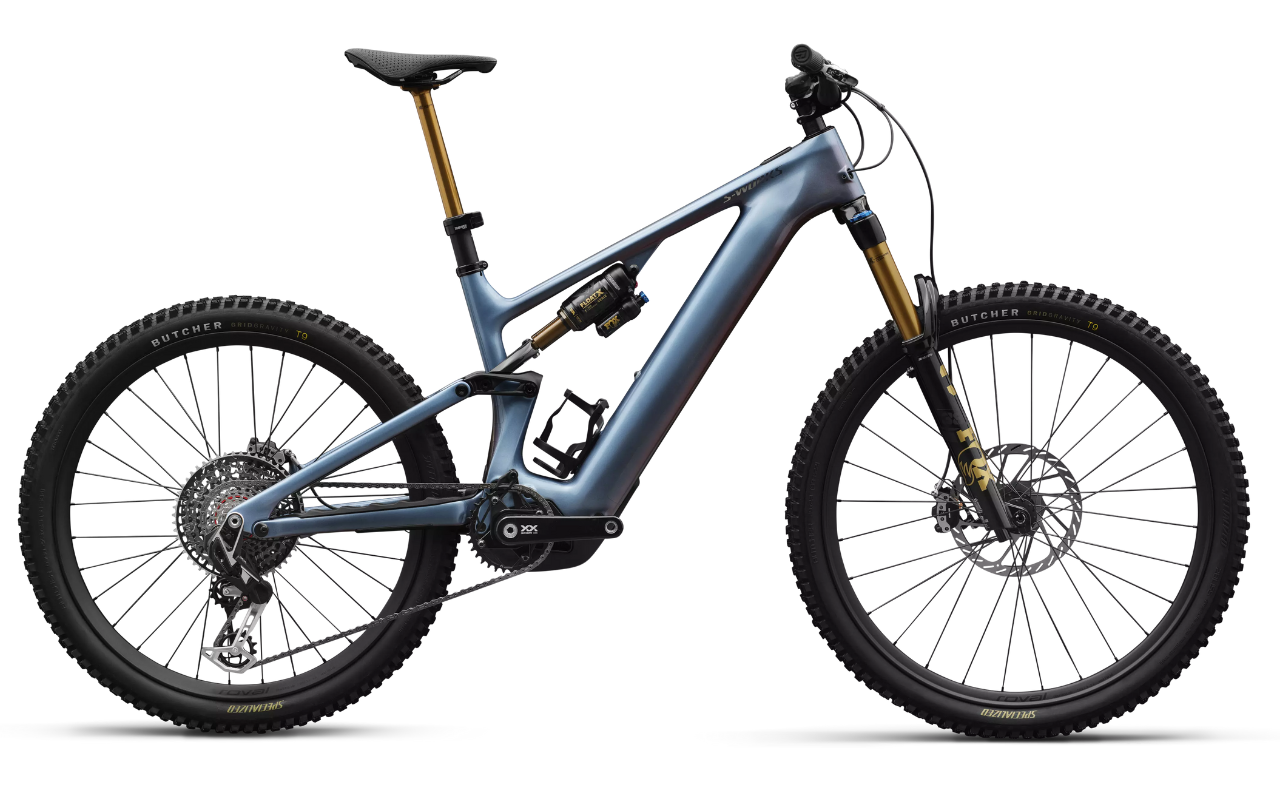

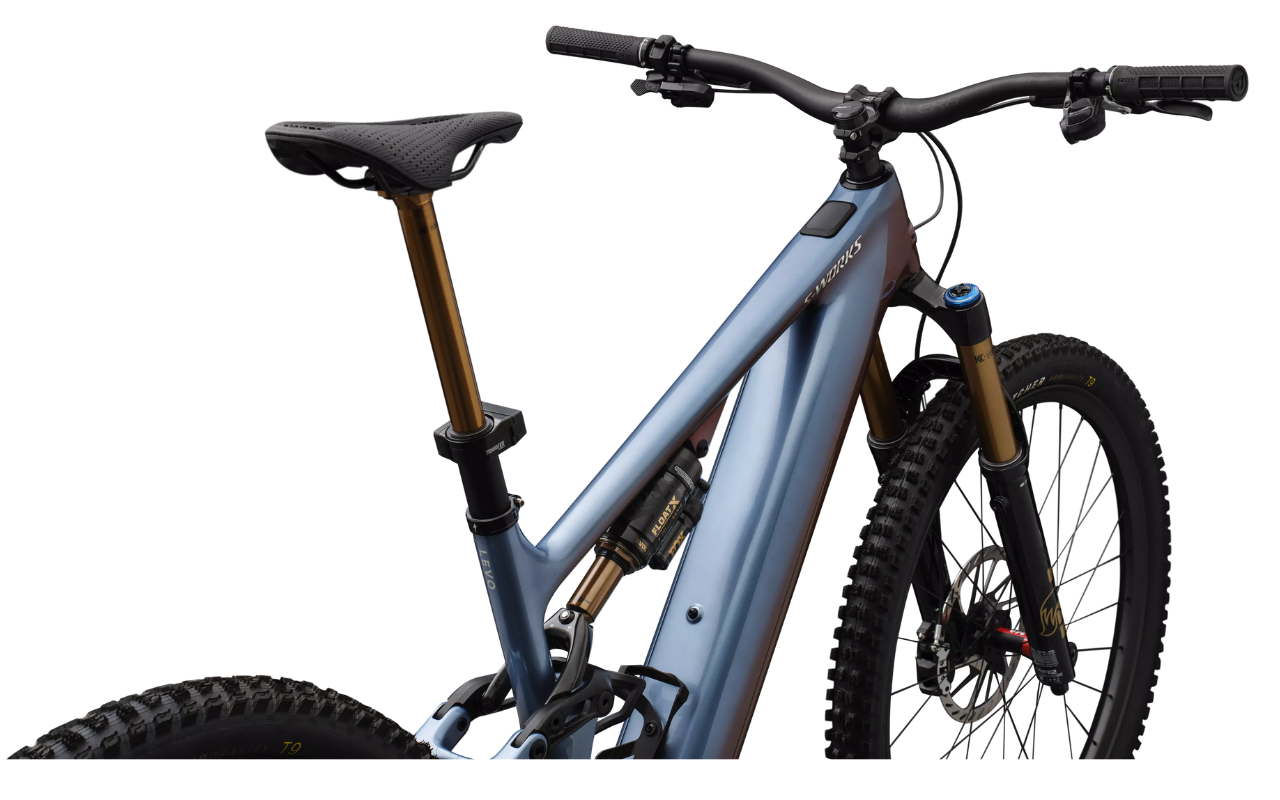

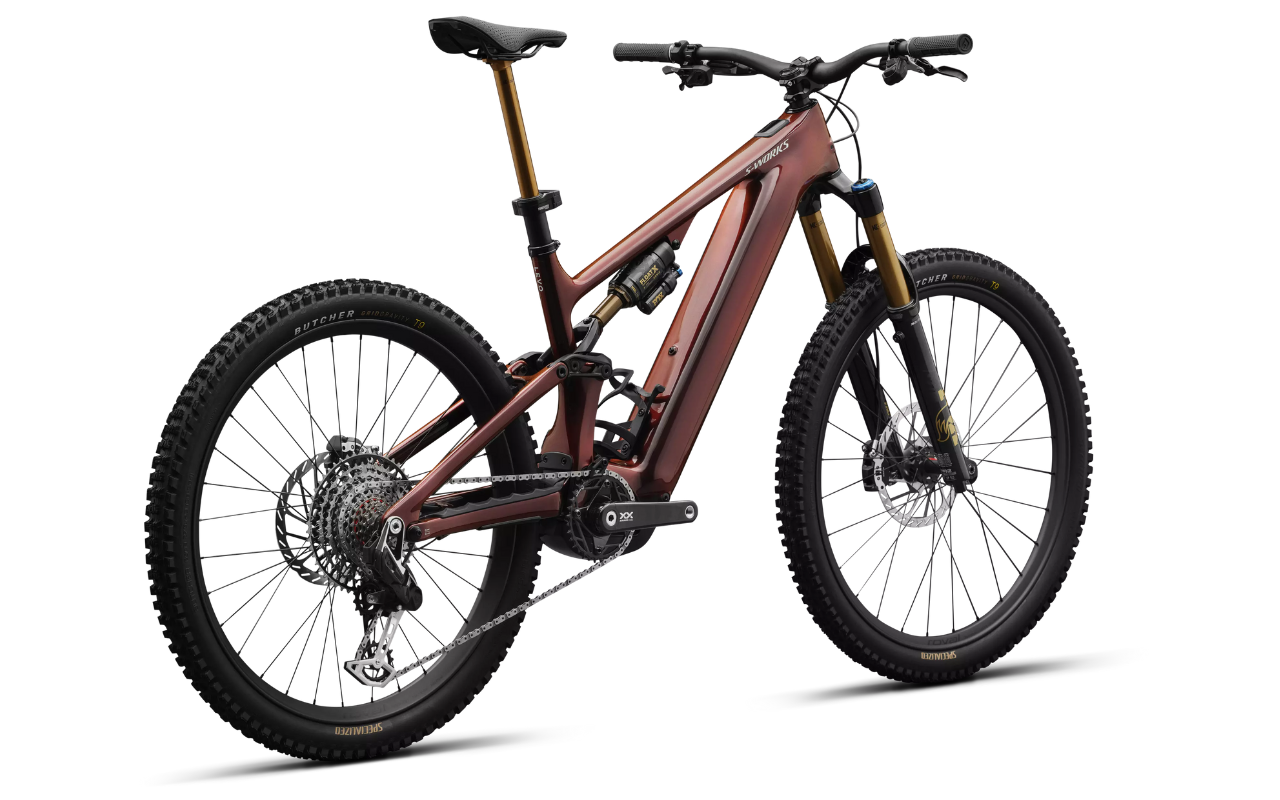

S-Works Turbo Levo 4

S-Works Turbo Levo 4

SKU:95224-0005

Regular price MSRP 295,000.00
Regular price MSRP 295,000.00 Sale price MSRP 295,000.00
Sale Sold out
Vat Included
Color
Size

2 in stock

Quantity

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Product Details

For the rider who dreams of endless singletrack, boosting jumps, and getting fitter and faster, meet your new bike, the Levo SL. The Levo SL delivers an unmatched lightweight ride quality and amplified capability. You’ll be blown away by its combination of flawless handling, capability, and “2X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree—Levo SL is The Ultimate Trail Bike.

IT’S ALL ABOUT THE RIDE — When everything works just right, a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse but light enough to flick around and pick apart a rock garden. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

THE MAGIC CARPET RIDE: GENIE is our patent-pending air spring technology that we invented that grants every trail rider’s three wishes: maximum grip and traction of a coil spring, better bottom-out prevention than a standard air spring, and the ability to tune mid-stroke and end-stroke support independently. GENIE combines the control-enhancing linear spring rate feel of a coil spring through the “bump zone” with the progressive spring rate of an air spring at the end of the stroke to avoid bottom-outs. Truly, it's the best of both worlds.

GEOMETRY OF CONTROL—Our design focuses on performance and control from start to finish. A strategic carbon fiber layup ensures a responsive, stiff chassis, minimizing lateral flex for efficient power transfer. The cockpit enhances traction and cornering precision with a low bottom bracket, slack headtube angle, and customizable head angle options (63°, 64.25°, 65.5°) for stability and agility through any terrain.

MIXED WHEEL —  A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a short chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.

TURBO OPERATING SYSTEM — Our seamlessly integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

SPECIALIZED SL 1.2 MOTOR—Meet the Specialized SL 1.2 motor: whisper-quiet with unmatched smoothness, it delivers 43% more torque (50Nm) and 33% more power (320 Watts) than its predecessor, unleashing "2x You" performance. Paired with a seamless 320Wh battery pack, the Levo SL ensures premium quality and supports rides for up to 5 hours in Eco Mode. Extend your journey with our 160Wh Range Extender (sold separately), fitting snugly into your bottle cage for an extra 50% range.

IT’S ALL CONNECTED—MasterMind TCU, our advanced e-bike control unit, seamlessly connects with Turbo OS and the Specialized App. Adjust power levels with MicroTune, live over-the-air updates for optimized performance, and more. The Levo SL integrates fully with the Specialized App, offering personalized motor settings and advanced security features like Smart Control and Turbo System Lock.

View full details

Technical Specifications

E-Bike

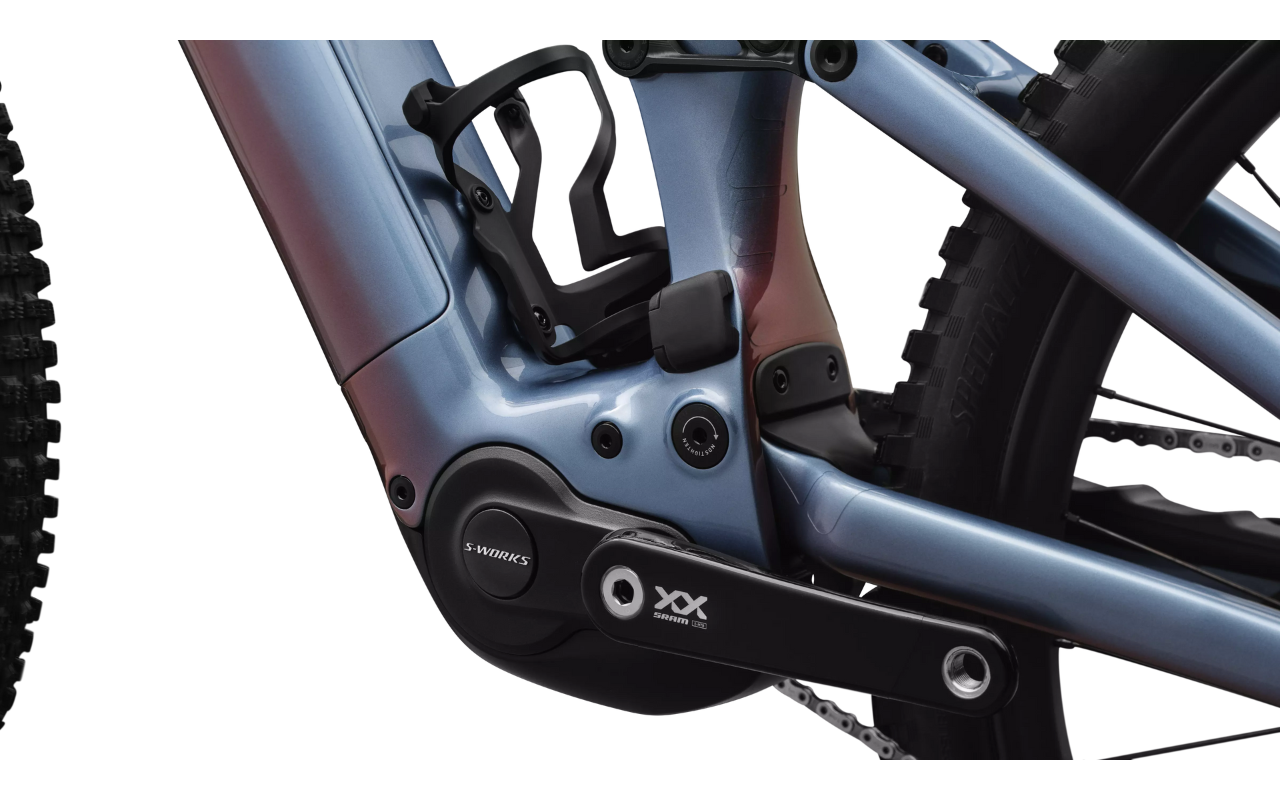

Motor

All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power

Battery

840wh battery

UI/Remote

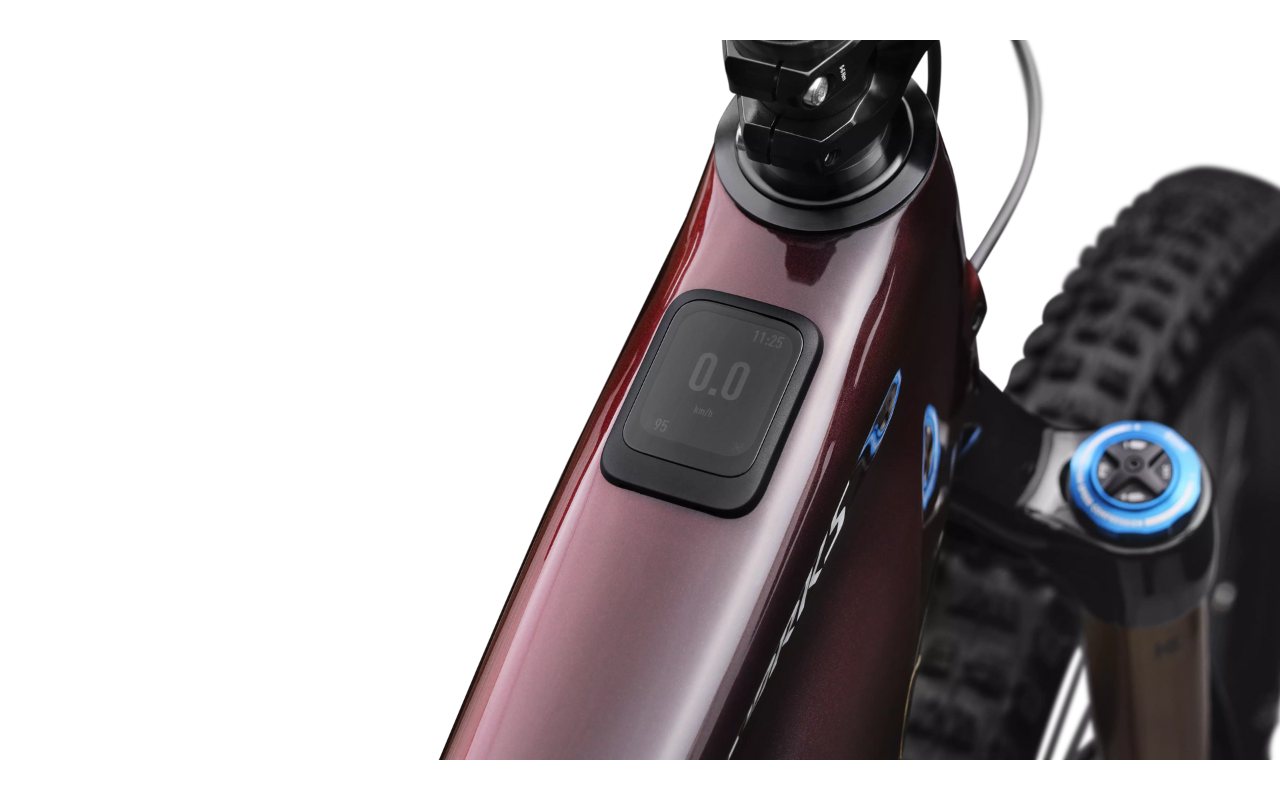

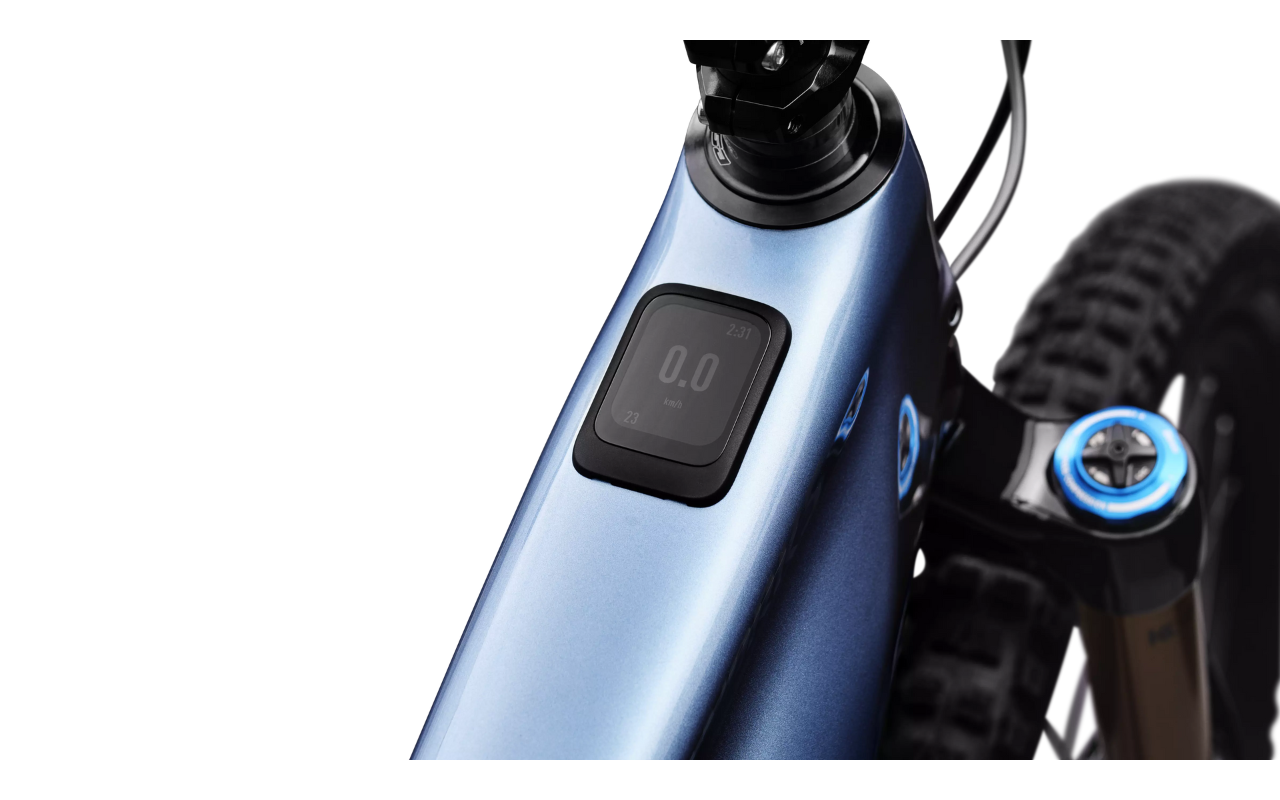

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Charger

Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Frameset

Frame

All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Seat Binder

Alloy, 38.6mm

Suspension

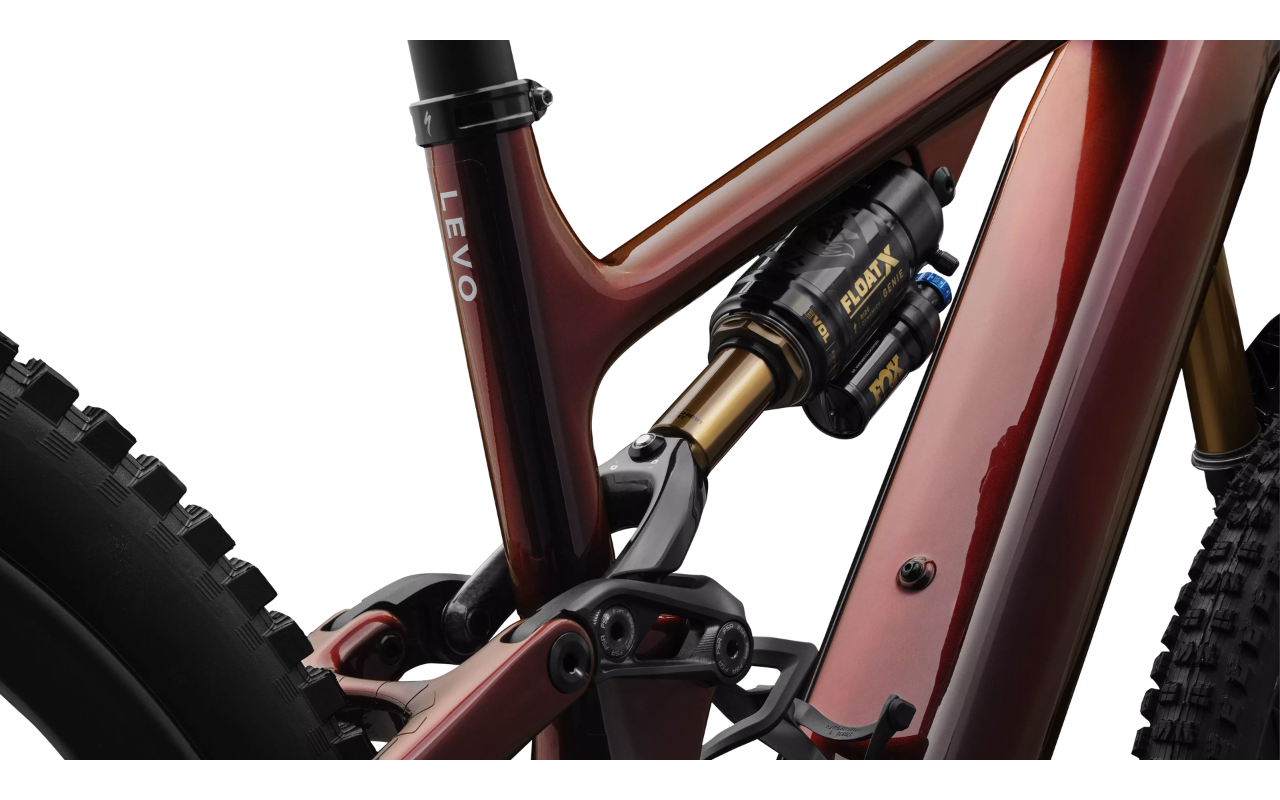

Rear Shock

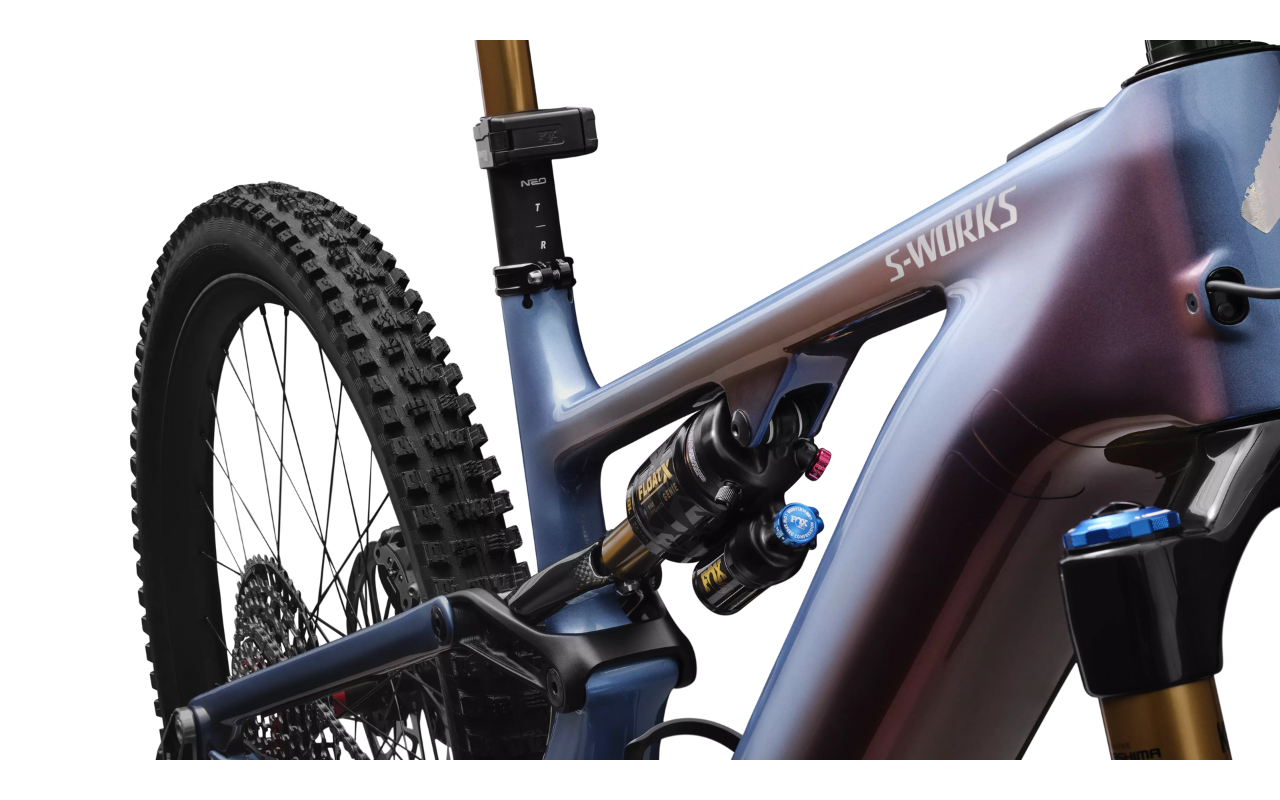

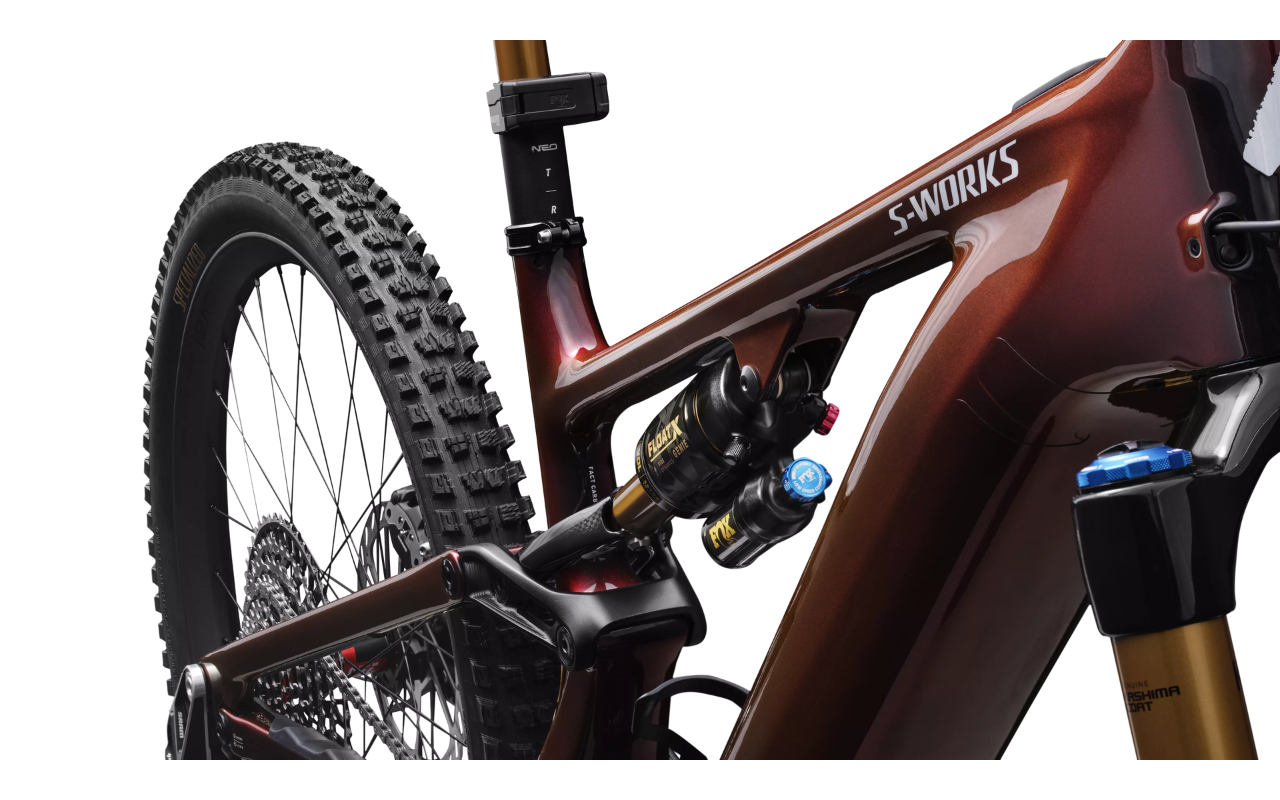

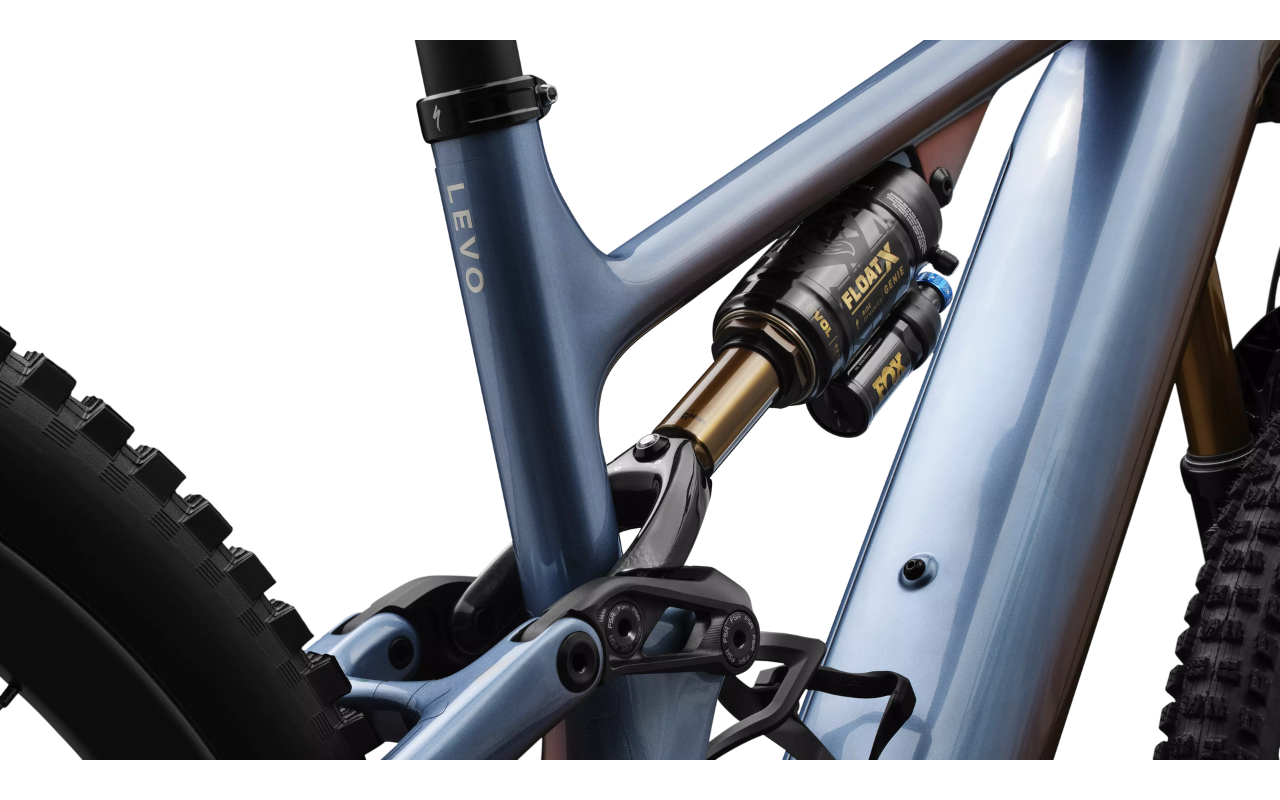

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

Fork

FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

Brakes

Front Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Rear Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain

Shift Levers

SRAM AXS POD Ultimate Controller with Discrete clamp

Rear Derailleur

SRAM XX Eagle Transmission Derailleur

Cassette

SRAM XX Eagle Transmission Cassette, 12spd, 10-52t

Chain

SRAM XX EagleTransmission Flattop Chain

Crankset

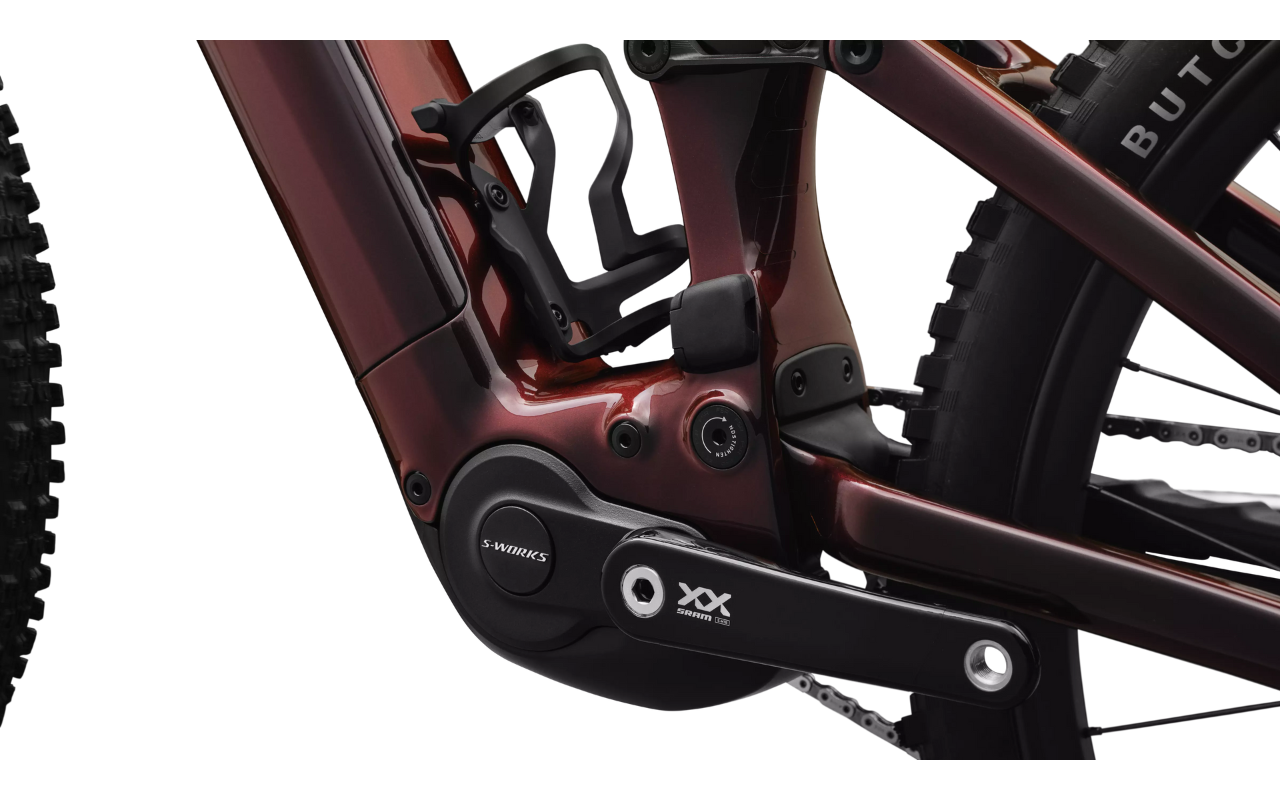

SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Front Wheel

Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Rear Wheel

Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h

Inner Tubes

Standard, Presta Valve

Cockpit

Stem

Industry 9 Mountain stem, 35mm clamp, 40mm length

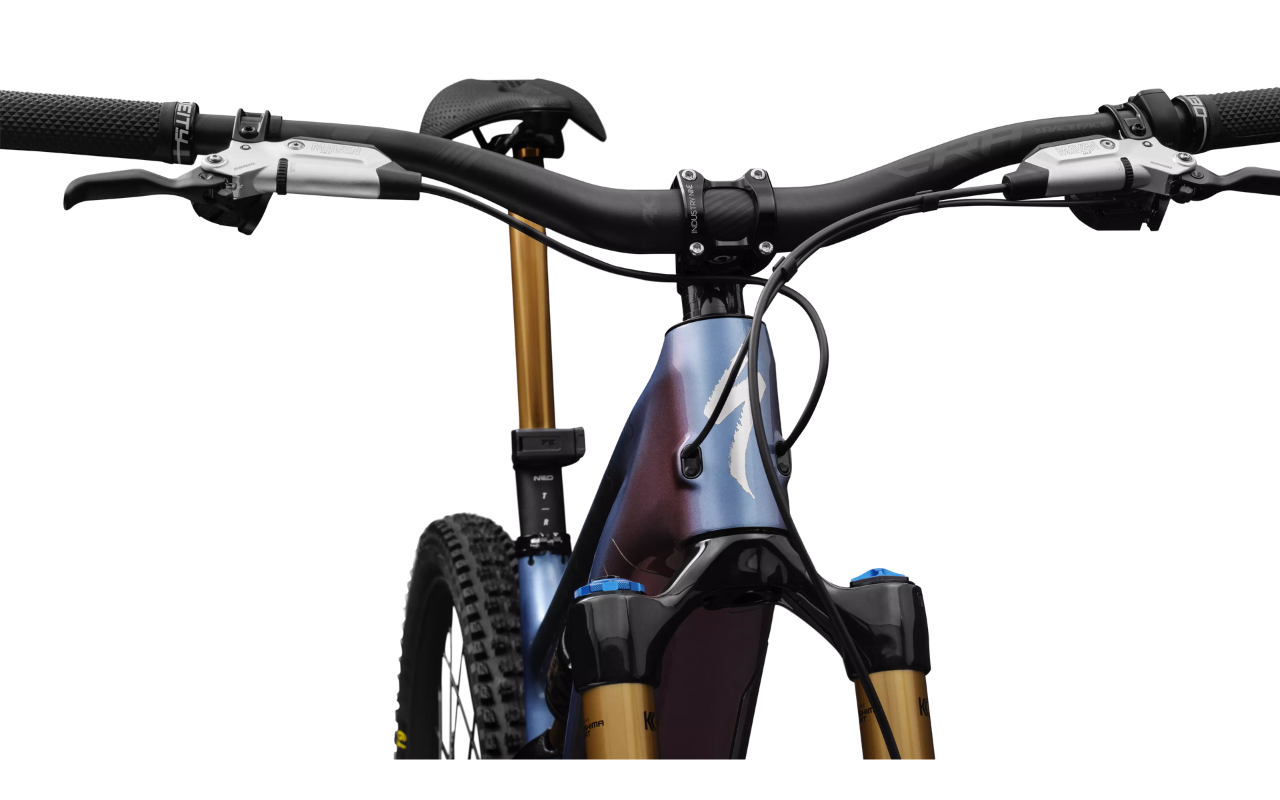

Handlebars

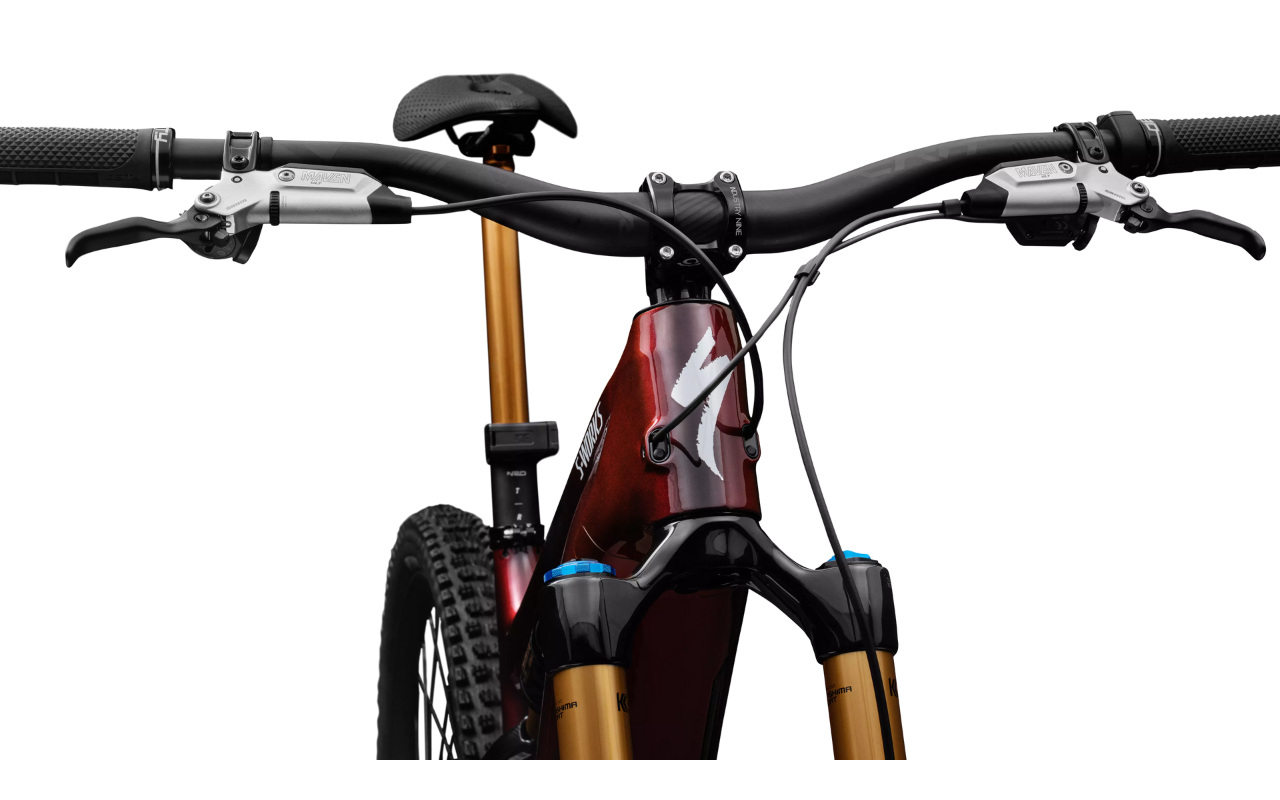

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

Grips

Deity Lockjaw grips

Saddle

Specialized Power Pro Mirror w/hollow Ti rails

SeatPost

FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm

Accessories

SWAT

SWAT internal downtube storage

Product Details

Product ID

218698

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Weight

Weight

23.68kg (52 lb, 3.3 oz)

Weight Size

S4

Geometry


S2
S3S4S5S6
Crank Length160mm160mm160mm160mm
Handlebar Width800mm800mm800mm800mm
Stem Length40mm40mm40mm40mm
Saddle Width155mm143mm143mm143mm
Seatpost Length125mm175mm200mm200mm
Stack618mm626mm638mm652mm
Reach435mm455mm480mm505mm
Headtube Length95mm103mm117mm132mm
Headtube Angle64.5°64.5°64.5°64.5°
BB Height350mm350mm350mm350mm
BB Drop29.5mm29.5mm29.5mm29.5mm
Trail132mm132mm132mm132mm
Fork Length (full)577mm577mm577mm577mm
Fork Rake/Offset44mm44mm44mm44mm
Front Center765mm789mm820mm851mm
Chainstay Length435mm435mm435mm435mm
Wheelbase1200mm1223mm1254mm1286mm
Top-tube Length (horizontal)578mm599mm627mm655mm
Bike Standover Height753mm754mm753mm758mm
Seat Tube Length390mm405mm425mm445mm
Seat Tube Angle77°77°77°77°
Saddle Height for Effective ST Angle690mm735mm780mm825mm
Max Seatpost Insertion274mm289mm313mm337mm
Min Seatpost Insertion80mm80mm80mm80mm
