SPECIALIZED

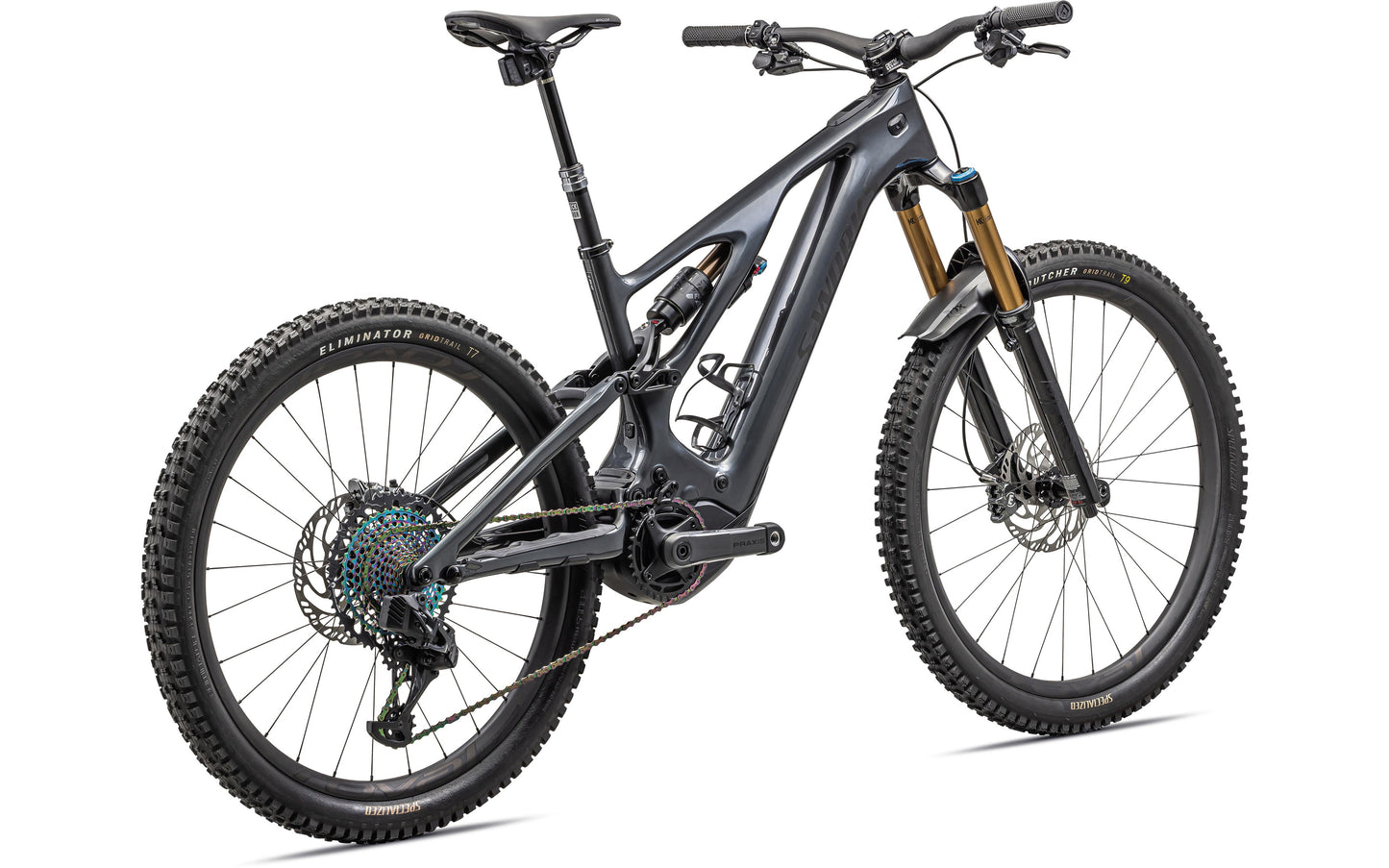

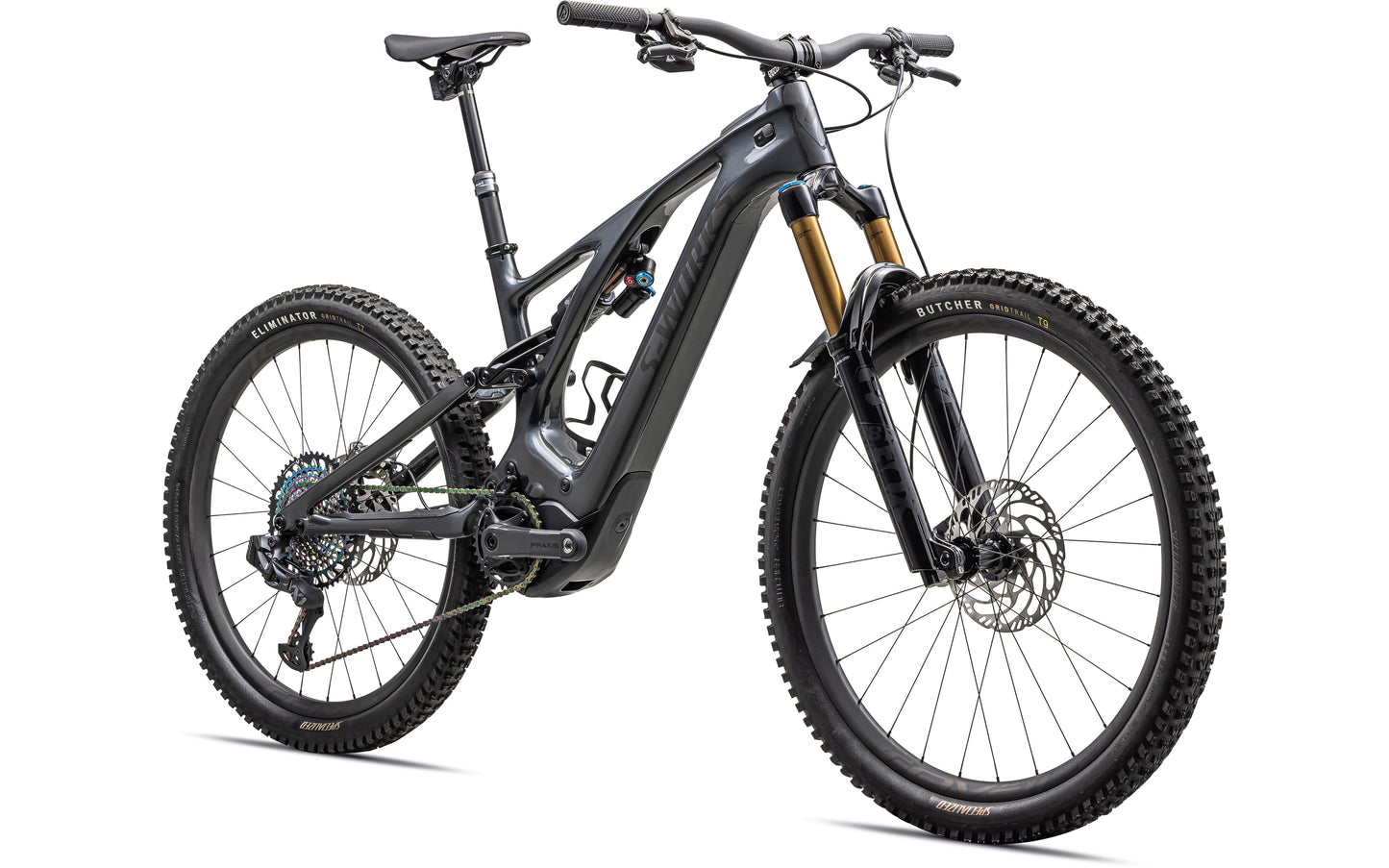

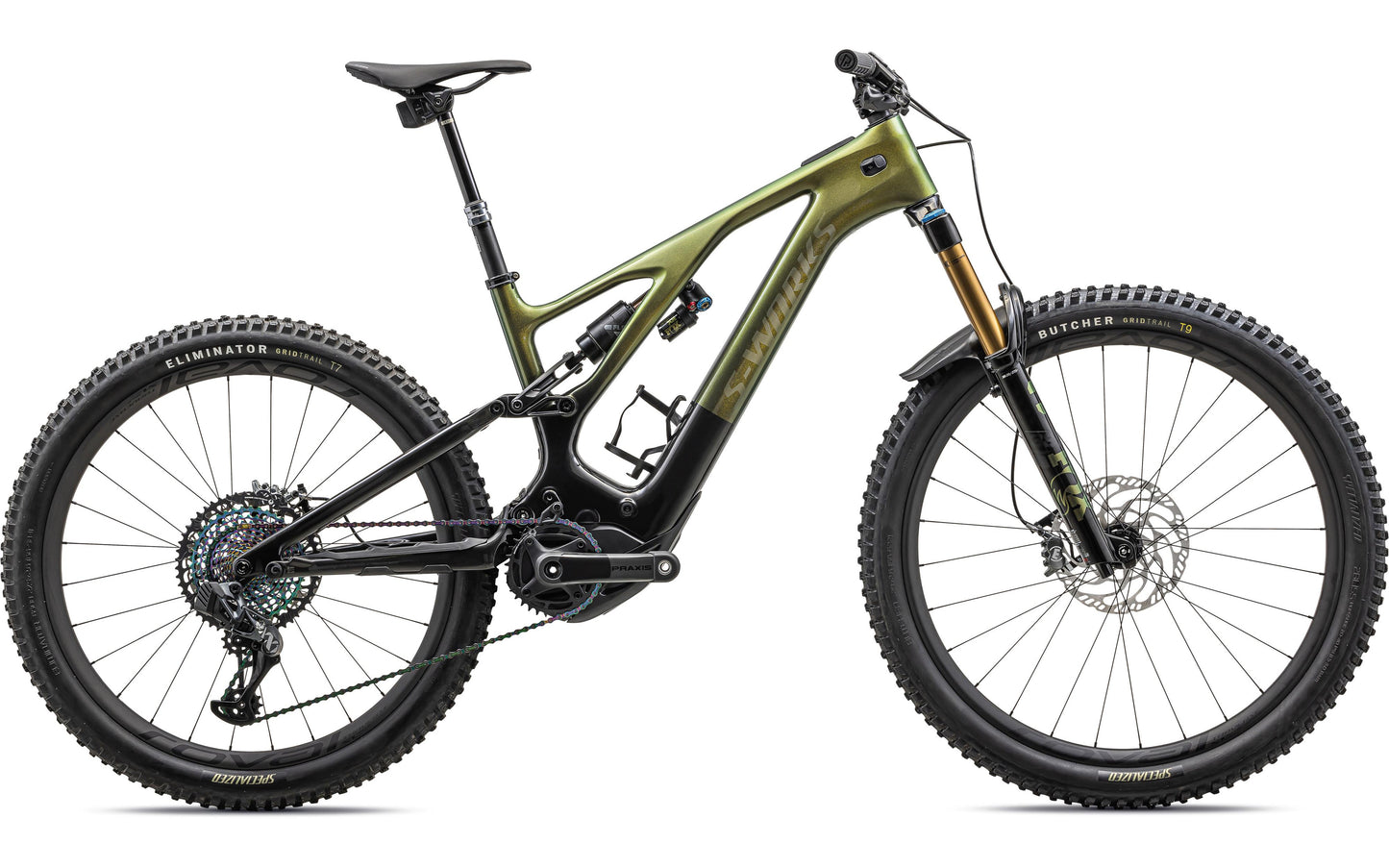

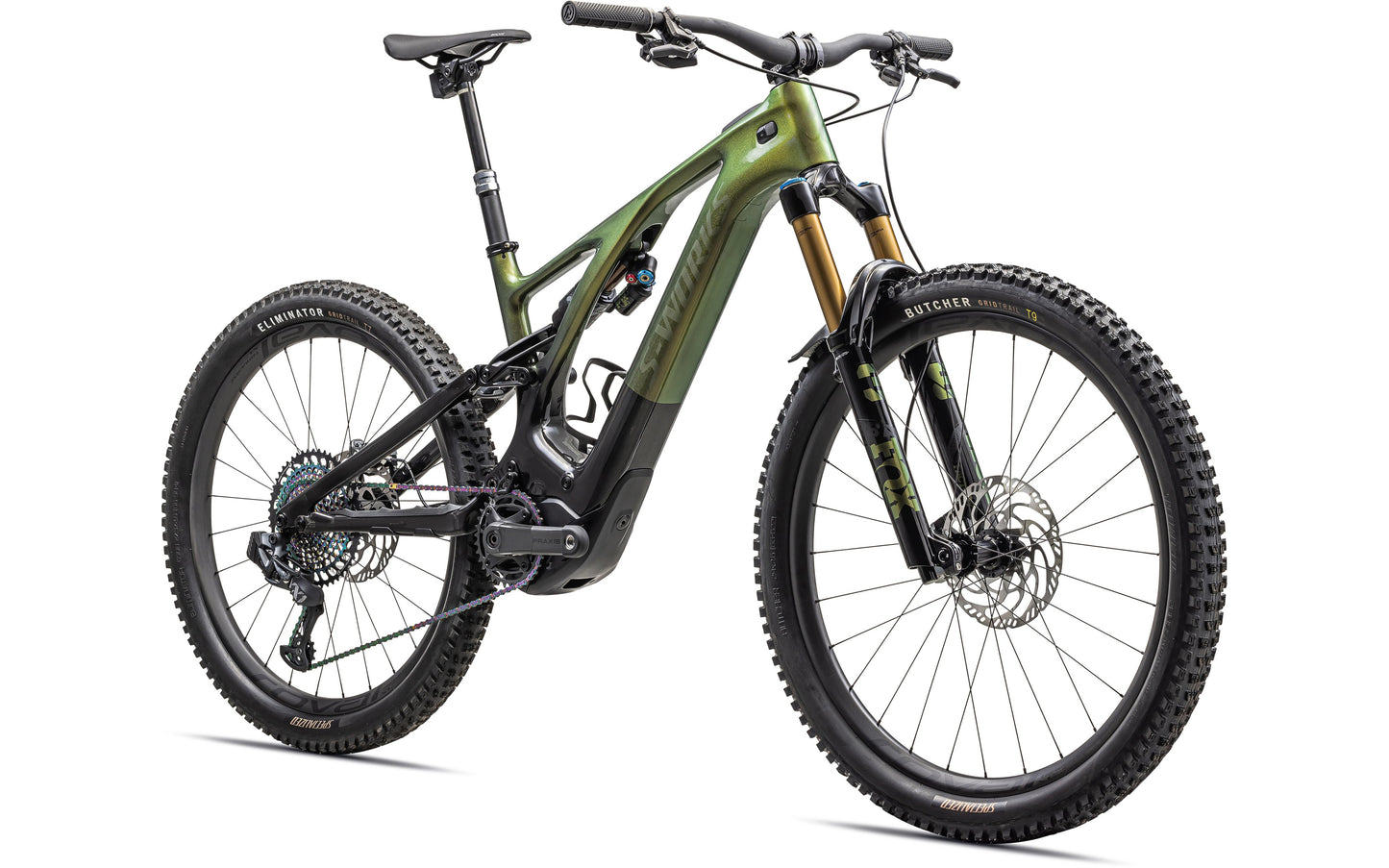

S-Works Turbo Levo

S-Works Turbo Levo

SKU: 95223-0102

MSRP 250,000.00
MSRP 250,000.00
Sale Sold out
VAT included.
Size
Color

0 - Available

  • Visa
  • Mastercard

Read More

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

When nothing but the best will do, the top-shelf S-Works Levo is outfitted SRAM’s premier Eagle AXS XX1 drivetrain, feature-packed FOX Factory suspension, and a super-light, super-tough Roval Traverse SL wheelset.

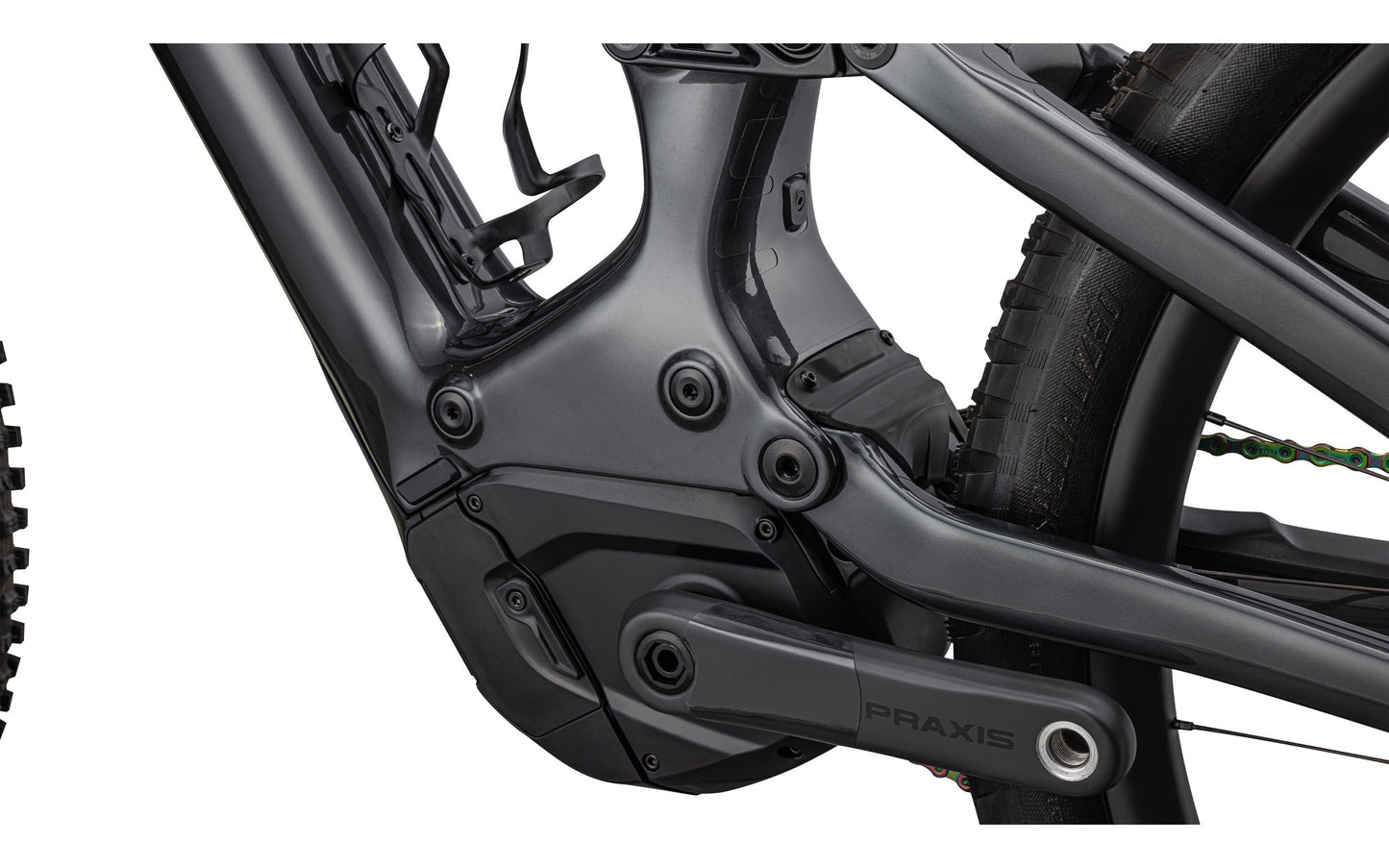

  • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

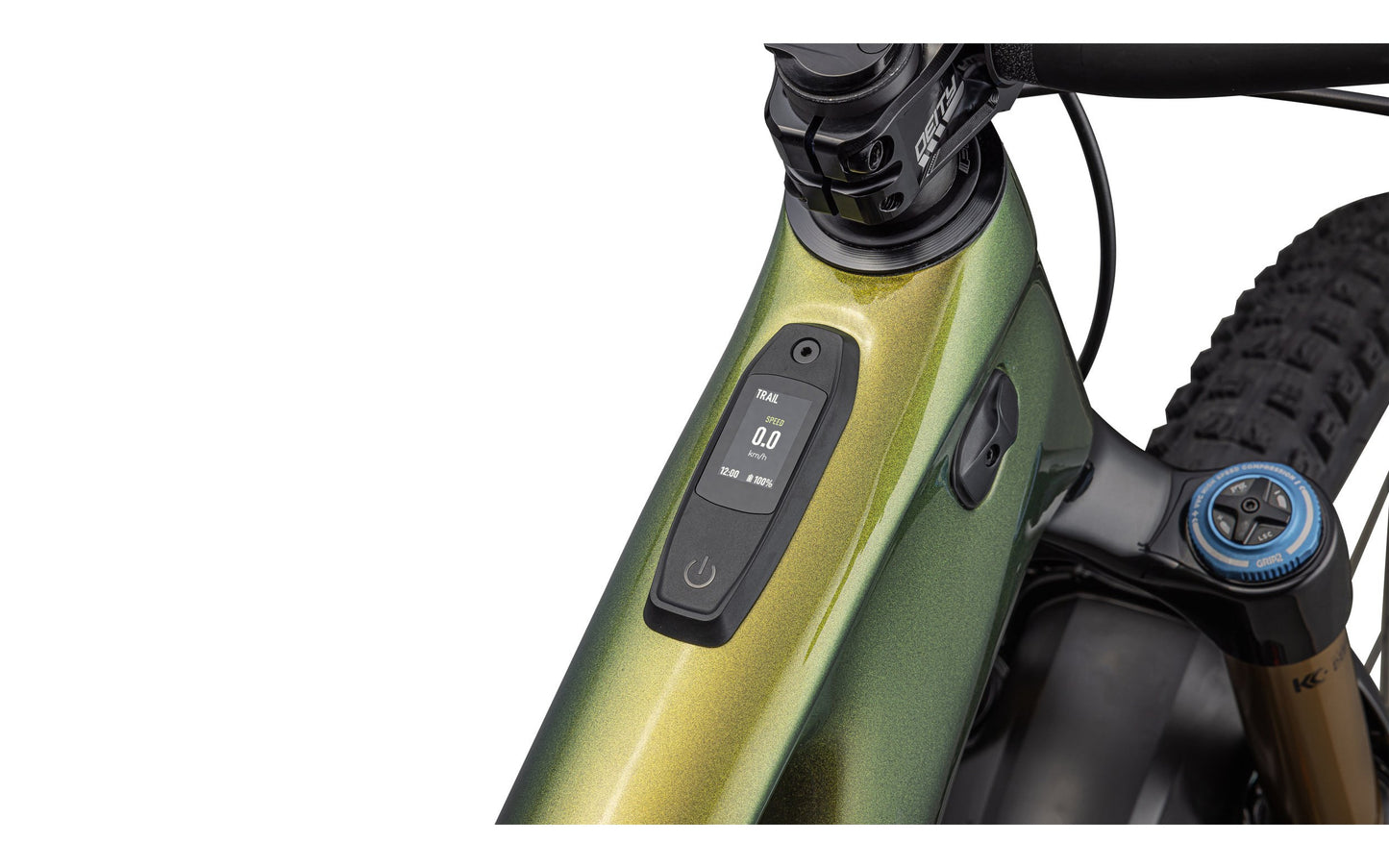

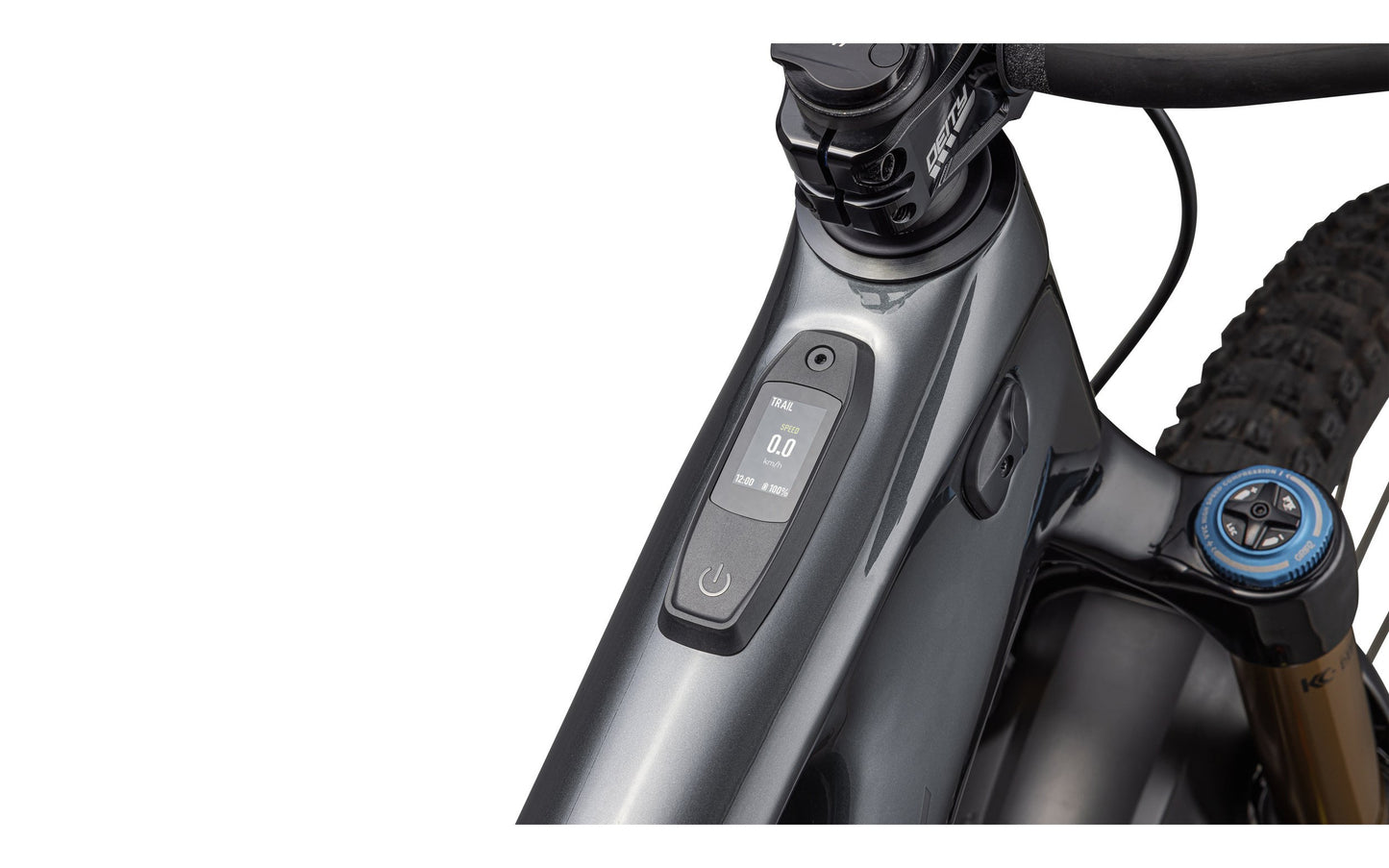

  • The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

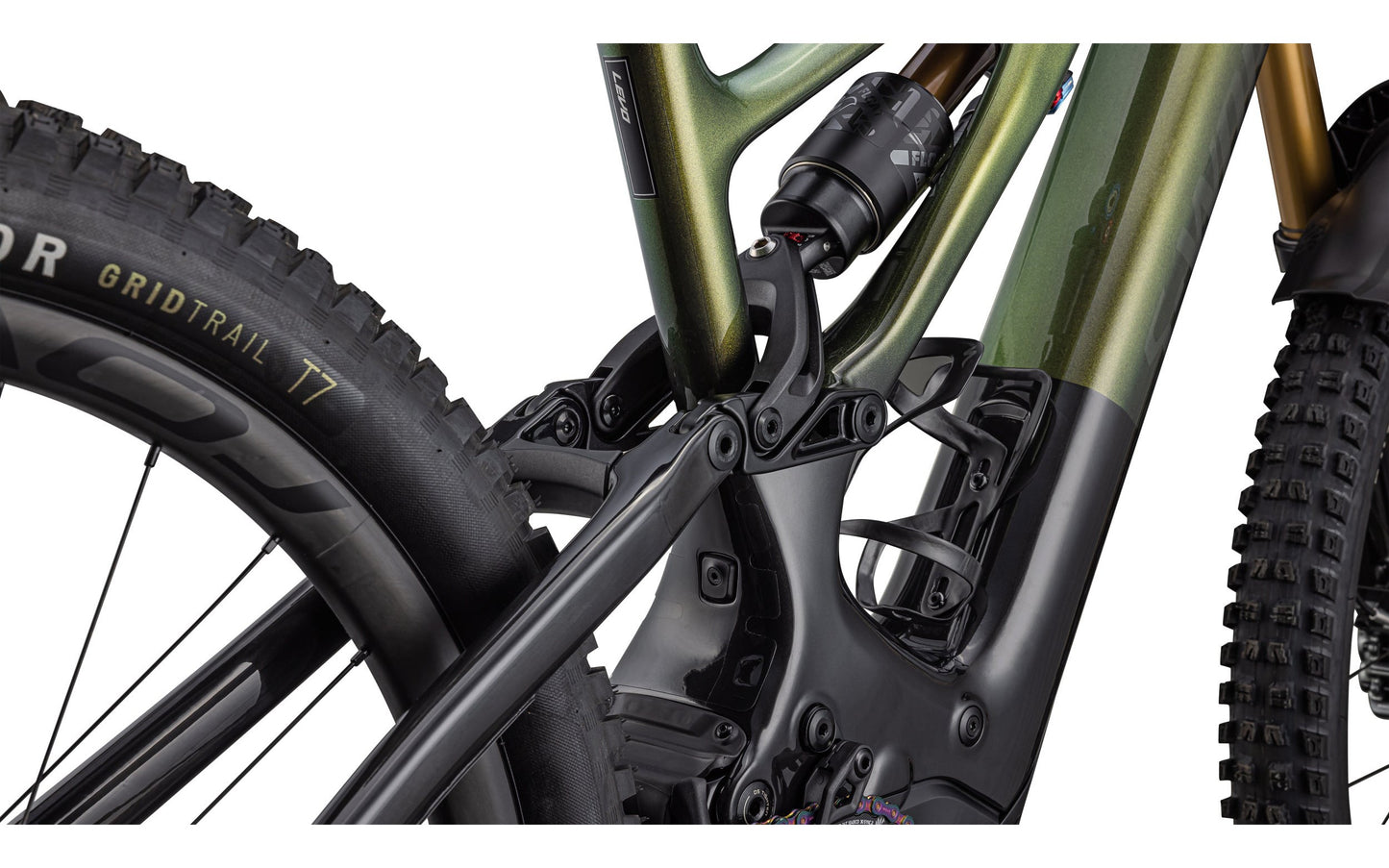

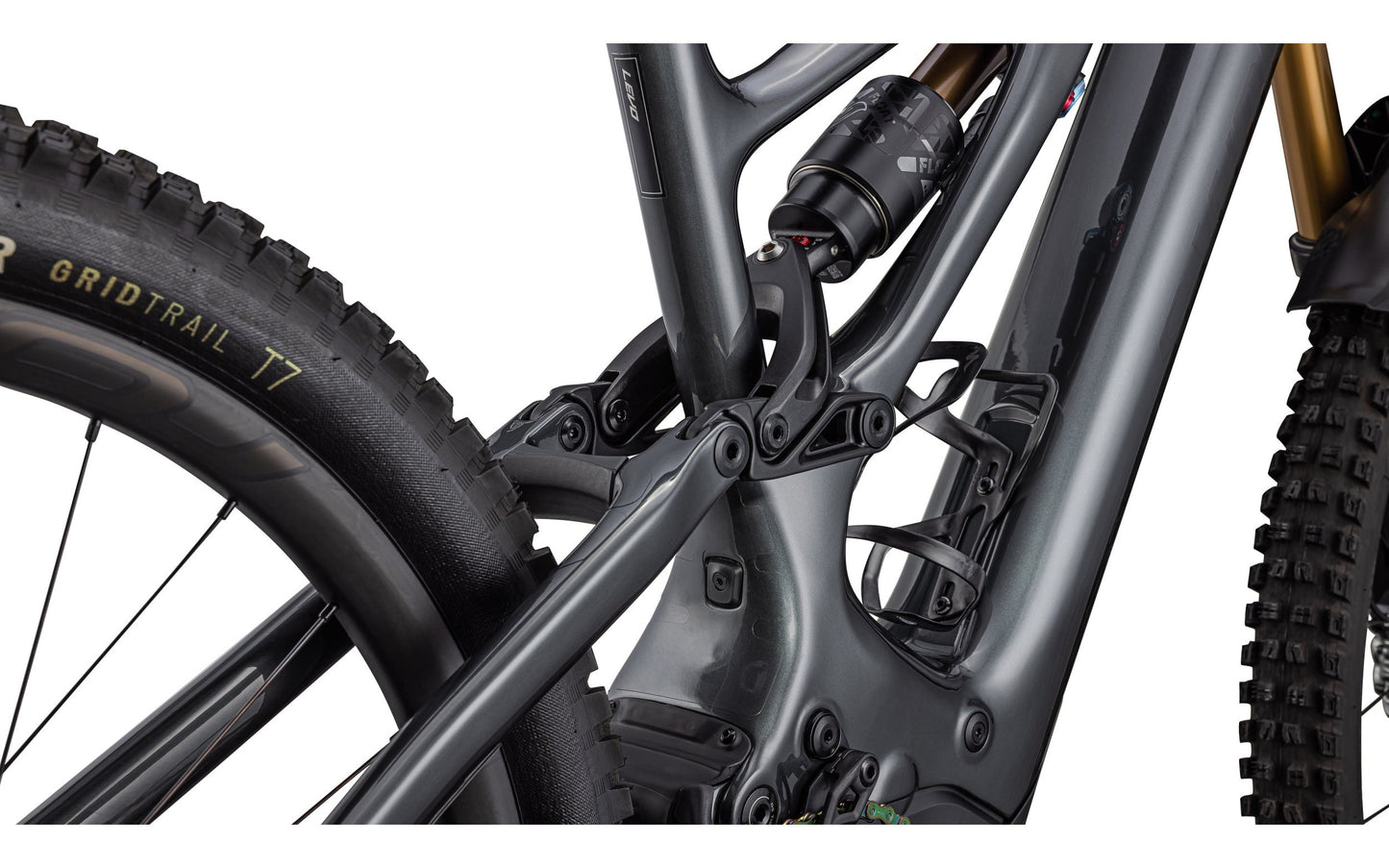

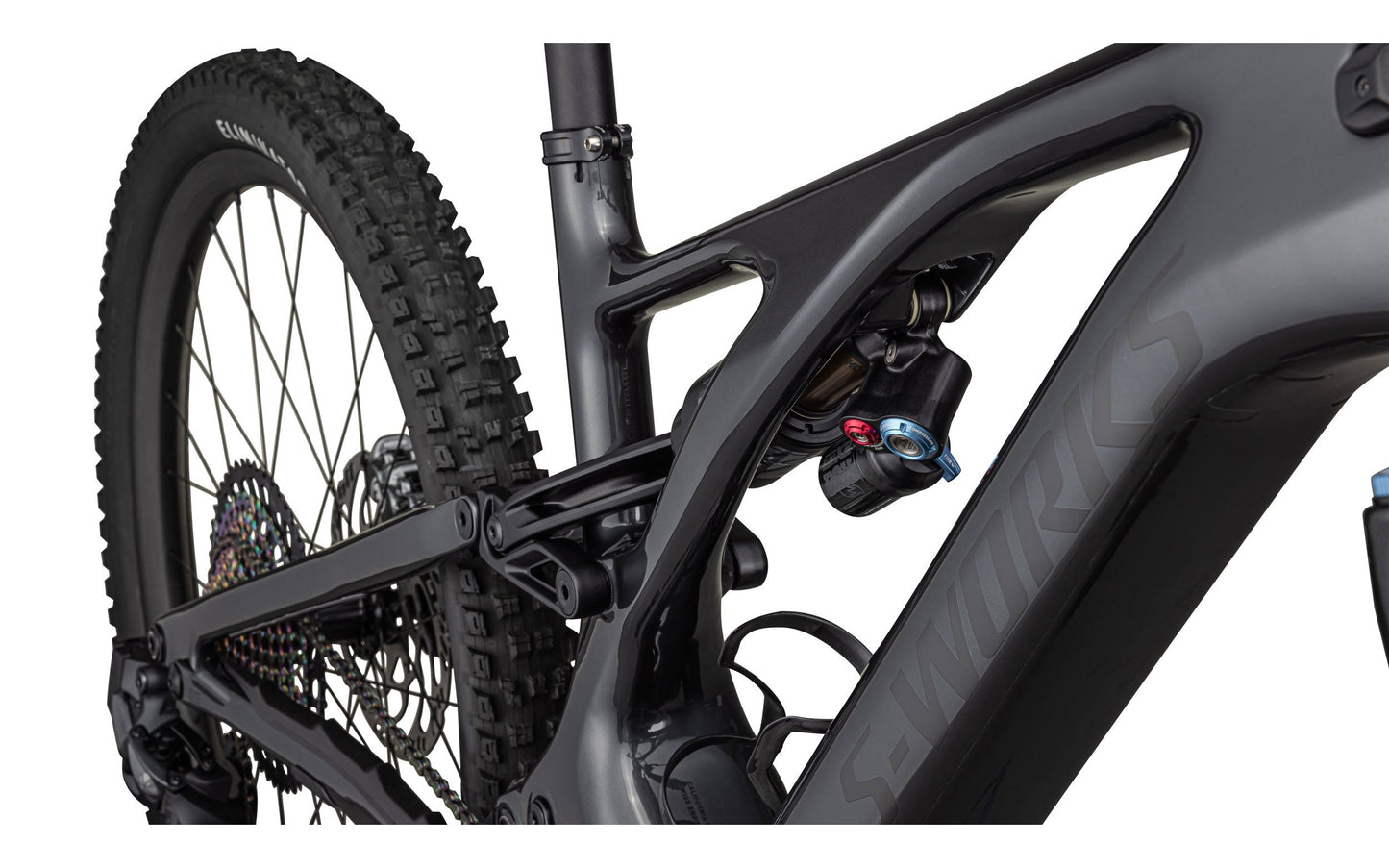

  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
View full details

Technical Specifications

FRAMESET

Seat Binder

Alloy, 38.6mm

Frame

FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

BRAKES

Rear Brake

Magura MT7, 4 piston caliper, Loic lever blade, 203mm rotor

Front Brake

Magura MT7, 4 piston caliper, Loic lever blade, 203mm rotor

COCKPIT

Saddle

Bridge, 155/143mm, Hollow Ti-rails

Grips

Deity Grips

Stem

Deity, 35.0mm

SeatPost

RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)

Handlebars

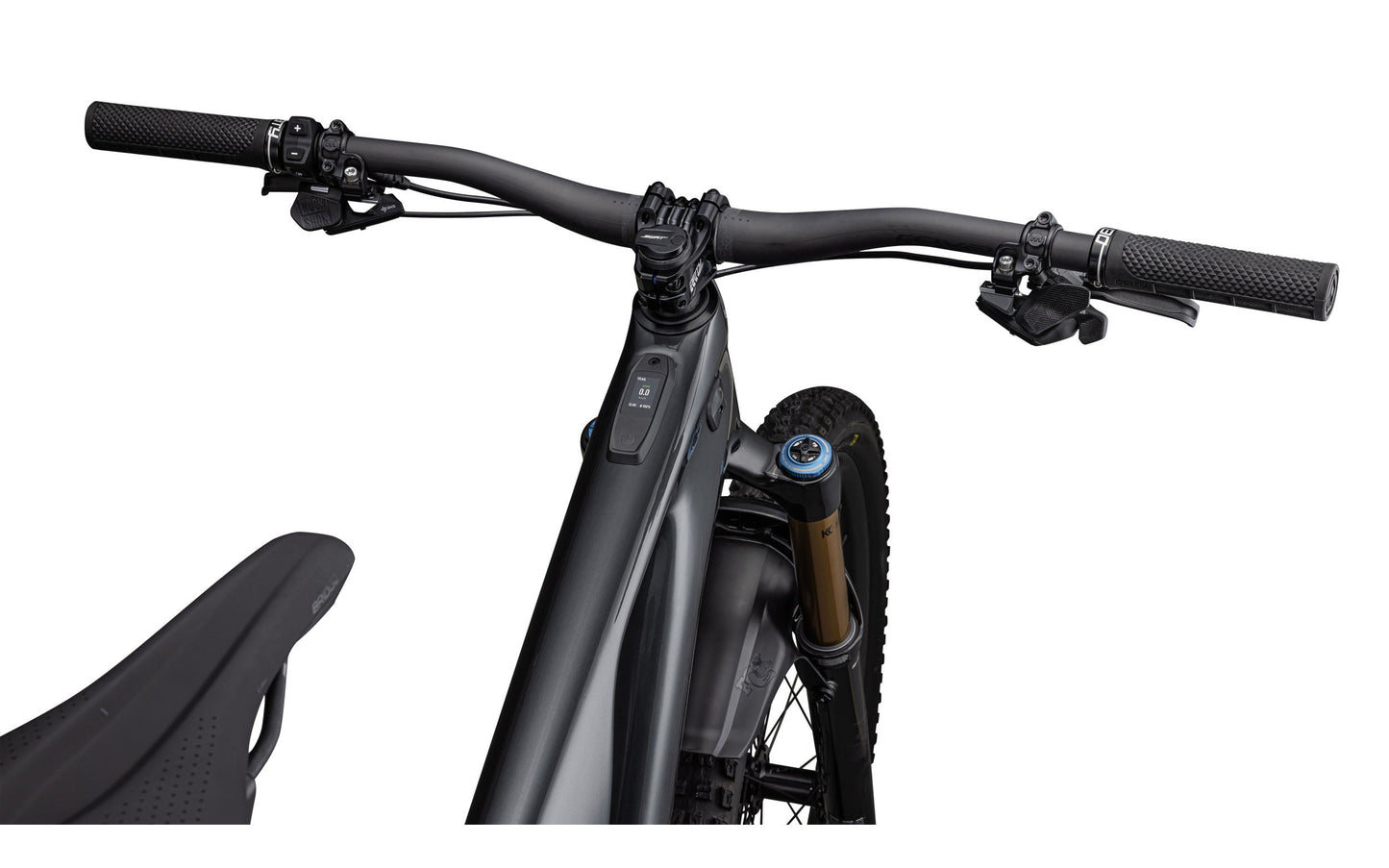

Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm

WHEELS

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

Rear Wheel

Roval Traverse SL 27.5, 148mm spacing, XD freehub body

Front Wheel

Roval Traverse SL 29

Inner Tubes

Standard, Presta Valve

E-BIKE

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Motor

Specialized 2.2 Custom Rx Trail Tuned Motor

Battery

Specialized M3-700, Integrated battery, 700Wh

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote

SUSPENSION

Fork

Fox 38 Factory, Grip 2 damper, 29", 160mm travel, kashima, 44mm offset

Rear Shock

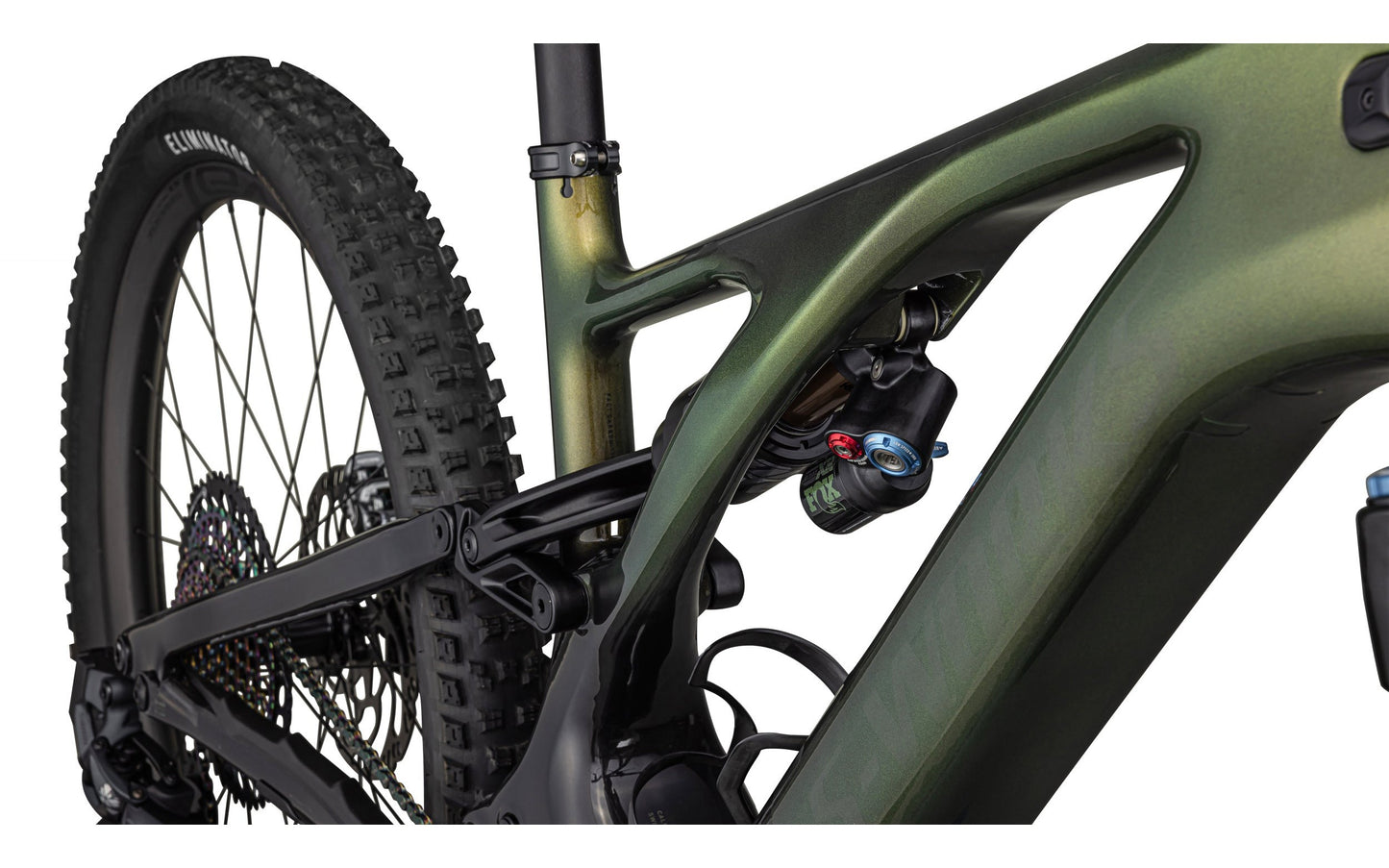

Fox Float X2 Factory, Kashima, 210x55mm

DRIVETRAIN

Crankset

Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm

Shift Levers

SRAM Eagle AXS Rocker Paddle

Chainrings

SRAM X-Sync Eagle, 104 BCD, 34t, steel

Rear Derailleur

SRAM XX1 Eagle AXS

Chain

SRAM XX1 Eagle, 12-speed

Cassette

Sram XG-1299, 12-Speed, 10-52t

ACCESSORIES

SWAT

SWAT CC steerer tube integrated tool with chain tool and link

* Specifications are subject to change without notice

Geometry

 S2S3S4S5S6
Crank Length160mm160mm160mm160mm160mm
Seatpost Length125mm150mm170mm170mm170mm
Handlebar Width780mm780mm780mm780mm780mm
Stem Length35mm35mm35mm50mm50mm
Saddle Width155mm143mm143mm143mm143mm
Stack617mm626mm635mm644mm653mm
Reach432mm452mm477mm502mm532mm
Headtube Length105mm115mm125mm135mm145mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°
BB Height350mm350mm350mm350mm350mm
BB Drop27mm27mm27mm27mm27mm
Trail130mm130mm130mm130mm130mm
Fork Length (full)567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center760mm784mm814mm843mm878mm
Chainstay Length442mm442mm442mm442mm442mm
Wheelbase1200mm1225mm1255mm1284mm1318mm
Bike Standover Height776mm783mm787mm788mm790mm
Seat Tube Length390mm405mm425mm445mm465mm
Seat Tube Angle77.2°76.7°76.2°76.2°76.2°
Max Seatpost Insertion220mm240mm255mm275mm295mm
Min Seatpost Insertion80mm80mm80mm80mm80mm
