Technical Specifications
COCKPIT
Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
Handlebars
Roval Control SL Integrated cockpit, 60mm/70mm X- 12 degree integrated stem, 8-degree backsweep, 1 degree upsweep, 760mm wide
SeatPost
Roval Control SL carbon seatpost, Two-bolt clamp, 0mm offset, 415/370mm x 30.9
Tape
Specialized Trail Grips
WHEELS
Rear Hub
Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull t-head
Front Hub
Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull t-head
Spokes
DT Swiss Aerolite Straight-pull t-head
Rims
Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Rear Tire
Specialized Renegade, Control Casing, T5 Compound, 29x2.35
Front Tire
Specialized S-Works Fast Trak, S-Works Casing, T5/T7 Compound, 29x2.35
Inner Tubes
Specialized Turbo Tube

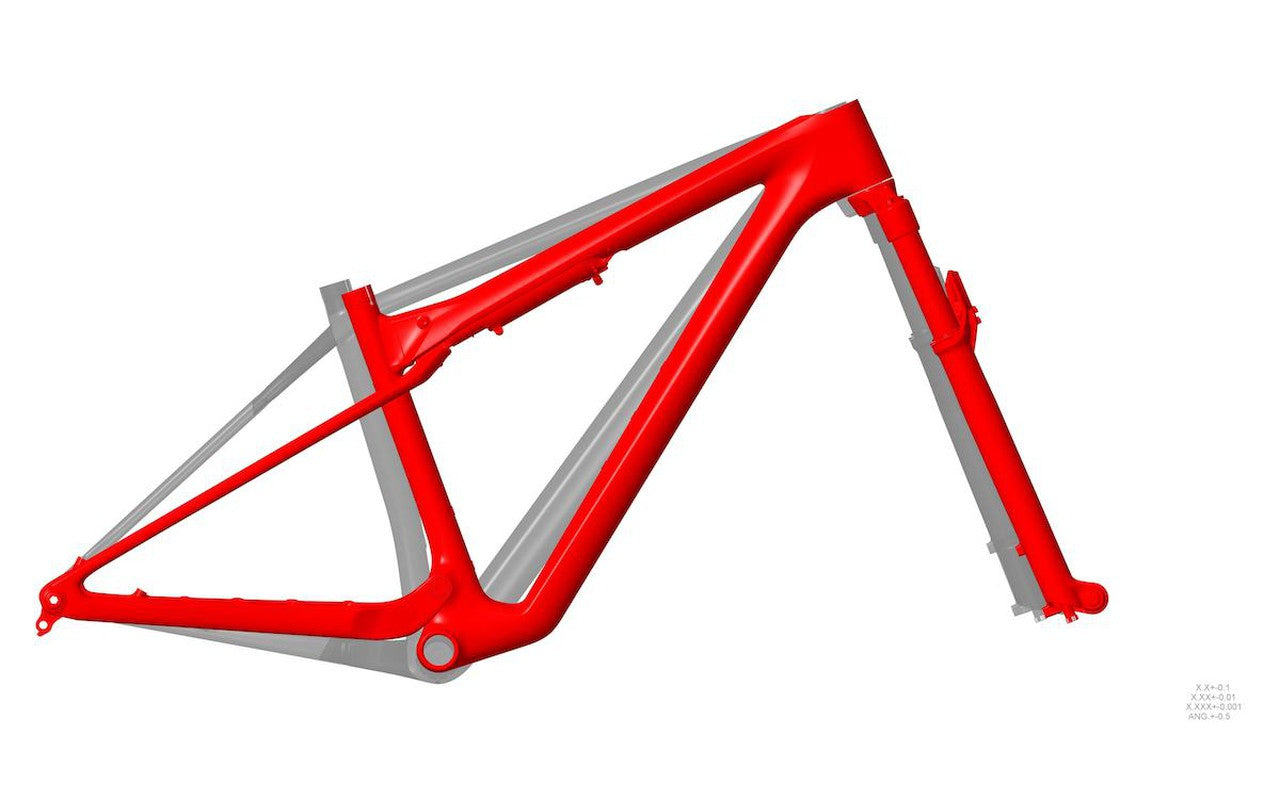

FRAMESET
Frame

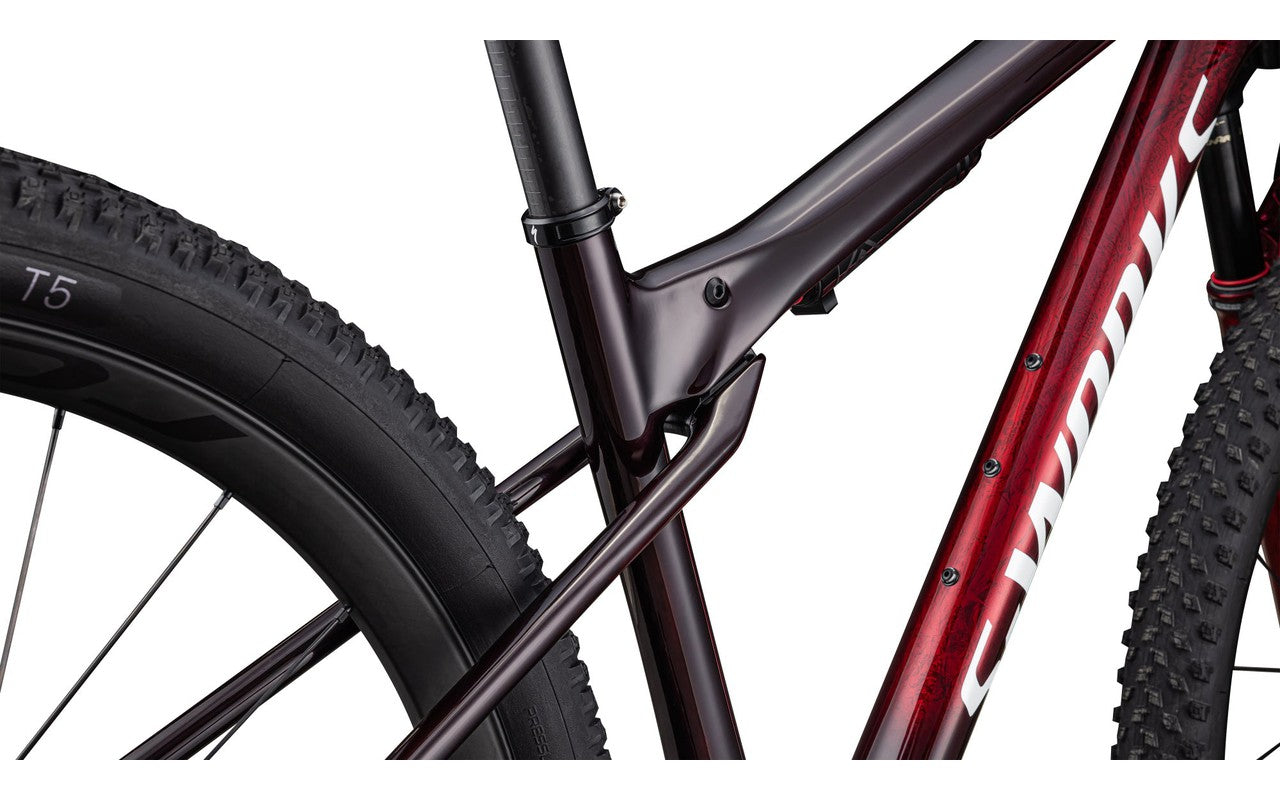

S-Works FACT 12m Carbon, WCID suspension design, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear spacing, internal cable routing, 75mm of travel
Seat Binder
Specialized Alloy 34.9, Titanium Bolt
DRIVETRAIN
Shift Levers
SRAM POD AXS controller
Cassette
SRAM CS-1299 Cassette, 12-speed, 10-52t
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Crankset
Quarq XX SL power meter crankset, Carbon, 168 Q-Factor, DUB, 170/175mm, 34T
Chain
SRAM XX SL Eagle
Rear Derailleur
SRAM XX SL Eagle Transmission
Chainrings
34t
BRAKES
Front Brake
SRAM Level Ultimate, 2-piston caliper, hydraulic disc, stealth, 180/160mm rotor
Rear Brake
SRAM Level Ultimate, 2-piston caliper, hydraulic disc, stealth, 160mm rotor
SUSPENSION
Fork
RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 110mm Travel

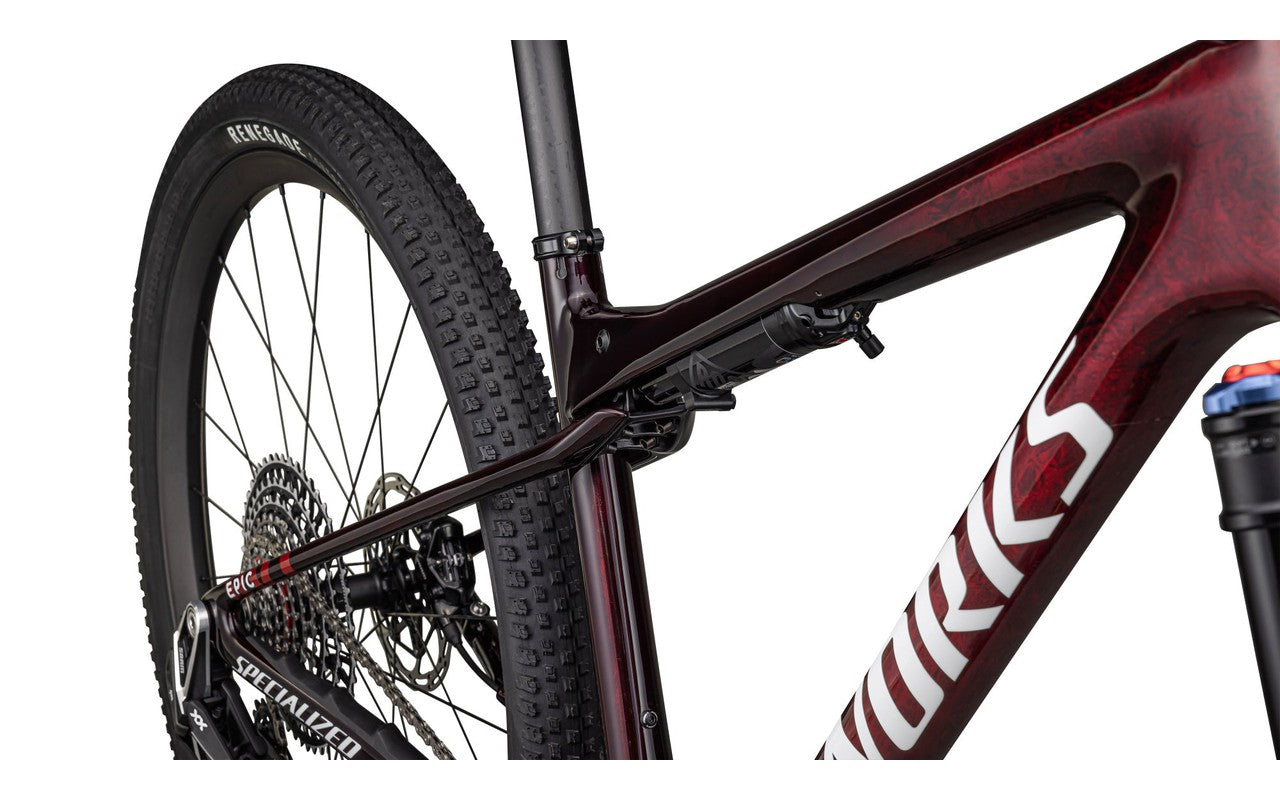

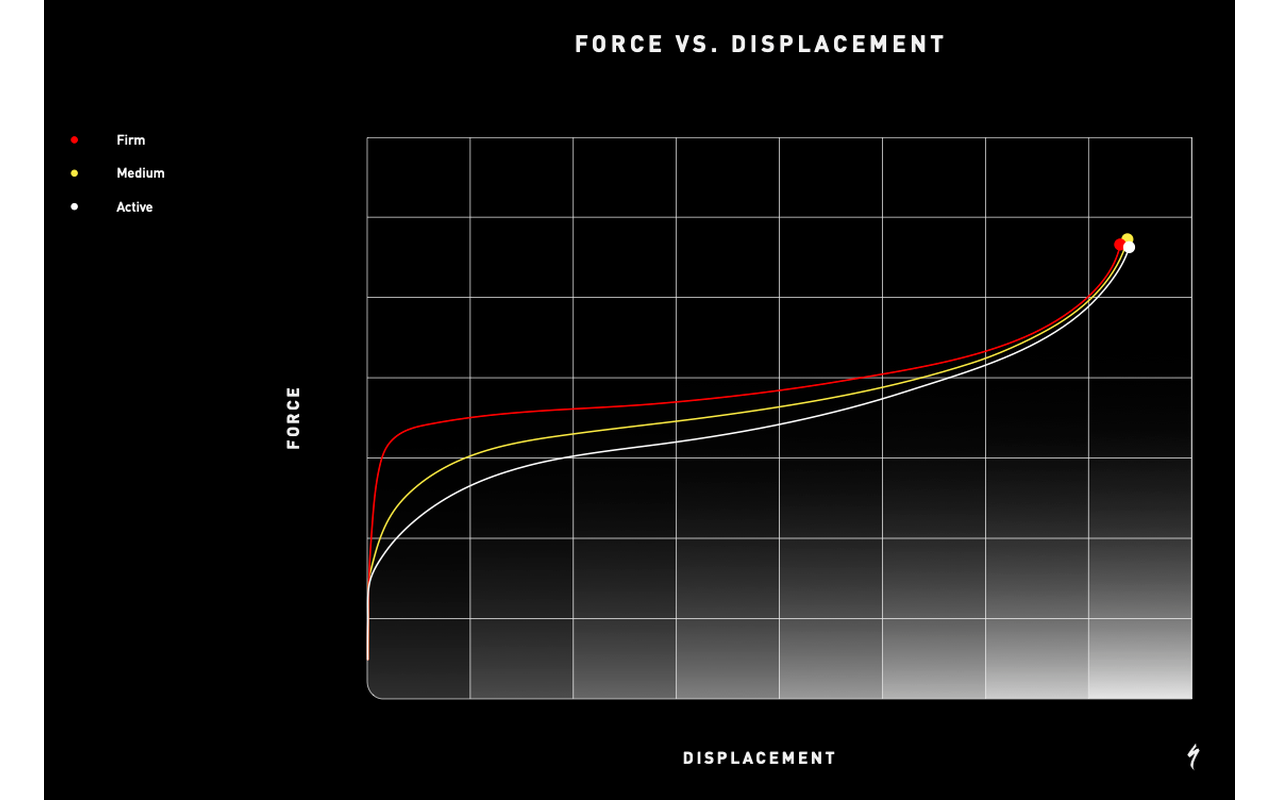

Rear Shock
RockShox-Specialized SIDLuxe WCID Ultimate, Ride Dynamics Developed, Independent negative spring, Rebound Adjust, 215x40mm
ACCESSORIES
SWAT
SWAT EMT Cage-Mount Tool
* Specifications are subject to change without notice

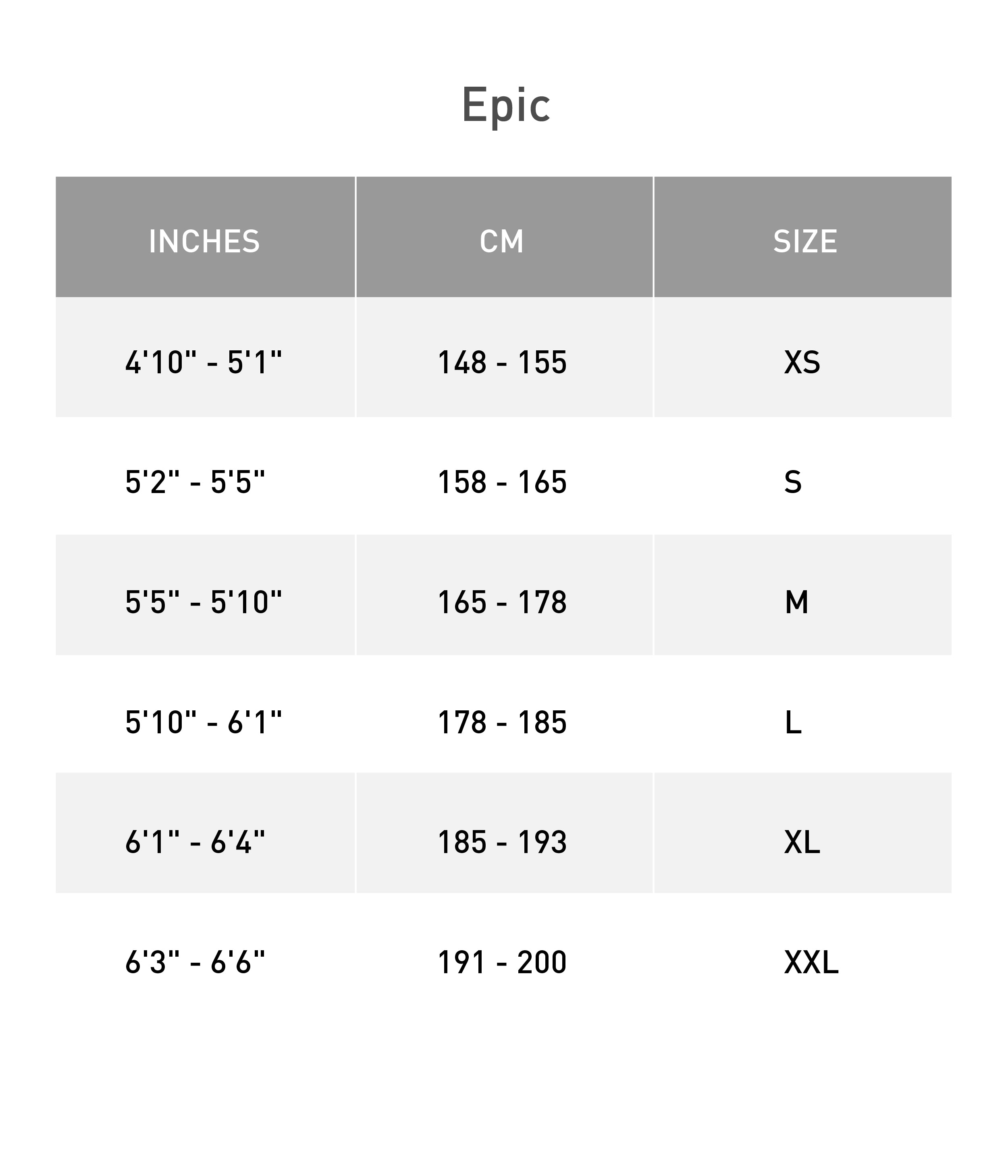

Geometry
S | M | L | XL | |
---|---|---|---|---|
Crank Length | 170mm | 170mm | 175mm | 175mm |
Handlebar Width | 760mm | 760mm | 760mm | 760mm |
Stem Length | 60mm | 70mm | 70mm | 70mm |
Saddle Width | 155mm | 143mm | 143mm | 143mm |
Seatpost Length | 370mm | 415mm | 415mm | 415mm |
Stack | 600mm | 600mm | 614mm | 628mm |
Reach | 415mm | 440mm | 465mm | 490mm |
Head Tube Length | 93mm | 95mm | 110mm | 125mm |
Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
BB Height | 313mm | 313mm | 313mm | 313mm |
BB Drop | 58mm | 57mm | 57mm | 57mm |
Trail | 113mm | 113mm | 113mm | 113mm |
Fork Length, Full | 516mm | 516mm | 516mm | 516mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
Front Center | 701mm | 726mm | 757mm | 788mm |
Chainstay Length | 430mm | 430mm | 430mm | 430mm |
Wheelbase | 1124mm | 1150mm | 1181mm | 1212mm |
Bike Standover Height | 761mm | 764mm | 774mm | 786mm |
Seat Tube Length | 395mm | 410mm | 450mm | 500mm |
Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
Top Tube Length, Horizontal | 581mm | 612mm | 641mm | 670mm |
