Technical Specifications
Frameset
Frame
S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain and seatpost
Seat Binder
Specialized Alloy 34.9, Titanium Bolt
SWAT
SWAT internal downtube storage
Suspension

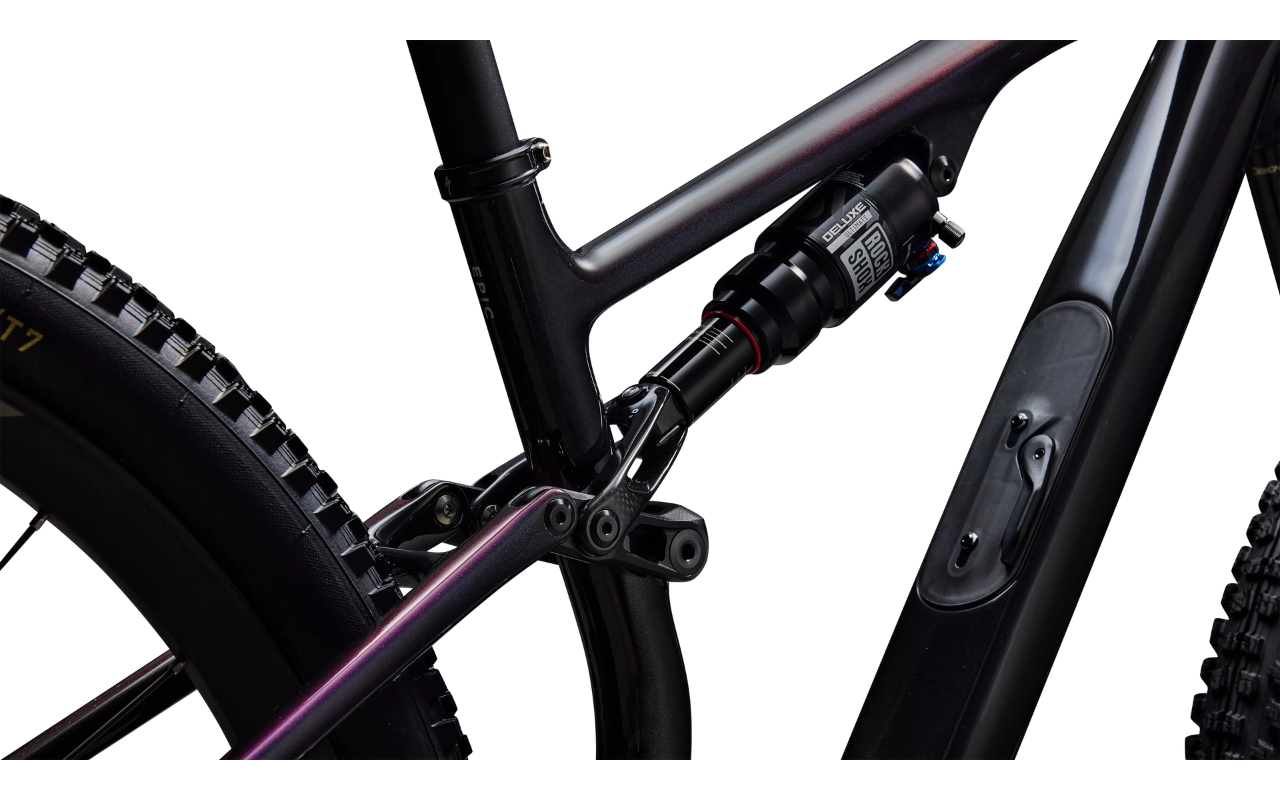

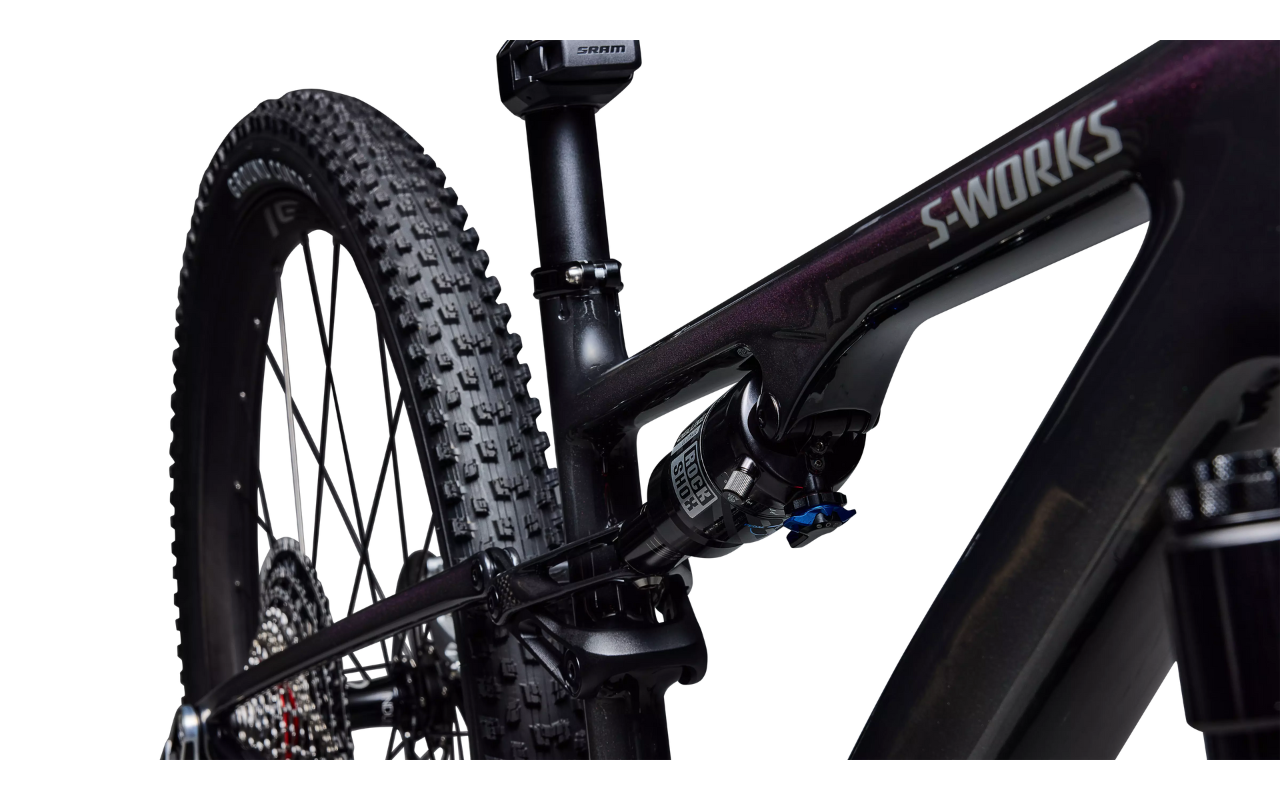

Rear Shock
RockShox Deluxe ULTIMATE, Ride Dynamics Tuned 2-position, Solo Air, 190x45mm
Fork
Rockshox Pike ULTIMATE, DebonAir, Crown adjust Charger 3.1 RC2 W/ButterCups, 130mm travel, 44mm offset
Brakes
Front Brake
SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 160mm rotor
Drivetrain
Shift Levers
SRAM AXS POD Ultimate Controller
Rear Derailleur
SRAM XX SL Eagle AXS
Cassette
SRAM CS-1299 10-52t
Chain
SRAM XX SL Eagle
Crankset
SRAM XX SL Eagle Power Meter Crankset, 170mm
Chainrings
32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Wheels & Tires
Front Tire
Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
Front Wheel
Roval Control SL VI, Hookless carbon, 29mm inner width, tubeless ready, Industry 9 Solix hub, Roval Carbon spokes w/ Ti end pieces
Rear Tire
Specialized Ground Control, Grid Lite Casing, T5/T7 Compound, 29x2.35
Rear Wheel
Roval Control SL VI, Hookless carbon, 29mm inner width, tubeless ready, Industry 9 Solix hub, Roval Carbon spokes w/ Ti end pieces
Inner Tubes
Specialized Turbo Tube

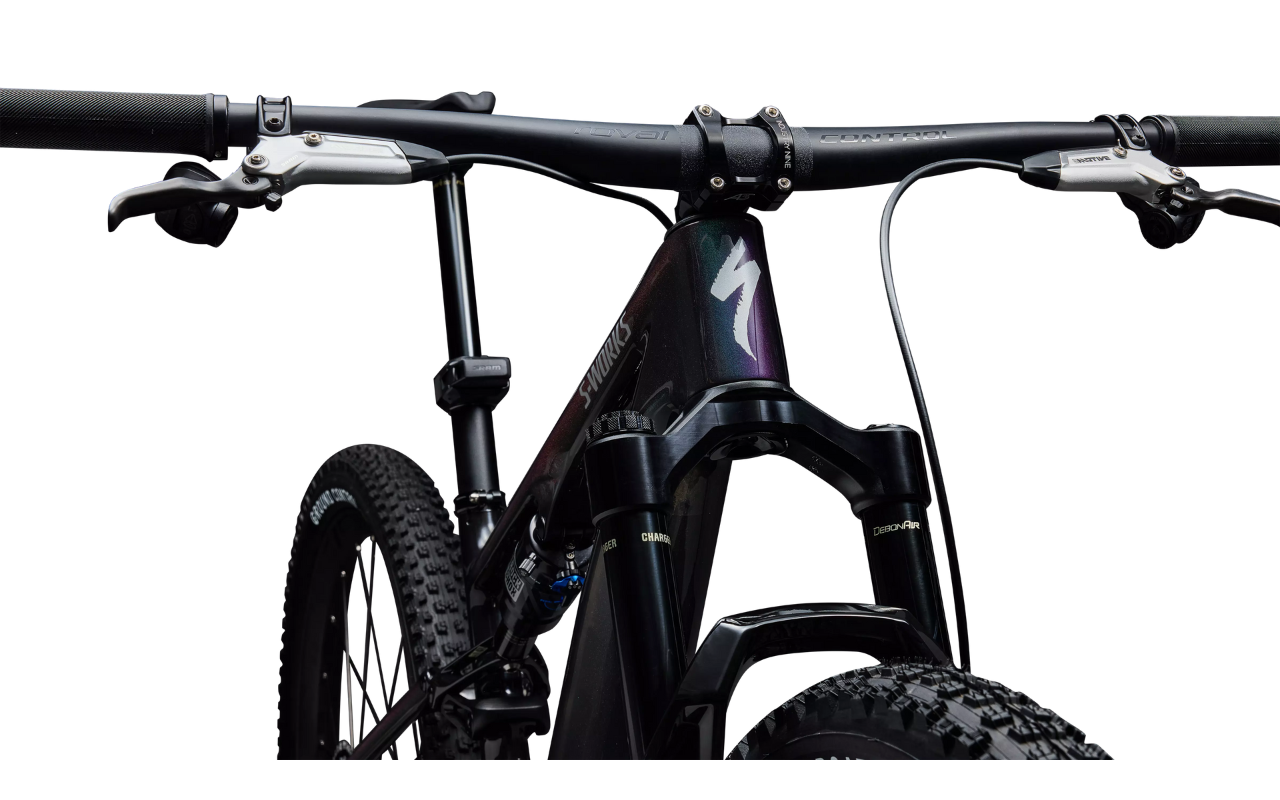

Cockpit
Stem
Industry Nine A35, 50mm, 35mm clamp
Handlebars
Roval Control Rise Carbon Handlebar, 780mm wide, 20mm rise, 35mm
Grips
Specialized Trail Grips
Saddle
Specialized S-Works Power, Carbon Rails, 143mm/155mm
SeatPost
RockShox Reverb AXS, 30.9mm, S: 125, M/L:150, XL: 175mm
Weight
Weight
11.58 kg (25 lb, 8.5 oz)
Weight Size
MD
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm |
| Stem Length | 50mm | 50mm | 50mm | 50mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 150mm | 175mm | 175mm |
| Head Tube Angle (high) | 65.9° | 65.9° | 65.9° | 65.9° |
| Trail | 120mm | 120mm | 120mm | 120mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm |
| Seat Tube Angle | 75.5° | 75° | 75° | 75° |
| Stack | 600mm | 601mm | 613mm | 632mm |
| BB Height (low) | 327mm | 329mm | 331mm | 331mm |
| Fork Length, Full | 540mm | 540mm | 540mm | 540mm |
| Reach | 415mm | 445mm | 470mm | 495mm |
| Top Tube Length, Horizontal | 569mm | 605mm | 633mm | 662mm |
| Wheelbase | 1151mm | 1183mm | 1214mm | 1247mm |
| BB Height (high) | 333mm | 335mm | 337mm | 337mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Bike Standover Height | 761mm | 766mm | 775mm | 779mm |
| Head Tube Length | 92mm | 95mm | 110mm | 130mm |
| BB Drop (low) | 43mm | 41mm | 39mm | 39mm |
| Front Center | 720mm | 751mm | 782mm | 815mm |
| Head Tube Angle (low) | 65.4° | 65.4° | 65.4° | 65.4° |
| Seat Tube Length | 390mm | 410mm | 450mm |
