Technical SPecifications
Frameset
Seat Binder
Alloy, single-bolt, 34.9mm
Frame

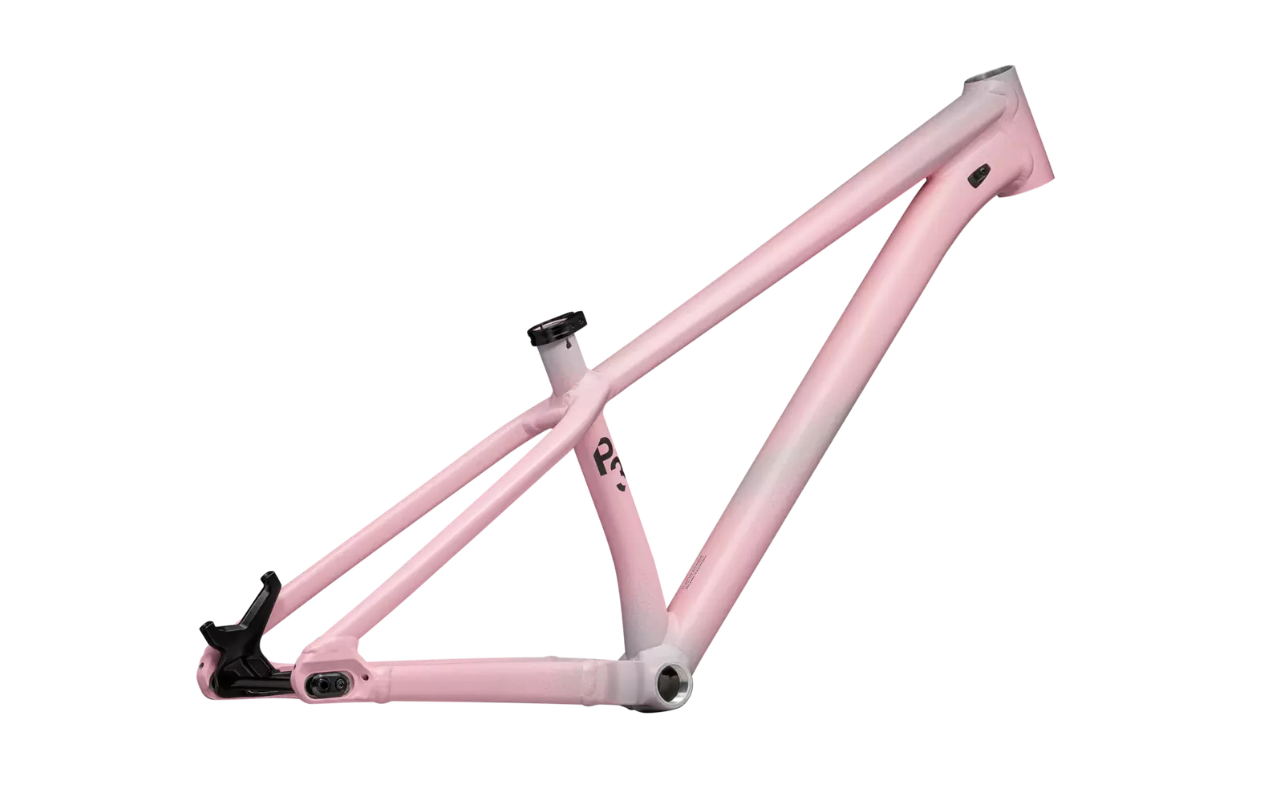

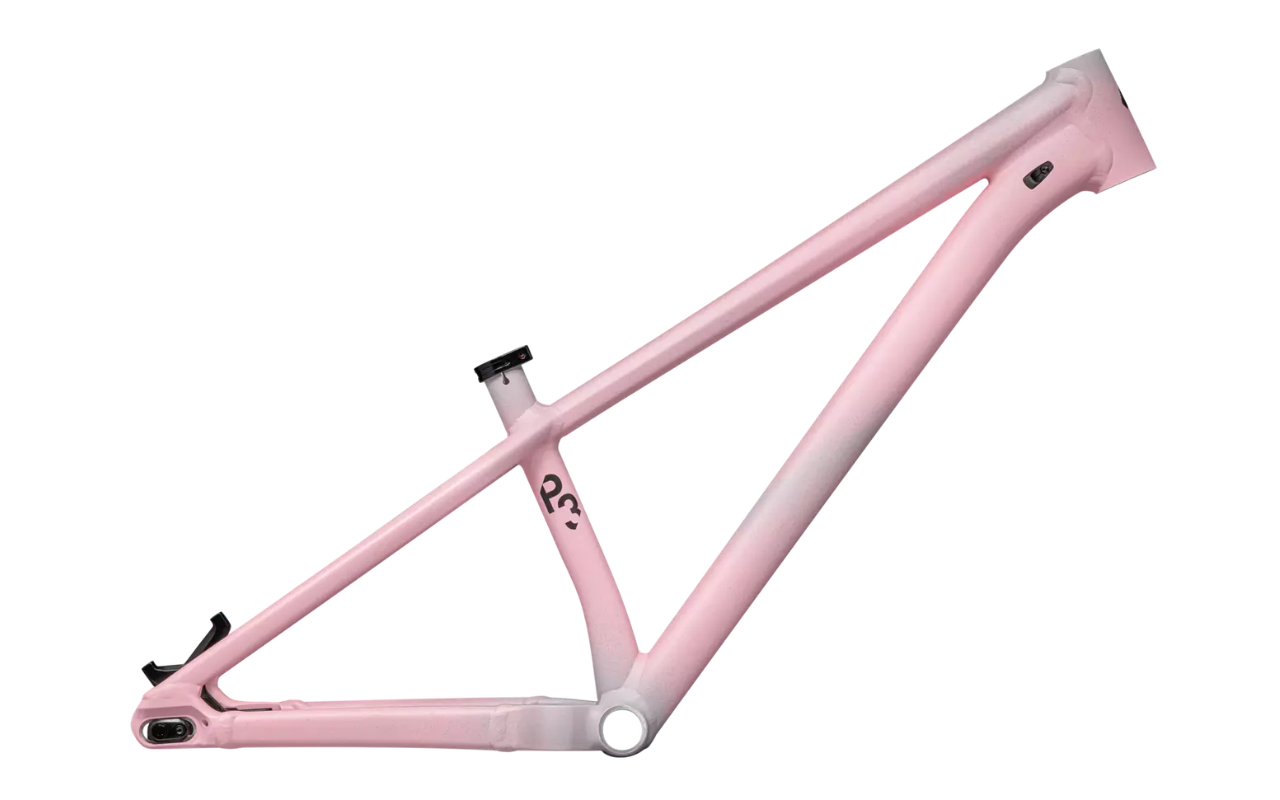

Specialized P.3, A1 Premium Alloy, 26", Fully Butted Tubing, Tapered Head Tube, BSA 73mm BB Shell, 12x148TA Sliding Dropouts, Single Speed or Geared Compatible, 52mm CL, Internal cable routing, 30.9 Seat Tube, Dropper Post Compatible, 27.5" Wheel Compatible
Weight
Weight
2.06kg (4 lb, 8.7 oz)
Geometry
| P3 | |
|---|---|
| Stack | 563 |
| Reach | 415 |
| Head-Tube Length | 115 |
| Head-Tube Angle | 68.5 |
| B-B Height | 318 |
| B-B Drop | 22 |
| Trail | 94 |
| Fork Length (full) | 480 |
| Fork Rake/Offset | 37 |
| Front-Center | 668 |
| Chain-Stay Length | 385 |
| Wheelbase | 1052 |
| Top-Tube Length (horizontal) | 598 |
| Bike Stand-Over Height | 691 |
| Seat-Tube Length | 335 |
| Seat-Tube Angle | 72 |
| Wheel Size | 26 |
