Technical Specifications
Frameset
Frame
All new Levo SL Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Seat Binder
Alloy, 38.6mm
E-Bike

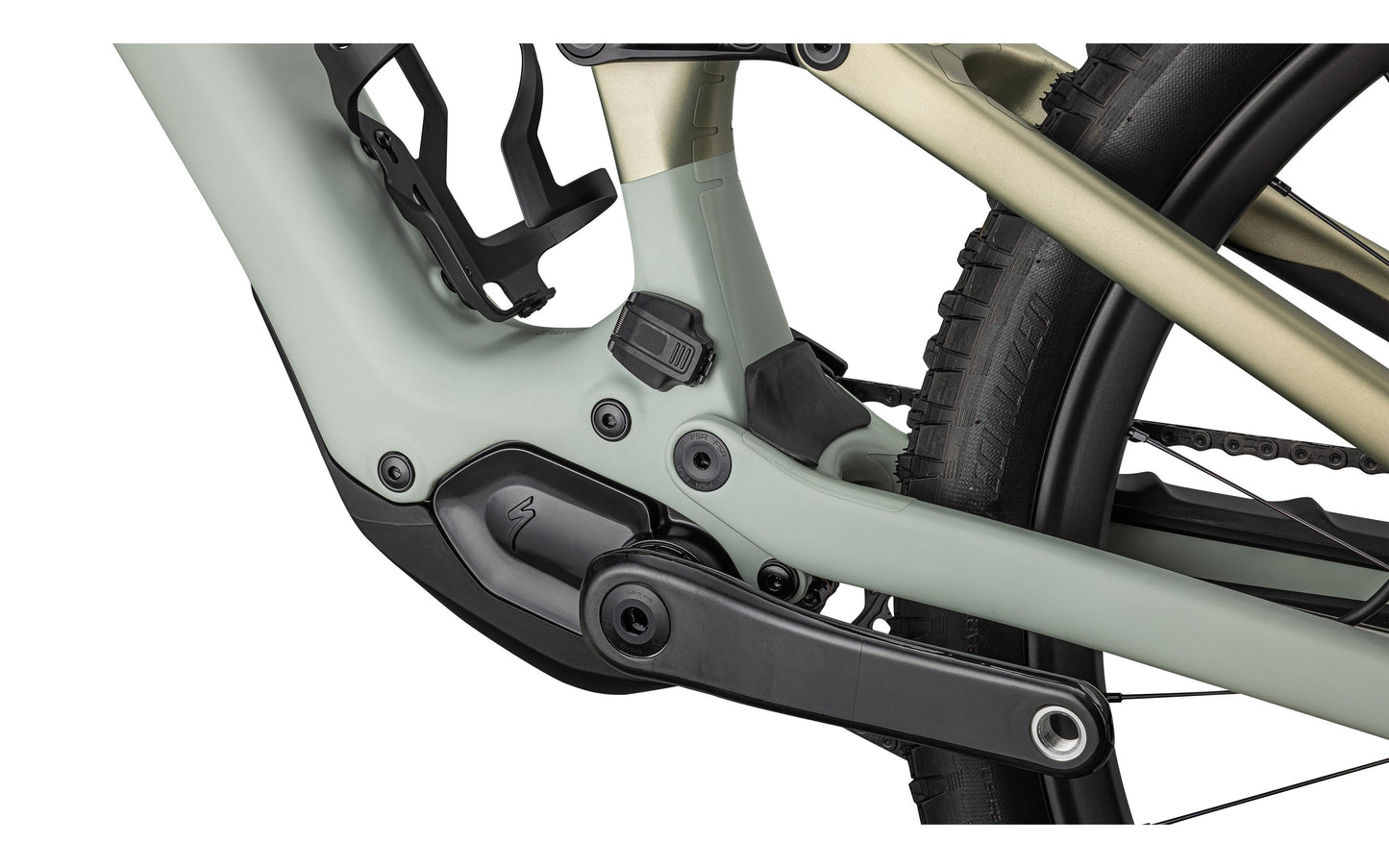

Motor
New Specialized 1.2 SL Custom Rx Trail Tuned Motor

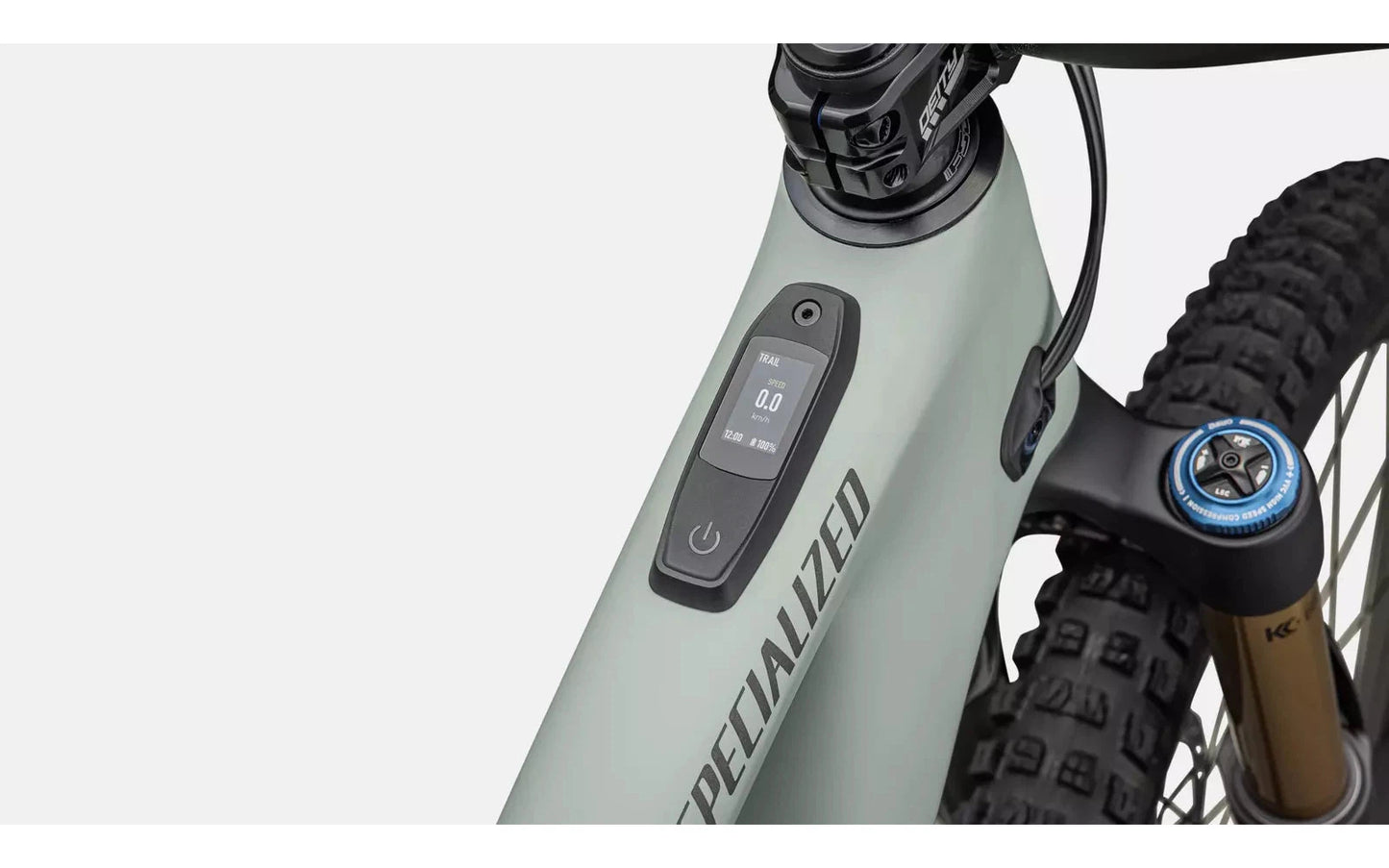

UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Wiring Harness
Custom Specialized wiring harness
Accessories
SWAT
SWAT CC tool inside steerer
Suspension

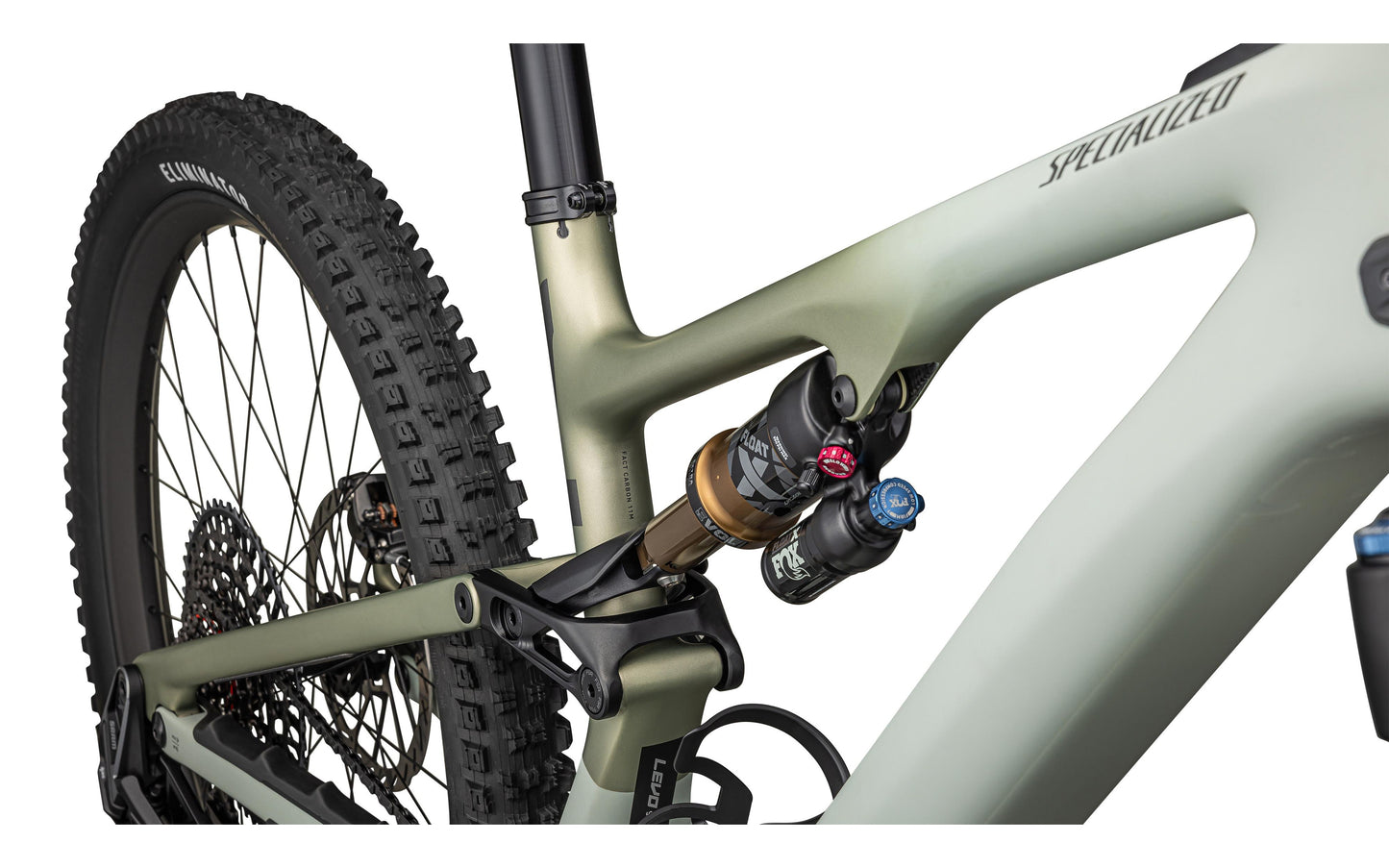

Rear Shock
S1: Fox Float Factory, 210x50mm, S2-S6: Fox Float X Factory, 210.55mm
Fork
Fox 36 Factory series, 29", S1: 150mm, S2-6:160mm
Cockpit
Saddle
Specialized Bridge Expert Mimic saddle
SeatPost
Bike Yoke Revive dropper post, S1: 125mm, S2/S3: 160mm, S4/S5: 185mm, S6: 213mm
Stem
Deity, 35.0mm

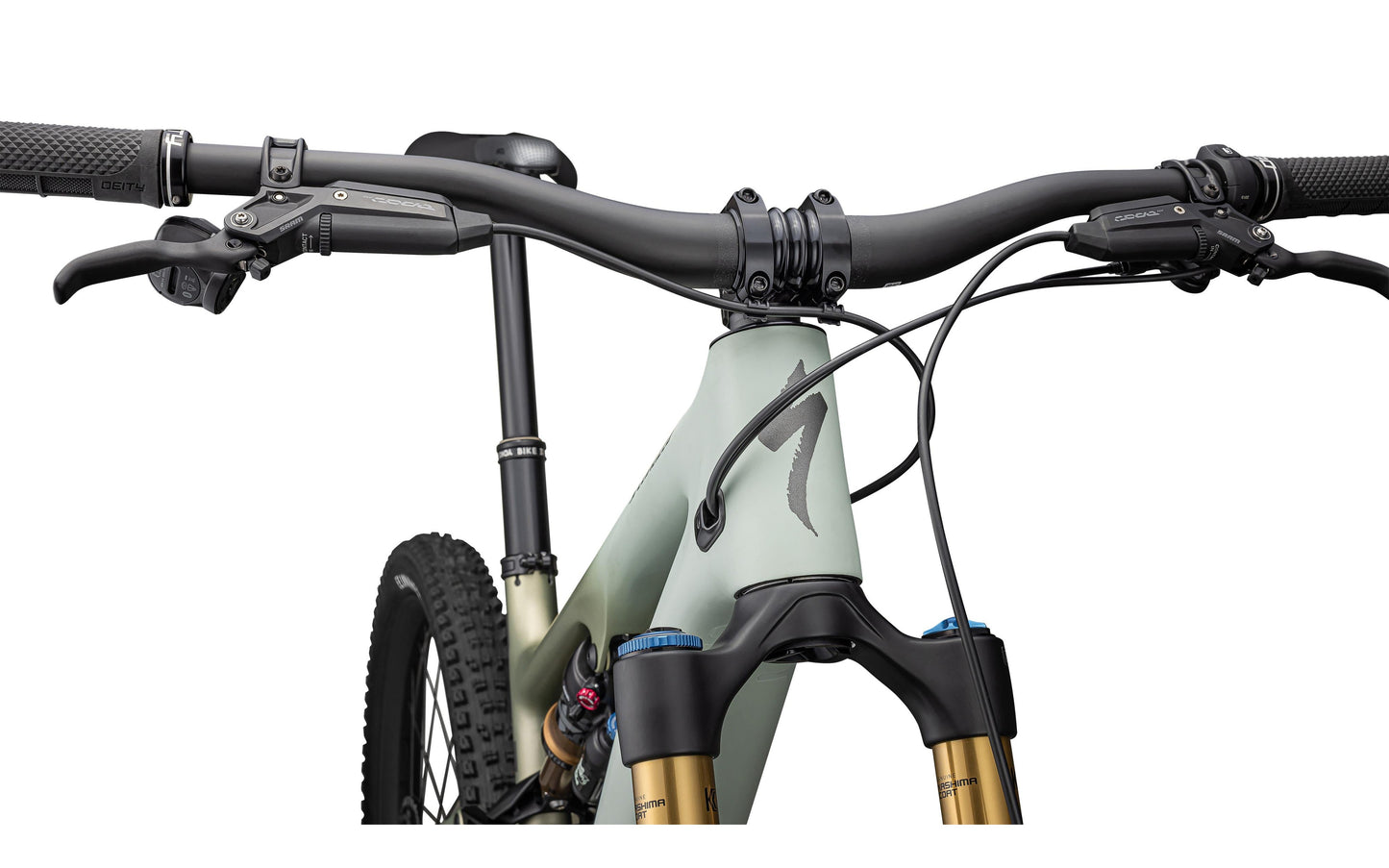

Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips
Diety Lockjaw grips
Brakes
Front Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Rear Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission
Shift Levers
SRAM Pod ultimate shifter
Cassette
SRAM XS 1295, 12 speed, 10-52
Crankset
SRAM Dub carbon cranks, 165/170/175mm
Chain
SRAM X0 Chain
Chainrings
SRAM T-type ring, 32t
Wheels & Tires
Rims
Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Inner Tubes
Presta, Standard Valve
Weight
Weight
17.74kg (39 lb, 1.8 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 165mm | 170mm | 170mm | 170mm | 175mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
| Stem Length | 35mm | 35mm | 35mm | 35mm | 50mm | 50mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125 mm | 160 mm | 160 mm | 185 mm | 185 mm | 213mm |
| Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
| Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
| Head-Tube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
| Head-Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
| B-B Height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
| B-B Drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
| Trail | 132mm | 132mm | 132mm | 132mm | 132mm | 132mm |
| Fork Length, Full | 560mm | 570mm | 570mm | 570mm | 570mm | 570mm |
| Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
| Front-Center | 726mm | 752mm | 776mm | 806mm | 835mm | 869mm |
| Chain-Stay Length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
| Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
| Top Tube Length, Horizontal | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
| Bike Stand-Over Height | 727mm | 763mm | 766mm | 767mm | 773mm | 778mm |
| Seat-Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
| Seat-Tube Angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
