Technical Specifications
COCKPIT
Stem
Deity, 35.0mm

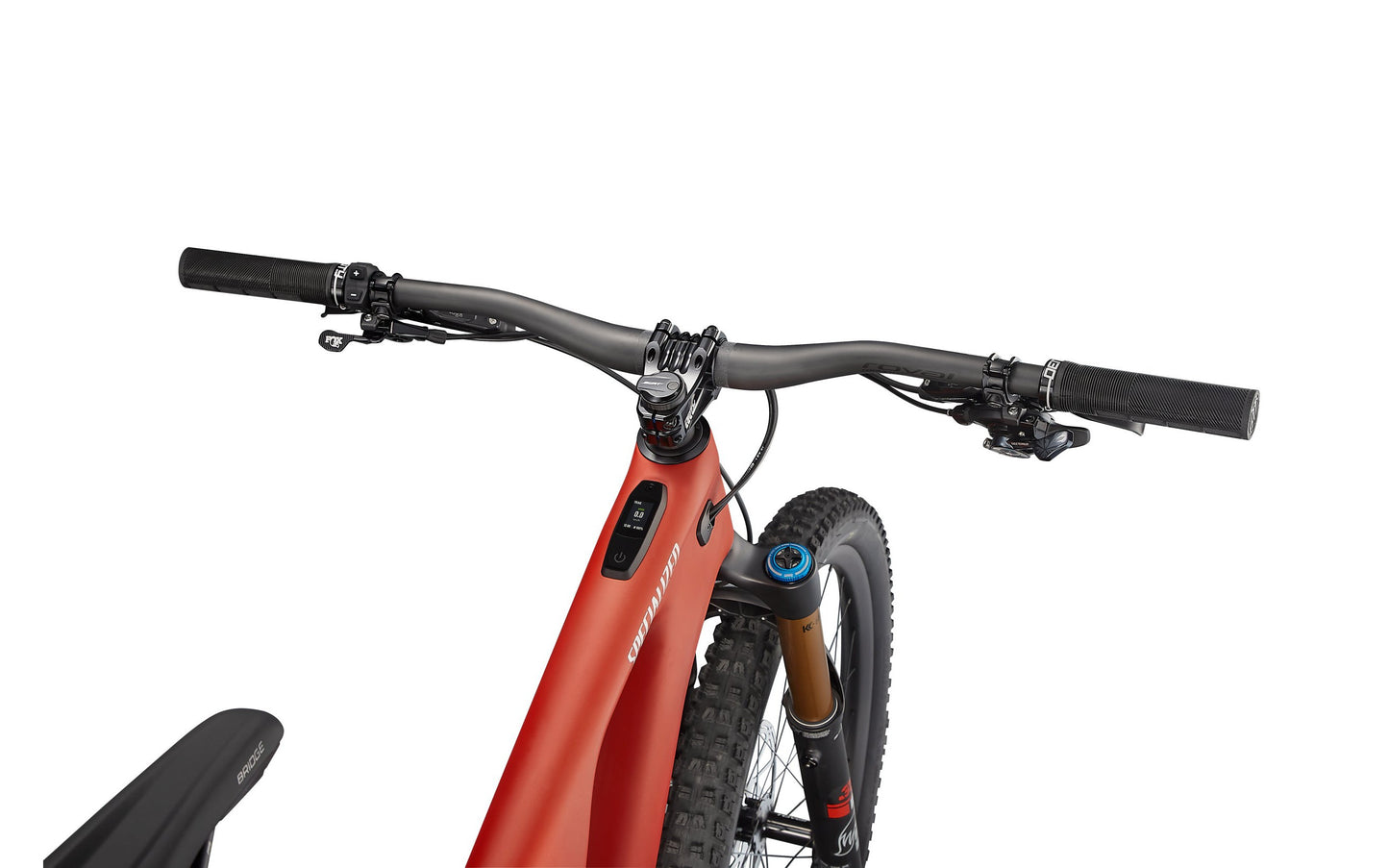

Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips
Deity, Knuckleduster, Black
Saddle
Bridge, 155/143mm, Hollow Ti-rails
SeatPost
FOX Transfer, 30.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 200mm
BRAKES
Rear Brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
Front Brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm
DRIVETRAIN
Rear Derailleur
Sram X01 Eagle, 12-speed
Shift Levers
SRAM XO1 Eagle trigger, 12-speed, single click
Cassette
SRAM XG-1295 Eagle, 10-52t
Chain
SRAM X01 Eagle, 12-speed
Crankset
Praxis Carbon M30, custom offset, 160mm
Chainrings
SRAM X-Sync Eagle, 104 BCD, 34T, steel
WHEELS
Inner Tubes
Standard, Presta Valve
Front Wheel
Traverse Carbon 29
Rear Wheel
Traverse Carbon 27.5
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
FRAMESET
Seat Binder
Alloy, 38.6mm
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Fork
FOX FLOAT 38 Factory 29, Grip2 damper, 44mm offset, HSC, LSC, HSR, LSR, 110x15mm, 1.5" tapered steerer, 160mm travel, Kashima
E-BIKE

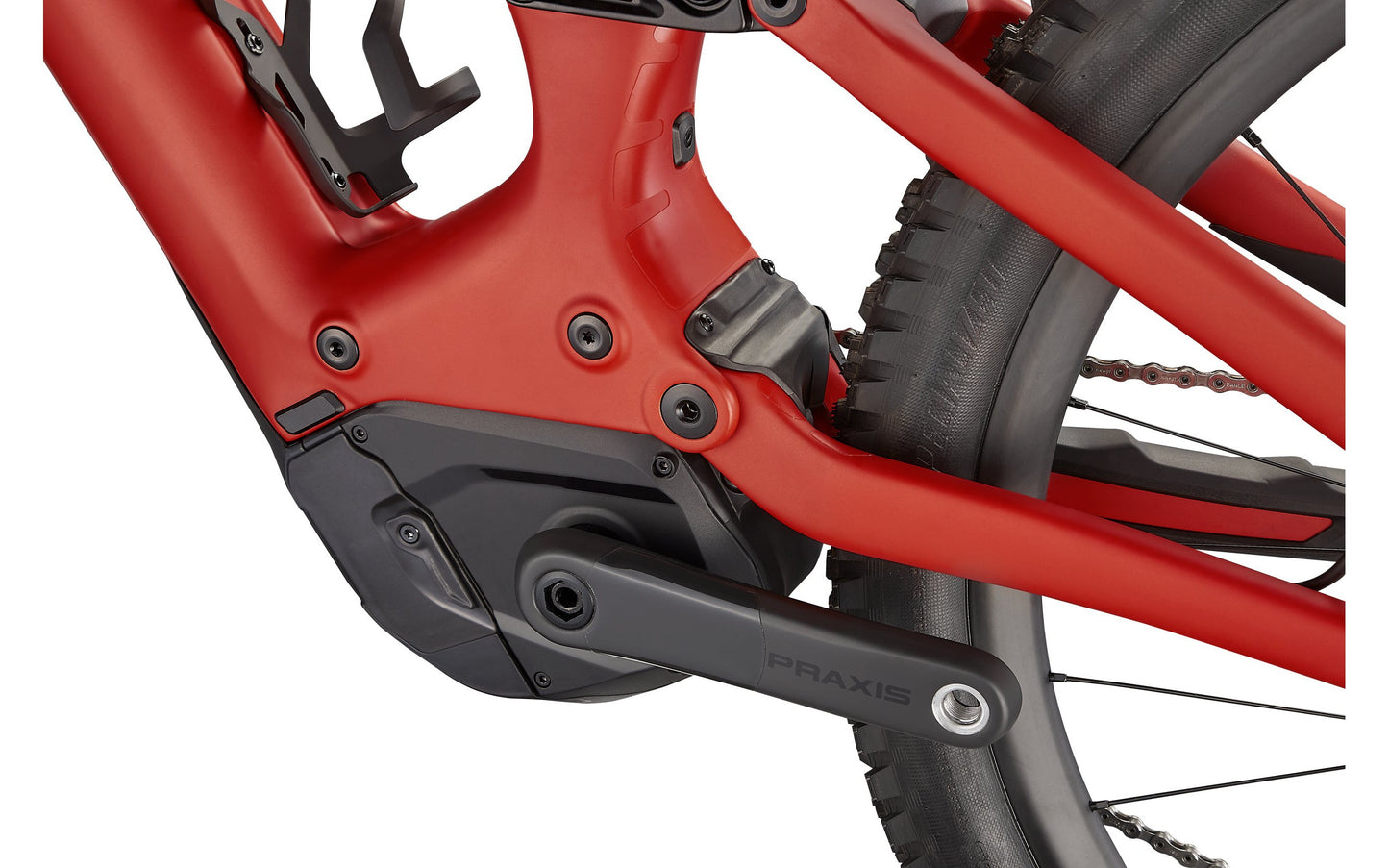

Motor
Specialized Turbo Full Power System 2.2 Motor
Charger
Custom charger, 42V4A w/ Rosenberger plug

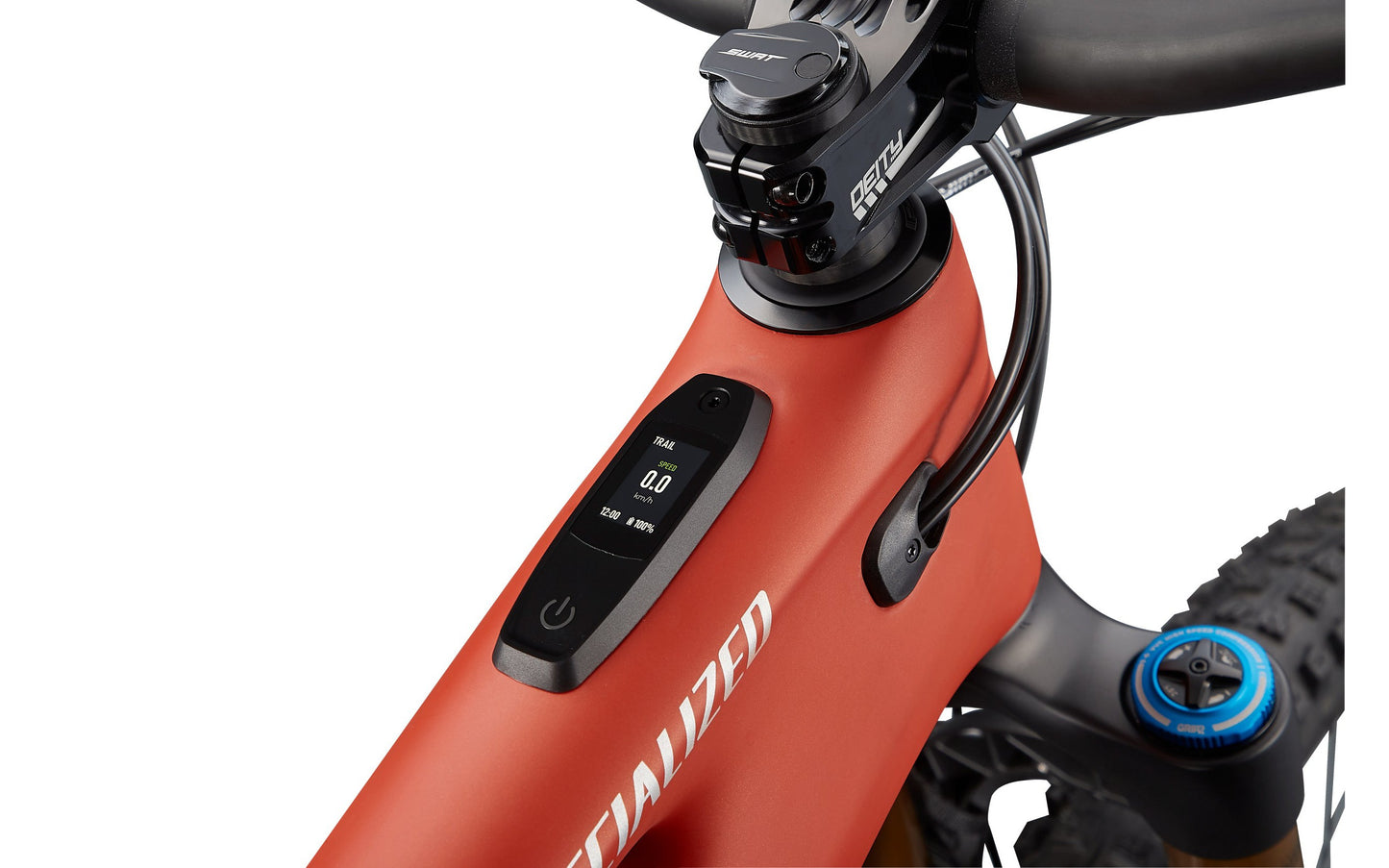

UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M3-700, Integrated battery, 700Wh
Wiring Harness
Custom Specialized wiring harness
Suspension
Rear Shock
FOX FLOAT X2 Factory, LSC, LSR, 2-position lever, 55x210mm, Kashima
Accessories
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
* Specifications are subject to change without notice
Geometry
S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|
Crank Length | 160mm | 160mm | 160mm | 160mm | 160mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm |
Stem Length | 35mm | 50mm | 50mm | 50mm | 50mm |
Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 125mm | 150mm | 175mm | 175mm | 200mm |
Stack | 617mm | 626mm | 635mm | 644mm | 653mm |
Reach | 432mm | 452mm | 477mm | 502mm | 532mm |
Headtube Length | 105mm | 115mm | 125mm | 135mm | 145mm |
Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
BB Height | 350mm | 350mm | 350mm | 350mm | 350mm |
BB Drop | 27mm | 27mm | 27mm | 27mm | 27mm |
Trail | 130mm | 130mm | 130mm | 130mm | 130mm |
Fork Length (full) | 567mm | 567mm | 567mm | 567mm | 567mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 760mm | 784mm | 814mm | 843mm | 878mm |
Chainstay Length | 442mm | 442mm | 442mm | 442mm | 442mm |
Wheelbase | 1200mm | 1225mm | 1255mm | 1284mm | 1318mm |
Bike Standover Height | 776mm | 783mm | 787mm | 788mm | 790mm |
Seat Tube Length | 390mm | 405mm | 425mm | 445mm | 465mm |
Seat Tube Angle | 77.2° | 76.7° | 76.2° | 76.2° | 76.2° |
Max Seatpost Insertion | 220mm | 240mm | 255mm | 275mm | 295mm |
Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm |
