SPECIALIZED

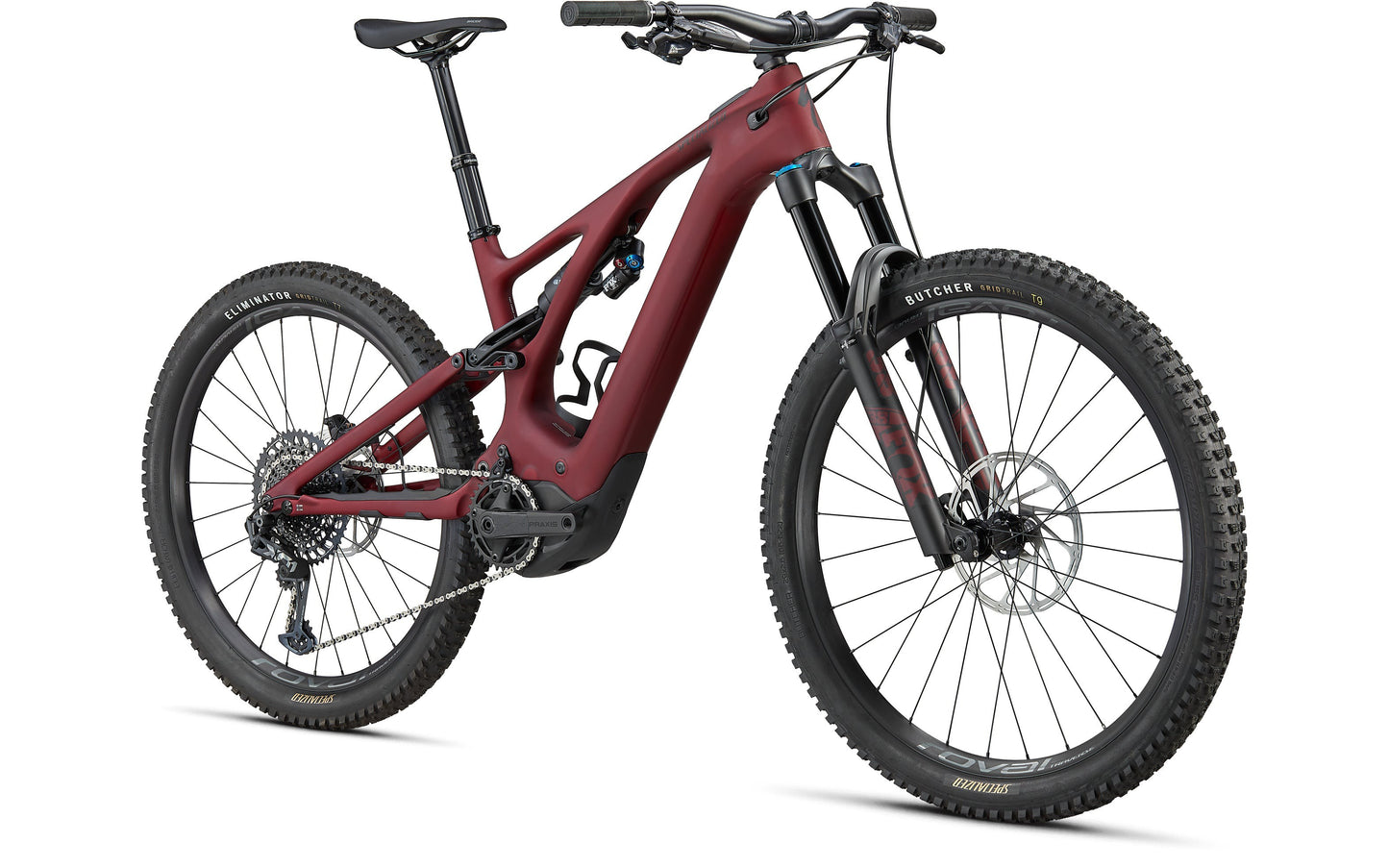

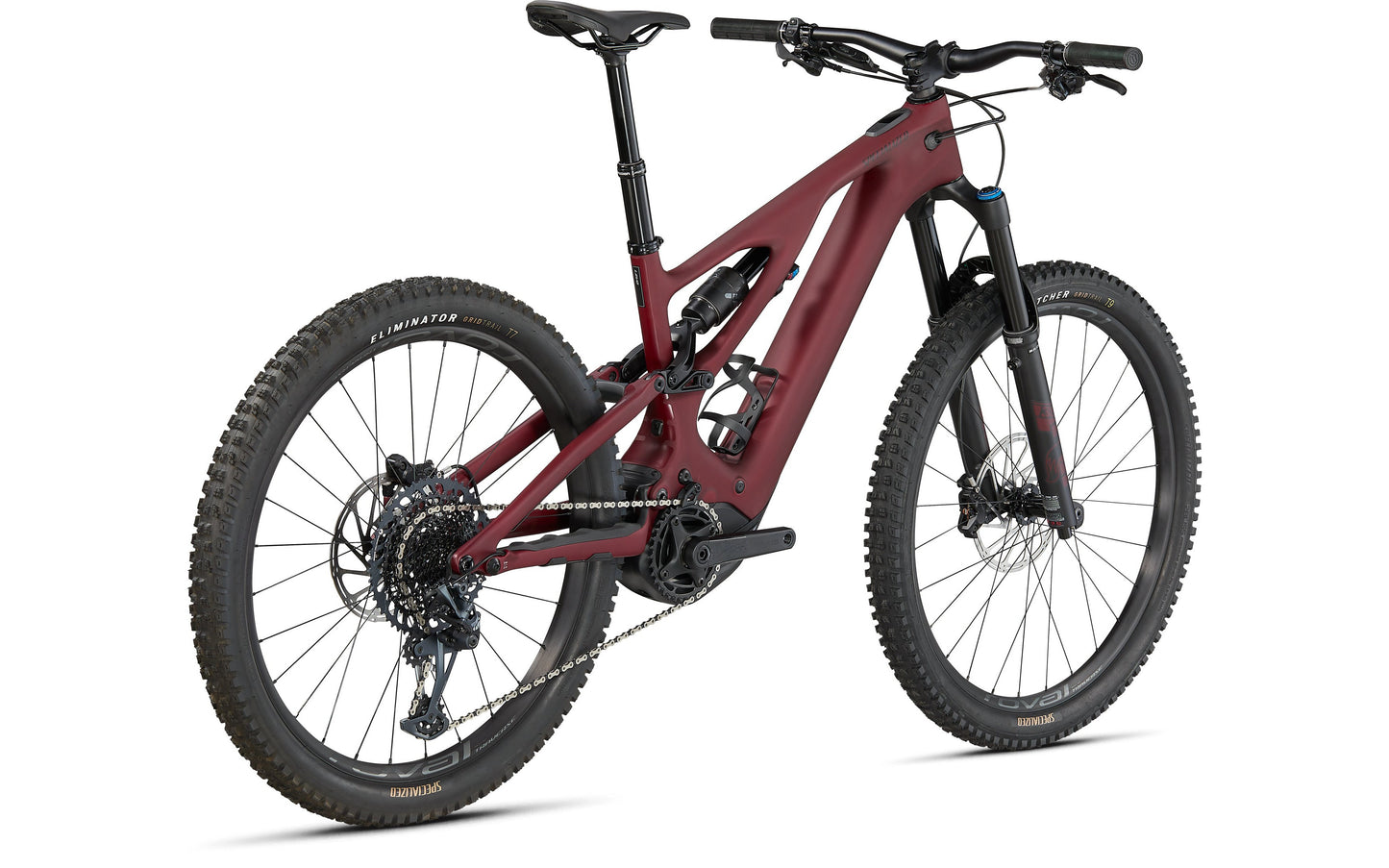

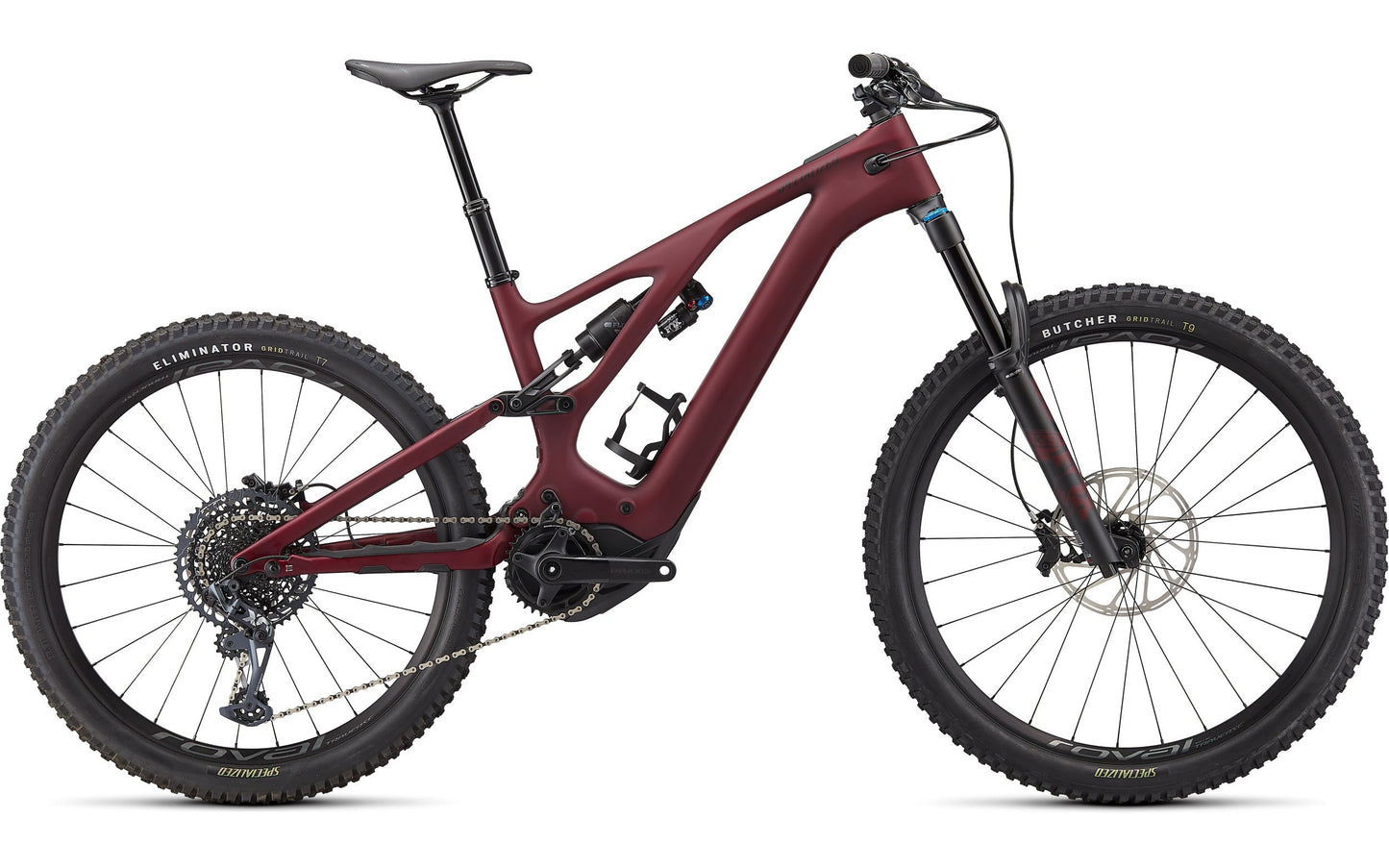

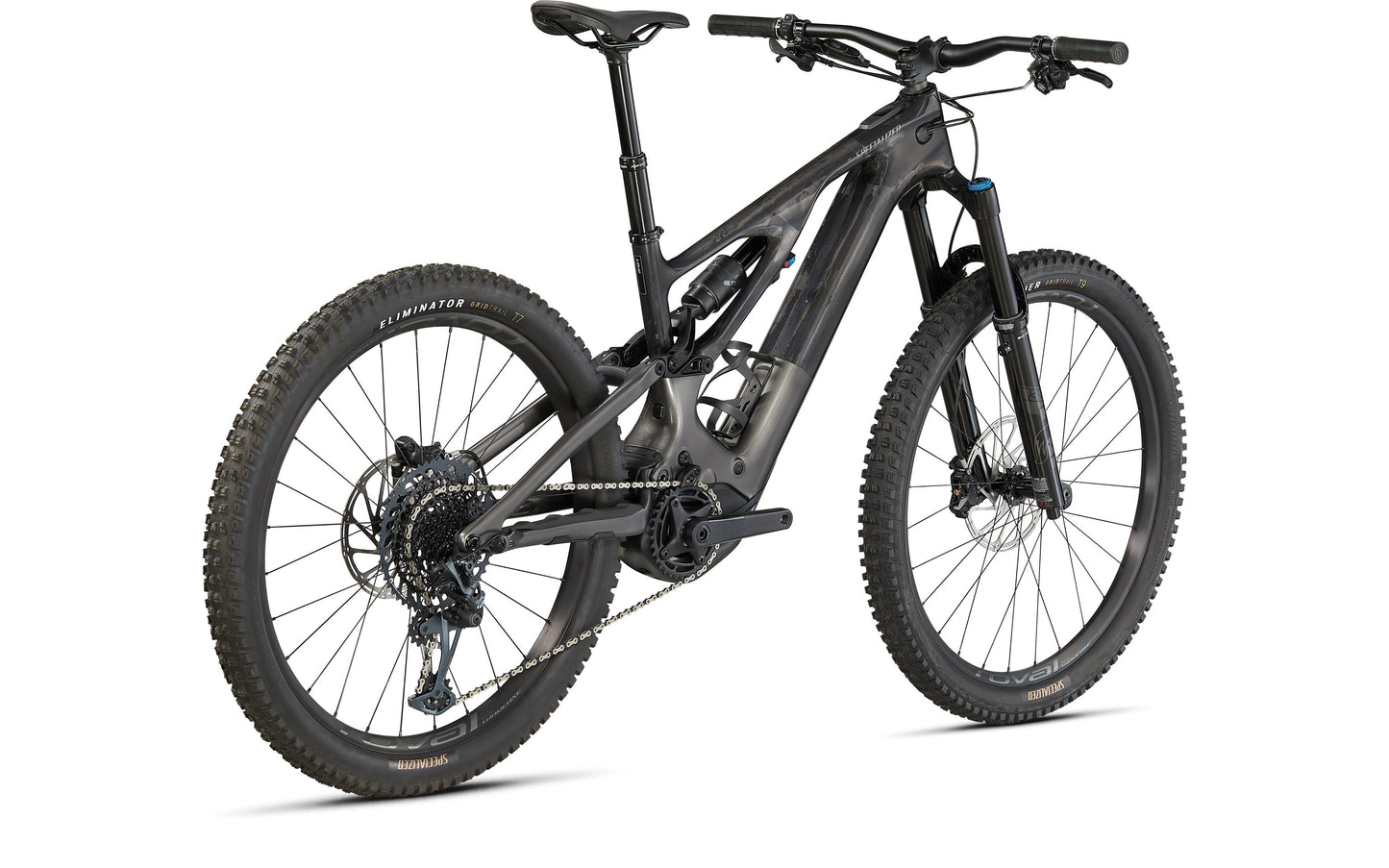

Turbo Levo Expert

Turbo Levo Expert

SKU: 96421-3002

Regular price MSRP 169,000.00
Regular price MSRP 169,000.00 Sale price MSRP 169,000.00
Sale Sold out
VAT included.
Size
Color

3 - Available

View full details

Technical Specifications

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

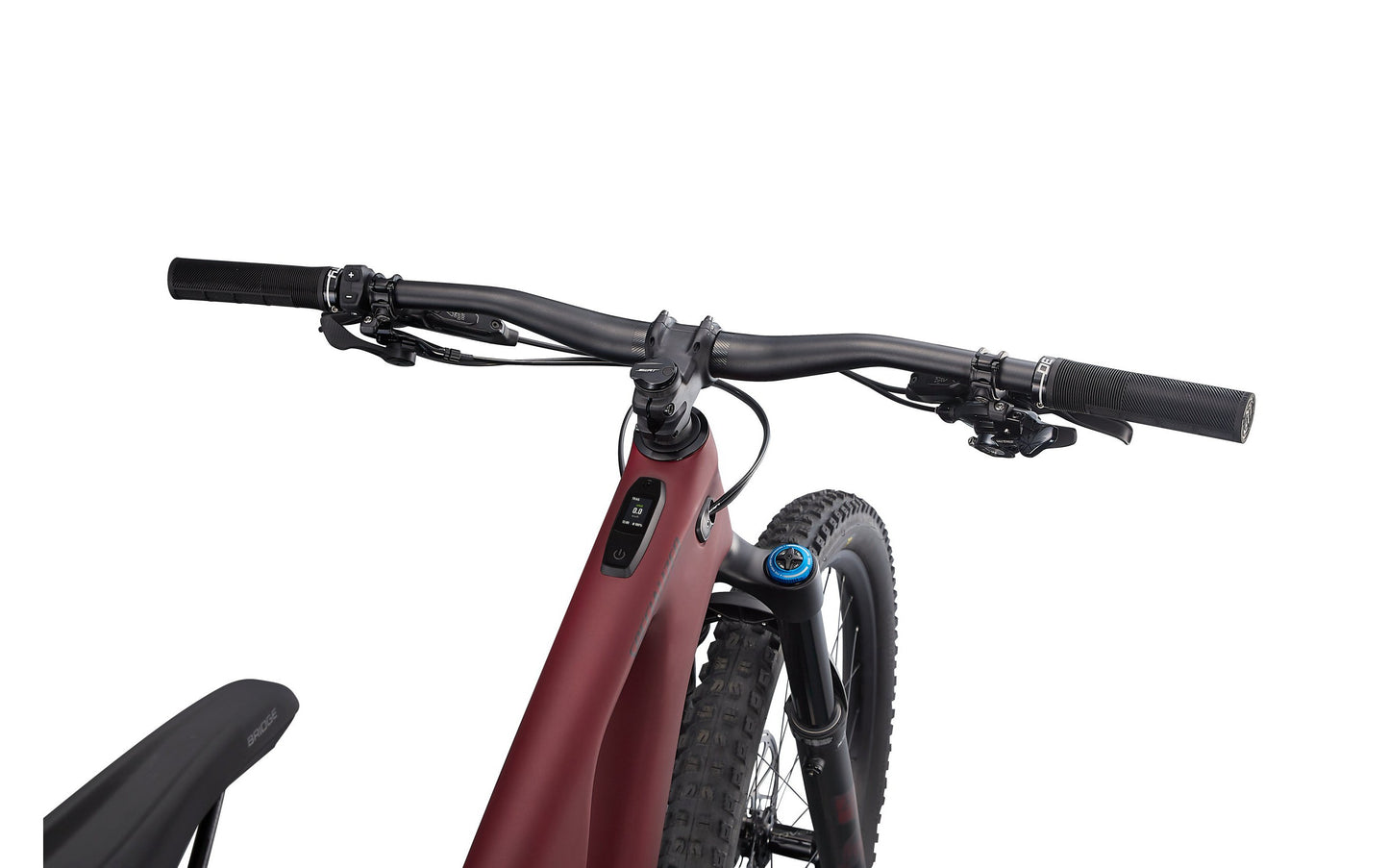

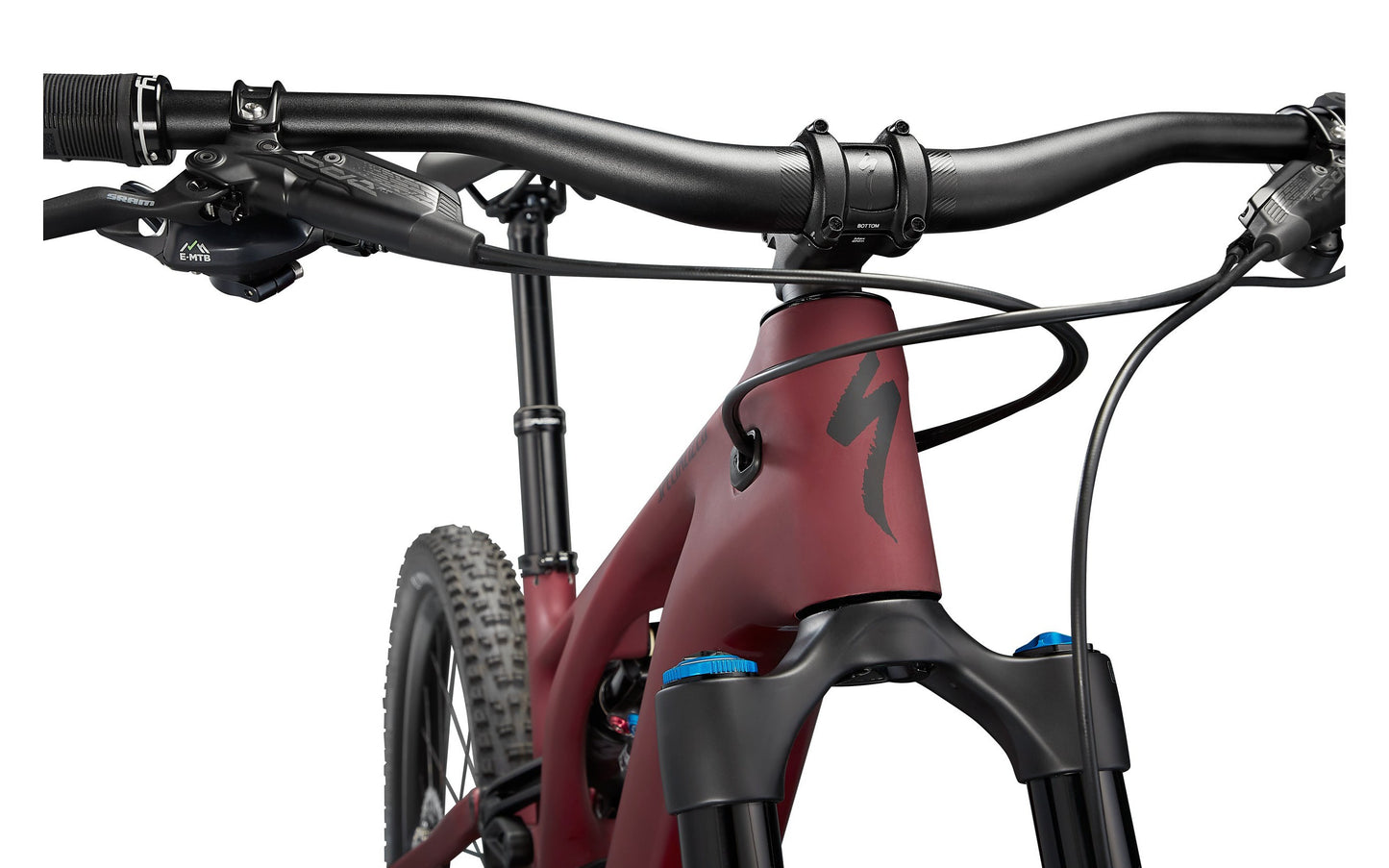

Handlebars

Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp

Grips

Deity, Knuckleduster, Black

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm

BRAKES

Front Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm

Rear Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

DRIVETRAIN

Rear Derailleur

Sram X01 Eagle, 12-speed

Shift Levers

SRAM XO1 Eagle trigger, 12-speed, single click

Cassette

SRAM XG-1275, 12-speed, 10-52t

Chain

SRAM GX Eagle, 12-speed

Crankset

Praxis forged M30, custom offset, 160mm

Chainrings

SRAM X-Sync Eagle, 104 BCD, 32T, steel

WHEELS

Inner Tubes

Standard, Presta Valve

Front Wheel

Traverse 29

Rear Wheel

Traverse 27.5

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

FRAMESET

Seat Binder

Alloy, 38.6mm

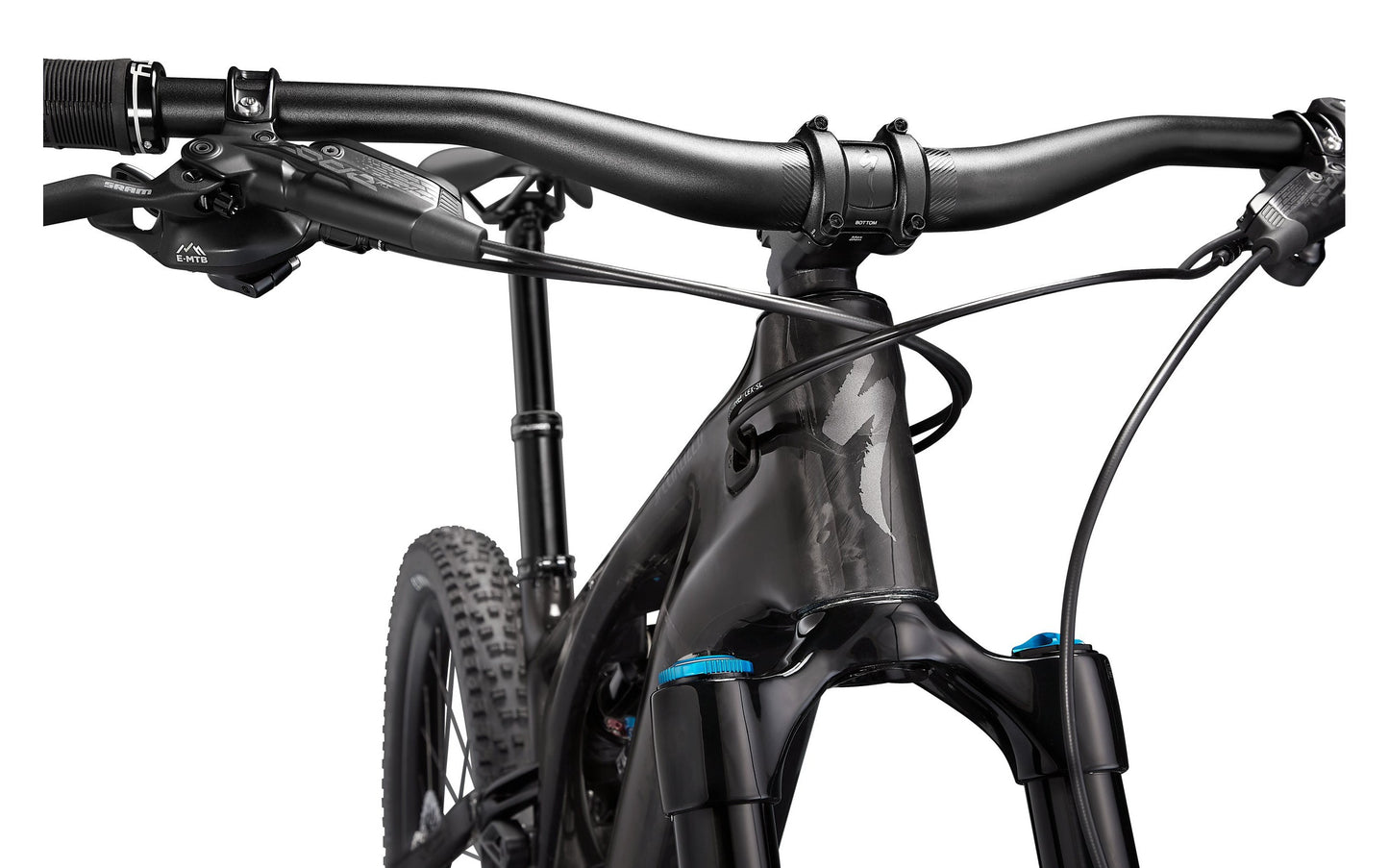

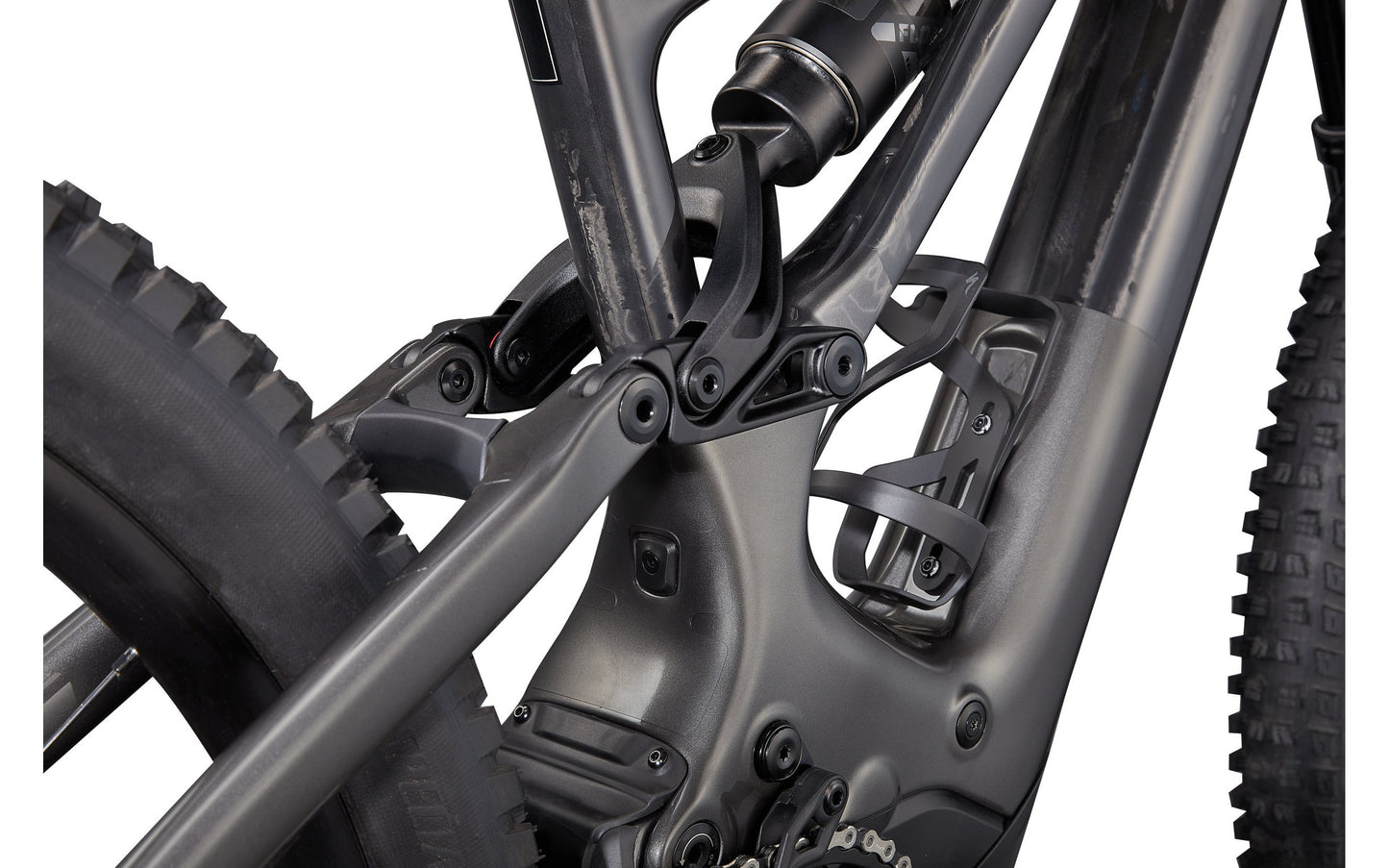

Frame

FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

Fork

FOX FLOAT 38 Performance Elite 29, Grip2 damper, 44mm offset, HSC, LSC, HSR, LSR, 110x15mm, 1.5" tapered steerer, 160mm travel

E-BIKE

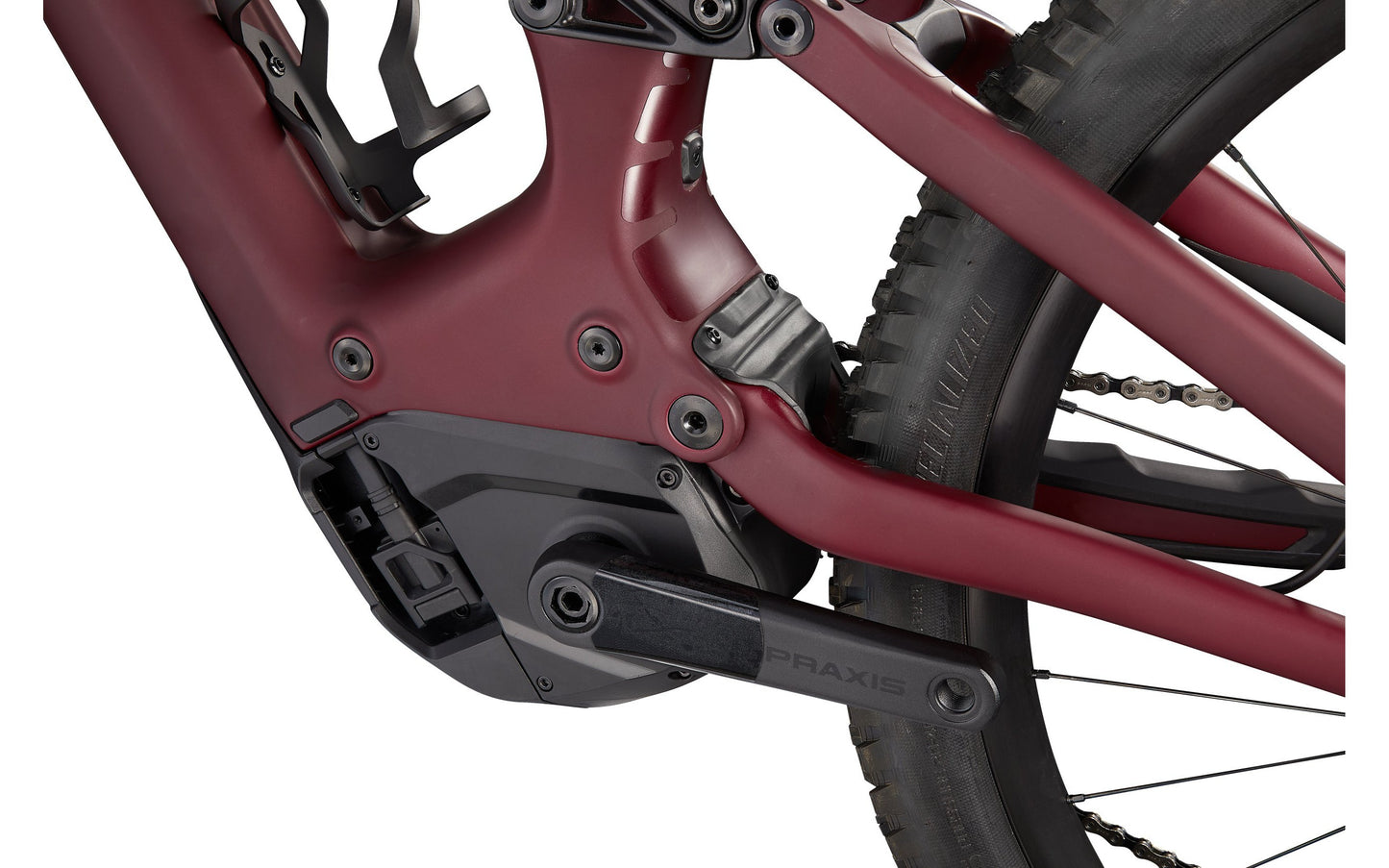

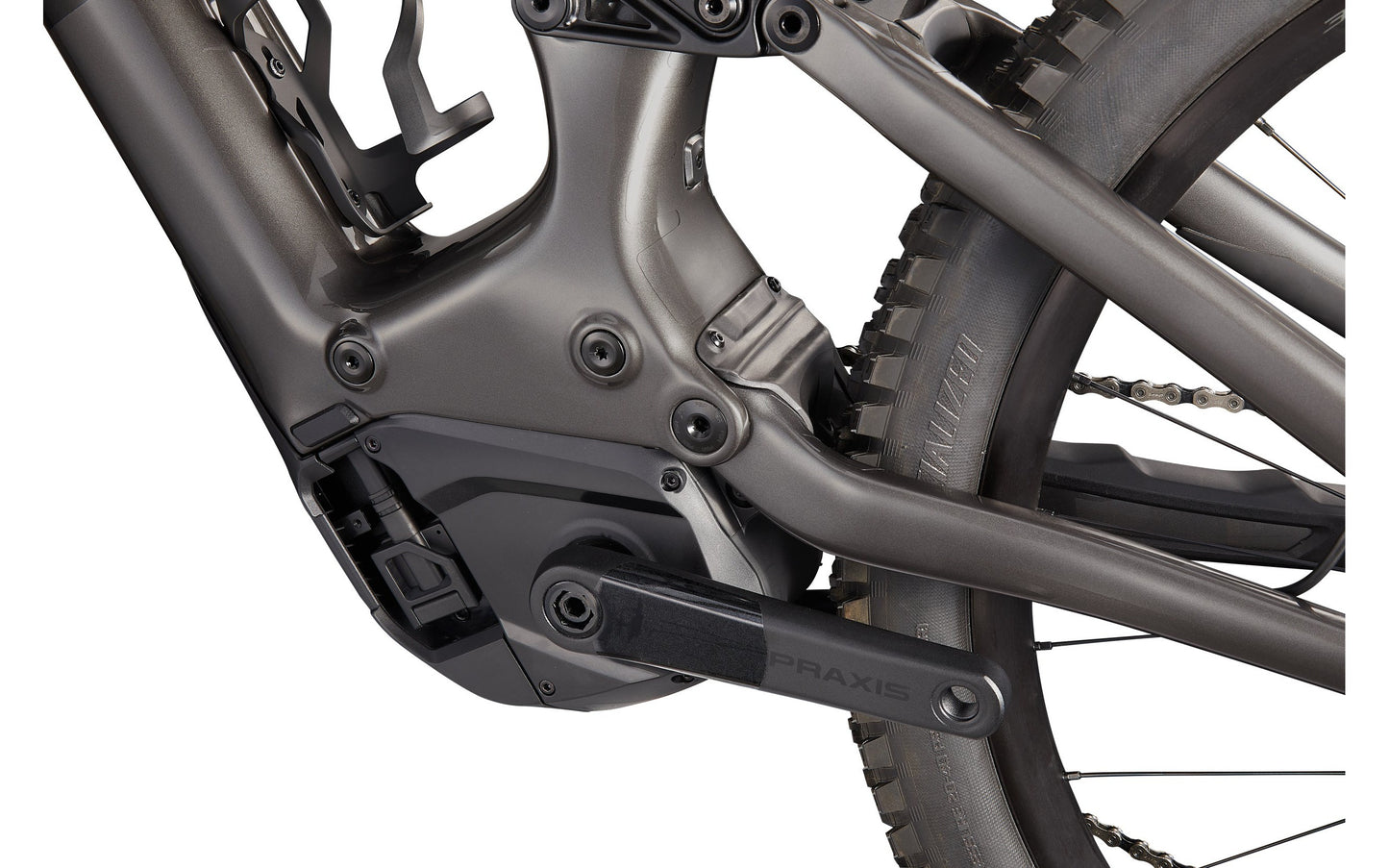

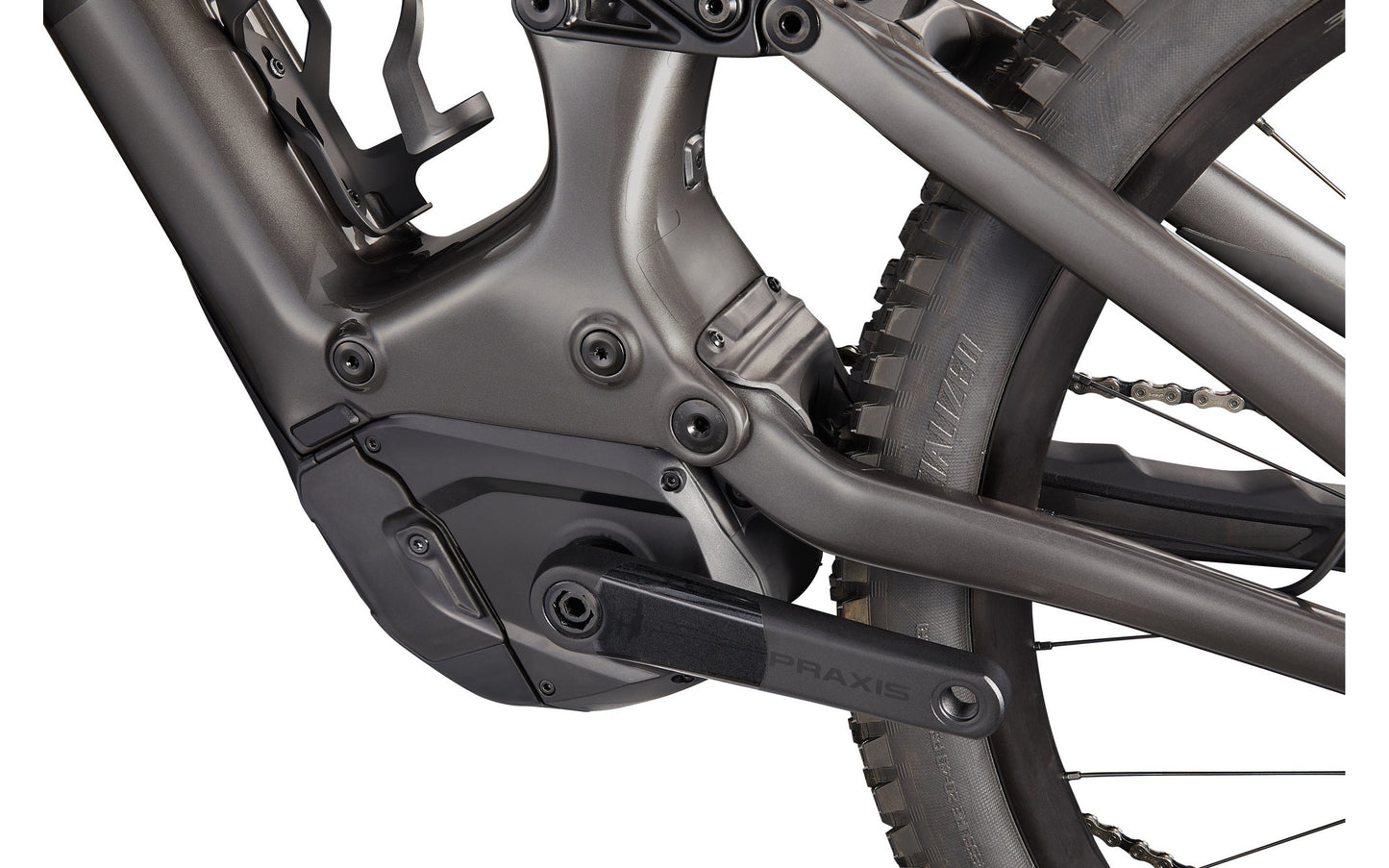

Motor

Specialized Turbo Full Power System 2.2 Motor

Charger

Custom charger, 42V4A w/ Rosenberger plug

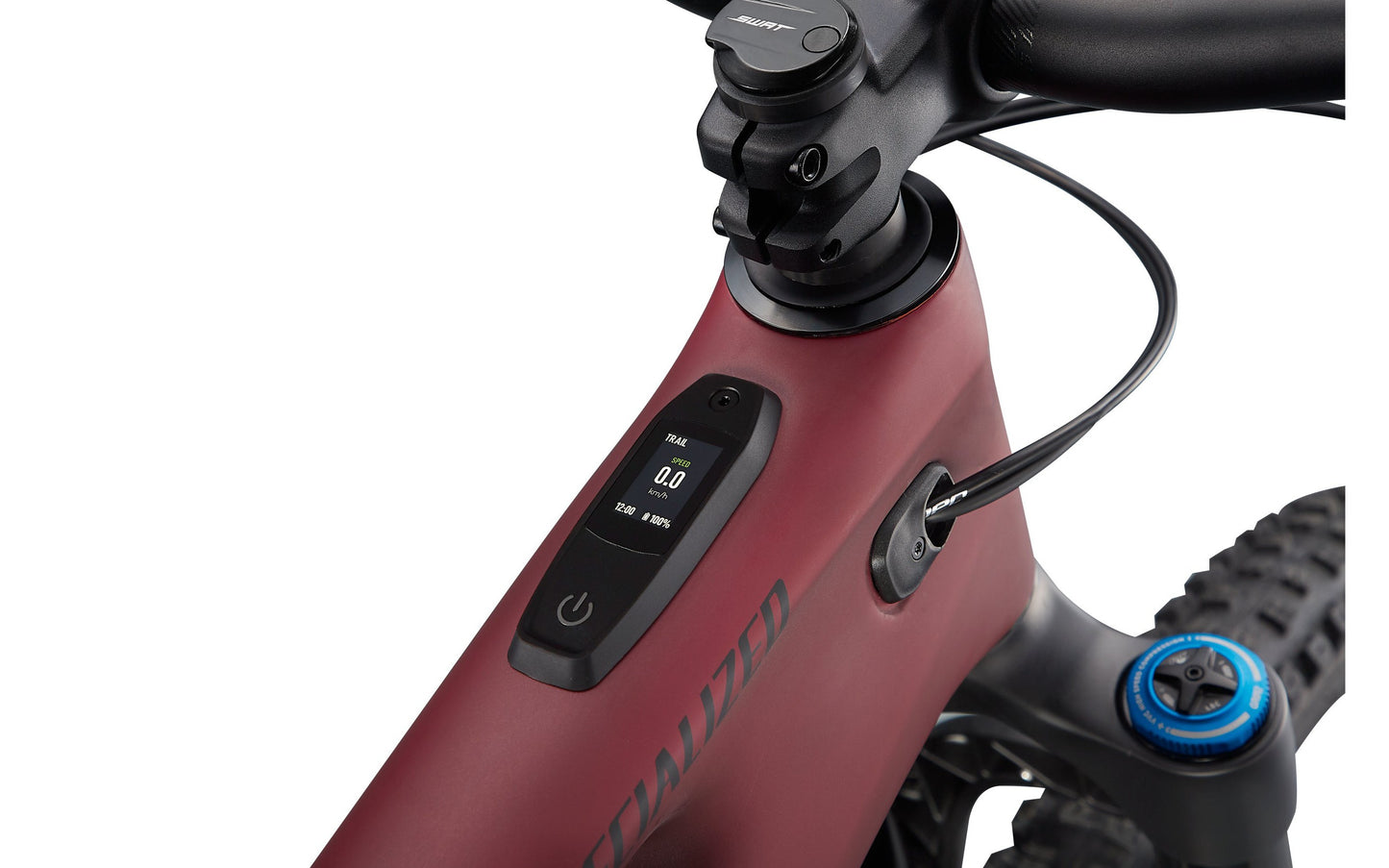

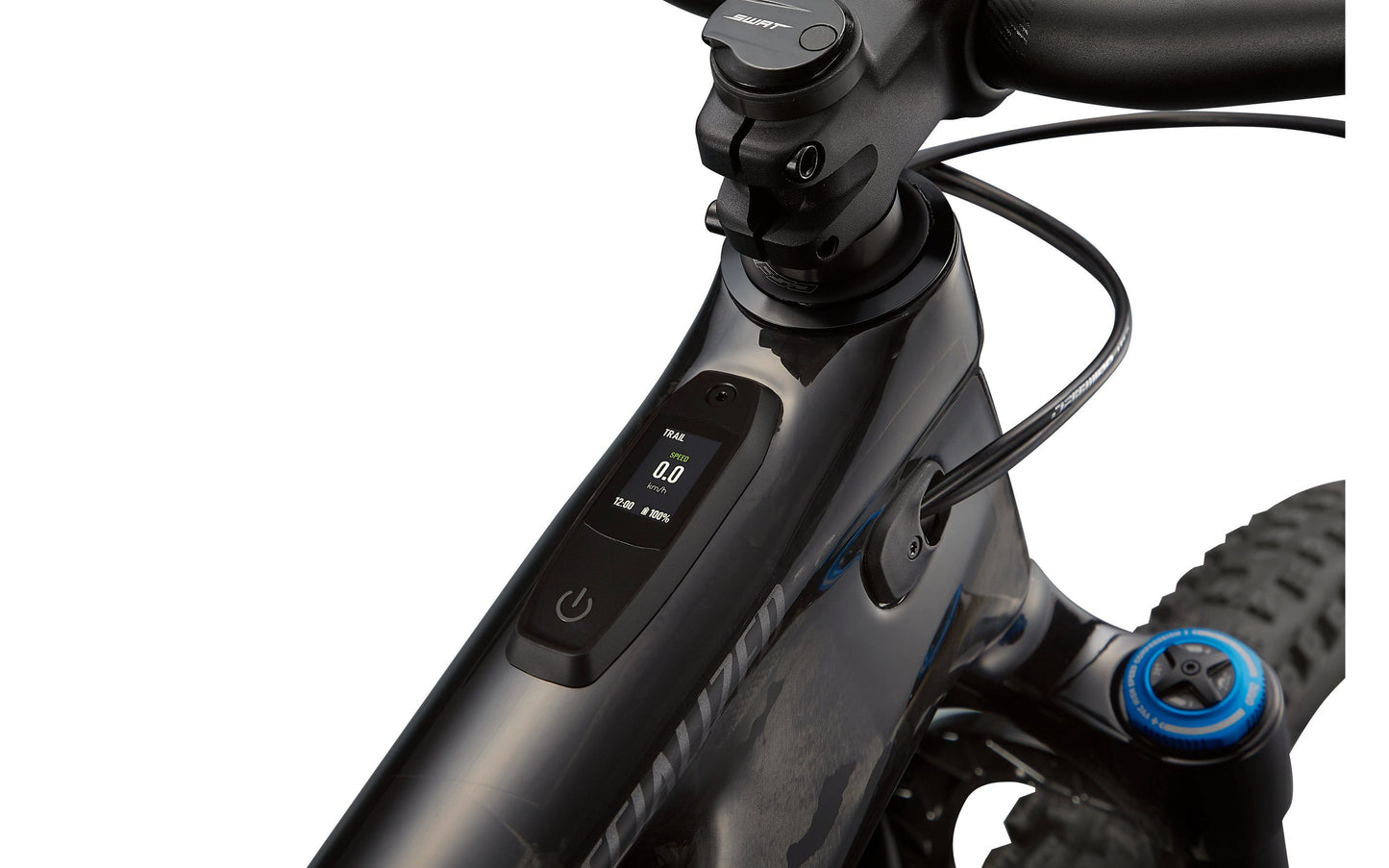

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote

Battery

Specialized M3-700, Integrated battery, 700Wh

Wiring Harness

Custom Specialized wiring harness

Suspension

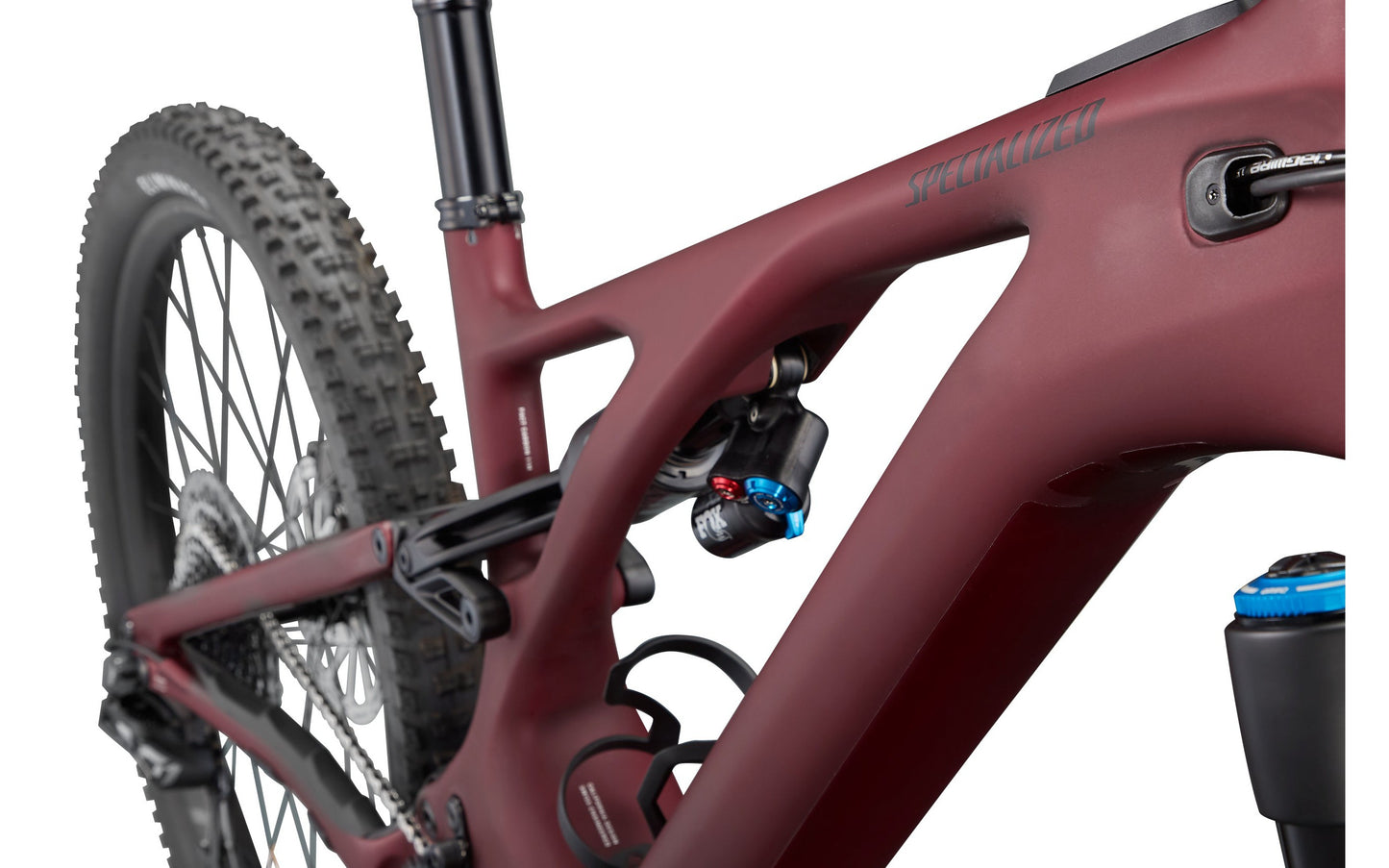

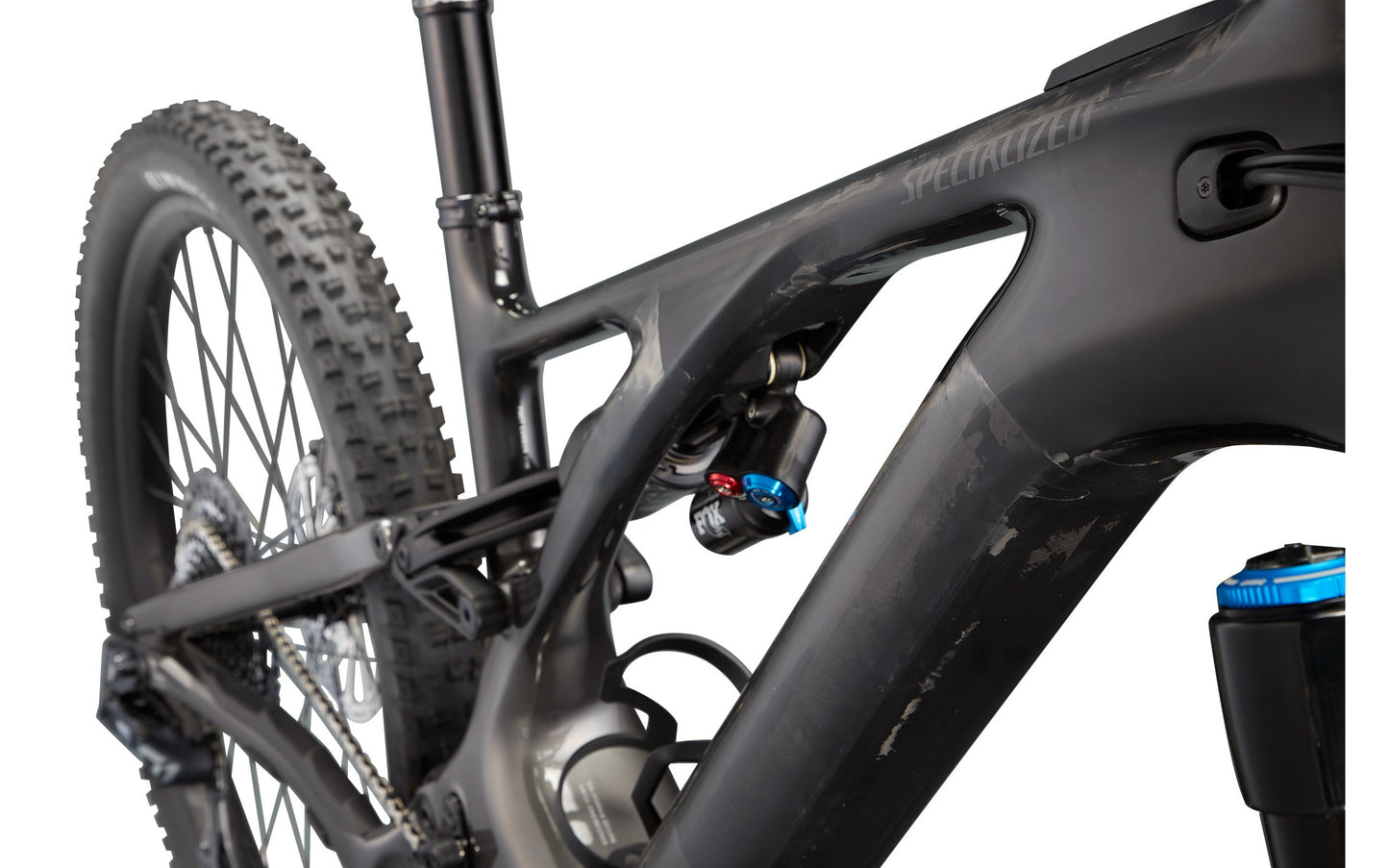

Rear Shock

S1: Fox Float DPS Performance, S2-S6: FOX FLOAT X2 Performance, LSC, LSR, 2-position lever

Accessories

SWAT

SWAT CC steerer tube integrated tool with chain tool and link

* Specifications are subject to change without notice

Geometry

S1S2S3S4S5S6
Crank Length160mm160mm160mm160mm160mm160mm
Stem Length40mm40mm50mm50mm50mm50mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Seatpost Length100mm125mm150mm170mm170mm190mm
Saddle Width155mm155mm143mm143mm143mm143mm
Stack605mm617mm626mm635mm644mm653mm
Reach412mm432mm452mm477mm502mm532mm
Headtube Length105mm105mm115mm125mm135mm145mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
BB Height352mm350mm350mm350mm350mm350mm
BB Drop25mm27mm27mm27mm27mm27mm
Trail130mm130mm130mm130mm130mm130mm
Fork Length (full)557mm567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center738mm760mm784mm814mm843mm878mm
Chainstay Length442mm442mm442mm442mm442mm442mm
Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
Bike Standover Height752mm776mm783mm787mm788mm790mm
Seat Tube Length380mm390mm405mm425mm445mm465mm
Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
