SPECIALIZED

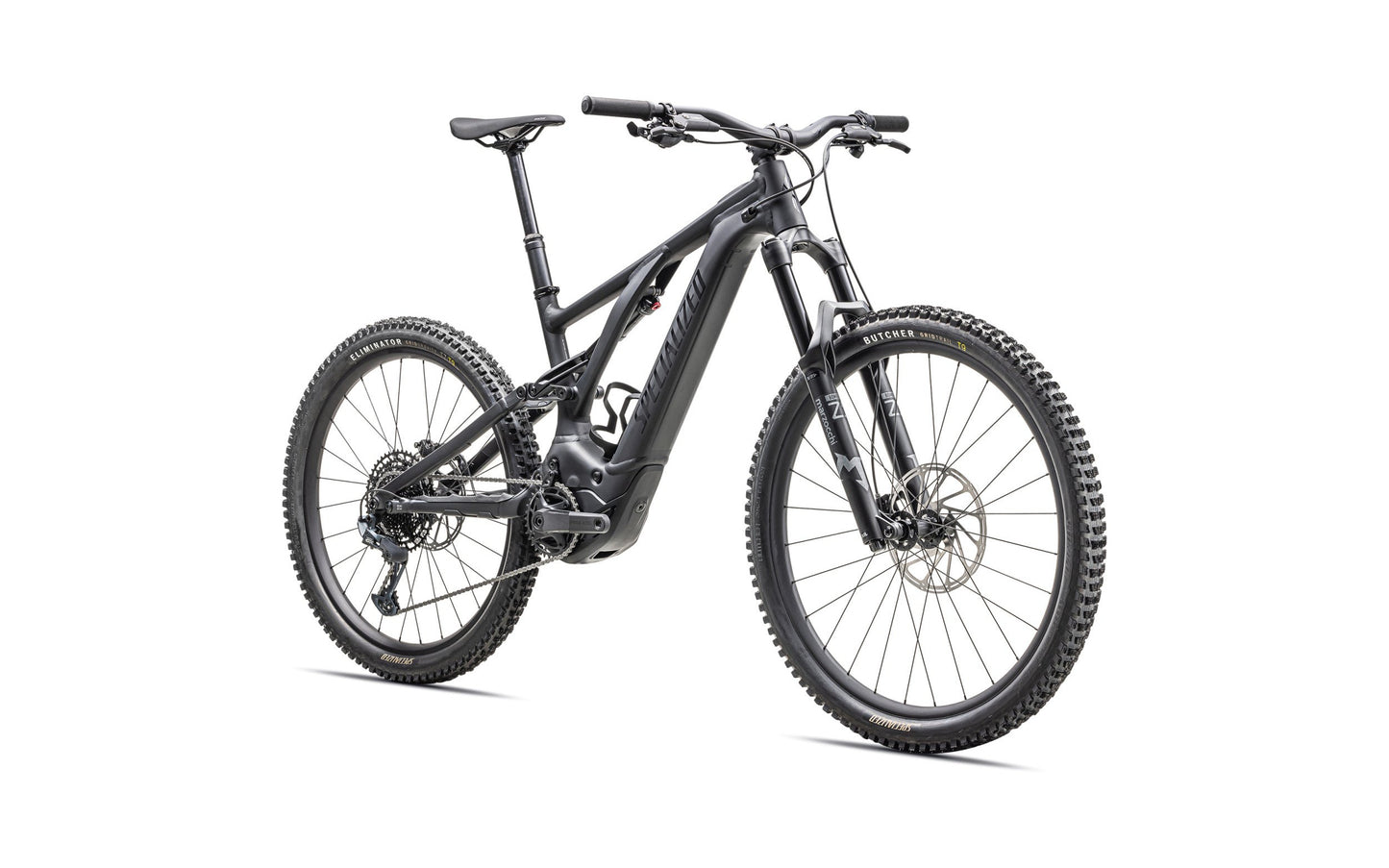

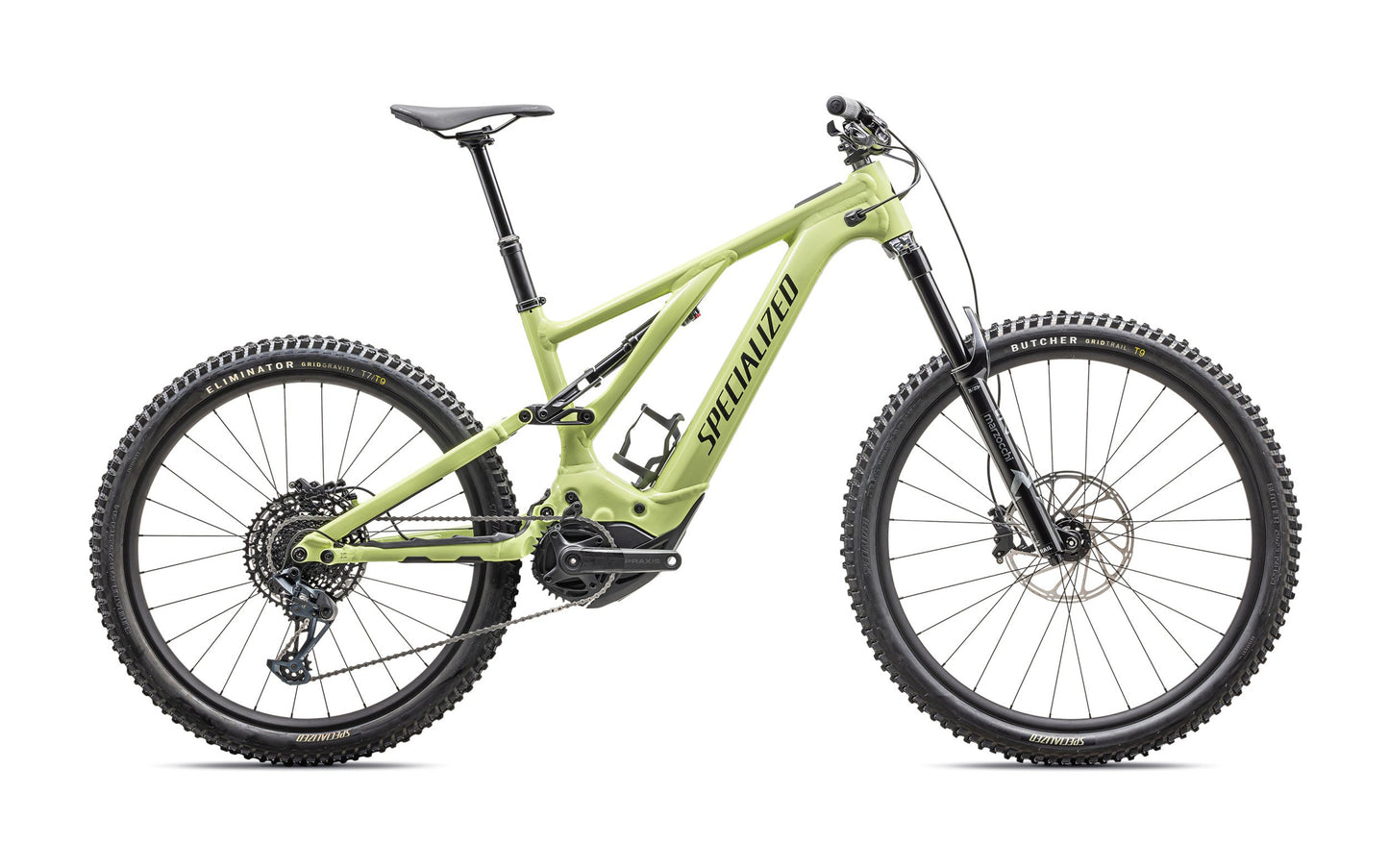

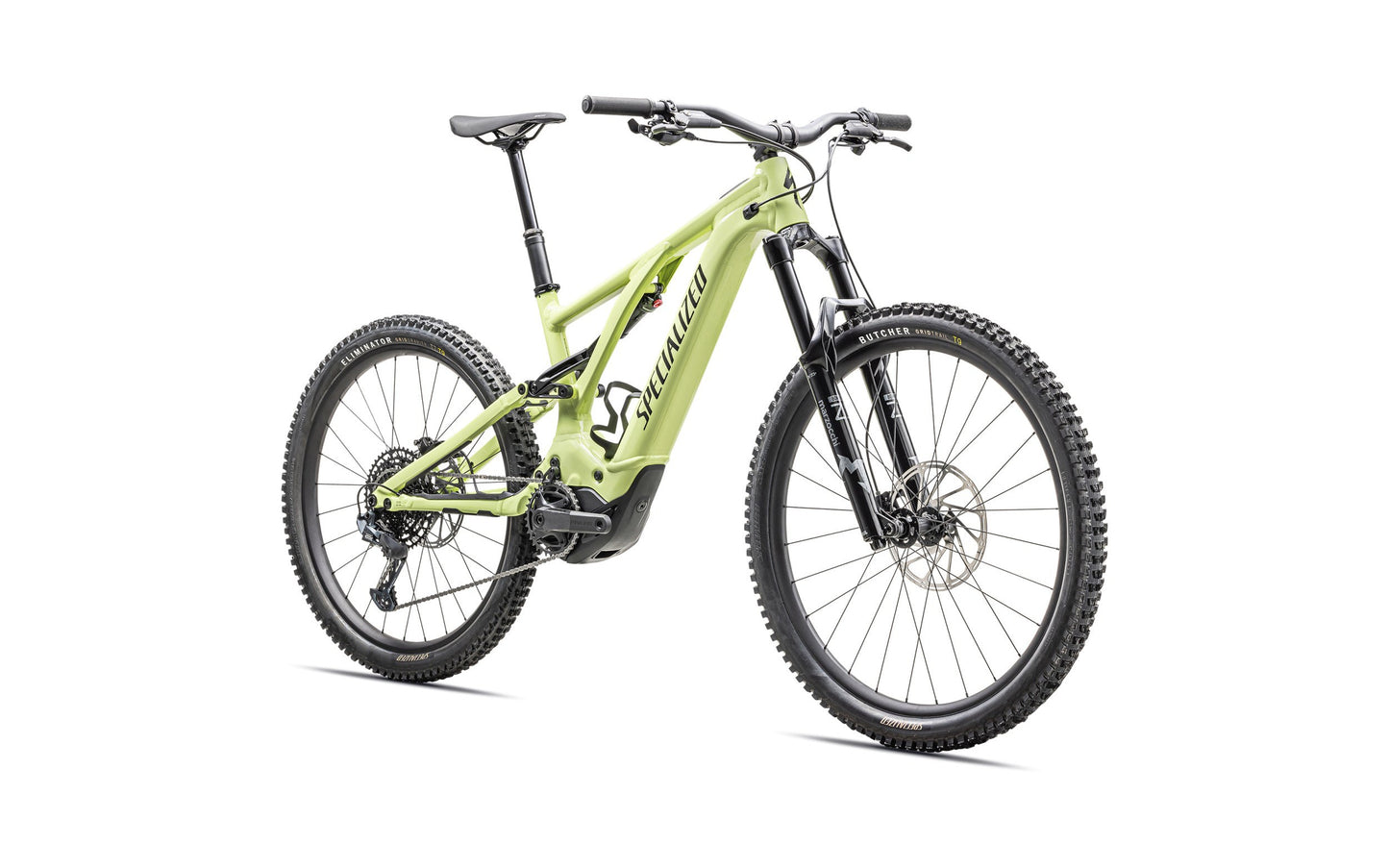

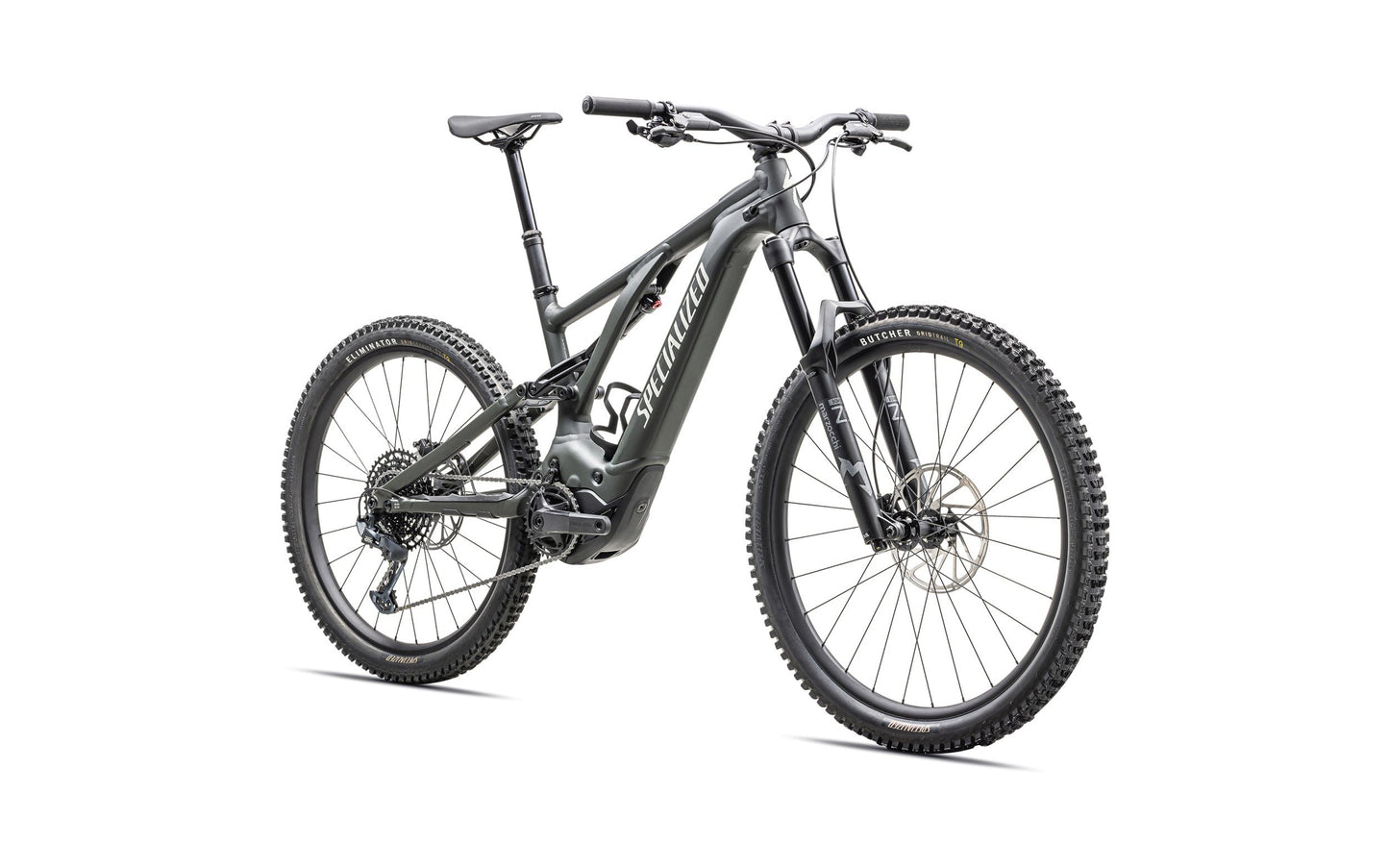

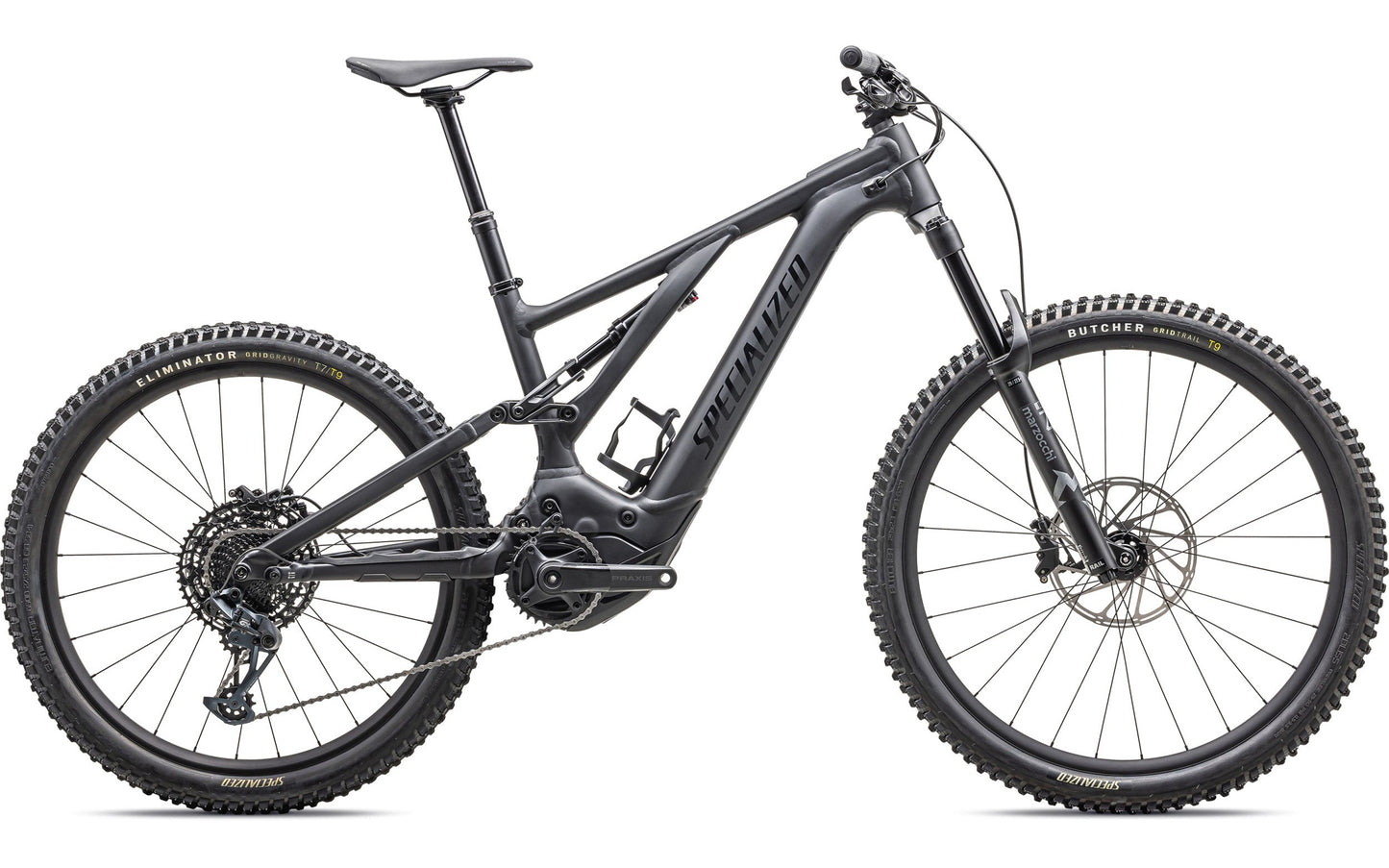

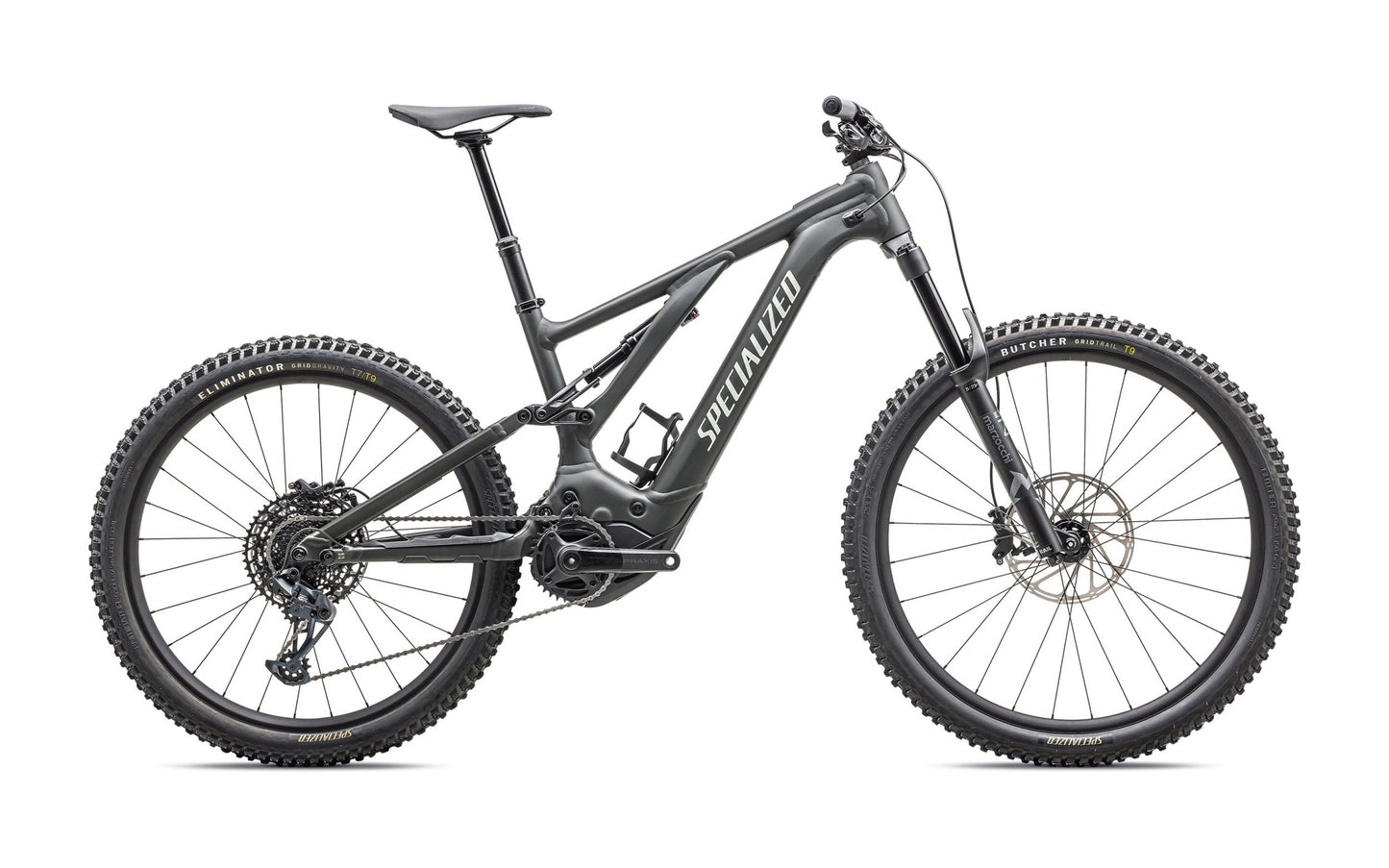

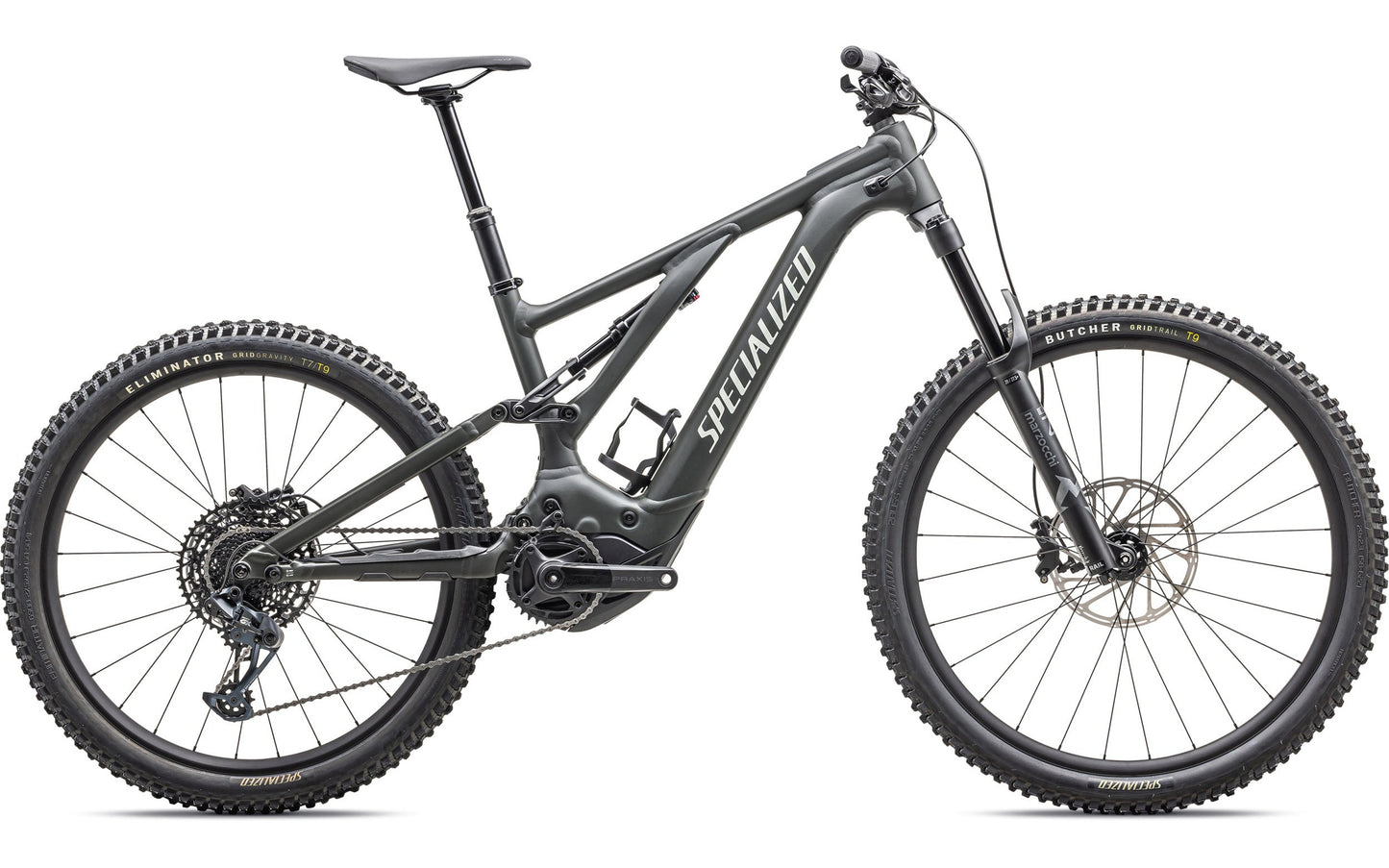

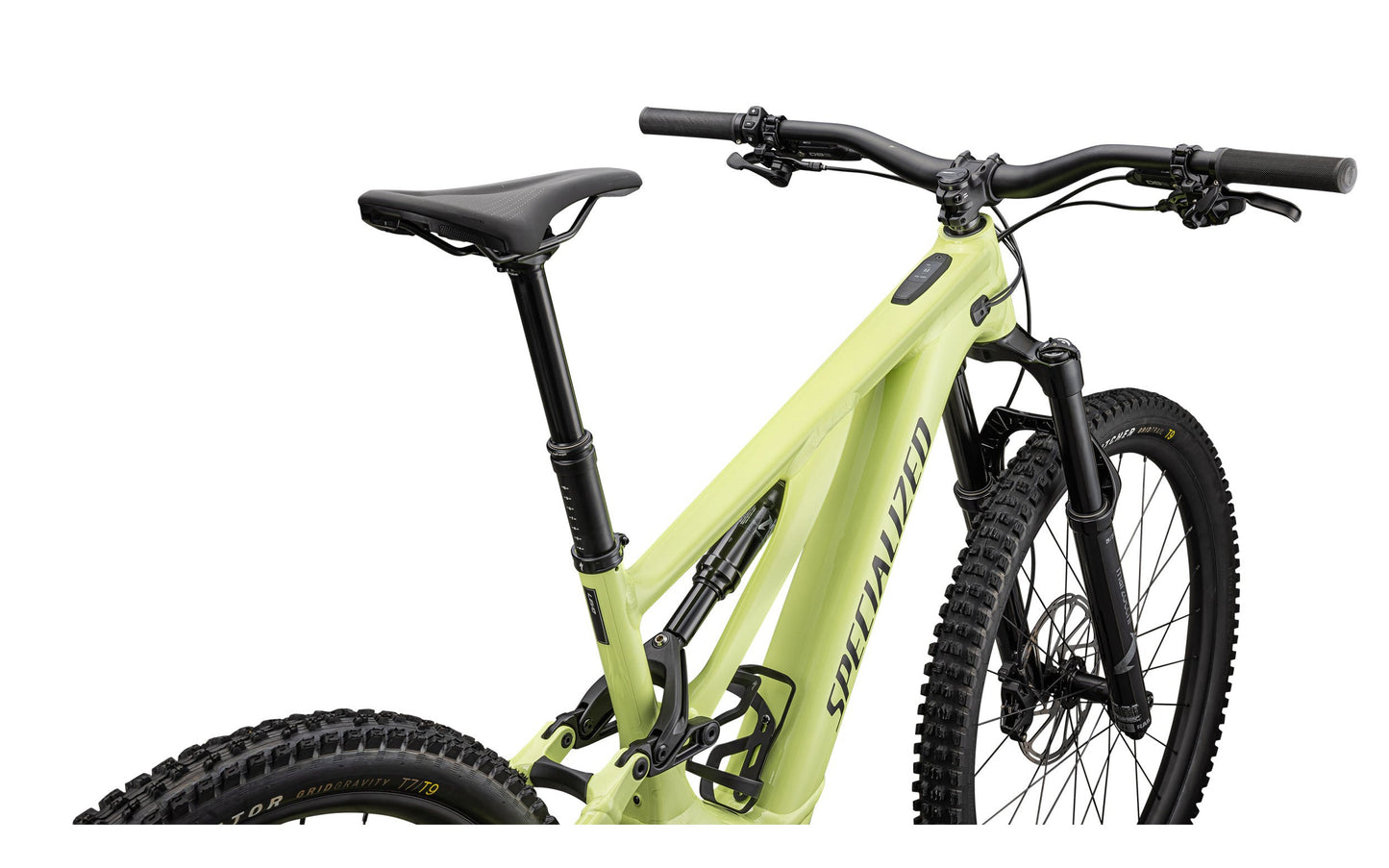

Levo Alloy G3
Levo Alloy G3
SKU:95225-8101
Out of stock
Product Sold Out? Contact us and we will try to find it for you.
Couldn't load pickup availability
Product Details
Product Details
For the rider who dreams of endless singletrack, boosting jumps, and getting fitter and faster, meet your new bike, the Levo SL. The Levo SL delivers an unmatched lightweight ride quality and amplified capability. You’ll be blown away by its combination of flawless handling, capability, and “2X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree—Levo SL is The Ultimate Trail Bike.
IT’S ALL ABOUT THE RIDE — When everything works just right, a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse but light enough to flick around and pick apart a rock garden. Its dialed geometry, kinematics, and shock tuning leave nothing desired.
THE MAGIC CARPET RIDE: GENIE is our patent-pending air spring technology that we invented that grants every trail rider’s three wishes: maximum grip and traction of a coil spring, better bottom-out prevention than a standard air spring, and the ability to tune mid-stroke and end-stroke support independently. GENIE combines the control-enhancing linear spring rate feel of a coil spring through the “bump zone” with the progressive spring rate of an air spring at the end of the stroke to avoid bottom-outs. Truly, it's the best of both worlds.
GEOMETRY OF CONTROL—Our design focuses on performance and control from start to finish. A strategic carbon fiber layup ensures a responsive, stiff chassis, minimizing lateral flex for efficient power transfer. The cockpit enhances traction and cornering precision with a low bottom bracket, slack headtube angle, and customizable head angle options (63°, 64.25°, 65.5°) for stability and agility through any terrain.

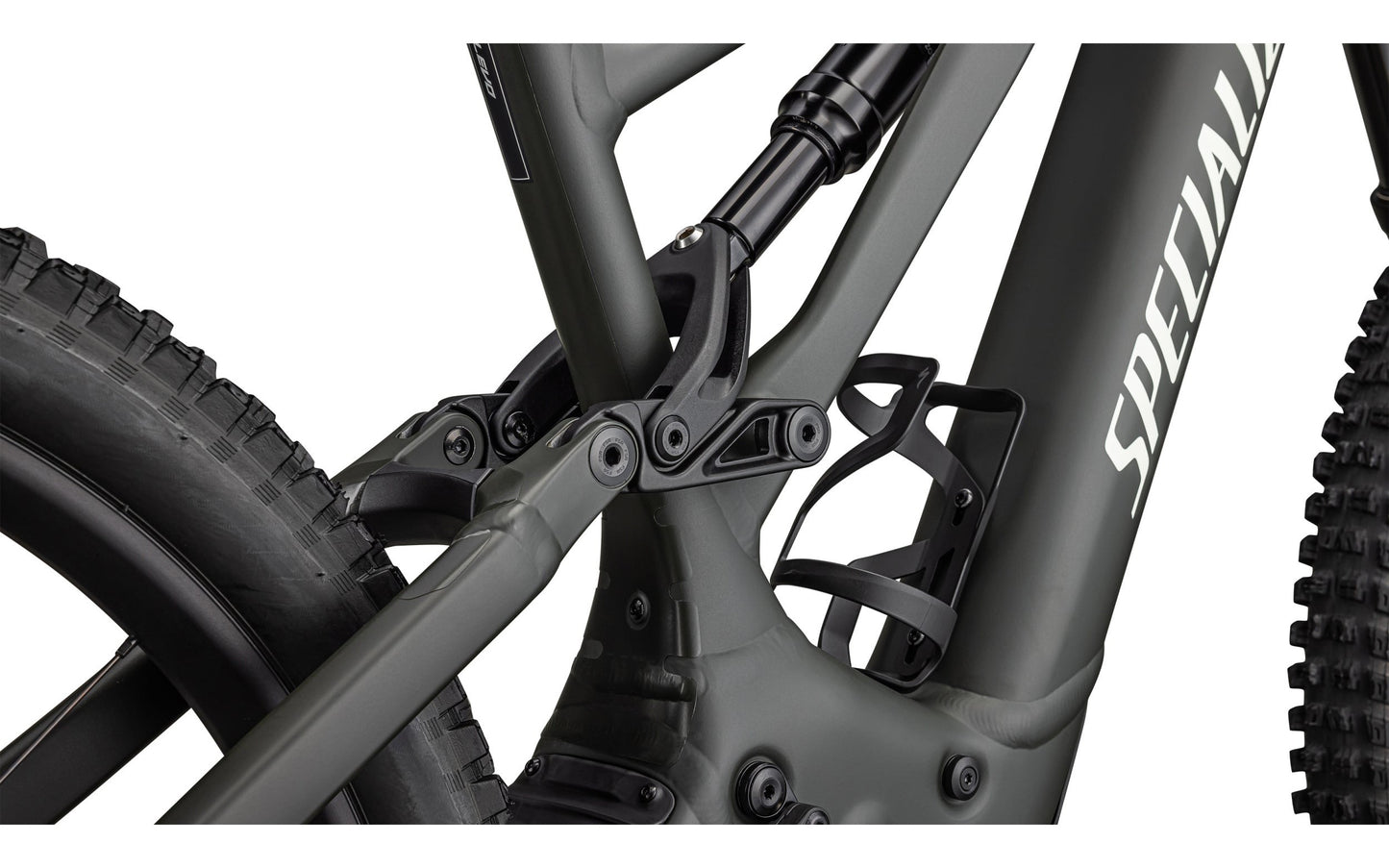

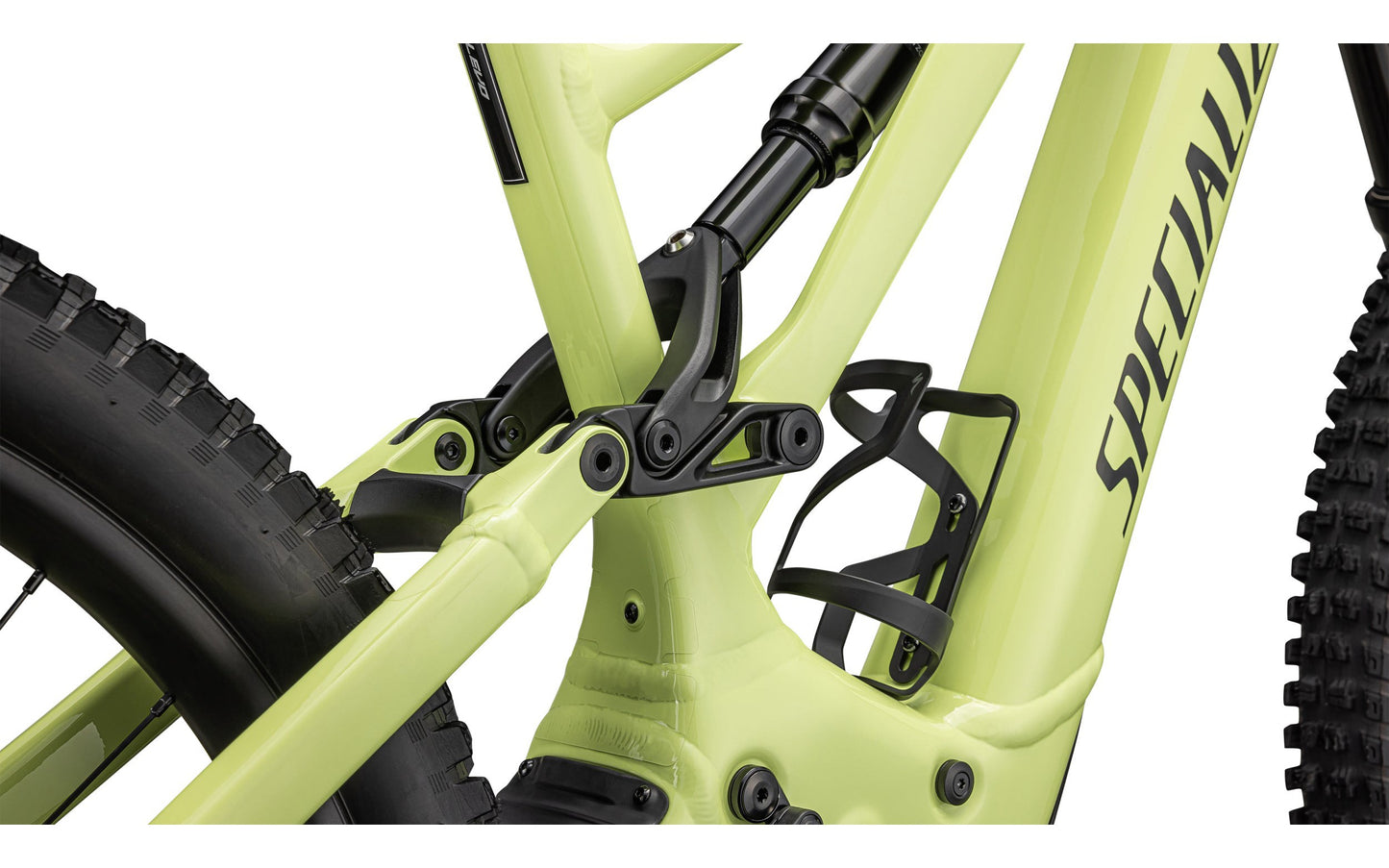

MIXED WHEEL — A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a short chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.
TURBO OPERATING SYSTEM — Our seamlessly integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

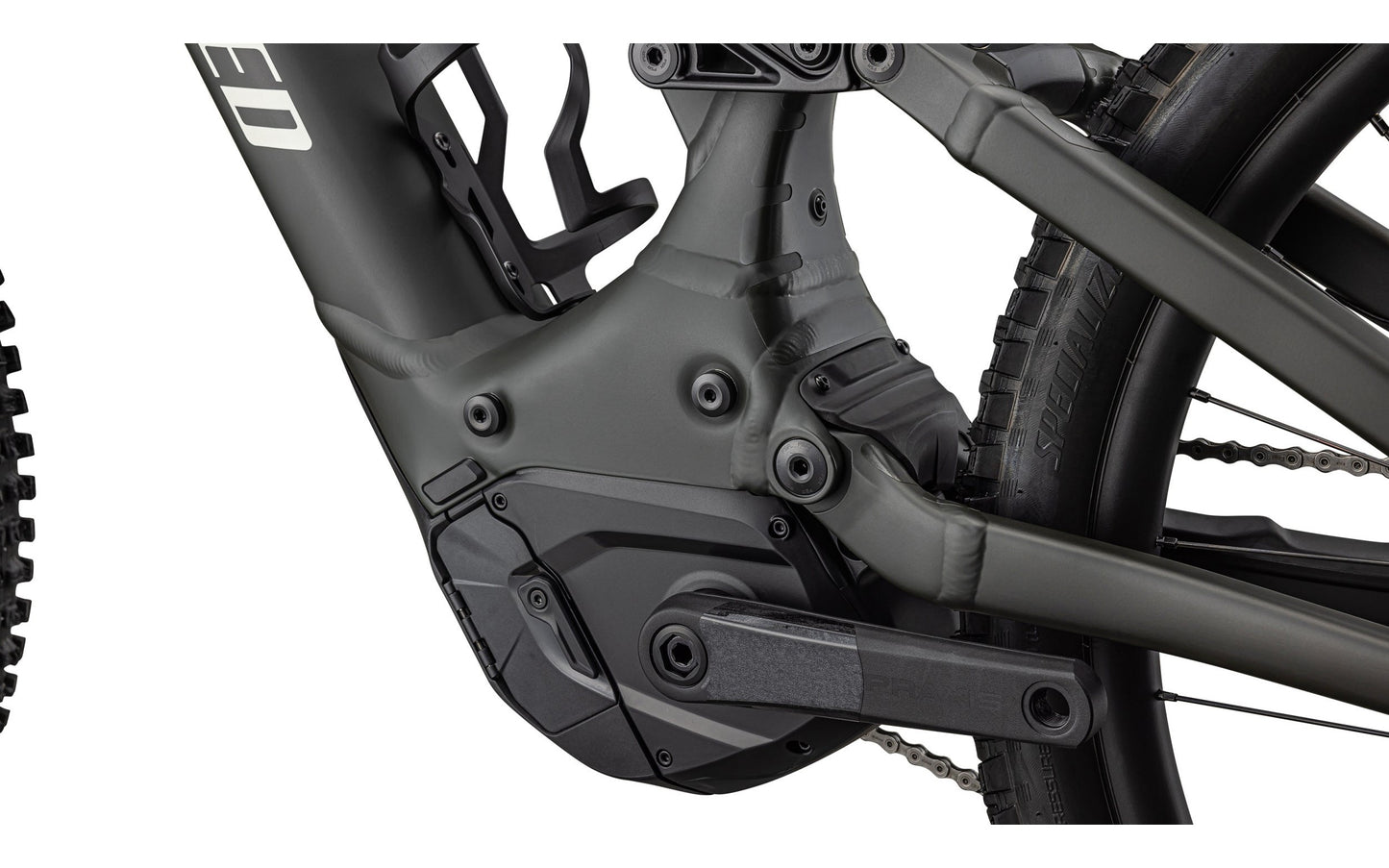

SPECIALIZED SL 1.2 MOTOR—Meet the Specialized SL 1.2 motor: whisper-quiet with unmatched smoothness, it delivers 43% more torque (50Nm) and 33% more power (320 Watts) than its predecessor, unleashing "2x You" performance. Paired with a seamless 320Wh battery pack, the Levo SL ensures premium quality and supports rides for up to 5 hours in Eco Mode. Extend your journey with our 160Wh Range Extender (sold separately), fitting snugly into your bottle cage for an extra 50% range.

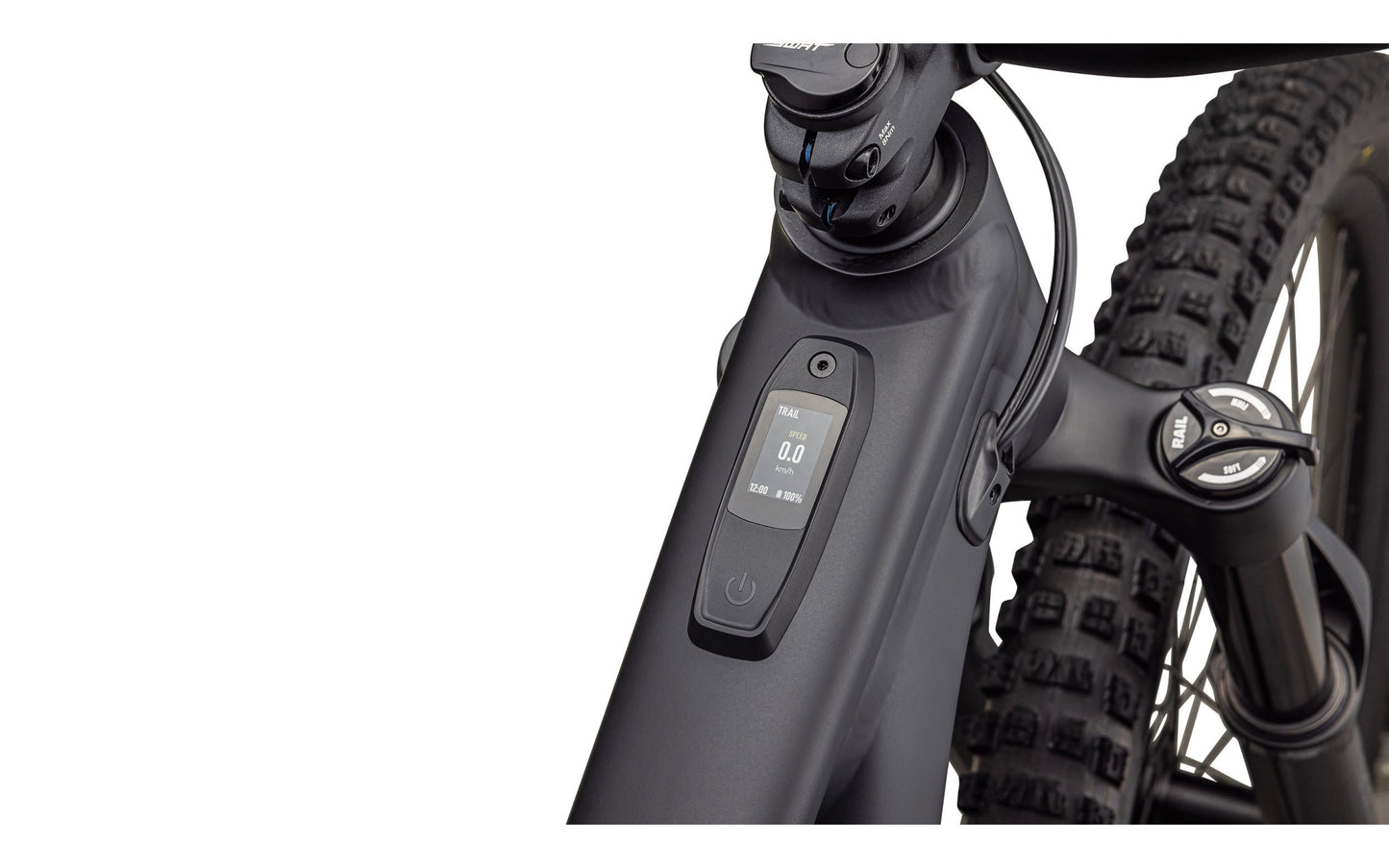

IT’S ALL CONNECTED—MasterMind TCU, our advanced e-bike control unit, seamlessly connects with Turbo OS and the Specialized App. Adjust power levels with MicroTune, live over-the-air updates for optimized performance, and more. The Levo SL integrates fully with the Specialized App, offering personalized motor settings and advanced security features like Smart Control and Turbo System Lock.
Share



























Technical Specifications
E-bike
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Motor

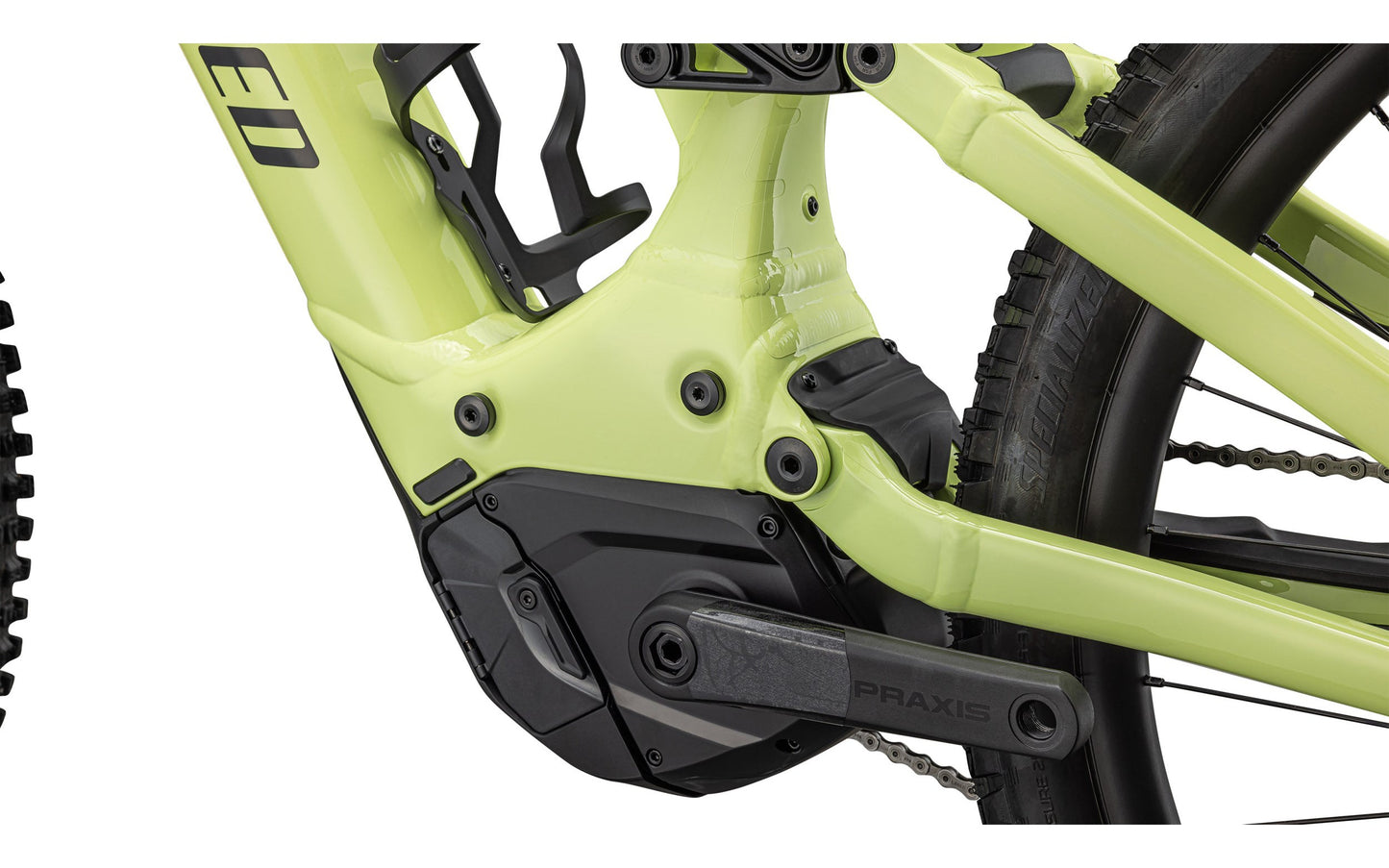

Specialized 2.2 Custom Rx Trail Tuned Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
UI/Remote

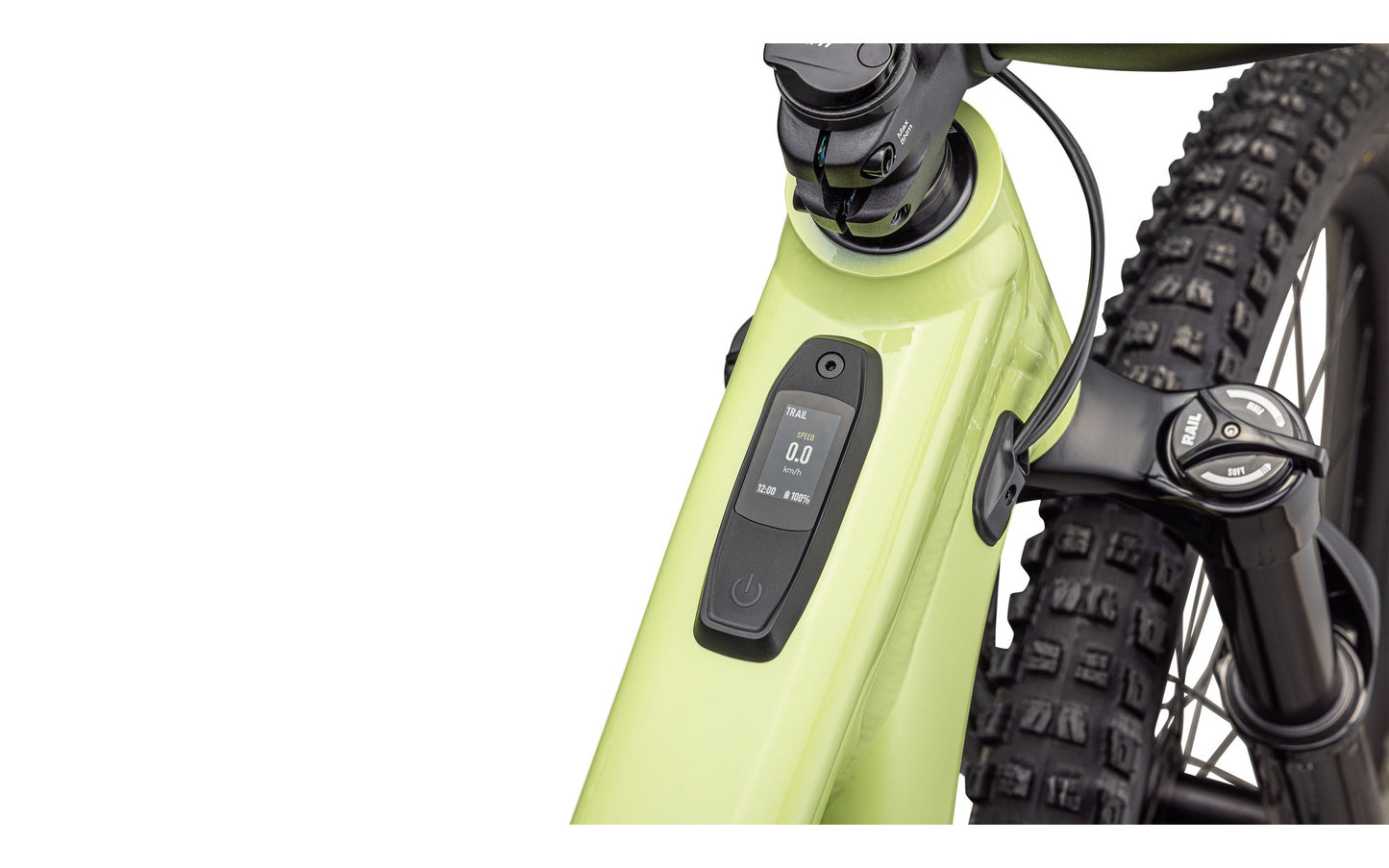

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote

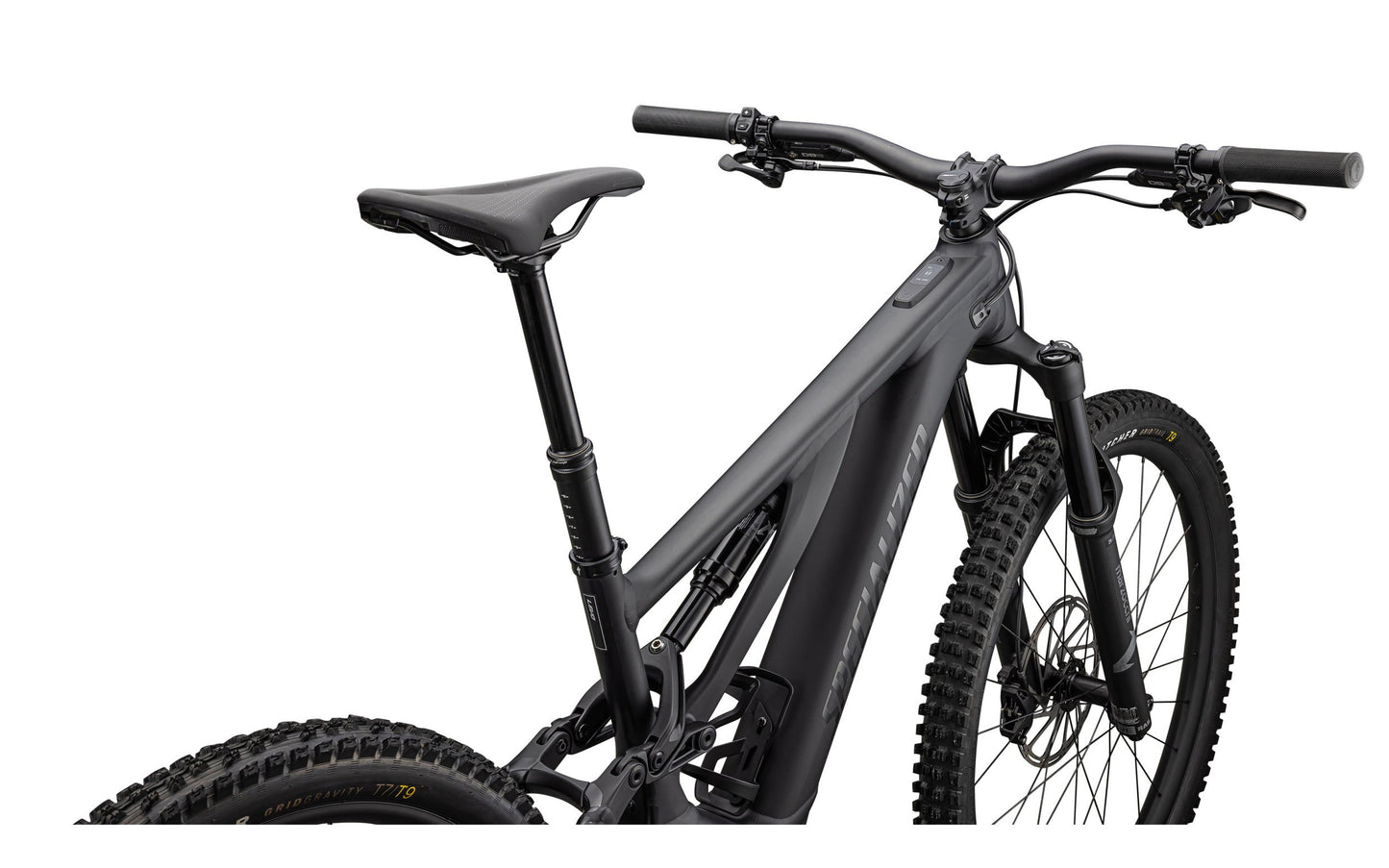

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Body Geometry Bridge Saddle, steel rails

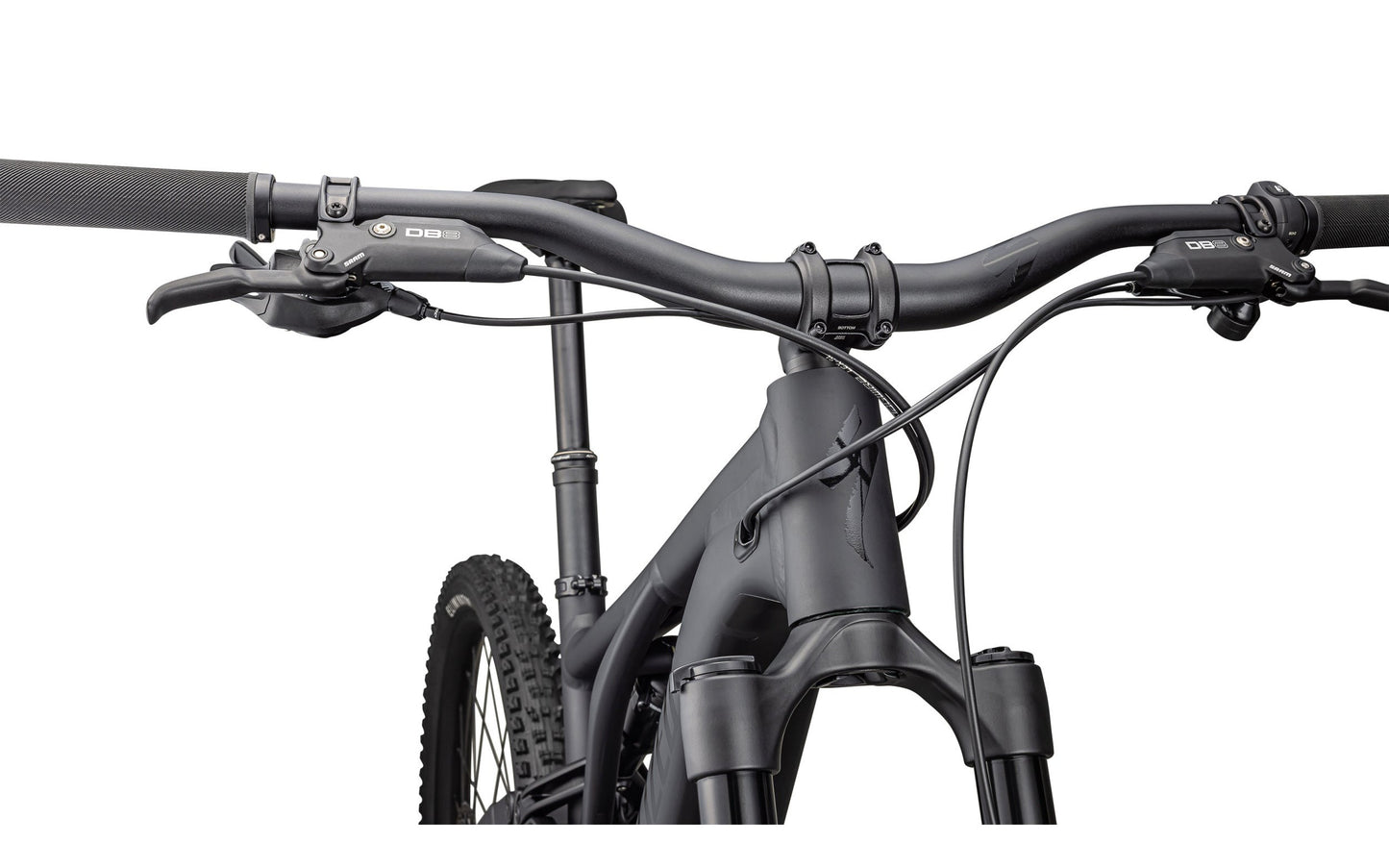

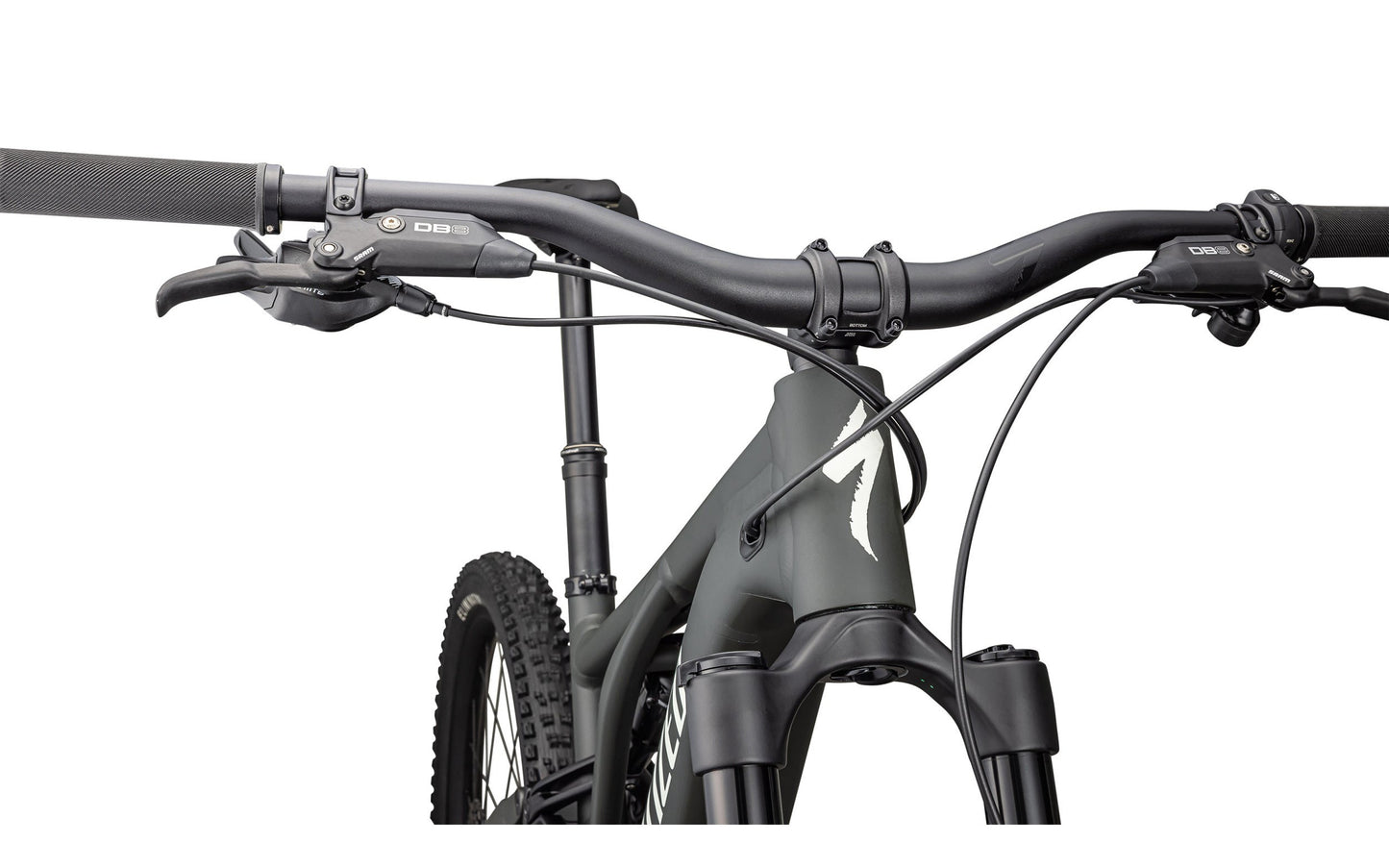

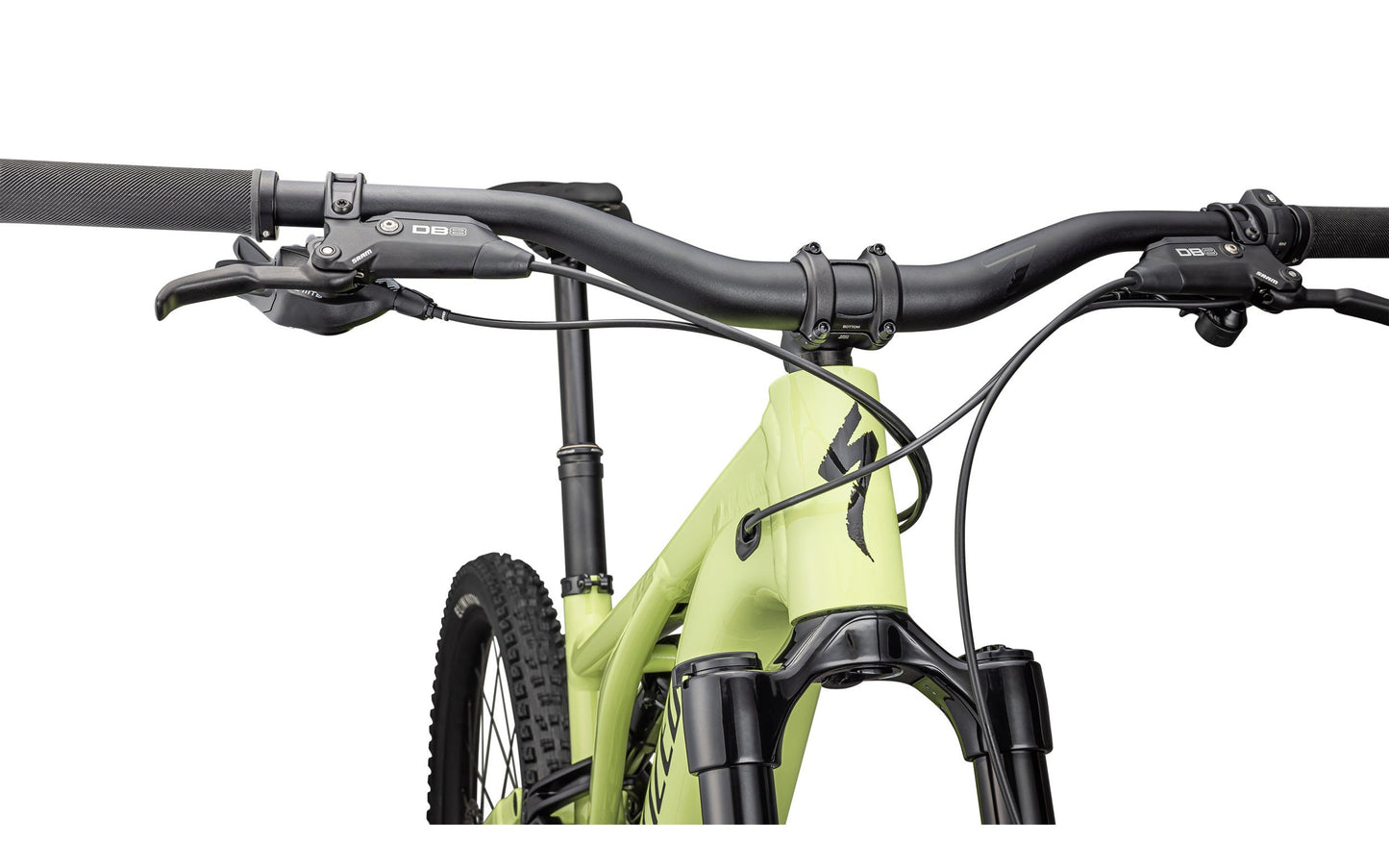

Handlebars
6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise
Grips
Specialized Trail Grips
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
Drivetrain
Crankset
Praxis forged M30, custom offset, 160mm
Rear Derailleur
SRAM GX Eagle, 12-speed
Chain
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Shift Levers
SRAM NX Eagle, single-click lever
Chainrings
SRAM X-Sync Eagle, 104 BCD, 32T, steel
Frameset
Seat Binder
Alloy, 38.6mm
Frame

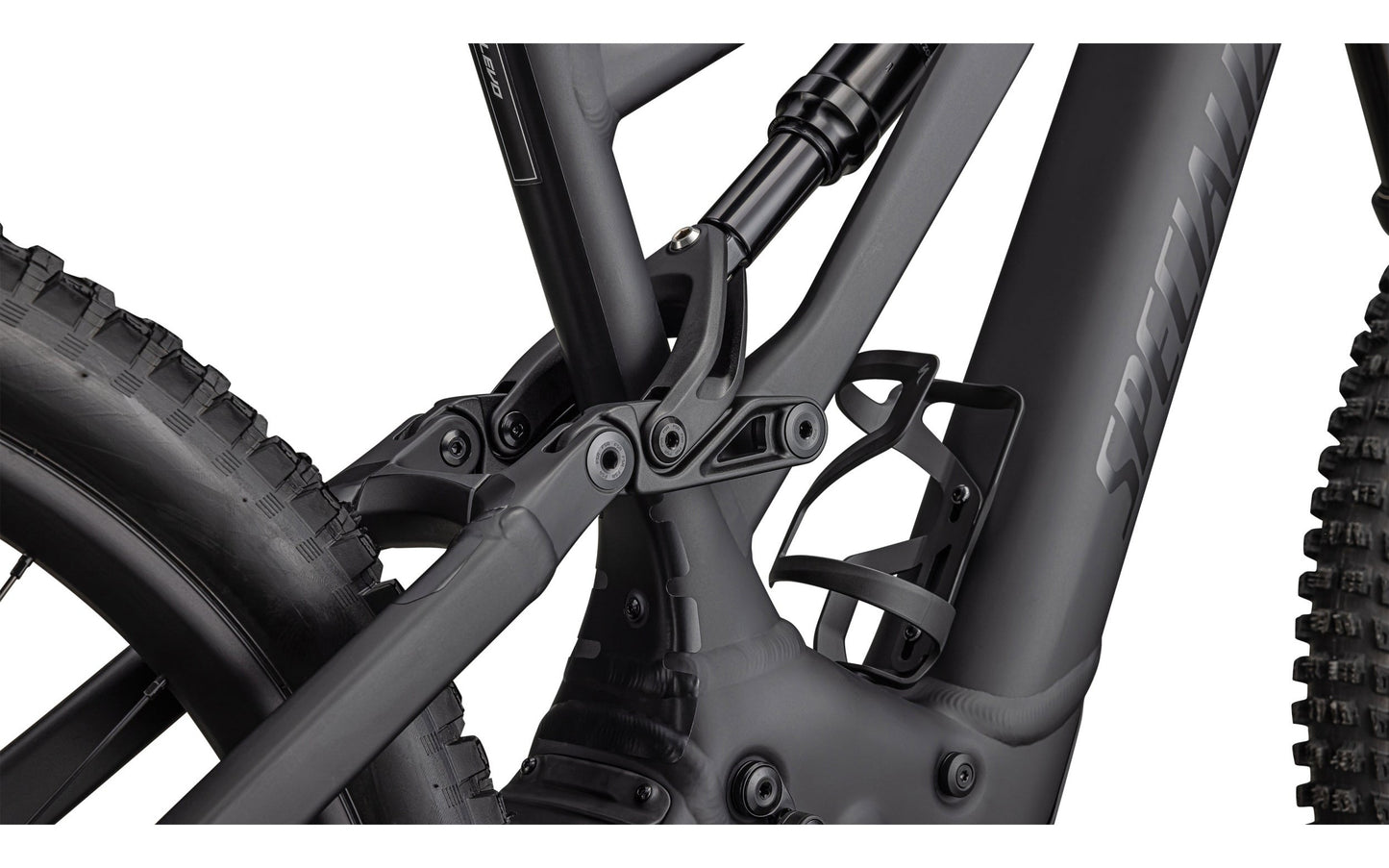

Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Suspension

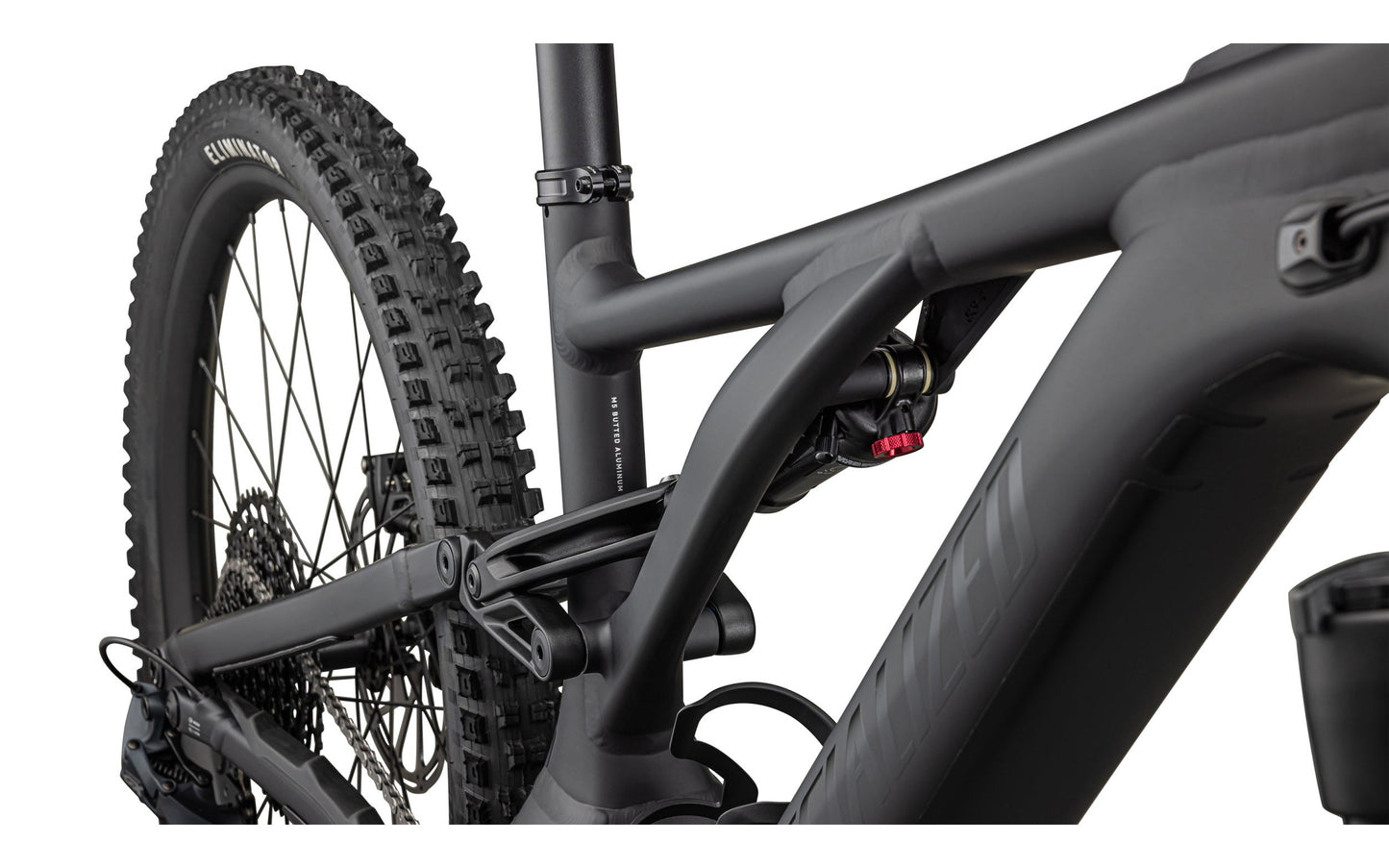

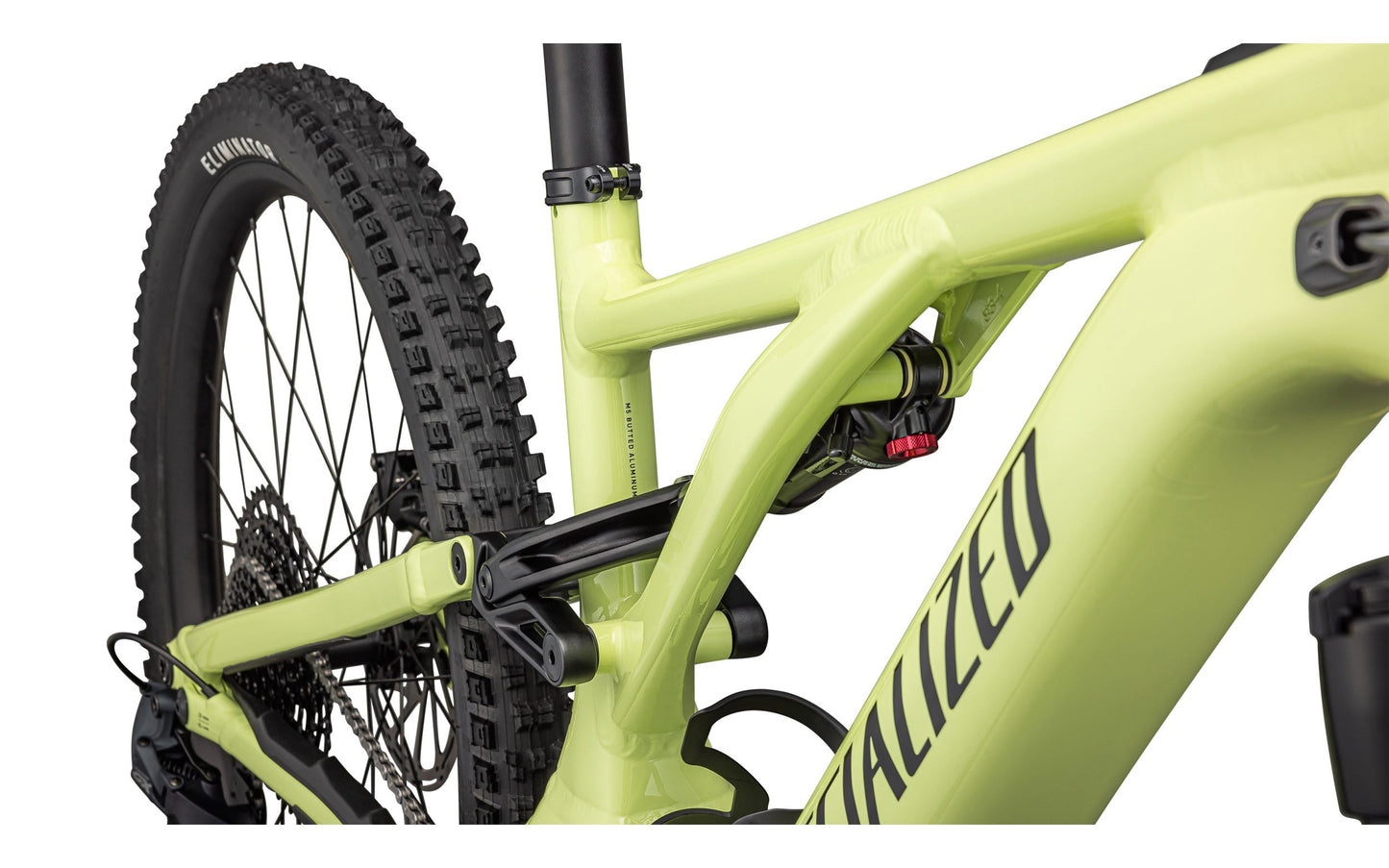

Rear Shock

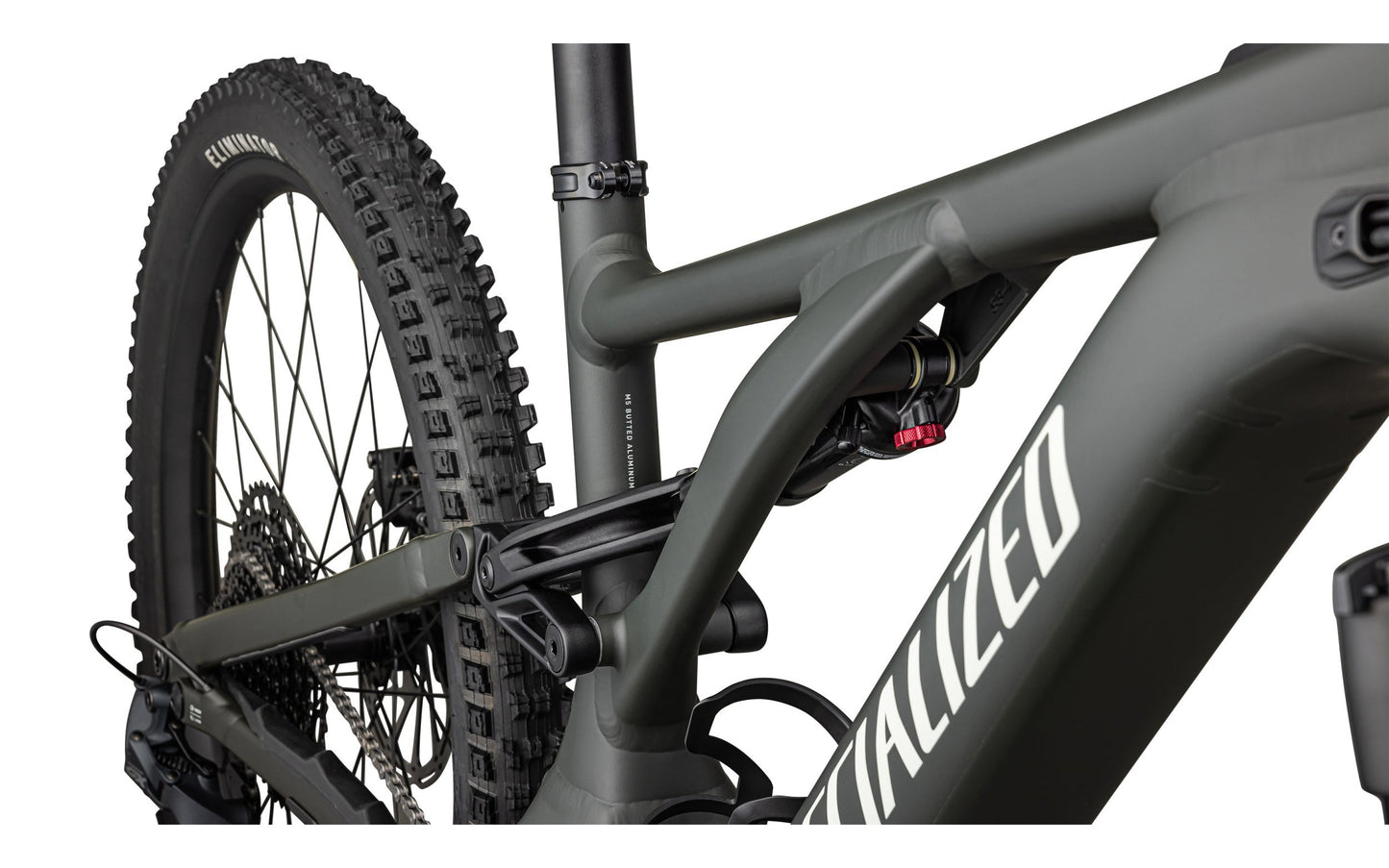

Marzocchi Bomber inline, S2-6: 210x55mm, S1: 210x52.5, low speed rebound adjust
Fork
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Brakes
Front Brake
SRAM DB8, 220mm rotor
Rear Brake
SRAM DB8, 200mm rotor
Wheels & tires
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Spokes
DT Swiss Industry
Rear Tire
Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3"
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Rear Hub
Specialized Alloy Rear Hub Disc, Sealed Cardridge Bearings, 6-Bolt, 12X148mm Thru-Axle, 32H, Hd Steel Fhb
Inner Tubes
Standard 40mm PV 29/27.5x1.75-2.4
Accessories
Pedals
PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Product details
Product ID
231081
Weight
Weight
24.21kg (53 lb, 6 oz)
Weight Size
S4
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 160 | 160 | 160 | 160 | 160 | 160 |
Handlebar Width | 800 | 800 | 800 | 800 | 800 | 800 |
Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
Seatpost Length | 100 | 125 | 150 | 170 | 170 | 200 |
Stack | 617 | 626 | 635 | 644 | 653 | |
Reach | 432 | 452 | 477 | 502 | 532 | |
Headtube Length | 105 | 115 | 125 | 135 | 145 | |
Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | |
BB Height | 350 | 350 | 350 | 350 | 350 | |
BB Drop | 27 | 27 | 27 | 27 | 27 | |
Trail | 130 | 130 | 130 | 130 | 130 | |
Fork Length (full) | 567 | 567 | 567 | 567 | 567 | |
Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | |
Front Center | 760 | 784 | 814 | 843 | 878 | |
Chainstay Length | 442 | 442 | 442 | 442 | 442 | |
Wheelbase | 1200 | 1225 | 1255 | 1284 | 1318 | |
Bike Standover Height | 776 | 783 | 787 | 788 | 790 | |
Seat Tube Length | 390 | 405 | 425 | 445 | 465 | |
Seat Tube Angle | 77.2 | 76.7 | 76.2 | 76.2 | 76.2 | |
Max Seatpost Insertion | 220 | 240 | 255 | 275 | 295 | |
Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
