Technical Specifications
WHEELS
Rims
12" alloy, 16mm depth, 21mm internal width
Front Hub
Bolt-on, 95mm spacing, loose ball bearings, 16h
Rear Hub
Bolt-on, 95mm spacing, loose ball bearings, 16h
Front Tire
Rhythm Lite Airless, 12x2.3
Rear Tire
Rhythm Lite Airless, 12x2.3
Spokes
Stainless, 14g
FRAMESET
Seat Binder
Bolt-type, 25.4mm
Fork
Formed steel tubes, 95mm Spacing
Frame
Specialized A1 Premium Aluminum, 1" threaded headset
COCKPIT
Stem
Die Cast Aluminum, 35mm length, 22.2 clamp diameter
Saddle
Hotwalk Integrated Saddle/Seatpost
Grips
Specialized, slip-on
SeatPost
Steel, 22.2mm
Handlebars
Steel, 400mm width, 20mm rise, 8-degree backsweep
* Specifications are subject to change without notice
Geometry
| unisex | |
|---|---|
| Stem Length | 35mm |
| Handlebar Width | 400mm |
| Seatpost Length | 230mm |
| Saddle Width | 110mm |
| Stack | 319mm |
| Reach | 185mm |
| Head-Tube Length | 70mm |
| Head-Tube Angle | 69° |
| B-B Height | 118mm |
| B-B Drop | 55mm |
| Trail | 57mm |
| Fork Length (full) | 205mm |
| Fork Rake/Offset | 5mm |
| Front-Center | 297mm |
| Chain-Stay Length | 258mm |
| Wheelbase | 544mm |
| Top-Tube Length (horizontal) | 295mm |
| Bike Stand-Over Height | 281mm |
| Seat-Tube Length | 160mm |
| Seat-Tube Angle | 71° |

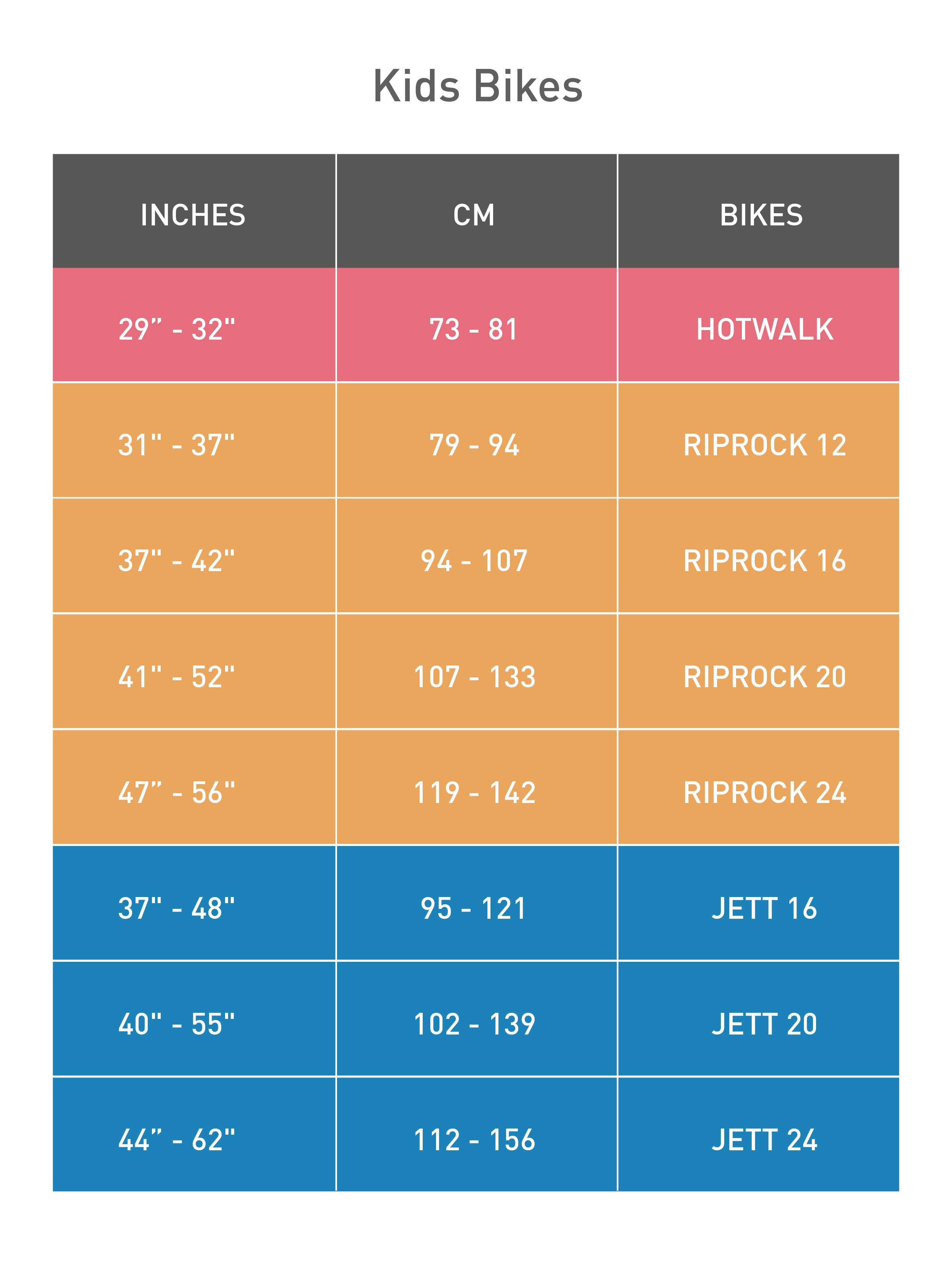

Size Guide
