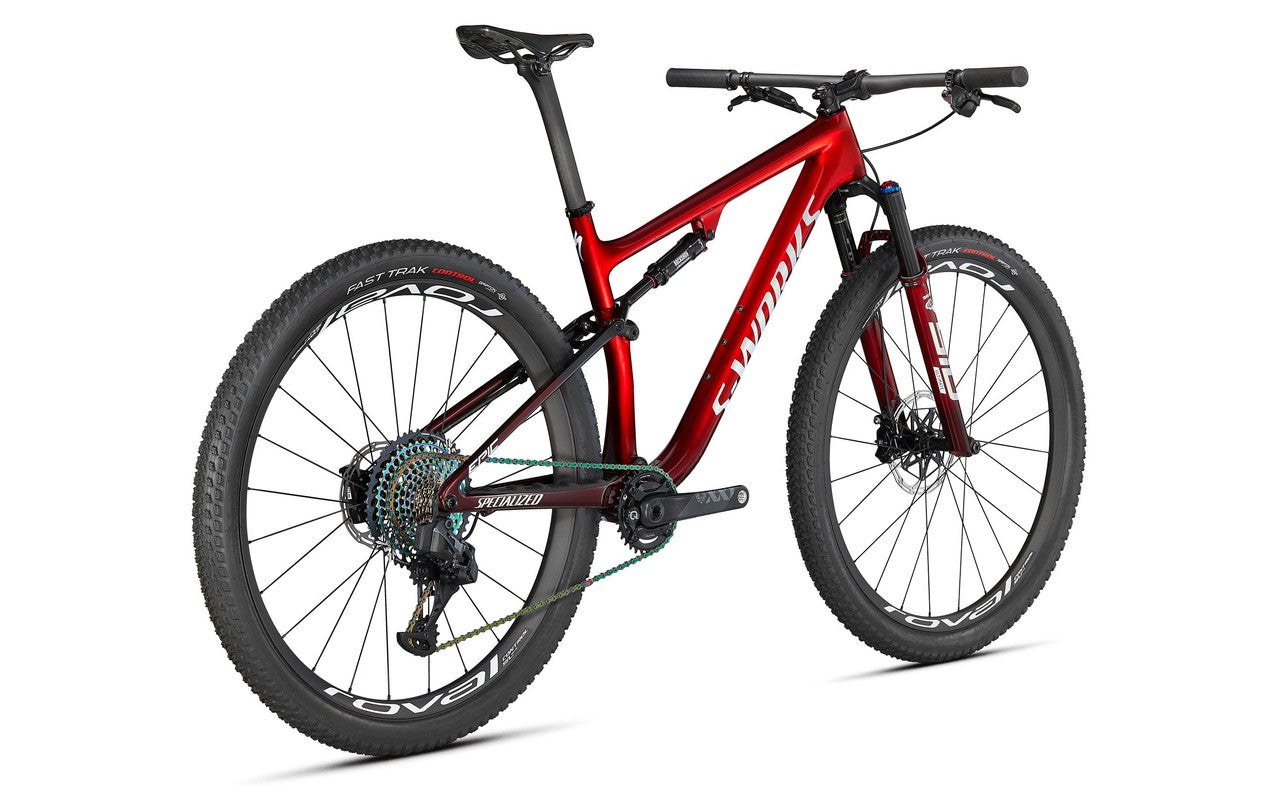

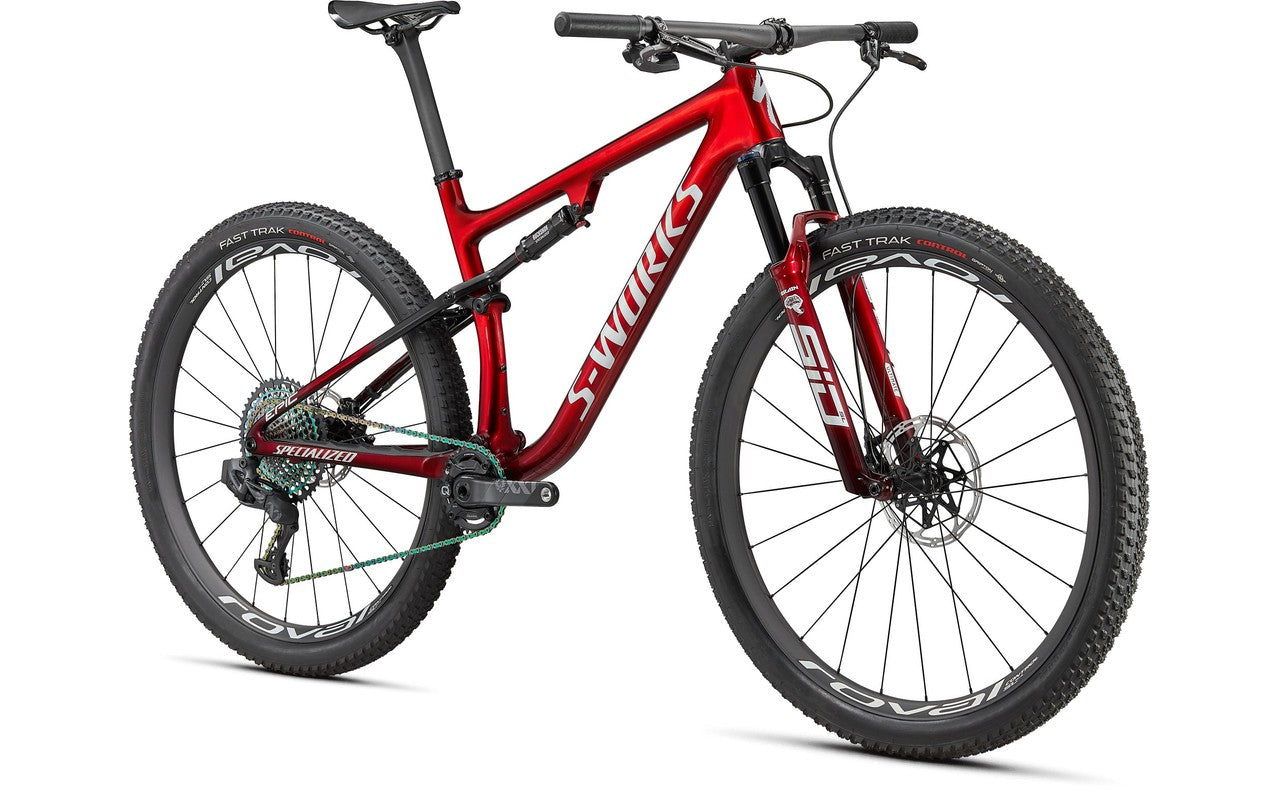

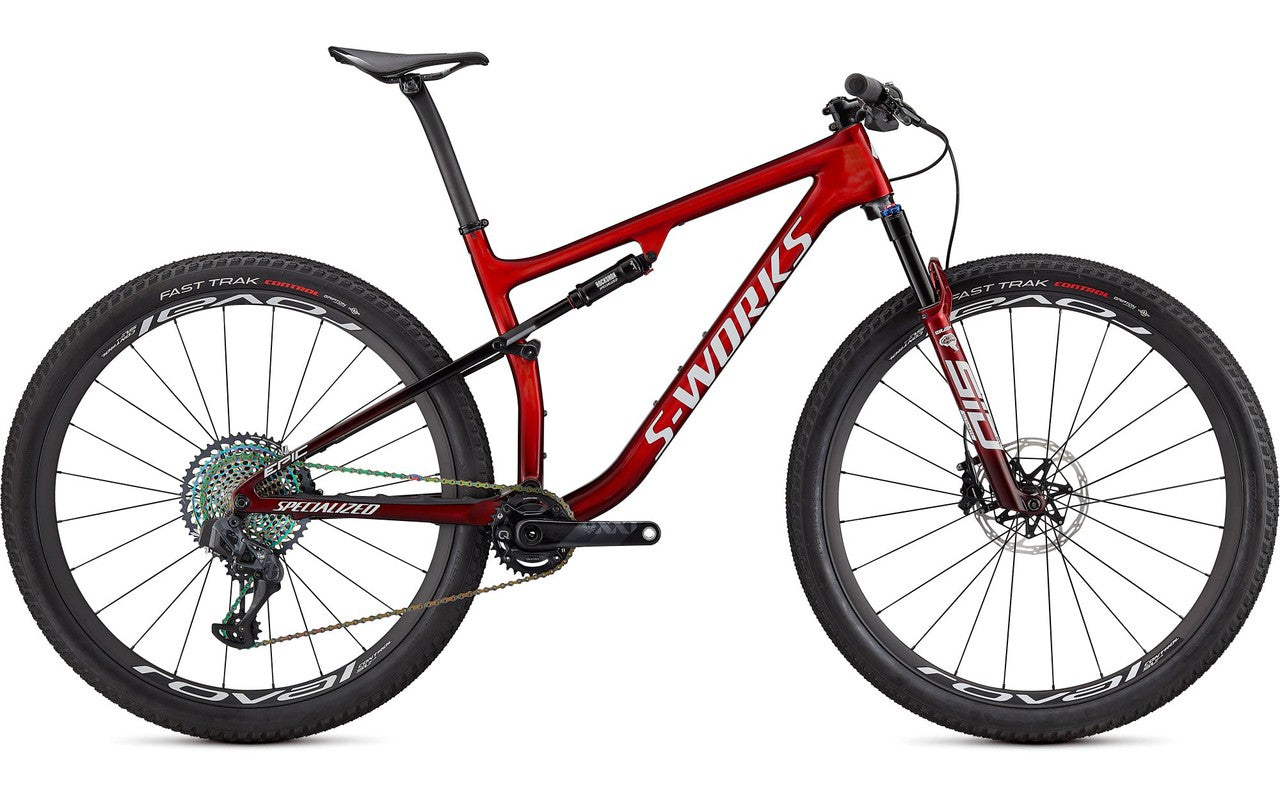

S-Works Epic
S-Works Epic
SKU:97620-0103
1 in stock
Product Sold Out? Contact us and we will try to find it for you.
Read More
Read More
Hey you, yeah, you...the one with the scale out seeing which of the six identical tires on the shelf is the lightest. Sure, some might call you a bit obsessive, but no worries, here, the S-Works Epic is speaking exactly the same language. Countless design hours, endless test laps, terabytes of telemetry dataÑall of it to make sure not a single ounce of speed was left on the table.
Mixing hardtail efficiency and full-suspension capability to impressively quick results, the S-Works Epic has always been defined by obsessive commitment to speed. Well, that and over 100 World Cup wins and podiums too.
A Smarter BRAIN
True to form, the latest Epic continues the tradition, taking advantage of the most efficient BRAIN suspension we've ever created to ensure it's always on a first-name-basis with fast.
Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alikeÑall more smoothly than ever.
Frame-Changer

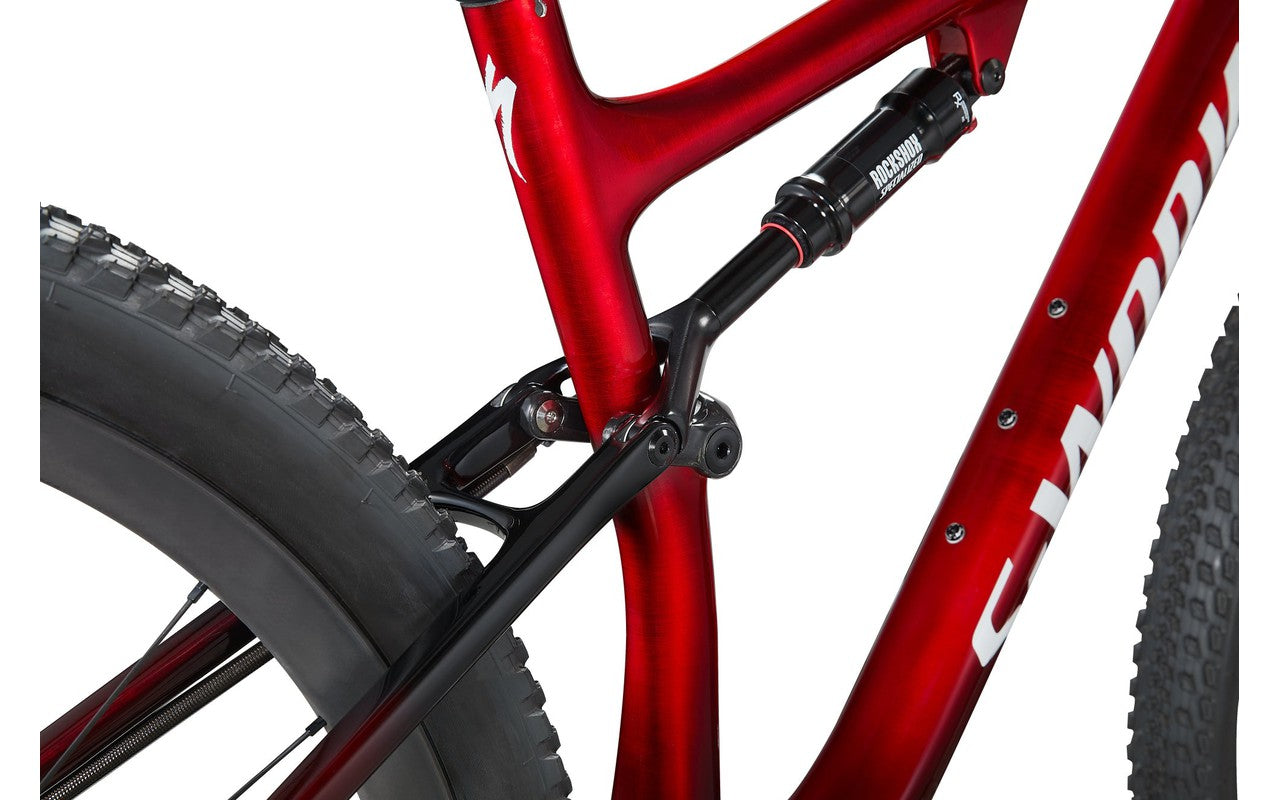

Redesigned with a focus on efficient power transfer and better handling performance, the S-Works Epic frame features a 15-percent stiffer rear triangle in order to take full advantage of the BRAIN's new race-tuned pedaling platform. A dedicated layup schedule and the use of our top-shelf FACT 12m Carbon takes weight savings yet a step further than it's stablemates, while the pi�ce de rŽsistance comes in the form of a carbon fiber shock link, combining to shave a total of over 100 grams from the previous generation S-works frameÑno easy task, mind you.
Pairing perfectly with the Brain rear shock for the most balanced suspension perfomance on an Epic yet, the S-Works' Position-Sensitive Brain fork benefits from RockShox's svelte-yet-stiff SID SL Ultimate chassis, improving front-end stiffness and handling precision while keeping the grams at bay.
SRAM's flagship XX1 Eagle AXS group certainly fits the bill when only the best will do, dispatching shifts with electronic authority while we tasked Roval with creating an entirely new Control SL rim that wouldn't just be able to go toe-to-toe with the Epic's newfound speed and handling performance, but add a bit of its own into the mix as well.
Share
Technical Specifications
ACCESSORIES
SWAT
SWAT EMT Cage-Mount Tool
DRIVETRAIN
Chainrings
32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Cassette
SRAM XG-1299 Eagle, 10-50t
Crankset
QUARQ XX1 Eagle Power Meter, Boost™ 148, DUB, 170/175mm, 32T
Chain
SRAM XX1 Eagle
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM AXS Eagle Controller
WHEELS
Front Tire
Fast Trak, Control casing, GRIPTON? compound, 60 TPI, 2Bliss Ready, 29x2.3"
Front Hub
Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull t-head
Rear Hub
Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull
Spokes
DT Swiss Aerolite T-head
Inner Tubes
Presta, 60mm valve
Rims
Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Rear Tire
Fast Trak, Control casing, GRIPTON? compound, 60 TPI, 2Bliss Ready, 29x2.3"
COCKPIT
Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
Tape
Specialized Trail Grips

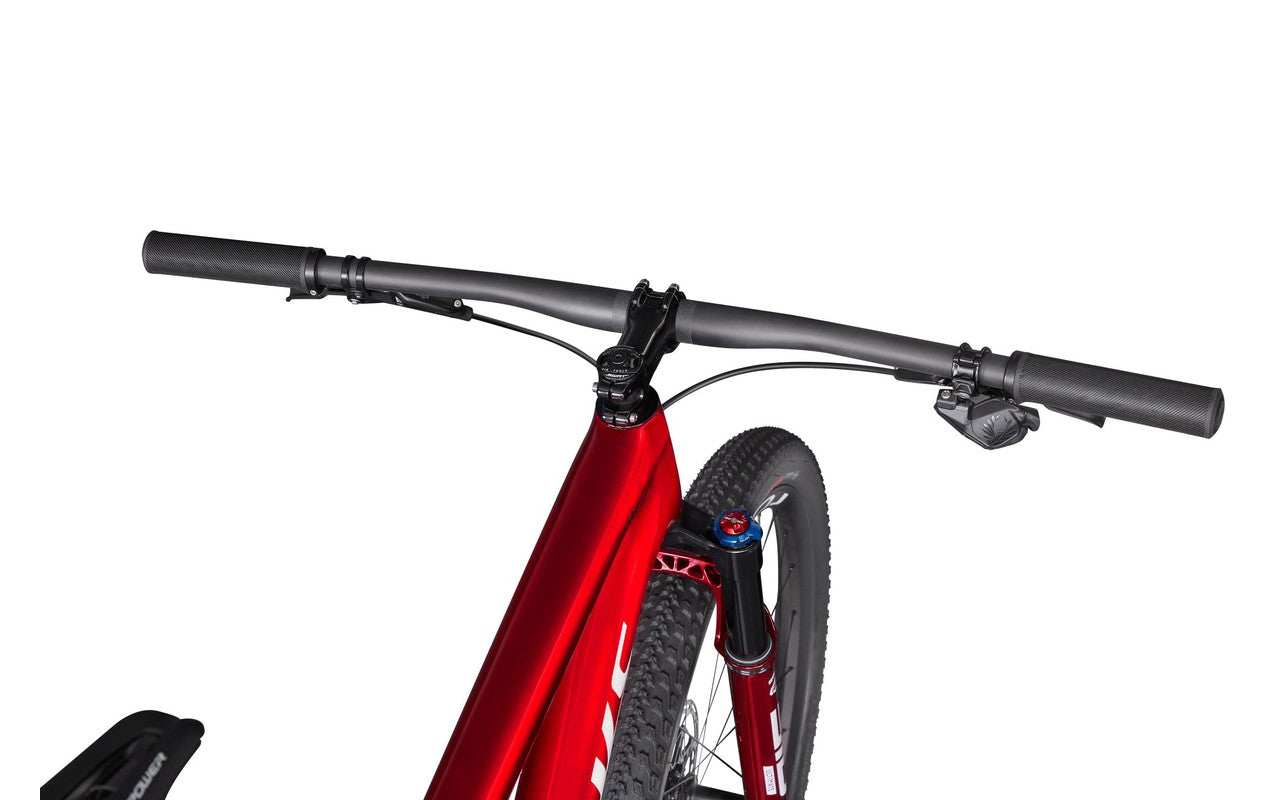

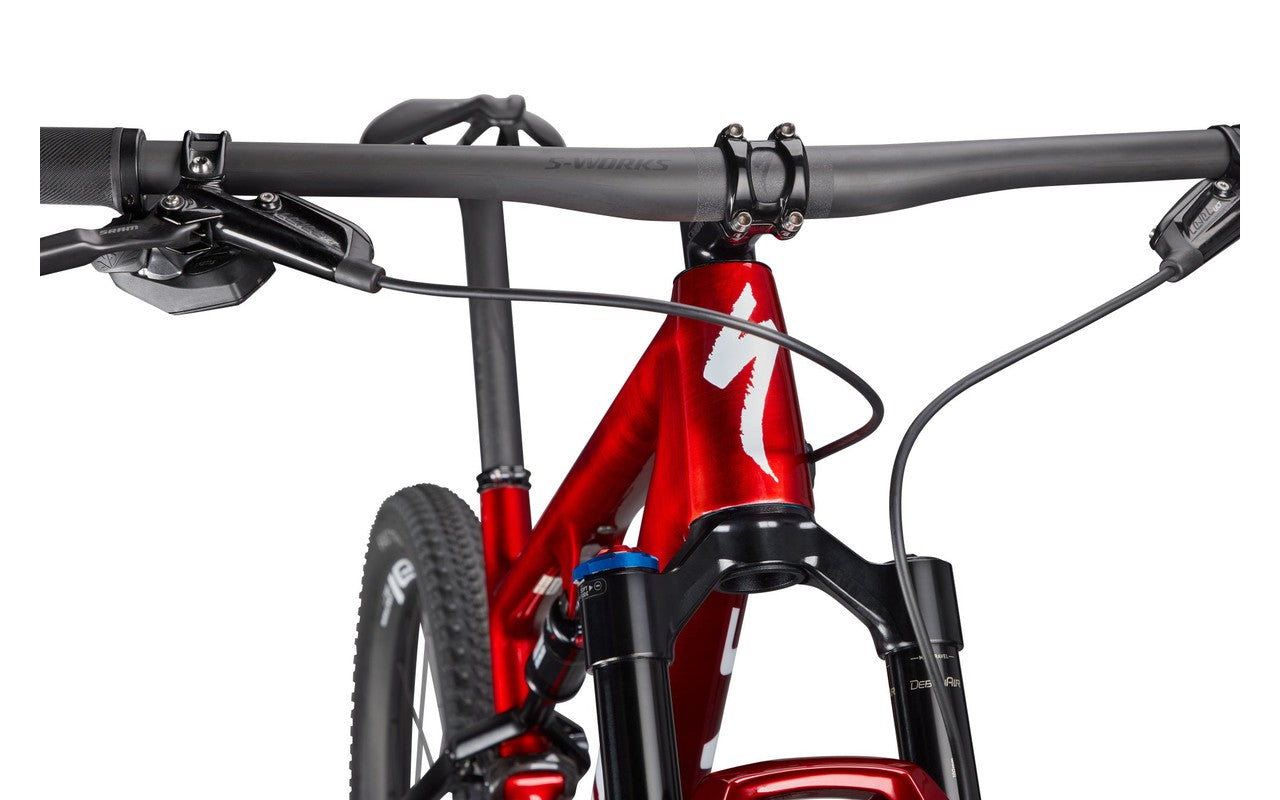

Handlebars
S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
SeatPost
S-Works FACT carbon, 10mm offset, 30.9mm
Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Suspension
Fork
RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel
Rear Shock
RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integrated Extension, 265x52.5mm
FRAMESET
Frame
S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Seat Binder
Specialized Alloy, 34.9mm, Titanium bolt
BRAKES
Front Brake
SRAM Level Ultimate, 2-piston caliper, hydraulic disc
Rear Brake
SRAM Level Ultimate, 2-piston caliper, hydraulic disc
* Specifications are subject to change without notice
Geometry
S | M | L | XL | |
---|---|---|---|---|
Crank Length | 170mm | 175mm | 175mm | 175mm |
Handlebar Width | 760mm | 760mm | 760mm | 760mm |
Stem Length | 60mm | 70mm | 70mm | 70mm |
Saddle Width | 155mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 400mm | 400mm | 400mm |
Stack | 586mm | 591mm | 605mm | 623mm |
Reach | 415mm | 445mm | 470mm | 495mm |
Head Tube Length | 95mm | 100mm | 115mm | 135mm |
Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
BB Height | 324mm | 324mm | 324mm | 324mm |
BB Drop | 48mm | 48mm | 48mm | 48mm |
Trail | 106mm | 106mm | 106mm | 106mm |
Fork Length, Full | 505mm | 505mm | 505mm | 505mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
Front Center | 687mm | 719mm | 750mm | 782mm |
Chainstay Length | 433mm | 433mm | 433mm | 433mm |
Wheelbase | 1116mm | 1148mm | 1179mm | 1211mm |
Bike Standover Height | 763mm | 766mm | 776mm | 788mm |
Seat Tube Length | 400mm | 430mm | 470mm | 520mm |
Seat Tube Angle | 75.8° | 75.5° | 75.5° | 75.5° |
Top Tube Length, Horizontal | 563mm | 598mm | 626mm | 656mm |
