SPECIALIZED

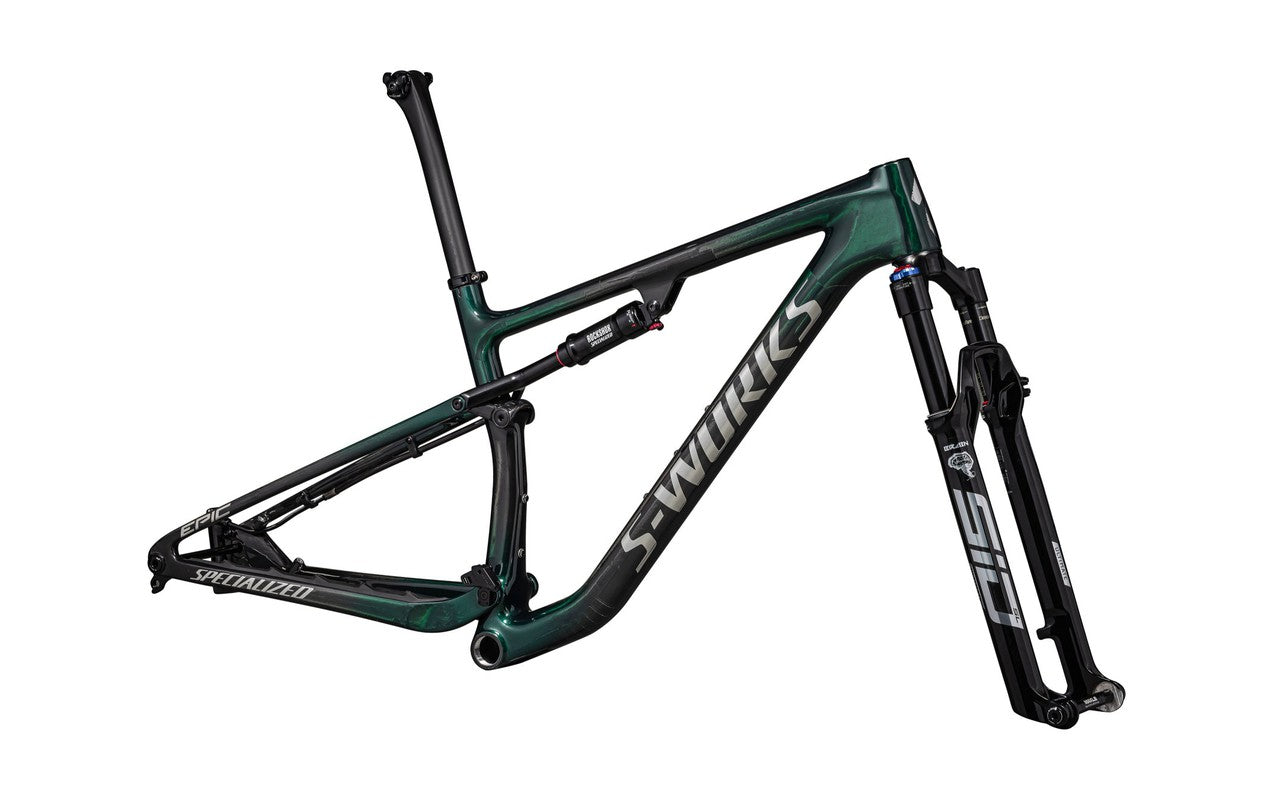

S-Works Epic Frameset

S-Works Epic Frameset

SKU: 70323-0104

Regular price MSRP 70,000.00
Regular price MSRP 100,000.00 Sale price MSRP 70,000.00
Sale Sold out
VAT included.
Size
Color

1 - Available

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Don't worry, we get it...your training buddies all think you're a bit "particular". You may or may not have stockpiled your favorite grips just in case they ever get replaced by a new model. '

Read more

' Perhaps your trailside toolbox would make a quality control engineer blush. Whatever the case, you won't find any judgement here.

Instead, the endlessly engineered S-Works Epic frameset is here for you to let your discerning tastes run wild. We sweated every last detail when designing the S-Works frame, from an endlessly refined layup schedule that re-examined every last ply of FACT 12m carbon to optimize weight savings and ride dynamics to the weight-shedding carbon shock link, all so that you focus on the rest, knowing that you're starting with the most capable canvas in the world.

A Smarter BRAIN

True to form, the latest Epic continues the tradition, taking advantage of the most efficient Brain suspension we've ever created to ensure it's always on a first-name-basis with fast.

Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike Nall more smoothly than ever.

Frame-Changer

Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike Nall more smoothly than ever.

Perfectly matched to the frame's BRAIN system, the S-Works Epic frameset's Position-Sensitive BRAIN fork benefits from RockShox's latest SID Ultimate SL chassis for next-level steering stiffness that still manages to keep the gram count to a minimum.

View full details

Technical Specifications

FRAMESET

Frame

S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel

Seat Binder

Specialized Alloy 34.9, Titanium Bolt

Suspension

Rear Shock

RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integraded Extension, 265x52.5mm

Fork

RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel

COCKPIT

SeatPost

S-Works FACT carbon, 10mm offset, 30.9mm

* Specifications are subject to change without notice

Geometry

 XSSMLXL
Stack596mm586mm591mm605mm623mm
Reach390mm415mm445mm470mm495mm
Head Tube Length95mm95mm100mm115mm135mm
Head Tube Angle67.5°67.5°67.5°67.5°67.5°
BB Height314mm324mm324mm324mm324mm
BB Drop58mm48mm48mm48mm48mm
Trail106mm106mm106mm106mm106mm
Fork Length, Full505mm505mm505mm505mm505mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center663mm687mm719mm750mm782mm
Chainstay Length433mm433mm433mm433mm433mm
Wheelbase1090mm1116mm1148mm1179mm1211mm
Bike Standover Height740mm763mm766mm776mm788mm
Seat Tube Length375mm400mm430mm470mm520mm
Seat Tube Angle76.5°75.8°75.5°75.5°75.5°
Top Tube Length, Horizontal533mm563mm598mm626mm656mm
