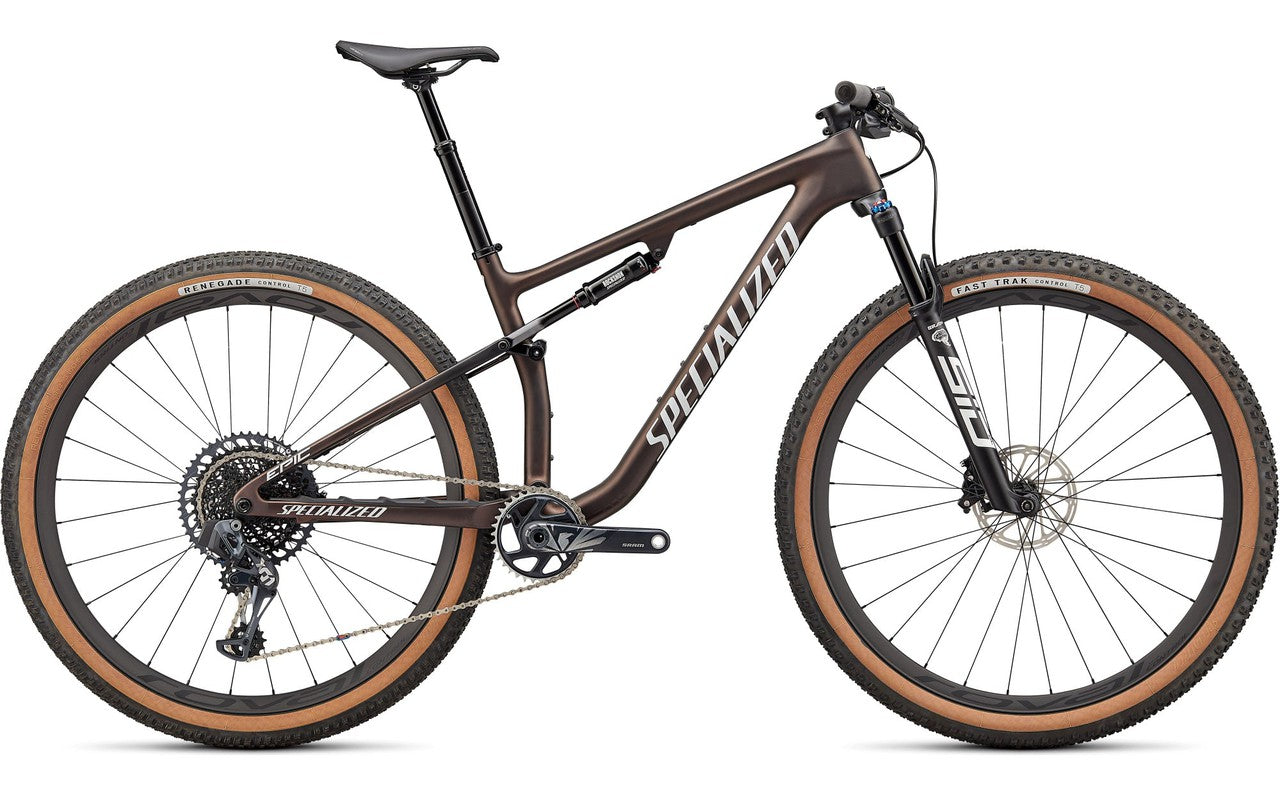

Epic Pro
Epic Pro
SKU:90322-1003
1 in stock
Product Sold Out? Contact us and we will try to find it for you.
Read More
Read More
What do you get when you open up the taps on trickle-down technology? ThatÕd be the Epic Pro. A waterfall of performance coming straight down from Mount S-Works, the Epic Pro benefits from the most efficient suspension design weÕve ever created, not to mention a frame thatÕs as light as the previous-generation S-Works while offering the same incredibly efficient power transfer of the current cream of the World Cup crop.
A Smarter BRAIN
Mixing hardtail efficiency and full-suspension capability to impressively quick results, Epic has always been defined by an uncompromised commitment to speed. Well, that and over 100 World Cup wins and podiums too.
True to form, the latest Epic continues the tradition, taking advantage of the most efficient BRAIN suspension weÕve ever created to ensure itÕs always on a first-name-basis with fast.
Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alikeÑall more smoothly than ever.
Frame-Changer
Redesigned with a focus on efficient power transfer and better handling performance, the EpicÕs all-new FACT 11m carbon frame features a 15-percent stiffer rear triangle in order to take full advantage of the BRAINÕs new race-tuned pedaling platform, while the revised carbon layup of the front-triangle sheds weight, sending the EpicÕs already sky-high stiffness-to-weight ratio even higher.
The Epic ProÕs Top-Adjust Position-Sensitive BRAIN fork allows for easy tuning on the fly, making suspension adjustments on course pre-rides a stress-free affair, while SRAMÕs XO1 Eagle AXS electronic group takes notes from BRAINÕs telepathic performance, firing off shifts with lightning-fast precision.
Share
Technical Specifications
FRAMESET
Frame
FACT 11m Full Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Seat Binder
Specialized Alloy, 34.9mm
ACCESSORIES
SWAT
SWAT EMT Cage-Mount Tool
Suspension

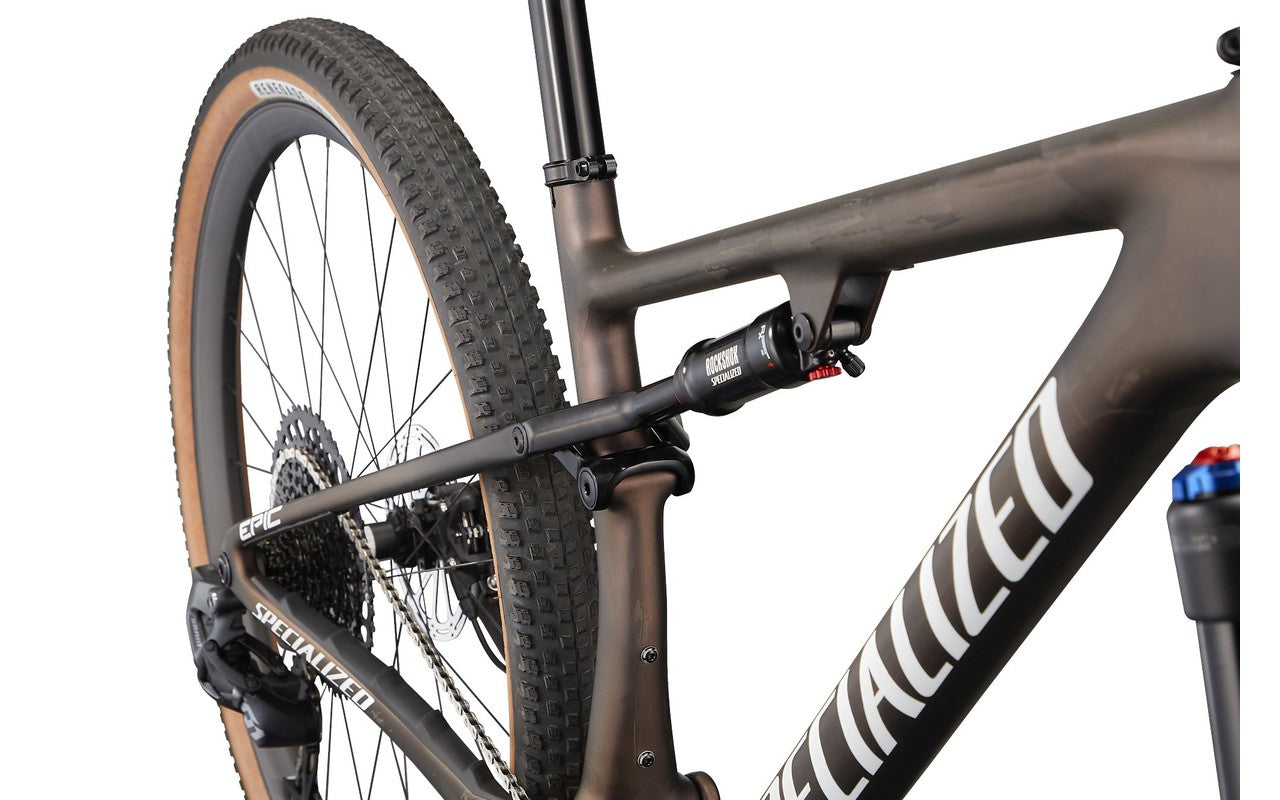

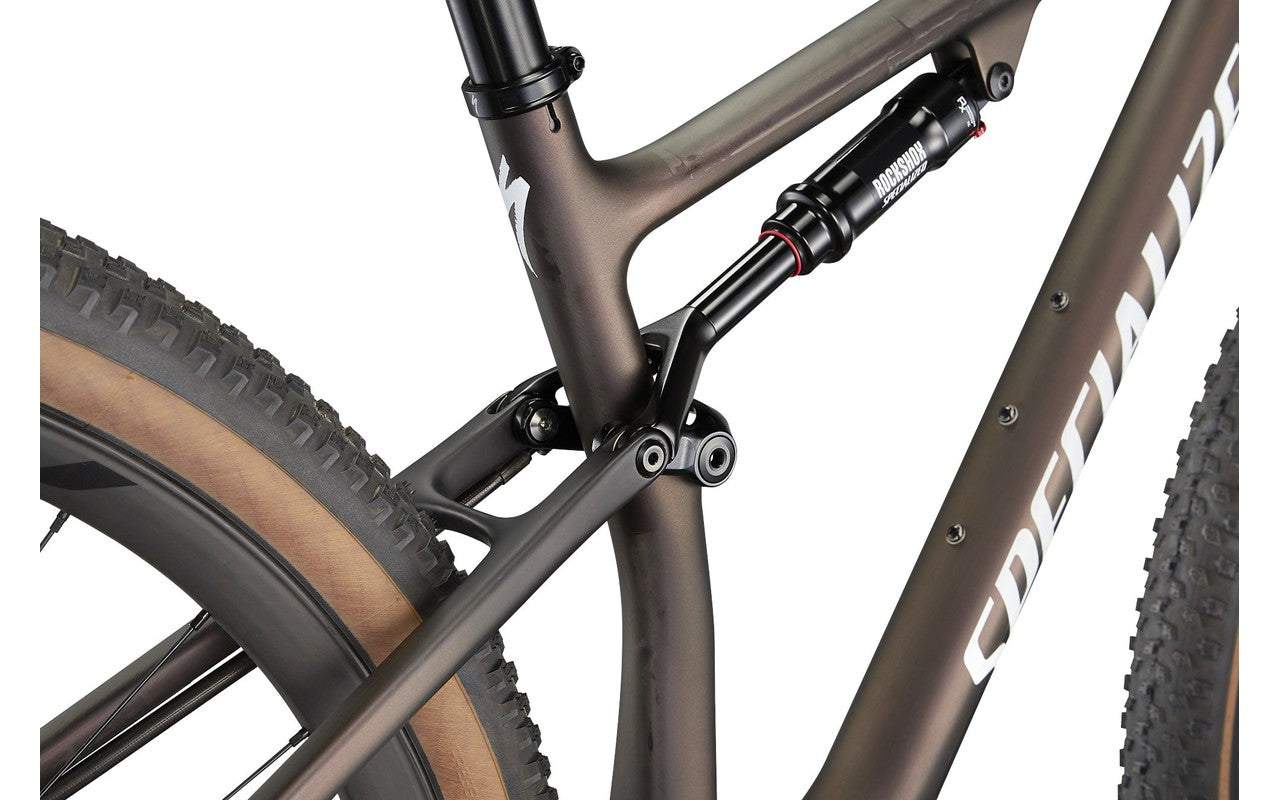

Rear Shock
RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integraded Extension, 265x52.5mm
Fork
RockShox SID SL BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel
COCKPIT

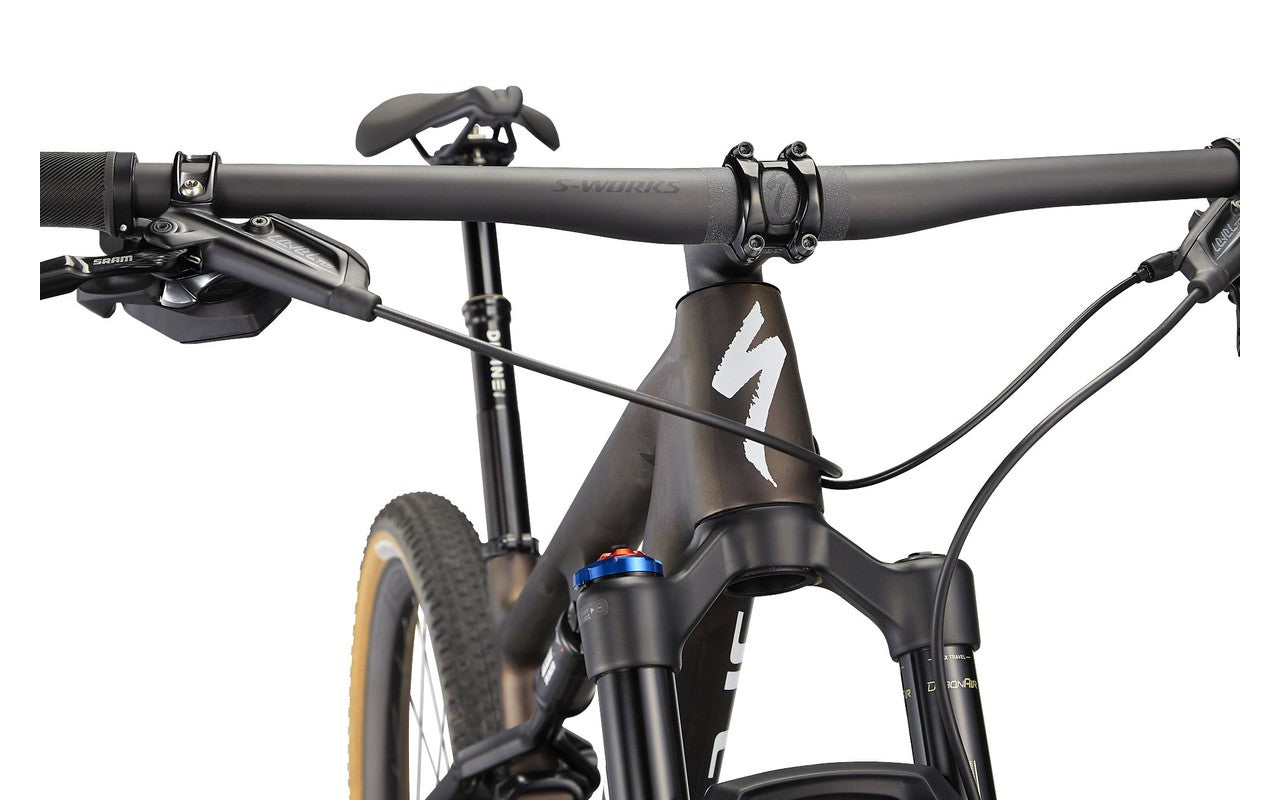

Stem
Specialized Pro SL, alloy, 4-bolt

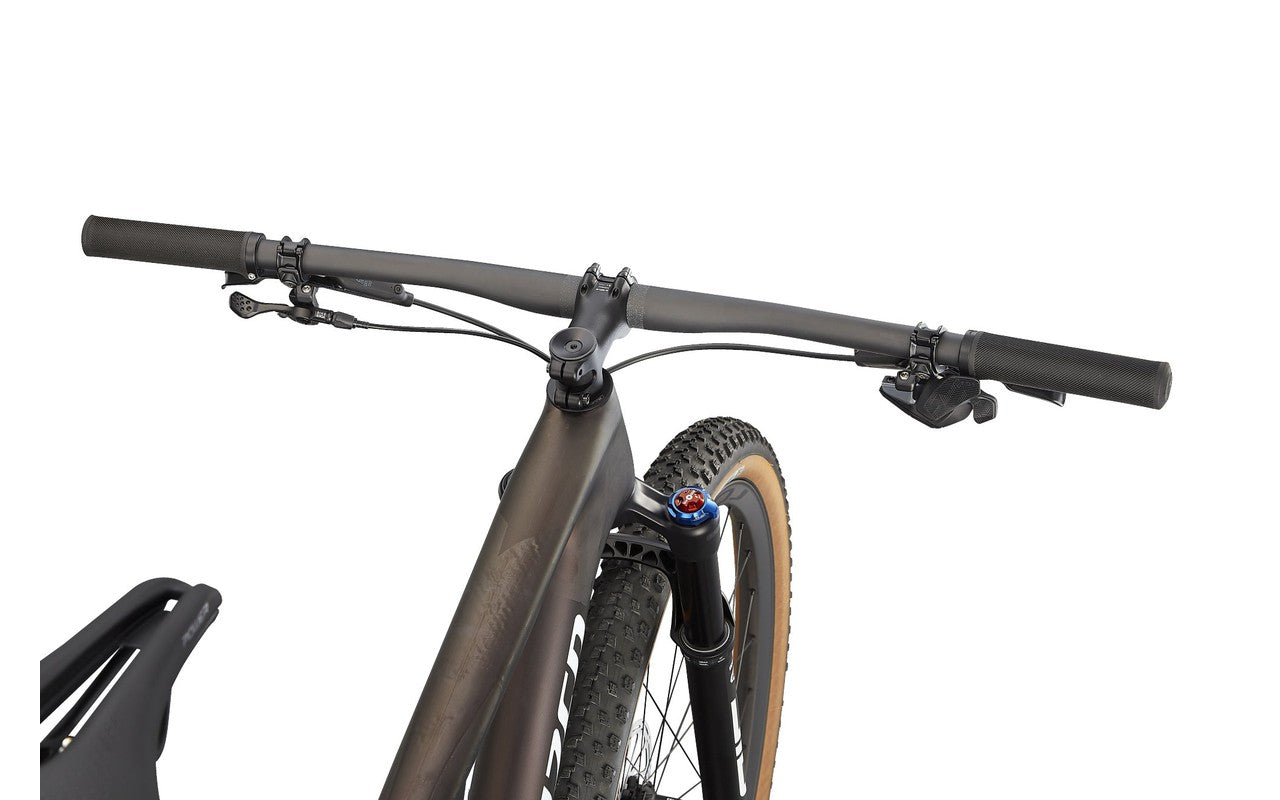

Handlebars
S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
Tape
Specialized Trail Grips
Saddle
Body Geometry Power Expert, titanium rails
SeatPost
Bike Yoke Divine SL, 80mm travel, 0mm offset, 30.9mm, 320/400mm length
BRAKES
Front Brake
SRAM Level TLM, 2-piston caliper, hydraulic disc
Rear Brake
SRAM Level TLM, 2-piston caliper, hydraulic disc
DRIVETRAIN
Rear Derailleur
SRAM X01 Eagle AXS
Shift Levers
SRAM Eagle AXS Rocker Paddle
Cassette
SRAM XG-1295 Eagle, 10-52t
Chain
SRAX X01 Eagle, 12-speed
Crankset
SRAM X1 Eagle Carbon, DUB, 165/170/175mm, 34t
Chainrings
34T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
WHEELS
Rims
Roval Control, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 28h
Front Hub
DT Swiss 350, 6-bolt, 15mm Thru-axle, 110mm spacing, 28h straight -pull
Rear Hub
DT Swiss 350 straight-pull, 6-bolt, DT Swiss Ratchet, 12x148mm thru axle, XD freehub body, 28h straight-pull
Spokes
DT Swiss Comp Race
Front Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Rear Tire
Specialized Renegade, Control Casing, T5 Compound, 29x2.35
Inner Tubes
Specialized Turbo Tube
* Specifications are subject to change without notice
Geometry
S | M | L | XL | |
---|---|---|---|---|
Stack | 586mm | 591mm | 605mm | 623mm |
Reach | 415mm | 445mm | 470mm | 495mm |
Head Tube Length | 95mm | 100mm | 115mm | 135mm |
Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
BB Height | 324mm | 324mm | 324mm | 324mm |
BB Drop | 48mm | 48mm | 48mm | 48mm |
Trail | 106mm | 106mm | 106mm | 106mm |
Fork Length, Full | 505mm | 505mm | 505mm | 505mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
Front Center | 687mm | 719mm | 750mm | 782mm |
Chainstay Length | 433mm | 433mm | 433mm | 433mm |
Wheelbase | 1116mm | 1148mm | 1179mm | 1211mm |
Bike Standover Height | 763mm | 766mm | 776mm | 788mm |
Seat Tube Length | 400mm | 430mm | 470mm | 520mm |
Seat Tube Angle | 75.8° | 75.5° | 75.5° | 75.5° |
Top Tube Length, Horizontal | 563mm | 598mm | 626mm | 656mm |
