SPECIALIZED

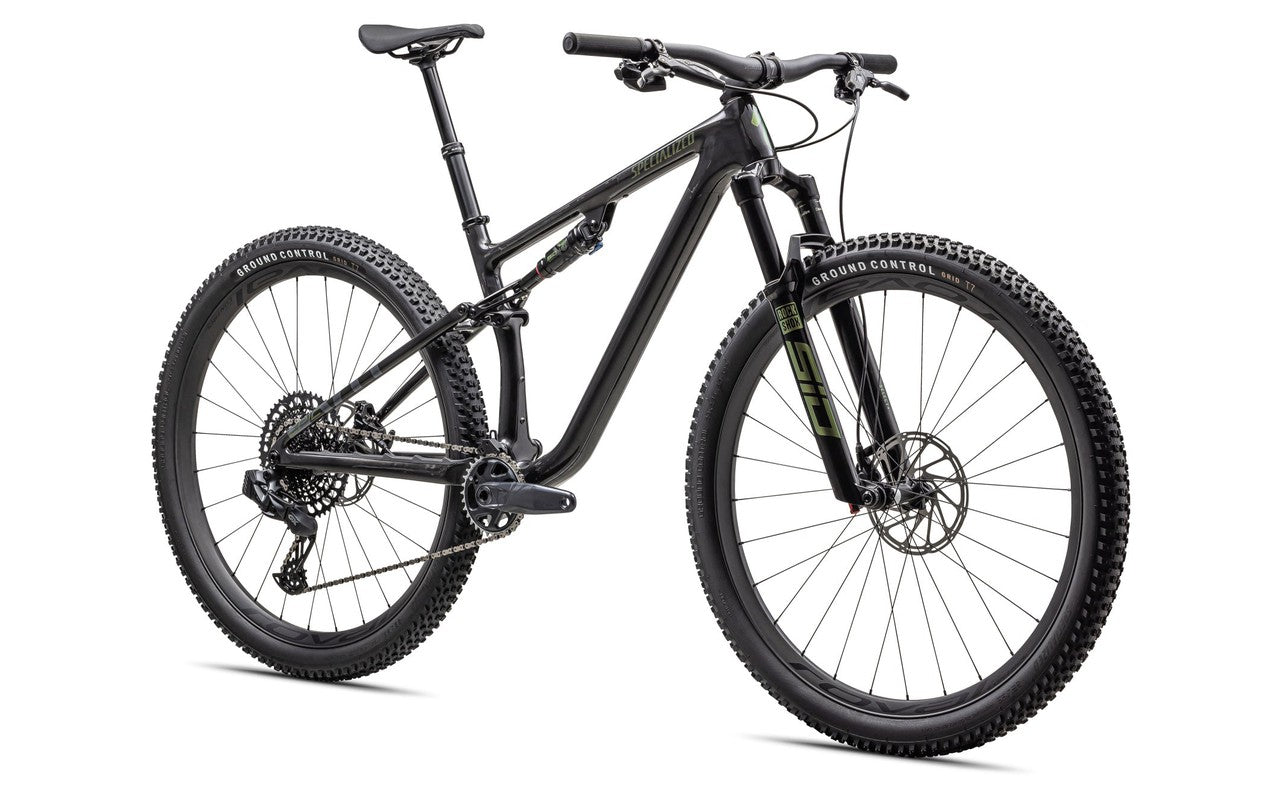

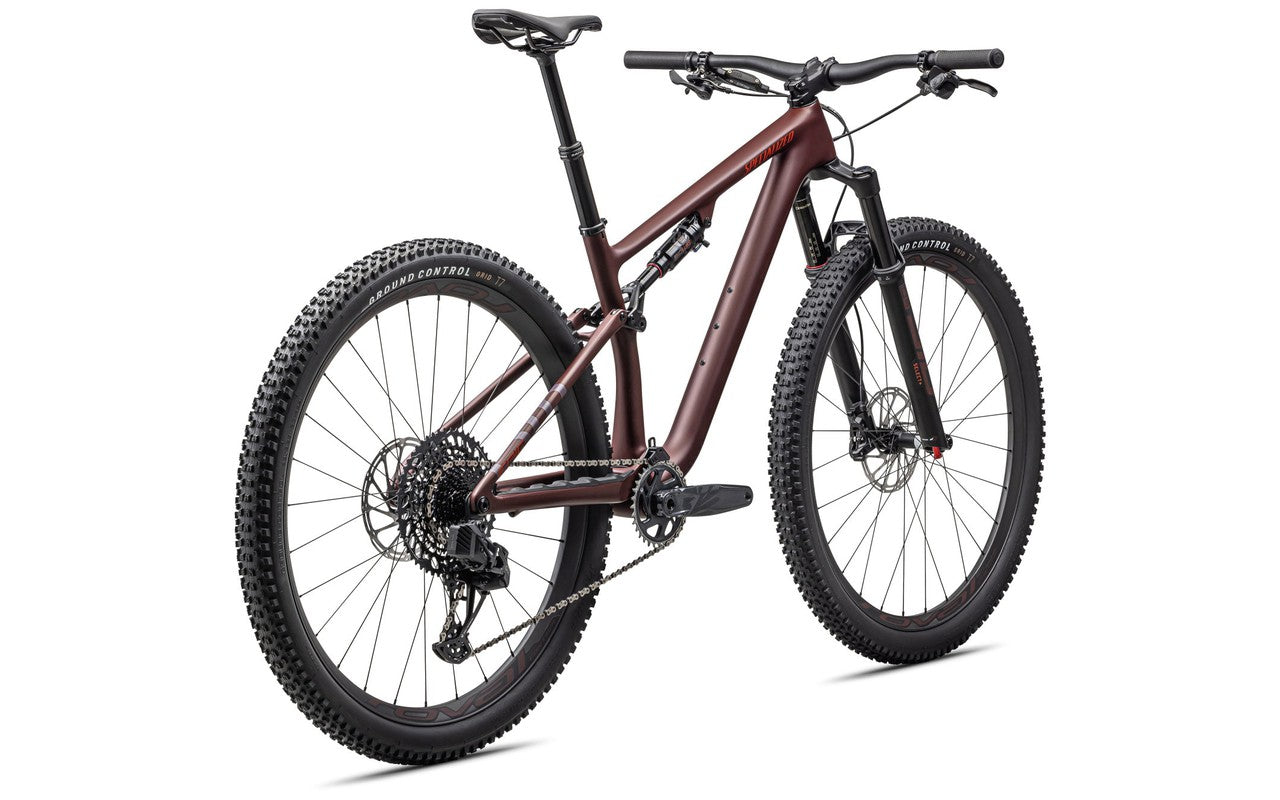

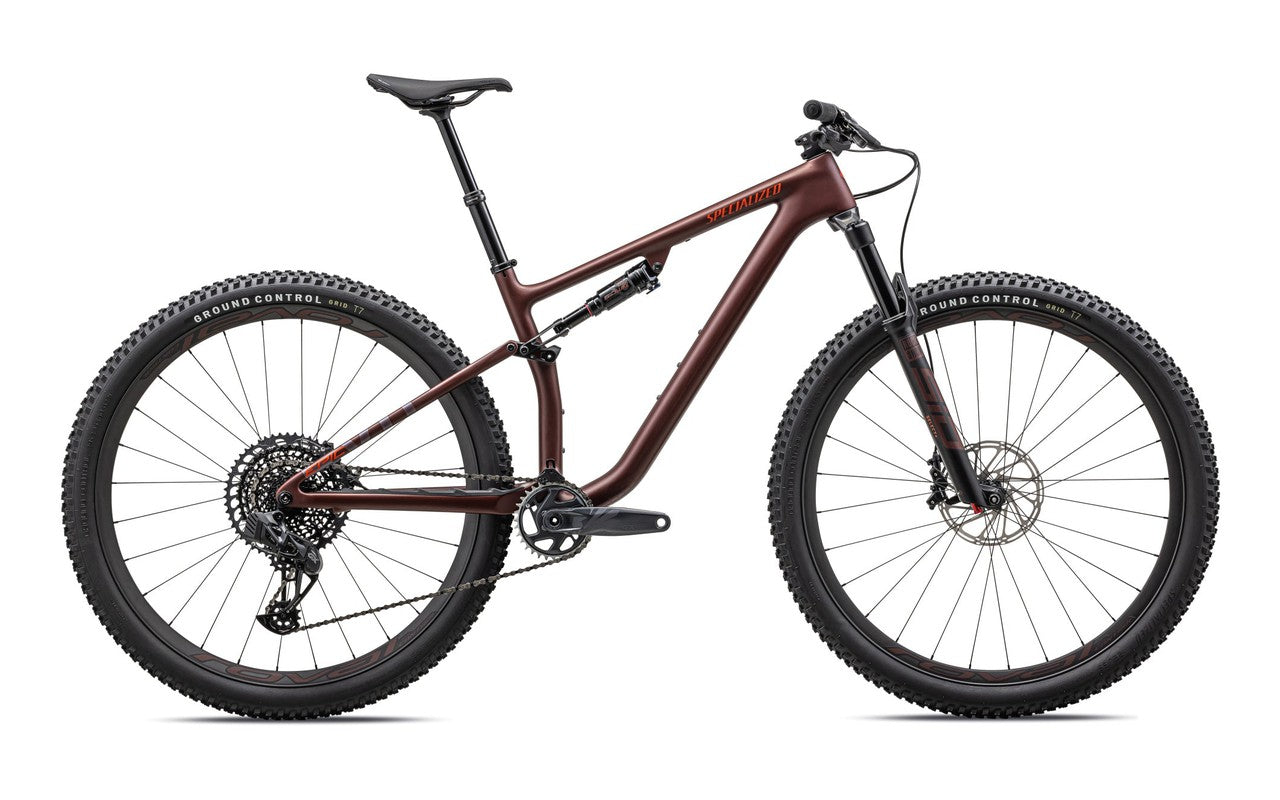

Epic EVO Expert

Epic EVO Expert

SKU: 94823-3103

Regular price MSRP 115,000.00
Regular price MSRP 135,000.00 Sale price MSRP 115,000.00
Sale Sold out
VAT included.
Size
Color

1 - Available

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Read More

Looking for a bike that soars as well as it sprints? Look no further than the Epic EVO Expert.

Wheels up or head down, the Epic EVO Expert’s masterful blending of inspired handling, capable geometry and laser-focused pedaling efficiency makes sure no rider ever has to make the decision between fast and fun.

While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoa!’ as soon as you hit your first stretch of singletrack.

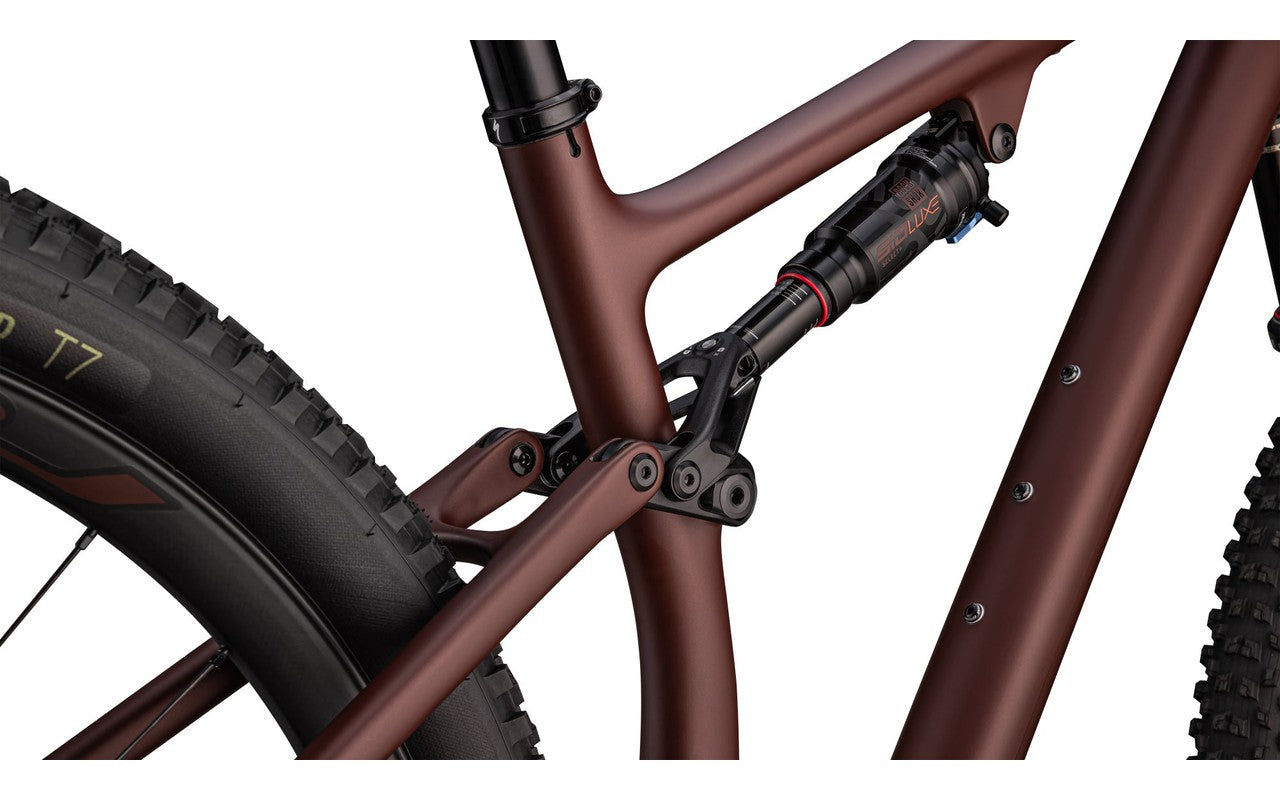

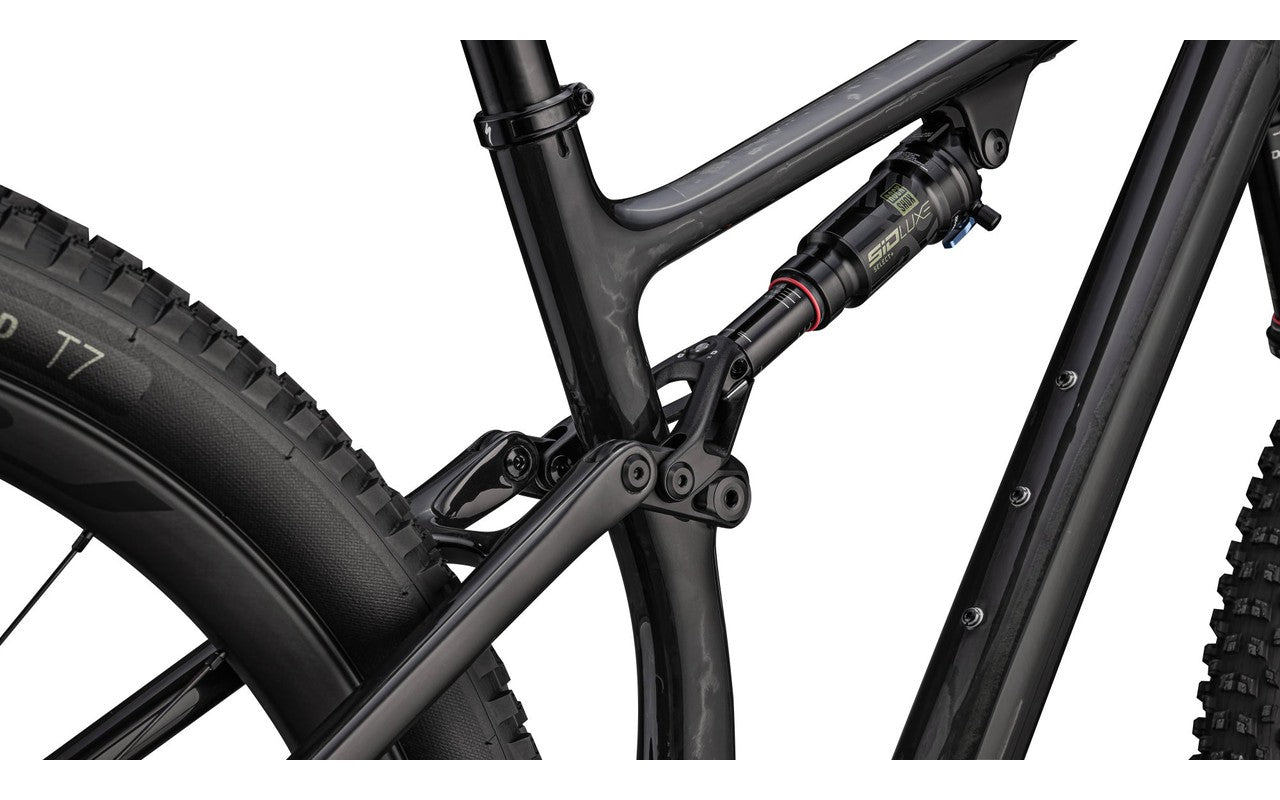

Meticulously engineered to retain as much of the Epic’s standard-setting efficiency as possible, the EVO’s new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.

With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It’s also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO’s handling characteristics.

SRAM's high-flying GX Eagle AXS group handles shifting duties, while RockShox's SID Select+ is firmly in charge of takeoffs and landings with it's capable Charger 2 RL damper.

  • Flip It To Rip It: Tune the ride of the Epic EVO’s FACT 11m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to reduce the EVO’s headtube angle by half a degree while lowering bottom bracket height by 10 millimeters.
  • Suspension up front comes courtesy of RockShox's SID Select+ 120-millimeter fork, featuring their Charger 2 RL Damper with two-position compression adjustment for impressive pedaling efficiency while the DebonAir spring offers easy tuning and consistent feel throughout the entire range of travel.
  • X-Fusion's Manic dropper post offers infinitely adjustable travel via it's slick shifter-stye remote lever for hassle-free operation when things get dicey.
  • Descending from a long World Cup lineage, hand-built Roval Control Carbon wheels feature a modern 29-millimeter internal-width hookless rim, and maximize strength, ride quality, and durability while keeping weight to a minimum.
View full details

Technical Specifications

DRIVETRAIN

Chainrings

32T

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

Shift Levers

SRAM GX Eagle AXS Controller

Rear Derailleur

SRAM GX Eagle AXS, w/ battery cover

Crankset

SRAM GX Eagle Alloy, DUB, 165/170/175mm, 32t

Chain

SRAM GX Eagle, 12-speed

Cassette

Sram XG-1275, 12-speed, 10-52t

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Body Geometry Power Sport, steel rails

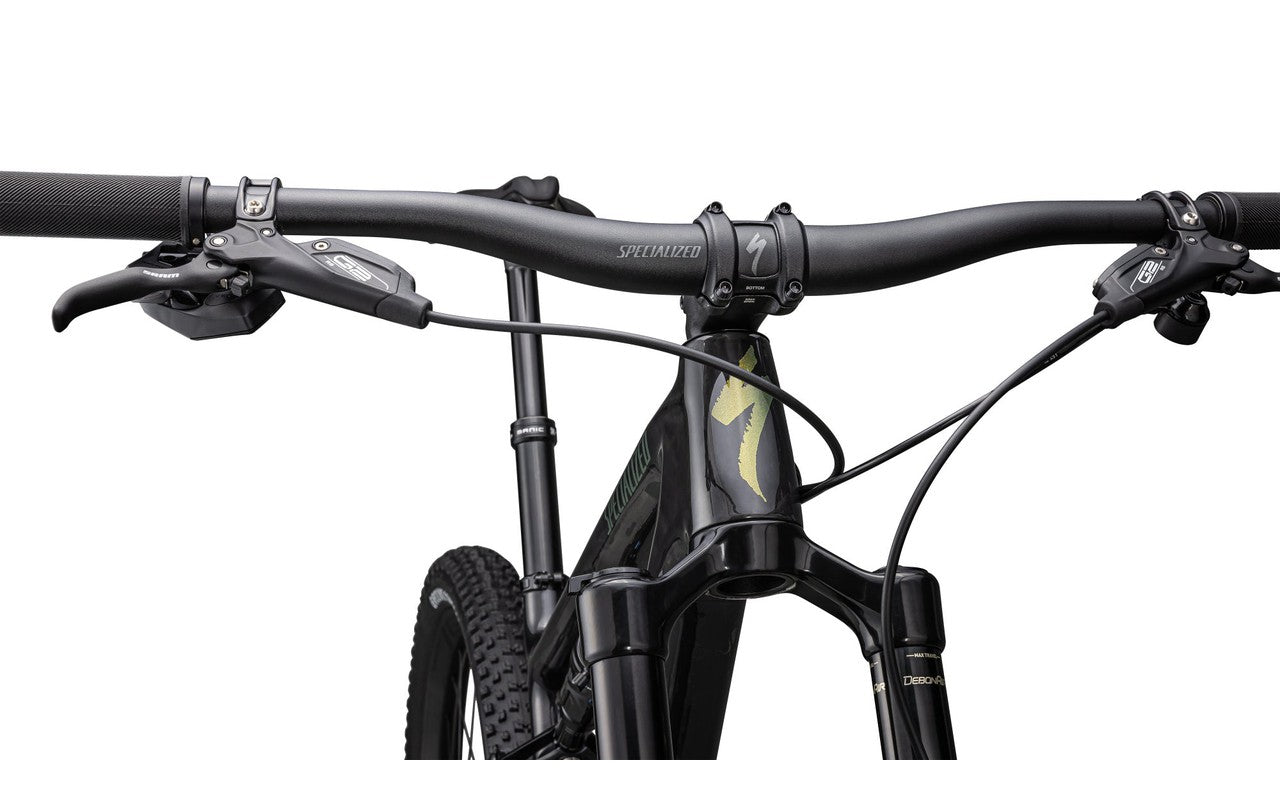

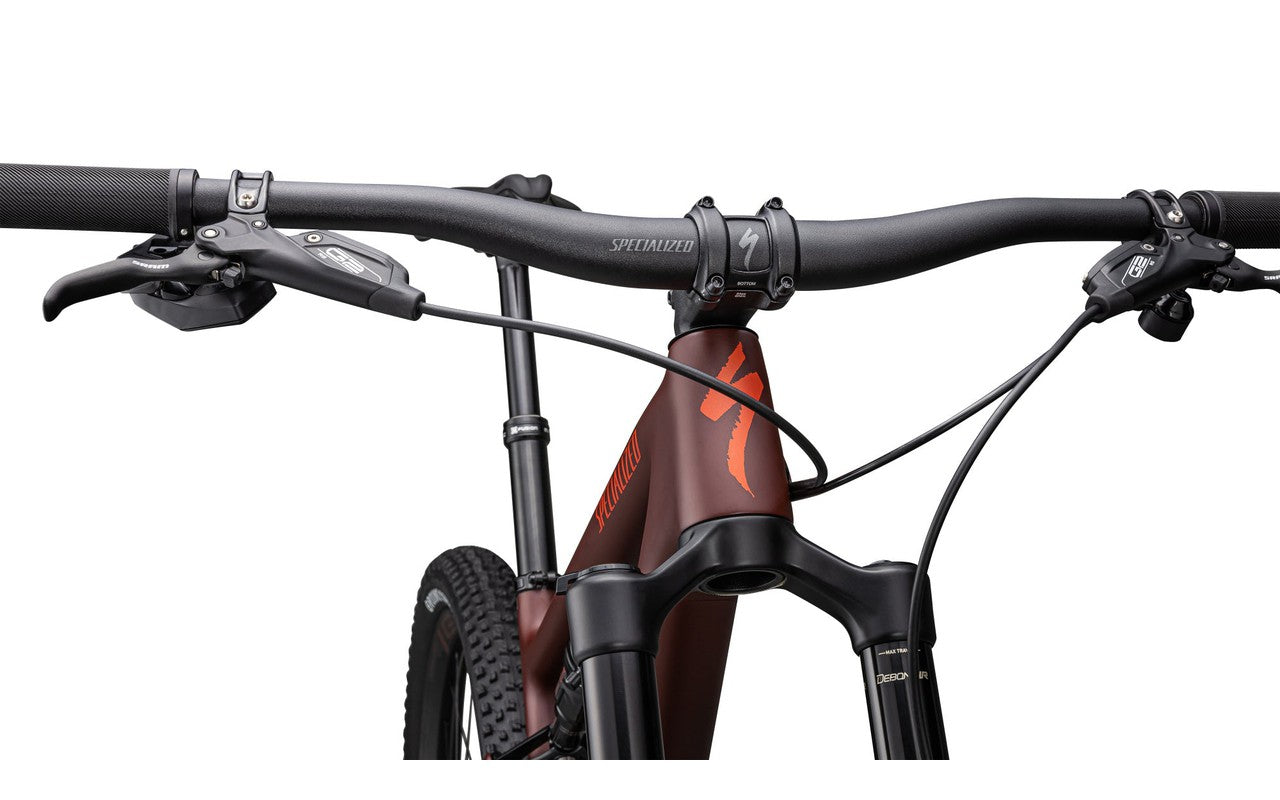

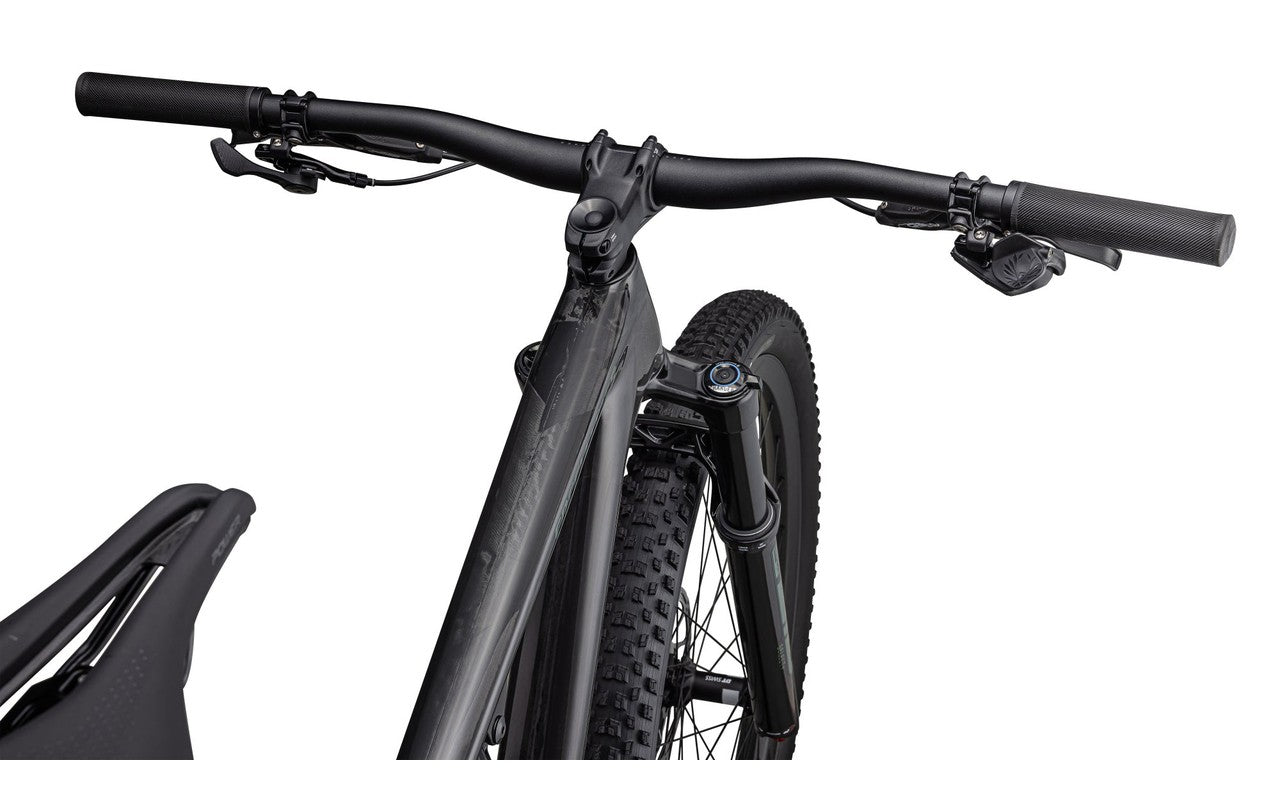

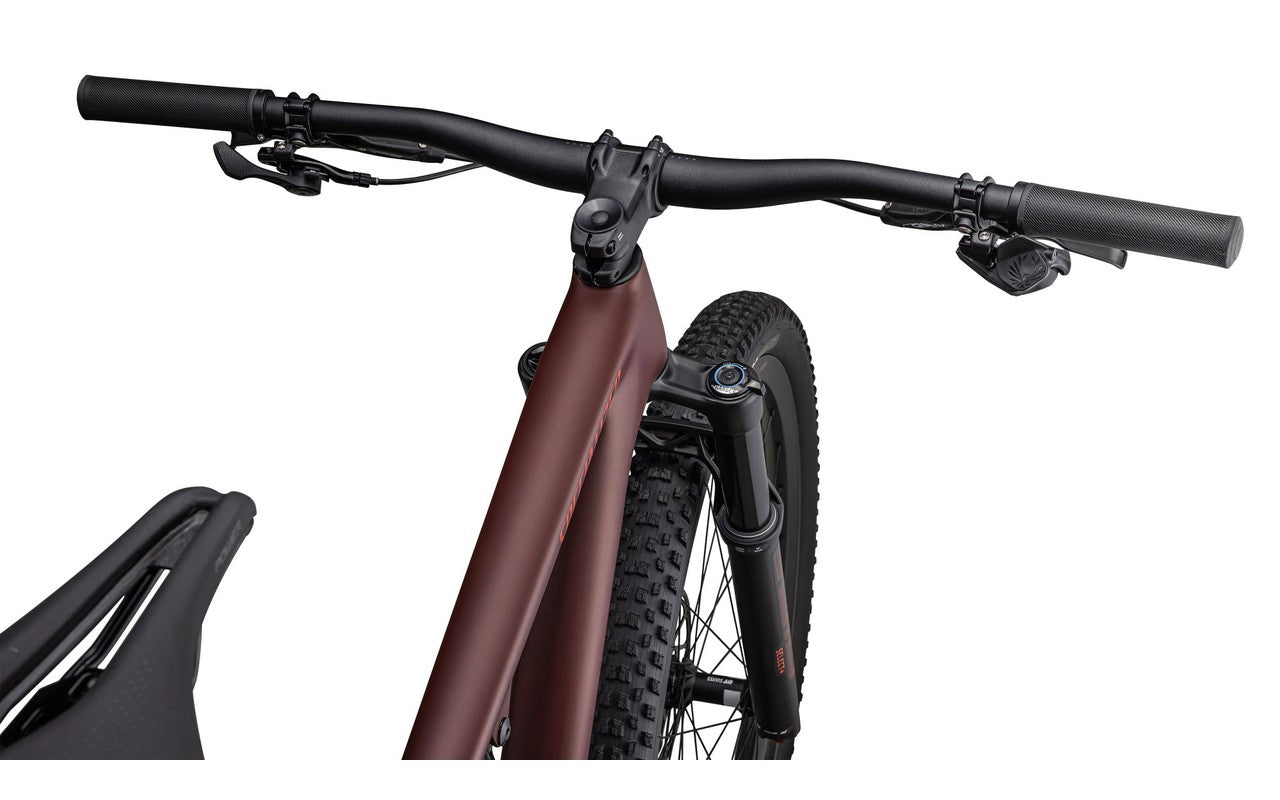

Handlebars

Specialized Alloy, 20mm rise, 35mm, 760mm wide

Tape

Specialized Trail Grips

SeatPost

X-Fusion Manic, 30.9, 100/125/150 Travel, 0mm offset

WHEELS

Rear Hub

DT Swiss 350 straight-pull, 6-bolt, DT Swiss Ratchet, 12x148mm thru axle, XD freehub body, 28h straight-pull

Front Hub

DT Swiss 350, 6-bolt, 15mm Thru-axle, 110mm spacing, 28h straight -pull

Spokes

DT Swiss Comp Race

Rims

Roval Control, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 28h

Rear Tire

Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35

Front Tire

Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35

Inner Tubes

Standard, Presta valve

FRAMESET

Frame

FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel

Seat Binder

Specialized Alloy, 34.9mm

SUSPENSION

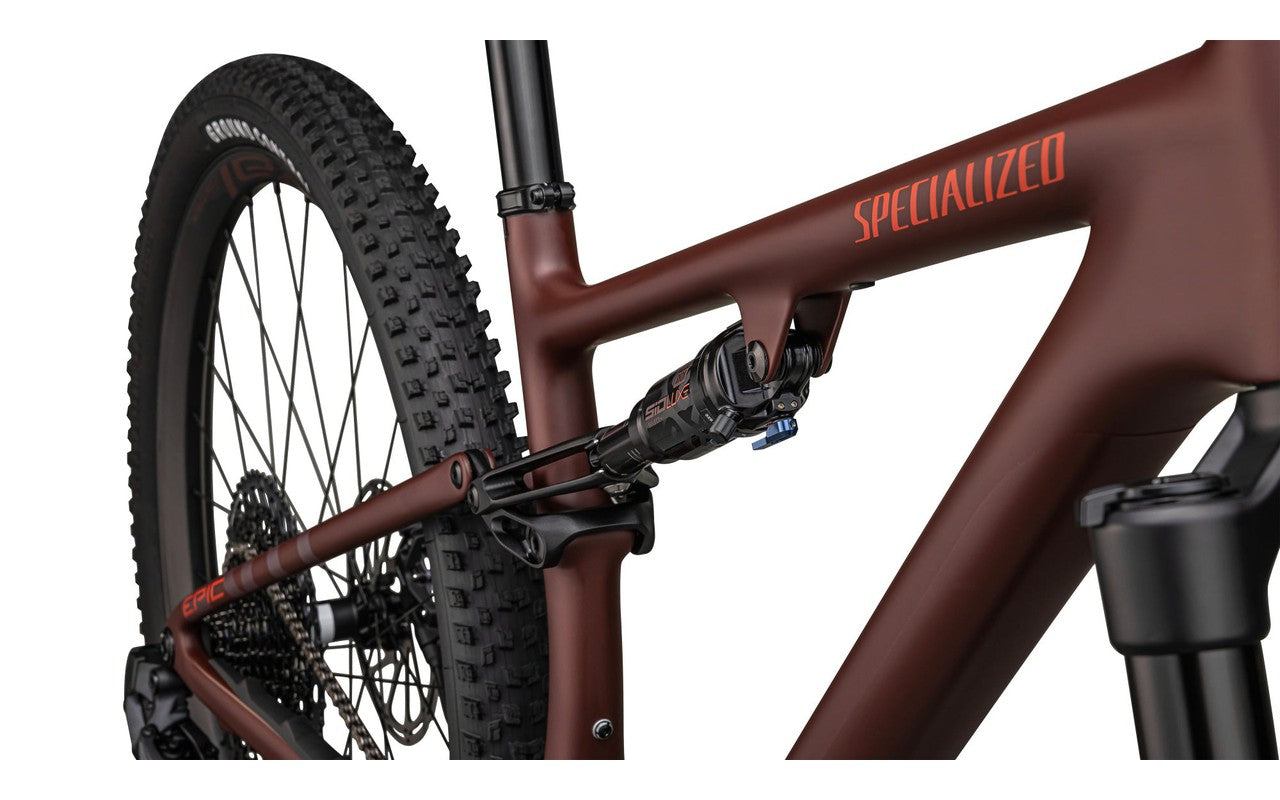

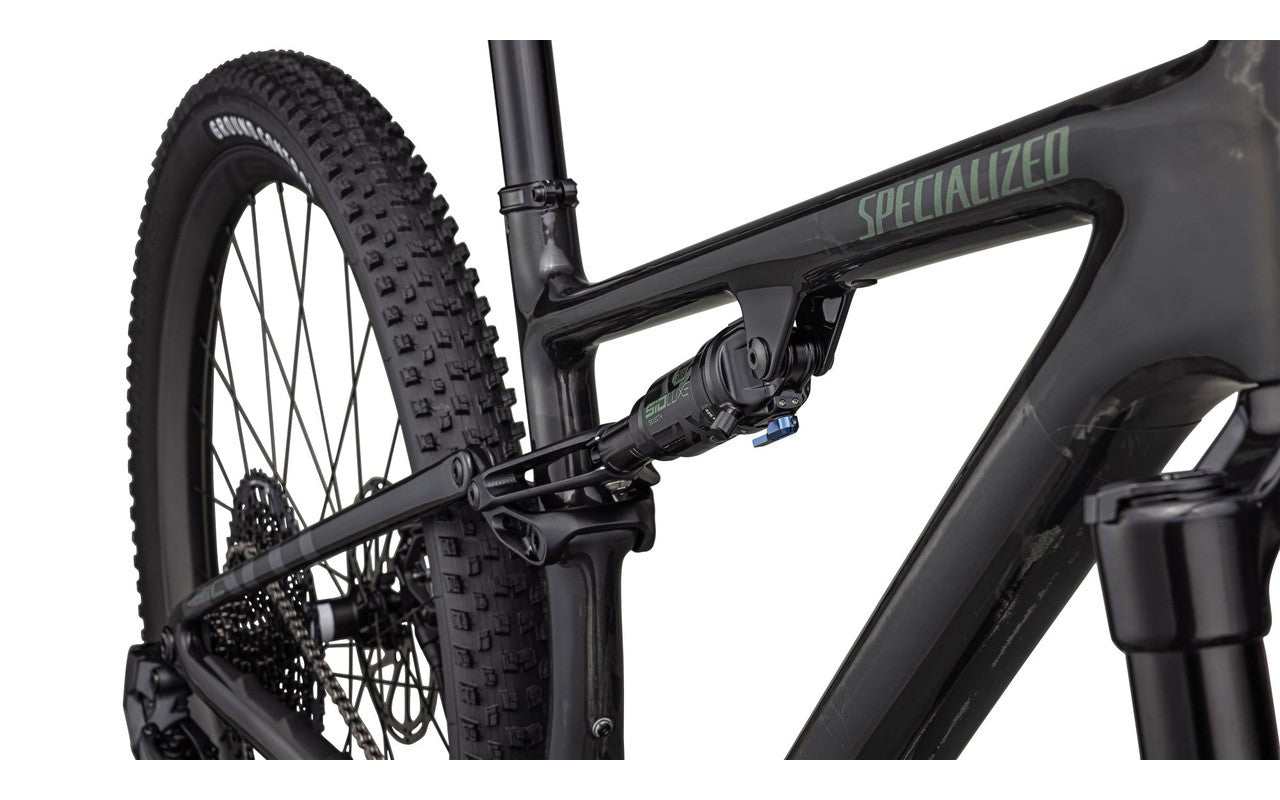

Rear Shock

RockShox SID LUXE Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm

Fork

Rockshox SID Select+, Charger 2 RL Damper, Debon Air, 15x110mm, 44mm offset, 120mm Travel

BRAKES

Rear Brake

SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm rotor

Front Brake

SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm rotor

ACCESSORIES

SWAT

SWAT EMT Cage-Mount Tool

* Specifications are subject to change without notice

Geometry

 XSSMLXL
Crank Length165mm170mm175mm175mm175mm
Seatpost Length100mm125mm125mm150mm150mm
Handlebar Width760mm760mm760mm760mm760mm
Stem Length60mm60mm60mm60mm60mm
Saddle Width155mm155mm143mm143mm143mm
Stack603mm593mm597mm611mm629mm
Reach380mm406mm436mm460mm485mm
Head Tube Length95mm95mm100mm115mm135mm
Head Tube Angle66.5°66.5°66.5°66.5°66.5°
BB Height326mm336mm336mm336mm336mm
BB Drop46mm36mm36mm36mm36mm
Trail114mm114mm114mm114mm114mm
Fork Length, Full530mm530mm530mm530mm530mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center672mm697mm729mm759mm792mm
Chainstay Length438mm438mm438mm438mm438mm
Wheelbase1106mm1132mm1164mm1194mm1227mm
Bike Standover Height760mm779mm781mm793mm804mm
Seat Tube Length375mm400mm430mm470mm520mm
Seat Tube Angle75.5°74.8°74.5°74.5°74.5°
Top Tube Length, Horizontal536mm567mm602mm629mm659mm
