Technical Specifications
Frameset
Frame
FACT 11m Carbon, Progressive XC Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel
SWAT
SWAT internal downtube storage
Seat Binder
Specialized Alloy 34.9, Steel Bolt
Suspension
Fork
RockShox SID ULTIMATE, Ride Dynamics developed 3 position, TwistLoc remote adjust, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Rear Shock

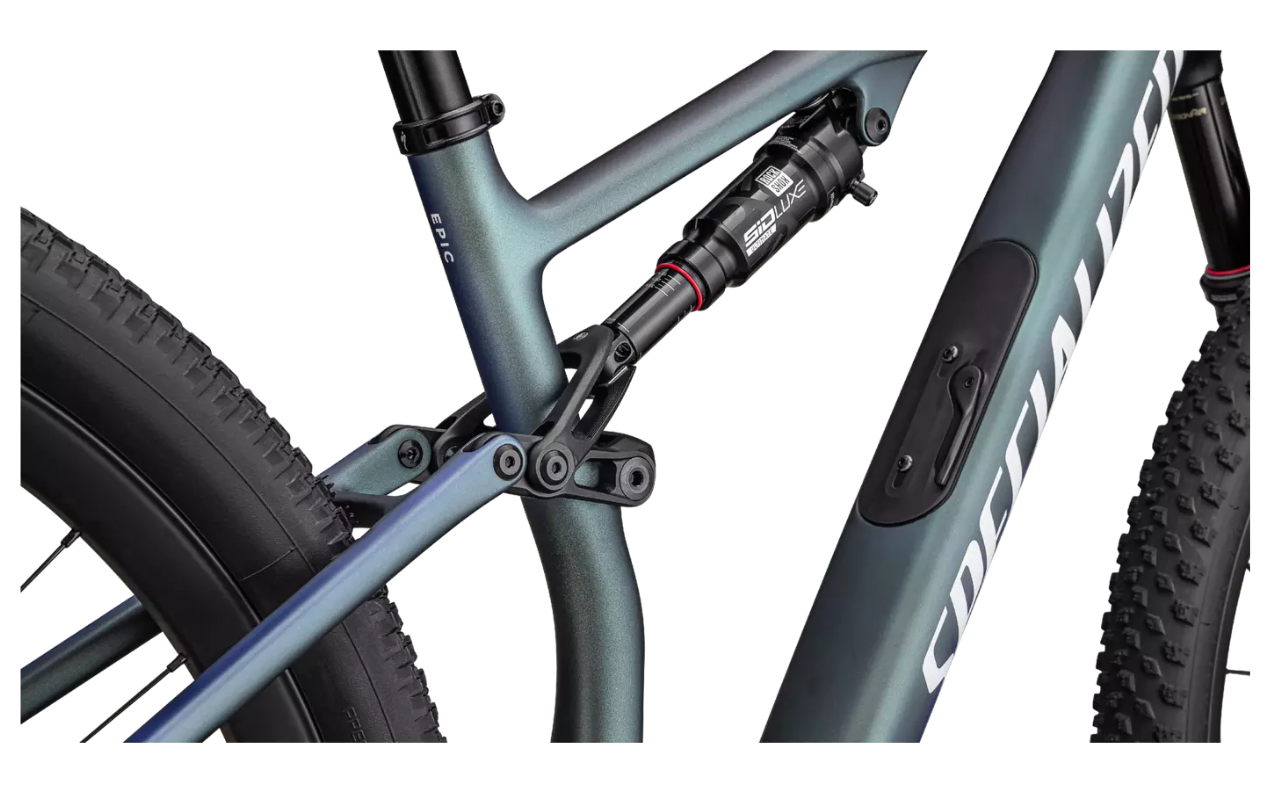

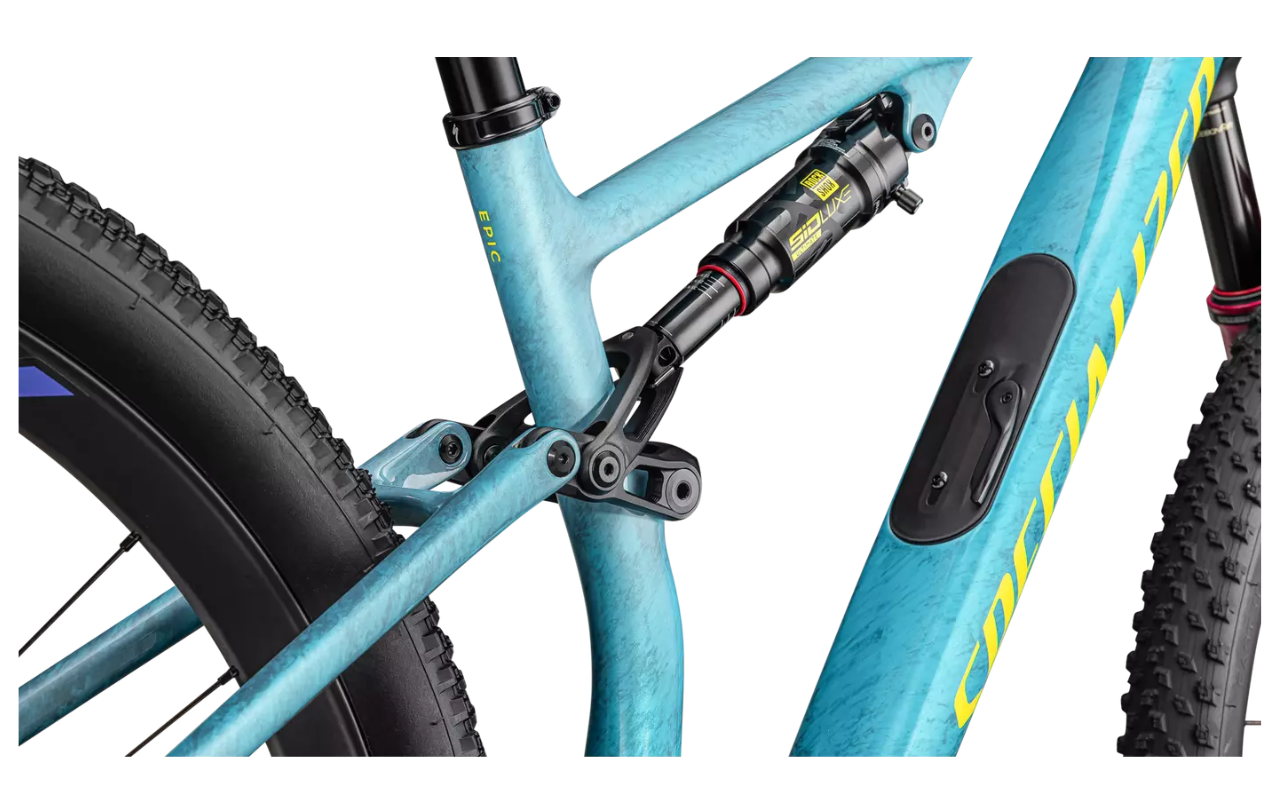

RockShox SIDLuxe ULTIMATE, Ride Dynamics developed 3 position, TwistLoc remote adjust, Solo Air, 190x45mm
Brakes
Rear Brake
SRAM Level Silver Stealth, 4-piston caliper, hydraulic disc, 160mm rotor
Front Brake
SRAM Level Silver Stealth, 4-piston caliper, hydraulic disc, 180mm rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Bottom Bracket
SRAM DUB Threaded Wide
Crankset
SRAM X0 Eagle, Quarq Spindle power meter, DUB, 170/175mm
Chain
SRAM XO Transmission
Rear Derailleur
SRAM XO AXS Transmission
Cassette
SRAM XS-1295, 12-speed, 10-52t
Chainrings
34t
Wheels & tires
Rims
Roval Control, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 28h
Front Hub
DT Swiss 350, 6-bolt, 15mm Thru-axle, 110mm spacing, 28h straight -pull
Rear Hub
DT Swiss 350, 6-bolt, DT Swiss Ratchet, 12x148mm thru axle, XD freehub body, 28h straight-pull
Front Tire
Specialized Fast Trak, Control Casing, T7 Compound, 29x2.35
Rear Tire
Specialized Renegade, Control Casing, T5 Compound, 29x2.35
Inner Tubes
Standard 40mm PV 29x1.75-2.4
Spokes
DT Swiss Comp Race
Cockpit
SeatPost
Bike Yoke Divine SL, 30.9mm, SM: 100/ MD-XL: 125mm,
Saddle
Body Geometry Power Expert
Handlebars

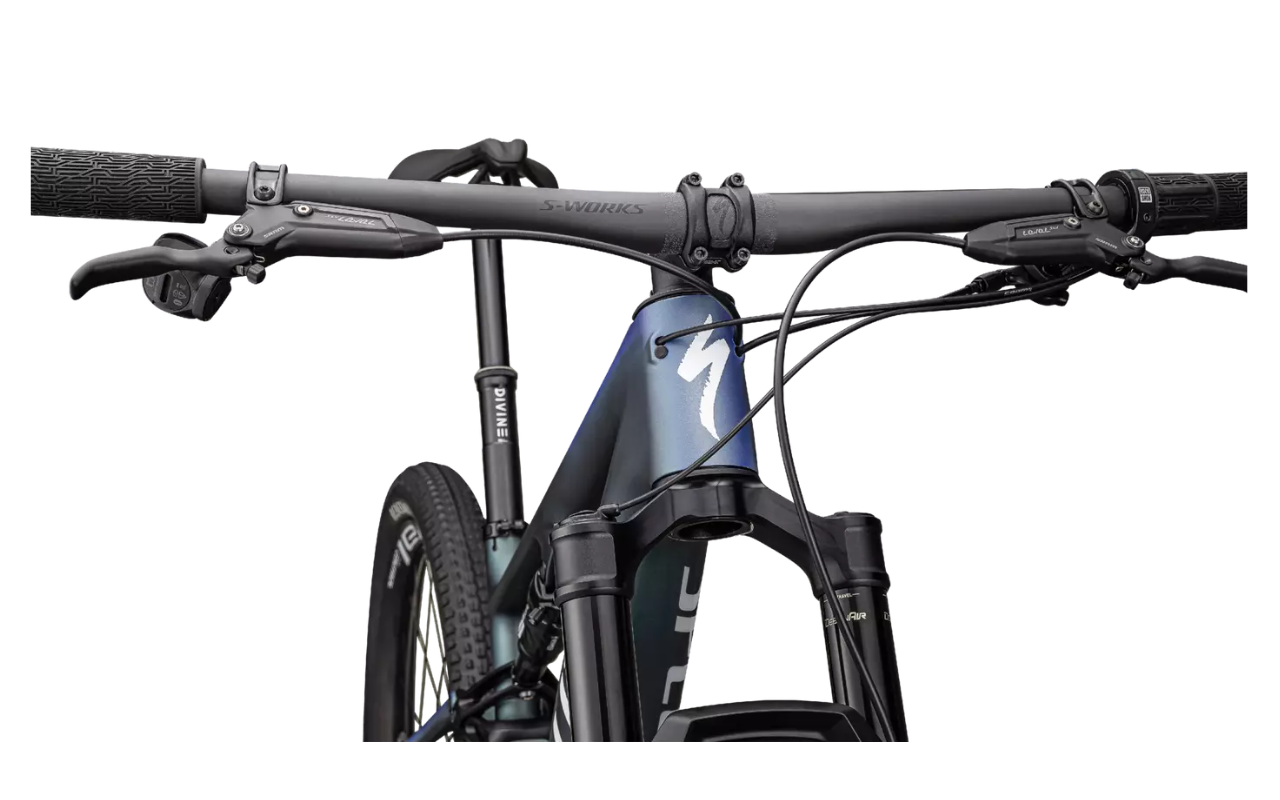

S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
Grips
SRAM Slip on with Twist-Loc
Stem
Specialized Pro SL, alloy, 4-bolt
Product details
Weight
10.87kg (23 lb, 15.4 oz)
Weight Size
MD
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170 | 170 | 175 | 175 |
| Handlebar Width | 760 | 760 | 760 | 760 |
| Stem Length | 60 | 60 | 60 | 60 |
| Saddle Width | 155 | 143 | 143 | 143 |
| Seatpost Length | 100 | 125 | 125 | 125 |
| Stack | 597 | 598 | 610 | 628 |
| Reach (low) | 420 | 450 | 475 | 500 |
| Head Tube Length | 110 | 130 | 92 | 95 |
| Head Tube Angle (low) | 65.9 | 65.9 | 65.9 | 65.9 |
| Head Tube Angle (high) | 66.4 | 66.4 | 66.4 | 66.4 |
| BB Height (low) | 324 | 326 | 328 | 328 |
| BB Height (high) | 329 | 331 | 333 | 333 |
| BB Drop (low) | 46 | 44 | 42 | 42 |
| Trail | 117 | 117 | 117 | 117 |
| Fork Length, Full | 530 | 530 | 530 | 530 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front Center | 716 | 747 | 778 | 811 |
| Chainstay Length | 435 | 435 | 435 | 435 |
| Wheelbase | 1147 | 1179 | 1210 | 1243 |
| Bike Standover Height | 755 | 760 | 769 | 774 |
| Seat Tube Length | 390 | 410 | 450 | 500 |
| Seat Tube Angle | 76 | 75.5 | 75.5 | 75.5 |
| Top Tube Length, Horizontal | 569 | 605 | 633 | 662 |
