Technical Specifications
Frameset
Frame
FACT 11m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel
Seat Binder
Specialized Alloy 34.9, Steel Bolt
Suspension

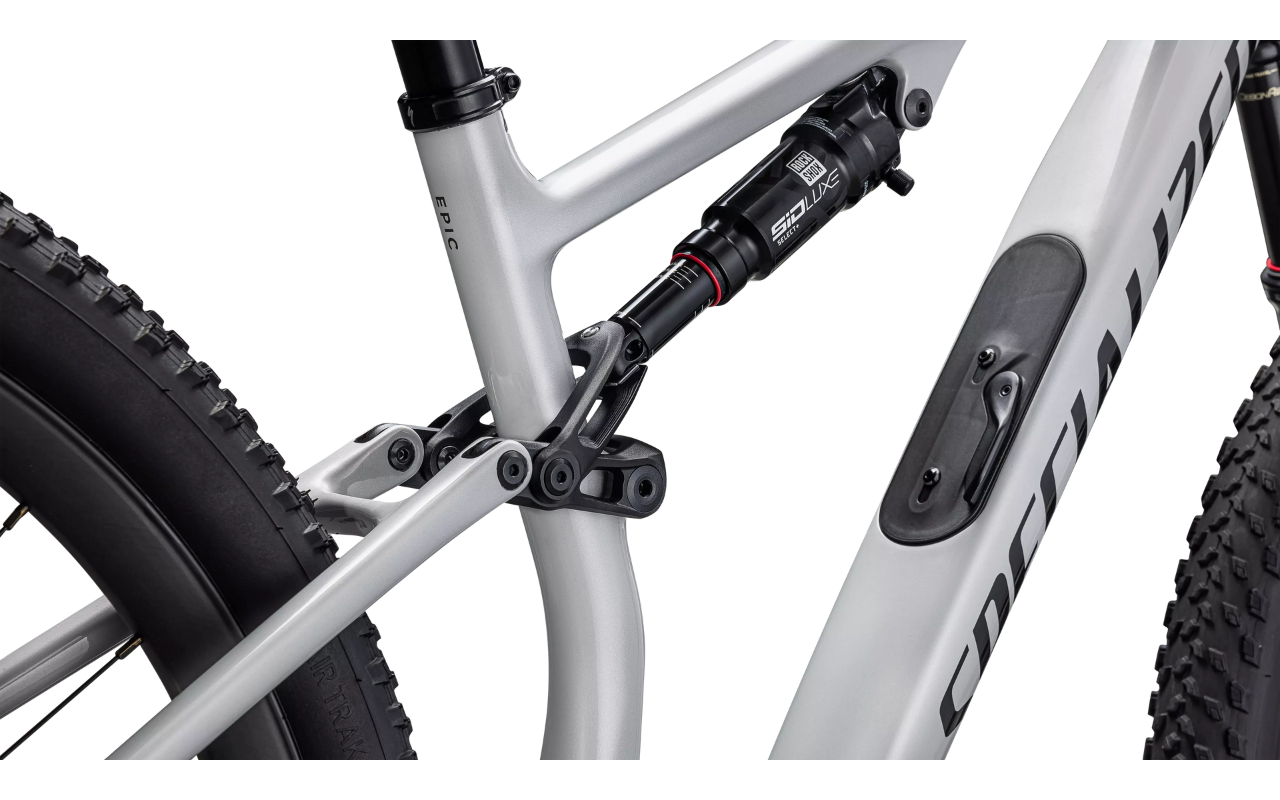

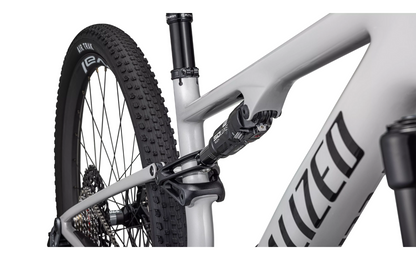

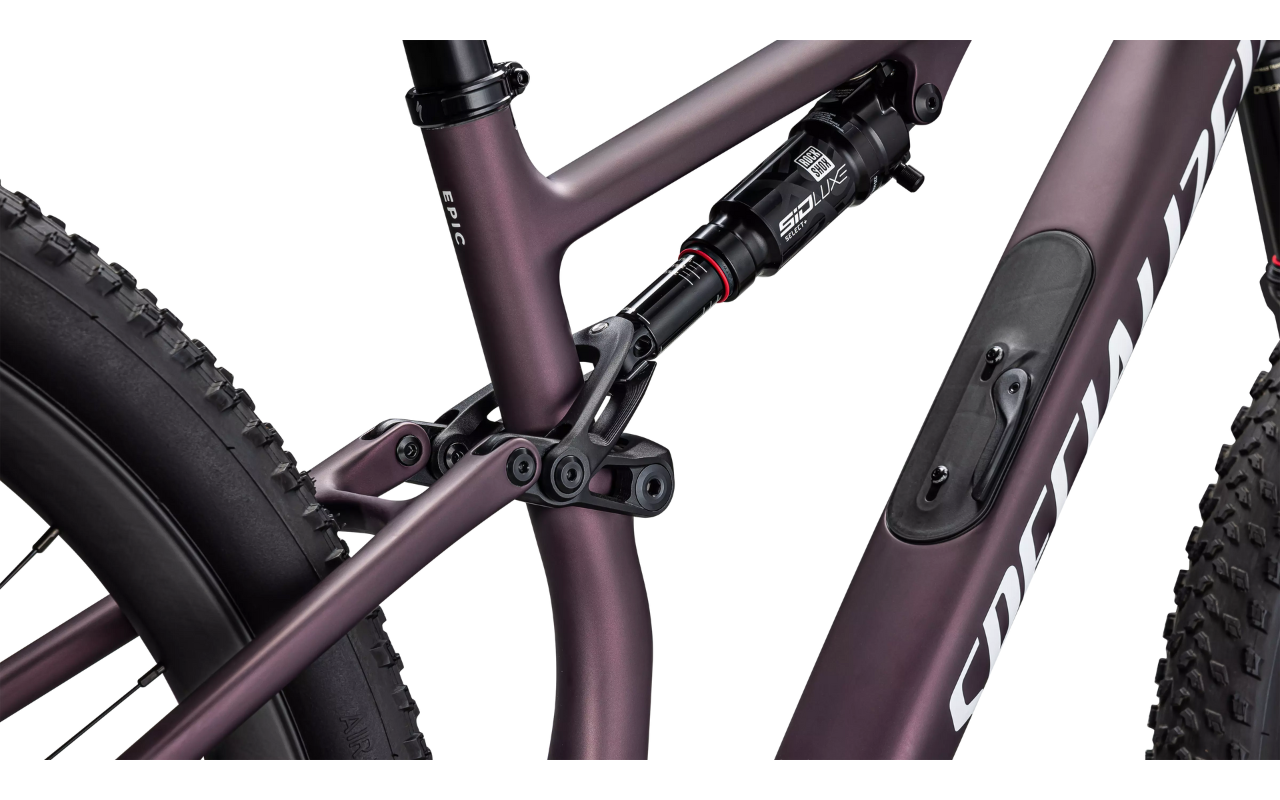

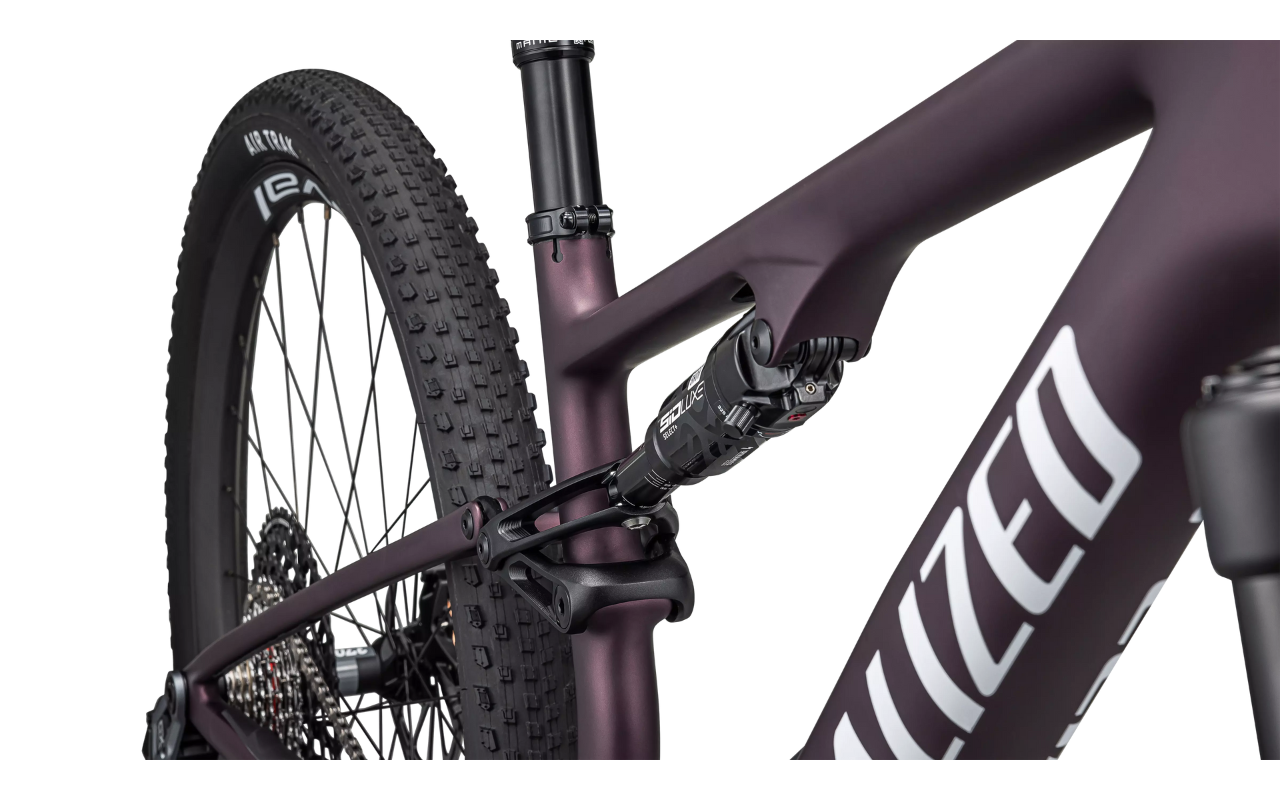

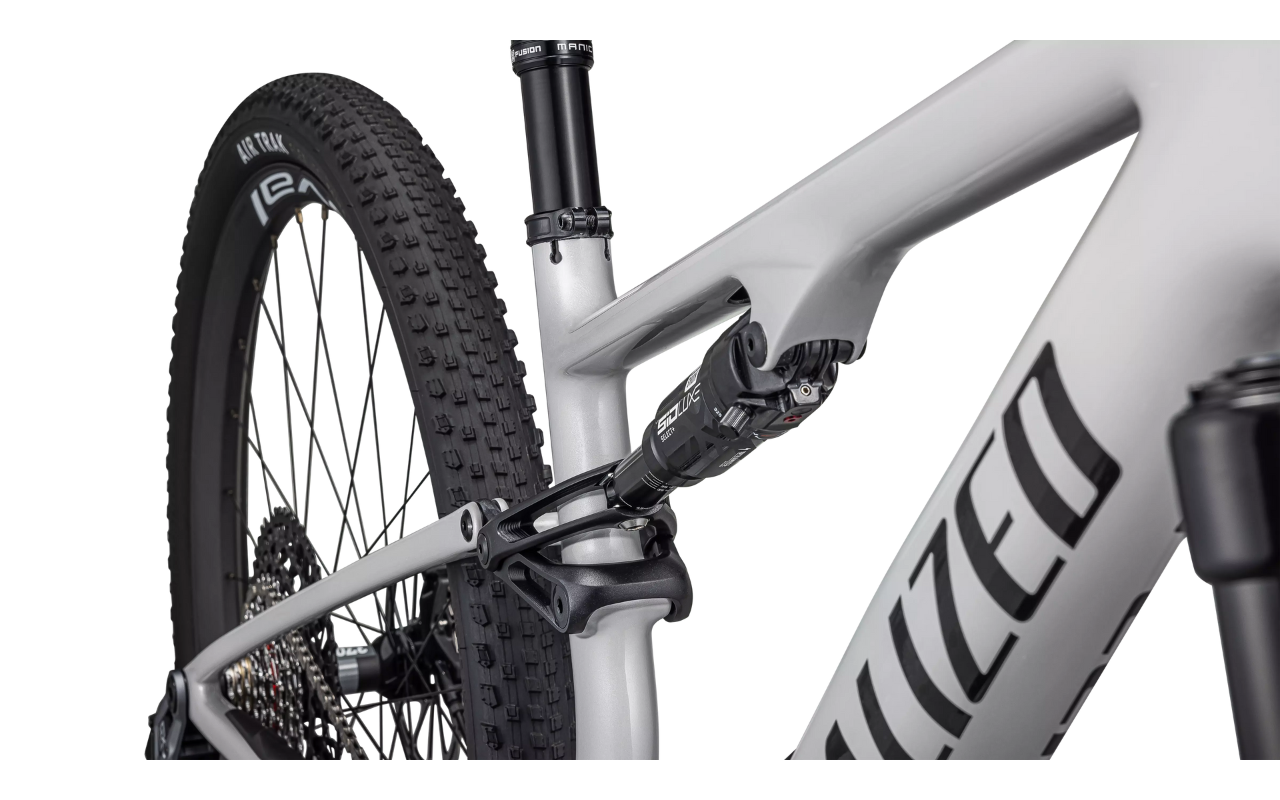

Rear Shock
RockShox SIDLuxe Select+, Ride Dynamics developed 3 position, TwistLoc remote adjust, Solo Air, 190x45mm
Fork
RockShox SID Select+, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Brakes
Rear Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 160mm rotor
Front Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 180mm rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Bottom Bracket
SRAM DUB Threaded Wide
Rear Derailleur
SRAM GX Eagle AXS Transmission
Chain
SRAM GX Eagle Transmission 12-Speed Flattop Chain
Crankset
SRAM GX Eagle, DUB, 165/170/175mm
Cassette
SRAM XG-1275 T-Type 12-Speed 10-52
Chainrings
34T
Wheels & tires
Front Wheel
Roval Control SL V, Hookless carbon, 29mm inner width, tubeless ready, DT Swiss 370 hub, Sapim D-Light Straight Pull
Rear Wheel
Roval Control SL V, Hookless carbon, 29mm inner width, tubeless ready, DT Swiss 370 hub, Sapim D-Light Straight Pull
Rear Tire
Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Front Tire
Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Inner Tubes
Specialized Turbo Tube
Cockpit
Saddle
Body Geometry Power Sport, steel rails
Grips
SRAM Slip on with Twist-Loc

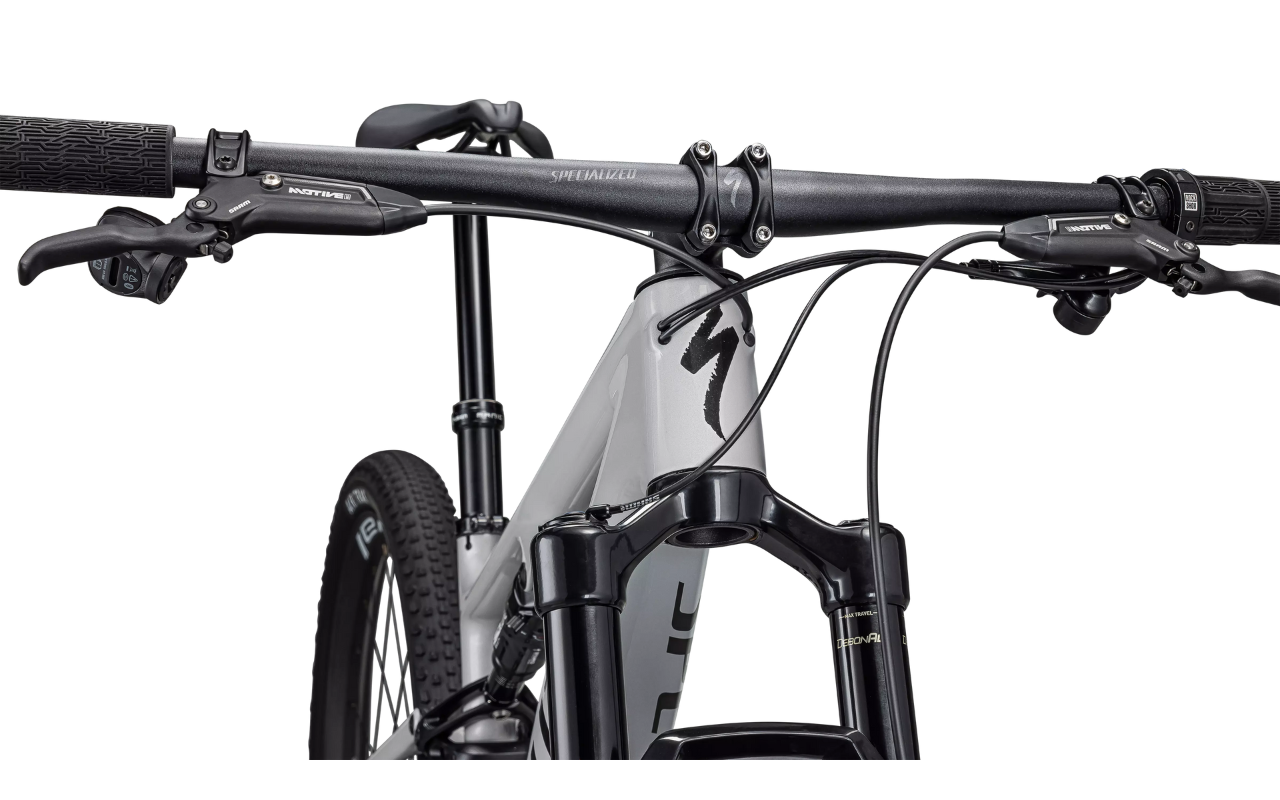

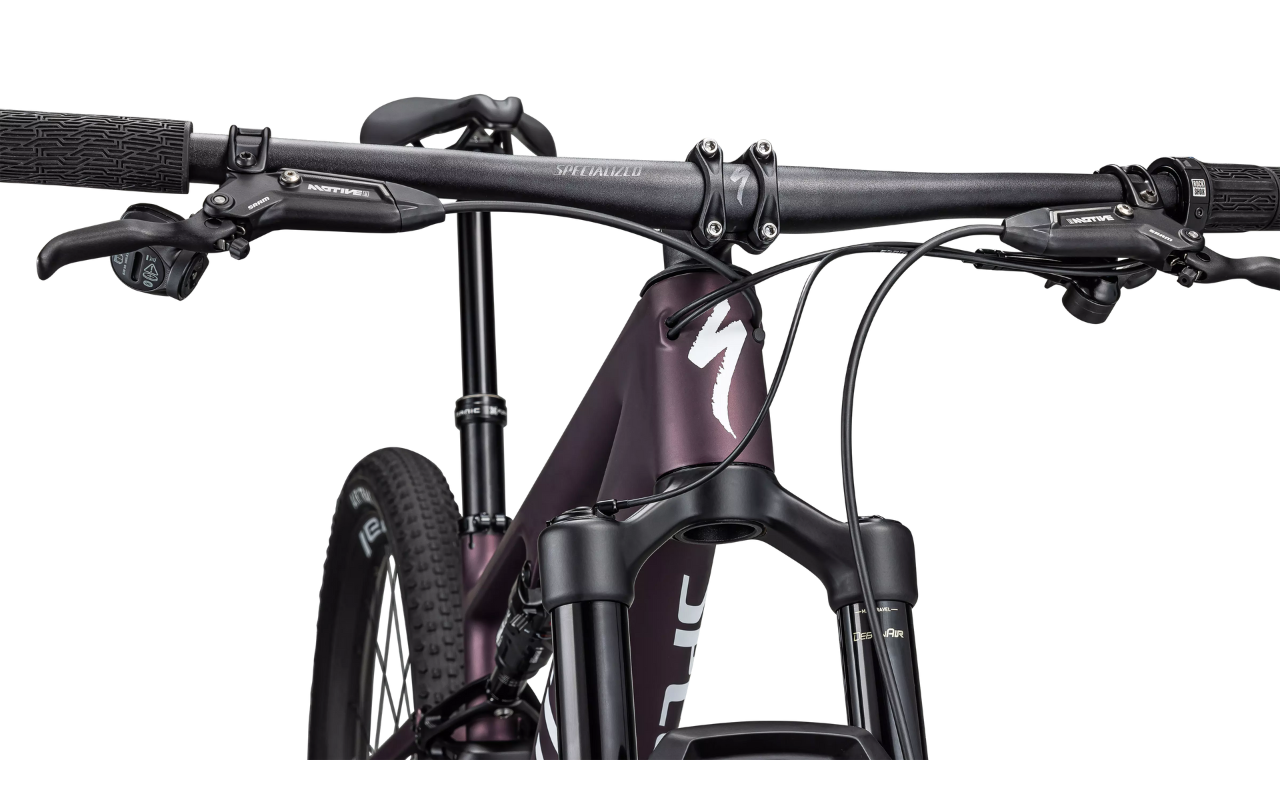

Handlebars
Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Stem
Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
SeatPost
X-Fusion Manic, 30.9, 125/150/170 Travel, 0mm offset
Accessories
SWAT
SWAT internal downtube storage
Pedals
TEST RIDE PEDALS PROVIDED BY SPECIALIZED
Product details
Weight
11.15 kg (24 lb, 9.3 oz)
Weight Size
MD
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Crank Length | 165 | 170 | 170 | 175 | 175 |
| Handlebar Width | 750 | 750 | 750 | 750 | 750 |
| Stem Length | 60 | 60 | 60 | 60 | 60 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 |
| Seatpost Length | 100 | 125 | 150 | 150 | 170 |
| Stack | 603 | 597 | 598 | 610 | 628 |
| Reach (low) | 390 | 420 | 450 | 475 | 500 |
| Head Tube Length | 92 | 92 | 95 | 110 | 130 |
| Head Tube Angle (low) | 65.9 | 65.9 | 65.9 | 65.9 | 65.9 |
| Head Tube Angle (high) | 66.4 | 66.4 | 66.4 | 66.4 | 66.4 |
| BB Height (low) | 318 | 324 | 326 | 328 | 328 |
| BB Height (high) | 323 | 329 | 331 | 333 | 333 |
| BB Drop (low) | 52 | 46 | 44 | 42 | 42 |
| Trail | 117 | 117 | 117 | 117 | 117 |
| Fork Length, Full | 530 | 530 | 530 | 530 | 530 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 687 | 716 | 747 | 778 | 811 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1117 | 1147 | 1179 | 1210 | 1243 |
| Bike Standover Height | 748 | 755 | 760 | 769 | 774 |
| Seat Tube Length | 370 | 390 | 410 | 450 | 500 |
| Seat Tube Angle | 76.5 | 76 | 75.5 | 75.5 | 75.5 |
| Top Tube Length, Horizontal | 535 | 569 | 605 | 633 | 662 |
