Diverge STR Expert

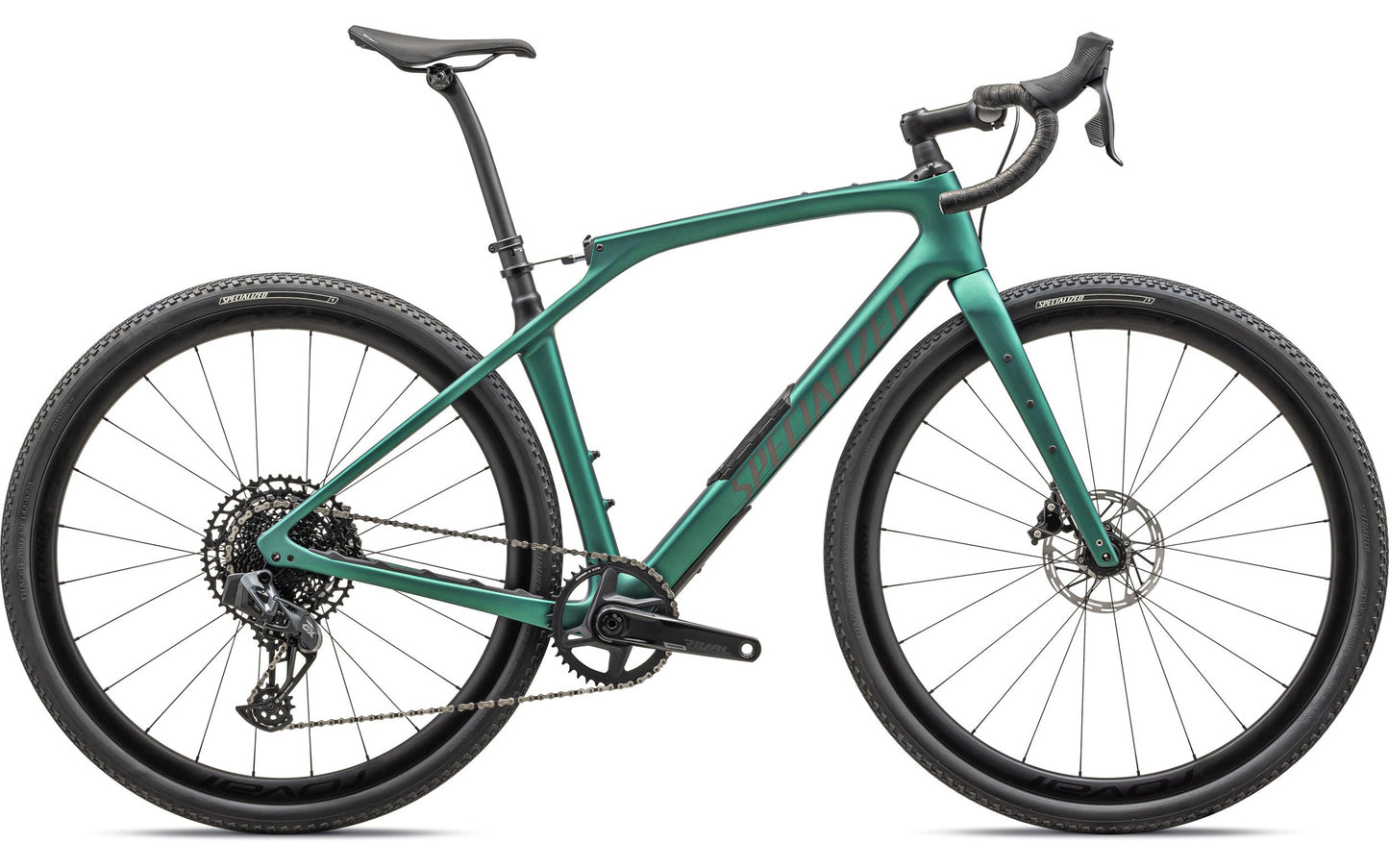

With Future Shock suspension front and rear, the new Diverge STR delivers compliance without compromise. By suspending the rider—instead of the bike—Future Shock technology increases control and efficiency while decreasing fatigue, so you’ll be riding farther and faster over chunkier terrain than you believed possible. And the Diverge STR does this without the weight, sluggish pedal response, and inefficiency of other suspension systems. The Diverge STR Expert starts with our FACT 11r carbon frameset with front and rear Future Shock suspension. It’s built with SRAM’s Rival eTap AXS Eagle groupset for fast, efficient shifting with a 10-50 cassette to ensure you have the gearing to tackle any ride. The bike rolls on the Roval Terra C wheels with 42mm Tracer Pro tires. Adventure Gear alloy handlebars, an S-Works carbon seatpost, and Power Expert saddle complete the package making the Diverge STR the most capable Diverge ever.

  • By suspending the rider with damped, tunable travel—20mm front/30mm rear—Future Shock Technology absorbs bump forces to boost your control and capability while retaining the efficiency and responsiveness of a rigid frame. Because as far as power transfer goes, it is a rigid frame. Power to the pedals makes the bike jump like a scared cat. You’re efficient, you’re comfortable, you’re in control. Your bike is light, nimble, and responsive.

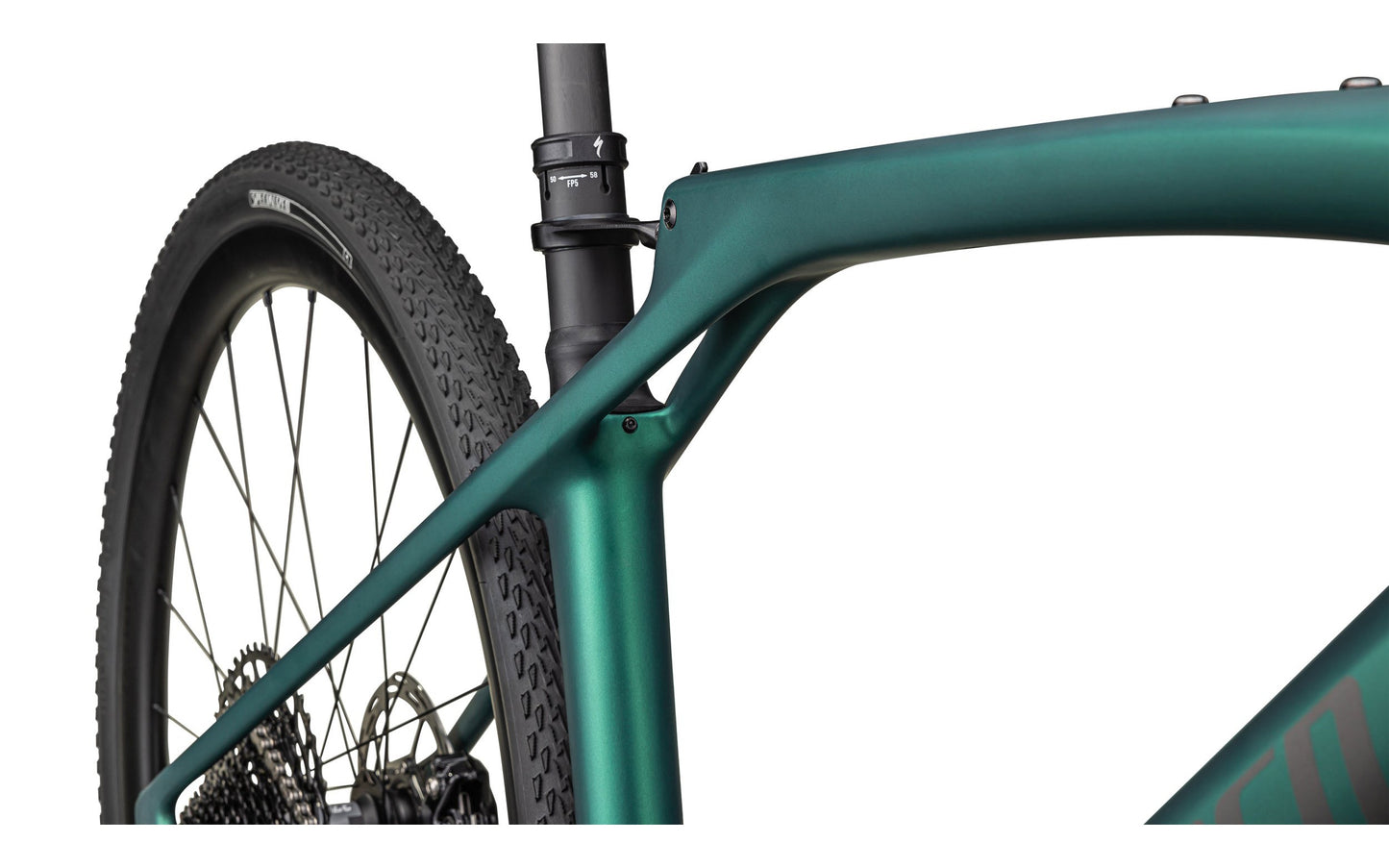

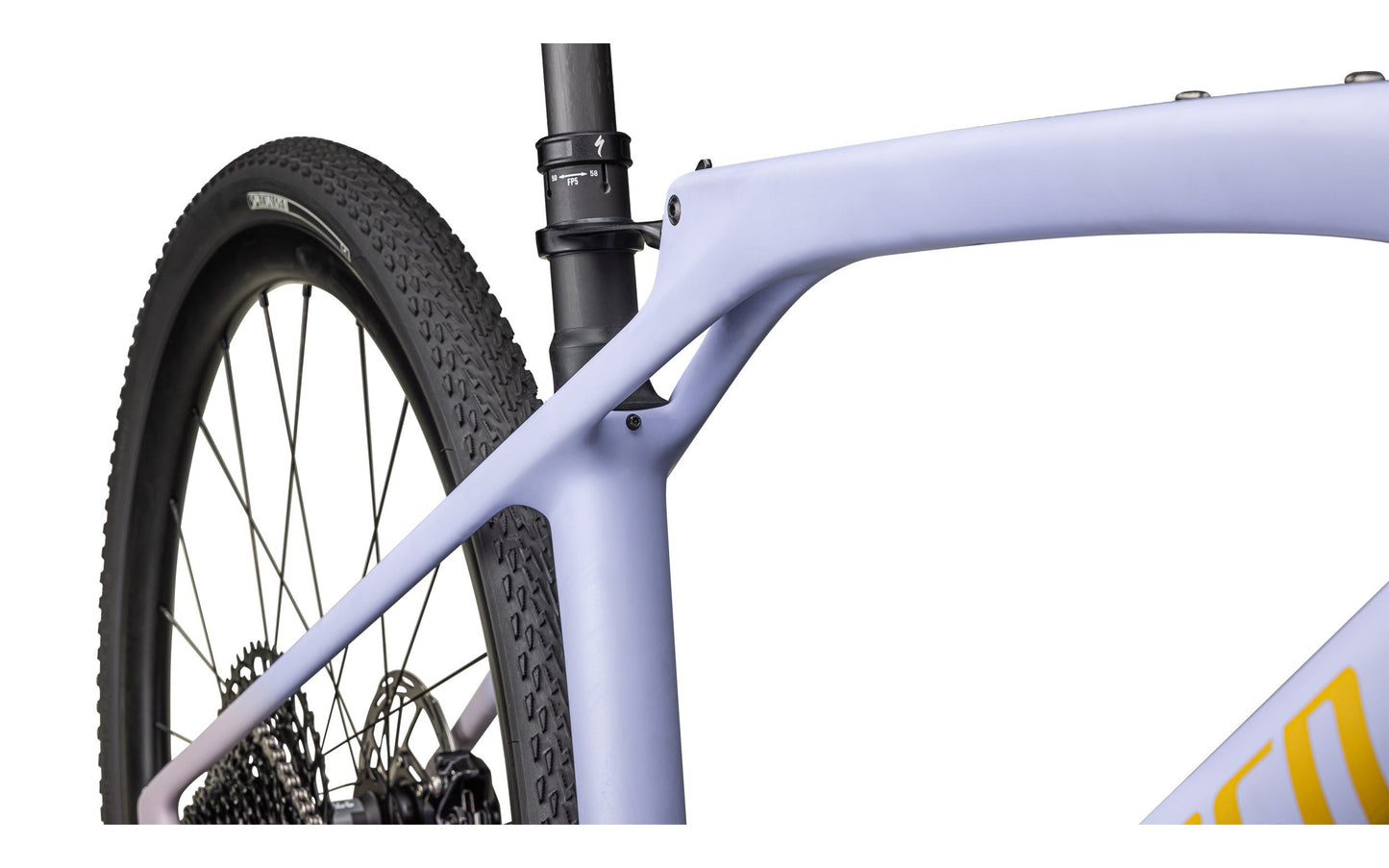

  • The new Diverge doesn’t just have gorgeous lines, it has perfect curves too. Future Shock Rear puts 30mm of rear travel in the ideal path to smooth out rough road. Its hydraulic damping controls travel to eliminate “bobbing” under power and ensure big hits never catapult you from the saddle, all without compromising fit or pedaling efficiency.

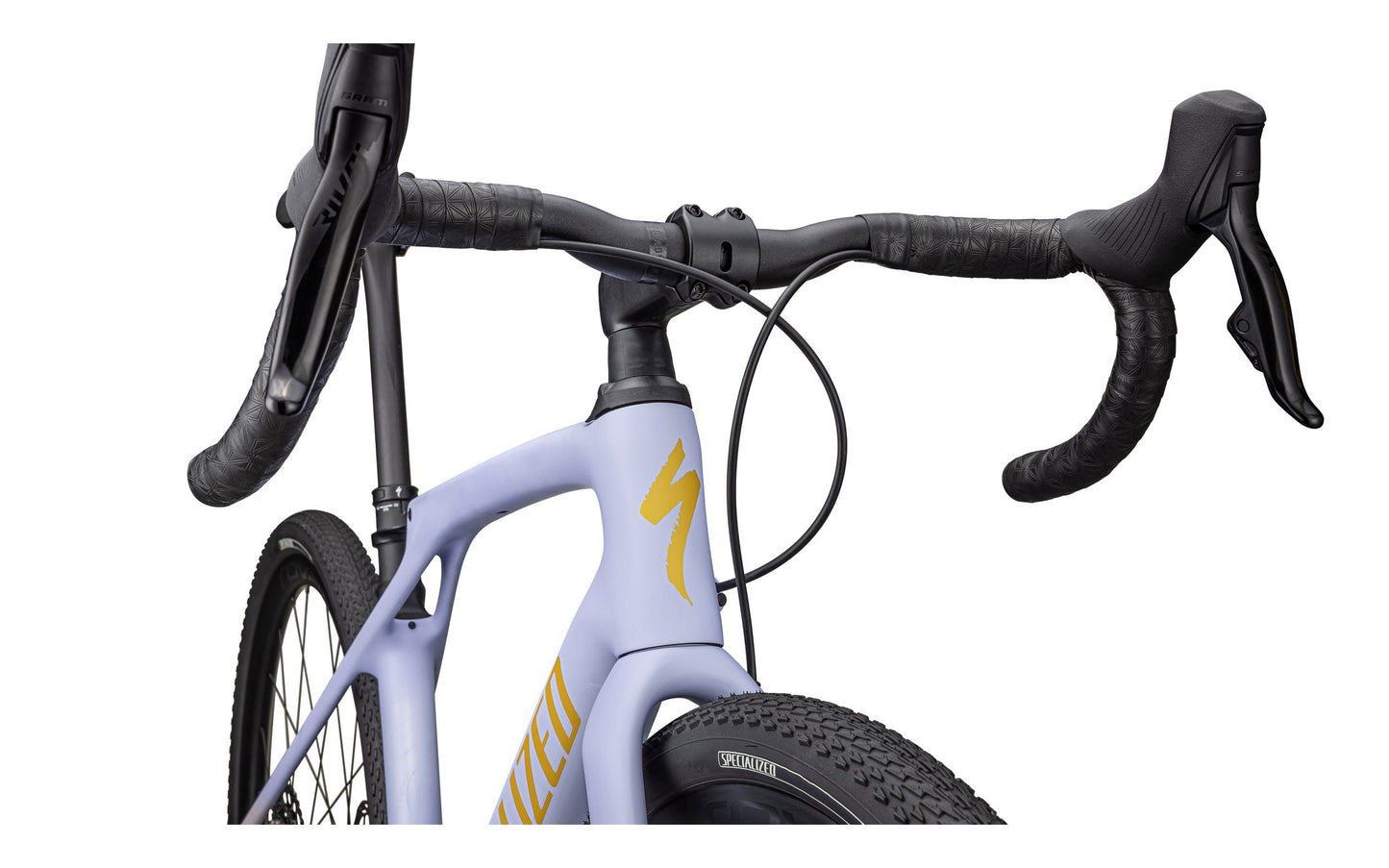

  • Born from decades of innovation and our Smoother is Faster philosophy, Future Shock was created to develop bikes that win on cobblestones, but it’s found its purest expression on gravel. It’s 20mm of adjustable, damped front travel that keeps you in control and on target, all while protecting your hands, arms, and shoulders from the battering.
  • More capability means more confidence, more confidence means more rides, more rides mean more fun, and it all starts at the contact patch. Nothing unlocks capability like tire clearance, and we’re feeling generous. 47mm on a 700c wheel and 2.1” on 650B. Diverge STR is the most capable gravel bike we’ve ever made, so it’s the most fun. We did the math.
View full details

Technical Specifications

Weight



Weight Size

56

Weight

9.93 kg (21 lb, 14.3 oz)



Cockpit



Saddle

Body Geometry Power Expert

Stem

Future Stem, Comp

SeatPost

S-Works Carbon Seat Post, 20mm Offset

Seat Binder

Specialized Alloy, 33.3mm

Handlebars

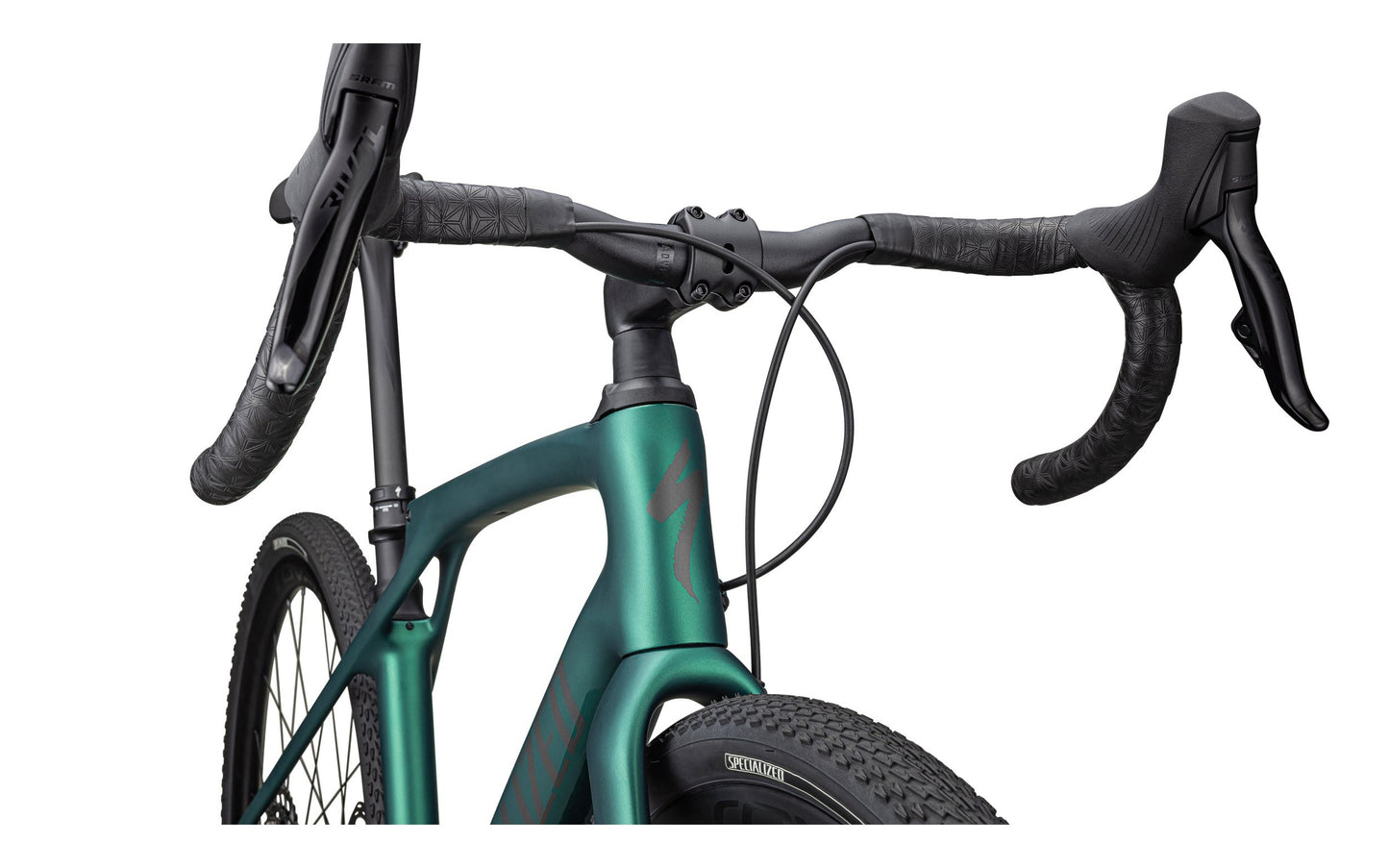

Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare

Tape

Supacaz Super Sticky Kush



Suspension



Fork

Future Shock 3.2 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount



Frameset



Frame

Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT™ Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc



Wheels & Tires



Inner Tubes

Presta valve, 48mm

Front Tire

Tracer Pro 2BR, 700x42

Rear Tire

Tracer Pro 2BR, 700x42

Front Wheel

Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 hub, 24h, DT Swiss Comp Race spokes

Rear Wheel

Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 Star Ratchet hub, 24h, DT Swiss Comp Race spokes



Accessories



SWAT

Integrated SWAT door, internal storage system



Drivetrain



Bottom Bracket

SRAM DUB BSA 68

Shift Levers

SRAM Rival eTap AXS

Rear Derailleur

SRAM GX Eagle AXS, w/ battery cover

Chain

SRAM GX Eagle, 12-speed

Cassette

SRAM NX Eagle PG-1230, 12-speed, 11-50t

Crankset

SRAM Rival 1 Wide

Chainrings

40t



Brakes



Front Brake

SRAM Rival eTAP AXS, hydraulic disc

Rear Brake

SRAM Rival eTAP AXS, hydraulic disc

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice. // eslint-disable-line react/no-danger

Geometry

 495254565861
Crank Length165mm170mm172.5mm172.5mm175mm175mm
Handlebar Width380mm400mm420mm420mm440mm440mm
Stem Length60mm70mm80mm90mm100mm100mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length350mm350mm350mm350mm350mm350mm
Stack569mm576mm593mm609mm633mm659mm
Reach365mm374mm383mm392mm401mm410mm
Head Tube Length100mm100mm115mm130mm155mm182mm
Head Tube Angle70°70.5°71.25°71.75°71.75°71.75°
BB Height270mm265mm265mm265mm265mm265mm
BB Drop80mm85mm85mm85mm85mm85mm
Trail69mm66mm61mm57mm57mm57mm
Fork Length, Full390mm390mm390mm390mm390mm390mm
Fork Rake/Offset55mm55mm55mm55mm55mm55mm
Front Center607mm612mm619mm629mm645mm663mm
Chainstay Length429mm429mm429mm429mm429mm429mm
Wheelbase1023mm1027mm1034mm1044mm1060mm1078mm
Top Tube Length, Horizontal527mm540mm556mm570mm586mm602mm
Bike Standover Height704mm730mm753mm778mm804mm833mm
Seat Tube Length390mm430mm470mm500mm530mm560mm
Seat Tube Angle74.5°74.25°74°74°74°74°
