SPECIALIZED

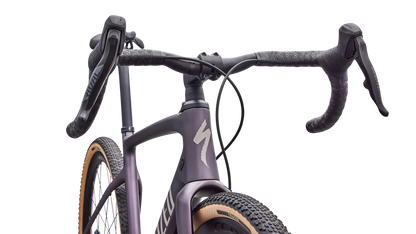

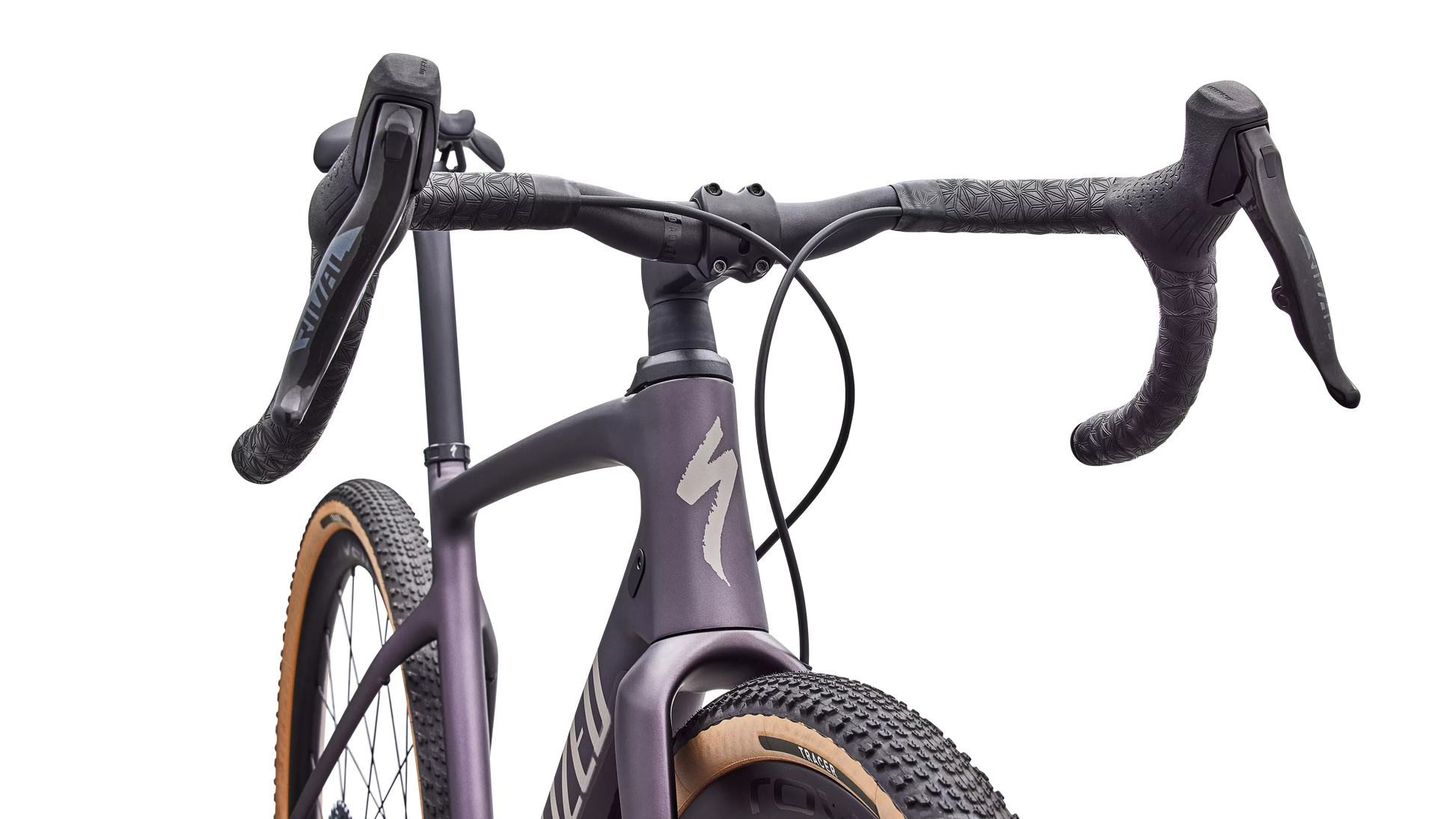

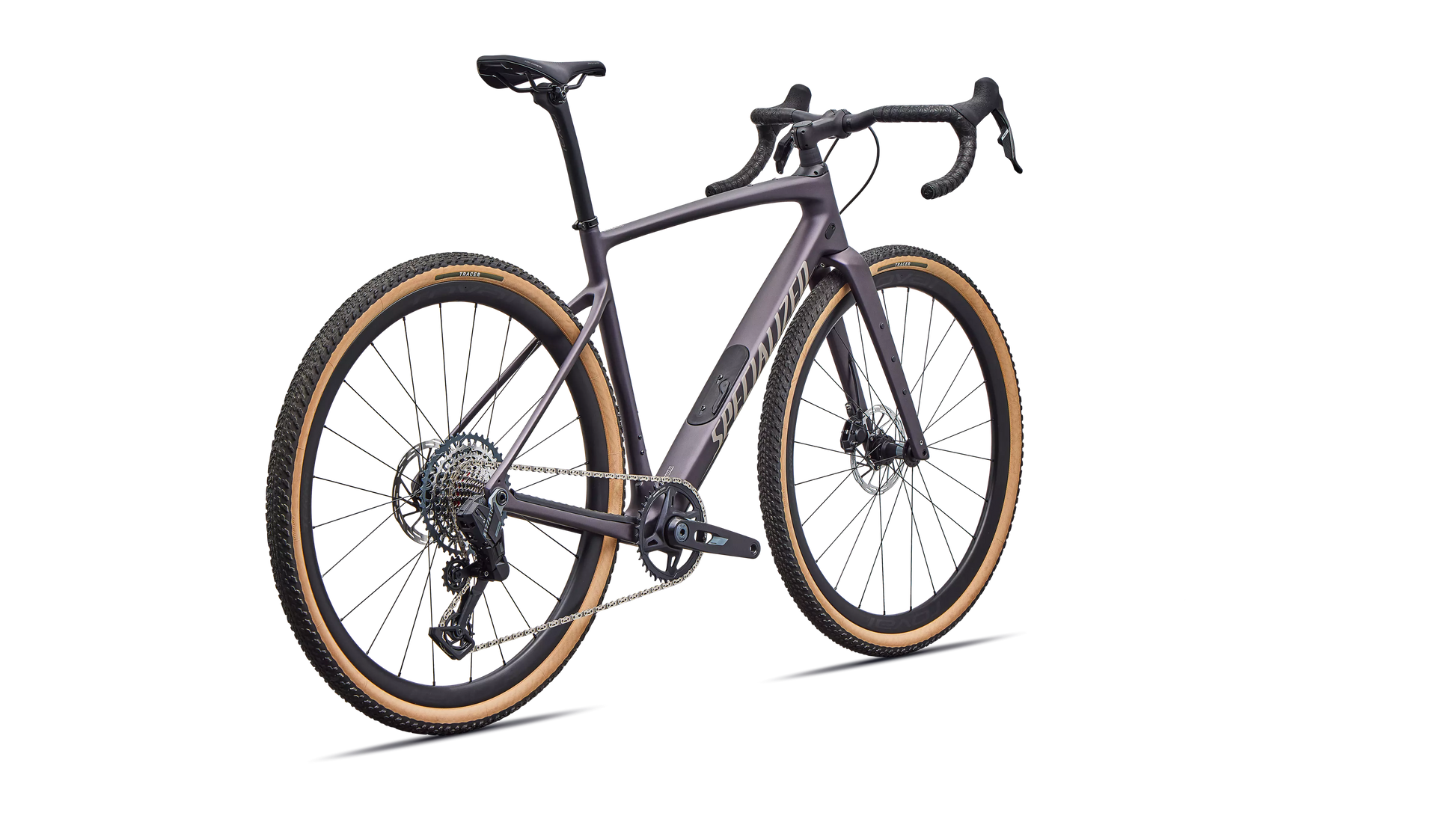

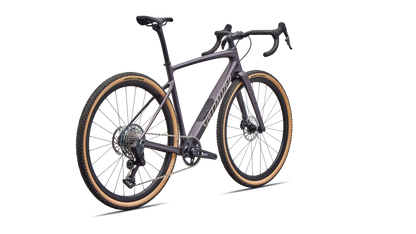

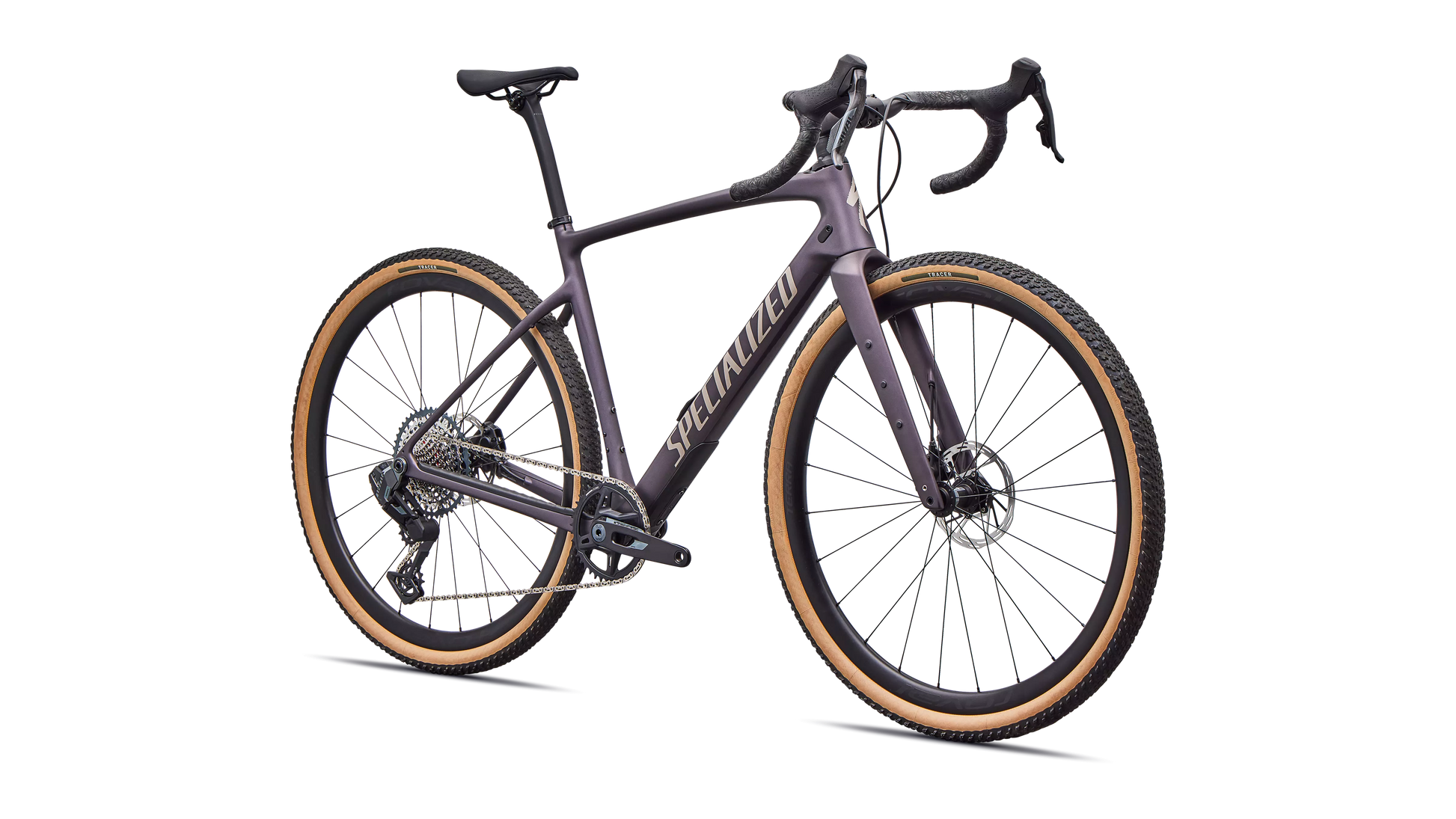

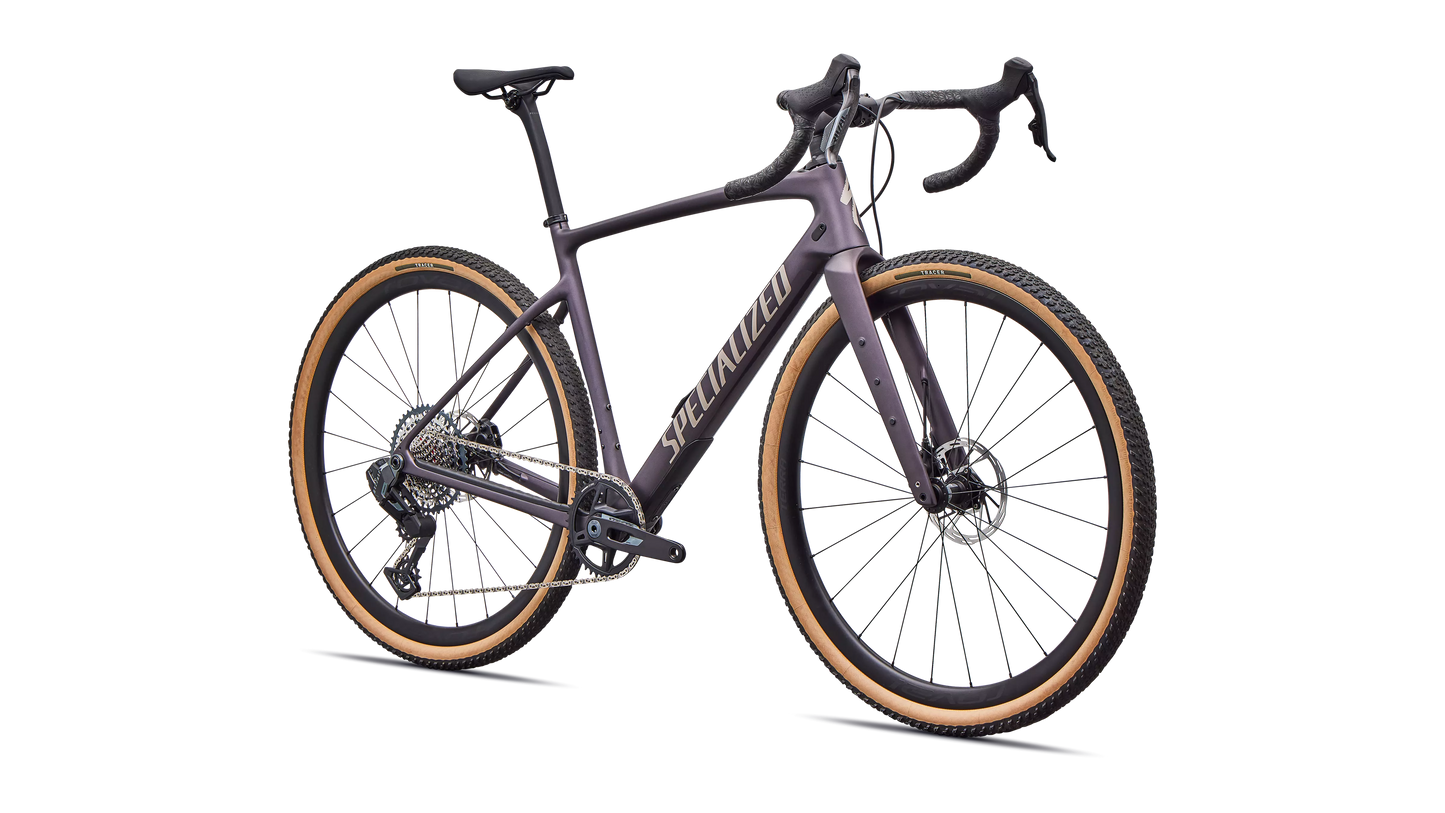

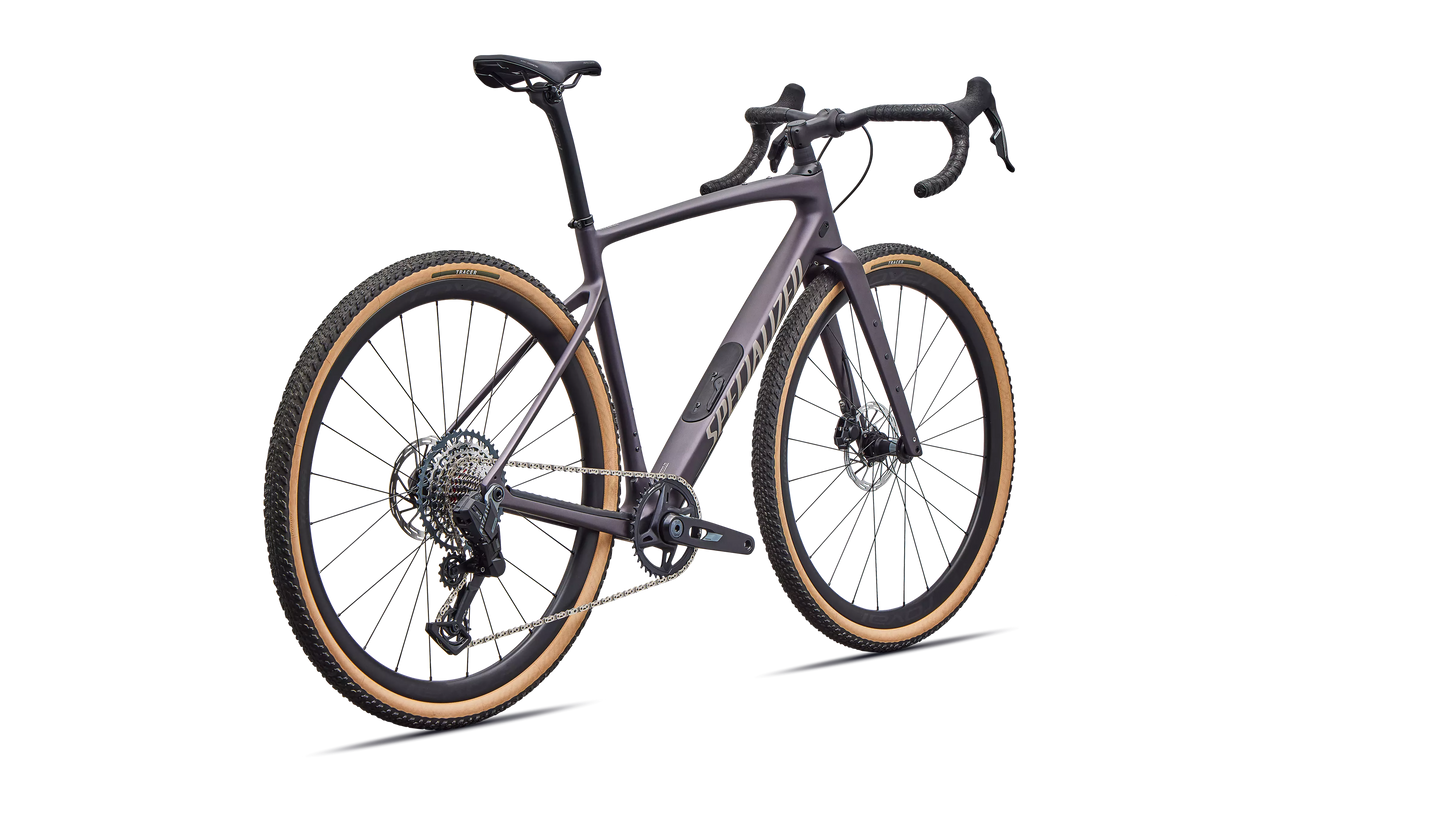

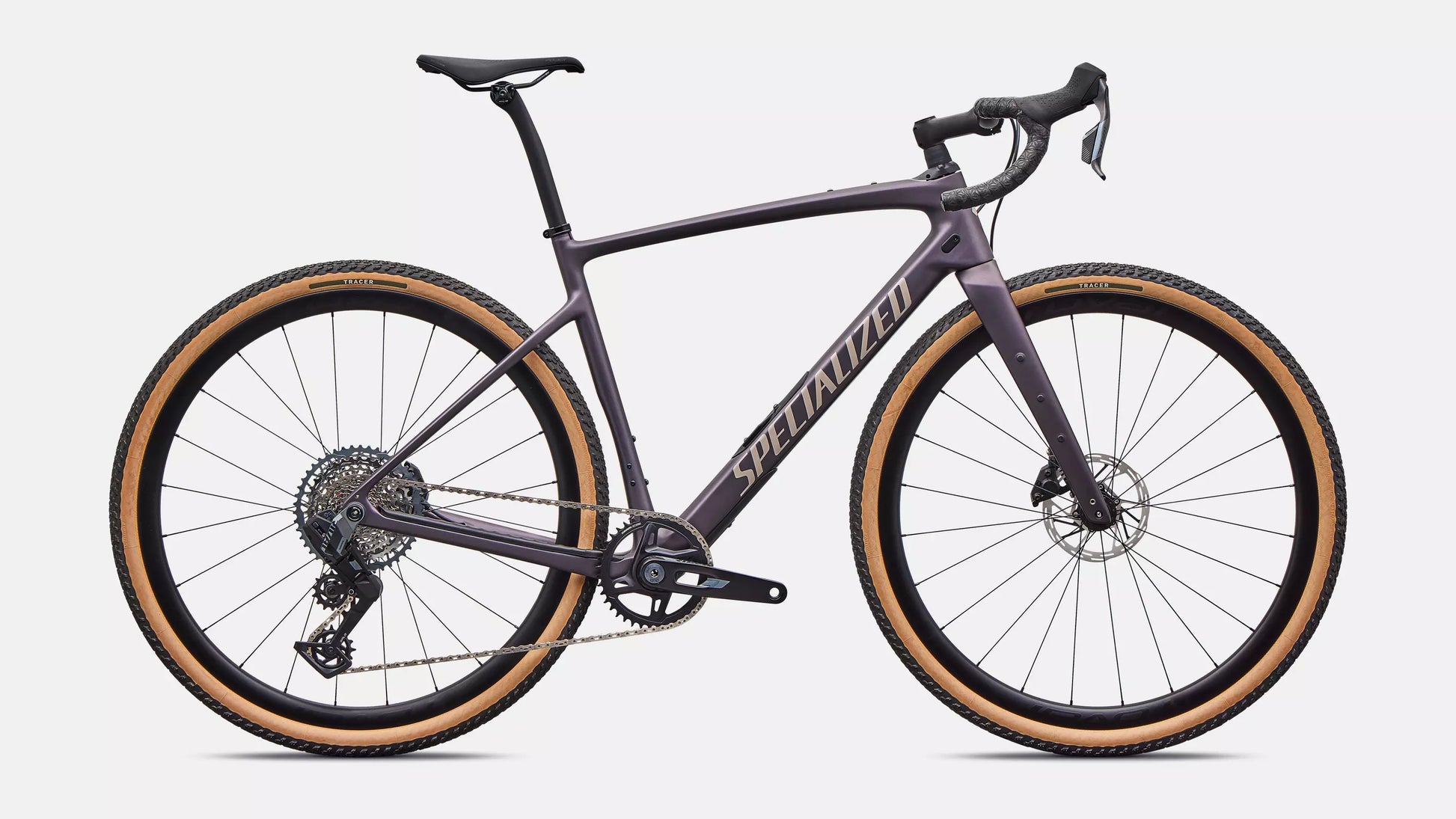

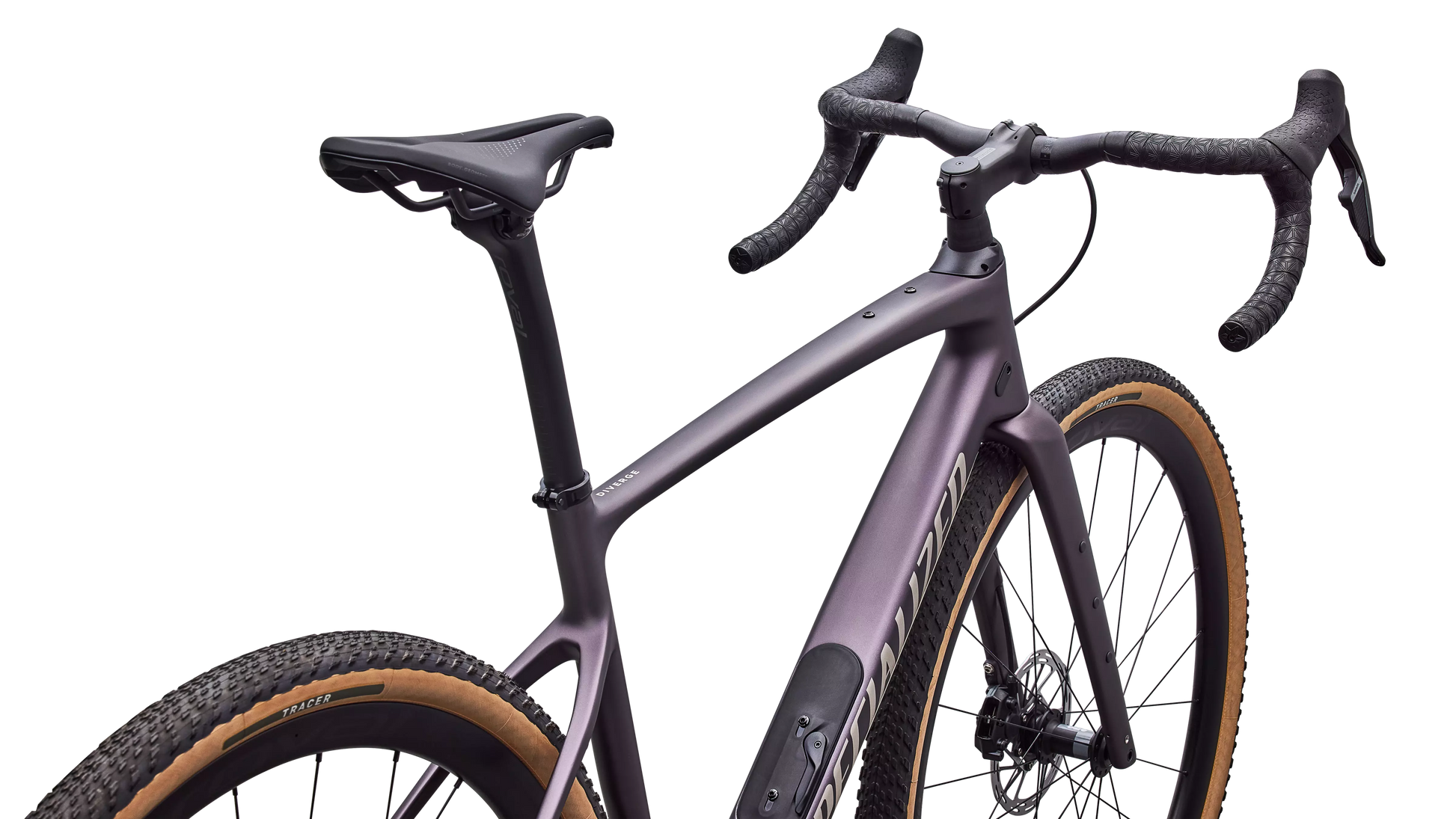

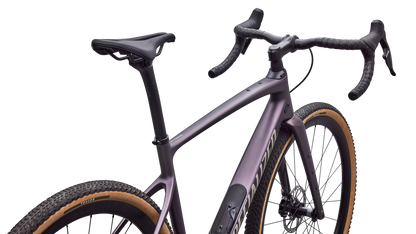

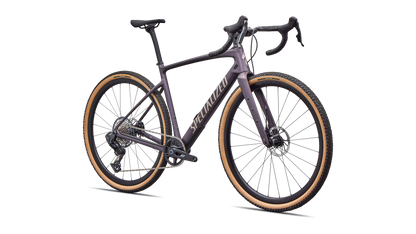

Diverge 4 Expert - SRAM Rival XPLR

SKU:95426-3256

MSRP 115,000.00

Sale Sold out

Vat Included

Color Nebula Metallic/sandstone Metallic

Size 52 54 56 58

1 in stock

Product Sold Out? Contact us and we will try to find it for you.

The Ultimate Getaway Vehicle

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.

At a Glance

Use

Gravel Adventure/Race

Frameset

FACT 9r Carbon

Suspension

Future Shock 3.2

Drivetrain/Wheels

New SRAM Rival AXS XPLR / Roval Terra C

Storage

SWAT 4.0

Weight

Diverge Expert: 8.90kg

View full details

Technical Specifications

Frameset

Frame

Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork
Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc

Brakes

Front Brake
SRAM Rival E1, hydraulic disc
Rear Brake
SRAM Rival E1, hydraulic disc

Drivetrain

Bottom Bracket
SRAM DUB BSA 68 Wide
Rear Derailleur
SRAM Rival AXS E1 XPLR
Shift Levers
SRAM Rival AXS E1
Chain
SRAM Rival E1
Cassette
SRAM Rival E1 XPLR 10-46t, 13sp
Crankset
SRAM Rival E1 XPLR, DUB Wide, 40t

Wheels & tires

Front Wheel
Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes
Rear Wheel
Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes
Front Tire
Tracer 700x45, Tan Sidewall, Tubeless Ready
Rear Tire
Tracer 700x45, Tan Sidewall, Tubeless Ready
Inner Tubes
Presta, 700x32-50mm

Cockpit

Saddle
Body Geometry Power Expert
Stem
Future Stem, Pro
SeatPost
Roval Terra Carbon Seat Post, 20mm Offset
Handlebars
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Seat Binder
Specialized Alloy, 30.8mm
Tape
Supacaz Super Sticky Kush

Accessories

SWAT
SWAT 4.0 internal downtube storage

Weight

Weight Size
56
Weight
8.9 kg (19 lb, 9.9 oz)

Geometry

	49	52	54	56	58	61
Crank Length	165	170	172.5	172.5	175	175
Handlebar Width	380	400	420	420	440	440
Stem Length	60	70	80	90	100	100
Saddle Width	155	155	143	143	143	143
Seatpost Length	330	330	380	380	380	380
Stack	563	578	592	610	634	659
Reach	365	374	387	400	412	425
Head Tube Length	90	104	116	135	161	187
Head Tube Angle	70	70.5	71	71	71	71
BB Drop	85	85	85	85	85	85
Trail	72	68	65	65	65	65
Fork Length, Full	391	391	391	391	391	391
Fork Rake/Offset	55	55	55	55	55	55
Front Center	604	613	626	645	665	686
Chainstay Length	430	430	430	430	430	430
Wheelbase	1019	1031	1041	1060	1081	1102
Top Tube Length, Horizontal	521	537	556	575	593	613
Bike Standover Height	700	725	754	779	805	832
Seat Tube Length	400	430	470	500	530	560
Seat Tube Angle	74.5	74	74	74	74	74
