SPECIALIZED

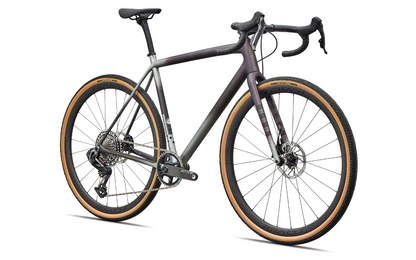

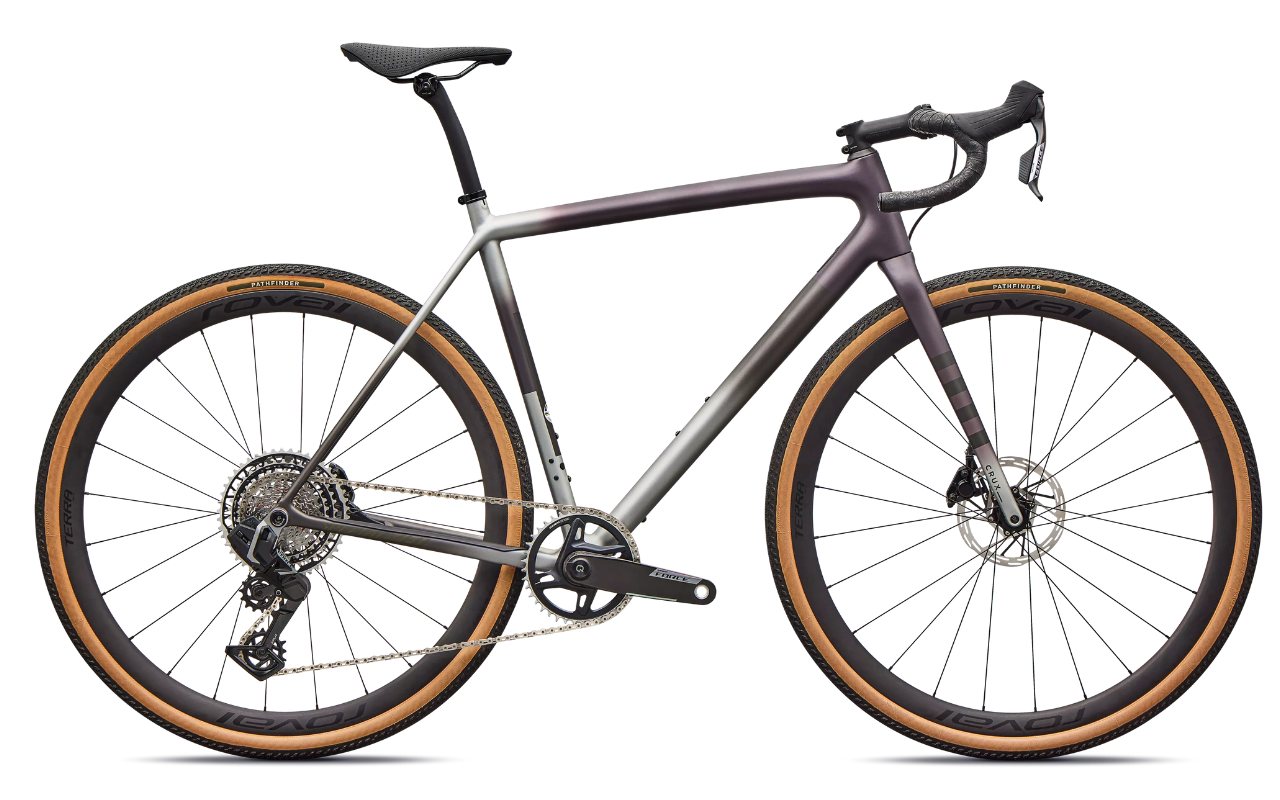

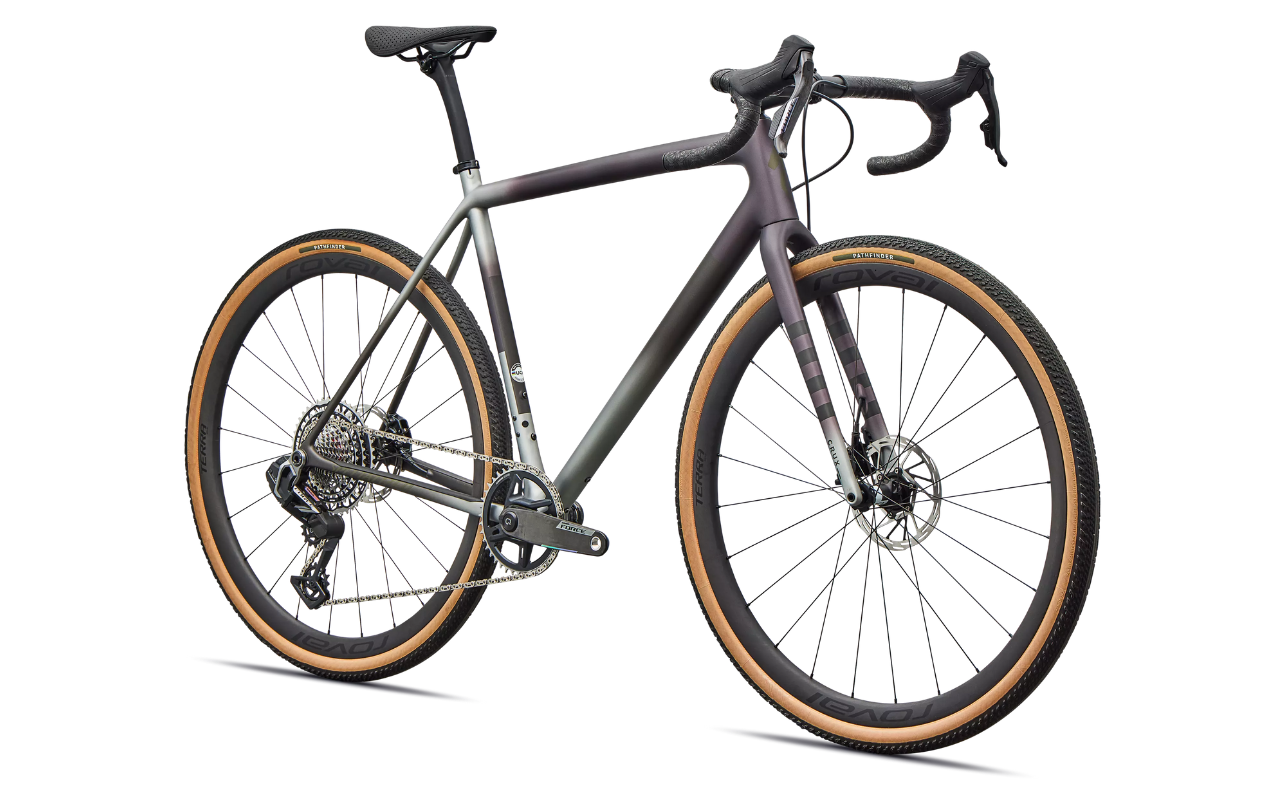

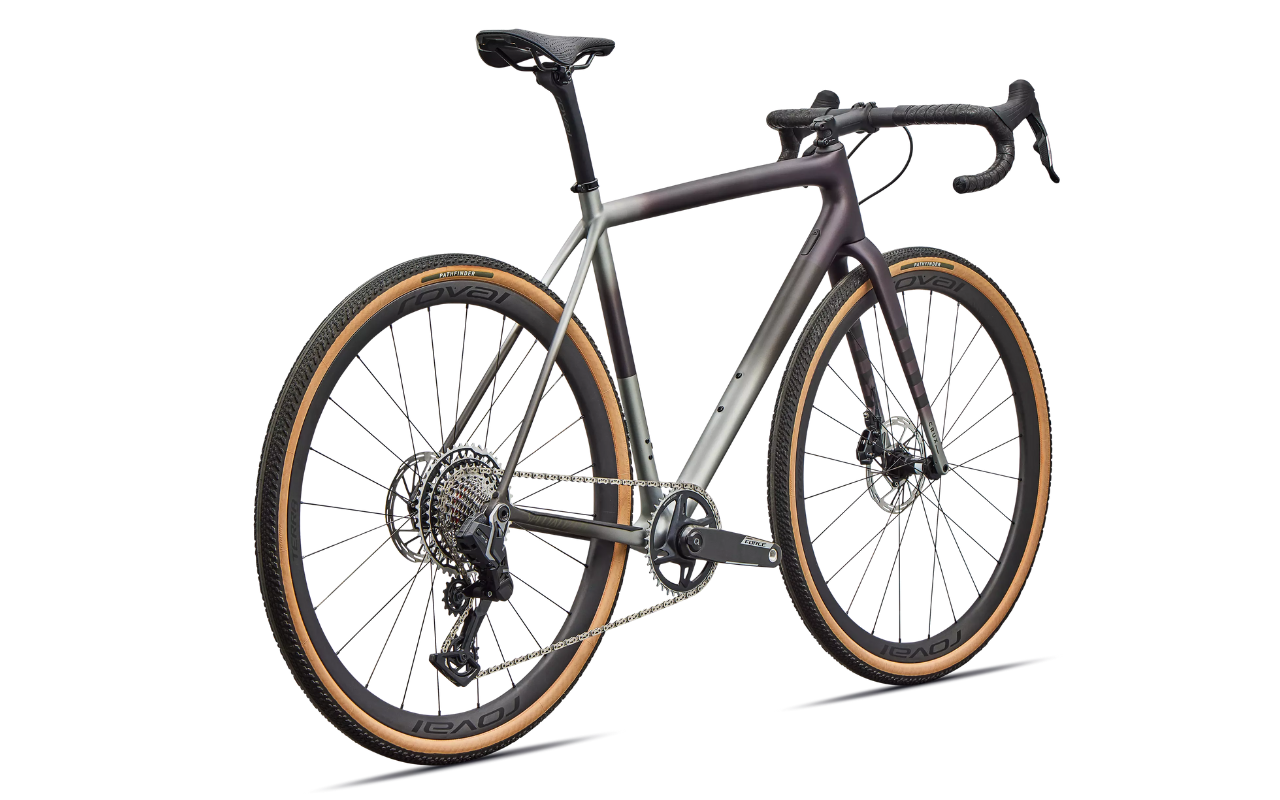

Crux Pro - SRAM Force XPLR AXS

Crux Pro - SRAM Force XPLR AXS

91426-1054

MSRP 140,000.00
MSRP 140,000.00 MSRP 140,000.00
Sale Sold out
Vat Included
Color
Size

1 in stock

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Read More

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

This Crux Pro comes spec'd with all-new SRAM Force XPLR AXS for effortless braking, lighter weight, with massive 13 speed gear range, lightweight and durable Roval Terra CL Disc wheels, and 2Bliss Ready, 700x40mm Pathfinder Pro tires that hookup over nasty terrain.

  • Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross
View full details

Technical Specifications

Frameset



Frame

Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout



Suspension



Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc



Brakes



Front Brake

NEW SRAM Force AXS E1, hydraulic disc 160mm rotor

Rear Brake

NEW SRAM Force AXS E1, hydraulic disc 160mm rotor



Drivetrain



Bottom Bracket

SRAM DUB BSA

Shift Levers

NEW SRAM Force AXS E1 HRD

Rear Derailleur

NEW SRAM Force XPLR AXS E1

Cassette

NEW SRAM Force XPLR XG-1371, 13sp, 10-46t

Crankset

NEW SRAM Force E1 XPLR, DUB WIDE, 40T, Quarq Power Meter

Chain

NEW SRAM Force E1



Wheels & tires



Front Tire

Pathfinder 700x40, Tubeless Ready

Rear Tire

Pathfinder 700x40, Tubeless Ready

Inner Tubes

Presta, 700x32-50mm

Front Wheel

Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes

Rear Wheel

Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes



Cockpit



Saddle

Power Pro Mirror, Hollow Ti rails

SeatPost

Roval Terra Carbon Seat Post, 20mm Offset

Handlebars

Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Seat Binder

Specialized Alloy, 30mm

Stem

Specialized Pro SL, alloy, 4-bolt

Tape

Supacaz Super Sticky Kush



Product details



Weight

7.64 kg (16 lb, 13.5 oz)

Weight Size

56



Geometry


49		5254565861
Crank Length165170172.5172.5175
Handlebar Width380400420420440
Stem Length708090100110
Saddle Width155155143143143
Seatpost Length330330330380380
Stack530547560578598
Reach375382388397405
Head Tube Length100115130147167
Head Tube Angle70.571.2571.57272.25
BB Height284284286286286
BB Drop7474727272
Trail7469676462
Fork Length, Full401401401401401
Fork Rake/Offset5050505050
Front Center594600608618630
Chainstay Length425425425425425
Wheelbase10081014102310331045
Top Tube Length, Horizontal512539549568582
Bike Standover Height749772794816841
Seat Tube Length466496521546576
Seat Tube Angle75.5747473.573.5
