SPECIALIZED

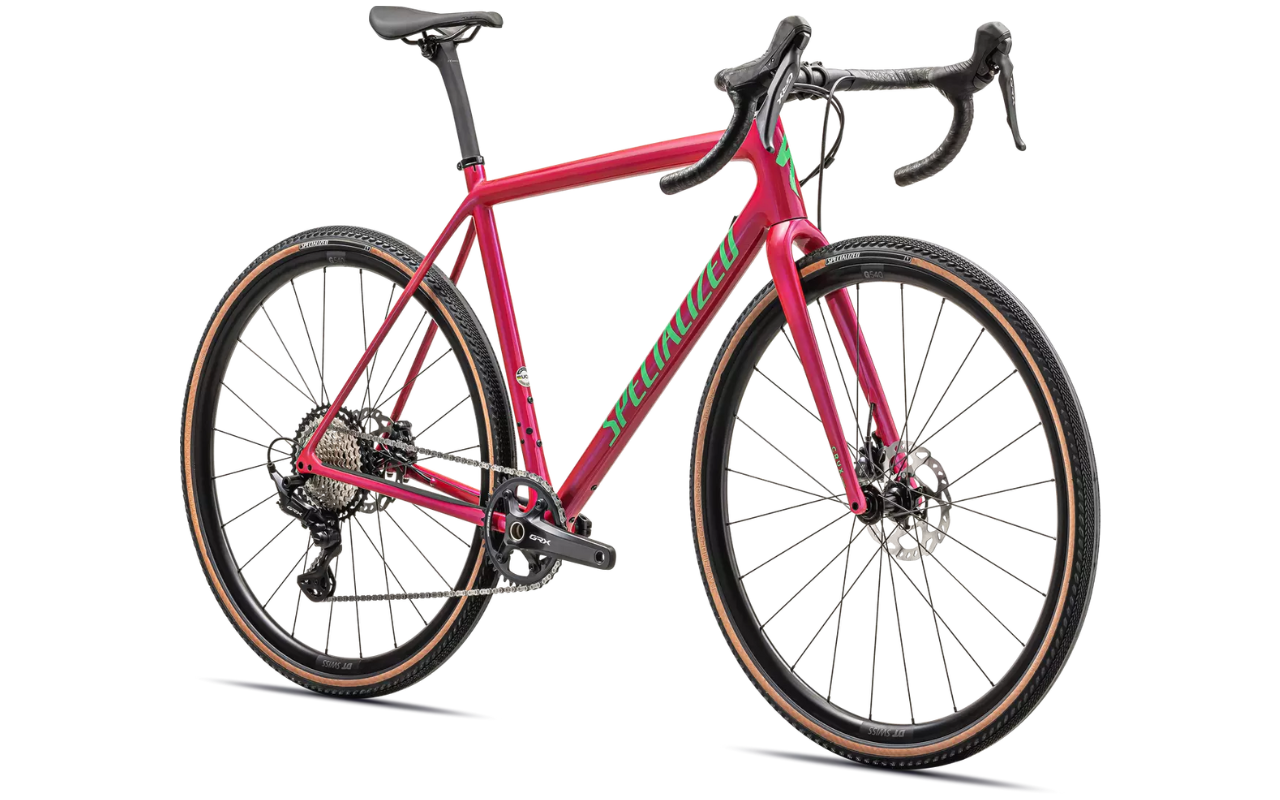

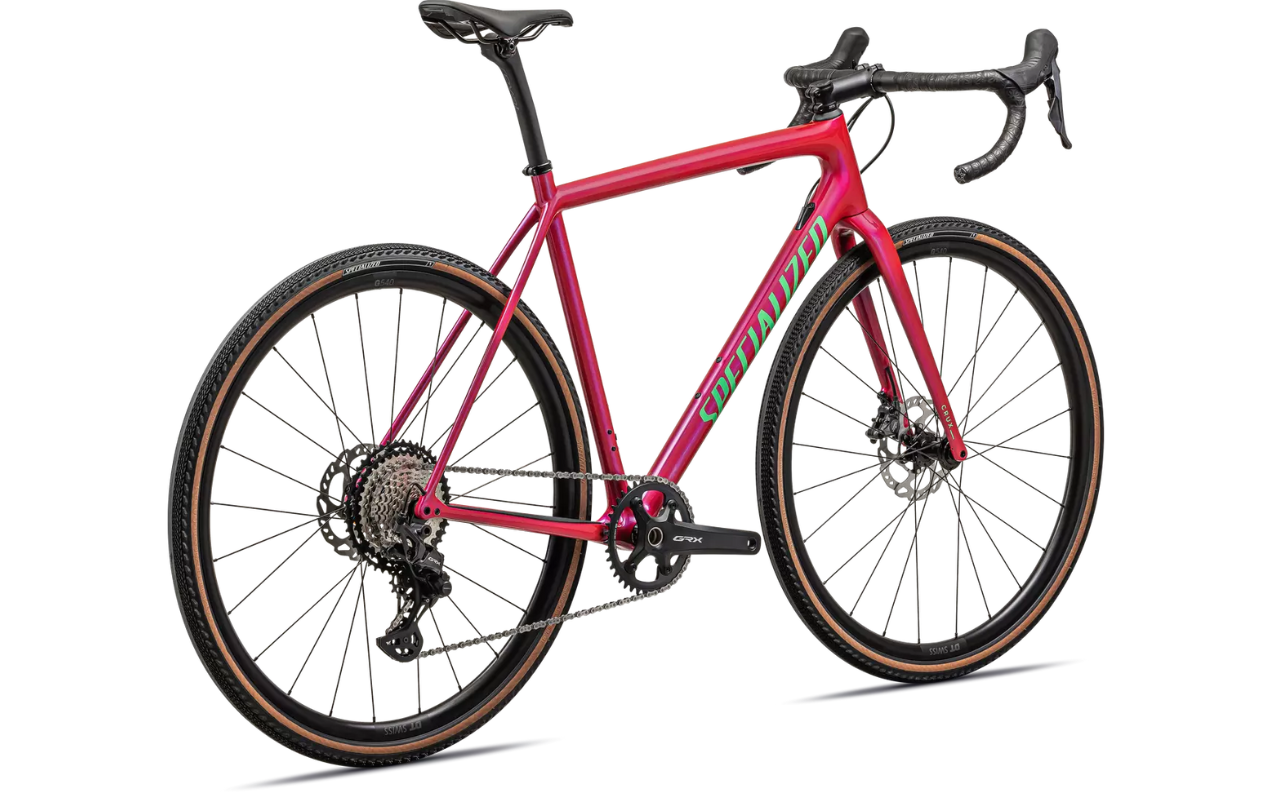

Crux Comp

Crux Comp

91425-5549

MSRP 75,000.00
MSRP 75,000.00
Sold out
Vat Included
Color
Size

Out of stock

Product Sold Out? Contact us and we will try to find it for you.

  • Visa
  • Mastercard

Read More

Product Details

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

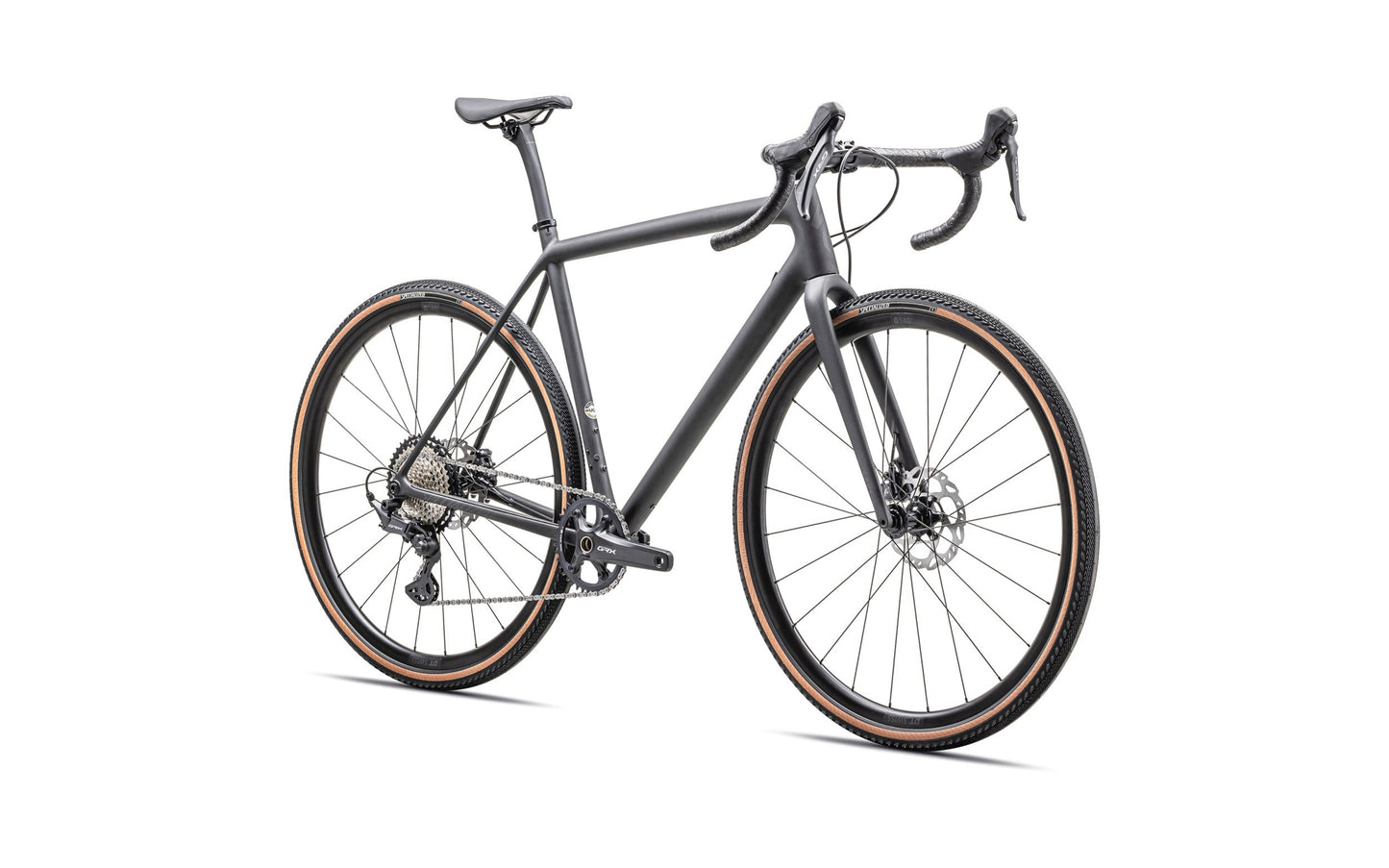

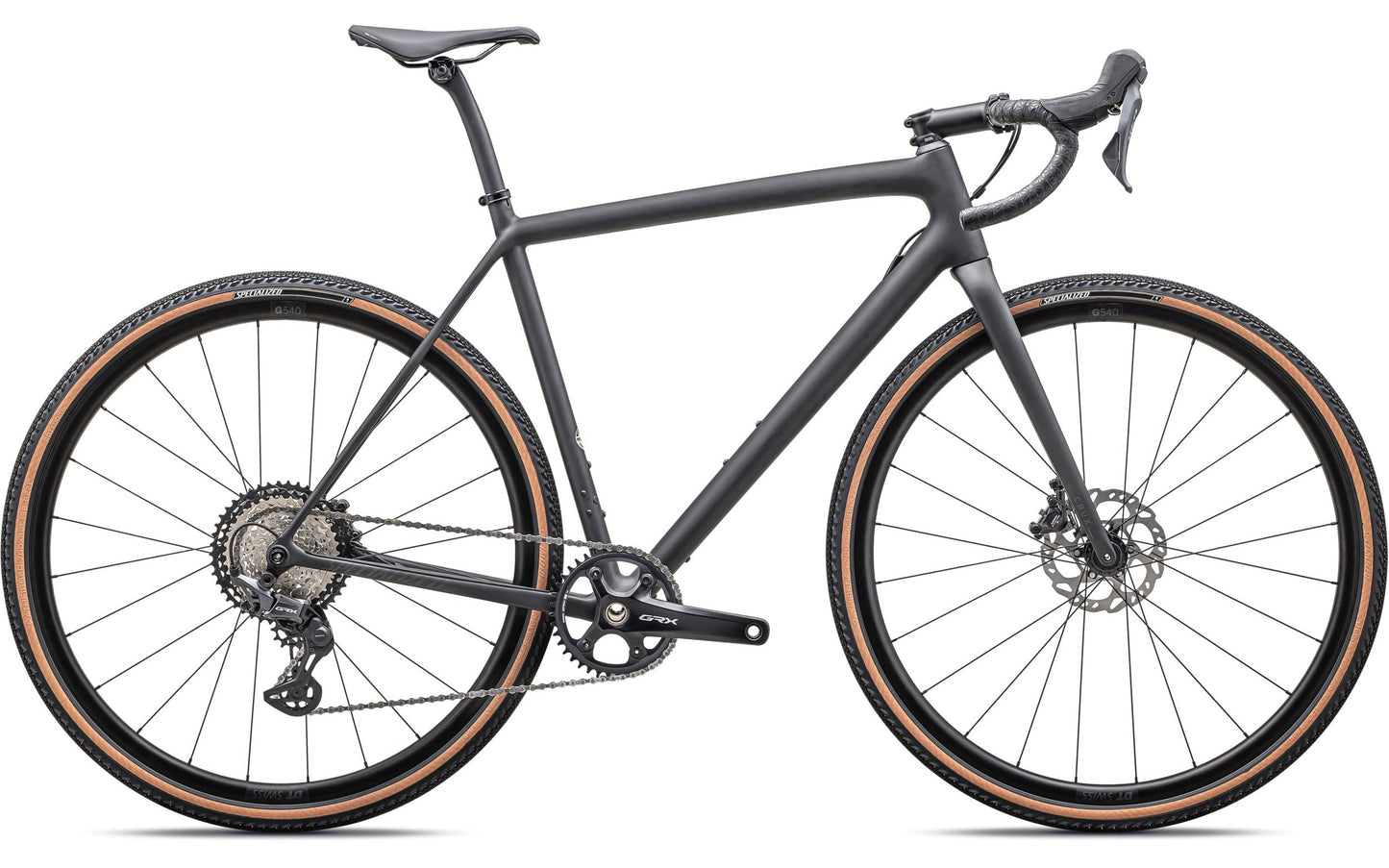

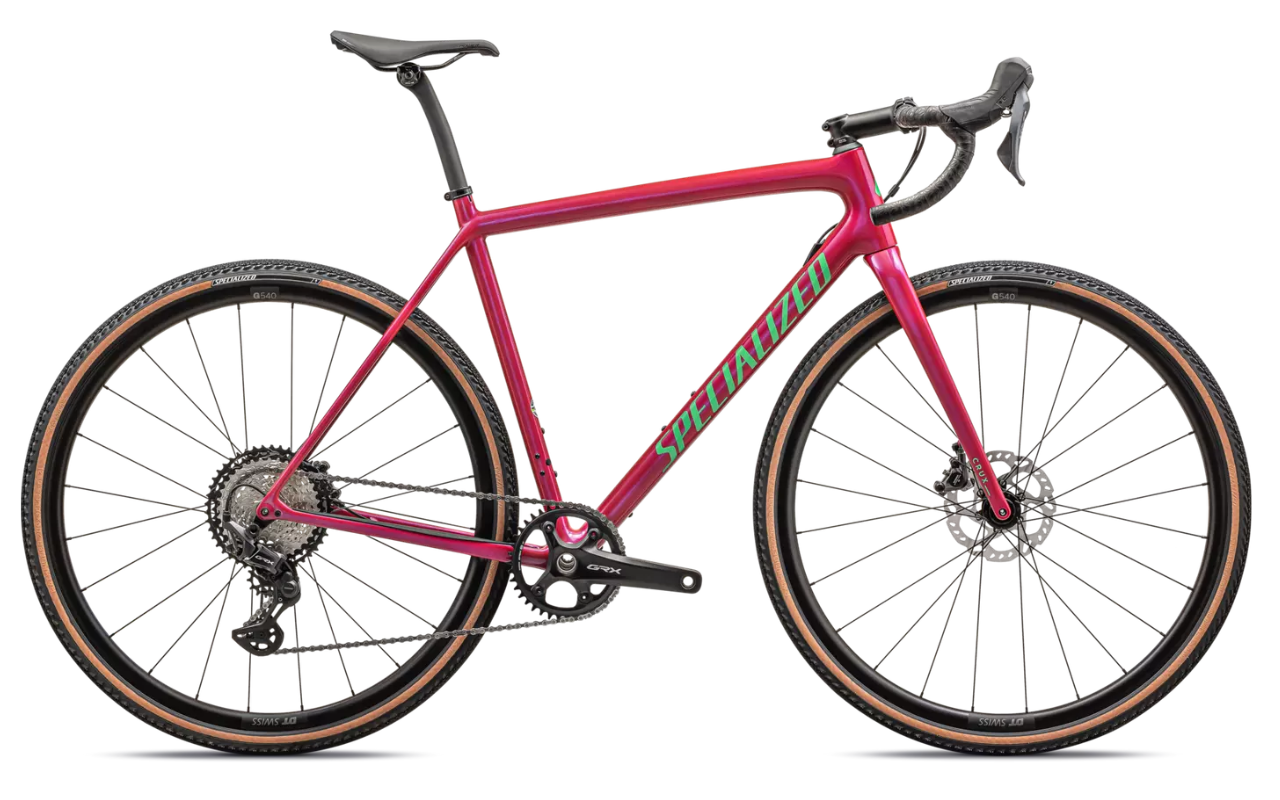

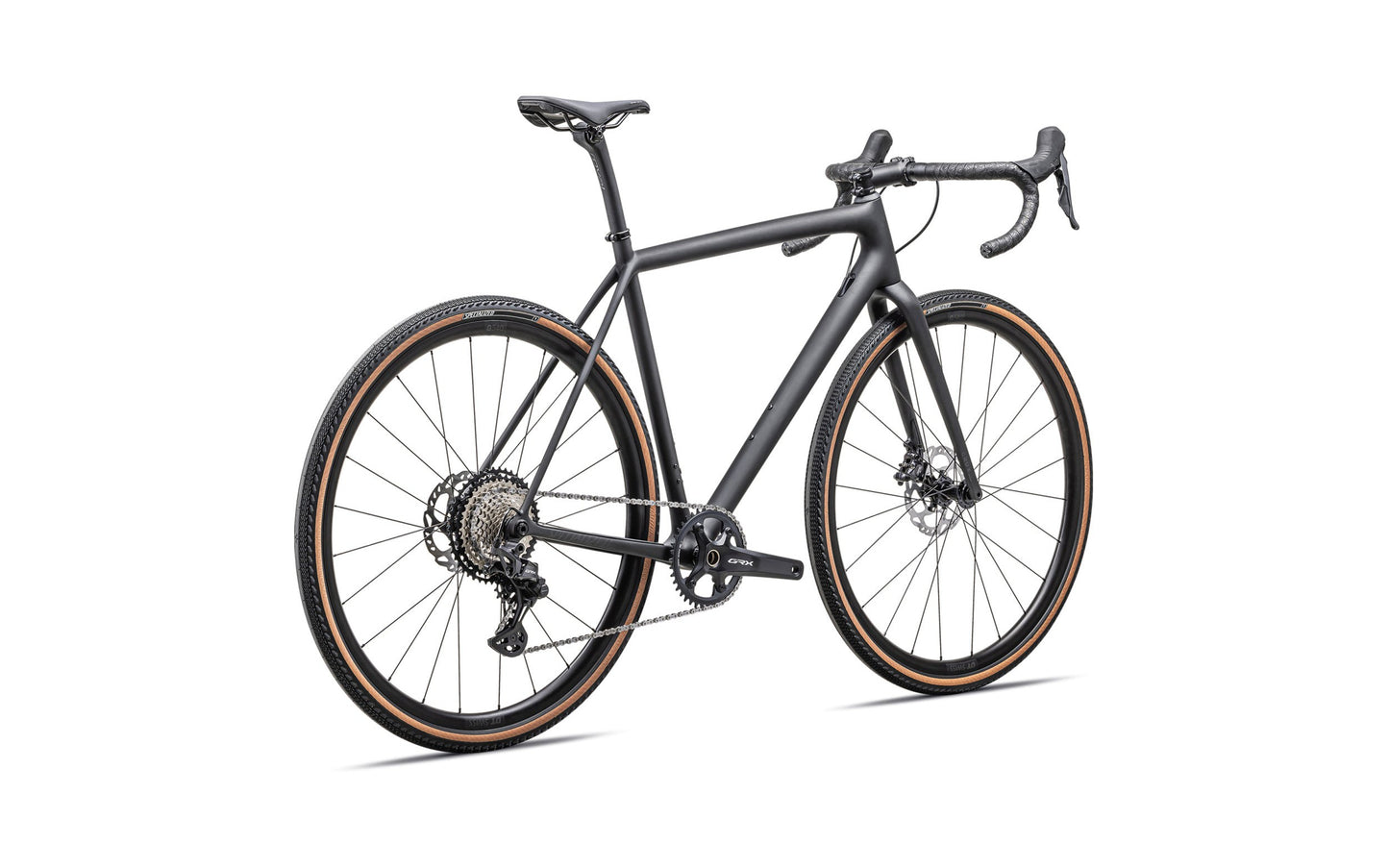

This Crux Comp comes spec'd with a reliable and smooth-shifting Shimano GRX 12-speed groupset, tough DT G540 Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.

  • Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
View full details

Technical Specifications

Frameset



Frame

Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout



Cockpit



Tape

Supacaz Super Sticky Kush

Stem

3D-forged alloy, 31.8mm, 7-degree rise

Handlebars

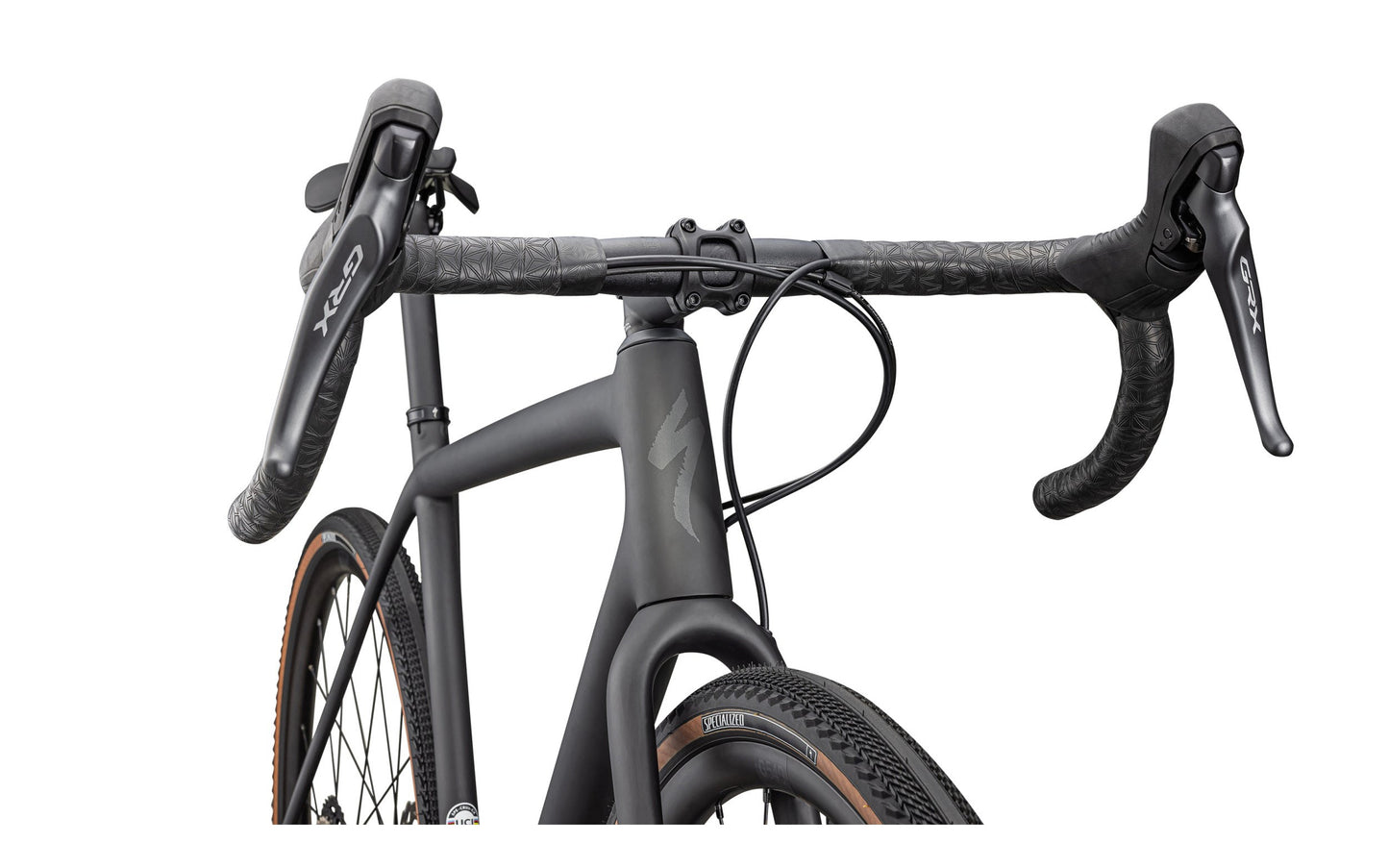

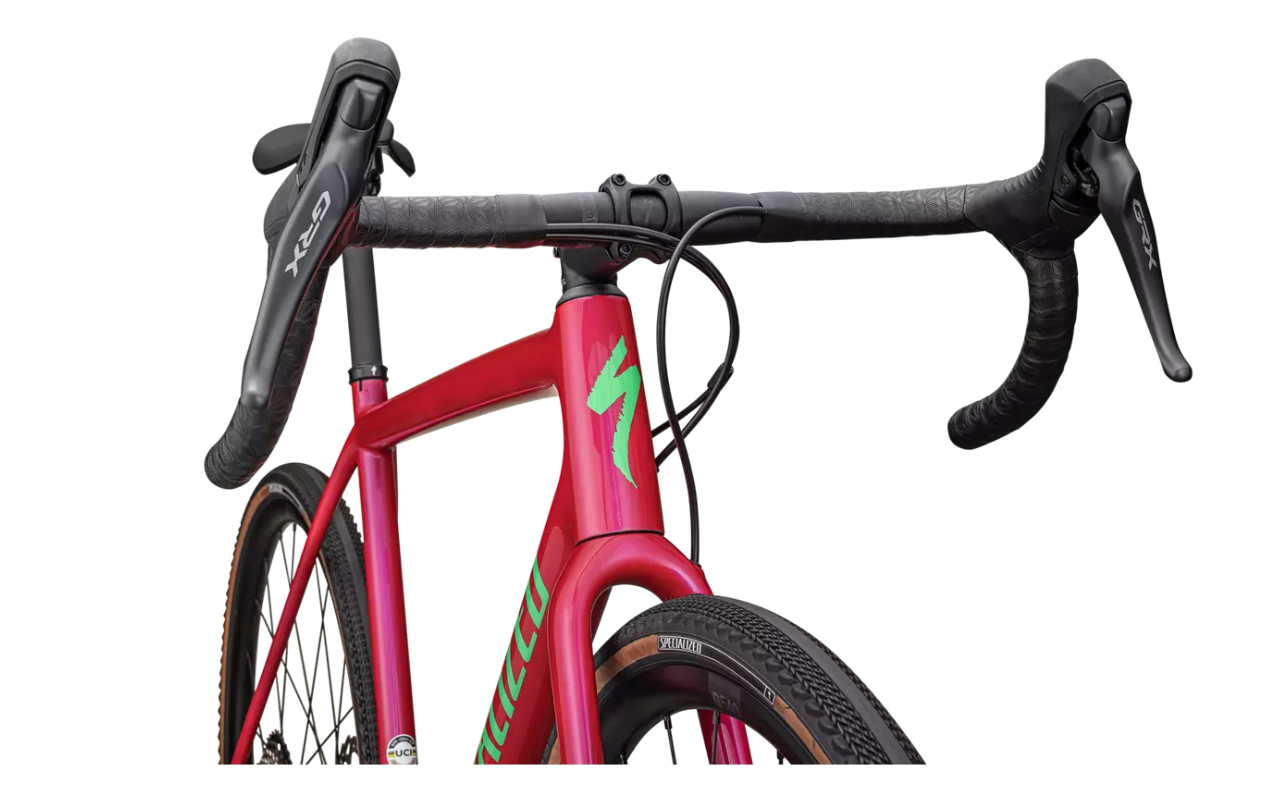

Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare

Saddle

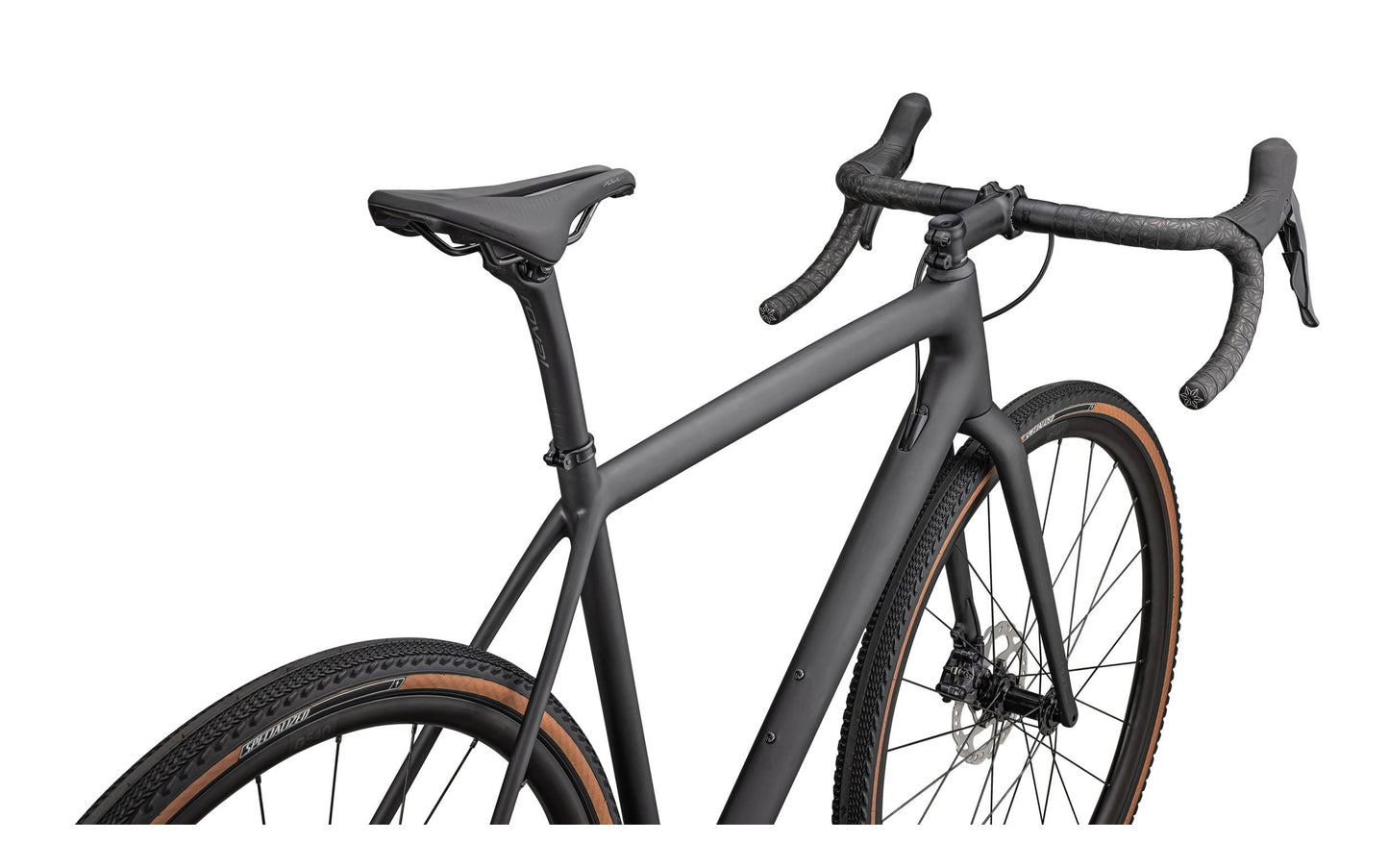

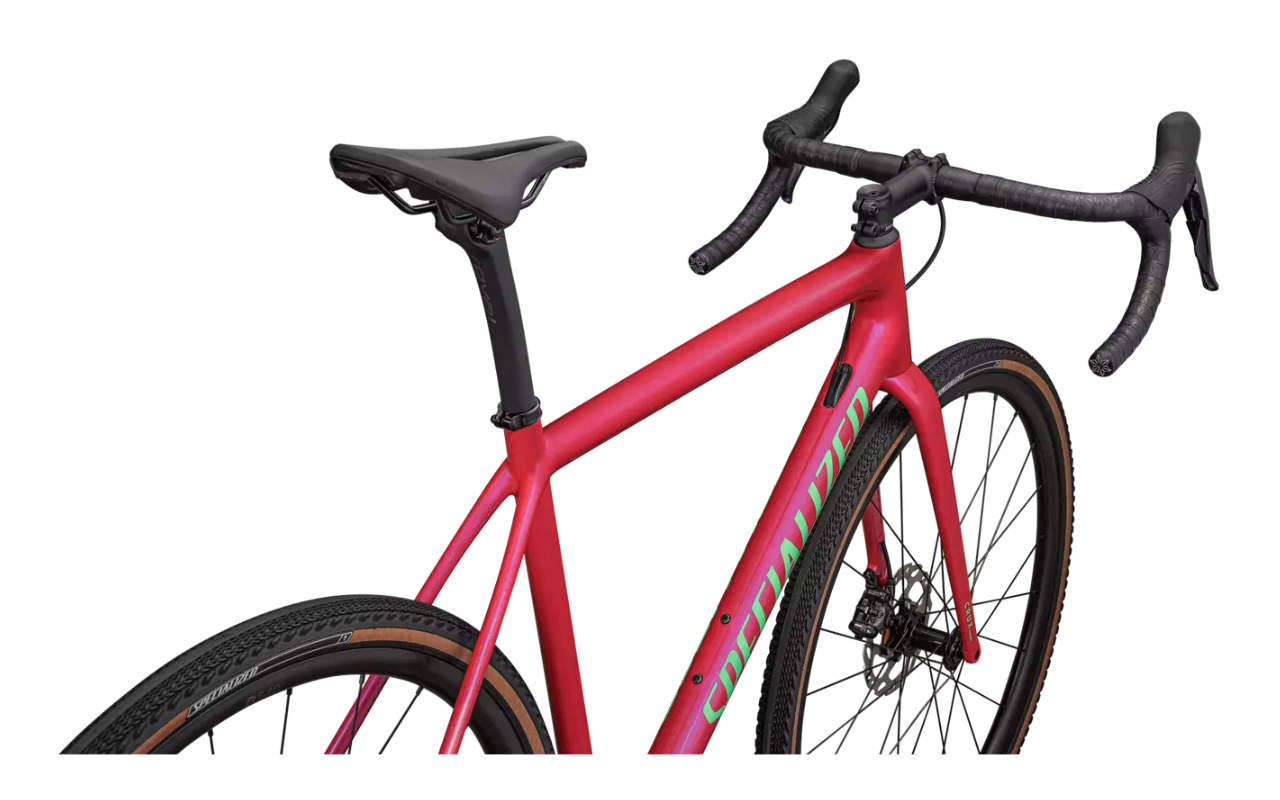

Body Geometry Power Sport, steel rails

SeatPost

Roval Terra Carbon Seat Post, 20mm Offset

Seat Binder

Specialized Alloy, 30mm



Suspension



Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc



Brakes



Front Brake

Shimano GRX RX820

Rear Brake

Shimano GRX RX820



Drivetrain



Shift Levers

Shimano GRX RX820, 1x12-speed

Rear Derailleur

Shimano GRX RX822-GS, 12-speed

Cassette

Shimano XT, 12-speed, 10-45t

Chain

Shimano XT M8100, 12-speed w/ quick link

Crankset

Shimano GRX RX820

Chainrings

40T

Bottom Bracket

Shimano Threaded BSA BB



Wheels & Tires



Front Wheel

DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Rear Wheel

DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Front Tire

Pathfinder Pro 2BR, Tan Sidewall, 700x38

Rear Tire

Pathfinder Pro 2BR, Tan Sidewall, 700x38

Inner Tubes

700x28/38mm, 48mm Presta valve



Product Details



Product ID

223483



Weight



Weight

8.55kg (18 lb, 13.6 oz)

Weight Size

56

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry



 495254565861
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Handlebar Width380mm400mm420mm420mm440mm440mm
Stem Length70mm80mm90mm100mm110mm110mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length330mm330mm330mm380mm380mm380mm
Stack530mm547mm560mm578mm598mm621mm
Reach375mm382mm388mm397mm405mm415mm
Head Tube Length100mm115mm130mm147mm167mm190mm
Head Tube Angle70.5°71.25°71.5°72°72.25°72.5°
BB Height284mm284mm286mm286mm286mm286mm
BB Drop74mm74mm72mm72mm72mm72mm
Trail74mm69mm67mm64mm62mm60mm
Fork Length, Full401mm401mm401mm401mm401mm401mm
Fork Rake/Offset50mm50mm50mm50mm50mm50mm
Front Center594mm600mm608mm618mm630mm644mm
Chainstay Length425mm425mm425mm425mm425mm425mm
Wheelbase1008mm1014mm1023mm1033mm1045mm1059mm
Top Tube Length, Horizontal512mm539mm549mm568mm582mm599mm
Bike Standover Height749mm772mm794mm816mm841mm866mm
Seat Tube Length466mm496mm521mm546mm576mm606mm
Seat Tube Angle75.5°74°74°73.5°73.5°73.5°
